Page 1001 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2E3±01 H09254 3 Clips Clip H09255 2 1 1 H07599 2 1 N20985 ± BODYBACK WINDOW GLASS BO±15 REMOVAL 1. REMOVE REAR SEAT CUSHION AND SEATBACK (See page BO±22) 2. REMOVE ROOF SIDE INNER GARNISH (a) Us

Page 1002 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H09266 Protective Tape H09258 Protective Tape BO±16 ± BODYBACK WINDOW GLASS 6. REMOVE BACK WINDOW GLASS (a) Disconnect the connector. (b) Push piano wire through from the interior. (c) Tie both wire

Page 1003 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2E4±01 BO4420 Adhesive BO5231 H09259 H09260 A H09261 ± BODYBACK WINDOW GLASS BO±17 INSTALLATION 1. CLEAN AND SHAPE CONTACT SURFACE OF BODY (a) Using a knife, cut away any rough areas on the body.

Page 1004 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO4421 H02865 Primer M Primer M Adhesive H09262 b±b a±aa a bb b b Primer G BO±18 ± BODYBACK WINDOW GLASS 6. CLEAN CONTACT SURFACE OF GLASS Using a cleaner, clean the contact surface which is black

Page 1005 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H09263 b±b a±aa a bb b b : AdhesiveAA B B H09264 H09265 ± BODYBACK WINDOW GLASS BO±19 9. APPLY ADHESIVE (a) Cut off the tip of the cartridge nozzle. Part No. 08850±00801 or equivalent HINT: After

Page 1006 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H09254 3 Clips Clip BO±20 ± BODYBACK WINDOW GLASS 14. INSTALL PACKAGE TRAY TRIM (a) Connect the connectors. (b) Install the package tray trim with the 2 screws. HINT: Before installing the package t

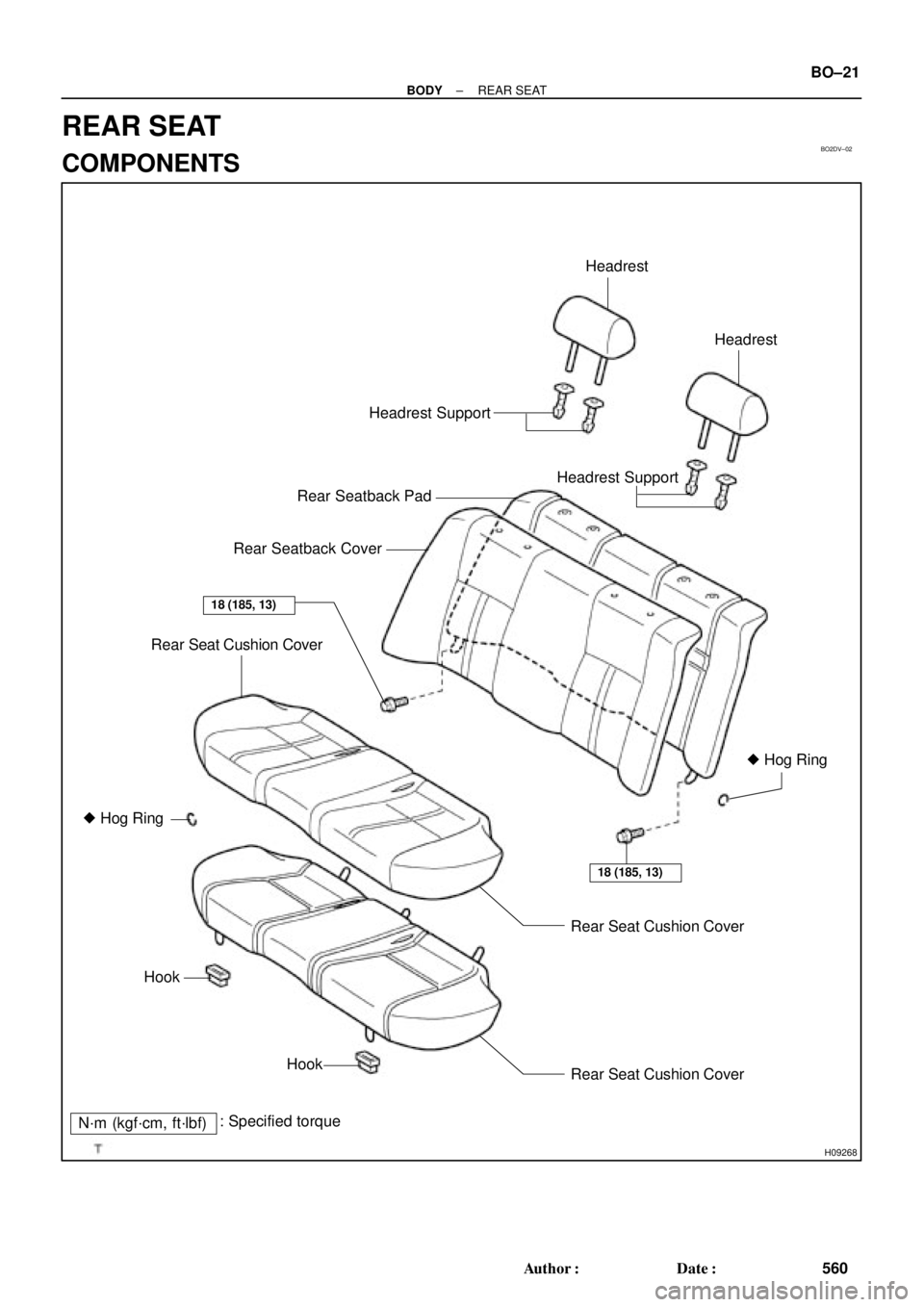

Page 1007 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2DV±02 H09268 Headrest SupportHeadrest Headrest Rear Seatback Pad Rear Seatback Cover Rear Seat Cushion Cover  Hog Ring HookRear Seat Cushion Cover Headrest Support Hook Rear Seat Cushion Cover 18

Page 1008 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2DW±01 BO±22 ± BODYREAR SEAT REMOVAL 1. REMOVE REAR SEAT CUSHION ASSEMBLY Pull up the front part of seat cushion assembly to remove the rear seat cushion assembly. HINT: When removing the rear se
