Page 697 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0151 BE±116 ± BODY ELECTRICALAUDIO SYSTEM 2336 Author: Date: (d) Using a fine tip brush, apply a small amount of the agent to the wire. (e) After a few minutes, remove the masking tape.

Page 698 of 4592

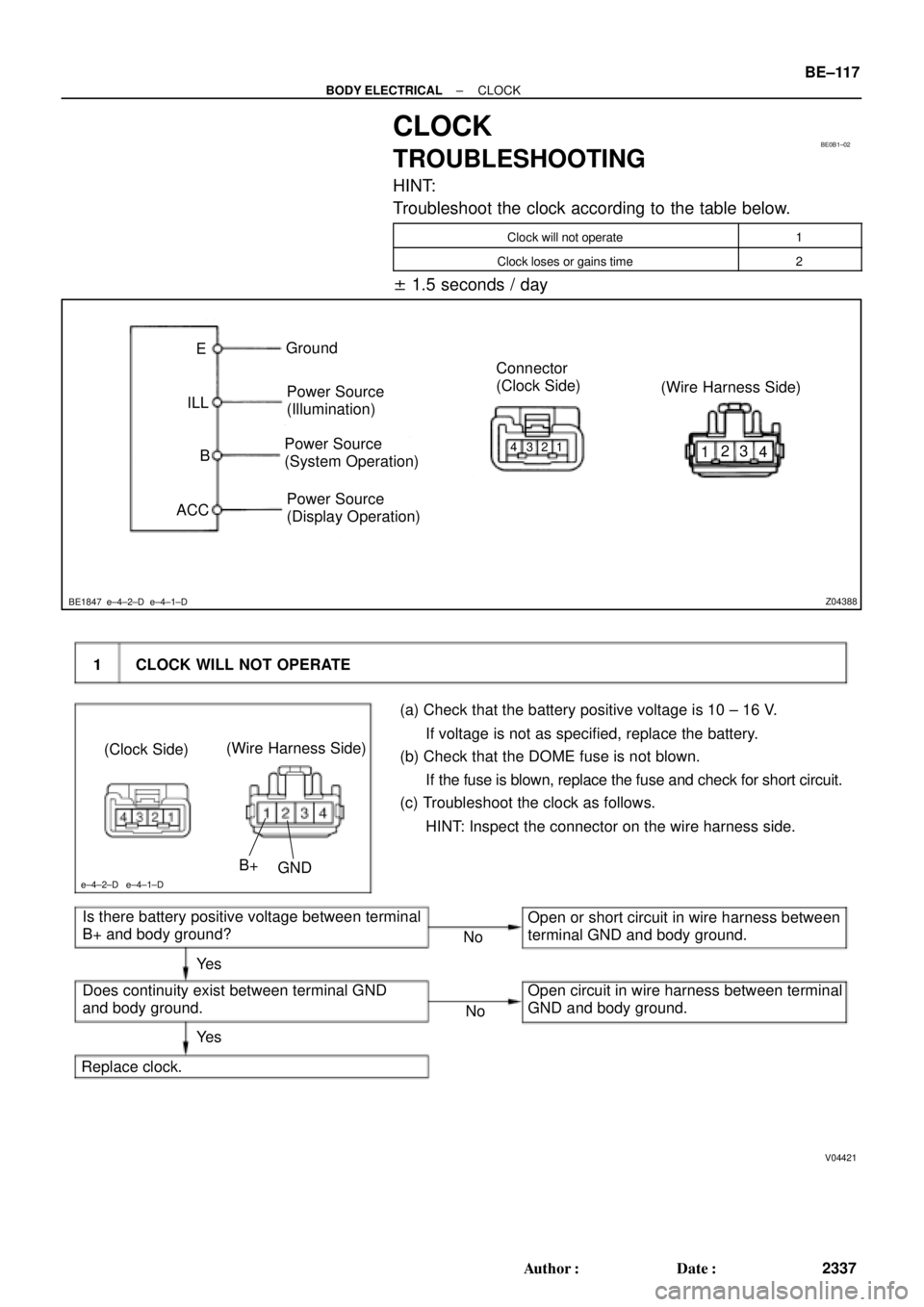

TOYOTA CAMRY 1999 Service Repair Manual BE0B1±02 Z04388 E ILL B ACC BE1847 e±4±2±D e±4±1±D Ground Power Source (Illumination) Power Source (System Operation) Power Source (Display Operation)Connector (Clock Side) (Wire Harness Side)

Page 699 of 4592

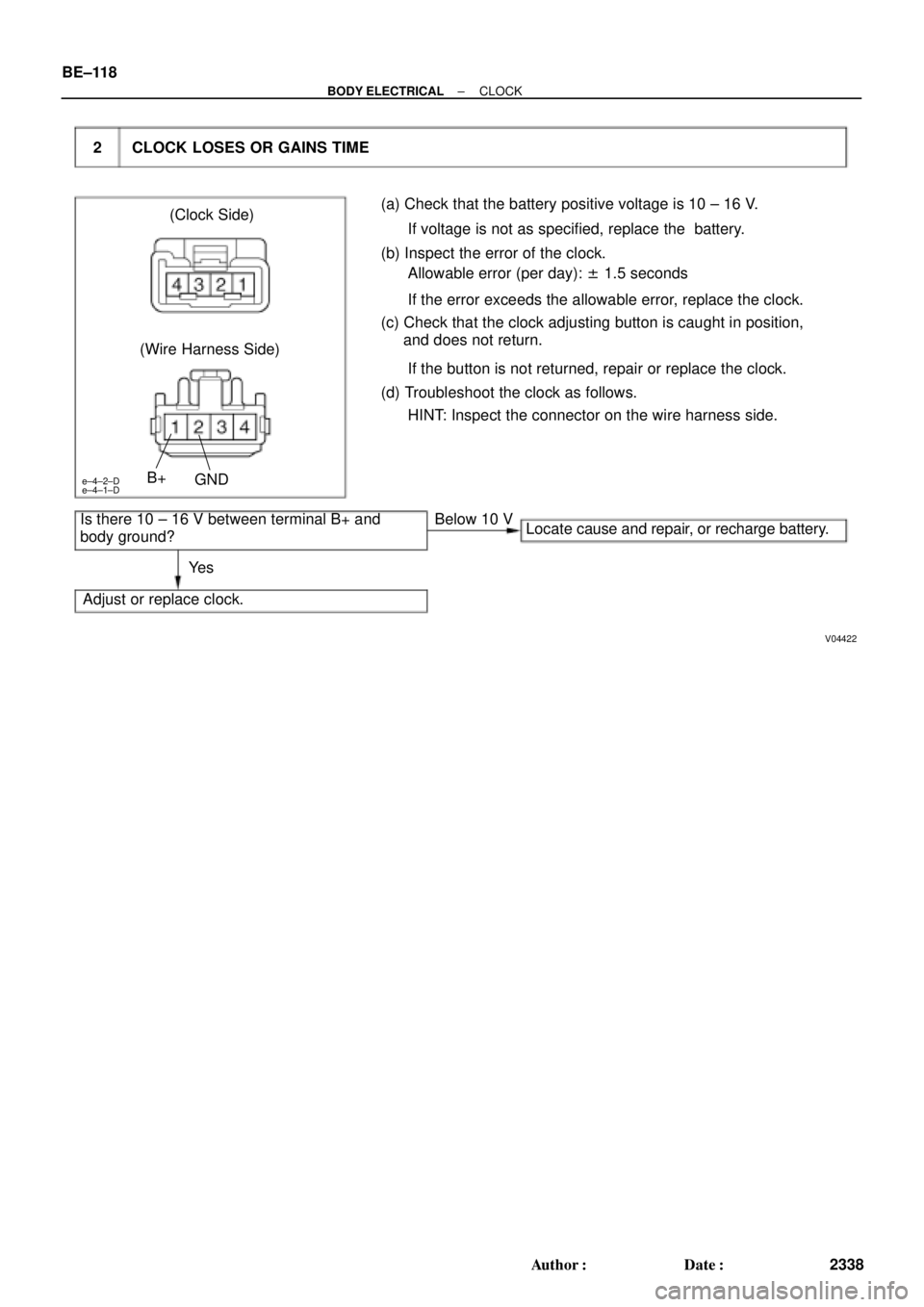

TOYOTA CAMRY 1999 Service Repair Manual V04422 2 CLOCK LOSES OR GAINS TIME (Clock Side) (Wire Harness Side) B+ GND e±4±2±D e±4±1±D (a) Check that the battery positive voltage is 10 ± 16 V. If voltage is not as specified, replace the

Page 700 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0B2±06 START Insert the key in the key cylinder. Under registration Registration completion Remove the key. Will you register the next key? NoSecurity indicator blinks until the first key is insert

Page 701 of 4592

TOYOTA CAMRY 1999 Service Repair Manual 1.2 Sec. 0.8 Sec. 0.25 Sec. 0.5 Sec.0.25 Sec. 1 Sec. Blinks Code 2±1 Code2±2 0.25 Sec. 0.25 Sec.0.5 Sec. 1 Sec. BE±120 ± BODY ELECTRICALENGINE IMMOBILISER SYSTEM 2340 Author: Date: HINT: When a

Page 702 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Will you register the next key? No Ye s Insert already registered master key in the key cylinder Depress and release the acceleration pedal 5 times. Depress and release the brake pedal 6 times, and re

Page 703 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Will you register the next key? Insert already registered master key in the key cylinder. Listing TOYOTA hand±held tester select master key reg- istration. Remove the master key. Insert key to be reg

Page 704 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Will you register the next key? No Ye s Insert already registered master key in the key cylinder Depress and release the acceleration pedal 4 times. Depress and release the brake pedal 5 times, and re
