± BODYFRONT WIPER AND WASHER
BO±37
2385 Author: Date:
ADJUSTMENT
1. INSPECT WASHER NOZZLE
(a) While operating the washer, check that the washer fluid
hits the windshield and the upsurge area within the
shaded areas.
U.S. mm (in.)Canada mm (in.), Approx.
ºAº280 (11)600 (23.6)
ºBº150 (5.9)150 (5.9)
ºCº50 (2.0)250 (9.8)
ºDº50 (2.0) Max
ºEº180 (7.1)360 (14)
ºFº395 (15.5)114 (4.5)
ºGº 90 (3.5)
ºHº 474 (18.7)
ºIº 350 (13.8)
(b) Canadian models:
Adust the nozzle so the outboard points ºaº and ºbº are
within the wipe pattern.
(c) Check if the lower point where the washer fluid hits the
windshield is within the range of the wiping pattern (the
area of the glass the wiper blades wipe).
2. ADJUST WASHER NOZZLE
Using a tool like that shown in the illustration, rotate the nozzle
to adjust the fluid direction against the windshield.
Page 882 of 4592
BO0LN±01
N20998
H01772
ºAººAº
Cowl Louver Edge
BO±38
± BODYFRONT WIPER AND WASHER
2386 Author: Date:
INSTALLATION
1. INSTALL WINDOW WASHER NOZZLE
2. INSTALL WIPER LINK TO MOTOR
3. INSTALL THESE PARTS:
(a) Wiper motor assembly
Torque: 5.5 N´m (55 kgf´cm, 49 in.´lbf)
(b) Cowl louvers and weatherstrip
4. INSTALL WIPER ARMS
(a) Operate the wipers once and turn the wiper switch OFF,
then install the wiper arms.
HINT:
If the driver's side wiper arm mount has a blue dot on it, use an
ITT wiper arm. If there is no mark, use a ND wiper arm.
(b) Adjust the installation position of the wiper arms as shown
(blade tip to cowl louver edge).
ºAº Approx. 35 mm (1.4 in.)
(c) Tighten the wiper arm nut.
Torque: 24 N´m (245 kgf´cm, 18 ft´lbf)
Page 883 of 4592
BO0M8±01
N22598
Front Door
Outside Moulding
Front Fender
Outside Moulding
Rear Door Outside MouldingFront Quarter
Outside MouldingRear Quarter
Outside Moulding
± BODYBODY OUTSIDE MOULDING
BO±39
2387 Author: Date:

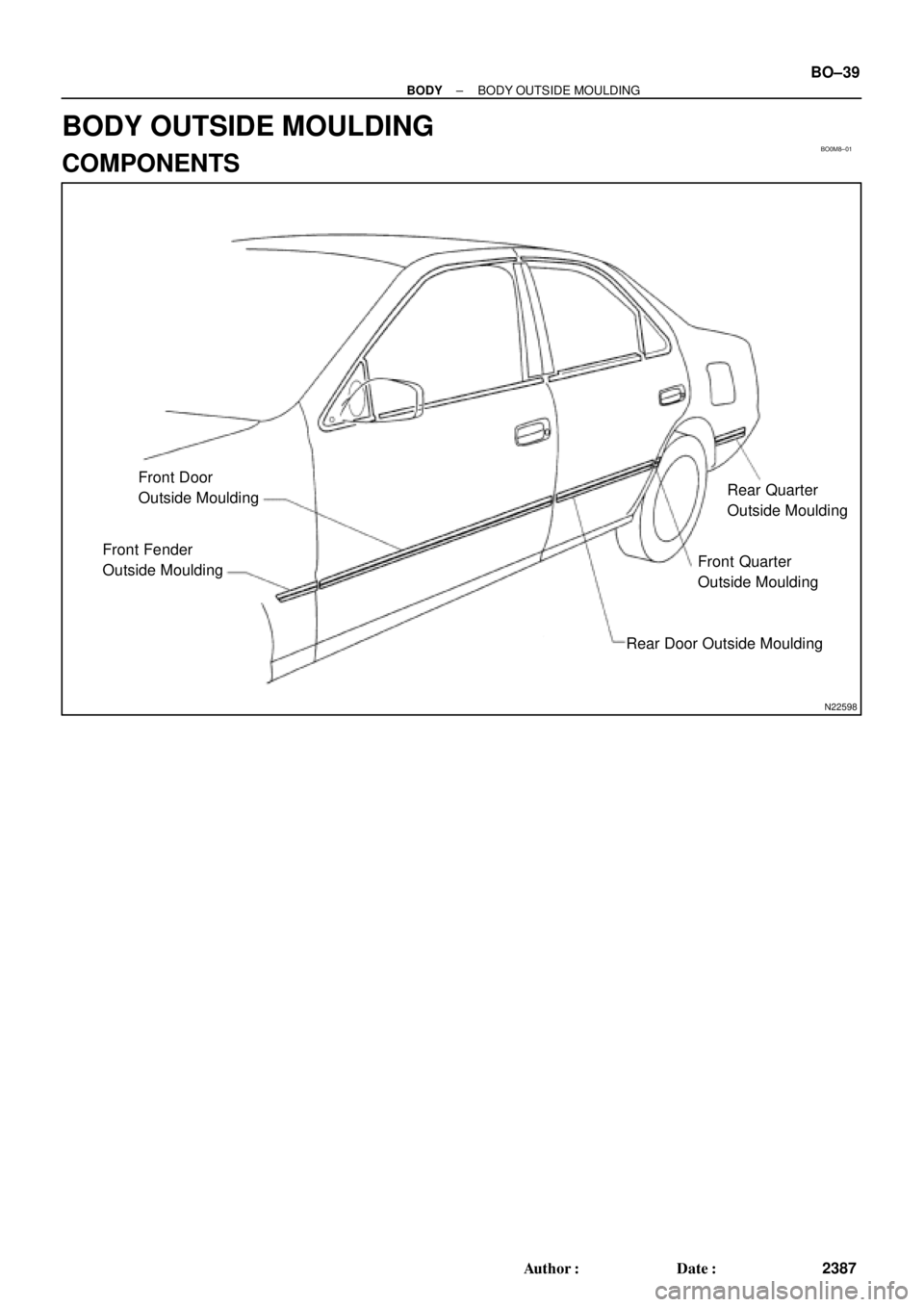

BODY OUTSIDE MOULDING
COMPONENTS
Page 884 of 4592
BO0M9±01
H01782
H01783
BO±40
± BODYBODY OUTSIDE MOULDING
2388 Author: Date:
REMOVAL
CAUTION:
Store in a cool place, avoiding direct sunlight, high
temperature and dust.
The moulding is made of polyvinyl chloride. Do not al-
low this material to come in contact with thinner or
other solvents, open flame or boiling water.
The storage time for the moulding and adhesive is
limited to about 9 months.
1. REMOVE ENDS OF MOULDING
Using a scraper, pry the moulding loose about 30 mm (1.18 in.)
form each end.
HINT:
Tape the scraper tip before using.
2. REMOVE MOULDING AND ADHESIVE
(a) Pull off the moulding by cutting the adhesive with a knife.
(b) Scrape off adhesive from the body with sandpaper cutter.
NOTICE:
Remember that 30 ± 80 mm (1.18 ± 3.15 in.) of the ends
of the moulding are glued tightly with a strong adhe-
sive.
Do not reuse moulding.
Page 885 of 4592

BO0MA±01
BO6675
N19058
H01884
Adhesive TapeAdhesive Tape
N22643
± BODYBODY OUTSIDE MOULDING
BO±41
2389 Author: Date:
INSTALLATION
1. HEAT BODY MOUNTING SURFACE
(a) Using a heat light, heat the body mounting surface to
40 ± 60 °C (104 ± 140 °F).
NOTICE:
Do not heat body excessively.
(b) Remove the adhesive tape from the body.
(c) Wipe off stains with cleaner.
2. CLEAN MOULDING
If reusing the moulding:
(a) Using a heat light, heat the moulding to 20 ± 30 °C (68 ±
86 °F).
NOTICE:
Do not heat moulding excessively.
(b) Remove the adhesive tape from the moulding.
(c) Wipe off stains with cleaner.
(d) Apply a new adhesive tape to moulding as shown in the
illustration.
3. INSTALL MOULDING
(a) Using a heat light, heat the body and moulding.
Body: 40 ± 60 °C (104 ± 140 °F)
Moulding: 20 ± 30 °C (68 ± 86 °F)
NOTICE:
Do not heat moulding excessively.
(b) Lift moulding release sheet from face of moulding.
NOTICE:
When the moulding release sheet is removed, make sure
that no dirt or dust can get onto the uncoated area.
(c) Align the bosses with their corresponding holes in the
body, and press firmly on the moulding. Refer to the il-
lustration for the front fender moulding application proce-
dures.
NOTICE:
Do not apply excessive force onto the moulding, but steady
pressure with your thumbs.
Page 886 of 4592
BO0LO±01
N20947
Front Pillar GarnishWeatherstripSun VisorInside Rear
View Mirror Map Light Assem-
bly
Sun Visor
Holder
Windshield
Glass
Windshield Upper Moulding
Weatherstrip Stopper
Dam
Windshield
Outside
Moulding
Wiper Arm
Cowl Louver RH
Weatherstrip
24 (245, 18)
Cowl Louver LHWindshield
Outside
MouldingFront Pillar Garnish
Hood
N´m (kgf´cm, ft´lbf): Specified torque BO±42
± BODYWINDSHIELD
2390 Author: Date:

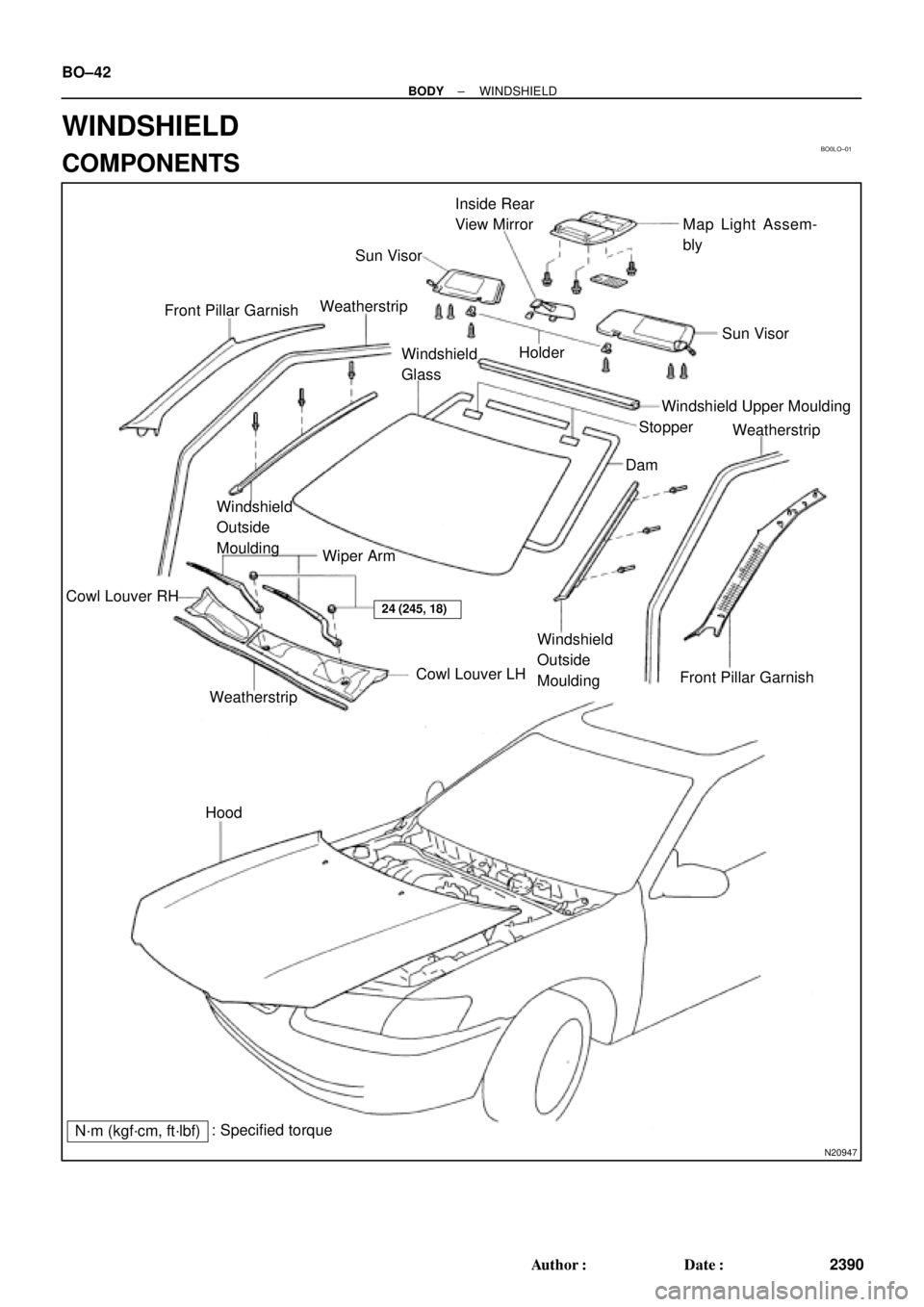

WINDSHIELD
COMPONENTS
Page 887 of 4592

BO0LP±01
N20982
N20983
BO5232
± BODYWINDSHIELD
BO±43
2391 Author: Date:
REMOVAL
1. REMOVE THESE PARTS:
(a) Inner rear view mirror
(b) Sun visors and holders
(c) Map light assembly
(d) Front pillar garnishes
(e) Hood
(f) Wiper arms
(g) Cowl louvers
(h) Weatherstrips
2. REMOVE WEATHERSTRIP
Remove the weatherstrip by pulling.
HINT:
Remove only the front half of weatherstrip.
3. REMOVE WINDSHIELD OUTSIDE MOULDING
(a) Using a drill of less than ù 5.0 mm (0.20 in.), drill out the
rivet heads and remove the moulding.
(b) Using a vacuum cleaner, remove the drill rivet and their
dust from the inside of the door.
CAUTION:
The cut rivet and rivet cutter will be not, avoid touching
them.
NOTICE:
Do not jiggle the rivet cutter while cutting.You may enlarge
the rivet hole or damage the rivet cutter.
HINT:
Do not drill the body.
Sealant may cause the moulding to stick to the glass. If neces-
sary, separate from the glass using a knife.
4. REMOVE WINDSHIELD UPPER MOULDING
Using a knife, cut off the moulding as shown.
NOTICE:
Do not damage the body with the knife.
5. REMOVE WINDSHIELD GLASS
(a) Push piano wire through between the body and glass
from the interior.
(b) Tie both wire ends to a wooden block or a similar object.
HINT:
Apply adhesive tape to the outer surface to prevent scratching.
Page 888 of 4592
BO1689
BO±44
± BODYWINDSHIELD
2392 Author: Date:
NOTICE:
When separating the glass, be careful not to damage the
paint and interior and exterior ornaments. To prevent
scratching the safety pad when removing the windshield,
place a plastic sheet between the piano wire and safety
pad.
(c) Cut the adhesive by pulling the piano wire around it.
(d) Remove the glass.
NOTICE:
Leave as much of the adhesive on the body as possible
when removing the glass.
6. REMOVE RETAINERS
