Page 1513 of 4592

TOYOTA CAMRY 1999 Service Repair Manual S05410 Vacuum EGR Valve ± DIAGNOSTICSENGINE (1MZ±FE) DI±301 536 Author: Date: 7 Check EGR valve. PREPARATION: (a) Disconnect the vacuum hose from EGR valve. (b) Start the engine. CHECK: Check wh

Page 1514 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI±302 ± DIAGNOSTICSENGINE (1MZ±FE) 537 Author: Date: DTC P0402 Exhaust Gas Recirculation Flow Excessive Detected (Ex CA Spec.) CIRCUIT DESCRIPTION Refer to DTC P0401 (Exhaust Gas Recirculation

Page 1515 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± DIAGNOSTICSENGINE (1MZ±FE) DI±303 538 Author: Date: 3 Check operation of VSV for EGR (See page SF±56). NG Replace VSV for EGR. OK Check for short in harness between VSV for EGR and ECM (See p

Page 1516 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI±304 ± DIAGNOSTICSENGINE (1MZ±FE) 539 Author: Date: 2 Check VSV for EGR (See page DI±292, step 5). OK Go to step 4. NG 3 Check operation of VSV for EGR (See page SF±56). NG Replace VSV for

Page 1517 of 4592

TOYOTA CAMRY 1999 Service Repair Manual FI7081 Waveform of Oxygen Sensor before CatalystNormal Catalyst Waveform of Oxygen Sensor after Catalyst FI7132 Engine Speed 2,500 ~ 3,000 rpm Idling IG SW OFF(a)(b)(c) (d) Time Warmed up 3 min. or so

Page 1518 of 4592

TOYOTA CAMRY 1999 Service Repair Manual FI6514 OX Signal Waveform (Oscilloscope) 1 V 0 V 200 m sec./Division DI±306 ± DIAGNOSTICSENGINE (1MZ±FE) 541 Author: Date: (a) Connect the TOYOTA hand±held tester to the DLC3, or connect the pr

Page 1519 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± DIAGNOSTICSENGINE (1MZ±FE) DI±307 542 Author: Date: 3 Check heated oxygen sensor (bank 1, sensor 1) (See page DI±255). NG Repair or replace. OK 4 Check heated oxygen sensors (bank 1, 2 sensor

Page 1520 of 4592

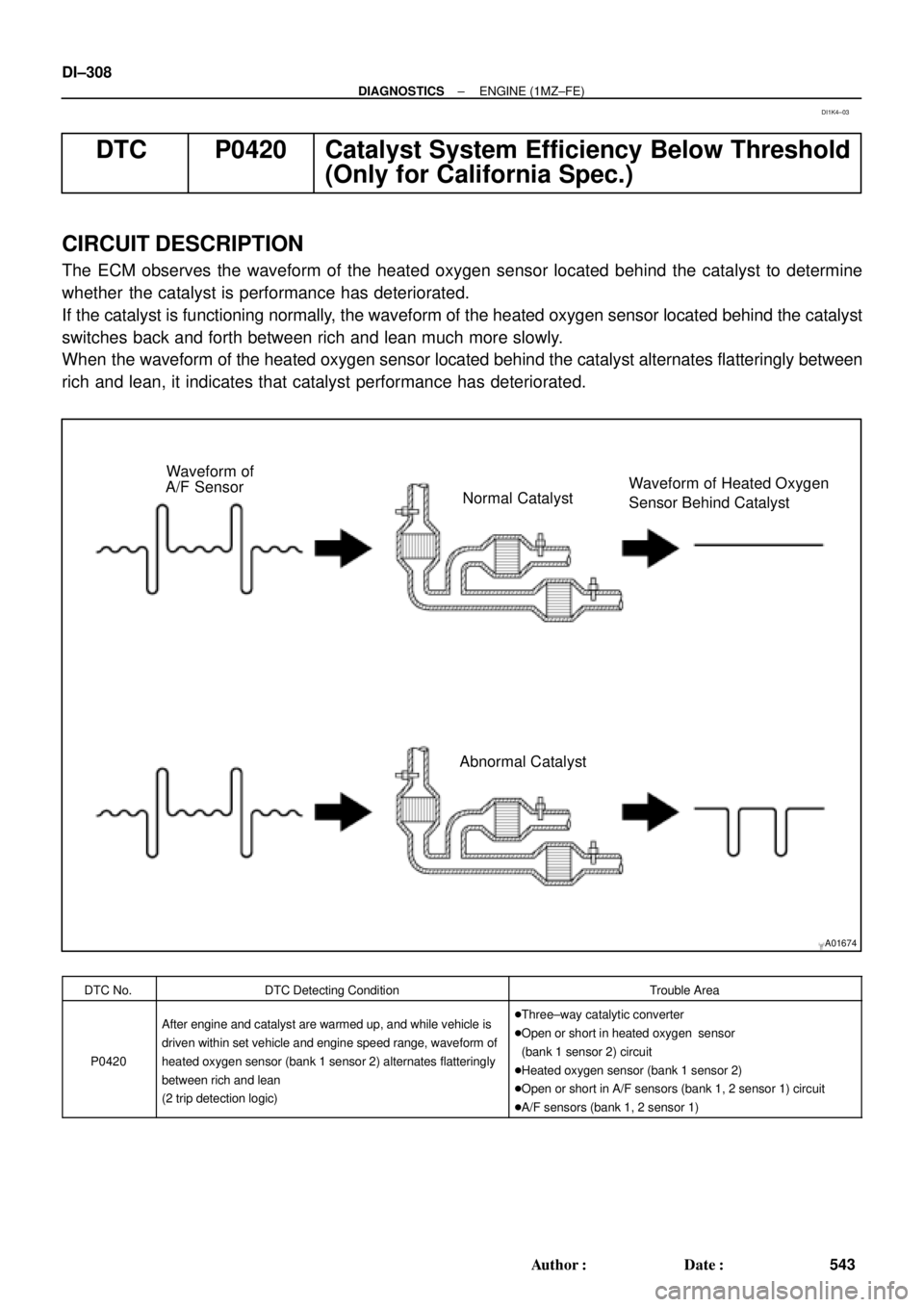

TOYOTA CAMRY 1999 Service Repair Manual A01674 Waveform of A/F Sensor Normal CatalystWaveform of Heated Oxygen Sensor Behind Catalyst Abnormal Catalyst DI±308 ± DIAGNOSTICSENGINE (1MZ±FE) 543 Author: Date: DTC P0420 Catalyst System Eff
