ADJUSTMENT
1. ADJUST DOOR IN FORWARD/REARWARD AND VER-
TICAL DIRECTION
(a) Remove the front part of the rear seat side garnish.
(b) Remove the rear part of the front door inside scuff plate.
(c) Remove the center pillar lower garnish.
HINT:
Pull both sides of the top and bottom part of the garnish out-
ward, then pull out to remove the garnish.
(d) Loosen the body side hinge nuts to adjust.
Torque: 26 N´m (260 kgf´cm, 19 ft´lbf)
(e) Install center pillar lower garnish.
(f) Install front door inside scuff plate.
(g) Install rear seat side garnish.
2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL
DIRECTIONS
Loosen the door side hinge bolts to adjust.
HINT:
Substitute a bolt with washer for the centering bolt.
Torque: 26 N´m (260 kgf´cm, 19 ft´lbf)
3. ADJUST DOOR LOCK STRIKER
(a) Check that the door fit and door lock linkages are adjusted
correctly.
(b) Loosen the striker mounting screws to adjust.
Torque: 23 N´m (230 kgf´cm, 17 ft´lbf)
(c) Using a plastic hammer, tap the striker to adjust it.
Page 866 of 4592
BO0L9±01
BO±22
± BODYREAR DOOR
2370 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly (See page BO±18).
Page 867 of 4592
BO0LA±01
H01758
Outside Rear View Mirror
Cover
Door Trim
N´m (kgf´cm, ft´lbf) : Specified Torque
5.5 (55, 49 in.´lbf)
± BODYOUTSIDE REAR VIEW MIRROR
BO±23
2371 Author: Date:
OUTSIDE REAR VIEW MIRROR

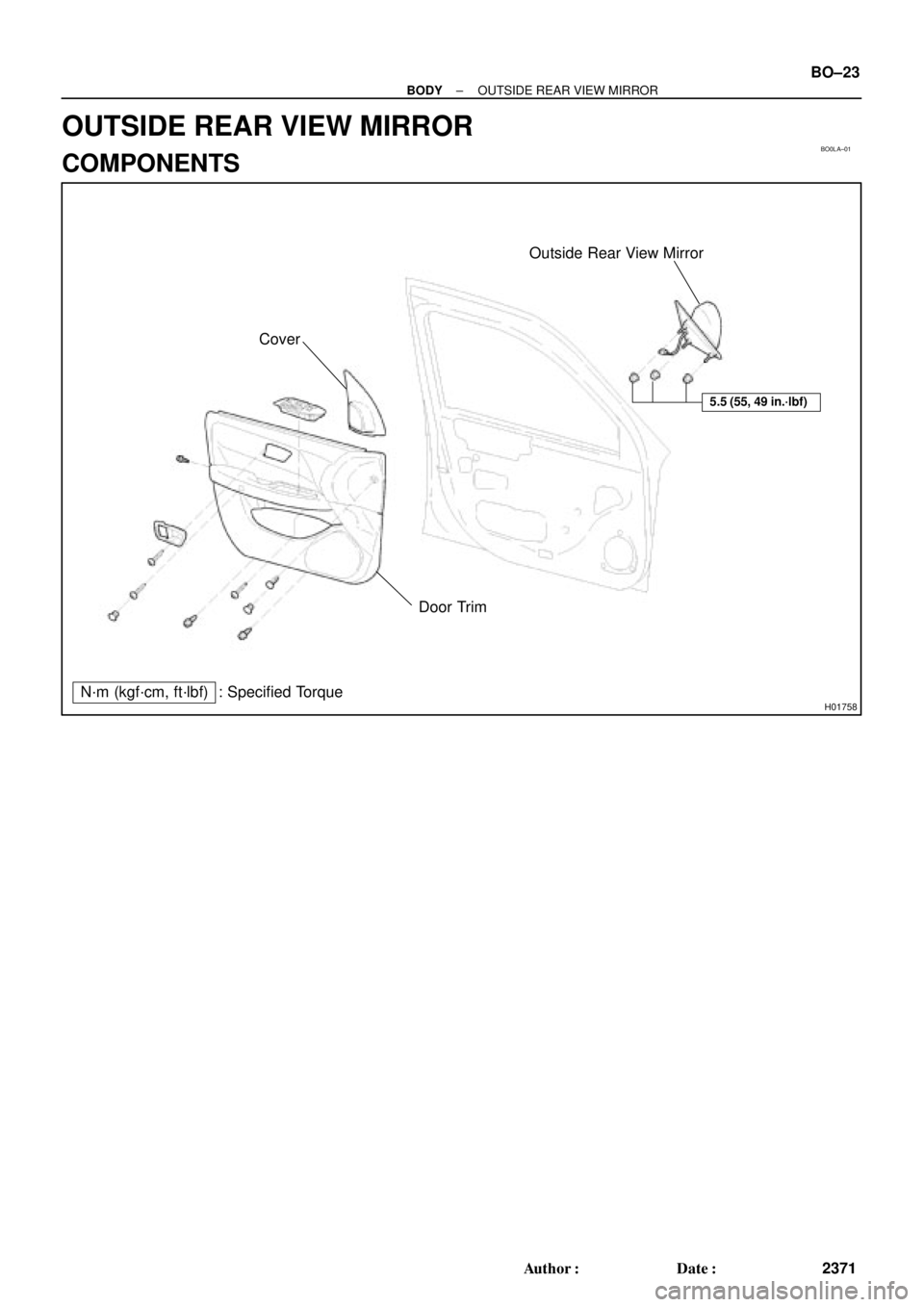

COMPONENTS
Page 868 of 4592

H01759
UTA: IMI:
TOKAIRIKA:
Mirror
Mirror Shell
Gasket
Mirror w/case
Wire Retainer
Mirror w/case
Clip X4
BO0LB±01
H01760
Mirror w/caseGasket
Mirror HousingWire Retainer
H01761
Pivot Mirror Housing Forward
H01762
Mirror
Glass
Terminals
Mirror CaseScraper BO±24
± BODYOUTSIDE REAR VIEW MIRROR
2372 Author: Date:

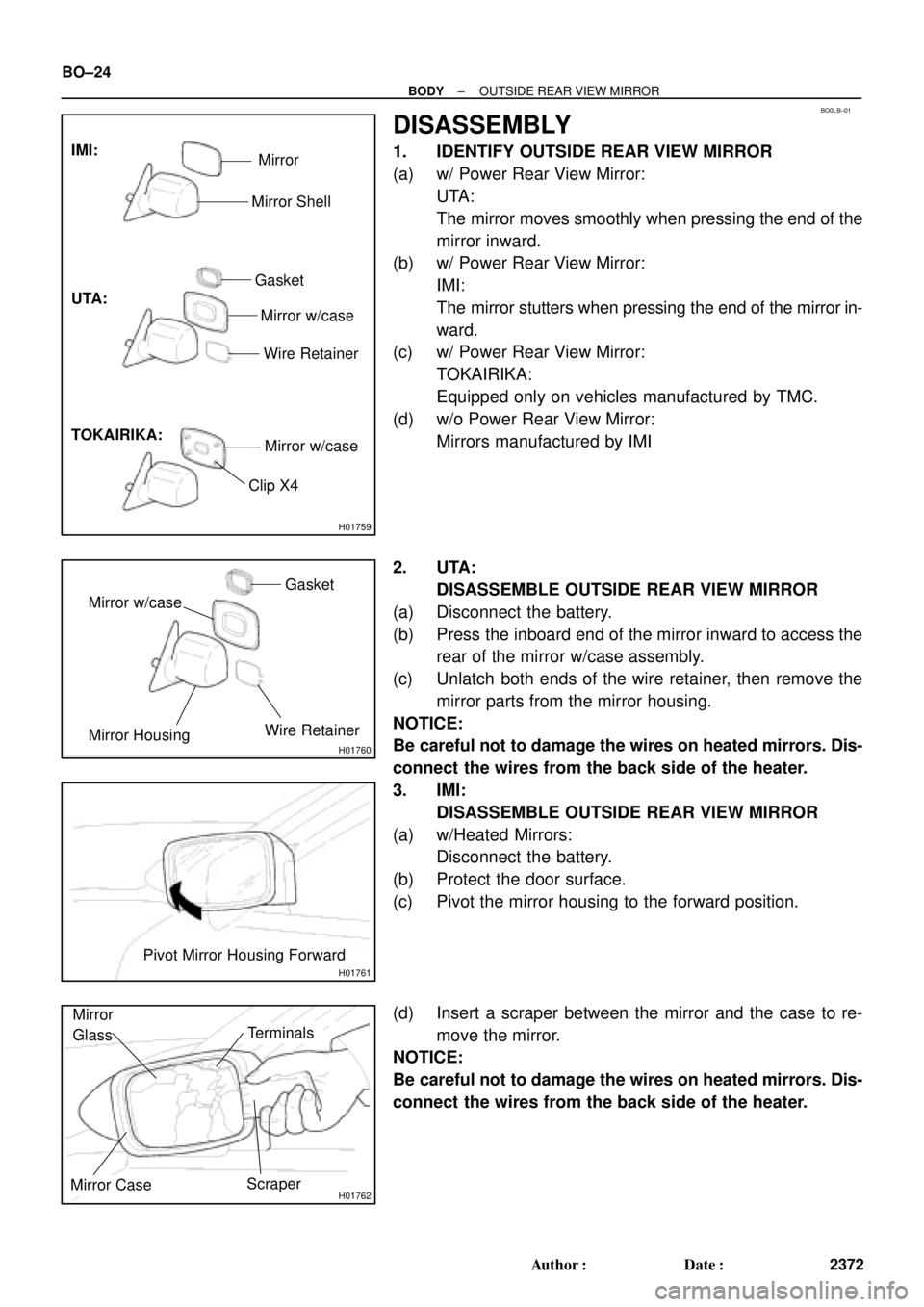

DISASSEMBLY
1. IDENTIFY OUTSIDE REAR VIEW MIRROR
(a) w/ Power Rear View Mirror:
UTA:
The mirror moves smoothly when pressing the end of the
mirror inward.
(b) w/ Power Rear View Mirror:
IMI:
The mirror stutters when pressing the end of the mirror in-
ward.
(c) w/ Power Rear View Mirror:
TOKAIRIKA:
Equipped only on vehicles manufactured by TMC.
(d) w/o Power Rear View Mirror:
Mirrors manufactured by IMI
2. UTA:
DISASSEMBLE OUTSIDE REAR VIEW MIRROR
(a) Disconnect the battery.
(b) Press the inboard end of the mirror inward to access the
rear of the mirror w/case assembly.
(c) Unlatch both ends of the wire retainer, then remove the
mirror parts from the mirror housing.
NOTICE:
Be careful not to damage the wires on heated mirrors. Dis-
connect the wires from the back side of the heater.
3. IMI:
DISASSEMBLE OUTSIDE REAR VIEW MIRROR
(a) w/Heated Mirrors:
Disconnect the battery.
(b) Protect the door surface.
(c) Pivot the mirror housing to the forward position.
(d) Insert a scraper between the mirror and the case to re-
move the mirror.
NOTICE:
Be careful not to damage the wires on heated mirrors. Dis-
connect the wires from the back side of the heater.
Page 869 of 4592
H01763
Mirror
Housing
Shop Towel
± BODYOUTSIDE REAR VIEW MIRROR
BO±25
2373 Author: Date:
4. TOKAIRIKA:
DISASSEMBLE OUTSIDE REAR VIEW MIRROR
(a) Disconnect the battery.
(b) Slide a shop towel between the mirror and the mirror
housing as shown.
(c) Pull the ends of the shop towel upward to disconnect the
mirror from the housing.
(d) Pull the mirror upward and disconnect it.
NOTICE:
Be careful not to damage the wires on heated mirrors. Dis-
connect the wires from the back side of the heater.
Page 870 of 4592

H01764
Gasket
Mirror w/case
Mirror HousingWire Retainer
BO0LC±01
H01765
50±60 mm
H01766
Glass
Case
Edge
H01767
Claw BClaw A BO±26
± BODYOUTSIDE REAR VIEW MIRROR
2374 Author: Date:
REASSEMBLY
1. UTA:
ASSEMBLE OUTSIDE REAR VIEW MIRROR
(a) w/Heated Mirrors:
Connect the heater wires.
(b) Install the wire retainer onto the mirror w/case assembly,
then press the mirror firmly into place to engage the 6 lugs
of the wire retainer.
NOTICE:
Pull the mirror edges to confirm the wire retainer lugs com-
pletely engage with the mirror housing.
(c) Reconnect the battery, then operate the mirror to its full
stop position.
2. IMI:
ASSEMBLE OUTSIDE REAR VIEW MIRROR

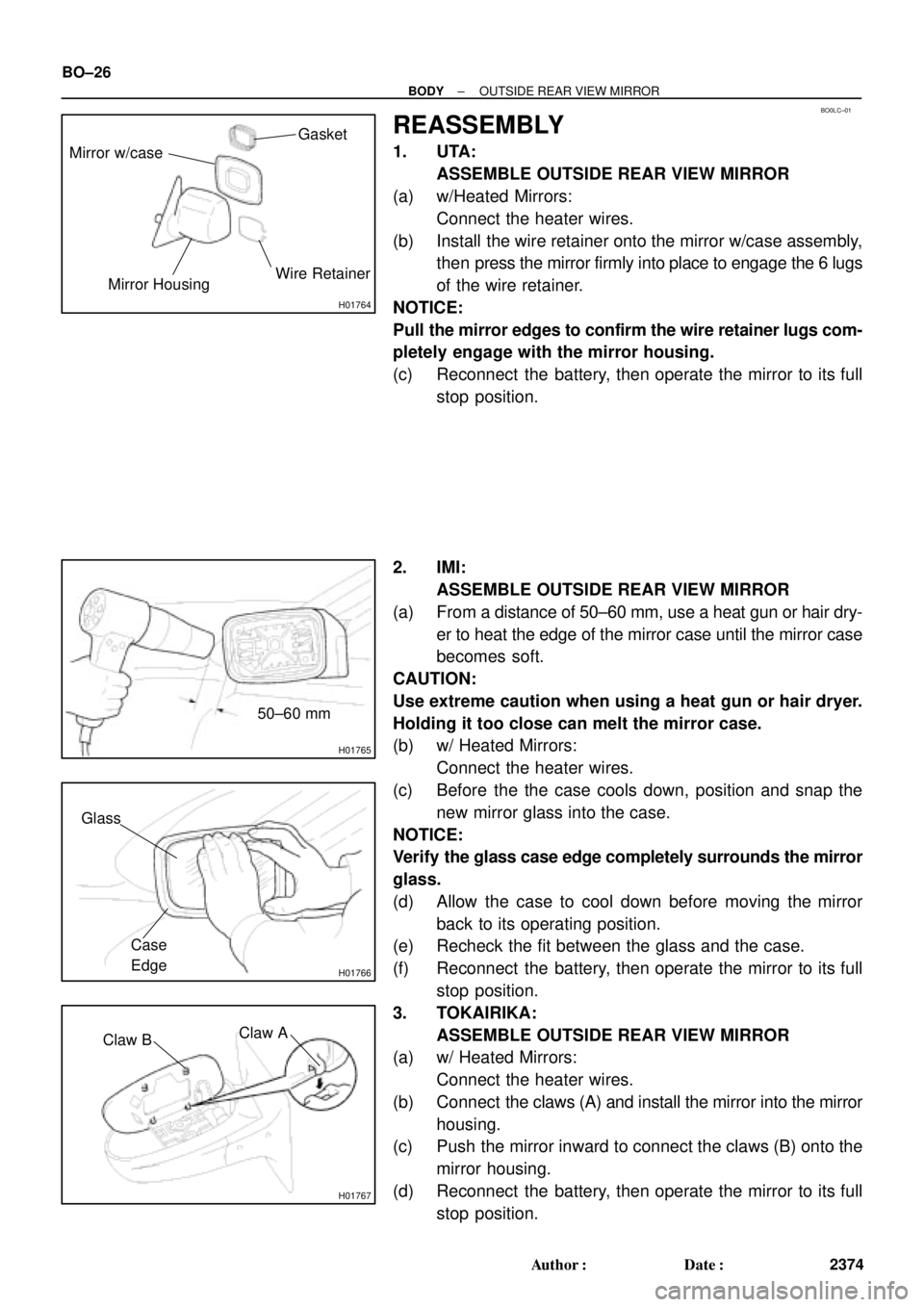

(a) From a distance of 50±60 mm, use a heat gun or hair dry-
er to heat the edge of the mirror case until the mirror case
becomes soft.
CAUTION:
Use extreme caution when using a heat gun or hair dryer.
Holding it too close can melt the mirror case.
(b) w/ Heated Mirrors:
Connect the heater wires.
(c) Before the the case cools down, position and snap the
new mirror glass into the case.
NOTICE:
Verify the glass case edge completely surrounds the mirror
glass.
(d) Allow the case to cool down before moving the mirror
back to its operating position.
(e) Recheck the fit between the glass and the case.
(f) Reconnect the battery, then operate the mirror to its full
stop position.
3. TOKAIRIKA:
ASSEMBLE OUTSIDE REAR VIEW MIRROR
(a) w/ Heated Mirrors:
Connect the heater wires.
(b) Connect the claws (A) and install the mirror into the mirror
housing.
(c) Push the mirror inward to connect the claws (B) onto the
mirror housing.
(d) Reconnect the battery, then operate the mirror to its full
stop position.
Page 871 of 4592
BO0LD±01
H01747
Torsion Bar
Luggage Compart-
ment Door Hinge
Luggage Compart-
ment Door Hinge
Luggage Compartment
Door
Luggage Compartment
Door Trim
Left Side Luggage
Trim
Finish Side Trim
Rear Luggage Trim
Rear Seat CushionRoom Partition TrimPackage Tray Trim
High Mounted
Stop Light
Rear SeatbackFinish Side Trim Door Lock
Door Lock StrikerLeft Hand Back
Up LightRight Hand
Back Up Light Right Side Luggage
Trim
: Specified torque
N´m (kgf´cm, ft´lbf)
Lock Cylinder
Luggage Compart-
ment Floor Mat
8.0 (80, 71 in.´lbf)
8.0 (80, 71 in.´lbf)
5.5 (55, 49 in.´lbf)
5.5 (55, 49 in.´lbf)
± BODYLUGGAGE COMPARTMENT DOOR AND HINGE
BO±27
2375 Author: Date:
LUGGAGE COMPARTMENT DOOR AND HINGE

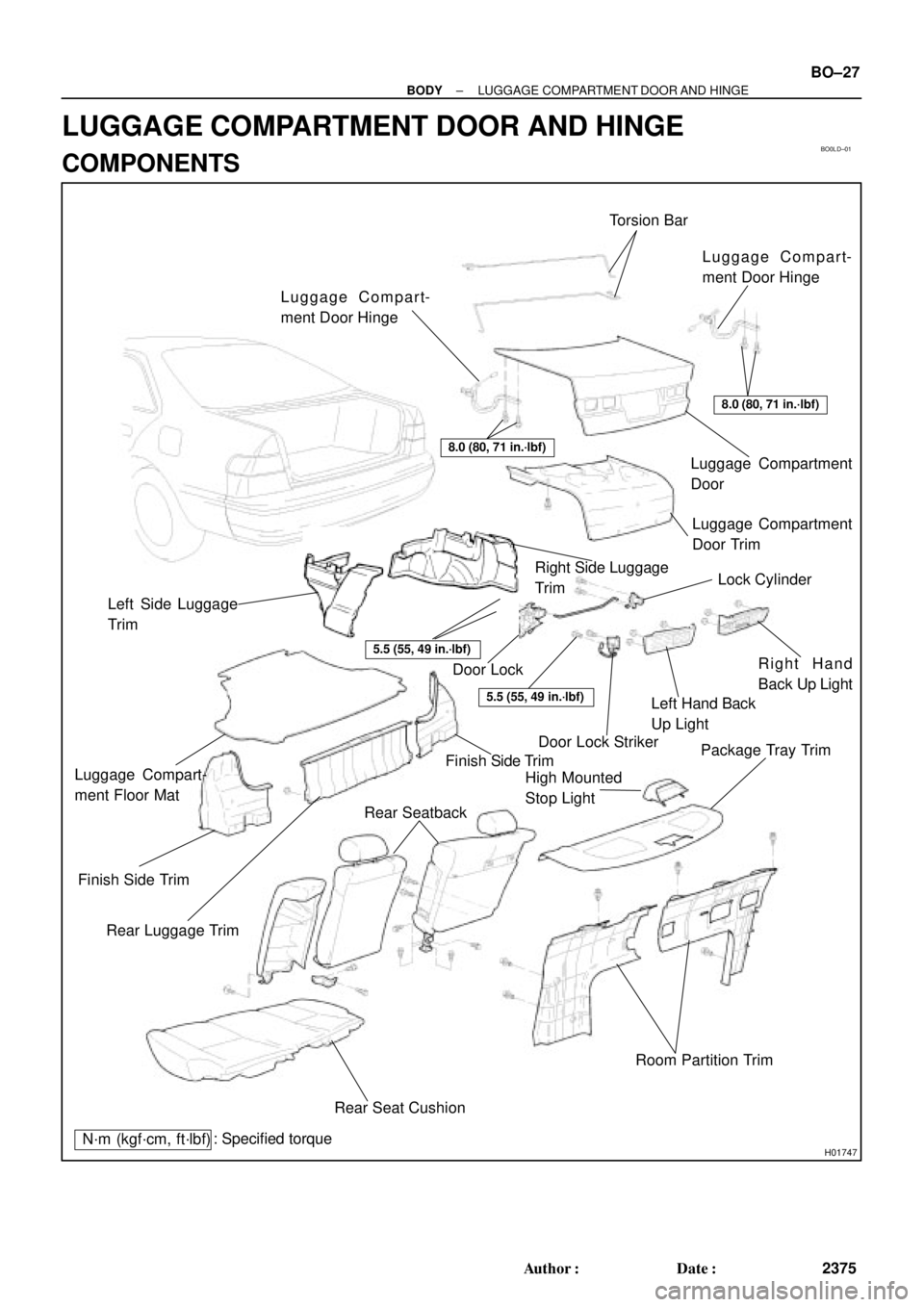

COMPONENTS
Page 872 of 4592

BO0LE±01
N22588
121
N21430
: 4 Clips
N22591
BO±28
± BODYLUGGAGE COMPARTMENT DOOR AND HINGE
2376 Author: Date:
REMOVAL
1. REMOVE LUGGAGE COMPARTMENT DOOR TRIM
2. REMOVE LUGGAGE COMPARTMENT DOOR
(a) Disconnect the connector.
(b) Using a clip remover, disconnect the clamps.
(c) Remove the 4 bolts and door.
Torque: 8.0 N´m (80 kgf´cm, 71 in.´lbf)
3. REMOVE THESE PARTS:
(a) Luggage compartment floor mat
(b) LH and RH rear floor finish side plates
(c) Inner cover trims
(d) Rear seat
(e) Room partition trims
4. REMOVE HIGH±MOUNTED STOP LIGHT
(a) Push on the both side of the cover to release the claws by
your hand and remove the cover as shown in the illustra-
tion.
(b) Remove the 2 bolts and stop light, then disconnect the
connector.
5. REMOVE ROOF SIDE INNER GARNISH
(a) Remove the clip.
(b) Using a screwdriver, pry loose and remove the garnish.
HINT:
Tape the screwdriver tip before use.
6. REMOVE PACKAGE TRAY TRIM
7. REMOVE TORSION BAR
(a) Remove the torsion bar from the center bracket.
