Page 961 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0ND±01 BO±116 ± BODYREAR SEAT (TMC Made) 2464 Author: Date: REASSEMBLY Reassembly is in the reverse order of disassembly (See page BO±115).

Page 962 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0NE±01 ± BODYREAR SEAT (TMC Made) BO±117 2465 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±114).

Page 963 of 4592

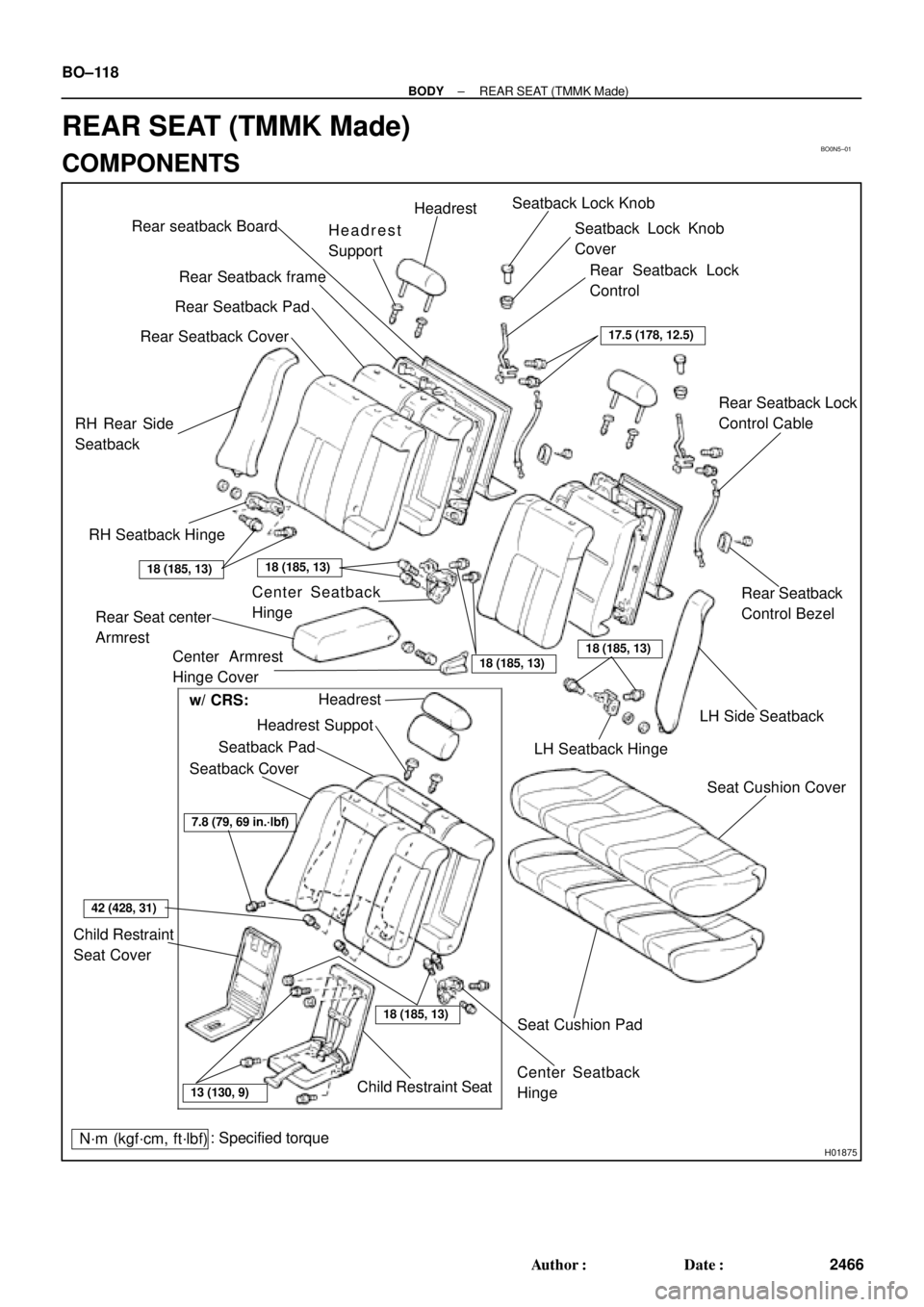

TOYOTA CAMRY 1999 Service Repair Manual BO0N5±01 H01875 Rear seatback Board Rear Seatback frame RH Rear Side SeatbackRear Seatback CoverRear Seatback PadHeadrest Support LH Seatback Hinge Seatback Lock Knob Seatback Lock Knob Cover Rear Se

Page 964 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0N6±01 ± BODYREAR SEAT (TMMK Made) BO±119 2467 Author: Date: REMOVAL 1. REMOVE SEAT CUSHION ASSEMBLY (a) Remove the seat cushion assembly. HINT: Remove the rear seat inner with center belt from

Page 965 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0N7±01 BO±120 ± BODYREAR SEAT (TMMK Made) 2468 Author: Date: DISASSEMBLY 1. REMOVE SEAT CUSHION COVER Remove the hog rings and seat cushion cover from the seat cushion pad. 2. REMOVE THESE PART

Page 966 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0N8±01 ± BODYREAR SEAT (TMMK Made) BO±121 2469 Author: Date: REASSEMBLY Reassembly is in the reverse order of disasssembly (See page BO±120).

Page 967 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0N9±01 BO±122 ± BODYREAR SEAT (TMMK Made) 2470 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±119).

Page 968 of 4592

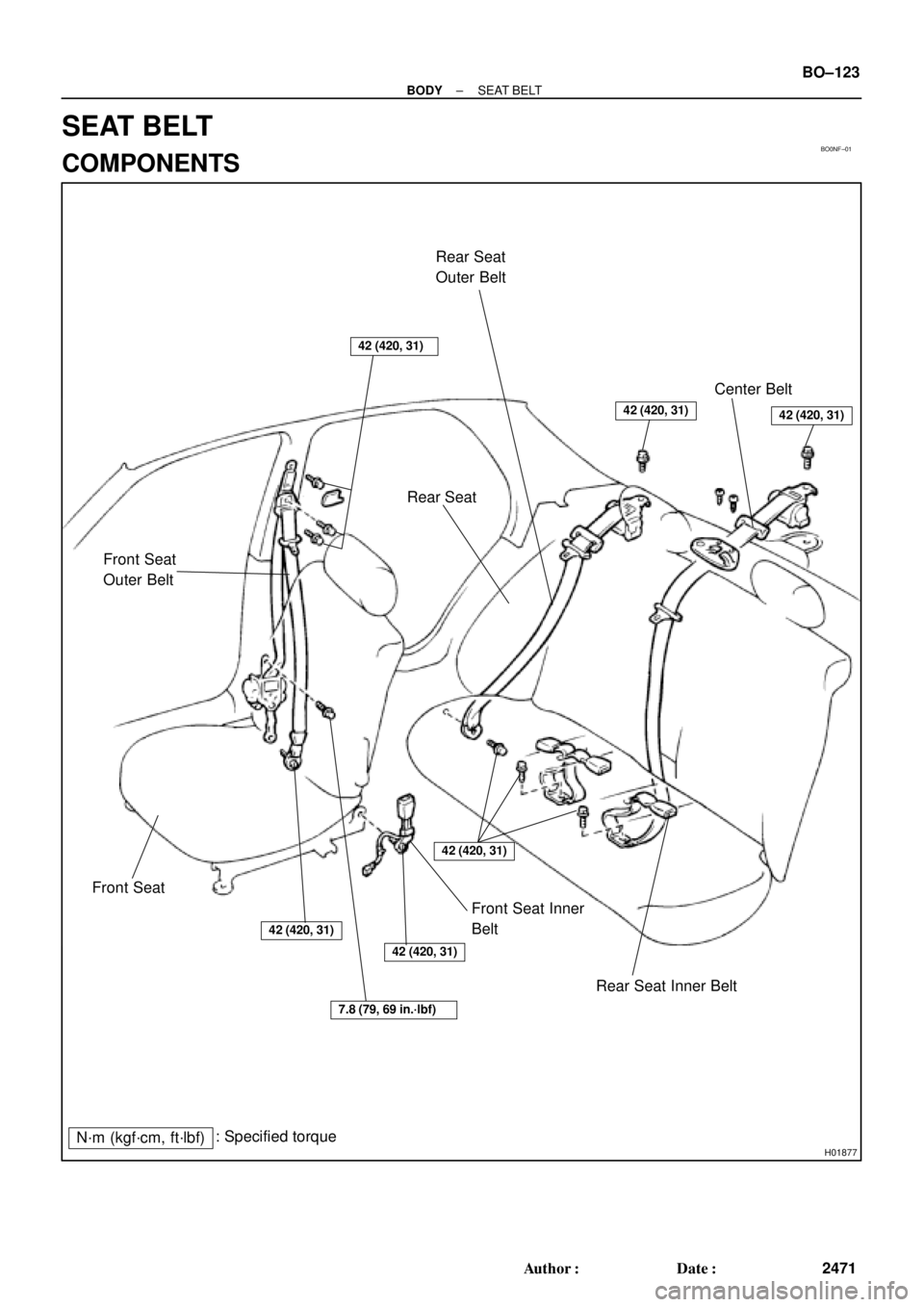

TOYOTA CAMRY 1999 Service Repair Manual BO0NF±01 H01877 42 (420, 31) Front Seat Outer Belt 42 (420, 31) Rear Seat Center Belt 42 (420, 31) Front Seat 42 (420, 31) Front Seat Inner Belt 42 (420, 31) Rear Seat Inner Belt N´m (kgf´cm, ft´l
