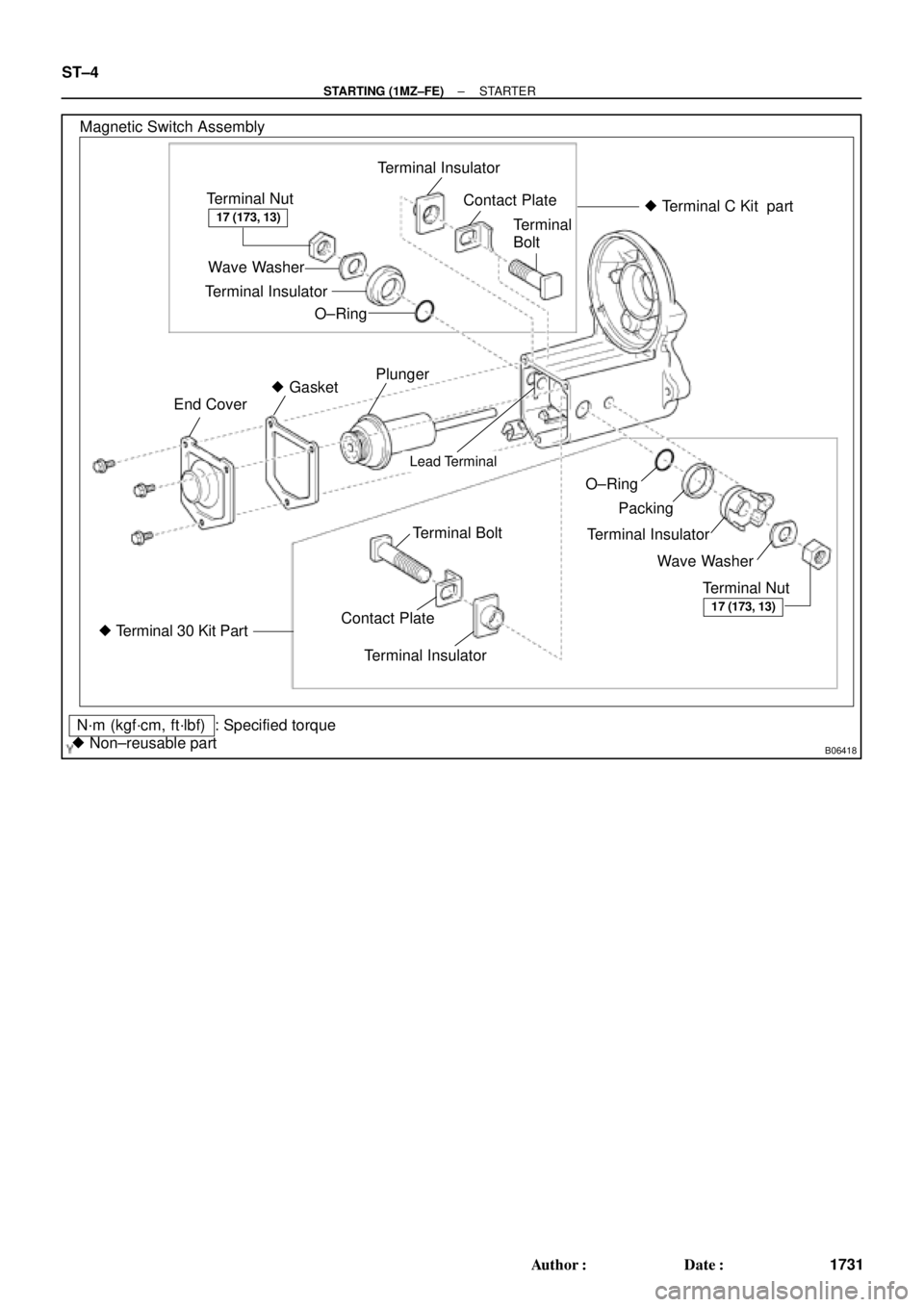

TOYOTA CAMRY 1999 Service Repair Manual B01154  Snap Ring Starter Housing Starter Clutch Compression Spring Clutch Shaft Starter Housing and Clutch Assembly Idler Gear Bearing Stop Collar Pinion Gear Compression Spring Spring Retainer Ste

Page 3490 of 4592

TOYOTA CAMRY 1999 Service Repair Manual B06418 Magnetic Switch Assembly Terminal Nut Wave Washer Terminal Insulator O±RingContact Plate Terminal Bolt Terminal Insulator Terminal C Kit part Plunger  Gasket End Cover Lead Terminal O±Ring

Page 3491 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ST01V±03 ± STARTING (1MZ±FE)STARTER ST±5 1732 Author: Date: REMOVAL 1. REMOVE BATTERY AND TRAY 2. w/ CRUISE CONTROL SYSTEM: REMOVE CRUISE CONTROL ACTUATOR (a) Disconnect the actuator connector a

Page 3492 of 4592

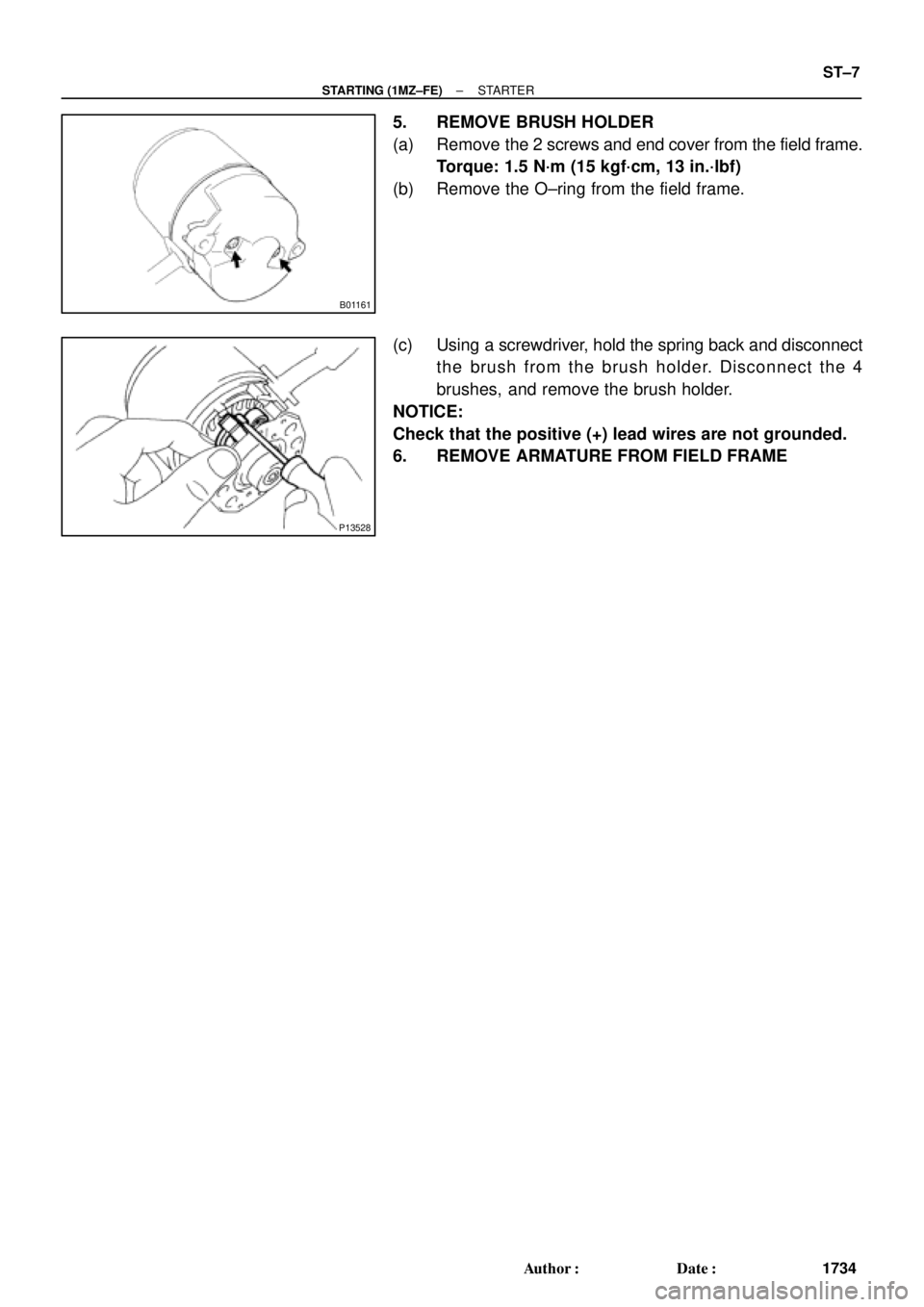

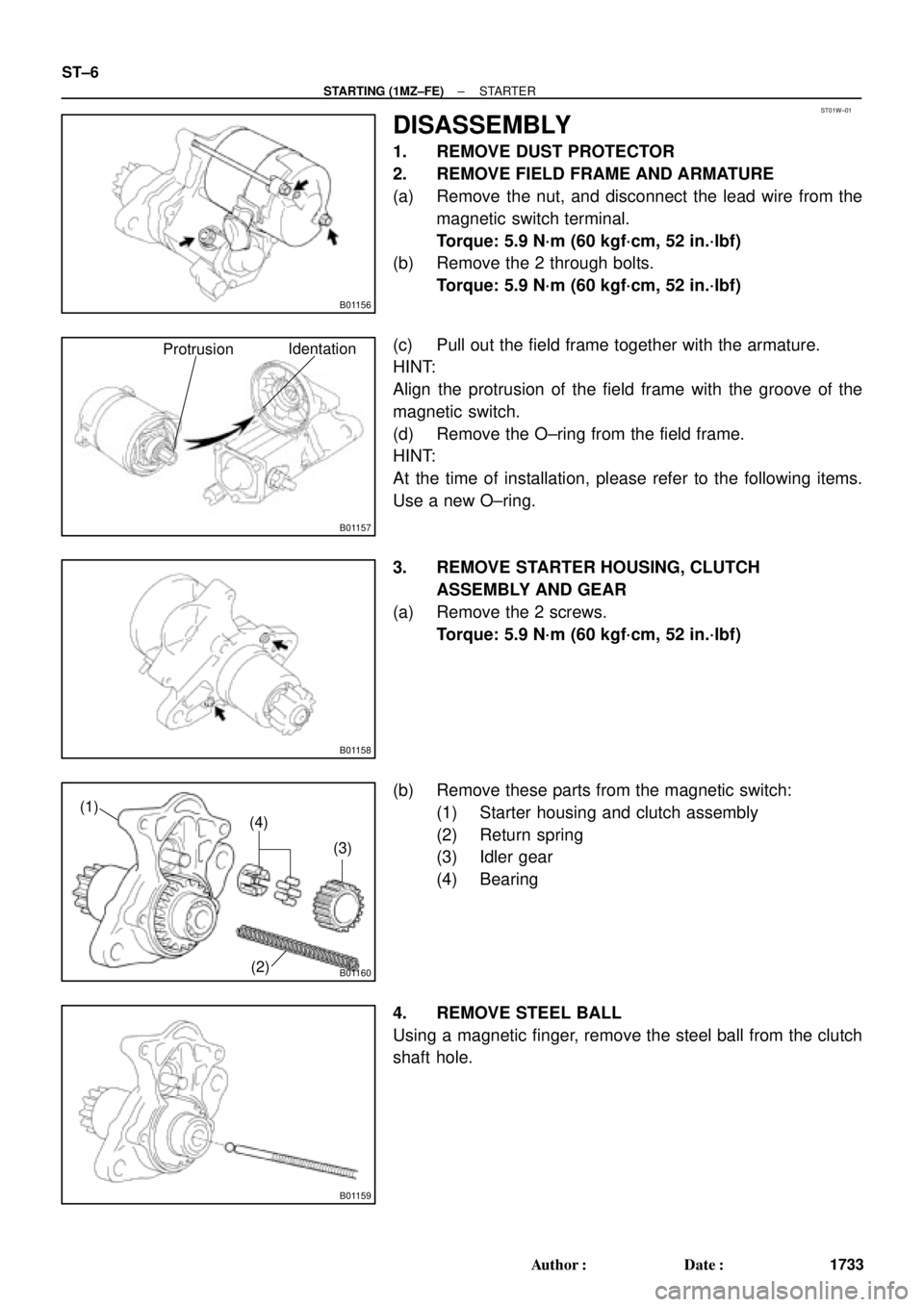

TOYOTA CAMRY 1999 Service Repair Manual ST01W±01 B01156 B01157 ProtrusionIdentation B01158 B01160 (1) (4) (3) (2) B01159 ST±6 ± STARTING (1MZ±FE)STARTER 1733 Author: Date: DISASSEMBLY 1. REMOVE DUST PROTECTOR 2. REMOVE FIELD FRAME AND

Page 3493 of 4592

TOYOTA CAMRY 1999 Service Repair Manual B01161 P13528 ± STARTING (1MZ±FE)STARTER ST±7 1734 Author: Date: 5. REMOVE BRUSH HOLDER (a) Remove the 2 screws and end cover from the field frame. Torque: 1.5 N´m (15 kgf´cm, 13 in.´lbf) (b)

Page 3494 of 4592

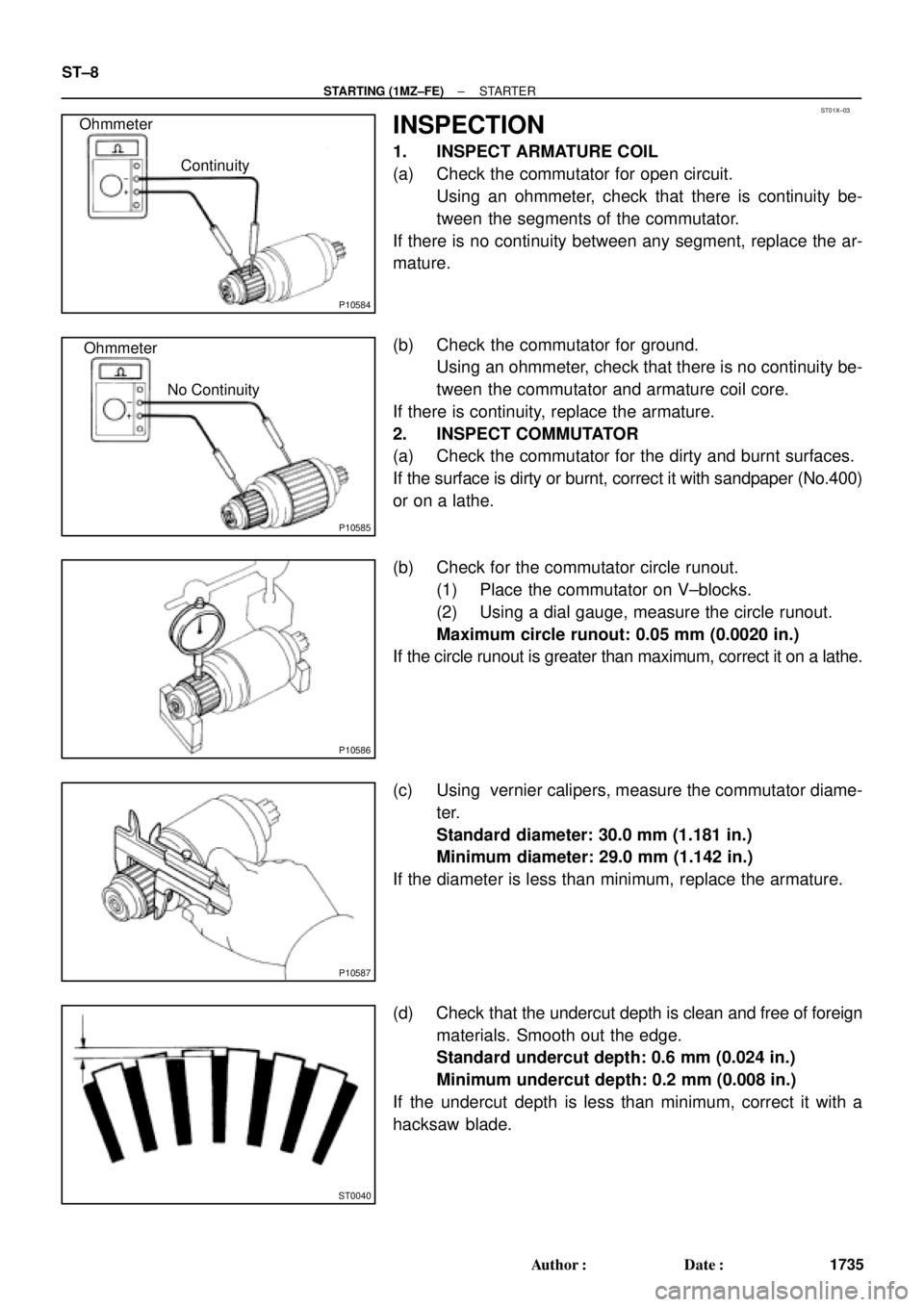

TOYOTA CAMRY 1999 Service Repair Manual ST01X±03 P10584 Ohmmeter Continuity P10585 Ohmmeter No Continuity P10586 P10587 ST0040 ST±8 ± STARTING (1MZ±FE)STARTER 1735 Author: Date: INSPECTION 1. INSPECT ARMATURE COIL (a) Check the commut

Page 3495 of 4592

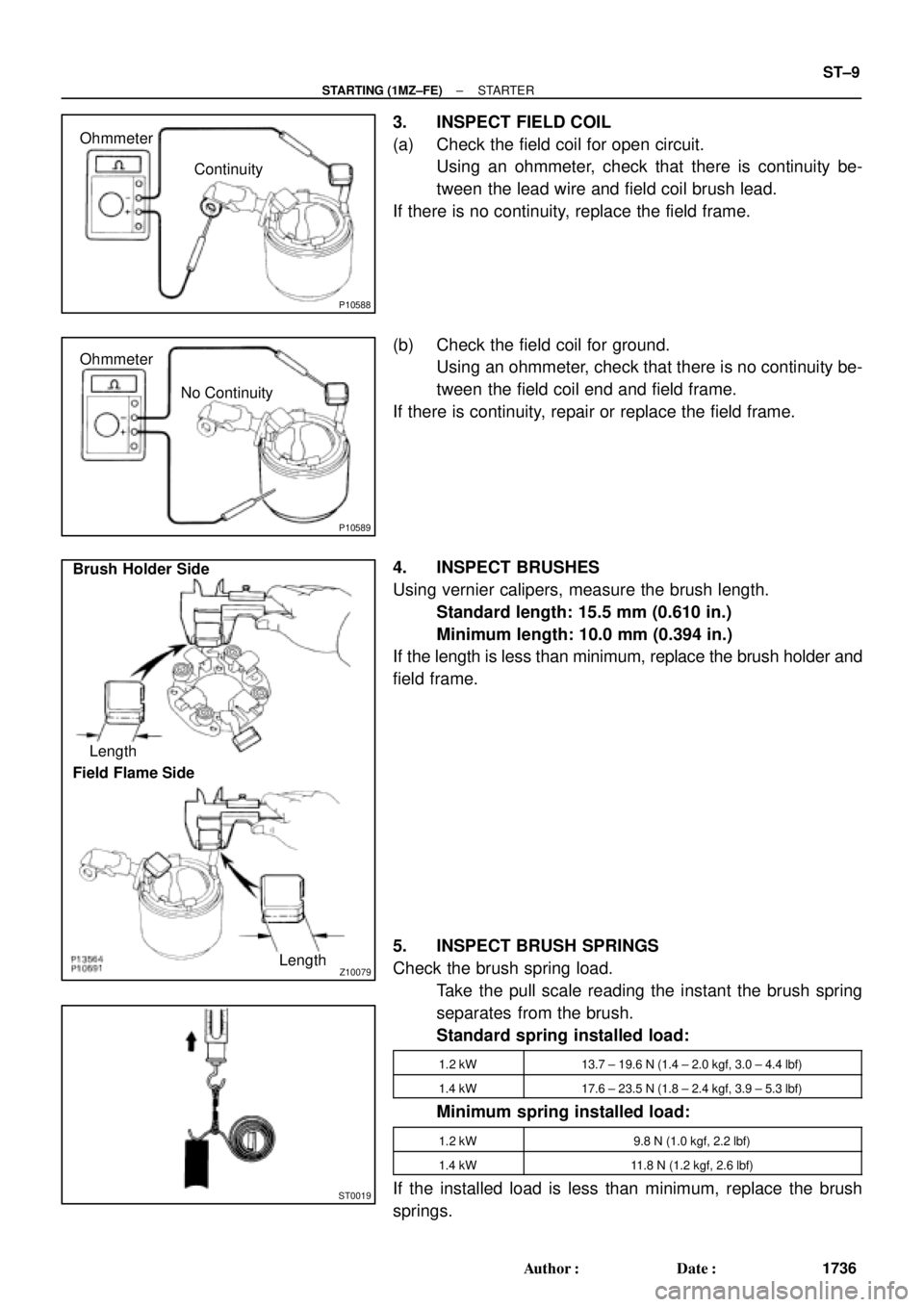

TOYOTA CAMRY 1999 Service Repair Manual P10588 Ohmmeter Continuity P10589 Ohmmeter No Continuity Z10079 Brush Holder Side Field Flame SideLength Length ST0019 ± STARTING (1MZ±FE)STARTER ST±9 1736 Author: Date: 3. INSPECT FIELD COIL (a)

Page 3496 of 4592

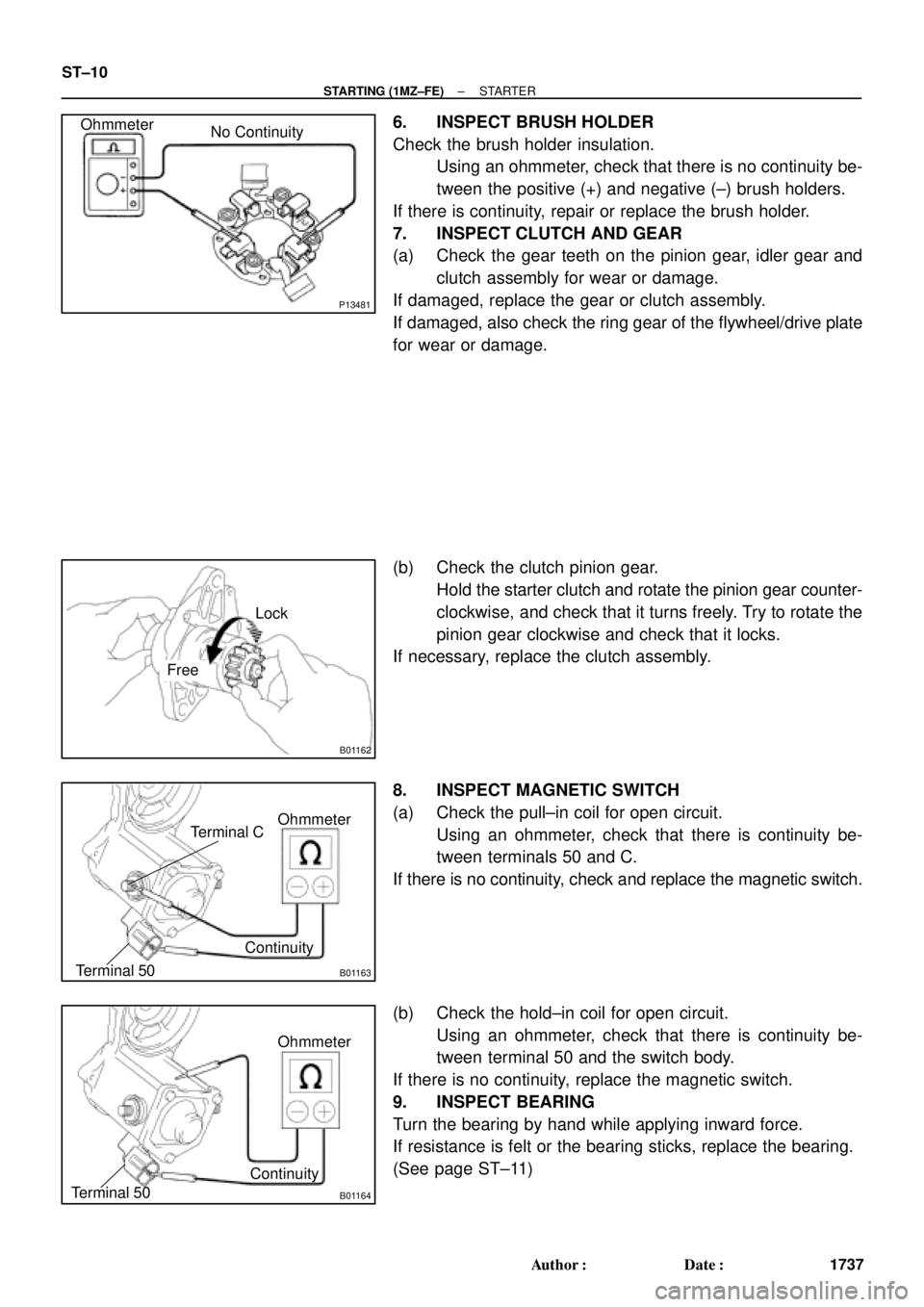

TOYOTA CAMRY 1999 Service Repair Manual P13481 No Continuity Ohmmeter B01162 Lock Free B01163 Ohmmeter Terminal 50Terminal C Continuity B01164 Ohmmeter Terminal 50Continuity ST±10 ± STARTING (1MZ±FE)STARTER 1737 Author: Date: 6. INSPEC
