Page 1017 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± BRAKETROUBLESHOOTING BR±3 2026 Author: Date: Hard pedal but brake inefficient 1. Fluid leaks for brake system 2. Air in brake system 3. Pad or lining (Worn) 4. Pad or lining (Cracked or distorte

Page 1018 of 4592

TOYOTA CAMRY 1999 Service Repair Manual F05595 F05596 BR0AB±03 F05597 R00252 BR±4 ± BRAKEBRAKE FLUID 2027 Author: Date: BRAKE FLUID BLEEDING HINT: If any work is done on the brake system or if air is suspected in the brake lines, bleed

Page 1019 of 4592

TOYOTA CAMRY 1999 Service Repair Manual R00954 Stop Light Switch Push Rod Pedal HeightBR0YH±01 R00935 Pedal Freeplay ± BRAKEBRAKE PEDAL BR±5 2028 Author: Date: BRAKE PEDAL ON±VEHICLE INSPECTION 1. CHECK PEDAL HEIGHT Pedal height from

Page 1020 of 4592

TOYOTA CAMRY 1999 Service Repair Manual R00934 Pedal Reserve Distance BR±6 ± BRAKEBRAKE PEDAL 2029 Author: Date: 4. CHECK PEDAL RESERVE DISTANCE (a) Release the parking brake. (b) With the engine running, depress the pedal and measure t

Page 1021 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BR0YI±01 F07004 Lower Panel Insert  Bushing ClipClevis PinNo.1 Lower Panel Return Spring Cushion Plate Collar Brake Pedal Cowl Side Trim Front Opening Cover Brake Pedal Inside Scuff PlateM/T: Stop L

Page 1022 of 4592

TOYOTA CAMRY 1999 Service Repair Manual W03254 W03255 Lock Nut Adjusting Nut BR0AD±03 BR±8 ± BRAKEPARKING BRAKE LEVER 2031 Author: Date: PARKING BRAKE LEVER ON±VEHICLE INSPECTION 1. CHECK THAT PARKING BRAKE LEVER TRAVEL Pull the parki

Page 1023 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BR0AE±02 Z19120 w/ ABS (& TRAC) 2±way 15 (155, 11) 13 (130, 9) Master Cylinder  GasketBrake Booster N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part w/o ABS 3±way W03569 N´m (kgf´

Page 1024 of 4592

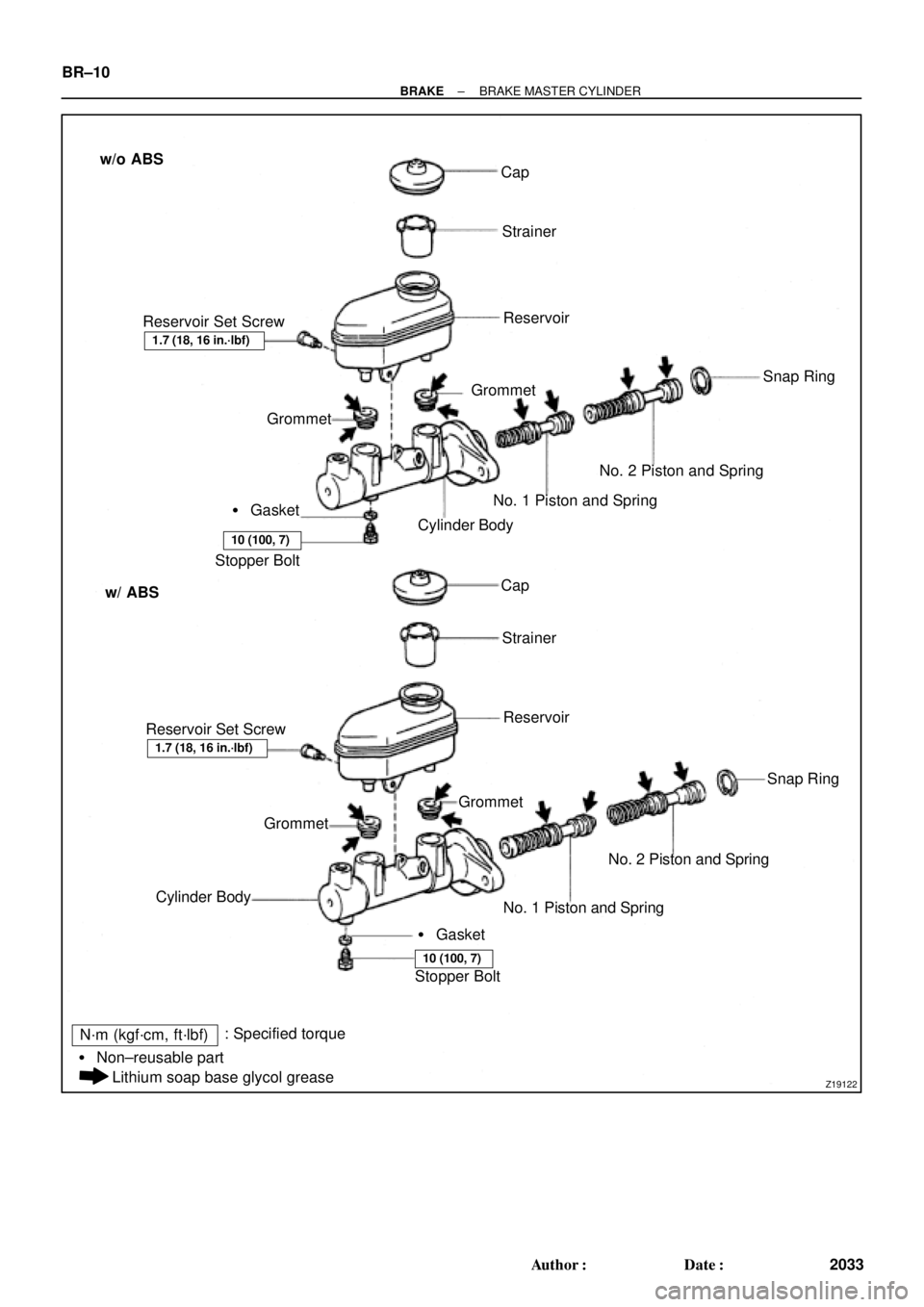

TOYOTA CAMRY 1999 Service Repair Manual Z19122 w/o ABS w/ ABSCap Strainer Reservoir No. 2 Piston and Spring No. 1 Piston and Spring Cylinder Body Stopper Bolt Gasket Reservoir Set Screw GrommetSnap Ring Grommet Cap Strainer Reservoir Reser
