Page 2929 of 4592

TOYOTA CAMRY 1999 Service Repair Manual MA0055 MA00M±01 MA±6 ± MAINTENANCEBRAKE 49 Author: Date: BRAKE INSPECTION 1. INSPECT BRAKE LINE PIPES AND HOSES HINT: Check in a well lighted area. Check the entire circumference and length of th

Page 2930 of 4592

TOYOTA CAMRY 1999 Service Repair Manual MA00N±01 N01022 ± MAINTENANCECHASSIS MA±7 50 Author: Date: CHASSIS INSPECTION 1. INSPECT STEERING LINKAGE (a) Check the steering wheel freeplay. (See page SR±8) (b) Check the steering linkage fo

Page 2931 of 4592

TOYOTA CAMRY 1999 Service Repair Manual MA0676B00995 MA00O±01 N21126 N21125 MA±8 ± MAINTENANCEBODY 51 Author: Date: BODY INSPECTION 1. TIGHTEN BOLTS AND NUTS ON CHASSIS AND BODY Tighten these parts: Front seat mount bolts Torque: 37 N

Page 2932 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± MAINTENANCEBODY MA±9 52 Author: Date:  Check that the brakes work properly and do not drag. Do setting of the parking brake shoes and drum. (c) Be sure to deliver a clean car. Especially check

Page 2933 of 4592

TOYOTA CAMRY 1999 Service Repair Manual MA00L±02 P00495 Outside Inside ± MAINTENANCEENGINE MA±1 42 Author: Date: ENGINE INSPECTION 1. REPLACE TIMING BELT (See Pub. No. RM654U, page EM±17) 2. INSPECT DRIVE BELTS (See Pub. No. RM654U, p

Page 2934 of 4592

TOYOTA CAMRY 1999 Service Repair Manual MX04X±01 ± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE SYSTEM MX±1 1802 Author: Date: MANUAL TRANSAXLE SYSTEM PRECAUTION When working with FIPG material, you must observe the following items. Using

Page 2935 of 4592

TOYOTA CAMRY 1999 Service Repair Manual MX04Y±01 MX±2 ± MANUAL TRANSAXLE (E153)TROUBLESHOOTING 1803 Author: Date: TROUBLESHOOTING PROBLEM SYMPTOMS TABLE Use the table below to help you find the cause of the problem. The numbers indicat

Page 2936 of 4592

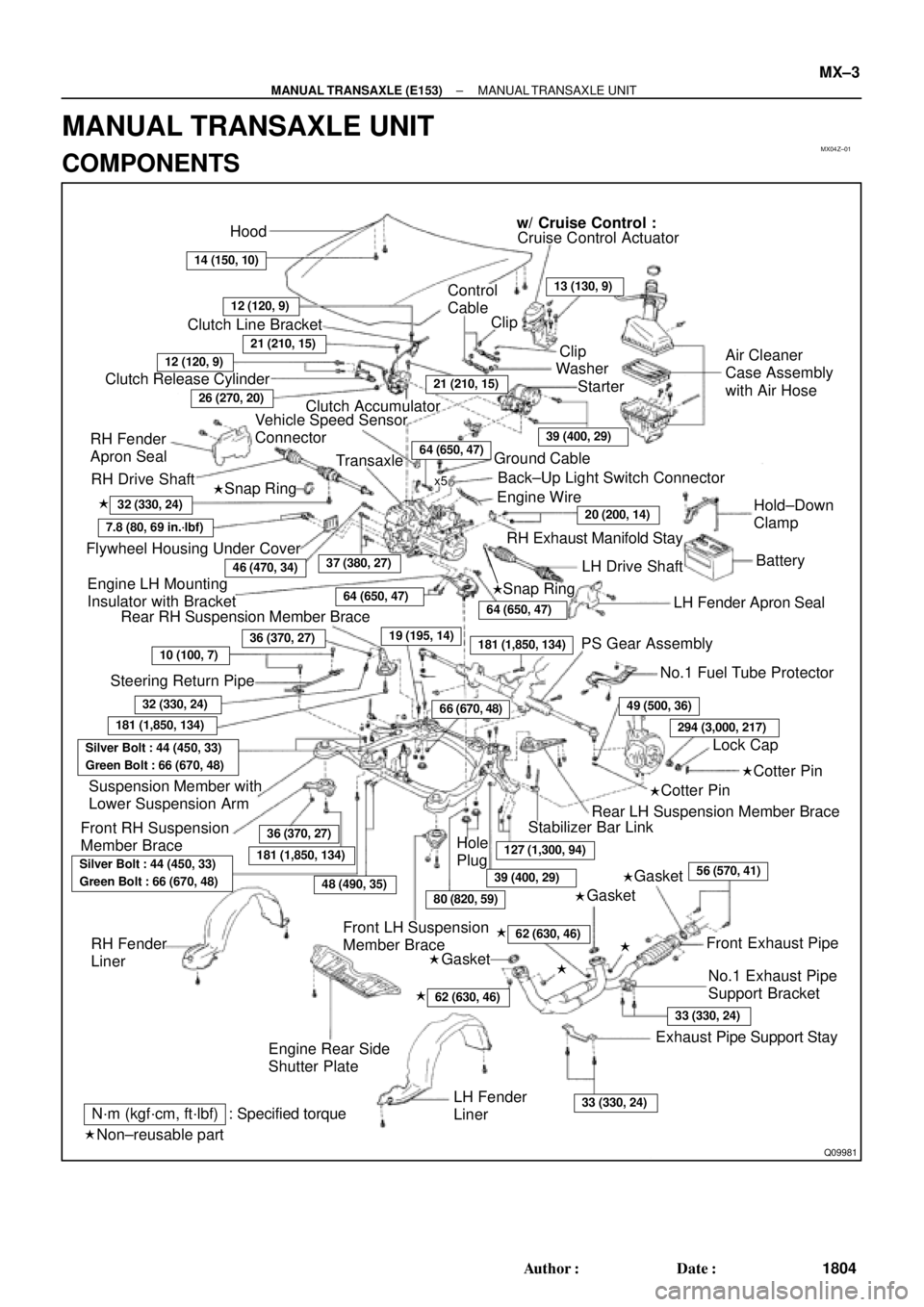

TOYOTA CAMRY 1999 Service Repair Manual MX04Z±01 Q09981 Hood 14 (150, 10) w/ Cruise Control : Cruise Control Actuator 12 (120, 9) Clutch Line Bracket 21 (210, 15) 12 (120, 9) Clutch Release Cylinder 26 (270, 20) RH Drive Shaft 32 (330, 2
