Page 873 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO4010 SST BO4011 SST BO4012 SST ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±29 2377 Author: Date: (b) Install SST to the torsion bar on the hinge side. SST 09804±24010 (c) Push down on SST, and

Page 874 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0LF±01 BO±30 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE 2378 Author: Date: DISASSEMBLY 1. REMOVE DOOR LOCK (a) Disconnect the control link. (b) Remove the 2 bolts and lock. Torque: 5.5 N´m (56 k

Page 875 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0LG±01 N22589 N22590 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±31 2379 Author: Date: ADJUSTMENT 1. ADJUST LUGGAGE COMPARTMENT DOOR (a) Remove the 11 clips and luggage compartment door trim.

Page 876 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0LH±01 BO±32 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE 2380 Author: Date: REASSEMBLY Reassembly is in the reverse order of disassembly (See page BO±30).

Page 877 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0LI±01 H01754 H01755 H01756 N21430 : 4 clips ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±33 2381 Author: Date: INSTALLATION 1. INSTALL TORSION BAR (a) Insert the torsion bar into the bracket. H

Page 878 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H01757 Full Open 1/2 Open Pop±Up BO±34 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE 2382 Author: Date: 8. CHECK LUGGAGE DOOR LIFT Pop±up distance: 35 ± 100 mm Pop± up to 1/2 ope

Page 879 of 4592

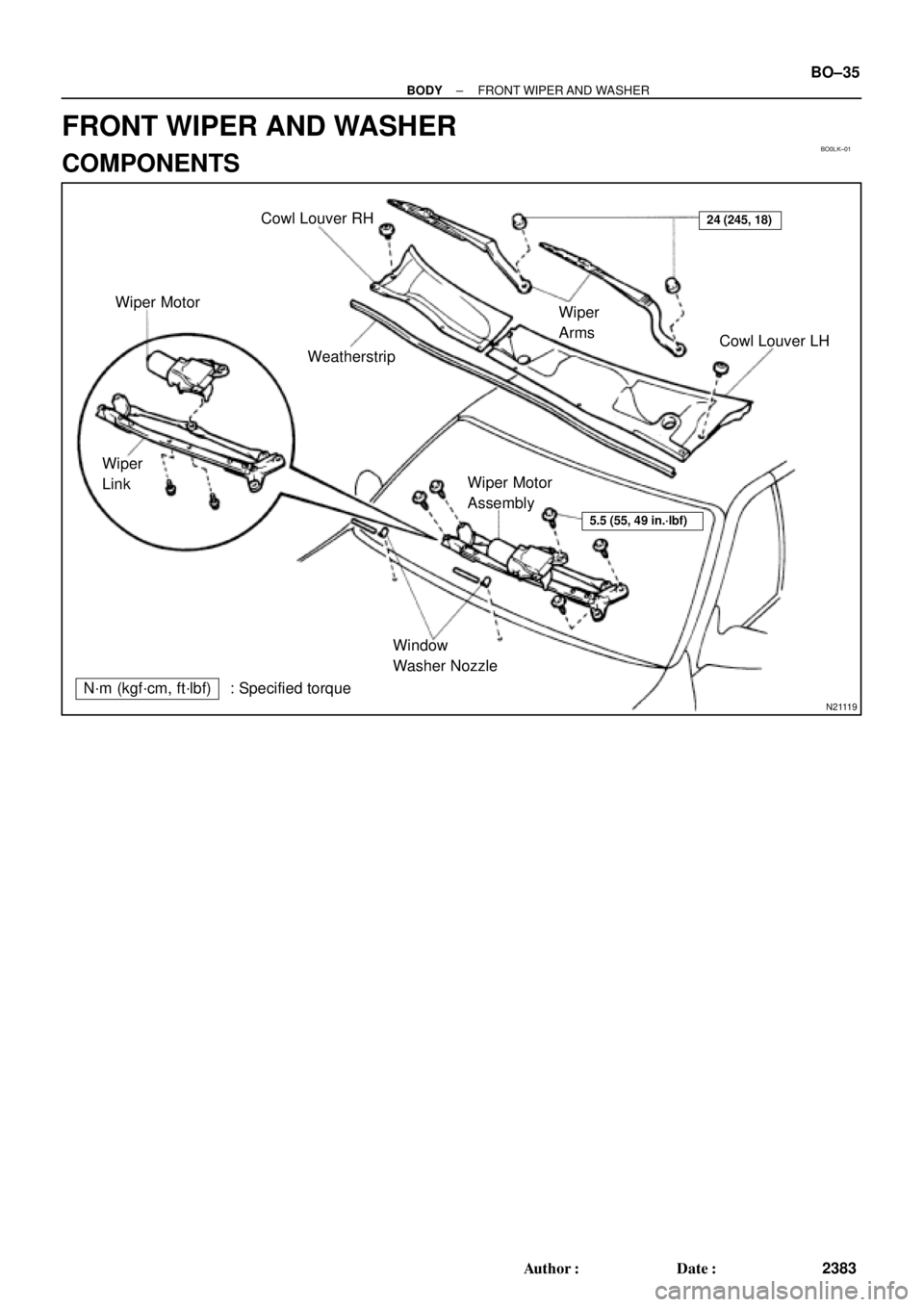

TOYOTA CAMRY 1999 Service Repair Manual BO0LK±01 N21119 Wiper MotorCowl Louver RH Cowl Louver LH Wiper Motor Assembly Window Washer Nozzle N´m (kgf´cm, ft´lbf) : Specified torqueWeatherstripWiper Arms Wiper Link 24 (245, 18) 5.5 (55, 49

Page 880 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0LL±01 N20998 BO4391 BO±36 ± BODYFRONT WIPER AND WASHER 2384 Author: Date: REMOVAL 1. REMOVE WIPER ARMS 2. REMOVE WEATHERSTRIP AND COWL LOUVERS 3. REMOVE WIPER MOTOR ASSEMBLY (a) Disconnect the
