TOYOTA CAMRY 1999 Service Repair Manual ± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±629
864 Author: Date:
7. RELEASE METHOD OF AIRBAG ACTIVATION PRE-
VENTION MECHANISM
An airbag activation prevention mechanism is built into the con-
n

Page 1842 of 4592

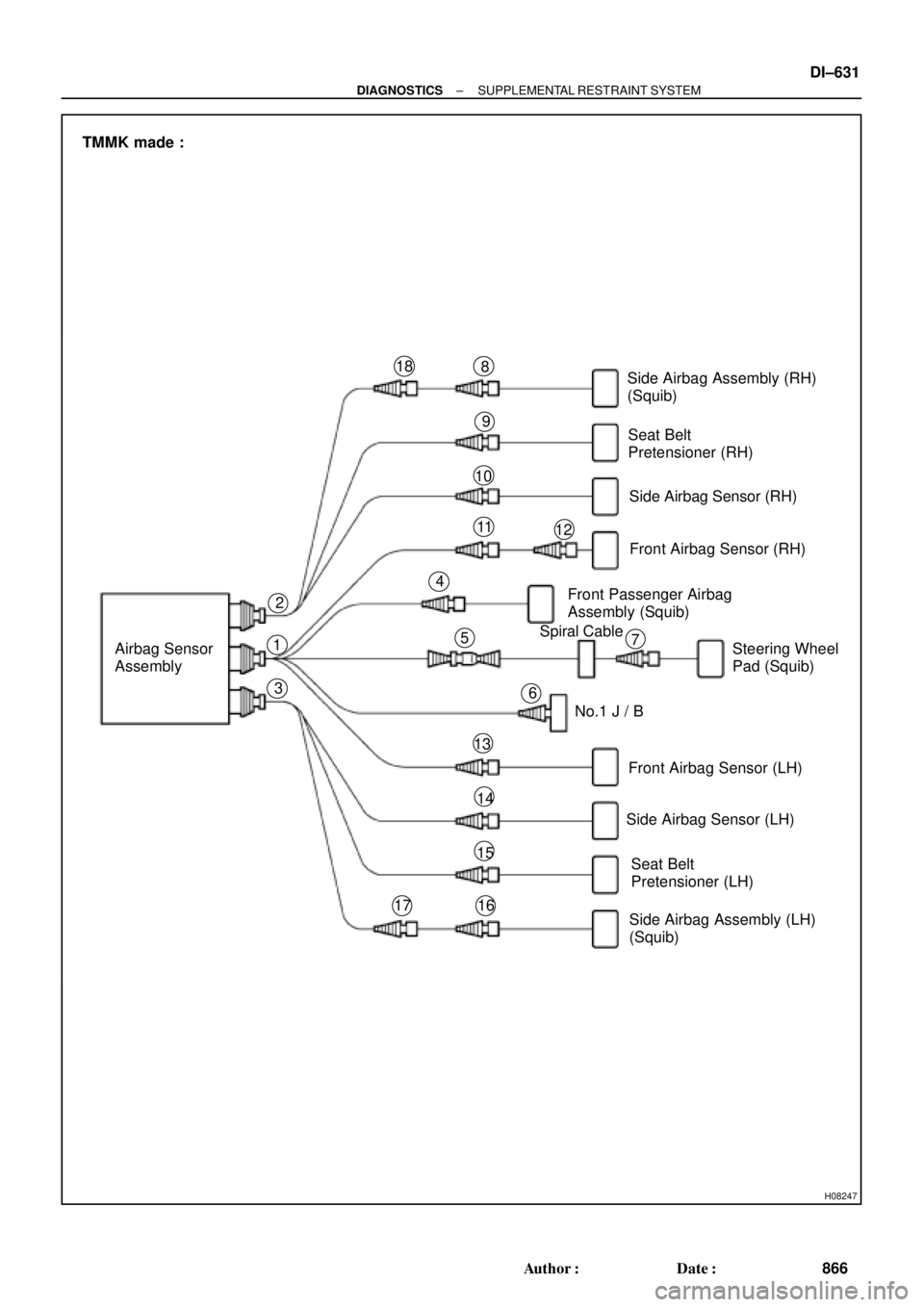

TOYOTA CAMRY 1999 Service Repair Manual H08316
TMC made :
Side Airbag Assembly (LH)
(Squib) Side Airbag Sensor (LH)Side Airbag Sensor (RH)Side Airbag Assembly (RH)
(Squib)
Seat Belt
Pretensioner (RH)
Airbag Sensor
AssemblyFront Passenger Ai

Page 1843 of 4592

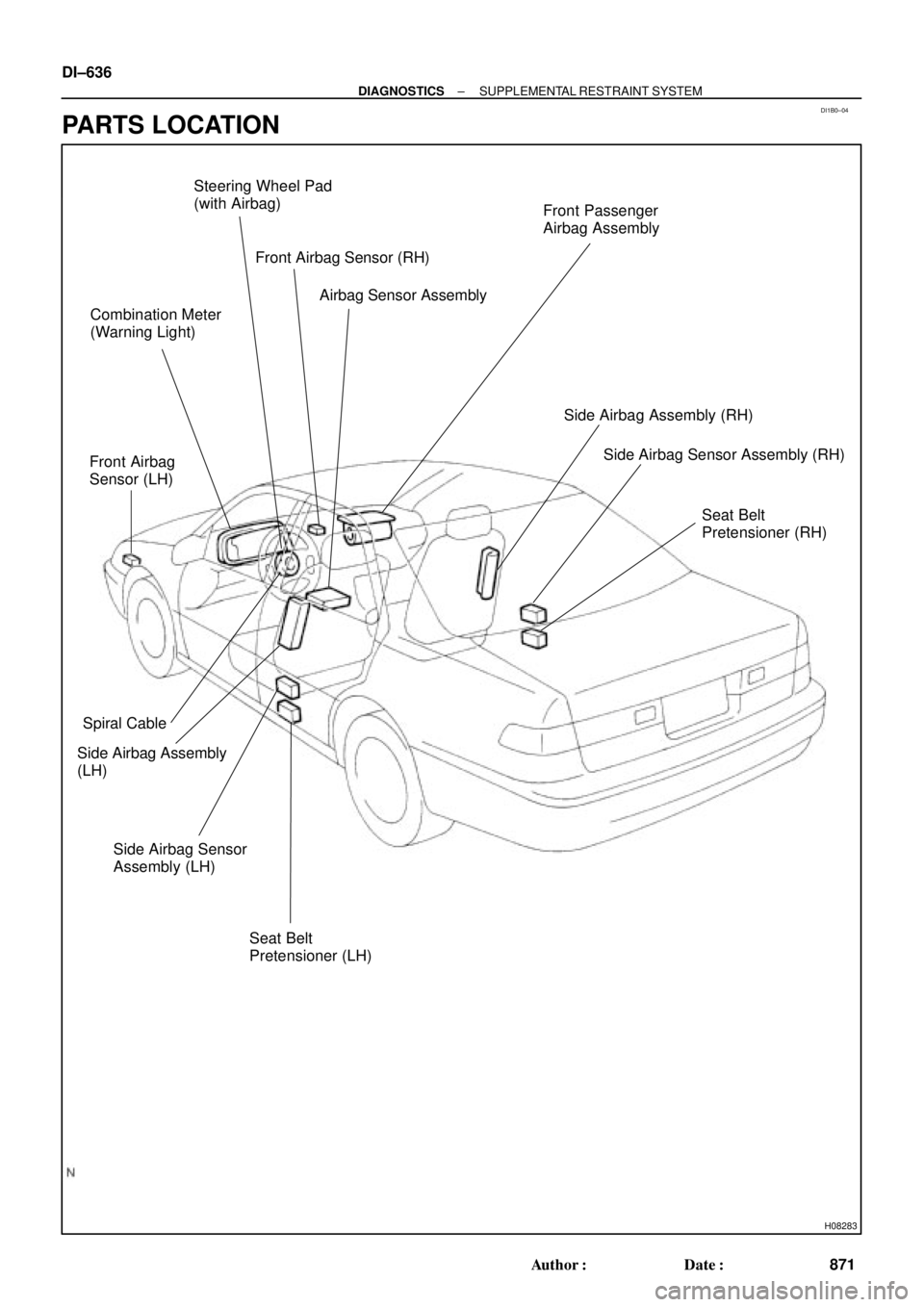

TOYOTA CAMRY 1999 Service Repair Manual H08247
Airbag Sensor
AssemblySide Airbag Assembly (RH)
(Squib)
Seat Belt
Pretensioner (RH)
Side Airbag Sensor (RH)
Front Passenger Airbag
Assembly (Squib)
Spiral Cable
Steering Wheel
Pad (Squib)
No.1

Page 1844 of 4592

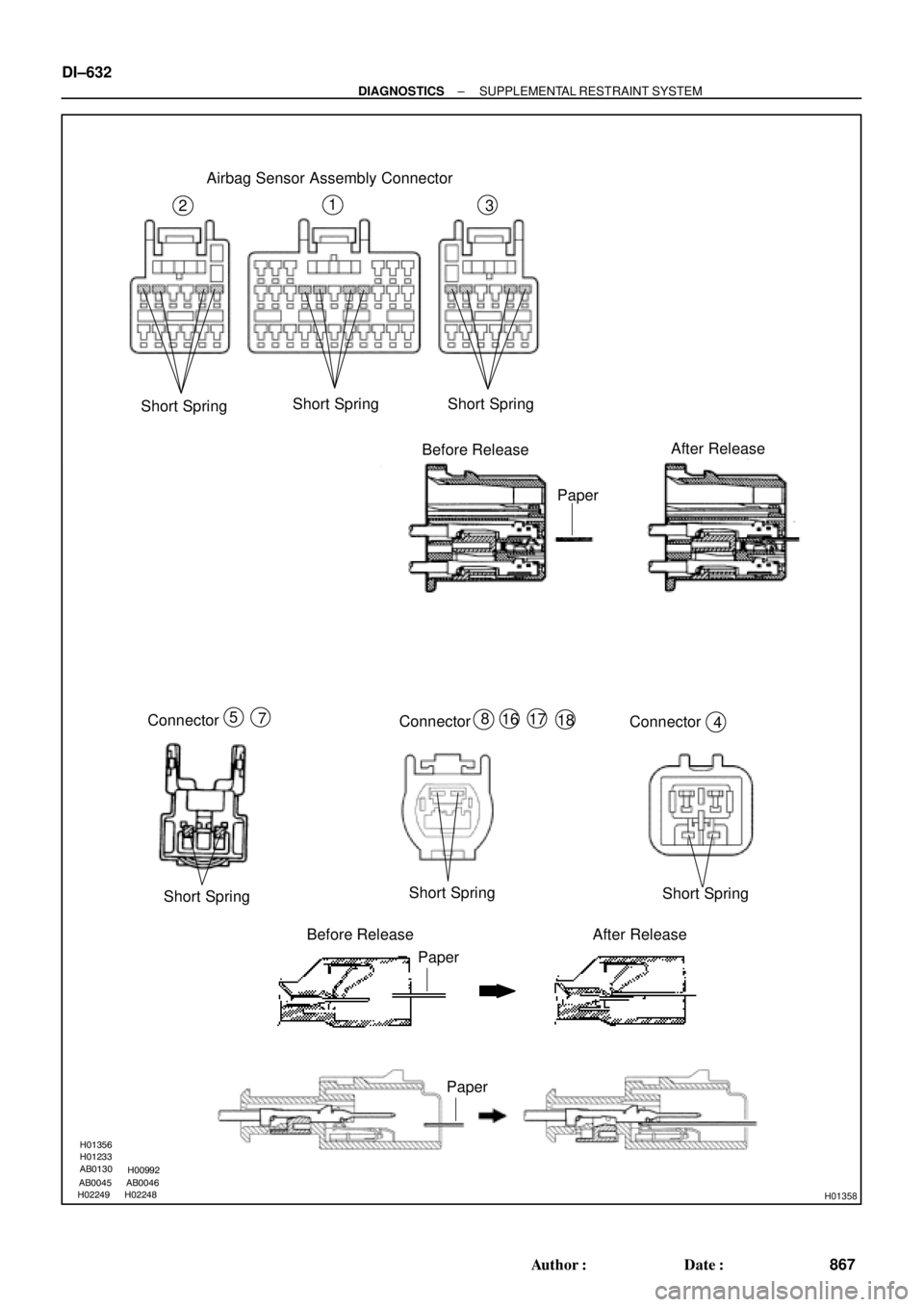

TOYOTA CAMRY 1999 Service Repair Manual H01356H01233AB0130H00992AB0045AB0046H02248H02249H01358
Airbag Sensor Assembly Connector
Short SpringShort SpringShort Spring
Before ReleaseAfter Release
Connector
Connector
Short SpringShort Spring
Be

Page 1845 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI1AZ±04
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±633
868 Author: Date:
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit listed for th

DI1AZ±04
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±633
868 Author: Date:
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table
below (Proceed to the page given for that circuit.).
DTC No.
(See Page)Detection ItemTrouble AreaSRS
Warning Light
B0100/13
(DI±640)
Short in D squib circuitSteering wheel pad (squib)
Spiral cable
Airbag sensor assembly
Wire harness
ON
B0101/14
(DI±645)
Open in D squib circuitSteering wheel pad (squib)
Spiral cable
Airbag sensor assembly
Wire harness
ON
B0102/11
(DI±649)
Short in D squib circuit (to Ground)Steering wheel pad (squib)
Spiral cable
Airbag sensor assembly
Wire harness
ON
B0103/12
(DI±653)
Short in D squib circuit (to B+)Steering wheel pad (squib)
Spiral cable
Airbag sensor assembly
Wire harness
ON
B0105/53
(DI±657)Short in P squib circuitFront passenger airbag assembly (squib)
Airbag sensor assembly
Wire harness
ON
B0106/54
(DI±661)Open in P squib circuitFront passenger airbag assembly (squib)
Airbag sensor assembly
Wire harness
ON
B0107/51
(DI±664)Short in P squib circuit (to Ground)Front passenger airbag assembly (squib)
Airbag sensor assembly
Wire harness
ON
B0108/52
(DI±667)Short in P squib circuit (to B+)Front passenger airbag assembly (squib)
Airbag sensor assembly
Wire harness
ON
TMC made:
B0110/43
(DI±670)Short in side squib (RH) circuitSide airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Blink
TMMK made:
B0110/43
(DI±674)Short in side squib (RH) circuitSide airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
TMC made:
B0111/44
(DI±679)Open in side squib (RH) circuitSide airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Blink
TMMK made:
B0111/44
(DI±682)Open in side squib (RH) circuitSide airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
TMC made:
B0112/41
(DI±686)Short in side squib (RH) circuit
(to Ground)Side airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Blink

Page 1846 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI±634
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
869 Author: Date:
DTC No.
(See Page)Detection ItemTrouble AreaSRS
Warning Light
TMMK made:
B0112/41
(DI±689)Short in side squib (RH) circuit
(to

DI±634
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
869 Author: Date:
DTC No.
(See Page)Detection ItemTrouble AreaSRS
Warning Light
TMMK made:
B0112/41
(DI±689)Short in side squib (RH) circuit
(to Ground)Side airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
TMC made:
B0113/42
(DI±693)Short in side squib (RH) circuit
(to B+)Side airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Blink
TMMK made:
B0113/42
(DI±696)Short in side squib (RH) circuit
(to B+)Side airbag assembly RH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
TMC made:
B0115/47
(DI±700)Short in side squib (LH) circuitSide airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Blink
TMMK made:
B0115/47
(DI±704)Short in side squib (LH) circuitSide airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
TMC made:
B0116/48
(DI±709)Open in side squib (LH) circuitSide airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Blink
TMMK made:
B0116/48
(DI±712)Open in side squib (LH) circuitSide airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
TMC made:
B0117/45
(DI±716)Short in side squib (LH) circuit
(to Ground)Side airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Blink
TMMK made:
B0117/45
(DI±719)Short in side squib (LH) circuit
(to Ground)Side airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
TMC made:
B0118/46
(DI±723)Short in side squib (LH) circuit
(to B+)Side airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Blink
TMMK made:
B0118/46
(DI±726)Short in side squib (LH) circuit
(to B+)Side airbag assembly LH (squib)
Airbag sensor assembly
Wire harness
Sub wire harness
Blink
B0130/63
(DI±730)Short in P/T squib (RH) circuitSeat belt pretensioner RH (squib)
Airbag sensor assembly
Wire harness
Blink
B0131/64
(DI±734)Open in P/T squib (RH) circuitSeat belt pretensioner RH (squib)
Airbag sensor assembly
Wire harness
Blink
B0132/61
(DI±737)Short in P/T squib (RH) circuit
(to Ground)Seat belt pretensioner RH (squib)
Airbag sensor assembly
Wire harness
Blink
B0133/62
(DI±740)Short in P/T squib (RH) circuit
(to B+)Seat belt pretensioner RH (squib)
Airbag sensor assembly
Wire harness
Blink

Page 1847 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±635
870 Author: Date:
DTC No.
(See Page)Detection ItemTrouble AreaSRS
Warning Light
B0135/73
(DI±743)Short in P/T squib (LH) circuitSeat belt prete

Page 1848 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI1B0±04
H08283
Combination Meter
(Warning Light)Steering Wheel Pad
(with Airbag)
Airbag Sensor AssemblyFront Passenger
Airbag Assembly
Side Airbag Assembly
(LH)
Side Airbag Sensor
Assembly (LH)
Seat
