N20215
Engine coolant temperature gauge
Ignition
Switch
BatterySender
Gauge
Z15788
Engine coolant temperature gauge
Ignition
Switch
BatteryWire Harness SideTest Bulb
(3.4 W)
N20216
C
B
A BE±6
± BODY ELECTRICALCOMBINATION METER
6. INSPECT ENGINE COOLANT TEMPERATURE RE-
CEIVER GAUGE OPERATION
(a) Disconnect the connector from the sender gauge.
(b) Turn the ignition switch ON and check that the receiver
gauge needle indicates COOL.
(c) Ground terminal on the wire harness side connector
through a 3.4±W test bulb.
(d) Turn the ignition switch ON, and check that the bulb lights
up and the receiver gauge needle moves to the hot side.
If operation is as specified, replace the sender gauge.
Then, recheck the system.
If operation is not as specified, measure the receiver gauge re-
sistance.
7. INSPECT ENGINE COOLANT TEMPERATURE RE-
CEIVER GAUGE RESISTANCE
Measure the resistance between terminals.
Tester connectionResistance (W) *
A ± BApprox. 175.7
A ± CApprox. 54.0
B ± CApprox. 229.7
*: This circuit includes the diode.
HINT:
Connect the test leads so that the current from the ohmmeter
can flow according to the above order.
If resistance value is not as specified, replace the receiver
gauge.
Page 986 of 4592

I07709
Slide
rheostat35.63 ±
0.1 W35.63 ±
0.1 W
Z14205
Warning Light
Ignition
Switch
Battery
1
N06640
± BODY ELECTRICALCOMBINATION METER
BE±7
8. INSPECT ENGINE COOLANT TEMPERATURE SEND-
ER GAUGE RESISTANCE
Connect the wire harness as shown in the illustration, and ad-
just the ammeter pointer to indicate º0º using the slide rheostat,
then read the rheostat indication.
Temperature °C (°F)Resistance (W)
50 (122.0)160 ± 240
120 (248.0)17.1 ± 21.2
If resistance value is not as specified, replace the engine cool-
ant temperature sender gauge.
9. INSPECT LOW OIL PRESSURE WARNING LIGHT
(a) Disconnect the connector from the warning switch and
ground terminal on the wire harness side connector.
(b) Turn the ignition switch ON and check that the warning
light lights up.
If the warning light does not light up, test the bulb.
10. INSPECT LOW OIL PRESSURE SWITCH
(a) Disconnect the connector from the switch.
(b) Check that continuity exists between terminal and ground
with the engine stopped.
(c) Check that no continuity exists between terminal and
ground with the engine running.
HINT:
Oil pressure should be over 24.5 kPa (0.25 kgf/cm
2, 3.55 psi).
If operation is not as specified, replace the switch.
Page 987 of 4592
BO2DL±01
V00005
Shape (Example)
Removal/Installation
Clip RemoverPliers
Screwdriver
Scraper
± BODYCLIP
BO±1
540 Author: Date:

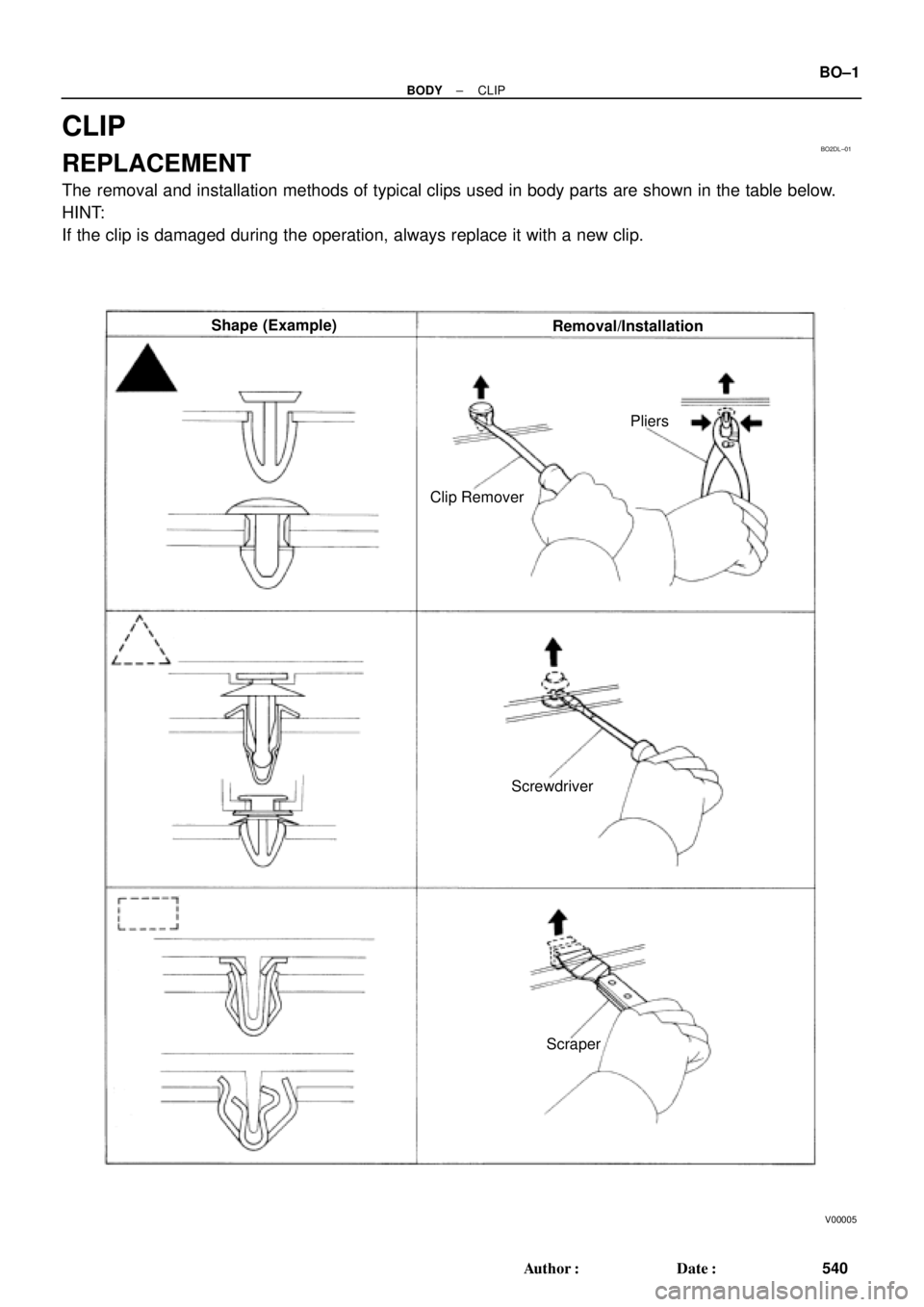

CLIP
REPLACEMENT
The removal and installation methods of typical clips used in body parts are shown in the table below.
HINT:
If the clip is damaged during the operation, always replace it with a new clip.
Page 988 of 4592

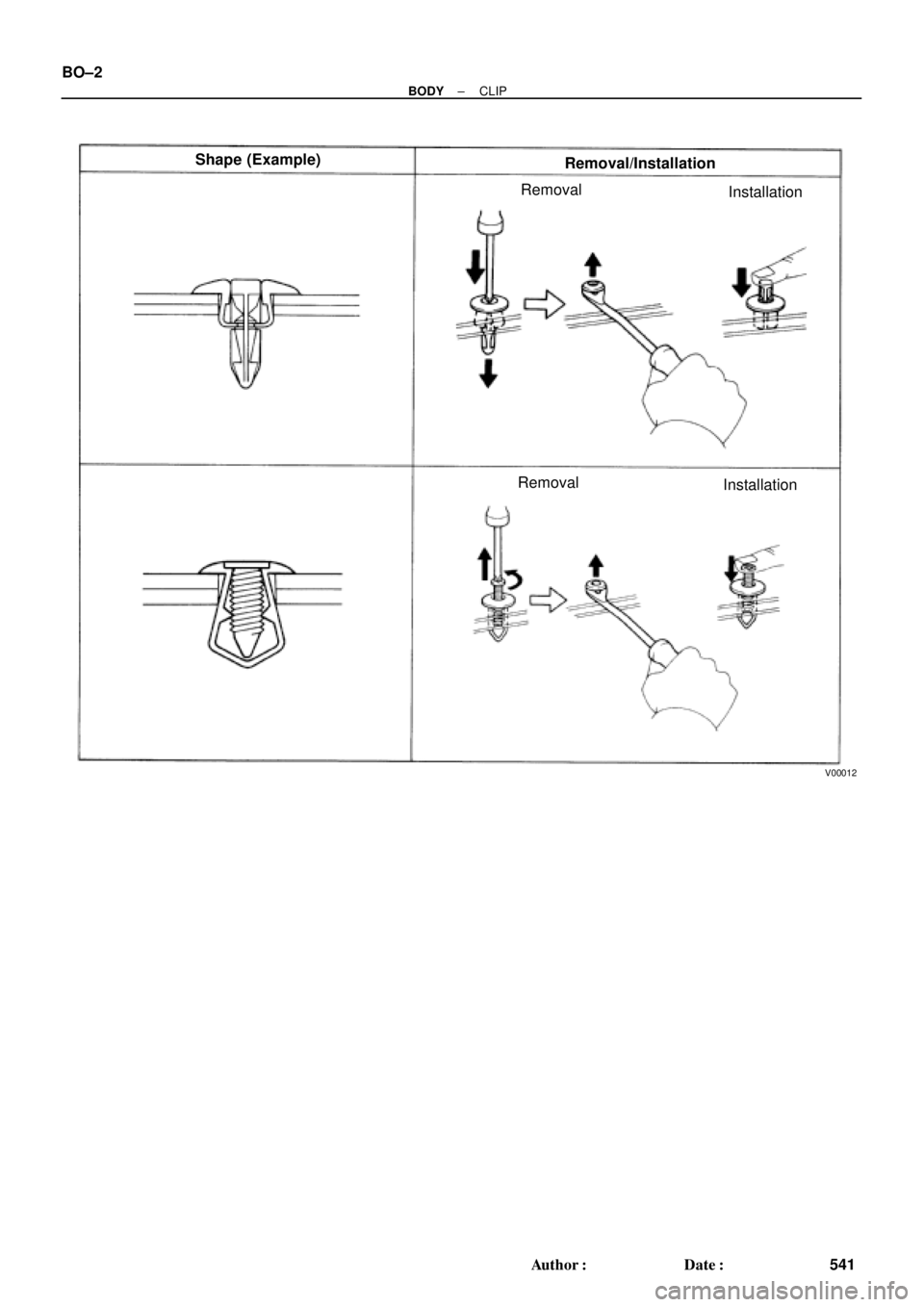

V00012
Shape (Example)
Removal/Installation
Removal
Installation
Removal
Installation BO±2
± BODYCLIP
541 Author: Date:
Page 989 of 4592
BO2DM±01
± BODYSRS AIRBAG
BO±3
542 Author: Date:
SRS AIRBAG
PRECAUTION
The CAMRY CNG is equipped with SRS (Supplemental Restraint System) such as the driver airbag, front
passenger airbag and seat belt pretensioner. Failure to carry out service operation in the correct sequence
could cause the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before
servicing (including removal or installation of parts, inspection or replacement), be sure to read the precau-
tionary notices in the RS section (See Pub. No. RM654U).
Page 990 of 4592
BO2DN±01
H09249
Luggage Compartment
Trim Front Cover
Rear Bumper Reinforcement
Rear Bumper Energy Absorber
Rear Bumper
Side Retainer
Quarter Air Duct
Rear Bumper Cover Rear Bumper
Side RetainerInner Luggage Compartment
Trim Cover
34 (350, 25)
4.9 (50, 43 in.´lbf)
4.9 (50, 43 in.´lbf)
N´m (kgf´cm, ft´lbf) : Specified TorqueInner Luggage Compartment
Trim Cover
Spare Wheel Cover
4.9 (50, 43 in.´lbf)
4.9 (50, 43 in.´lbf)
4.9 (50, 43 in.´lbf)
BO±4
± BODYREAR BUMPER
543 Author: Date:

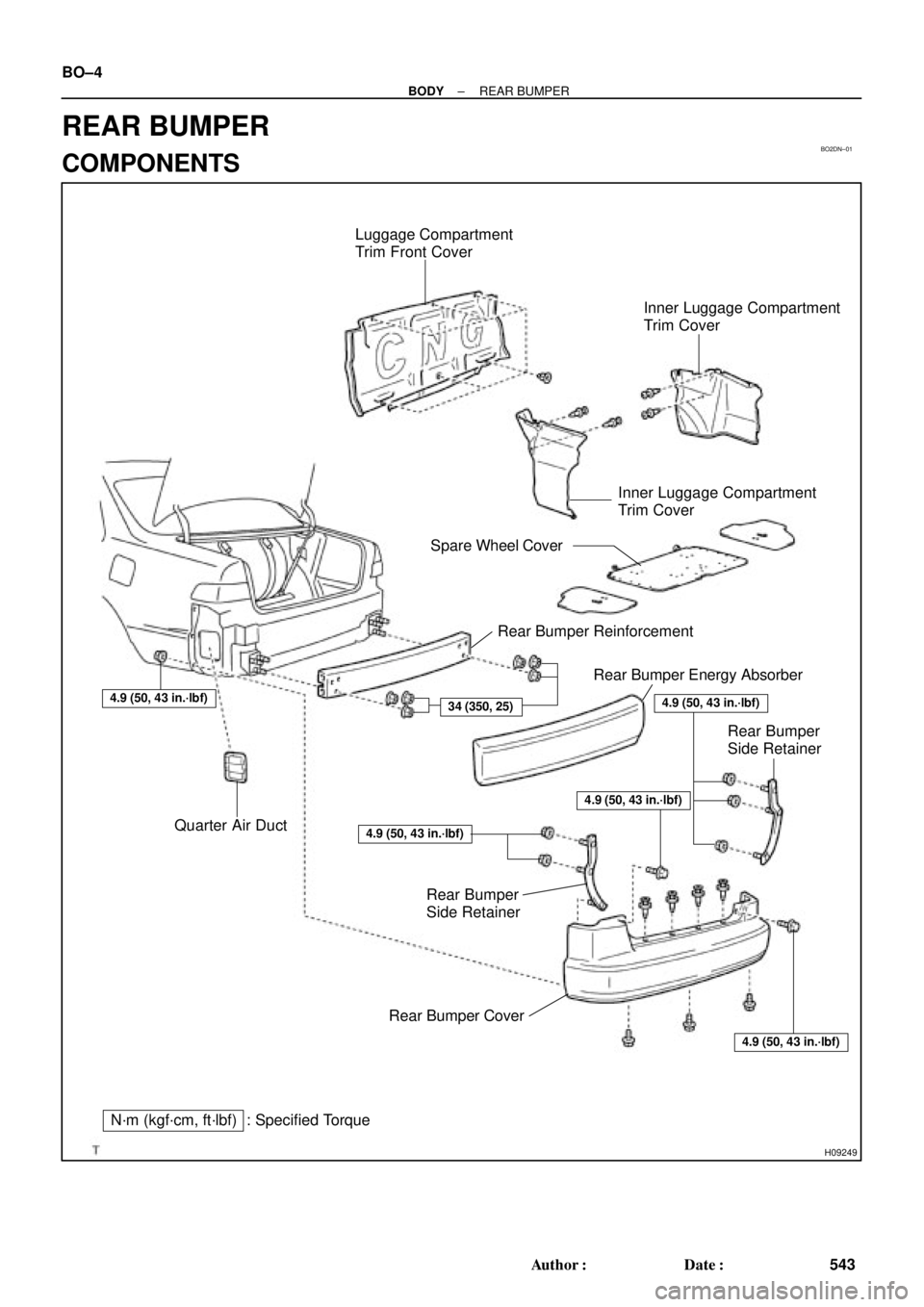

REAR BUMPER
COMPONENTS
Page 991 of 4592

BO2DO±02
H09250
Luggage Compartment
Door HingeLuggage Compartment DoorLuggage Compartment
Door Hinge
Door Lock Cylinder
Door Lock StrikerDoor Lock
Door Support
Inner Luggage Compartment
Trim Cover
Spare Wheel
Rear SeatbackSpare Wheel Cover
Spare Wheel
Carrier
Spare Wheel
Carrier Spacer
Luggage Compartment
Trim Front Cover
Rear Floor Finish
Side Plate
Rear Seat Outer BeltInner Lower Luggage
Compartment Trim Cover
Rear Seat Outer Belt Rear Floor Finish
Side Plate
Rear Seat CushionRoof Side
Inner Garnish
No. 1 Upper Back Panel Hole CoverPackage Tray Trim High±mounted
Stop Light
Roof Side
Inner Garnish
41 (420, 31)
41 (420, 31)
7.8 (80, 69 in.´lbf)
5.4 (55, 49 in.´lbf)
Luggage Compartment Door Cover
x11
N´m (kgf´cm, ft´lbf) : Specified TorqueReat Combination Light
22 (224, 16)
22 (224, 16)
5.4 (55, 49 in.´lbf)
18 (185, 13)
7.8 (80, 69 in.´lbf)
22 (224, 16)
Rear Floor
Finish Plate
± BODYLUGGAGE COMPARTMENT DOOR AND HINGE
BO±5
544 Author: Date:

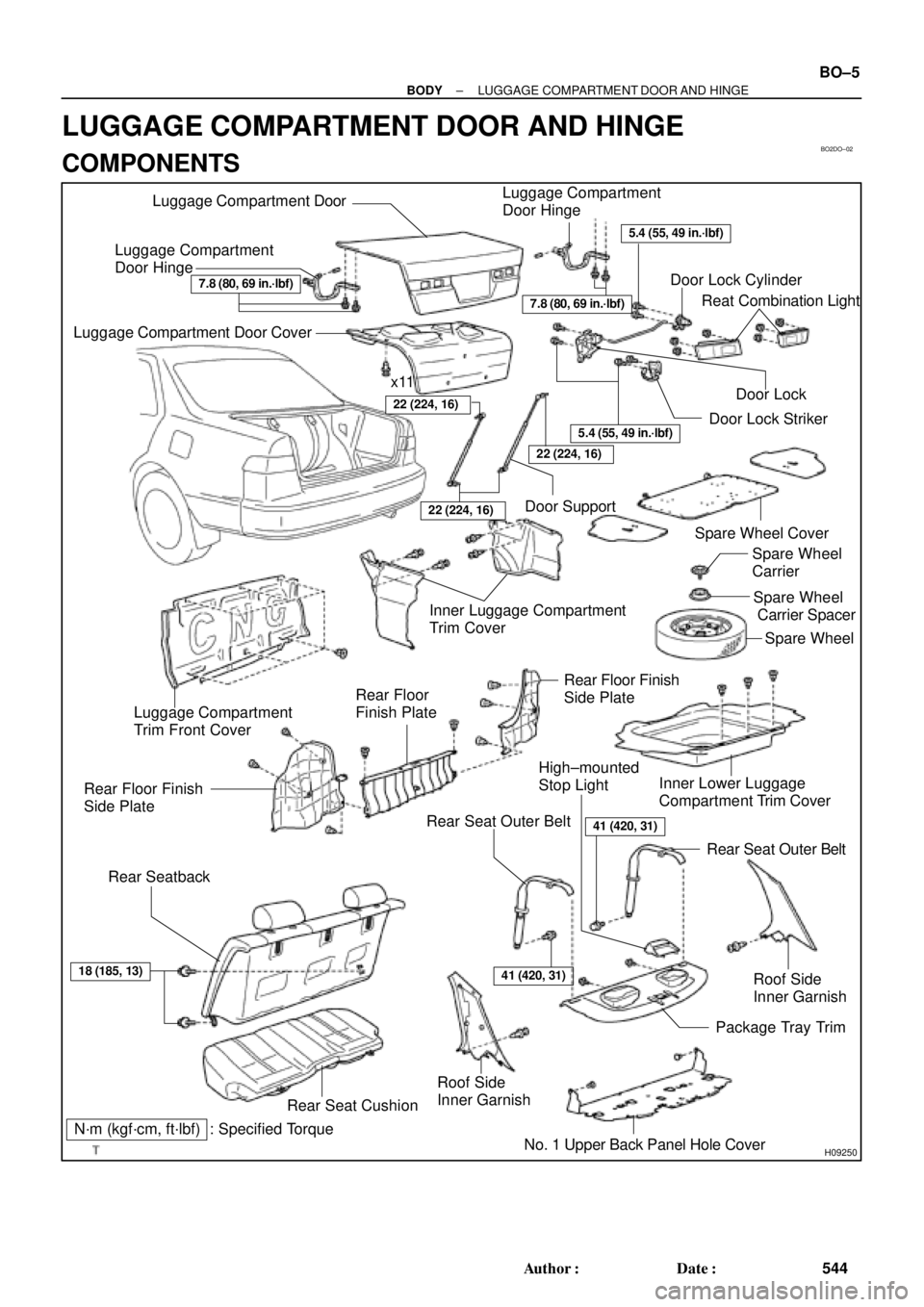

LUGGAGE COMPARTMENT DOOR AND HINGE
COMPONENTS
Page 992 of 4592

BO2DP±01
H09251
H09252
BO±6
± BODYLUGGAGE COMPARTMENT DOOR AND HINGE
REMOVAL
1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
Remove the 11 clips and luggage compartment door cover.
2. REMOVE LUGGAGE COMPARTMENT DOOR
(a) Disconnect the connectors.
(b) Using a clip remover, disconnect the clamps.
(c) Remove the 4 bolts and door.
Torque: 7.8 N´m (80 kgf´cm, 69 in.´lbf)
3. REMOVE LUGGAGE COMPARTMENT TRIM FRONT
COVER
Using a clip remover, remove the 6 clips and luggage compart-
ment trim front cover.
4. REMOVE SPARE WHEEL COVER
5. REMOVE INNER LUGGAGE COMPARTMENT TRIM
COVER
(a) Using a clip remover, remove the 2 clips and inner lug-
gage compartment trim cover.
(b) Employ the same manner described above to the other
side.
6. REMOVE REAR FLOOR FINISH SIDE PLATES
Using a clip remover, remove the 6 clips and 2 rear floor finish
side plates.
7. REMOVE INNER LOWER LUGGAGE COMPARTMENT
TRIM COVER
(a) Remove the spare wheel carrier, spare wheel carrier
spacer and spare wheel.
(b) Using a clip remover, remove the 3 clips and inner lower
luggage compartment trim cover.
HINT:
Tape the screwdriver tip before use.
