TOYOTA CAMRY 1999 Service Repair Manual LIGHT AUTO TURN OFF
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1B
1C20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1J
()
1S

Page 4338 of 4592

TOYOTA CAMRY 1999 Service Repair Manual MEMO

Page 4339 of 4592

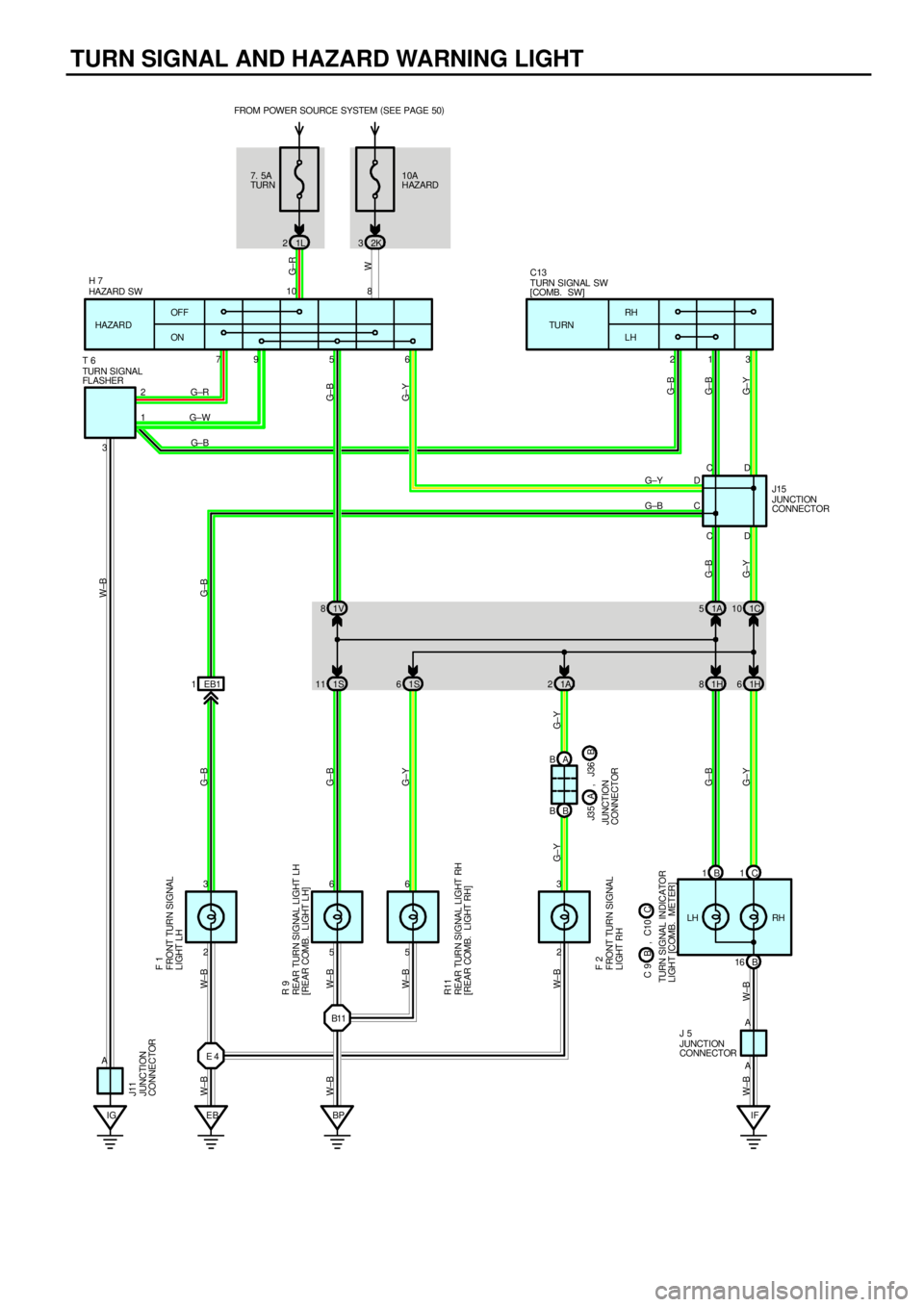

TOYOTA CAMRY 1999 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LIGHT
1L 22K3
2 3
2 3
IG EB BPIF EB1 1 37956 231
5 5
A 66
A
A10 8
2
1FROM POWER SOURCE SYSTEM (
SEE PAGE 50)
OFF
ONRH
LH TURN HAZARD10A
HAZARD 7. 5A
TURN
G± R
W
G±RG±

Page 4340 of 4592

TOYOTA CAMRY 1999 Service Repair Manual T6 TURN SIGNAL FLASHER
2±GROUND : Approx. 12 volts with the ignition SW on or the hazard SW on
1±GROUND : Changes from 12 to 0 volts with the ignition SW on and the turn signal SW LEFT or RIGHT pos

Page 4341 of 4592

TOYOTA CAMRY 1999 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LIGHT
16 1
1 12
X
XXXXX
XX 3
2
32
3X
5X
678910AAA AA
AAAA AAAAAA
AAAA

CCCD D D
BB
BB

Page 4342 of 4592

Page 4343 of 4592

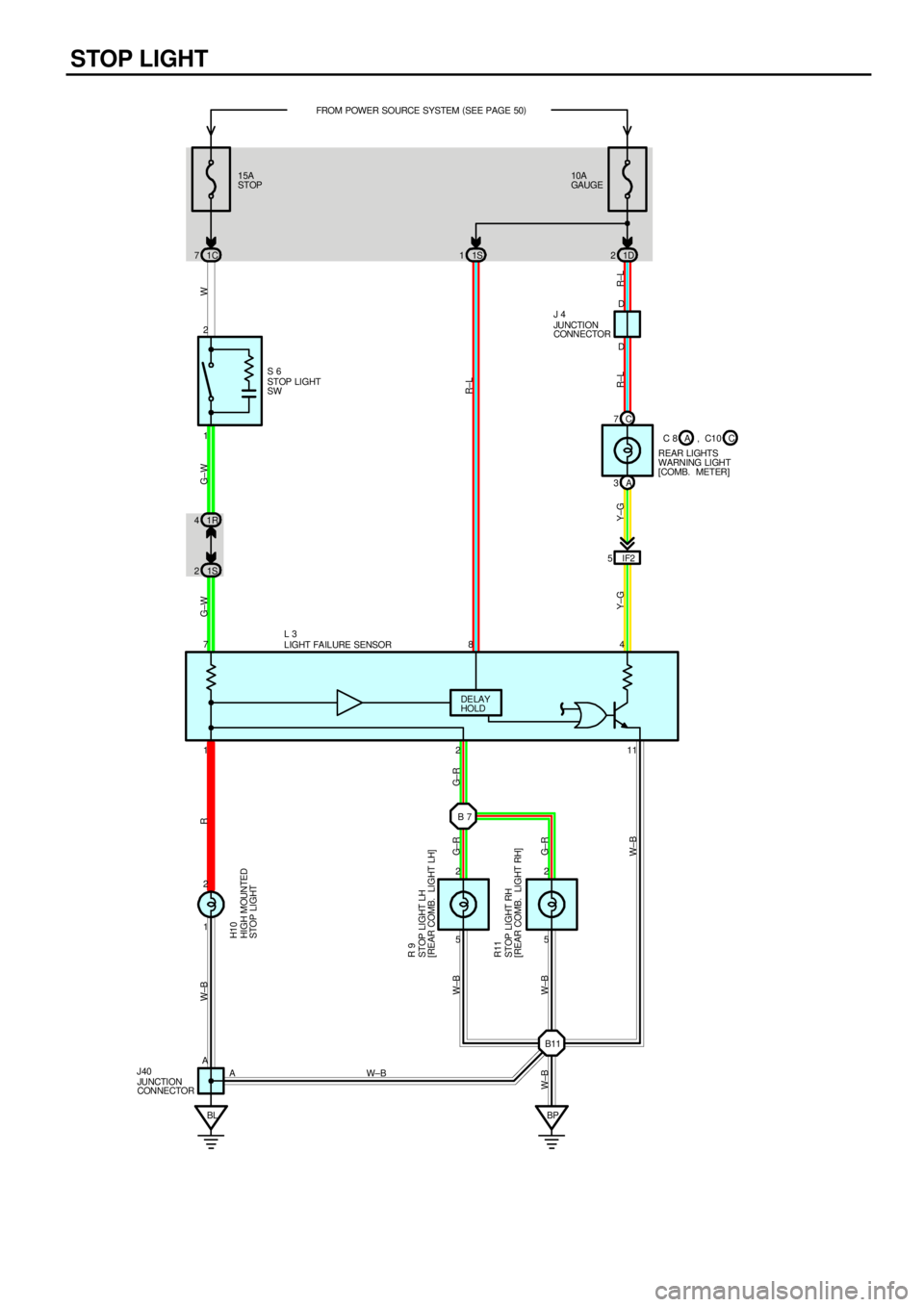

TOYOTA CAMRY 1999 Service Repair Manual STOP LIGHT
1D 2 1C 7
BL5 2
5 2 B 7
B11D
78D
2
1IF2 5 1S 1 FROM POWER SOURCE SYSTEM (
SEE PAGE 50)
10A
GAUGE 15A
STOP
R W±B
Y±G R±L R±LR±L
LIGHT FAILURE SENSORJUNCTION
CONNECTOR
G± R W±B
W±BSTO

Page 4344 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Current is applied at all times through the STOP fuse to TERMINAL 2 of the stop light SW.
When the ignition SW is turned on, current flows from the GAUGE fuse to TERMINAL 8 of the light failure sensor

Current is applied at all times through the STOP fuse to TERMINAL 2 of the stop light SW.
When the ignition SW is turned on, current flows from the GAUGE fuse to TERMINAL 8 of the light failure sensor, and also
flows through the rear lights warning light to TERMINAL 4 of the light failure sensor.
STOP LIGHT DISCONNECTION WARNING
When the ignition SW is turned on and the brake pedal is pressed (Stop light SW on), if the stop light circuit is open, the
current flowing from TERMINAL 7 of the light failure sensor to TERMINAL 2 and 1 changes, so the light failure sensor
detects the disconnection and the warning circuit of the light failure sensor is activated.
As a result, the current flows from TERMINAL 4 of the light failure sensor to TERMINAL 11 to GROUND and turns the rear
lights warning light on. By pressing the brake pedal, the current flowing to TERMINAL 8 of the light failure sensor keeps the
warning circuit on holding and the warning light on until the ignition SW is turned off.
S6 STOP LIGHT SW
2±1 : Closed with the brake pedal depressed
L3 LIGHT FAILURE SENSOR
1, 2, 7±GROUND : Approx. 12 volts with the stop light SW on
4, 8±GROUND : Approx. 12 volts with the ignition SW at ON position
11±GROUND : Always continuity
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
C8A30J431R933
C10C30J4032R1133
H1032L332S631
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1C20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1D20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
1R20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1S20Floor Wire and Instrument Panel J/B (Lower Finish Panel)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IF240Floor Wire and Instrument Panel Wire (Left Kick Panel)
: GROUND POINTS
CodeSee PageGround Points Location
BL44Under the Left Center Pillar
BP44Back Panel Center
: SPLICE POINTS
CodeSee PageWire Harness with Splice PointsCodeSee PageWire Harness with Splice Points
B744Floor WireB1144Floor Wire
SYSTEM OUTLINE
SERVICE HINTS
