Page 3217 of 4592
RS01N±16
H08235
H06728
LH:
RH:
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT AIRBAG SENSOR
RS±65
2210 Author: Date:
INSPECTION
1. VEHICLE NOT INVOLVED IN COLLISION
Do a diagnostic system check.
(See page DI±626)
2. VEHICLE INVOLVED IN COLLISION
(a) Do a diagnostic system check.
(See page DI±626)
(b) If the front fender of the car or its periphery is damaged,
do a visual check for damage to the front airbag sensor,
which includes the following items even if the airbag was
not deployed:
Bracket deformation
Paint peeling off the bracket
Cracks, dents or chips in the case
Cracks, dents, chipping and scratches in the con-
nector
Peeling off of the label or damage to the serial num-
ber
Page 3218 of 4592
RS01O±10
RS±66
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT AIRBAG SENSOR
2211 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the front airbag sensor.
If the SRS has been deployed in a collision. (Replace both the left and right airbag sensors.)
If the front airbag sensor has been found to be faulty in troubleshooting.
If the front airbag sensor has been found to be faulty during checking items.
(See page RS±65)
If the front airbag sensor has been dropped.
CAUTION:
For removal and installation of the front airbag sensor, see page RS±64 and RS±67. Be sure to follow
the correct procedure.
Page 3219 of 4592

RS01P±14
H06728
LH:
RH:
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT AIRBAG SENSOR
RS±67
2212 Author: Date:
INSTALLATION
1. INSTALL FRONT AIRBAG SENSOR LH AND RH
(a) Install the front airbag sensor with the arrow on the sensor
facing toward the front of the vehicle.
Torque: 20 N´m (205 kgf´cm, 15 ft´lbf)
NOTICE:
Connection of the connector is done after the sensor
assembly has been installed.
Make sure the sensor is installed with the specified
torque.
If the sensor has been dropped, or there are cracks,
dents or other defects in the case, brackets or con-
nector, replace the removed sensor with a new one.
The front sensor is equipped with an electrical con-
nection check mechanism. Be sure to lock this mech-
anism securely when connecting the connector. If the
connector is not securely locked, a malfunction code
will be detected by the diagnostic system.
(b) Connect the front airbag sensor connector.
2. INSTALL HEAD LIGHT LH AND RH
(See page BE±28)
3. INSTALL TURN SIGNAL LIGHT LH AND RH
Page 3220 of 4592
RS01Q±06

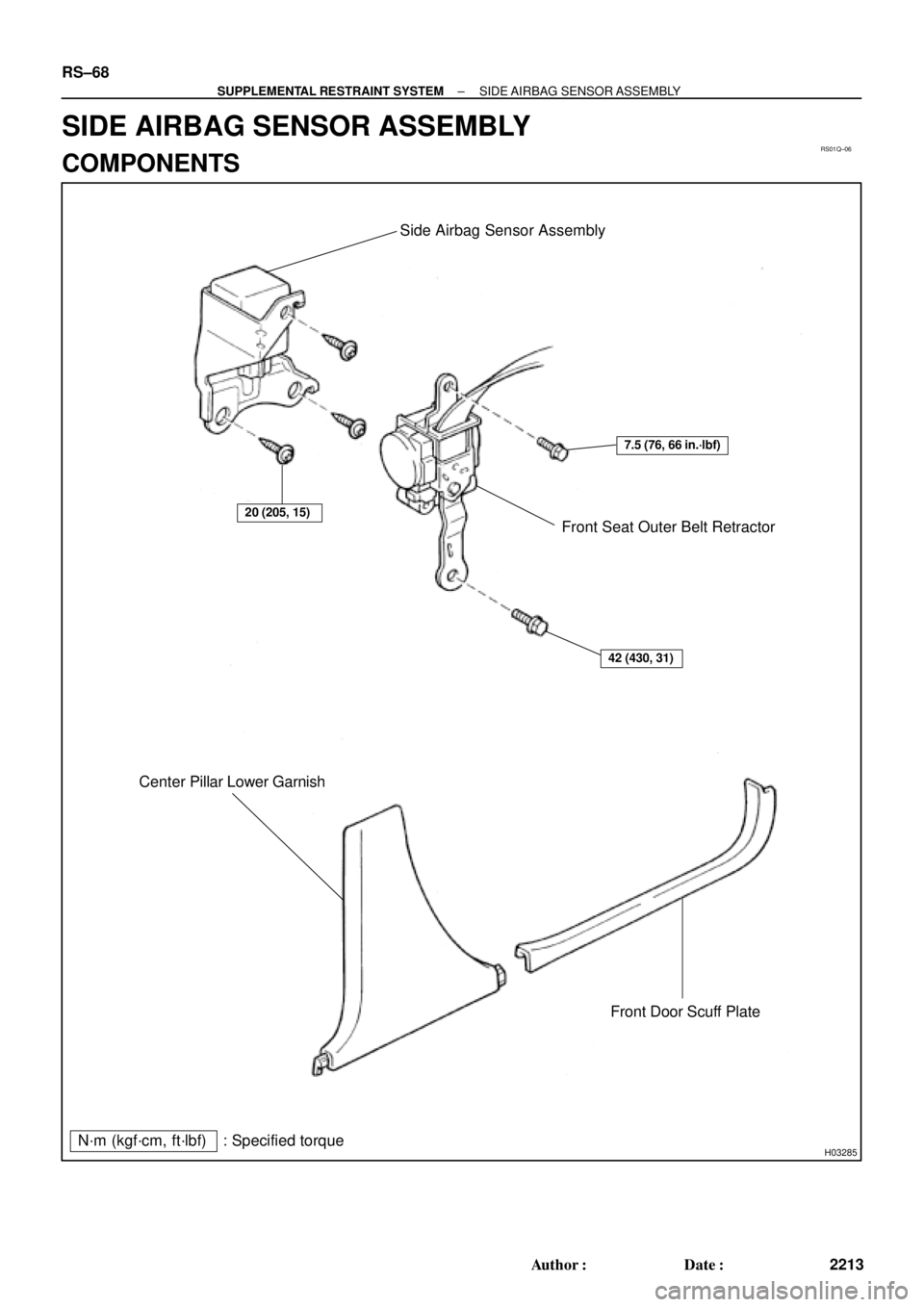

H03285: Specified torqueN´m (kgf´cm, ft´lbf)
Side Airbag Sensor Assembly
20 (205, 15)
Front Seat Outer Belt Retractor
42 (430, 31)
Center Pillar Lower Garnish
Front Door Scuff Plate
7.5 (76, 66 in.´lbf)
RS±68
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG SENSOR ASSEMBLY
2213 Author: Date:
SIDE AIRBAG SENSOR ASSEMBLY
COMPONENTS
Page 3221 of 4592
RS01R±05
H01346
H01339
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG SENSOR ASSEMBLY
RS±69
2214 Author: Date:
REMOVAL
NOTICE:
Do not open the cover or the case of the ECU and various
electrical devices unless absolutely necessary.
(If the IC terminals are touched, the IC may be destroyed by
static electricity.)
1. REMOVE FRONT DOOR SCUFF PLATE
2. REMOVE CENTER PILLAR LOWER GARNISH
3. REMOVE FRONT SEAT OUTER BELT RETRACTOR
(See page BO±126)
(a) Disconnect the pretensioner connector.
(b) Remove the 2 bolts and retractor.
4. REMOVE SIDE AIRBAG SENSOR ASSEMBLY
(a) Disconnect the side airbag sensor assembly connector.
NOTICE:
Disconnect the connector with the sensor assembly
installed.
(b) Using a torx wrench, remove the 3 screws and side airbag
sensor assembly.
Torx wrench: T40 (Part No.09042±00020 or locally
manufactured tool)
Page 3222 of 4592
RS05V±03
RS±70
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG SENSOR ASSEMBLY
2215 Author: Date:
INSPECTION
1. VEHICLE NOT INVOLVED IN COLLISION
Do a diagnostic system check. (See page DI±626)
2. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED
Do a diagnostic system check. (See page DI±626)
3. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED
Replace the side airbag sensor assembly. (See page RS±69)
Page 3223 of 4592
RS01T±06
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG SENSOR ASSEMBLY
RS±71
2216 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the side airbag sensor assembly.
If the side airbag sensor assembly has been deployed in a collision.
If the side airbag sensor assembly has been found to be faulty in troubleshooting.
If the side airbag sensor assembly has been dropped.
CAUTION:
For removal and installation of the side airbag sensor assembly, see page RS±69 and RS±72. Be sure
to follow the correct procedure.
Page 3224 of 4592

RS05W±02
H01339
H01352
RS±72
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG SENSOR ASSEMBLY
2217 Author: Date:
INSTALLATION
NOTICE:
Never use SRS parts from another vehicle. When re-
placing parts, replace them with new ones.
Never reuse the side airbag sensor assembly in-
volved in a collision when the airbag has deployed.
Never repair a sensor in order to reuse it.
1. INSTALL SIDE AIRBAG SENSOR ASSEMBLY
(a) Using a torx wrench, install the side airbag sensor assem-
bly with the 3 screws.
Torx wrench: T40 (Part No.09042±00020 or locally
manufactured tool)
Torque: 20 N´m (205 kgf´cm, 15 ft´lbf)
(b) Connect the side airbag sensor assembly connector.
NOTICE:
Connection of the connector is done after the sensor
assembly has been installed. Make sure the sensor
assembly is installed with the specified torque.
If the sensor assembly has been dropped, or there are
cracks, dents or other defects in the case, bracket or
connector, replace the sensor assembly with a new
one.
When installing the sensor assembly, take care that
the SRS wiring does not interfere with other parts and
is not pinched between other parts.
After installation, shake the sensor assembly to
check that there is no looseness.
2. INSTALL FRONT SEAT OUTER BELT RETRACTOR
(See page BO±134)
(a) Install the retractor with the 2 bolts.
Torque:
Upper bolt: 7.5 N´m (76 kgf´cm, 66 in.´lbf)
Lower bolt: 42 N´m (430 kgf´cm, 31 ft´lbf)
(b) Connect the pretensioner connector.
3. INSTALL CENTER PILLAR LOWER GARNISH
4. INSTALL FRONT DOOR SCUFF PLATE
