Page 937 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MN±01 BO±92 ± BODYFRONT SEAT (Power Seat for TMC Made) 2440 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±87).

Page 938 of 4592

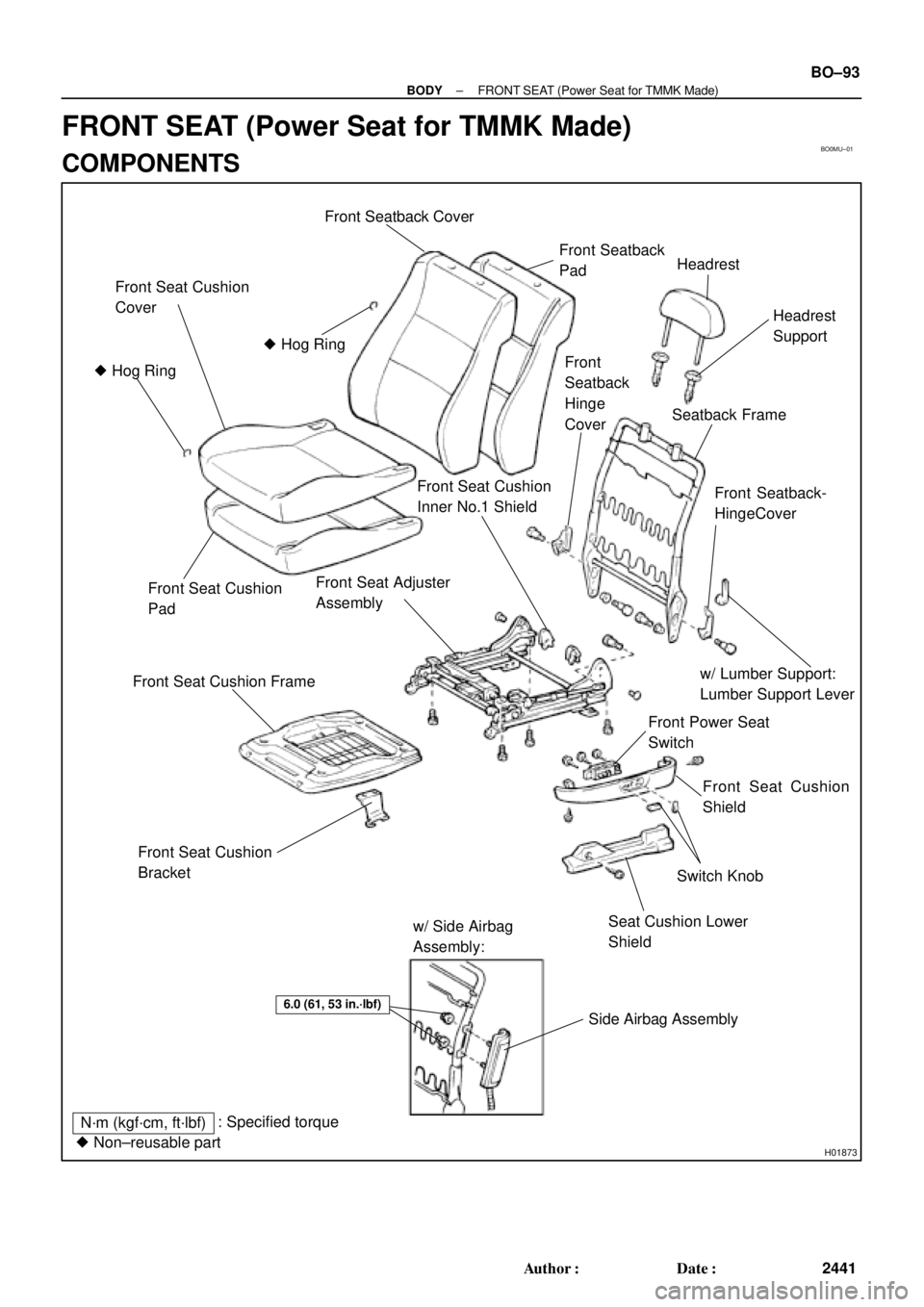

TOYOTA CAMRY 1999 Service Repair Manual BO0MU±01 H01873 Front Seat Cushion Cover  Hog Ring  Hog Ring Front Seat Cushion Pad Front Seat Cushion Frame Front Seat Adjuster Assembly Front Seat Cushion Inner No.1 Shield Front Seatback PadHead

Page 939 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MV±01 BO±94 ± BODYFRONT SEAT (Power Seat for TMMK Made) 2442 Author: Date: REMOVAL REMOVE FRONT SEAT (a) Using a screwdriver, remove the seat track covers. HINT: Tape the screwdriver tip befor

Page 940 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MW±01 H01870 ± BODYFRONT SEAT (Power Seat for TMMK Made) BO±95 2443 Author: Date: DISASSEMBLY 1. REMOVE THESE PARTS: (a) Switch knob (b) Front seat cushion shield (c) Front power seat switch (

Page 941 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MX±01 H01870 BO±96 ± BODYFRONT SEAT (Power Seat for TMMK Made) 2444 Author: Date: REASSEMBLY 1. INSTALL THESE PARTS: (a) Front seat cushion inner shield (b) Front seat cushion bracket (c) Fron

Page 942 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H01871 ± BODYFRONT SEAT (Power Seat for TMMK Made) BO±97 2445 Author: Date: 6. INSTALL SEATBACK ASSEMBLY (a) Install the seatback assembly with 4 bolts. HINT: Tighten the 4 bolts temporarily, then

Page 943 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MY±01 BO±98 ± BODYFRONT SEAT (Power Seat for TMMK Made) 2446 Author: Date: INSTALLATION INSTALL FRONT SEAT (a) Mount the seat to the vehicle. (b) w/ Side Airbag: Connect the connector. (c) Con

Page 944 of 4592

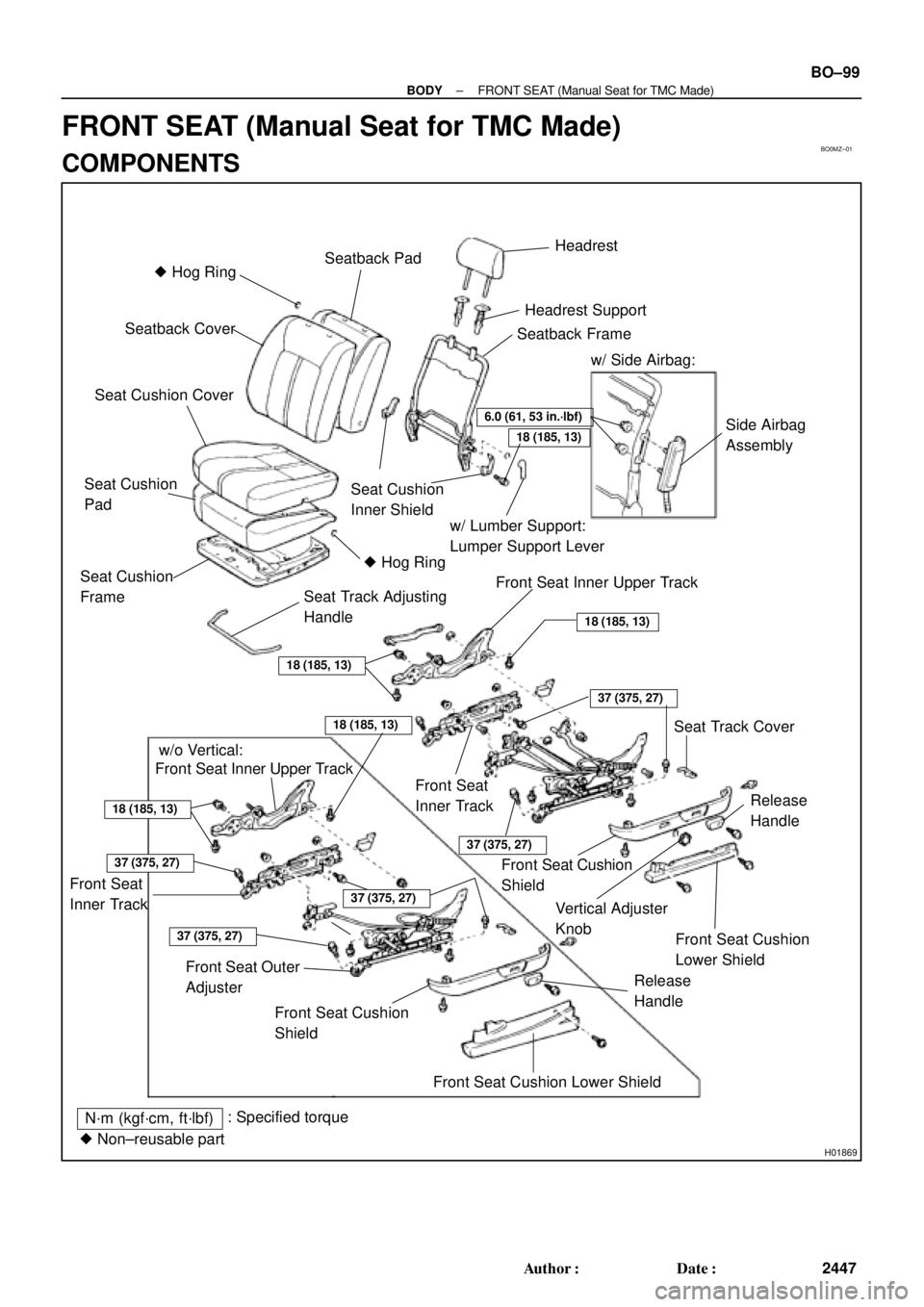

TOYOTA CAMRY 1999 Service Repair Manual BO0MZ±01 H01869  Hog RingSeatback PadHeadrest Seatback Cover Headrest Support Seat Cushion Cover Seatback Frame w/ Side Airbag: Side Airbag Assembly Seat Cushion Inner Shield w/ Lumber Support: Lump
