1999 TOYOTA CAMRY CD player

BE09Y±01
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±1
2221 Author: Date:
BODY ELECTRICAL SYSTEM
PRECAUTION
Take care to observe the following precautions when performing inspections or removal and replacement
of body electrical related parts.
1. HEADLIGHT SYSTEM

Halogen bulbs have pressurized gas inside and require special handling. They can burst if scratched
or dropped. Hold a bulb only by its plastic or metal case. Don't touch the glass part of a bulb with bare
hands.
2. SRS (SUPPLEMENTAL RESTRAINT SYSTEM)

The CAMRY is equipped with an SRS (Supplemental Restraint System) such as the driver airbag and
front passenger airbag. Failure to carry out service operation in the correct sequence could cause the
SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing
(including removal or installation of parts, inspection or replacement), be sure to read the precaution-
ary notices in the RS section.
3. AUDIO SYSTEM

If the negative (±) terminal cable is disconnected from the battery, the preset AM, FM 1 and FM 2 sta-
tions stored in memory are erased, so make sure to note the stations and reset them after the negative
(±) terminal cable is reconnected to the battery.

If the negative (±) terminal cable is disconnected from the battery, the ºANTI±THEFT SYSTEMº will
operate when the cable is reconnected, but the radio, tape player and CD player will not operate. Be
sure to input the correct ID number so that the radio, tape player and CD player can be operated again.
4. MOBILE COMMUNICATION SYSTEM

If the vehicle is equipped with a mobile communication system, refer to precautions in the IN section.

BE0AY±05
± BODY ELECTRICALAUDIO SYSTEM
BE±91
2311 Author: Date:
TROUBLESHOOTING
NOTICE:
When replacing the internal mechanism (computer part) of the audio system, be careful that no part
of your body or clothing comes in contact with the terminals of the leads from the IC, etc. of the re-
placement part (spare part).
HINT:
This inspection procedure is a simple troubleshooting which should be carried out on the vehicle during sys-
tem operation and was prepared on the assumption of system component troubles (except for the wires and
connectors, etc.).
Always inspect the trouble taking the following items into consideration.
Open or short circuit of the wire harness
Connector or terminal connection fault
ProblemNo.
RadioRadio not operating when power switch turned 'ON'.1
Display indicates when power switch turned 'ON', but no sound (including 'noise')
is produced.2
Noise present, but AM ± FM not operating.3
Any speaker does not work.4
Either AM or FM does not work, reception poor (volume faint), Fewer station pre-
sets.5
Poor reception.6
Sound quality poor.7
Preset memory disappears.8
Tape PlayerCassette tape cannot be inserted.9
Cassette tape is inserted, but no power.10
Power coming in, but tape player not operating.11
Either speaker does not work.12
Sound quality poor. (volume faint)13
Tape jammed, malfunction with tape speed or auto±reverse.14
Cassette tape will not be ejected.15
CD PlayerCD cannot be inserted.16
CD inserted, but no power.17
Power coming in, but CD player not operating.18
Sound jumps.19
Sound quality poor (Volume faint).20
Either speaker does not work.21
CD will not be ejected.22
NoiseNoise occurs.23
Noise produced by vibration or shock while driving.24
Noise produced when engine starts.25
The term ºAMº includes LW, MW and SW, and the term ºFMº includes UKW.

1 Radio RADIO NOT OPERATING WHEN POWER SWITCH TURNED 'ON'
Does tape or CD player operate normally? Radio assembly faulty.
Check that RAD No.1 fuse is OK?
Is ACC applied to radio?
Check that RAD No.2 fuse is OK?
Is +B applied to radio?
Check that GND (wire harness side) to radio is OK?Replace fuse.
ACC wire harness faulty.
Replace fuse.
+B wire harness faulty.
GND faulty.
Radio assembly faulty.No
OK
Ye s
OK
Ye s
OKYe s
NG
No
NG
No
NG

Radio±Tape Plater Unit (Built±in Power Amplifier)
Radio±CD Plater Unit (Built±in Power Amplifier) BE±92
± BODY ELECTRICALAUDIO SYSTEM
2312 Author: Date:

I03349

Radio±Tape Player Unit (Separate Power Amplifier)

Radio±Tape Player±CD Player Unit (Separate Power Amplifier)
Does tape or CD player operate normally?
Check that RAD No.1 fuse is OK?
Is ACC applied to power amplifier?
Check that RAD No.2 fuse is OK?
Is +B applied to power amplifier?
Check that GND (wire harness side) to power amplifier is OK?
Is ACC applied to radio assembly?
Is +B applied to radio assembly?
Check that GND (wire harness side) to radio assembly is OK?
Radio assembly faulty.Radio assembly faulty.
Replace fuse.
ACC wire harness faulty.
Replace fuse.
+B wire harness faulty.
GND faulty.
Power amplifier or wire harness faulty.
Power amplifier or wire harness faulty.
GND faulty. No
OK
Ye s
OK
Ye s
OK
Ye s
Ye s
OKYe s
NG
No
NG
No
NG
No
No
NG
Radio±CD Player Unit (Separate Power Amplifier)
± BODY ELECTRICALAUDIO SYSTEM
BE±93
2313 Author: Date:

I03350

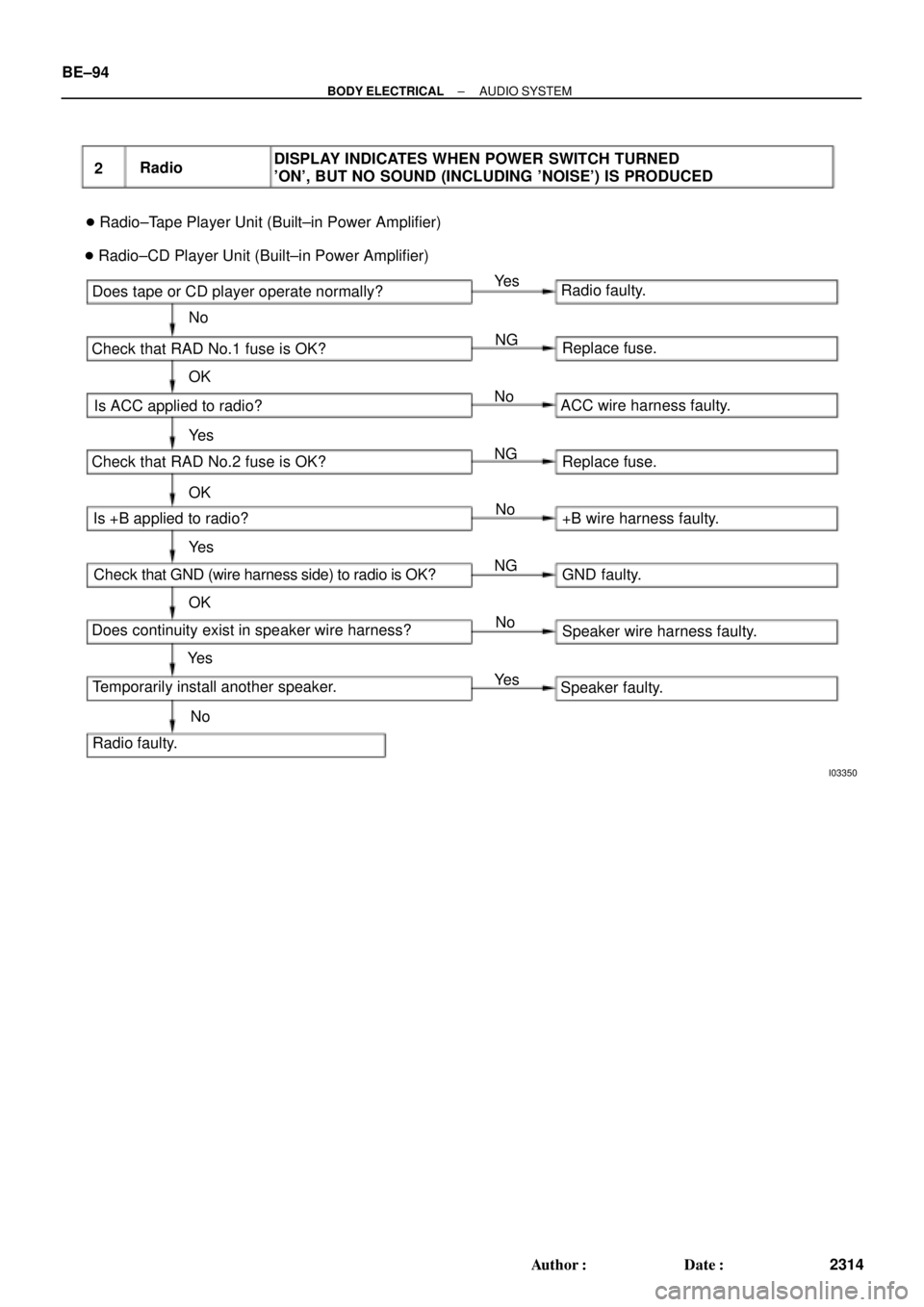

2RadioDISPLAY INDICATES WHEN POWER SWITCH TURNED
'ON', BUT NO SOUND (INCLUDING 'NOISE') IS PRODUCED

Radio±Tape Player Unit (Built±in Power Amplifier)
Does tape or CD player operate normally?
Check that RAD No.1 fuse is OK?
Is ACC applied to radio?
Check that RAD No.2 fuse is OK?
Is +B applied to radio?
Check that GND (wire harness side) to radio is OK?
Does continuity exist in speaker wire harness?
Temporarily install another speaker.
Radio faulty.Radio faulty.
Replace fuse.
ACC wire harness faulty.
Replace fuse.
+B wire harness faulty.
GND faulty.
Speaker wire harness faulty.
Speaker faulty. No
OK
Ye sNG
NoNo
No
No OK
OK Ye s
Ye sYe s
Ye s NG
NG
Radio±CD Player Unit (Built±in Power Amplifier) BE±94
± BODY ELECTRICALAUDIO SYSTEM
2314 Author: Date:

V08239

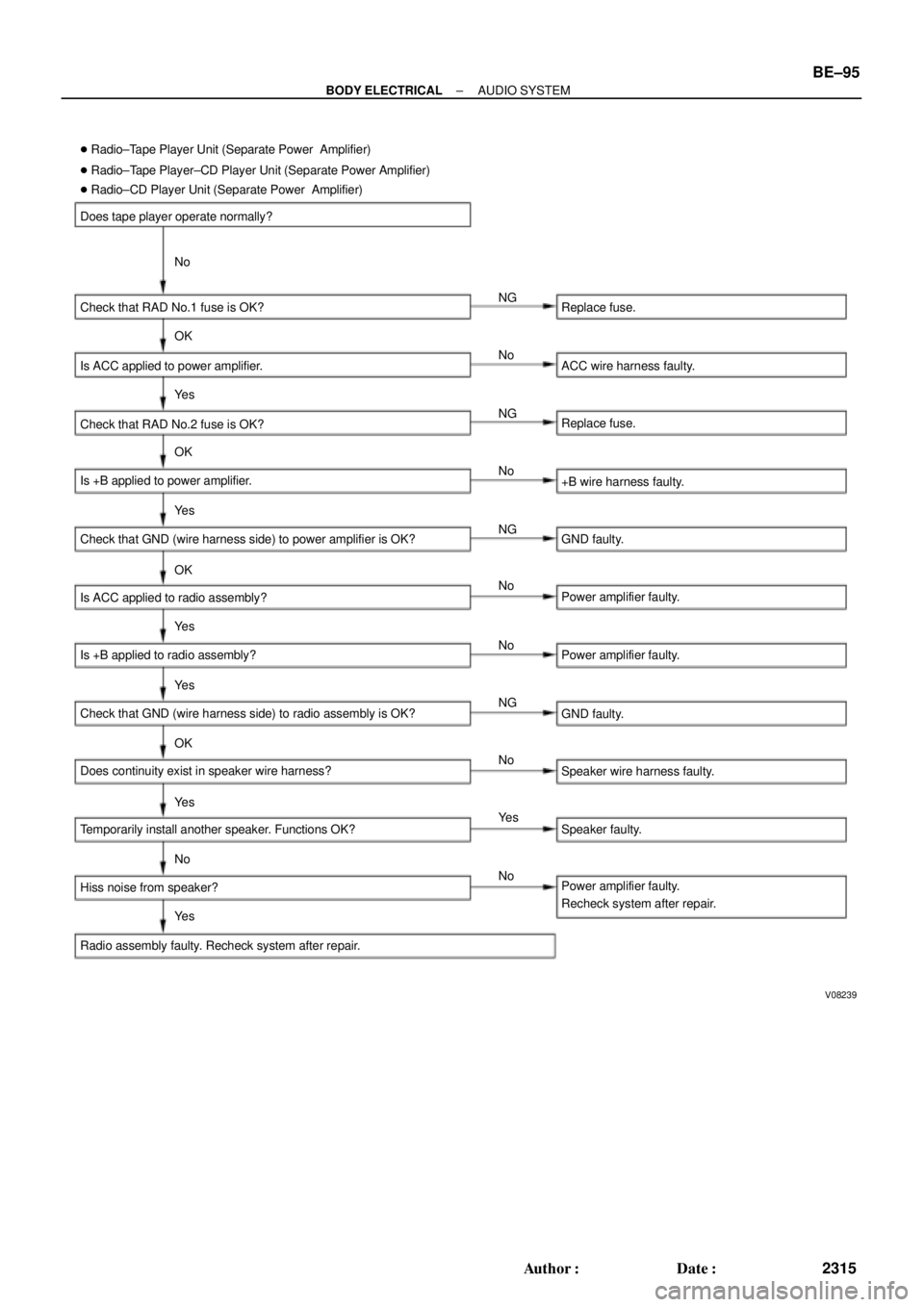

Radio±Tape Player Unit (Separate Power Amplifier)

Radio±Tape Player±CD Player Unit (Separate Power Amplifier)
Does tape player operate normally?
Check that RAD No.1 fuse is OK?
Is ACC applied to power amplifier.
Check that RAD No.2 fuse is OK?
Is +B applied to power amplifier.
Check that GND (wire harness side) to power amplifier is OK?
Is ACC applied to radio assembly?
Is +B applied to radio assembly?
Check that GND (wire harness side) to radio assembly is OK?
Does continuity exist in speaker wire harness?
Temporarily install another speaker. Functions OK?
Hiss noise from speaker?
Radio assembly faulty. Recheck system after repair.Replace fuse.
ACC wire harness faulty.
Replace fuse.
+B wire harness faulty.
GND faulty.
Power amplifier faulty.
Power amplifier faulty.
GND faulty.
Speaker wire harness faulty.
Speaker faulty.
Power amplifier faulty.
Recheck system after repair. No
OK
Ye sNG
No
No No No No No No
OK
OK
OK Ye s
Ye s
Ye s
Ye s
Ye sYe s NG
NG
NG
Radio±CD Player Unit (Separate Power Amplifier)
± BODY ELECTRICALAUDIO SYSTEM
BE±95
2315 Author: Date:

I03351
3

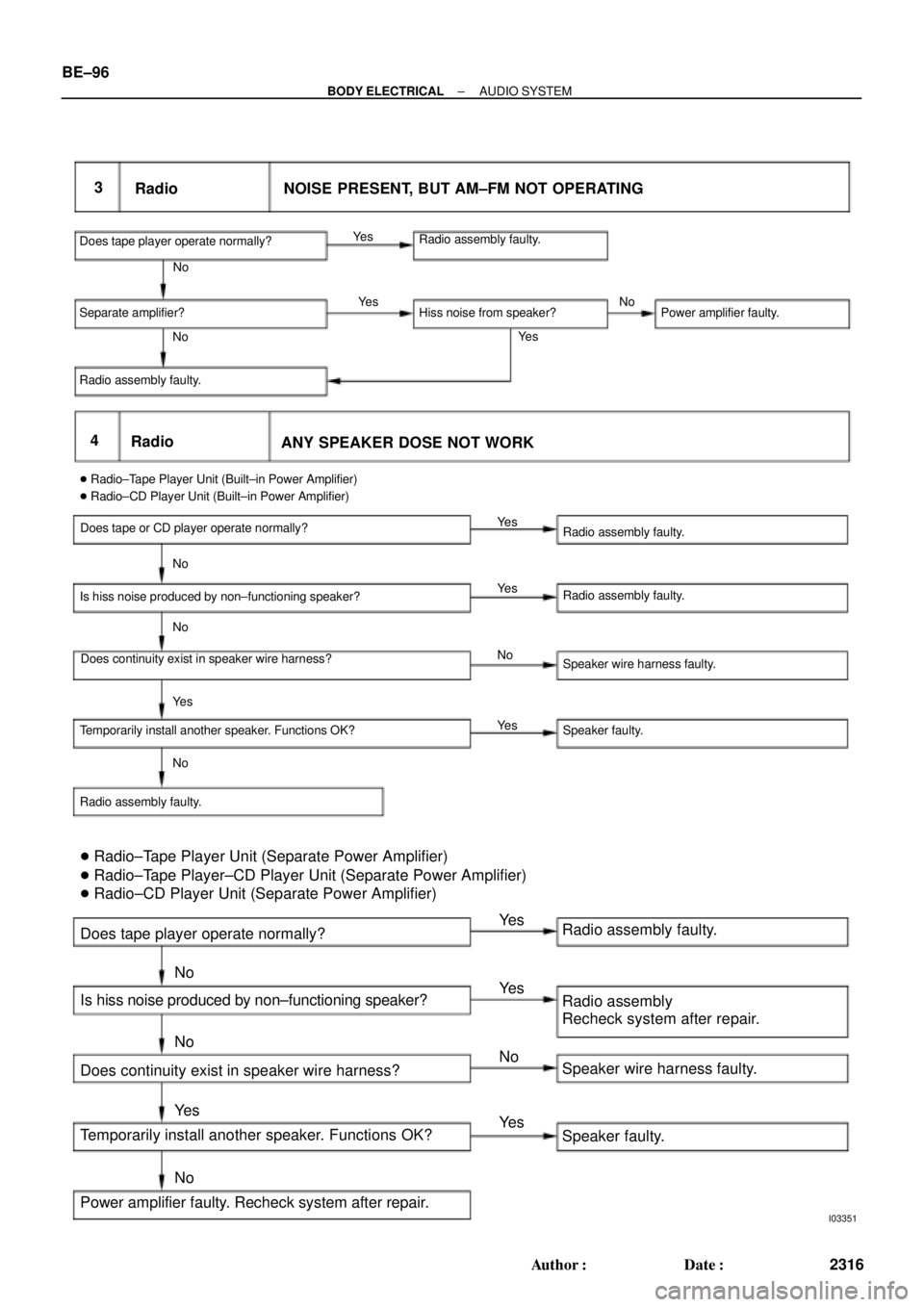

Radio NOISE PRESENT, BUT AM±FM NOT OPERATING
ANY SPEAKER DOSE NOT WORK Radio 4
Does tape player operate normally?Radio assembly faulty.
Separate amplifier? Hiss noise from speaker? Power amplifier faulty.
Radio assembly faulty.

Radio±Tape Player Unit (Built±in Power Amplifier)
Is hiss noise produced by non±functioning speaker?
Temporarily install another speaker. Functions OK?
Radio assembly faulty.Radio assembly faulty.
Radio assembly faulty.
Speaker wire harness faulty.
Speaker faulty. NoYe s
Ye s
Ye s
Ye sYe s
Ye s
Ye s NoNo
No
No
NoNo Does tape or CD player operate normally?
Does continuity exist in speaker wire harness?
Radio±CD Player Unit (Built±in Power Amplifier)

Radio±Tape Player Unit (Separate Power Amplifier)

Radio±Tape Player±CD Player Unit (Separate Power Amplifier)
Does tape player operate normally?
Is hiss noise produced by non±functioning speaker?
Does continuity exist in speaker wire harness?
Temporarily install another speaker. Functions OK?
Power amplifier faulty. Recheck system after repair.Radio assembly faulty.
Radio assembly
Recheck system after repair.
Speaker wire harness faulty.
Speaker faulty. NoYe s
No
NoNo Ye s
Ye s
Ye s
Radio±CD Player Unit (Separate Power Amplifier) BE±96
± BODY ELECTRICALAUDIO SYSTEM
2316 Author: Date:

I03352
5
RadioEITHER AM OR FM DOES NOT WORK, RECEPTION
POOR (VOLUME FAINT), FEWER STATION PRESETS
V08242

Radio±Tape Player Unit (Built±in Power Amplifier)
Problem with radio wave signals or location?
Are both AM or FM defective?
Is power for the antenna being output from the radio assembly?
Go to No.15
Does tape player operate normally?
Temporarily install another speaker. Functions OK?
Radio assembly faulty.Poor signals, poor location.
Radio assembly faulty.
Radio assembly faulty.
Speaker faulty.

Radio±Tape Player Unit (Separate Power Amplifier)

Radio±Tape Player±CD Player Unit (Separate Power Amplifier)
Problem with radio wave signals or location?
Are both AM and FM defective?
Is power for the antenna being output from the radio assembly?
Go to No.15
Temporarily install another speaker. Functions OK?
Hiss noise from speaker?Poor signals, poor location.
Radio assembly faulty.
Radio assembly faulty.
Speaker faulty.
Power amplifier faulty.
Recheck system after repair.
Radio assembly faulty. Recheck system after repair.Ye s NoYe s Ye s Ye s Ye sYe s Ye s Ye s Ye s Ye sYe s
No
No No No No No NoNo No No
Does tape player operate normally?
Radio±CD Player Unit (Built±in Power Amplifier)

Radio±CD Player Unit (Separate Power Amplifier)
