Page 2337 of 2389

The oil seals on both sides of the power cylinder
are for the prevention of leakage of the high
pressure fluid which acts on the piston. Always
use new oil seals when reassembling and be
very careful not to scratch or damage them.
Because of the high pressure, even the slightest
scratch will cause fluid leakage, resulting in an
inoperative power steering system.
Also, be very careful not to scratch the sliding
portion of the rack which makes contact with the
oil seals. When removing the rack ends from the
rack, it is very easy to cause a burr when hold-
ing the tip of the rack with a wrench. Therefore,
before assembling the rack, first check the tip for
burrs and remove any with an oil stone.
Teflon rings are used for the piston and control
valve. These teflon rings are highly durable
against wear, but if it is necessary to replace
them, be careful not to stretch the new ones.
After installing a teflon ring into its groove, snug
it down into the groove before assembly of the
cylinder or housing to prevent possible damage. The functional parts of the pump which produce
fluid pressure are the cam ring, rotor and vanes,
and these should be checked for wear. If the clear-
ance between each is not within standard when
reassembling, any worn parts should be replaced.
In this case, the replaced cam ring and rotor
should be of the same length (have the same
mark), and the vanes should be replaced with
those having a length corresponding to that mark,
otherwise the proper thrust clearance cannot be
obtained. If there is too much thrust clearance,
there will be insufficient fluid pressure at low
speeds. If there is too little thrust clearance, it may
result in seizure of the vanes.The clearance between the flow control valve and
pump body installation hole is very important. After
manufacture, the factory measures the size of the
installation hole and outer circumference of the flow
control valve, and punches a mark accordingly.
Therefore, when replacing the flow control valve, be
sure to do so with one having the same mark in or-
der to insure the proper clearance.GEAR HOUSING
If the gear housing is secured directly in a vise
during overhaul, there is danger of deforming it,
so always first secure it in the SST provided
(rack &
pinion steering rack housing stand) before plac-
ing it in the vise.
± STEERINGPower Steering (Description)SR±20
Page 2338 of 2389

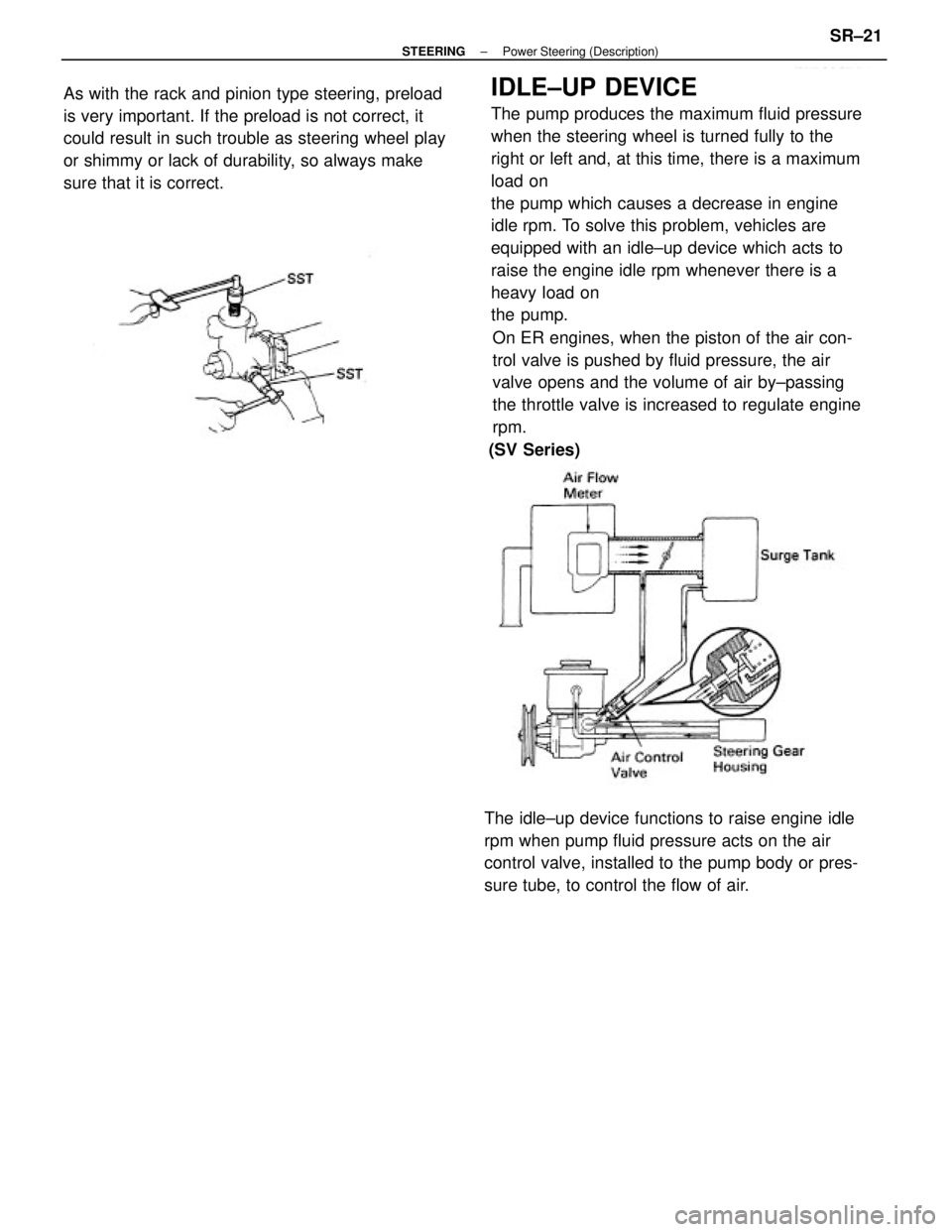

IDLE±UP DEVICE
The pump produces the maximum fluid pressure
when the steering wheel is turned fully to the
right or left and, at this time, there is a maximum
load on
the pump which causes a decrease in engine
idle rpm. To solve this problem, vehicles are
equipped with an idle±up device which acts to
raise the engine idle rpm whenever there is a
heavy load on
the pump. As with the rack and pinion type steering, preload
is very important. If the preload is not correct, it
could result in such trouble as steering wheel play
or shimmy or lack of durability, so always make
sure that it is correct.
On ER engines, when the piston of the air con-
trol valve is pushed by fluid pressure, the air
valve opens and the volume of air by±passing
the throttle valve is increased to regulate engine
rpm.
The idle±up device functions to raise engine idle
rpm when pump fluid pressure acts on the air
control valve, installed to the pump body or pres-
sure tube, to control the flow of air.(SV Series)
± STEERINGPower Steering (Description)SR±21
Page 2339 of 2389

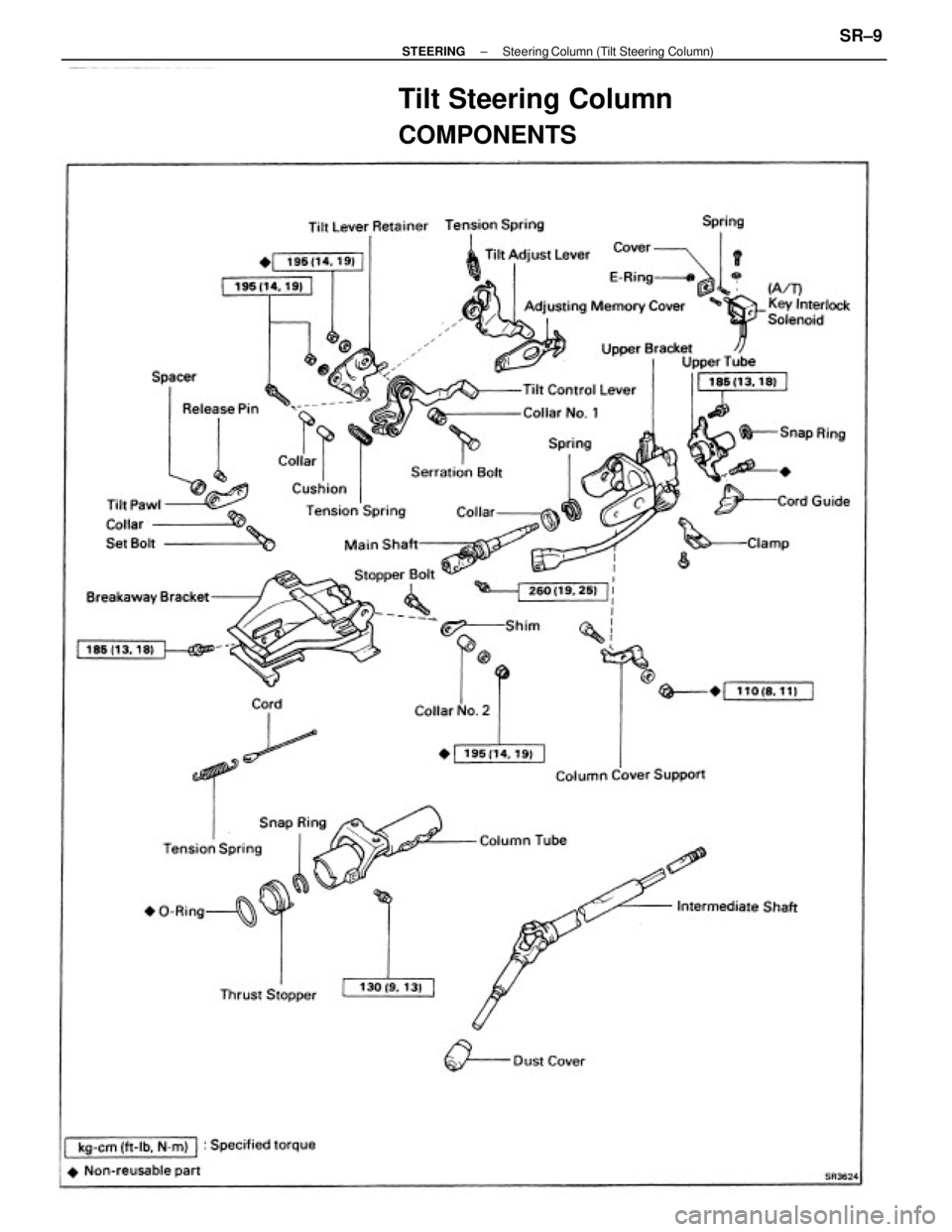

Tilt Steering Column
COMPONENTS
± STEERINGSteering Column (Tilt Steering Column)SR±9
Page 2340 of 2389
4. REMOVE MAIN SHAFT
(a) Using a screwdriver, push the main shaft.
(b) Using snap ring pliers, remove the snap ring.
(e) Pull out the main shaft.
(d) Remove the spring and collar from the main shaft.

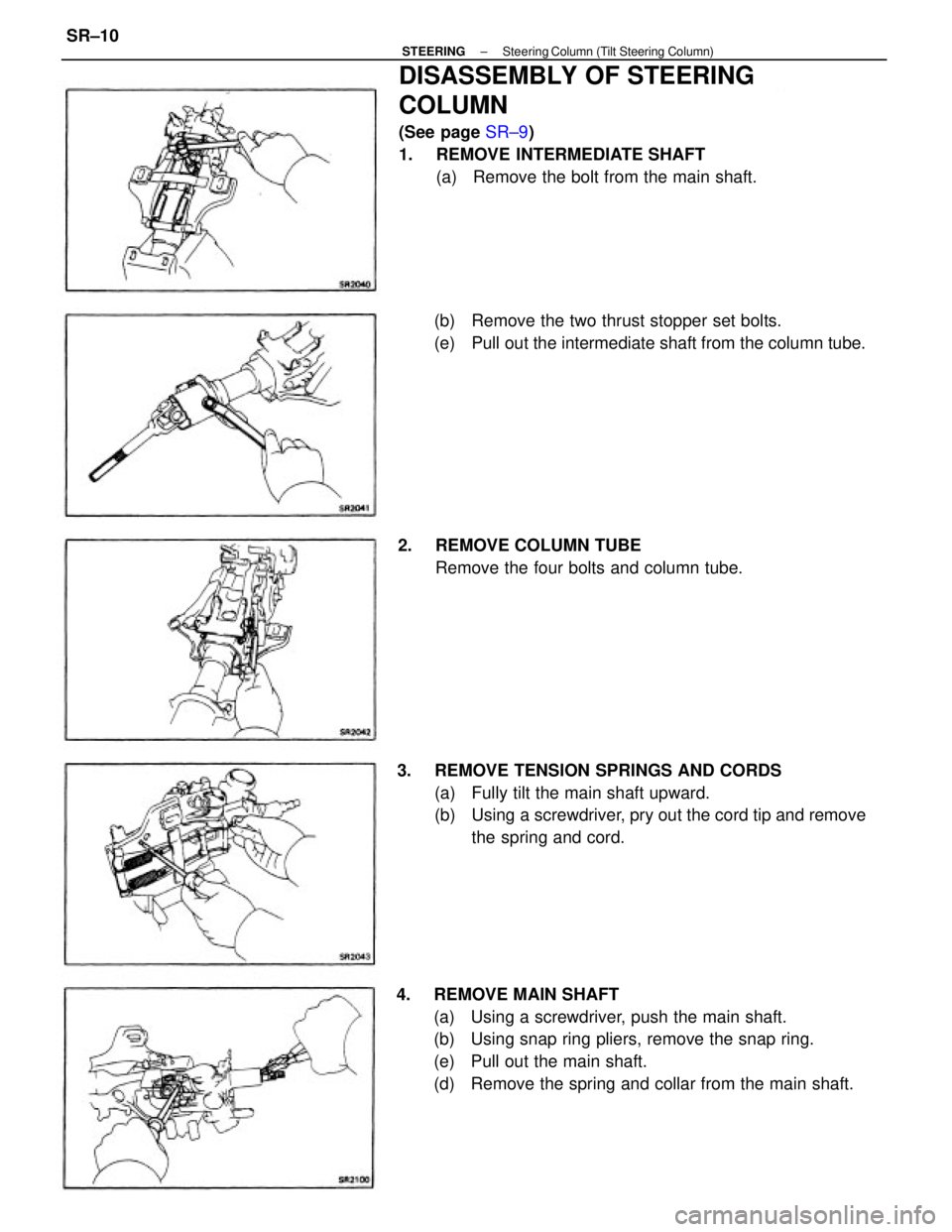

DISASSEMBLY OF STEERING
COLUMN
(See page SR±9)
1. REMOVE INTERMEDIATE SHAFT
(a) Remove the bolt from the main shaft.
3. REMOVE TENSION SPRINGS AND CORDS
(a) Fully tilt the main shaft upward.
(b) Using a screwdriver, pry out the cord tip and remove
the spring and cord. (b) Remove the two thrust stopper set bolts.
(e) Pull out the intermediate shaft from the column tube.
2. REMOVE COLUMN TUBE
Remove the four bolts and column tube.
± STEERINGSteering Column (Tilt Steering Column)SR±10
Page 2341 of 2389

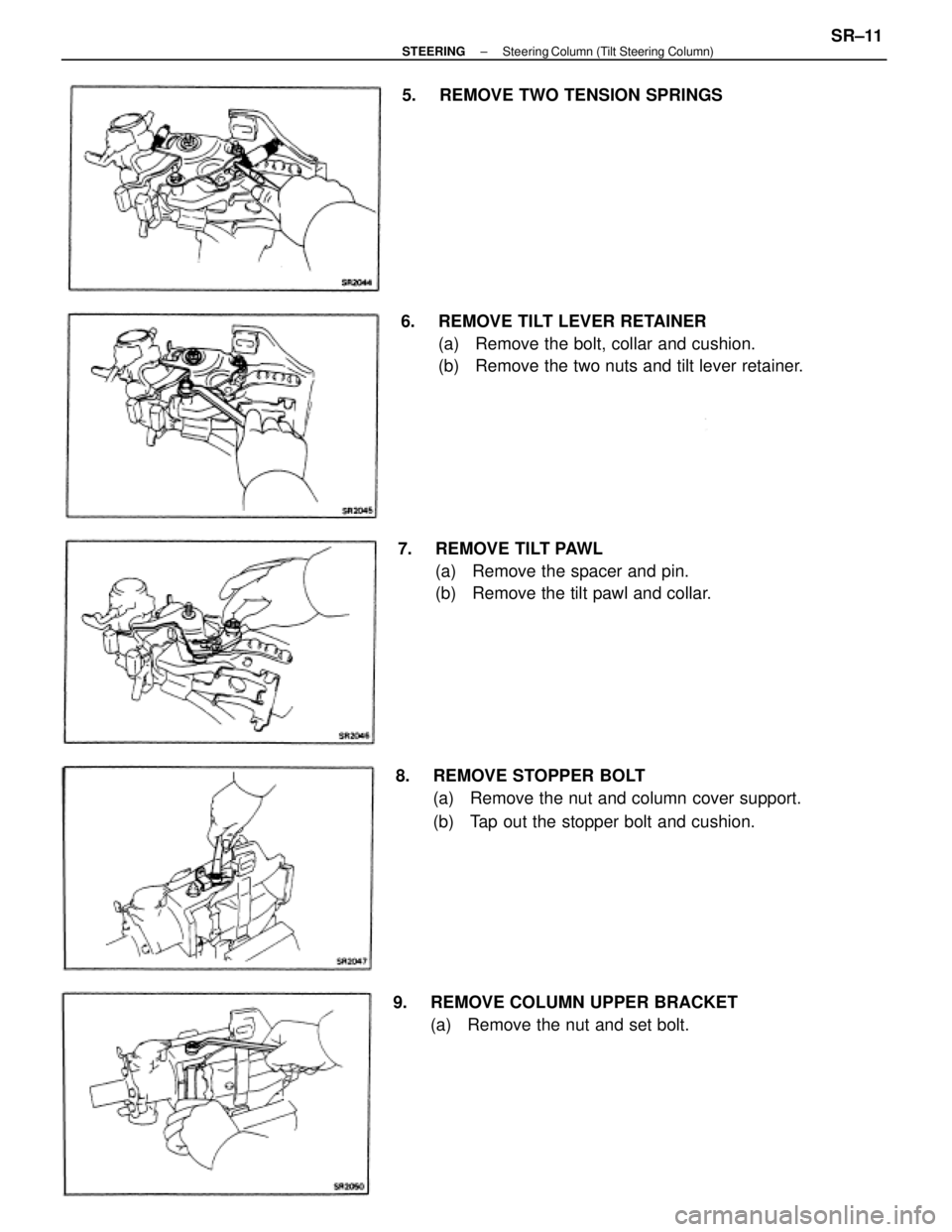

6. REMOVE TILT LEVER RETAINER
(a) Remove the bolt, collar and cushion.
(b) Remove the two nuts and tilt lever retainer.
8. REMOVE STOPPER BOLT
(a) Remove the nut and column cover support.
(b) Tap out the stopper bolt and cushion. 7. REMOVE TILT PAWL
(a) Remove the spacer and pin.
(b) Remove the tilt pawl and collar.
9. REMOVE COLUMN UPPER BRACKET
(a) Remove the nut and set bolt. 5. REMOVE TWO TENSION SPRINGS
± STEERINGSteering Column (Tilt Steering Column)SR±11
Page 2342 of 2389

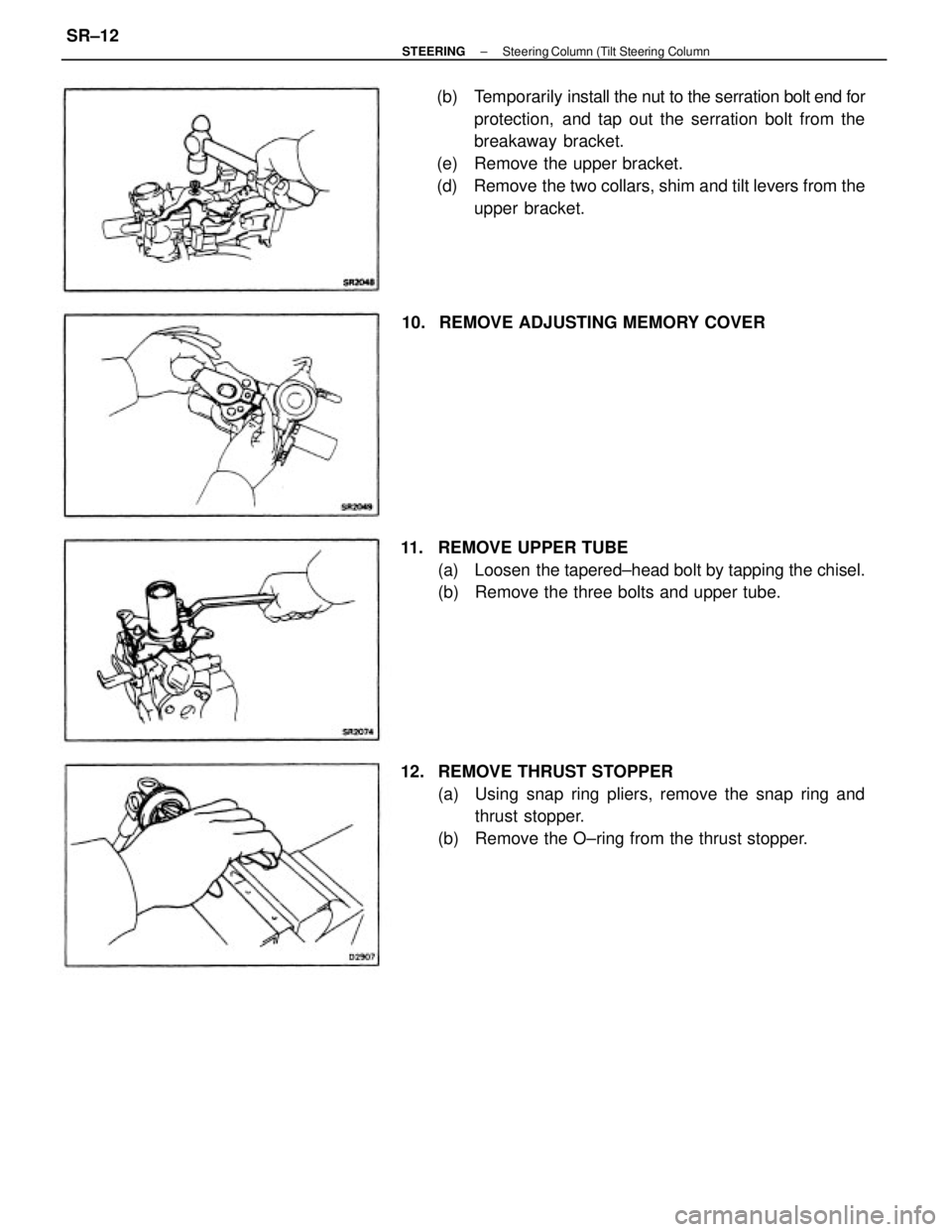

(b) Temporarily install the nut to the serration bolt end for
protection, and tap out the serration bolt from the
breakaway bracket.
(e) Remove the upper bracket.
(d) Remove the two collars, shim and tilt levers from the
upper bracket.
12. REMOVE THRUST STOPPER
(a) Using snap ring pliers, remove the snap ring and
thrust stopper.
(b) Remove the O±ring from the thrust stopper. 11. REMOVE UPPER TUBE
(a) Loosen the tapered±head bolt by tapping the chisel.
(b) Remove the three bolts and upper tube. 10. REMOVE ADJUSTING MEMORY COVER
± STEERINGSteering Column (Tilt Steering ColumnSR±12
Page 2343 of 2389
4. INSPECT KEY INTERLOCK SOLENOID
(See page AT±41 1)
5. IF NECESSARY, REPLACE KEY INTERLOCK
SOLENOID
(a) Using a screwdriver, remove E±ring and the cover.
(b) Remove two screws and the solenoid.
(c) Install a new solenoid with two screws.
(d) Install the cover and E±ring over the two springs.

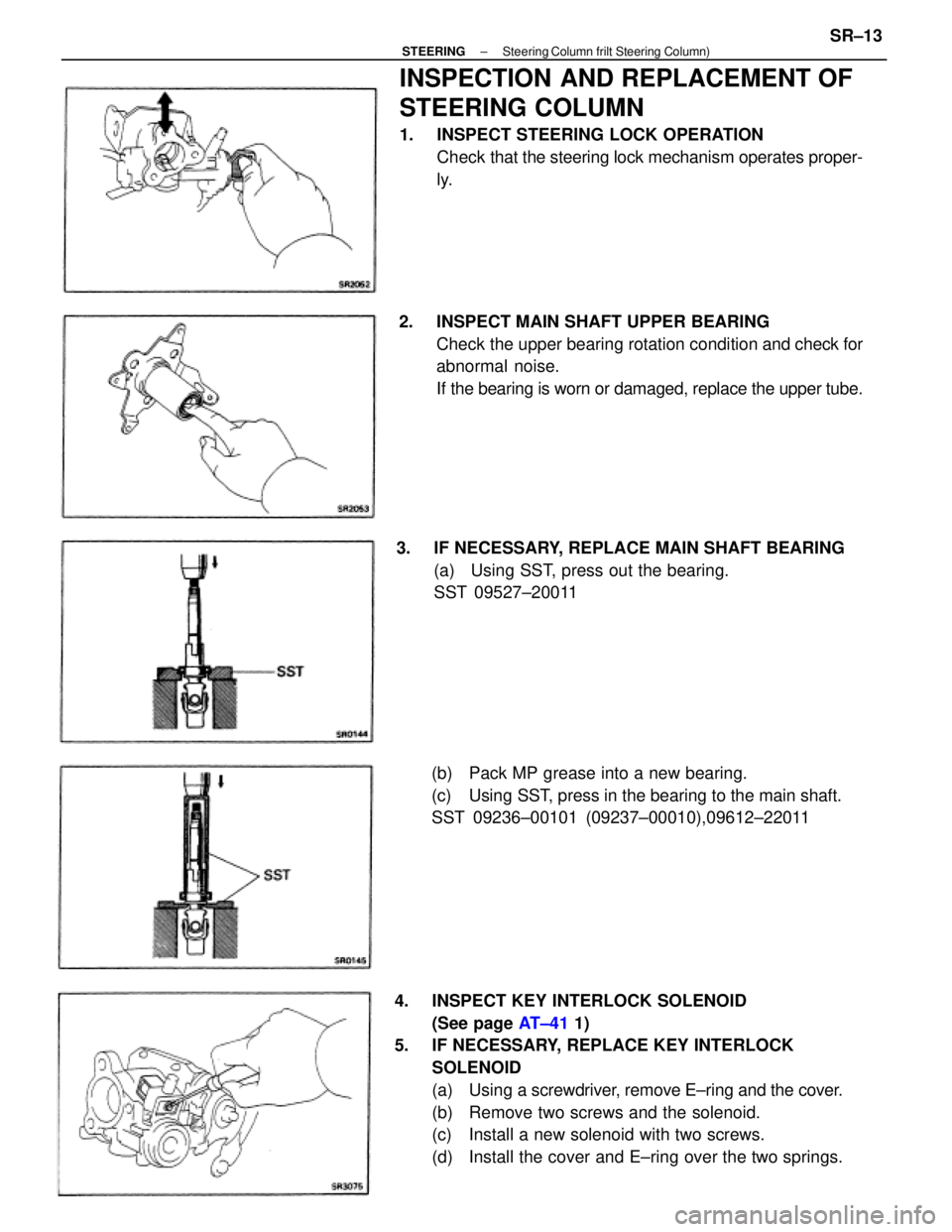

INSPECTION AND REPLACEMENT OF
STEERING COLUMN
1. INSPECT STEERING LOCK OPERATION
Check that the steering lock mechanism operates proper-
ly.
2. INSPECT MAIN SHAFT UPPER BEARING
Check the upper bearing rotation condition and check for
abnormal noise.
If the bearing is worn or damaged, replace the upper tube.
3. IF NECESSARY, REPLACE MAIN SHAFT BEARING
(a) Using SST, press out the bearing.
SST 09527±20011
(b) Pack MP grease into a new bearing.
(c) Using SST, press in the bearing to the main shaft.
SST 09236±00101 (09237±00010),09612±22011
± STEERINGSteering Column frilt Steering Column)SR±13
Page 2344 of 2389

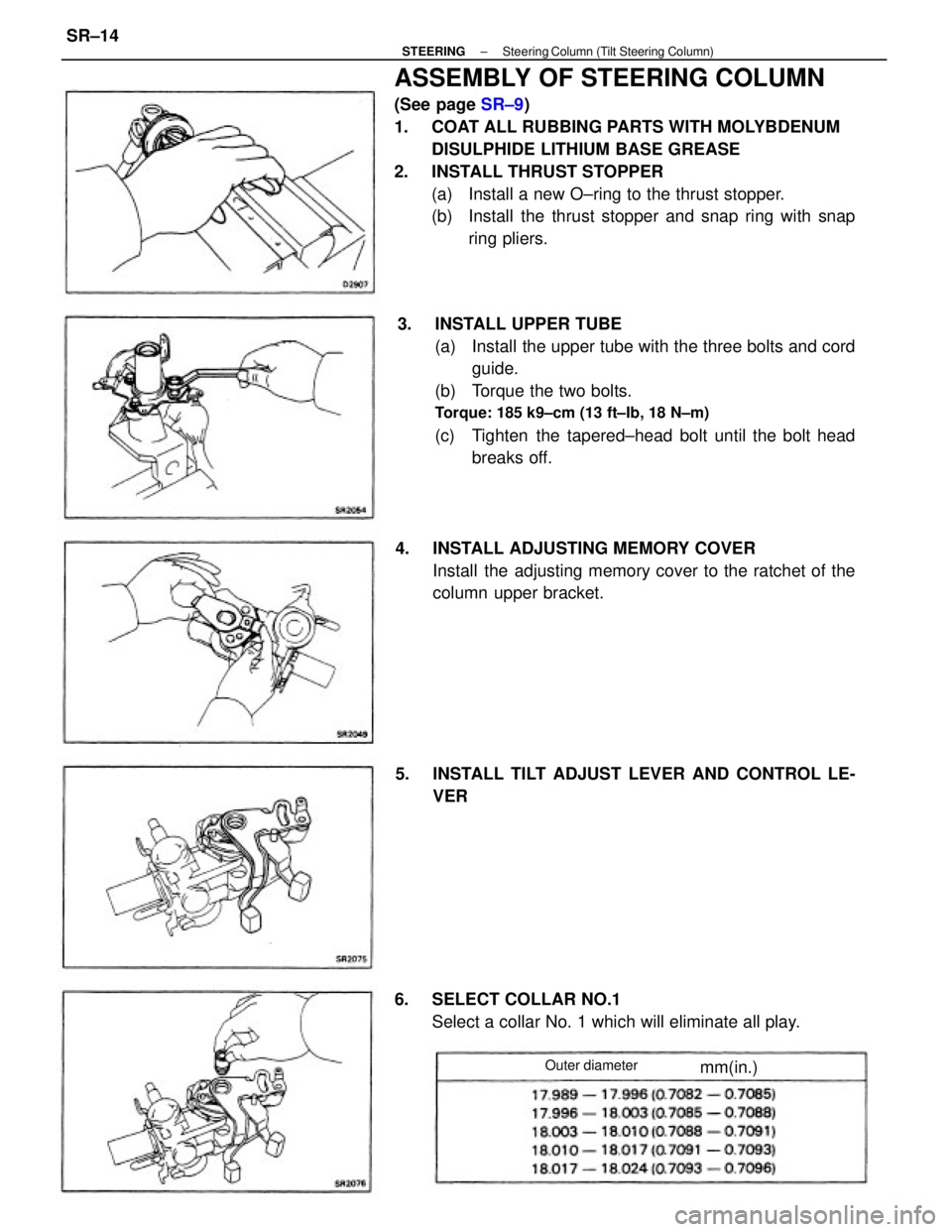

ASSEMBLY OF STEERING COLUMN
(See page SR±9)
1. COAT ALL RUBBING PARTS WITH MOLYBDENUM
DISULPHIDE LITHIUM BASE GREASE
2. INSTALL THRUST STOPPER
(a) Install a new O±ring to the thrust stopper.
(b) Install the thrust stopper and snap ring with snap
ring pliers.
3. INSTALL UPPER TUBE
(a) Install the upper tube with the three bolts and cord
guide.
(b) Torque the two bolts.
Torque: 185 k9±cm (13 ft±Ib, 18 N±m)
(c) Tighten the tapered±head bolt until the bolt head
breaks off.
4. INSTALL ADJUSTING MEMORY COVER
Install the adjusting memory cover to the ratchet of the
column upper bracket.
6. SELECT COLLAR NO.1
Select a collar No. 1 which will eliminate all play. 5. INSTALL TILT ADJUST LEVER AND CONTROL LE-
VER
Outer diametermm(in.)
± STEERINGSteering Column (Tilt Steering Column)SR±14
