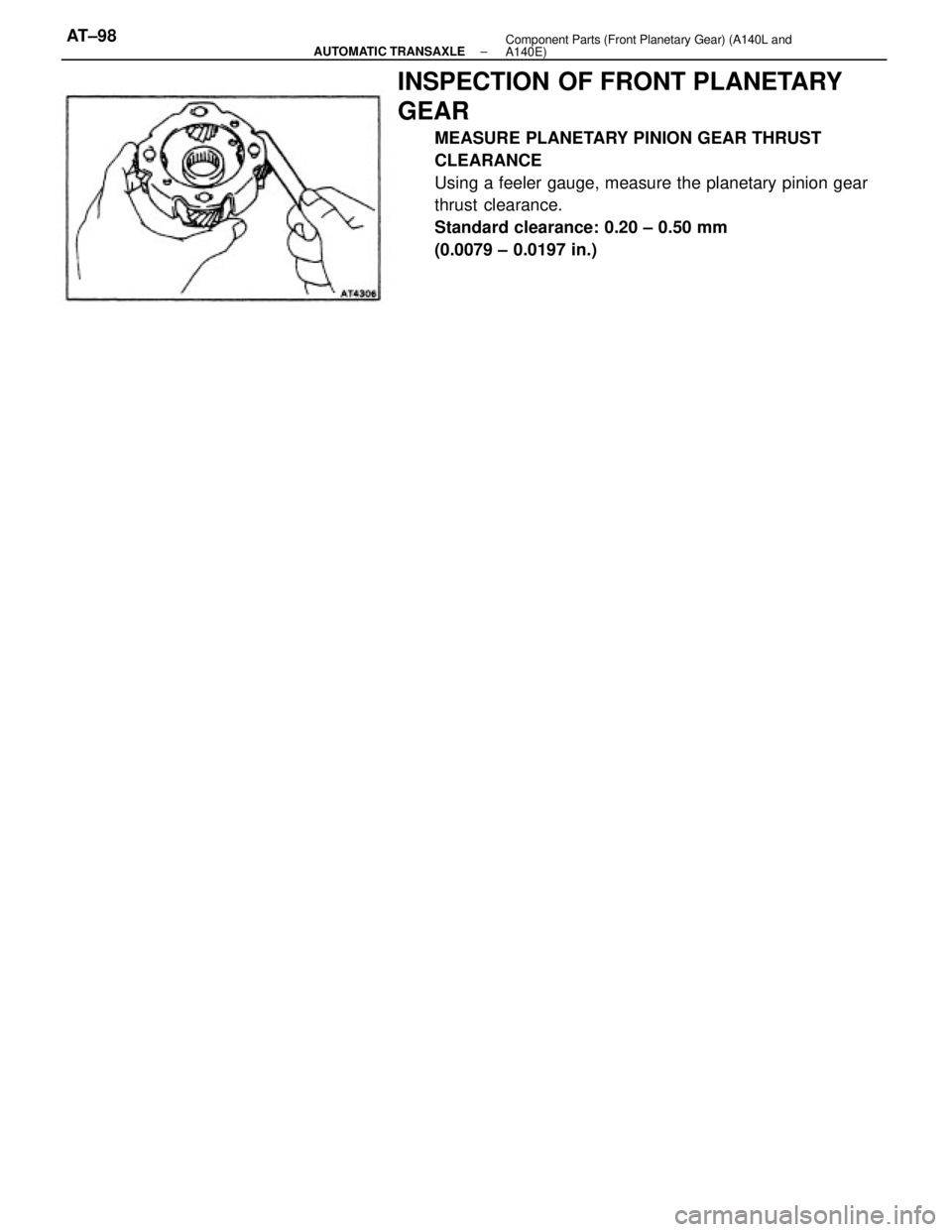

TOYOTA CAMRY V20 1986 Service Information INSPECTION OF FRONT PLANETARY GEAR MEASURE PLANETARY PINION GEAR THRUST CLEARANCE Using a feeler gauge, measure the planetary pinion gear thrust clearance. Standard clearance: 0.20 ± 0.50 mm (0.0079

Page 354 of 2389

TOYOTA CAMRY V20 1986 Service Information DISASSEMBLY OF SECOND BRAKE PISTON REMOVE SECOND BRAKE PISTON (a) Apply compressed air to the oil hole to remove the piston. (b) Remove the two O±rings from the piston. Second Brake ± AUTOMATIC TRAN

Page 355 of 2389

TOYOTA CAMRY V20 1986 Service Information INSPECTION OF SECOND BRAKE COMPONENT INSPECT DISCS, PLATES AND FLANGE Check if the sliding surface of the discs, plates and flange are worn or burnt. If necessary, replace them. HINT: wIf the lining o

Page 356 of 2389

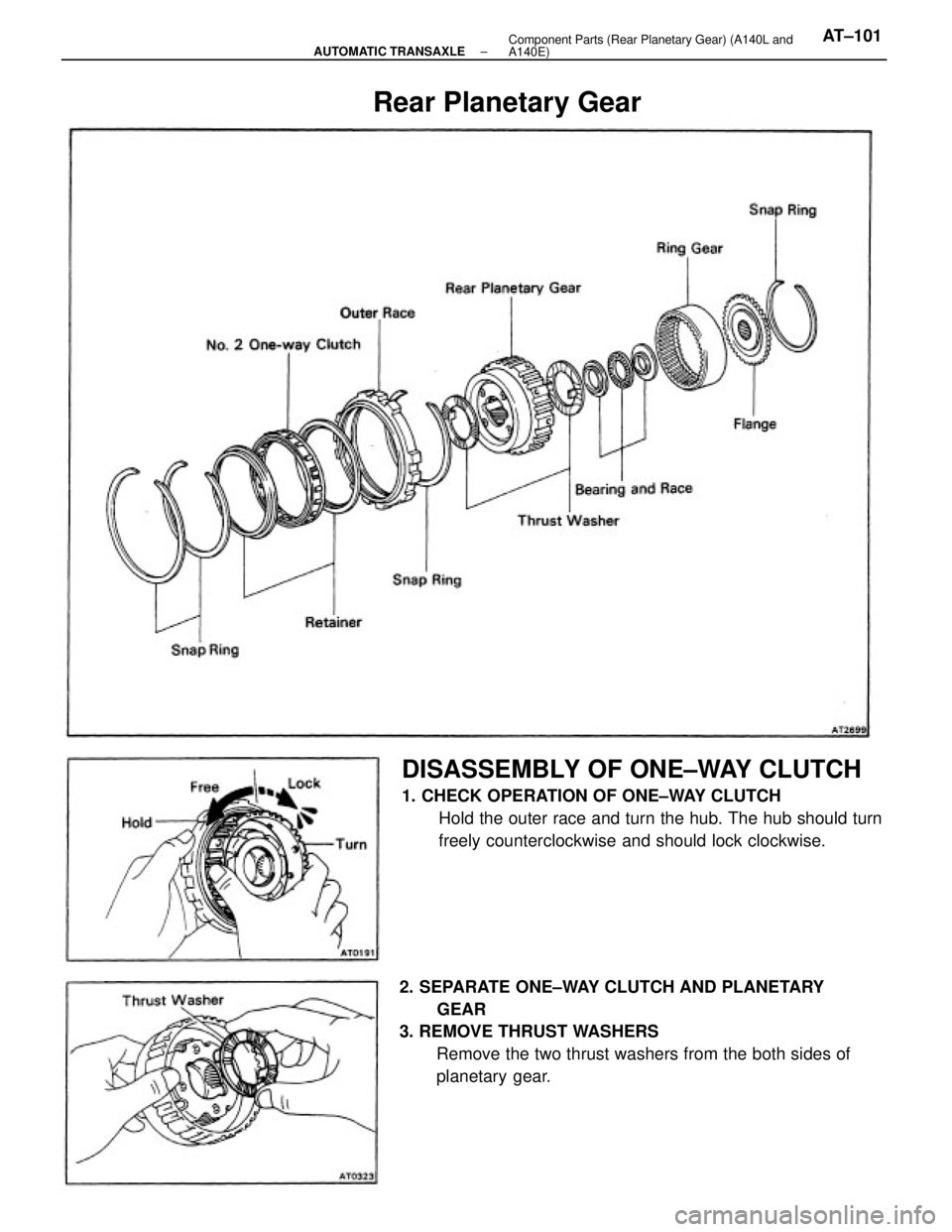

TOYOTA CAMRY V20 1986 Service Information 2. SEPARATE ONE±WAY CLUTCH AND PLANETARY GEAR 3. REMOVE THRUST WASHERS Remove the two thrust washers from the both sides of planetary gear. DISASSEMBLY OF ONE±WAY CLUTCH 1. CHECK OPERATION OF ONE±W

Page 357 of 2389

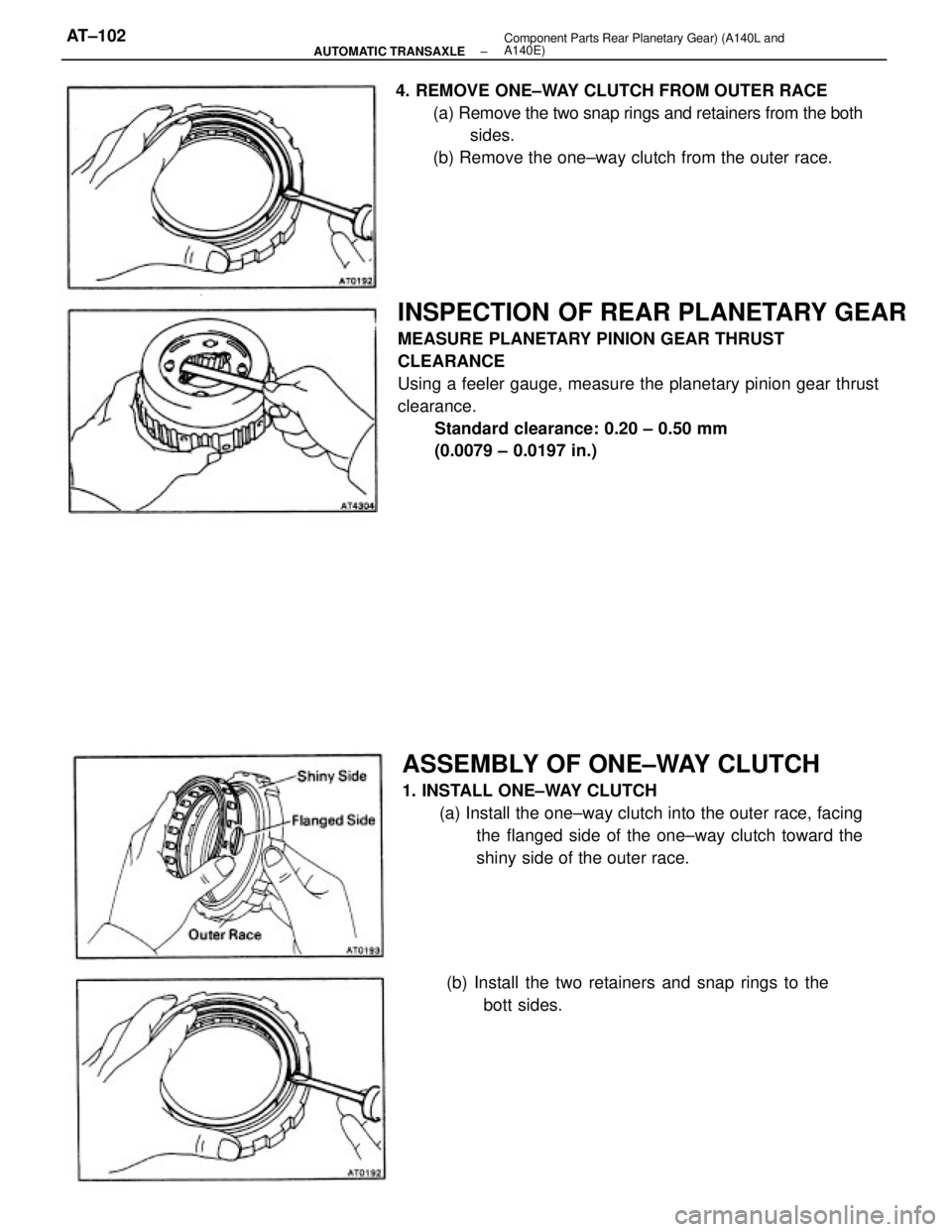

TOYOTA CAMRY V20 1986 Service Information INSPECTION OF REAR PLANETARY GEAR MEASURE PLANETARY PINION GEAR THRUST CLEARANCE Using a feeler gauge, measure the planetary pinion gear thrust clearance. Standard clearance: 0.20 ± 0.50 mm (0.0079

Page 358 of 2389

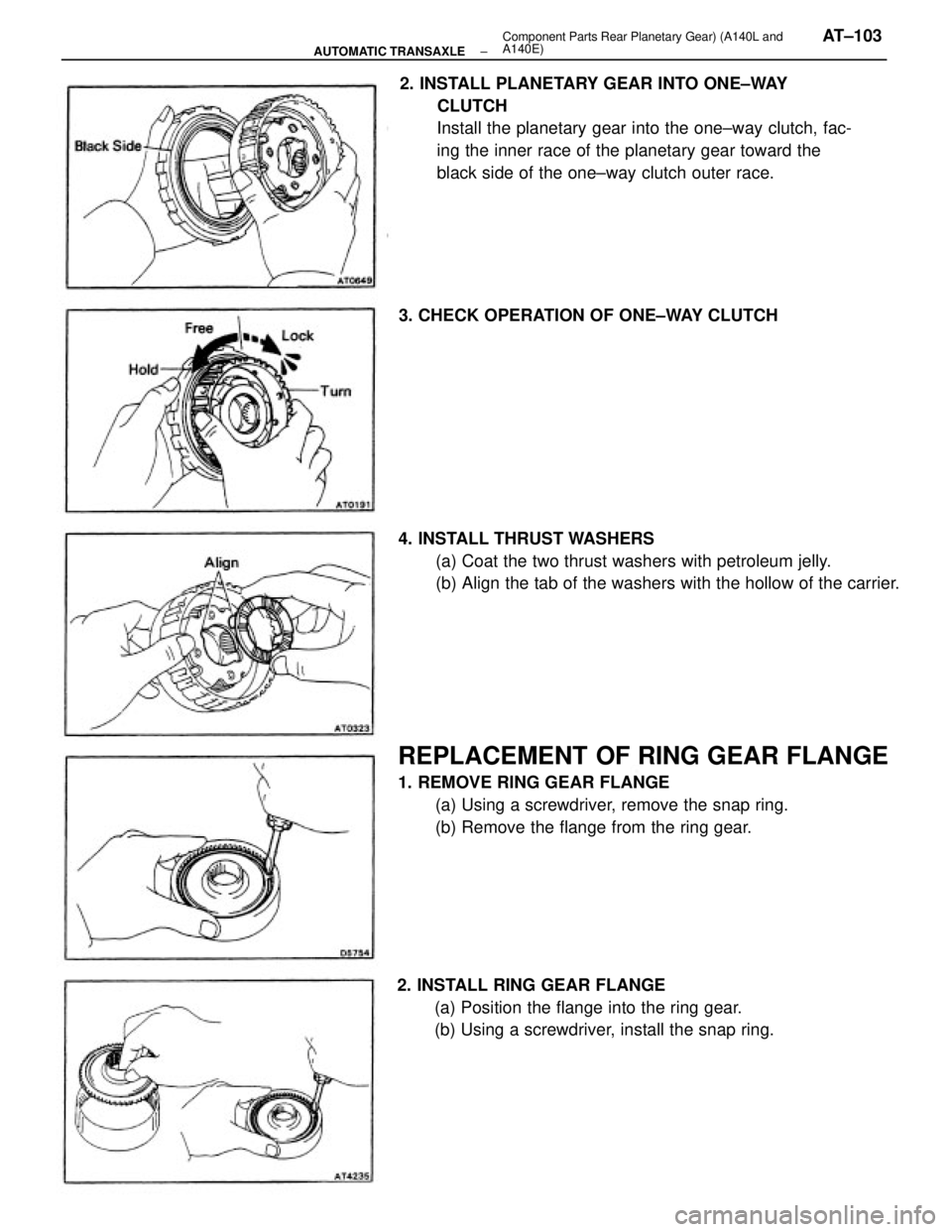

TOYOTA CAMRY V20 1986 Service Information 2. INSTALL PLANETARY GEAR INTO ONE±WAY CLUTCH Install the planetary gear into the one±way clutch, fac- ing the inner race of the planetary gear toward the black side of the one±way clutch outer rac

Page 359 of 2389

TOYOTA CAMRY V20 1986 Service Information INSPECTION OF FIRST AND REVERSE BRAKE COMPONENT INSPECT DISCS, PLATES AND FLANGES Check if the sliding surfaces of the discs, plates an flanges are worn or burnt. If necessary, replace them. HINT: wIf

Page 360 of 2389

TOYOTA CAMRY V20 1986 Service Information Overdrive Unit ± AUTOMATIC TRANSAXLEComponent (First and Reverse Brake) (A140L and A140E)AT±105
