Page 1345 of 2389

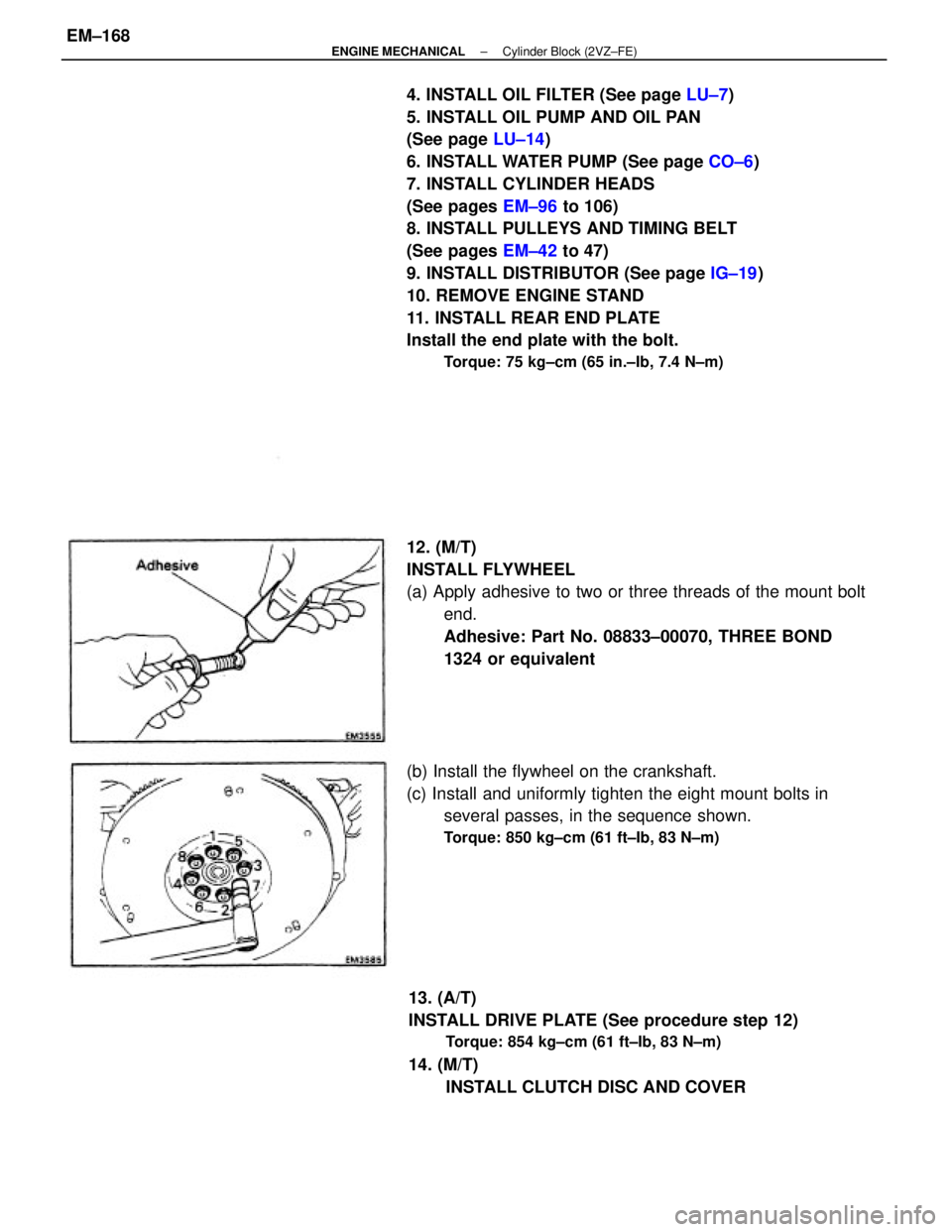

4. INSTALL OIL FILTER (See page LU±7)
5. INSTALL OIL PUMP AND OIL PAN
(See page LU±14)
6. INSTALL WATER PUMP (See page CO±6)
7. INSTALL CYLINDER HEADS
(See pages EM±96 to 106)
8. INSTALL PULLEYS AND TIMING BELT
(See pages EM±42 to 47)
9. INSTALL DISTRIBUTOR (See page IG±19)
10. REMOVE ENGINE STAND
11. INSTALL REAR END PLATE
Install the end plate with the bolt.
Torque: 75 kg±cm (65 in.±Ib, 7.4 N±m)
12. (M/T)
INSTALL FLYWHEEL
(a) Apply adhesive to two or three threads of the mount bolt
end.
Adhesive: Part No. 08833±00070, THREE BOND
1324 or equivalent
13. (A/T)
INSTALL DRIVE PLATE (See procedure step 12)
Torque: 854 kg±cm (61 ft±Ib, 83 N±m)
14. (M/T)
INSTALL CLUTCH DISC AND COVER (b) Install the flywheel on the crankshaft.
(c) Install and uniformly tighten the eight mount bolts in
several passes, in the sequence shown.
Torque: 850 kg±cm (61 ft±Ib, 83 N±m)
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±168
Page 1346 of 2389

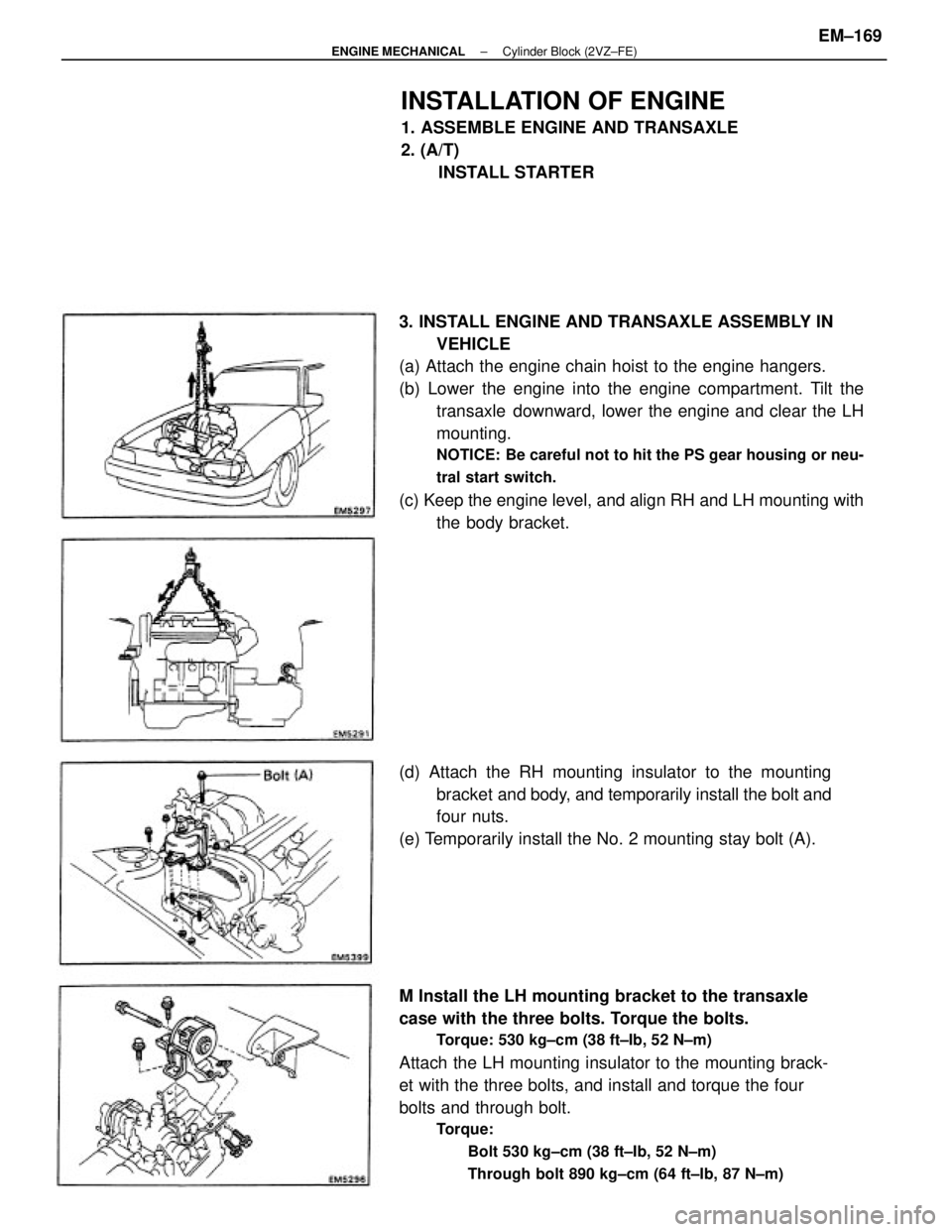

3. INSTALL ENGINE AND TRANSAXLE ASSEMBLY IN
VEHICLE
(a) Attach the engine chain hoist to the engine hangers.
(b) Lower the engine into the engine compartment. Tilt the
transaxle downward, lower the engine and clear the LH
mounting.
NOTICE: Be careful not to hit the PS gear housing or neu-
tral start switch.
(c) Keep the engine level, and align RH and LH mounting with
the body bracket.
M Install the LH mounting bracket to the transaxle
case with the three bolts. Torque the bolts.
Torque: 530 kg±cm (38 ft±Ib, 52 N±m)
Attach the LH mounting insulator to the mounting brack-
et with the three bolts, and install and torque the four
bolts and through bolt.
Torque:
Bolt 530 kg±cm (38 ft±Ib, 52 N±m)
Through bolt 890 kg±cm (64 ft±Ib, 87 N±m)
INSTALLATION OF ENGINE
1. ASSEMBLE ENGINE AND TRANSAXLE
2. (A/T)
INSTALL STARTER
(d) Attach the RH mounting insulator to the mounting
bracket and body, and temporarily install the bolt and
four nuts.
(e) Temporarily install the No. 2 mounting stay bolt (A).
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±169
Page 1347 of 2389

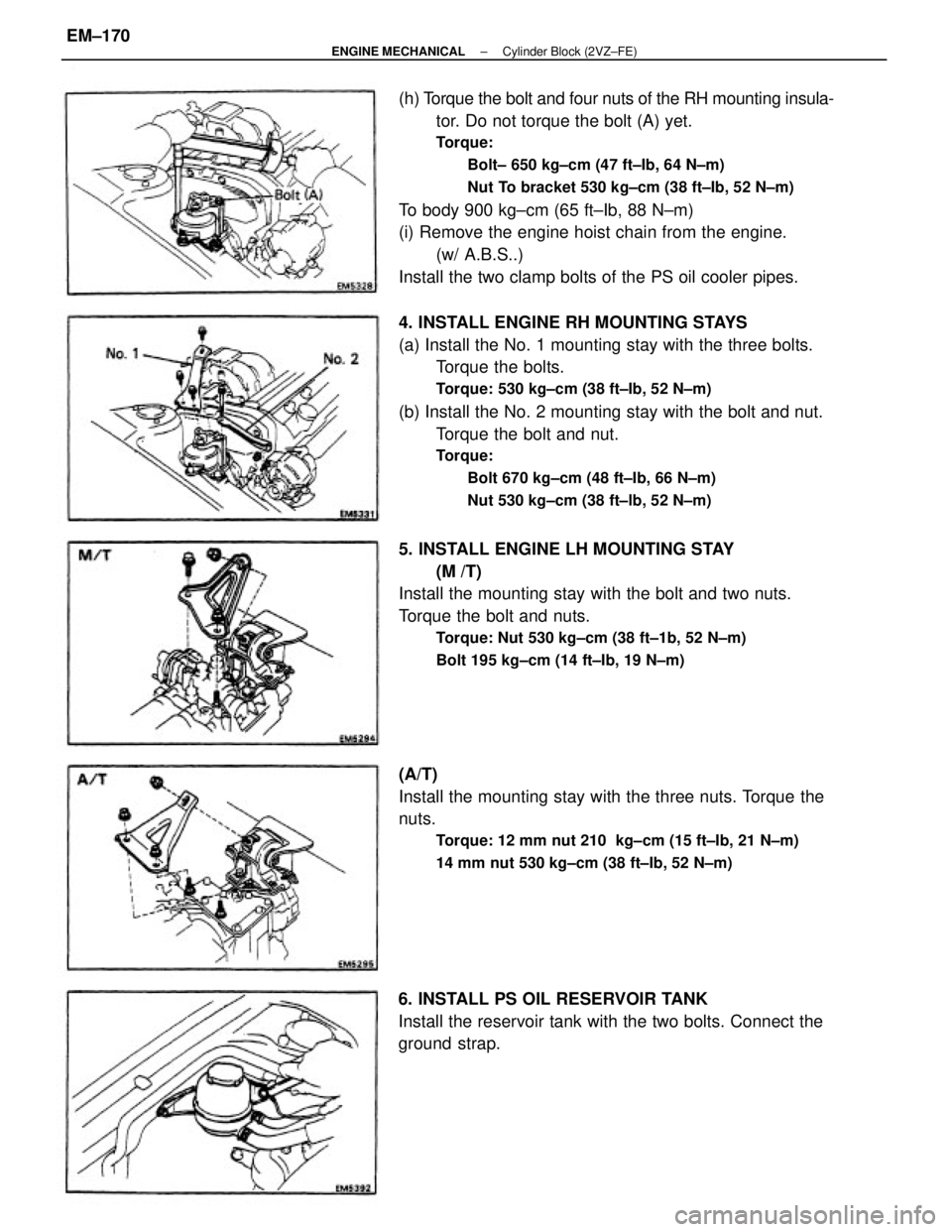

4. INSTALL ENGINE RH MOUNTING STAYS
(a) Install the No. 1 mounting stay with the three bolts.
Torque the bolts.
Torque: 530 kg±cm (38 ft±Ib, 52 N±m)
(b) Install the No. 2 mounting stay with the bolt and nut.
Torque the bolt and nut.
Torque:
Bolt 670 kg±cm (48 ft±Ib, 66 N±m)
Nut 530 kg±cm (38 ft±lb, 52 N±m)
(h) Torque the bolt and four nuts of the RH mounting insula-
tor. Do not torque the bolt (A) yet.
Torque:
Bolt± 650 kg±cm (47 ft±Ib, 64 N±m)
Nut To bracket 530 kg±cm (38 ft±Ib, 52 N±m)
To body 900 kg±cm (65 ft±Ib, 88 N±m)
(i) Remove the engine hoist chain from the engine.
(w/ A.B.S..)
Install the two clamp bolts of the PS oil cooler pipes.
5. INSTALL ENGINE LH MOUNTING STAY
(M /T)
Install the mounting stay with the bolt and two nuts.
Torque the bolt and nuts.
Torque: Nut 530 kg±cm (38 ft±1b, 52 N±m)
Bolt 195 kg±cm (14 ft±Ib, 19 N±m)
(A/T)
Install the mounting stay with the three nuts. Torque the
nuts.
Torque: 12 mm nut 210 kg±cm (15 ft±Ib, 21 N±m)
14 mm nut 530 kg±cm (38 ft±Ib, 52 N±m)
6. INSTALL PS OIL RESERVOIR TANK
Install the reservoir tank with the two bolts. Connect the
ground strap.
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±170
Page 1348 of 2389

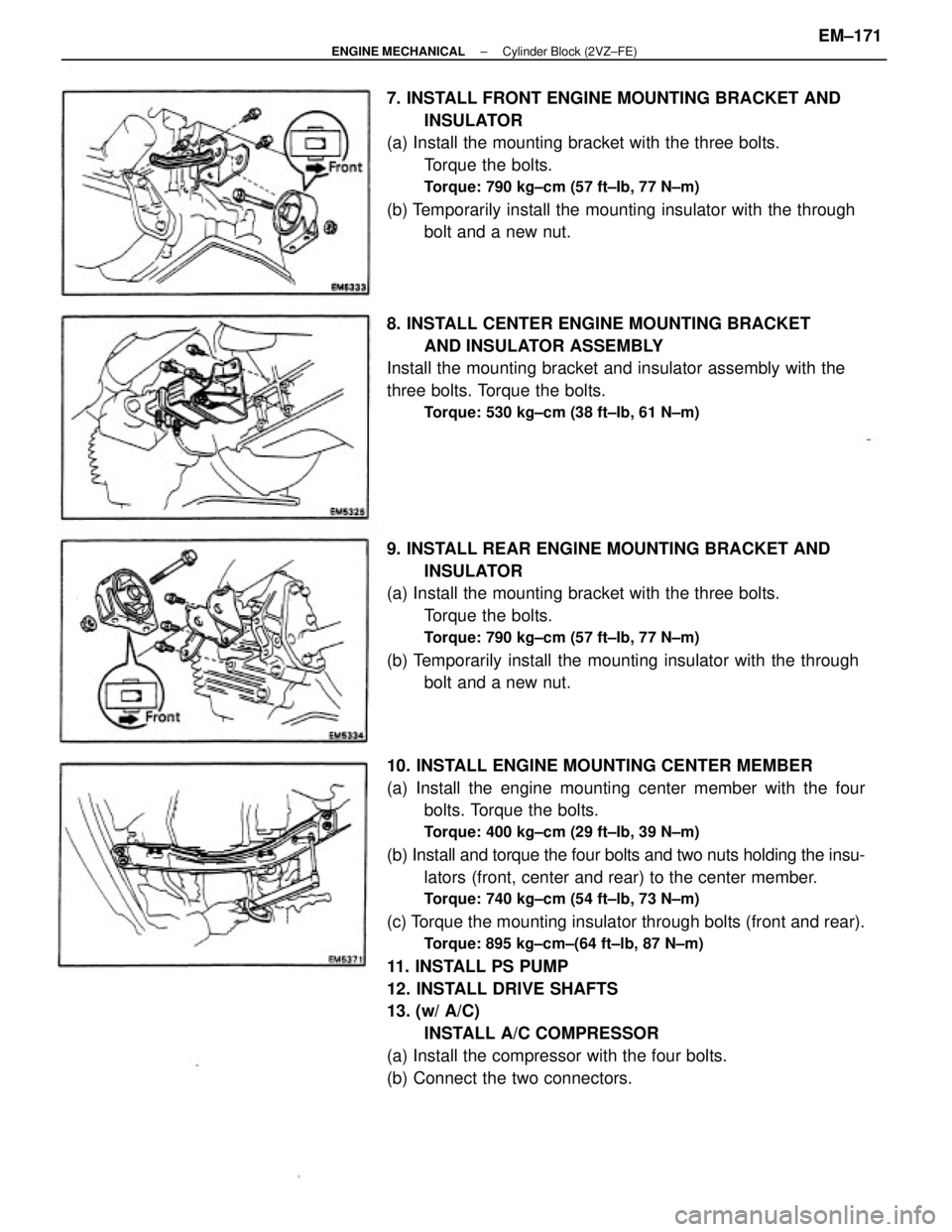

10. INSTALL ENGINE MOUNTING CENTER MEMBER
(a) Install the engine mounting center member with the four
bolts. Torque the bolts.
Torque: 400 kg±cm (29 ft±Ib, 39 N±m)
(b) Install and torque the four bolts and two nuts holding the insu-
lators (front, center and rear) to the center member.
Torque: 740 kg±cm (54 ft±lb, 73 N±m)
(c) Torque the mounting insulator through bolts (front and rear).
Torque: 895 kg±cm±(64 ft±lb, 87 N±m)
11. INSTALL PS PUMP
12. INSTALL DRIVE SHAFTS
13. (w/ A/C)
INSTALL A/C COMPRESSOR
(a) Install the compressor with the four bolts.
(b) Connect the two connectors. 7. INSTALL FRONT ENGINE MOUNTING BRACKET AND
INSULATOR
(a) Install the mounting bracket with the three bolts.
Torque the bolts.
Torque: 790 kg±cm (57 ft±Ib, 77 N±m)
(b) Temporarily install the mounting insulator with the through
bolt and a new nut.
9. INSTALL REAR ENGINE MOUNTING BRACKET AND
INSULATOR
(a) Install the mounting bracket with the three bolts.
Torque the bolts.
Torque: 790 kg±cm (57 ft±Ib, 77 N±m)
(b) Temporarily install the mounting insulator with the through
bolt and a new nut. 8. INSTALL CENTER ENGINE MOUNTING BRACKET
AND INSULATOR ASSEMBLY
Install the mounting bracket and insulator assembly with the
three bolts. Torque the bolts.
Torque: 530 kg±cm (38 ft±Ib, 61 N±m)
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±171
Page 1349 of 2389

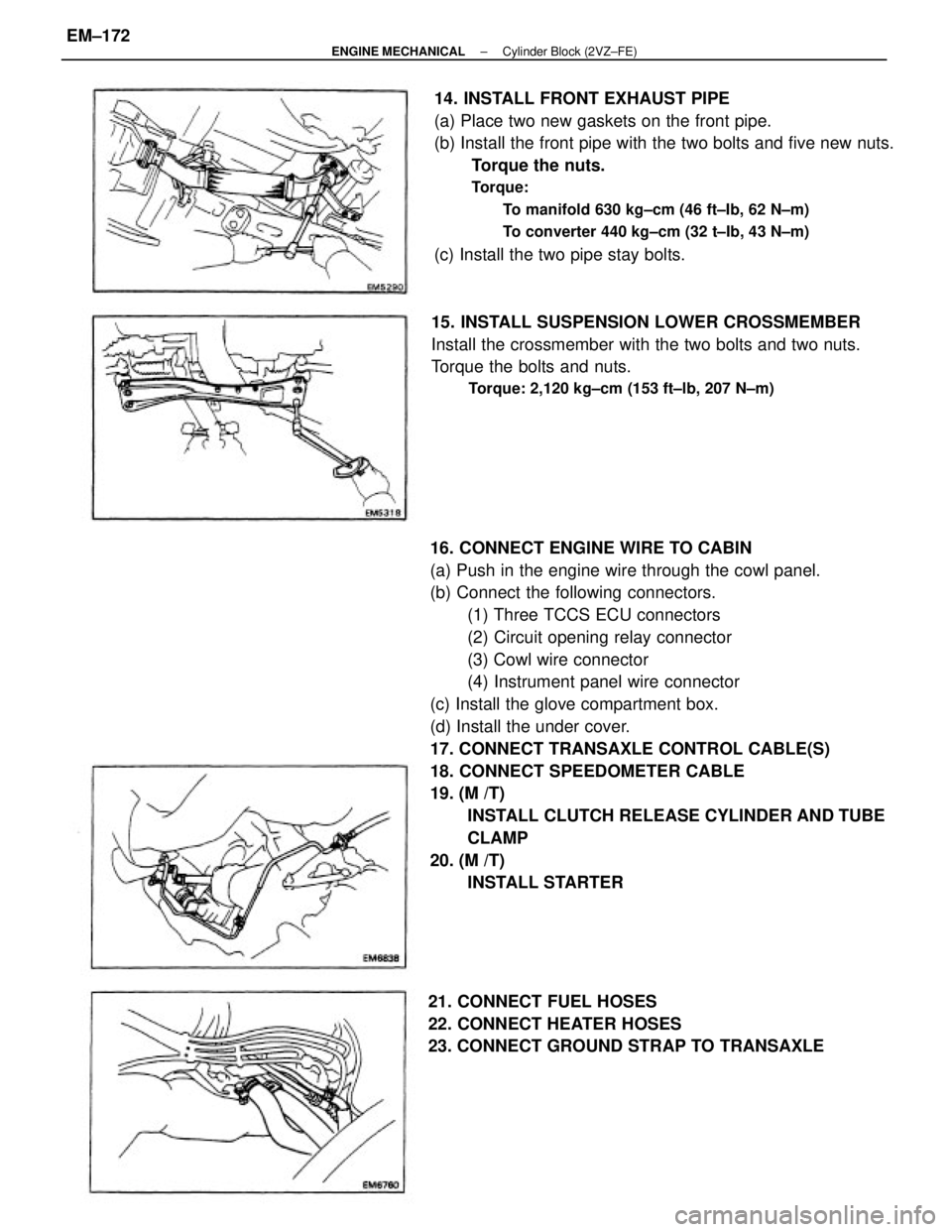

16. CONNECT ENGINE WIRE TO CABIN
(a) Push in the engine wire through the cowl panel.
(b) Connect the following connectors.
(1) Three TCCS ECU connectors
(2) Circuit opening relay connector
(3) Cowl wire connector
(4) Instrument panel wire connector
(c) Install the glove compartment box.
(d) Install the under cover.
17. CONNECT TRANSAXLE CONTROL CABLE(S)
18. CONNECT SPEEDOMETER CABLE
19. (M /T)
INSTALL CLUTCH RELEASE CYLINDER AND TUBE
CLAMP
20. (M /T)
INSTALL STARTER 14. INSTALL FRONT EXHAUST PIPE
(a) Place two new gaskets on the front pipe.
(b) Install the front pipe with the two bolts and five new nuts.
Torque the nuts.
Torque:
To manifold 630 kg±cm (46 ft±Ib, 62 N±m)
To converter 440 kg±cm (32 t±Ib, 43 N±m)
(c) Install the two pipe stay bolts.
15. INSTALL SUSPENSION LOWER CROSSMEMBER
Install the crossmember with the two bolts and two nuts.
Torque the bolts and nuts.
Torque: 2,120 kg±cm (153 ft±lb, 207 N±m)
21. CONNECT FUEL HOSES
22. CONNECT HEATER HOSES
23. CONNECT GROUND STRAP TO TRANSAXLE
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±172
Page 1350 of 2389

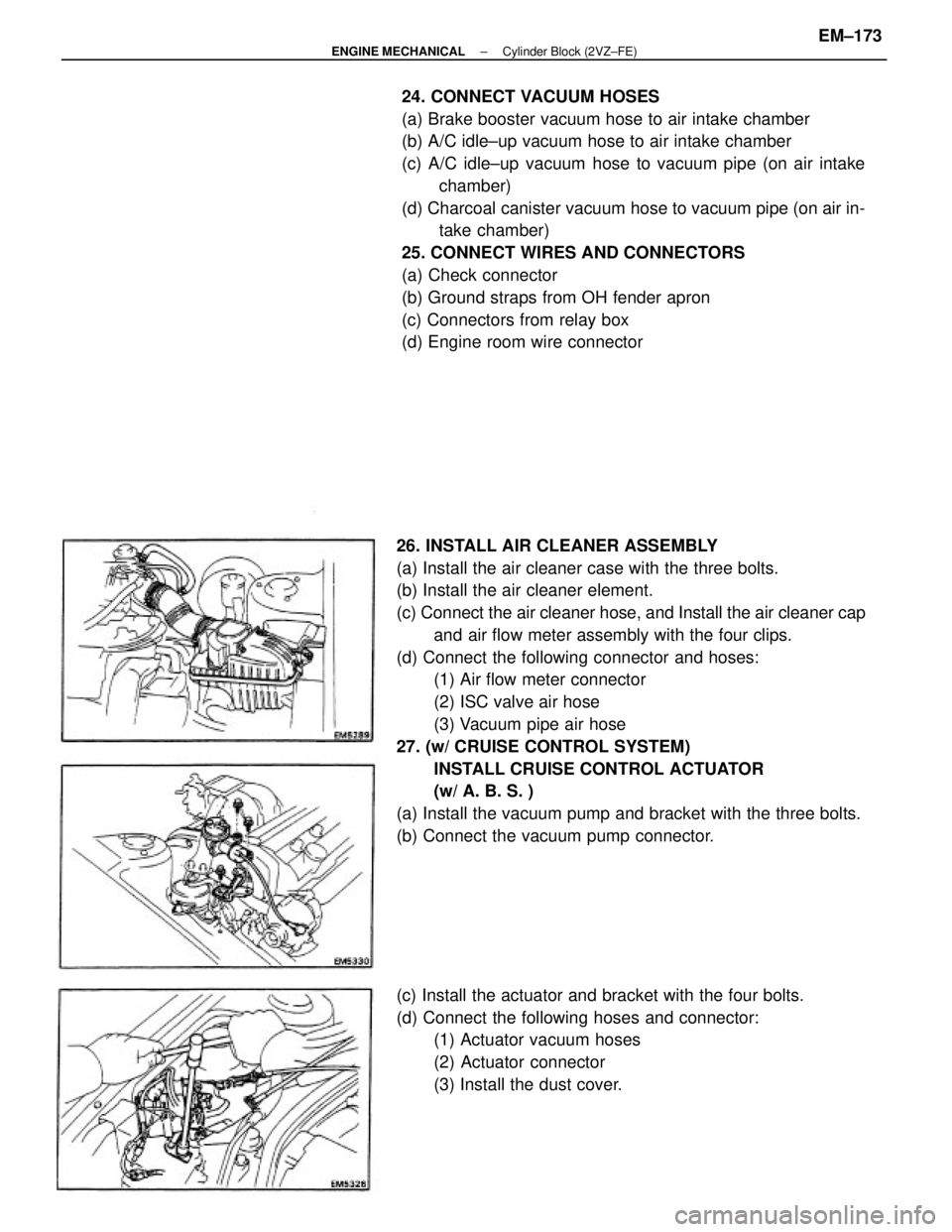

26. INSTALL AIR CLEANER ASSEMBLY
(a) Install the air cleaner case with the three bolts.
(b) Install the air cleaner element.
(c) Connect the air cleaner hose, and Install the air cleaner cap
and air flow meter assembly with the four clips.
(d) Connect the following connector and hoses:
(1) Air flow meter connector
(2) ISC valve air hose
(3) Vacuum pipe air hose
27. (w/ CRUISE CONTROL SYSTEM)
INSTALL CRUISE CONTROL ACTUATOR
(w/ A. B. S. )
(a) Install the vacuum pump and bracket with the three bolts.
(b) Connect the vacuum pump connector.24. CONNECT VACUUM HOSES
(a) Brake booster vacuum hose to air intake chamber
(b) A/C idle±up vacuum hose to air intake chamber
(c) A/C idle±up vacuum hose to vacuum pipe (on air intake
chamber)
(d) Charcoal canister vacuum hose to vacuum pipe (on air in-
take chamber)
25. CONNECT WIRES AND CONNECTORS
(a) Check connector
(b) Ground straps from OH fender apron
(c) Connectors from relay box
(d) Engine room wire connector
(c) Install the actuator and bracket with the four bolts.
(d) Connect the following hoses and connector:
(1) Actuator vacuum hoses
(2) Actuator connector
(3) Install the dust cover.
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±173
Page 1351 of 2389

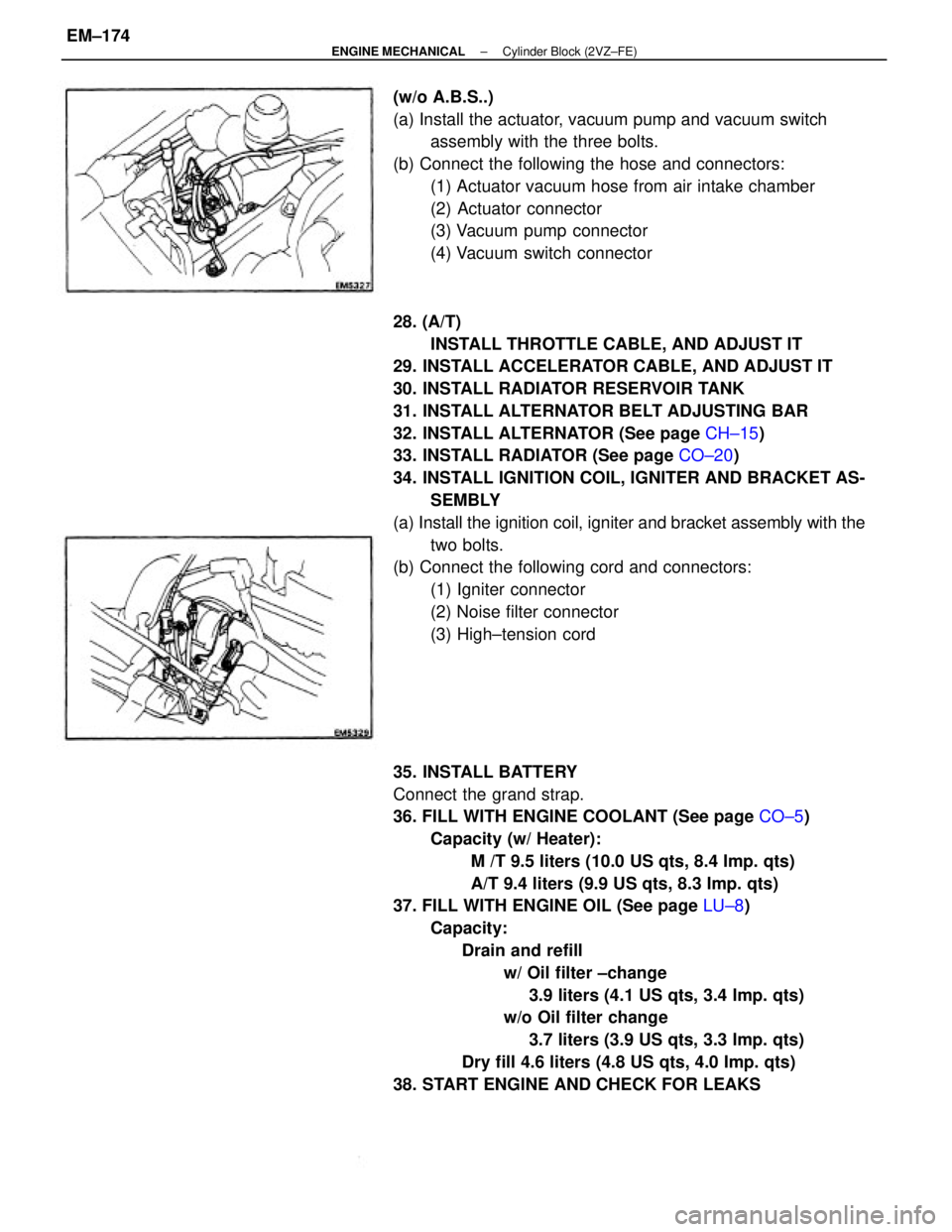

28. (A/T)
INSTALL THROTTLE CABLE, AND ADJUST IT
29. INSTALL ACCELERATOR CABLE, AND ADJUST IT
30. INSTALL RADIATOR RESERVOIR TANK
31. INSTALL ALTERNATOR BELT ADJUSTING BAR
32. INSTALL ALTERNATOR (See page CH±15)
33. INSTALL RADIATOR (See page CO±20)
34. INSTALL IGNITION COIL, IGNITER AND BRACKET AS-
SEMBLY
(a) Install the ignition coil, igniter and bracket assembly with the
two bolts.
(b) Connect the following cord and connectors:
(1) Igniter connector
(2) Noise filter connector
(3) High±tension cord
35. INSTALL BATTERY
Connect the grand strap.
36. FILL WITH ENGINE COOLANT (See page CO±5)
Capacity (w/ Heater):
M /T 9.5 liters (10.0 US qts, 8.4 Imp. qts)
A/T 9.4 liters (9.9 US qts, 8.3 Imp. qts)
37. FILL WITH ENGINE OIL (See page LU±8)
Capacity:
Drain and refill
w/ Oil filter ±change
3.9 liters (4.1 US qts, 3.4 Imp. qts)
w/o Oil filter change
3.7 liters (3.9 US qts, 3.3 Imp. qts)
Dry fill 4.6 liters (4.8 US qts, 4.0 Imp. qts)
38. START ENGINE AND CHECK FOR LEAKS (w/o A.B.S..)
(a) Install the actuator, vacuum pump and vacuum switch
assembly with the three bolts.
(b) Connect the following the hose and connectors:
(1) Actuator vacuum hose from air intake chamber
(2) Actuator connector
(3) Vacuum pump connector
(4) Vacuum switch connector
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±174
Page 1352 of 2389

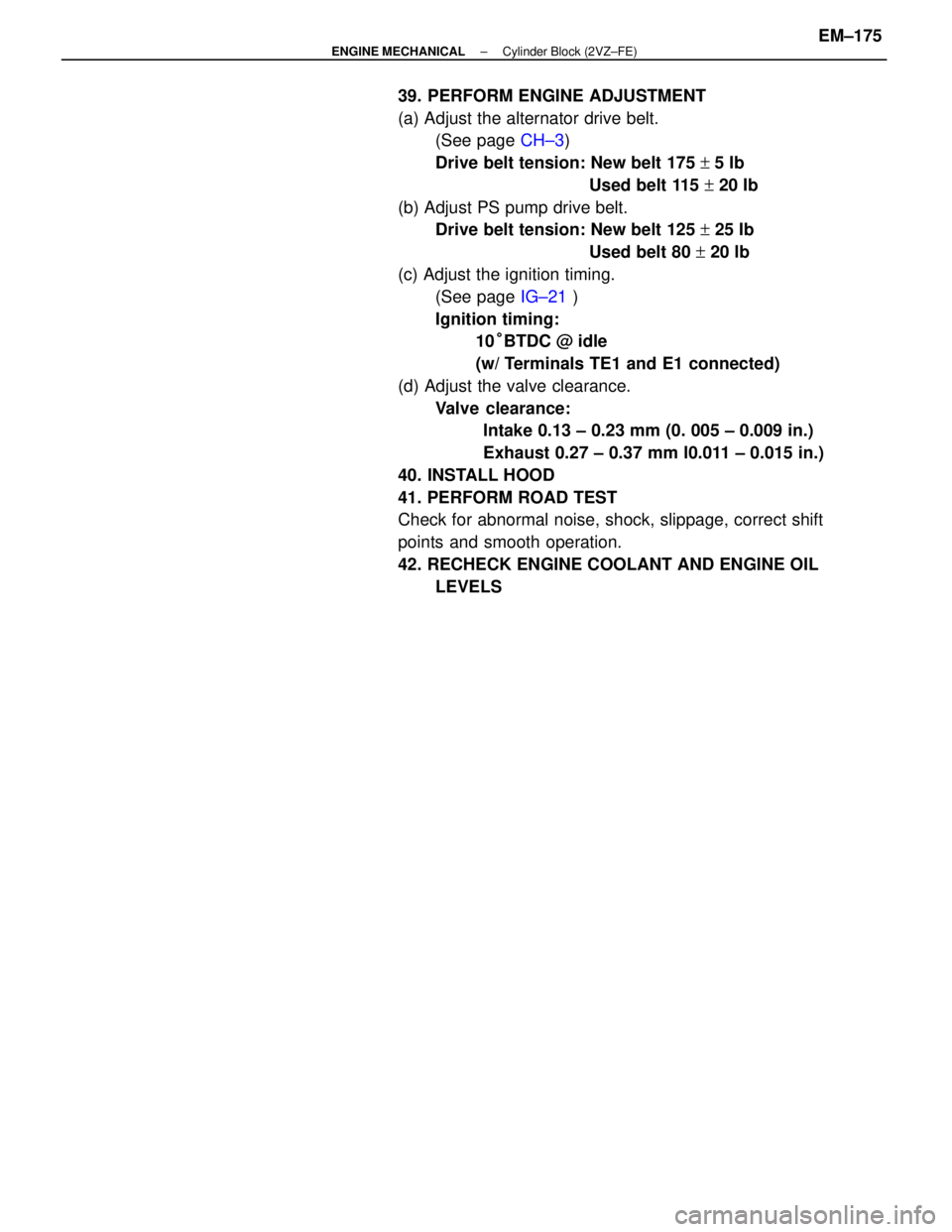

39. PERFORM ENGINE ADJUSTMENT
(a) Adjust the alternator drive belt.
(See page CH±3)
Drive belt tension: New belt 175 + 5 Ib
Used belt 115 + 20 Ib
(b) Adjust PS pump drive belt.
Drive belt tension: New belt 125 + 25 Ib
Used belt 80 + 20 lb
(c) Adjust the ignition timing.
(See page IG±21 )
Ignition timing:
10°BTDC @ idle
(w/ Terminals TE1 and E1 connected)
(d) Adjust the valve clearance.
Valve clearance:
Intake 0.13 ± 0.23 mm (0. 005 ± 0.009 in.)
Exhaust 0.27 ± 0.37 mm l0.011 ± 0.015 in.)
40. INSTALL HOOD
41. PERFORM ROAD TEST
Check for abnormal noise, shock, slippage, correct shift
points and smooth operation.
42. RECHECK ENGINE COOLANT AND ENGINE OIL
LEVELS
± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±175
