1986 TOYOTA CAMRY V20 window

3. REMOVE REAR VIEW MIRROR
(a) (Manual type)
Remove the setting screw and knob.
(b) Using a screwdriver, pry loose the retainer and re-
move the cover.
HINT: Tape the screwdriver tip before use.
(c) (Electrical type)
Disconnect the connector.
(d) Remove the three screws±and mirror.
(c) Insert a screwdriver between the retainers and door
trim to pry it loose.
HINT: Tape the screwdriver tip before use.
(d) (w/ Power Window and Power Door Lock)
Disconnect the connectors.
5. REMOVE SERVICE HOLE COVER
6. REMOVE OPENING CONTROL LINK FROM DOOR
LOCK
DISASSEMBLY OF FRONT DOOR
1. REMOVE REGULATOR HANDLE
(w/o POWER WINDOW)
Pull oft the snap ring with a cloth and remove the regulator
handle and plate.
2. REMOVE DOOR INSIDE HANDLE
(a) Remove the screw, and slide the handle forward.
(b) Disconnect the handle from the control link and re-
move the handle.
4. REMOVE DOOR TRIM
(a) Remove the two screws from the armrest.
(b) Remove the two caps and two screws.
± BODYFront DoorBO±5

7. REMOVE DOOR GLASS
(a) Wind the glass down into the door cavity.
(b) Remove the two glass channel mounting nuts.
8. REMOVE WINDOW REGULATOR
(a) (w/ Power Window)
Disconnect the connector.
(b) Remove the regulator mounting bolts.
(e) Remove the equalizer arm bracket mounting bolts.
10. REMOVE REAR LOWER FRAME
11. REMOVE FRONT LOWER FRAME
Remove the two bolts from the panel. (d) Remove the regulator through the service hole.
9. REMOVE DOOR GLASS RUN(c) Remove the door glass by pulling it upward.
± BODYFront DoorBO±6

ASSEMBLY OF FRONT DOOR
(See page BO±3)
1. BEFORE INSTALLING PARTS, COAT THEM WITH MIP
GREASE
(a) Coat the sliding surface and gears of the window
regulator with MP grease.
NOTICE: Do not apply MP grease to the spring of the win-
dow regulator.
13. REMOVE DOOR LOCK
(a) Disconnect the links from the door outside handle
and door lock cylinder.
(b) Remove the three screws and the door lock.
(c) (w/ Power Door Lock)
Remove the screw and door lock solenoid. 12. REMOVE FRONT DOOR BELT MOULDING
(a) Remove the screw.
(b) Pry loose the clips from the edge of the panel and re-
move the front door belt moulding.
14. REMOVE DOOR OUTSIDE HANDLE AND DOOR
LOCK CYLINDER
(a) Remove the two bolts and door outside handle.
(b) Remove the clip and door lock cylinder.
(b) Coat the sliding surface of the door lock with IMP
grease.
± BODYFront DoorBO±7

3. INSTALL DOOR LOCK
(a) (w/ Power Door Lock)
Install the door lock solenoid to the door lock with the
screw.
(b) InstalI the door lock with the three screws.
(e) Install the links to the door outside handle and door
lock cylinder. 2. INSTALL DOOR OUTSIDE HANDLE AND DOOR LOCK
CYLINDER
(a) Install the door outside handle with the two bolts.
(b) Install the door lock cylinder with the clip.
4. INSTALL FRONT DOOR BELT MOULDING
(a) Insert the claw of the clips into the upper panel hole
and push the front door belt moulding onto the panel.
(b) Install the screw.
7. INSTALL WINDOW REGULATOR
Place the regulator through the service hole and install the
five mounting bolts. 5. INSTALL FRONT LOWER FRAME
Install the front lower frame with the two bolts.
6. INSTALL REAR LOWER FRAME
± BODYFront DoorBO±8

3. ADJUST DOOR LOCK STRIKER
(a) Check that the door fit and door lock linkages are ad-
justed correctly.
(b) Adjust the striker position by slightly loosening the
striker mounting screws, and hitting the striker with a
hammer.
Tighten the striker mounting screws again.
ADJUSTMENT OF FRONT DOOR
1. ADJUST DOOR IN FORWARD/REARWARD AND
VERTICAL DIRECTIONS
Using SST, adjust the door by loosening the body side
hinge bolts.
SST 09812±00010 16. INSTALL REGULATOR HANDLE
With door window fully closed, install the plate and regula-
tor handle with a snap ring as shown.
2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL
DIRECTIONS
Loosen the door side hinge bolts to adjust.
± BODYBO±10

(b) Insert a screwdriver between the trim retainers and
the door panel to pry it loose.
HINT: Tape the screwdriver tip before use.
4. REMOVE SERVICE HOLE COVER
5. REMOVE DOOR GLASS RUN
DISASSEMBLY OF REAR DOOR
1. REMOVE REGULATOR HANDLE
(w/o POWER WINDOW)
Pull oft the snap ring with a cloth and remove the regulator
handle and plate.
6. REMOVE DIVISION BAR
(a) Remove the two screws under the weatherstrip.
(b) Remove the bolt.
(c) Pull out the division bar. 2. REMOVE DOOR INSIDE HANDLE
(a) Remove the screw, and slide the handle forward.
(b) Disconnect the control link and remove the handle.
3. REMOVE DOOR TRIM WITH INNER WEATHERSTRIP
(a) Remove the two screws from the armrest.
± BODYRear DoorBO±12

8. REMOVE WINDOW REGULATOR
(a) (w/ Power Window)
Disconnect the connector.
(b) Remove the regulator ±mounting bolts.
(c) Remove the equalizer arm bracket mounting bolts. 7. REMOVE DOOR GLASS
(a) Wind the glass down into the door cavity.
(b) Remove the two glass channel mounting nuts.
9. REMOVE REAR DOOR BELT MOULDING
Pry out the rear door belt moulding with the clip as shown.(c) Remove the door glass by pulling it upward.
(d) Remove the regulator through the service hole.
± BODYRear DoorBO±13

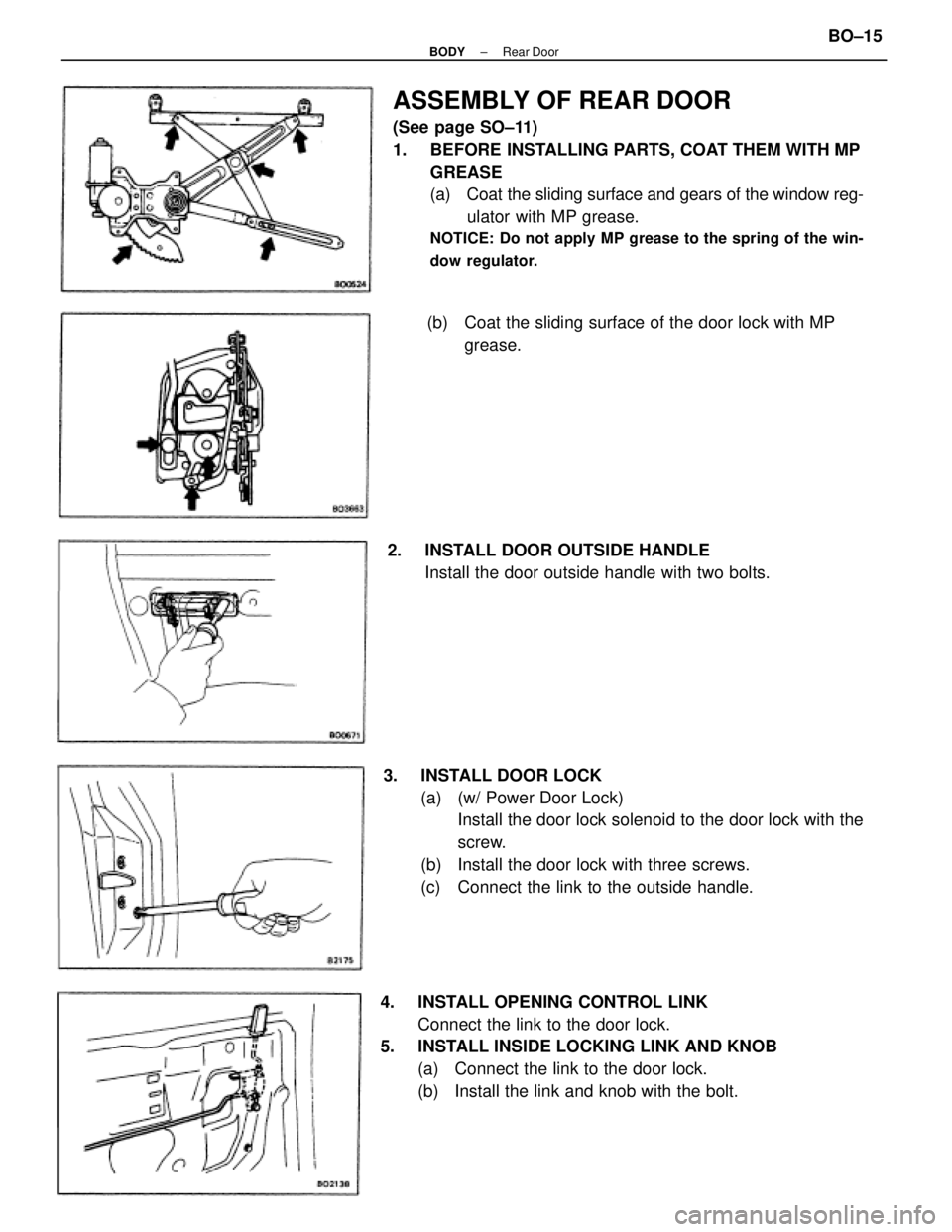

ASSEMBLY OF REAR DOOR
(See page SO±11)
1. BEFORE INSTALLING PARTS, COAT THEM WITH MP
GREASE
(a) Coat the sliding surface and gears of the window reg-
ulator with MP grease.
NOTICE: Do not apply MP grease to the spring of the win-
dow regulator.
3. INSTALL DOOR LOCK
(a) (w/ Power Door Lock)
Install the door lock solenoid to the door lock with the
screw.
(b) Install the door lock with three screws.
(c) Connect the link to the outside handle.
4. INSTALL OPENING CONTROL LINK
Connect the link to the door lock.
5. INSTALL INSIDE LOCKING LINK AND KNOB
(a) Connect the link to the door lock.
(b) Install the link and knob with the bolt.(b) Coat the sliding surface of the door lock with MP
grease.
2. INSTALL DOOR OUTSIDE HANDLE
Install the door outside handle with two bolts.
± BODYRear DoorBO±15
