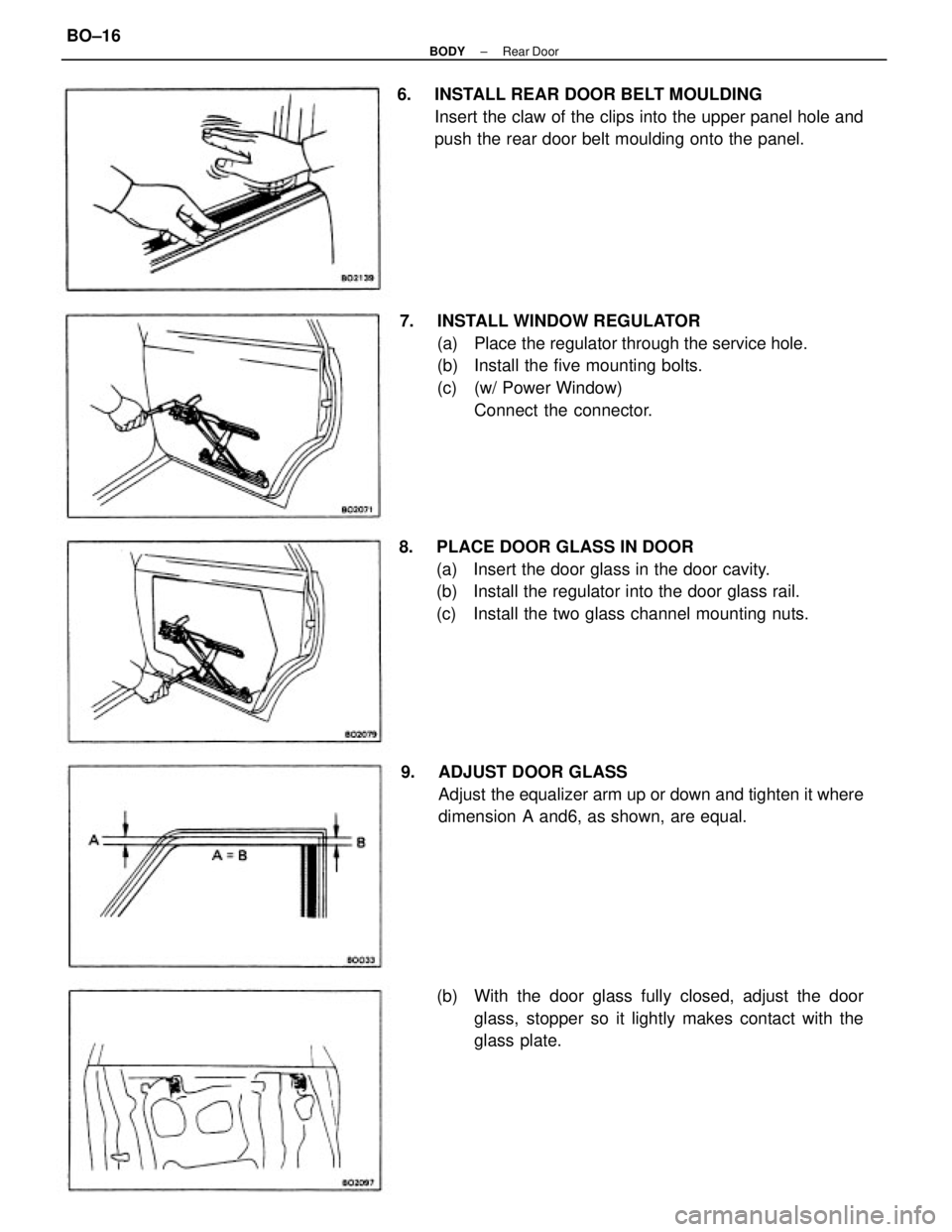

7. INSTALL WINDOW REGULATOR
(a) Place the regulator through the service hole.
(b) Install the five mounting bolts.
(c) (w/ Power Window)
Connect the connector. 6. INSTALL REAR DOOR BELT MOULDING
Insert the claw of the clips into the upper panel hole and
push the rear door belt moulding onto the panel.
8. PLACE DOOR GLASS IN DOOR
(a) Insert the door glass in the door cavity.
(b) Install the regulator into the door glass rail.
(c) Install the two glass channel mounting nuts.
9. ADJUST DOOR GLASS
Adjust the equalizer arm up or down and tighten it where
dimension A and6, as shown, are equal.
(b) With the door glass fully closed, adjust the door
glass, stopper so it lightly makes contact with the
glass plate.
± BODYRear DoorBO±16

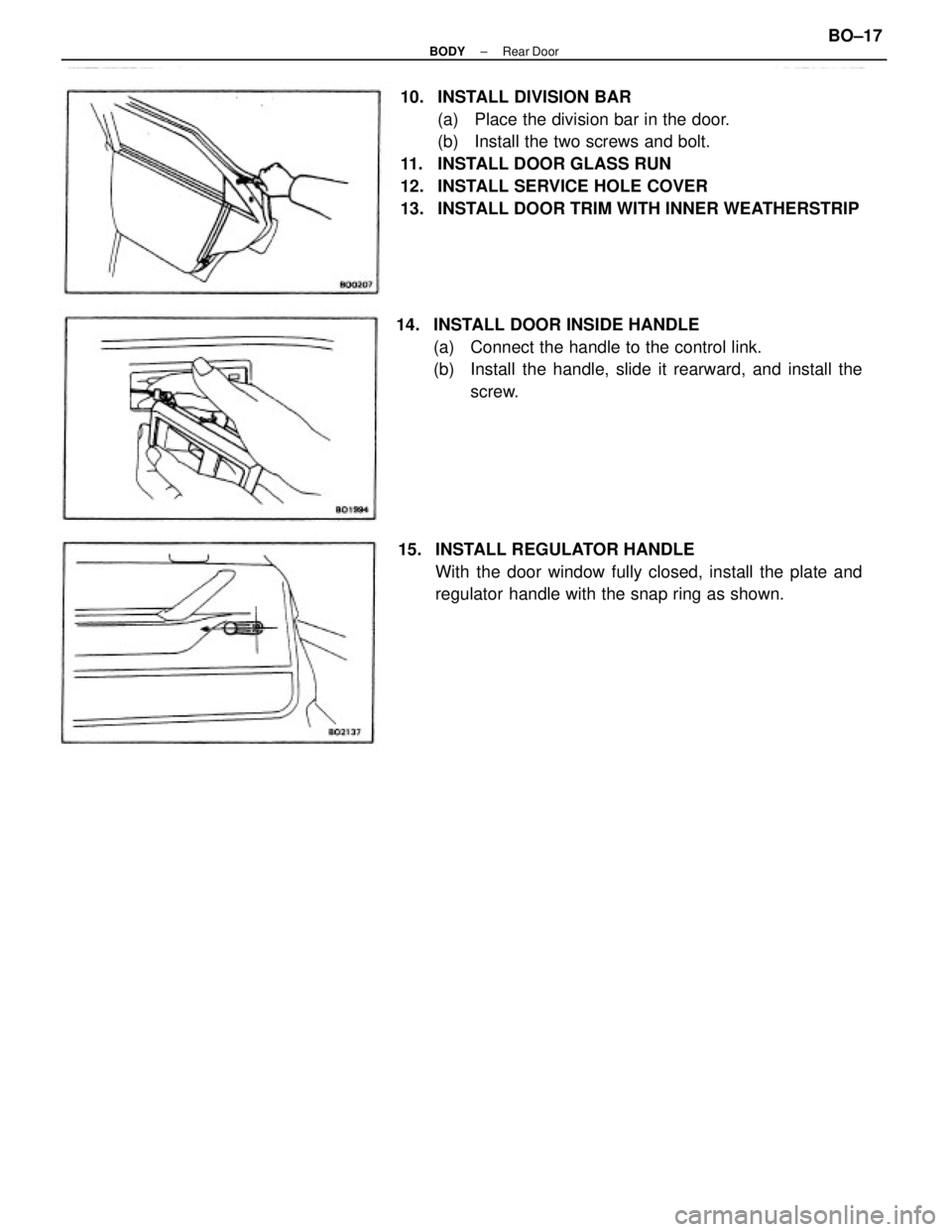

10. INSTALL DIVISION BAR
(a) Place the division bar in the door.
(b) Install the two screws and bolt.
11. INSTALL DOOR GLASS RUN
12. INSTALL SERVICE HOLE COVER
13. INSTALL DOOR TRIM WITH INNER WEATHERSTRIP
14. INSTALL DOOR INSIDE HANDLE
(a) Connect the handle to the control link.
(b) Install the handle, slide it rearward, and install the
screw.
15. INSTALL REGULATOR HANDLE
With the door window fully closed, install the plate and
regulator handle with the snap ring as shown.
± BODYRear DoorBO±17

REMOVAL OF DOOR BELT MOULDING
1. REMOVE DOOR GLASS
Front Door (See page BO±6)
Rear Door (See page BO±1 3)
2. REMOVE DOOR BELT MOULDING
(a) Remove the screw. (Front door)
(b) Remove the two screws. (Rear door)
(e) Pry loose the clips from the edge of the panel and
remove the belt moulding.
INSTALLATION OF DOOR BELT
MOULDING
1. INSTALL DOOR BELT MOULDING
(a) Tap the moulding onto the door by hand.
(b) Install the screw. (Front door)
(e) Install the two screws. (Rear door)
2. INSTALL DOOR GLASS
Front Door (See page BO±9)
Rear Door (See page BO±16)
REMOVAL OF QUARTER WINDOW
MOULDING
Sedan (See page BO±44)
Station Wagon (See pages BO±46 and 47)
INSTALLATION OF QUARTER WINDOW
MOULDING
Sedan (See page BO±45)
Station Wagon (See pages BO±47 and 48)

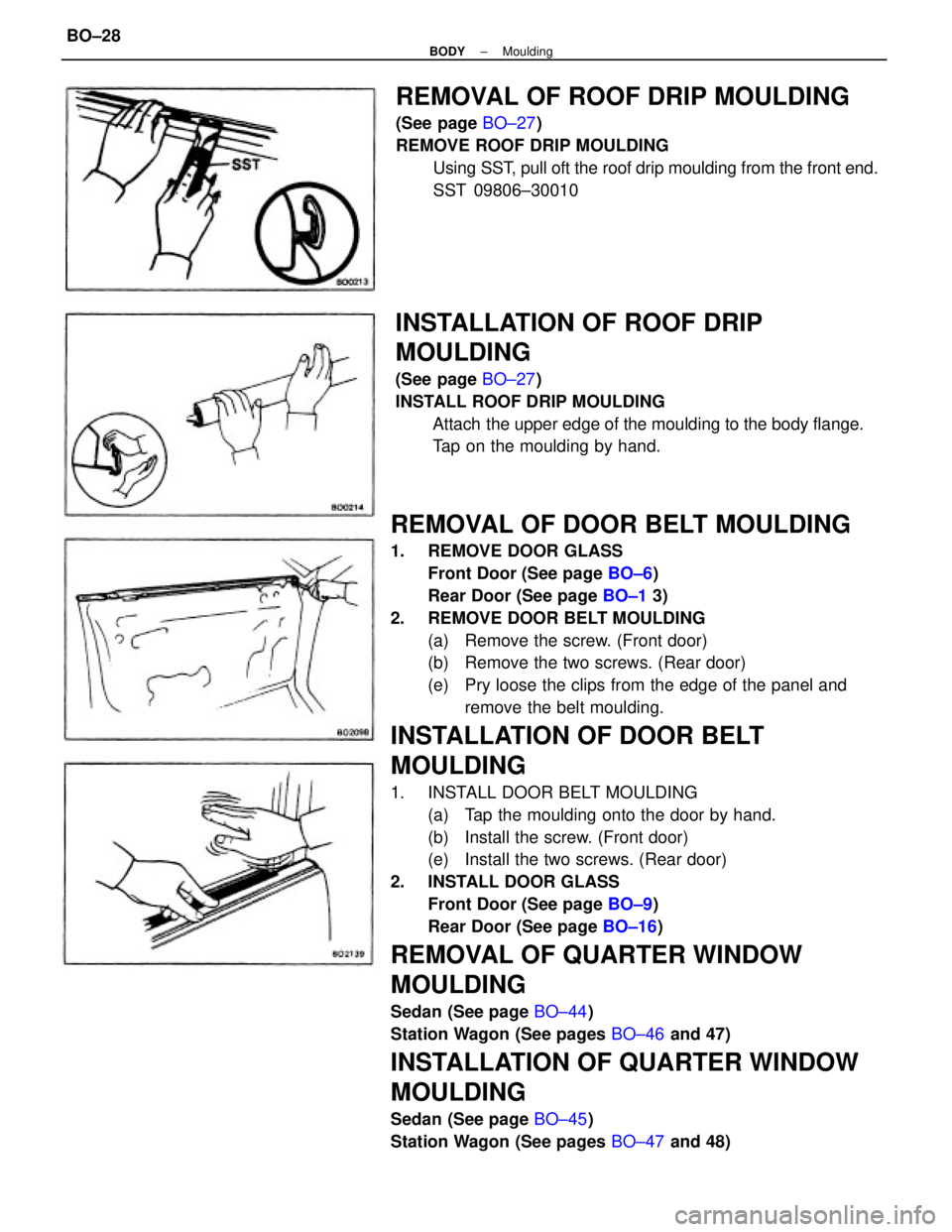

REMOVAL OF ROOF DRIP MOULDING
(See page BO±27)
REMOVE ROOF DRIP MOULDING
Using SST, pull oft the roof drip moulding from the front end.
SST 09806±30010
INSTALLATION OF ROOF DRIP
MOULDING
(See page BO±27)
INSTALL ROOF DRIP MOULDING
Attach the upper edge of the moulding to the body flange.
Tap on the moulding by hand.
± BODYMouldingBO±28

Butyl tape 9 mm dia. x 2,500 mm (0.35 x 98.43 in.)
Primer 5 cc (0.17 fl.oz.)
Sponge (for applying primer)
Piano wire 1 mm dia. x 600 mm (0.04 x 23.62 in.) (for slicing off glass)

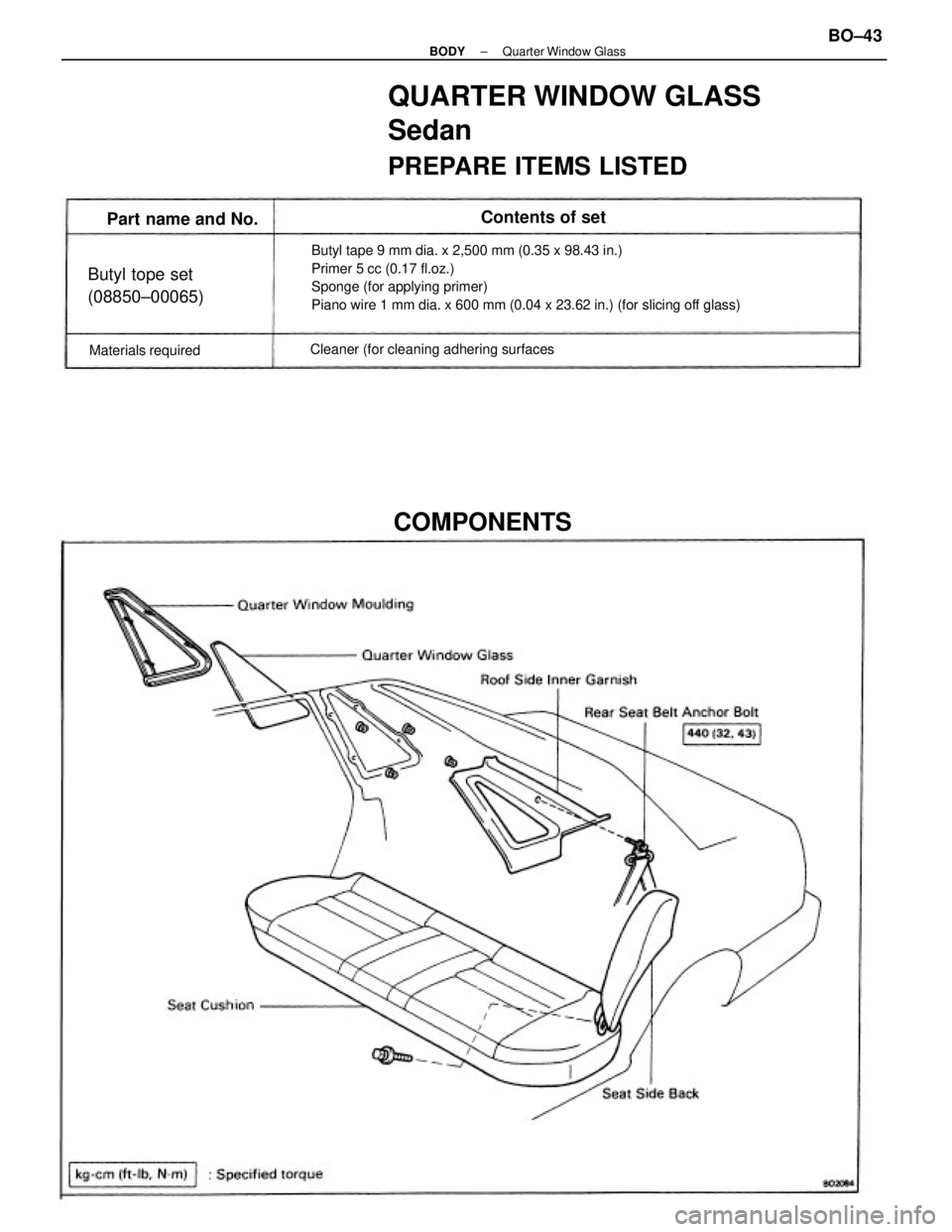

QUARTER WINDOW GLASS
Sedan
PREPARE ITEMS LISTED
Cleaner (for cleaning adhering surfaces
Butyl tope set
(08850±00065)
COMPONENTS
Materials required
Part name and No.Contents of set
± BODYQuarter Window GlassBO±43

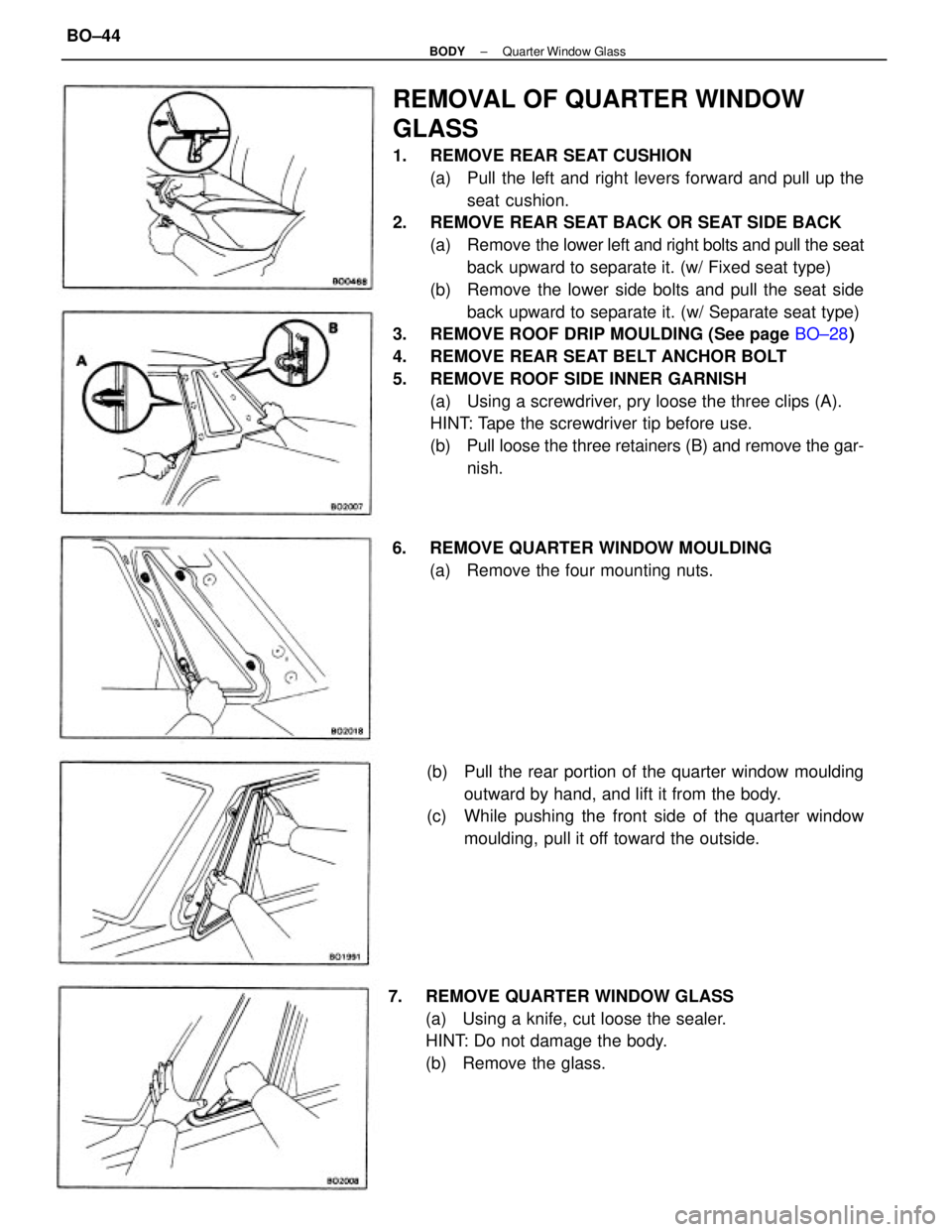

REMOVAL OF QUARTER WINDOW
GLASS
1. REMOVE REAR SEAT CUSHION
(a) Pull the left and right levers forward and pull up the
seat cushion.
2. REMOVE REAR SEAT BACK OR SEAT SIDE BACK
(a) Remove the lower left and right bolts and pull the seat
back upward to separate it. (w/ Fixed seat type)
(b) Remove the lower side bolts and pull the seat side
back upward to separate it. (w/ Separate seat type)
3. REMOVE ROOF DRIP MOULDING (See page BO±28)
4. REMOVE REAR SEAT BELT ANCHOR BOLT
5. REMOVE ROOF SIDE INNER GARNISH
(a) Using a screwdriver, pry loose the three clips (A).
HINT: Tape the screwdriver tip before use.
(b) Pull loose the three retainers (B) and remove the gar-
nish.
(b) Pull the rear portion of the quarter window moulding
outward by hand, and lift it from the body.
(c) While pushing the front side of the quarter window
moulding, pull it off toward the outside.
7. REMOVE QUARTER WINDOW GLASS
(a) Using a knife, cut loose the sealer.
HINT: Do not damage the body.
(b) Remove the glass. 6. REMOVE QUARTER WINDOW MOULDING
(a) Remove the four mounting nuts.
± BODYQuarter Window GlassBO±44

5. INSTALL FOLLOWING PARTS:
(a) Roof side inner garnish
(b) Rear seat belt anchor bolt
Torque: 440 kg±cm (32 ft±Ib, 43 N¿rn)
(c) Roof drip moulding
(d) (w/ Fixed Seat Type)
Rear seat
(e) (w/ Separate Seat Type)
Rear side seat back and seat cushion. 2. COAT CONTACT SURFACE OF GLASS WITH PRIMER
(a) Using a sponge, apply the primer around the entire
ceramic application area.
HINT: Apply primer evenly and to the ceramic application
area only.
(b) Let the primer coating dry for 10 minutes.
4. INSTALL QUARTER WINDOW GLASS WITH
MOULDING
(a) Fit on the moulding.
(b) Install the glass using the moulding stud bolts as a
guide.
(c) Install the four mounting nuts.
INSTALLATION OF QUARTER
WINDOW GLASS
(See page BO±43)
1. CLEAN BODY OR GLASS
Wipe oft any adhesive left on the body and glass with
cleaner.
3. APPLY SEAL TO GLASS
Install the seal to the glass.
HINT: Overlap the seal approx. 40 mm (1.57 in.) at the
front area.
± BODYQuarter Window GlassBO±45

REMOVAL OF QUARTER WINDOW
GLASS
1. REMOVE REAR ROOF DRIP MOULDING
(See page BO±28)
2. REMOVE QUARTER WINDOW UPPER MOULDING
Using a scraper, pry the upper moulding.
HINT: Apply tape to the scraper blade to prevent scratch-
ing the vehicle body.
3. REMOVE QUARTER BELT MOULDING
Pry oft the belt moulding by hand.
4. REMOVE SEAT SIDE BACK
(See page BO±73)
Remove the lower side bolts and pull the seat side back
upward to separate it.
5. REMOVE QUARTER INSIDE UPPER TRIM
6. REMOVE REAR SEAT BELT ANCHOR BOLT

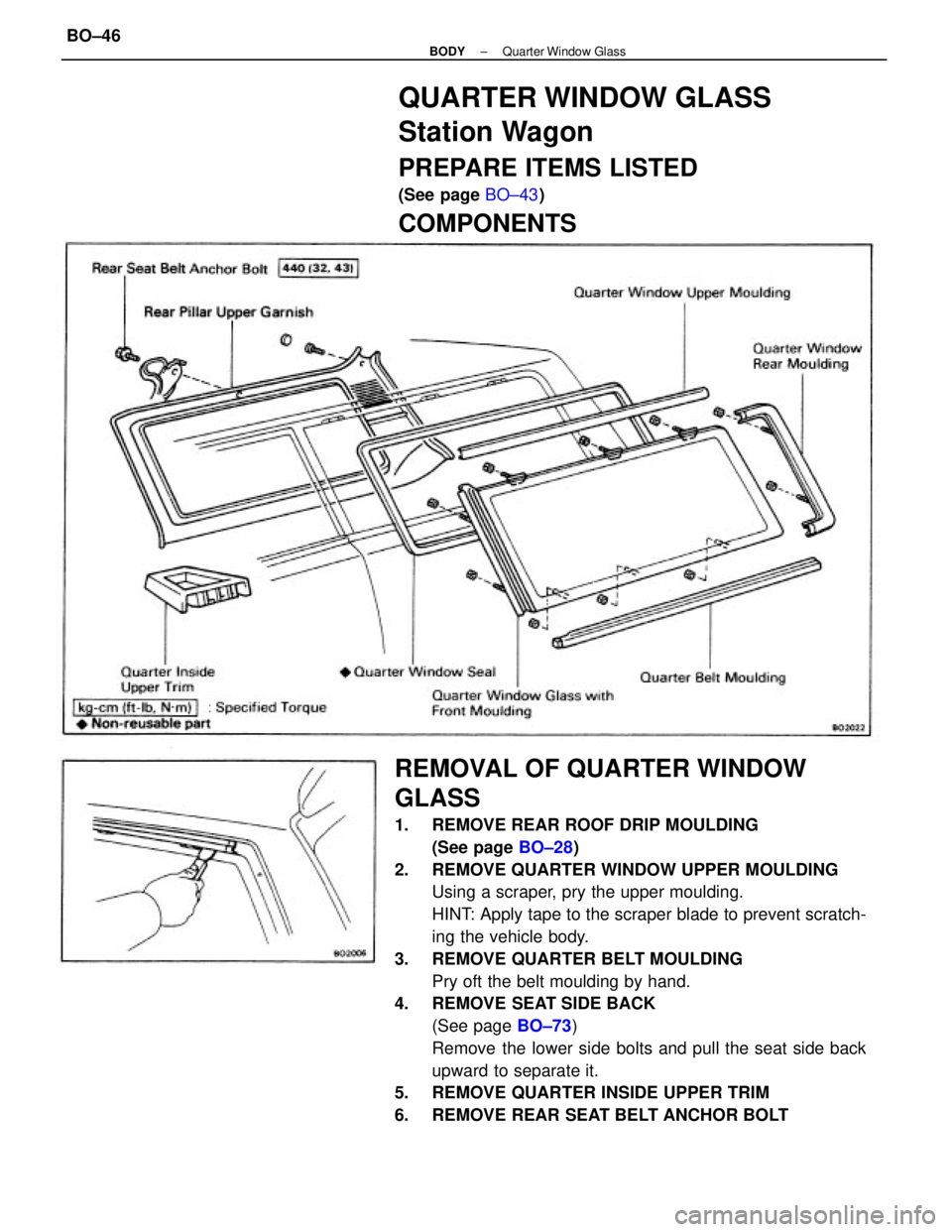

QUARTER WINDOW GLASS
Station Wagon
PREPARE ITEMS LISTED
(See page BO±43)
COMPONENTS
± BODYQuarter Window GlassBO±46

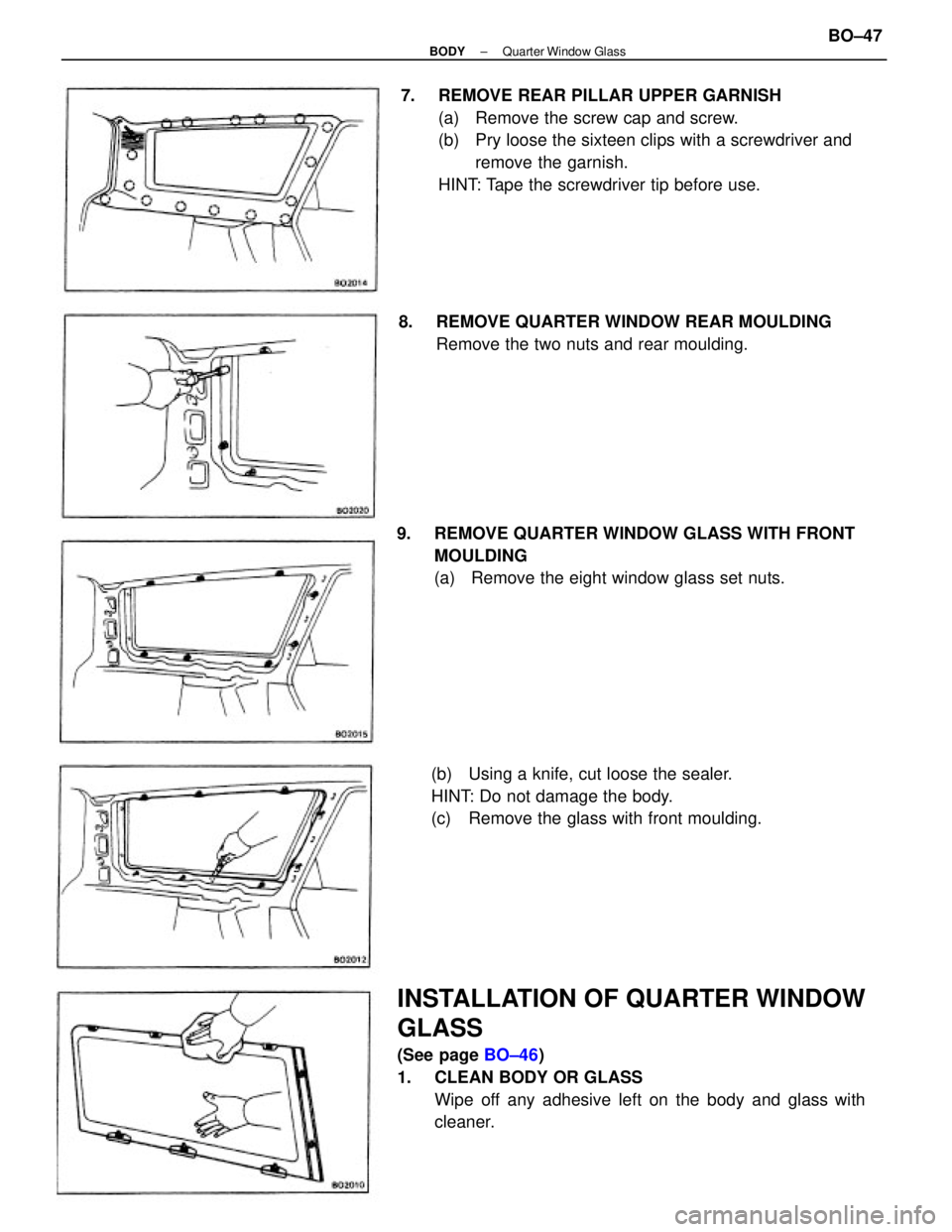

7. REMOVE REAR PILLAR UPPER GARNISH
(a) Remove the screw cap and screw.
(b) Pry loose the sixteen clips with a screwdriver and
remove the garnish.
HINT: Tape the screwdriver tip before use.
INSTALLATION OF QUARTER WINDOW
GLASS
(See page BO±46)
1. CLEAN BODY OR GLASS
Wipe off any adhesive left on the body and glass with
cleaner. 9. REMOVE QUARTER WINDOW GLASS WITH FRONT
MOULDING
(a) Remove the eight window glass set nuts.
(b) Using a knife, cut loose the sealer.
HINT: Do not damage the body.
(c) Remove the glass with front moulding. 8. REMOVE QUARTER WINDOW REAR MOULDING
Remove the two nuts and rear moulding.
± BODYQuarter Window GlassBO±47
