TOYOTA CAMRY V20 1986 Service Information (Assembly of Valve Body) (See page AT±121) 1. POSITION PLATE AND NEW GASKETS ON LOWER VALVE BODY Position the new No. 2 gasket, the plate and then the new No. 1 gasket on the lower valve body. HINT:

Page 386 of 2389

TOYOTA CAMRY V20 1986 Service Information 4. INSTALL LOWER VALVE BODY COVER (a) Install the lower valve body cover over the new gasket. (b) Install and finger tighten the ten bolts. HINT: Each bolt length (mm (in.)) is indicated in the fig- u

Page 387 of 2389

TOYOTA CAMRY V20 1986 Service Information 9. INSTALL SOLENOIDS (a) Install the new O±rings on the solenoids. W Install the No. 1 and No. 2 solenoids. (e) Install and finger tighten the three bolts. HINT: Each bolt length (mm (in.)) is indica

Page 388 of 2389

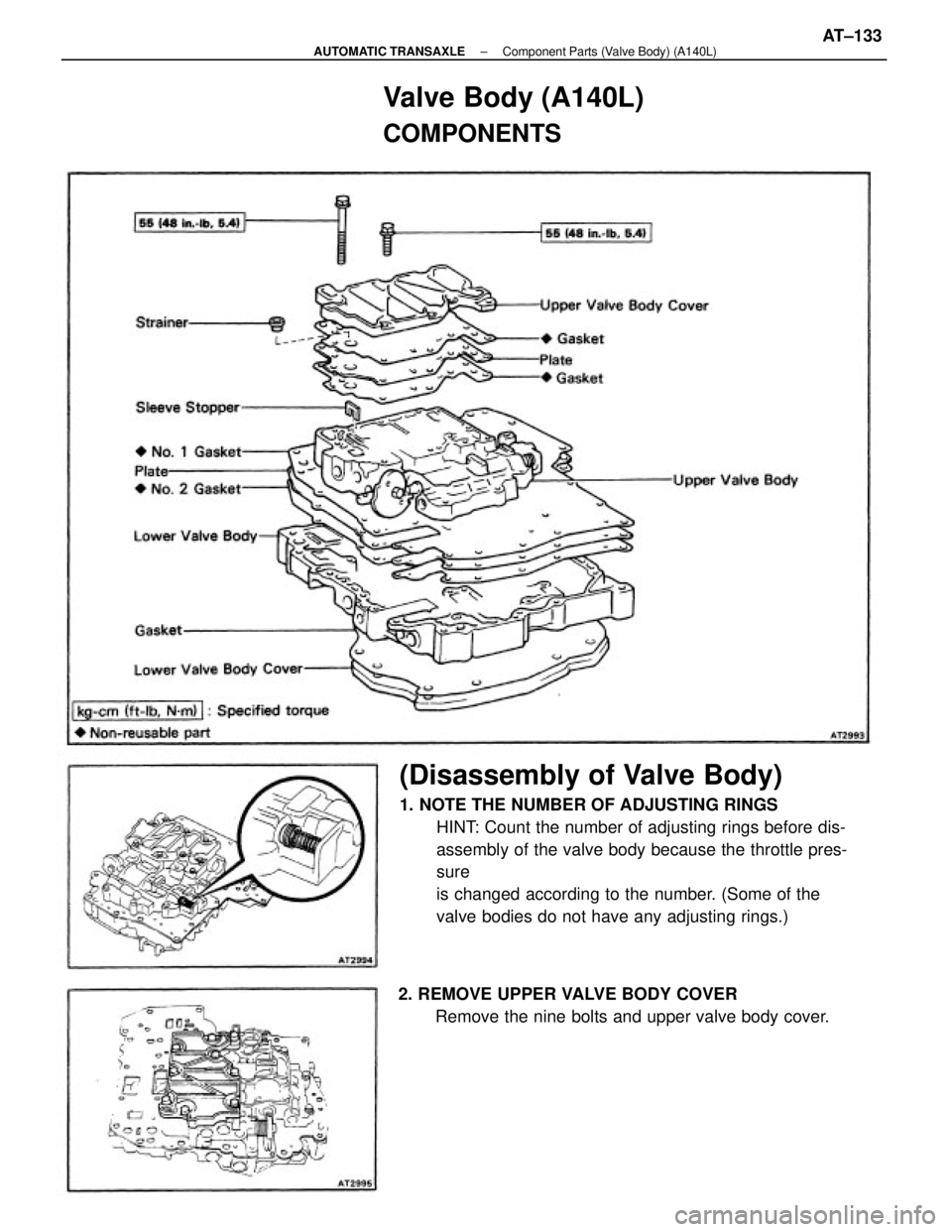

TOYOTA CAMRY V20 1986 Service Information (Disassembly of Valve Body) 1. NOTE THE NUMBER OF ADJUSTING RINGS HINT: Count the number of adjusting rings before dis- assembly of the valve body because the throttle pres- sure is changed according

Page 389 of 2389

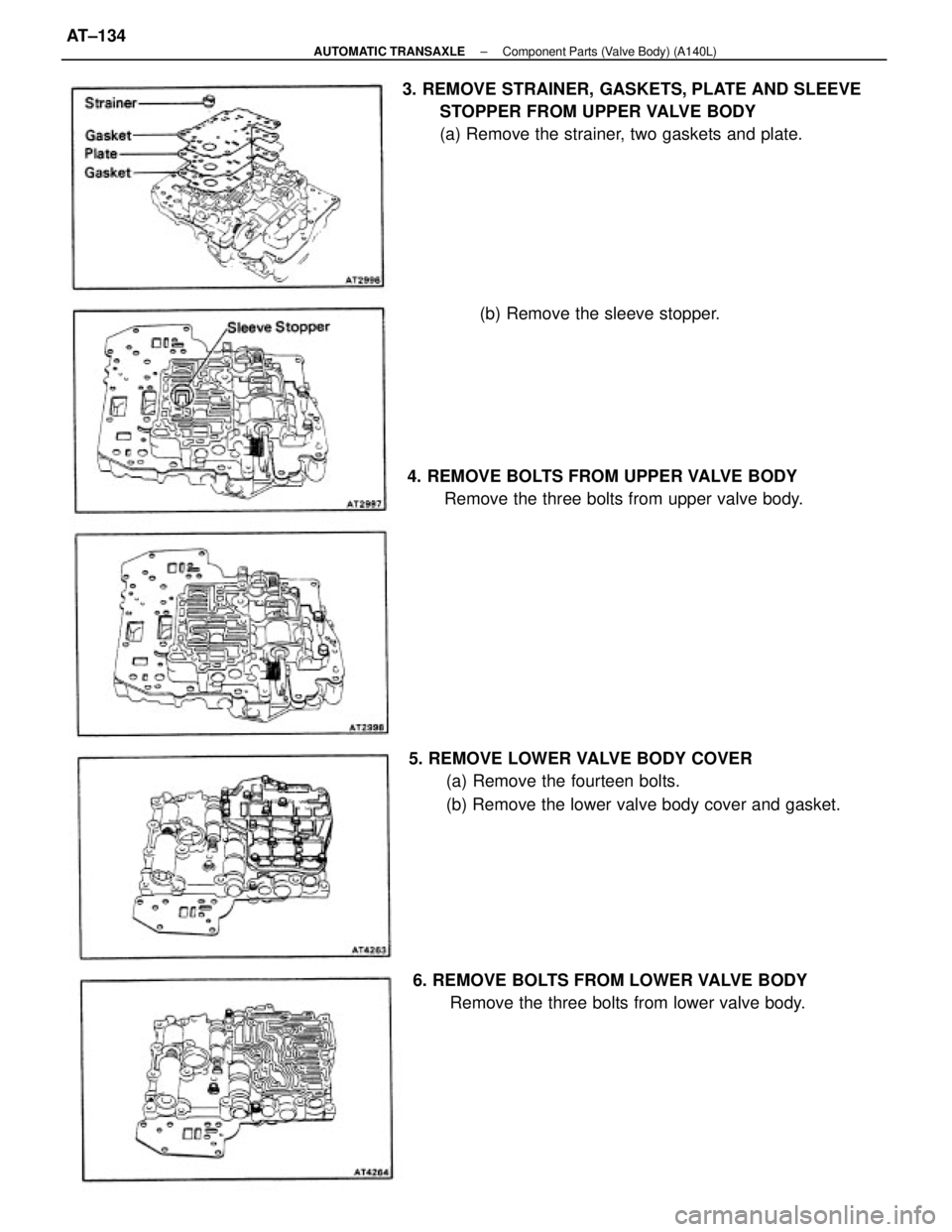

TOYOTA CAMRY V20 1986 Service Information 4. REMOVE BOLTS FROM UPPER VALVE BODY Remove the three bolts from upper valve body. 3. REMOVE STRAINER, GASKETS, PLATE AND SLEEVE STOPPER FROM UPPER VALVE BODY (a) Remove the strainer, two gaskets and

Page 390 of 2389

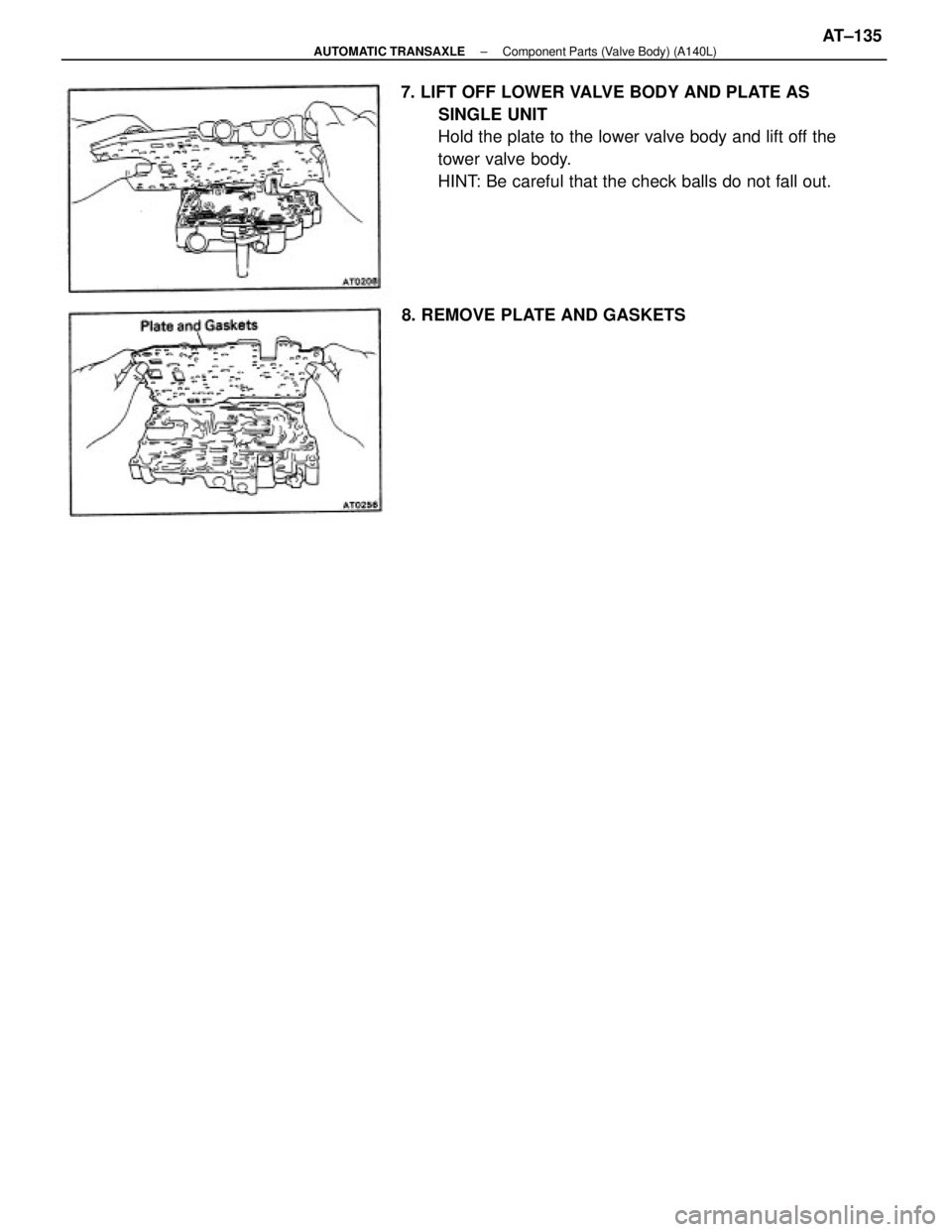

TOYOTA CAMRY V20 1986 Service Information 7. LIFT OFF LOWER VALVE BODY AND PLATE AS SINGLE UNIT Hold the plate to the lower valve body and lift off the tower valve body. HINT: Be careful that the check balls do not fall out. 8. REMOVE PLATE A

Page 391 of 2389

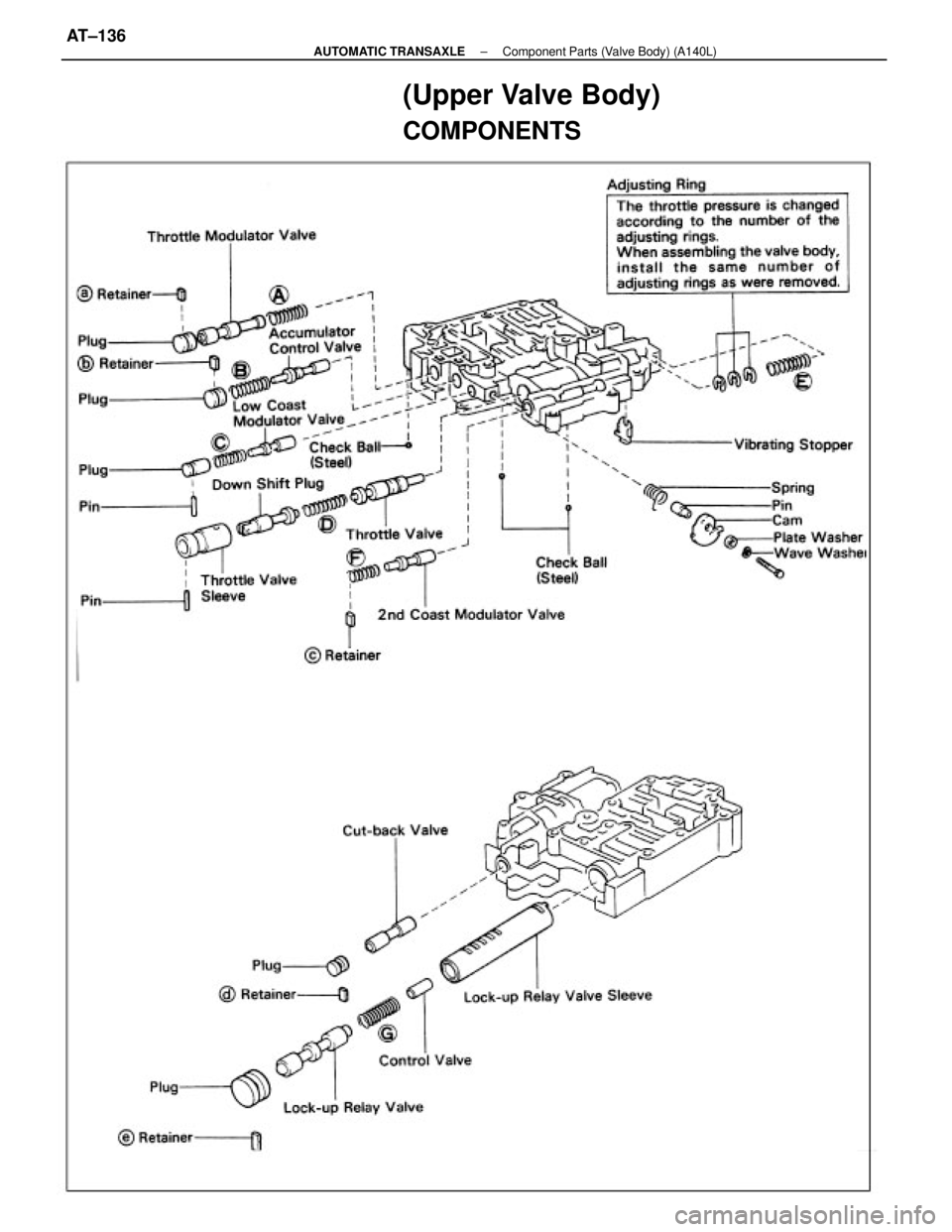

TOYOTA CAMRY V20 1986 Service Information (Upper Valve Body) COMPONENTS ± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140L)AT±136

Page 392 of 2389

TOYOTA CAMRY V20 1986 Service Information HINT: During re±assembly please refer to the spring specifications above to help discriminate be- tween the different springs. SECTIONAL VIEW OF VALVE BODY SPECIFICATIONS OF VALVE BODY SPRINGS Low Co
