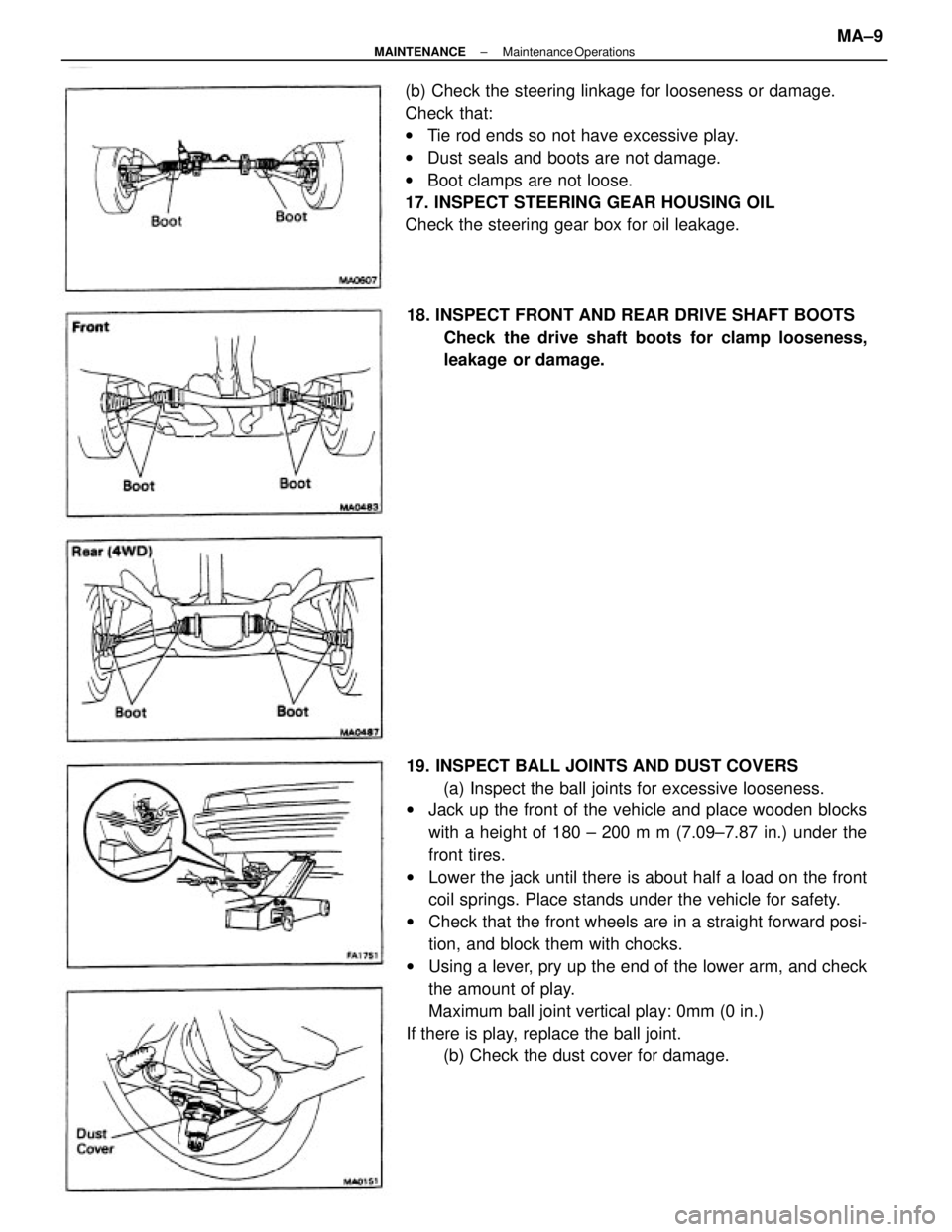

TOYOTA CAMRY V20 1986 Service Information 19. INSPECT BALL JOINTS AND DUST COVERS (a) Inspect the ball joints for excessive looseness. wJack up the front of the vehicle and place wooden blocks with a height of 180 ± 200 m m (7.09±7.87 in.)

Page 1922 of 2389

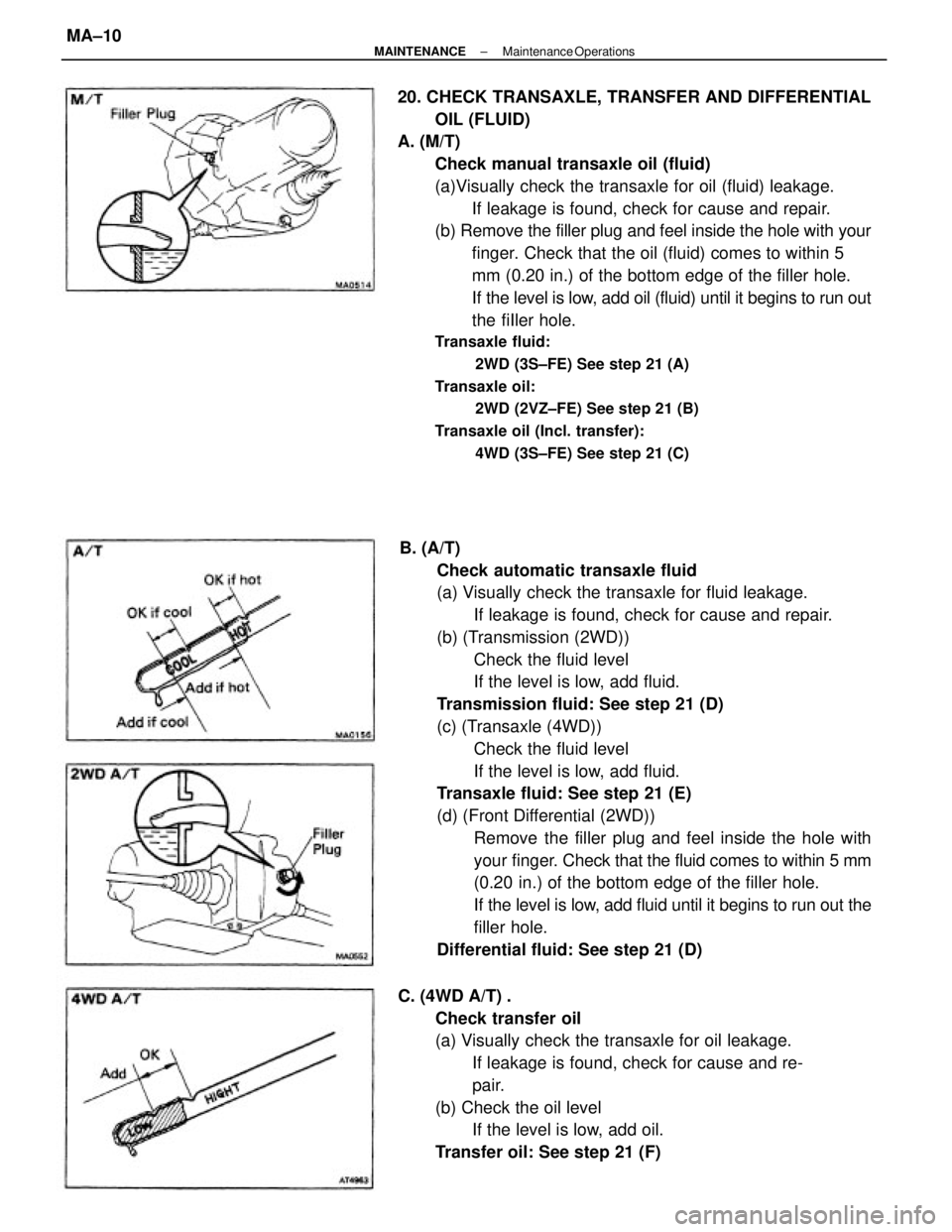

TOYOTA CAMRY V20 1986 Service Information B. (A/T) Check automatic transaxle fluid (a) Visually check the transaxle for fluid leakage. If leakage is found, check for cause and repair. (b) (Transmission (2WD)) Check the fluid level If the leve

Page 1923 of 2389

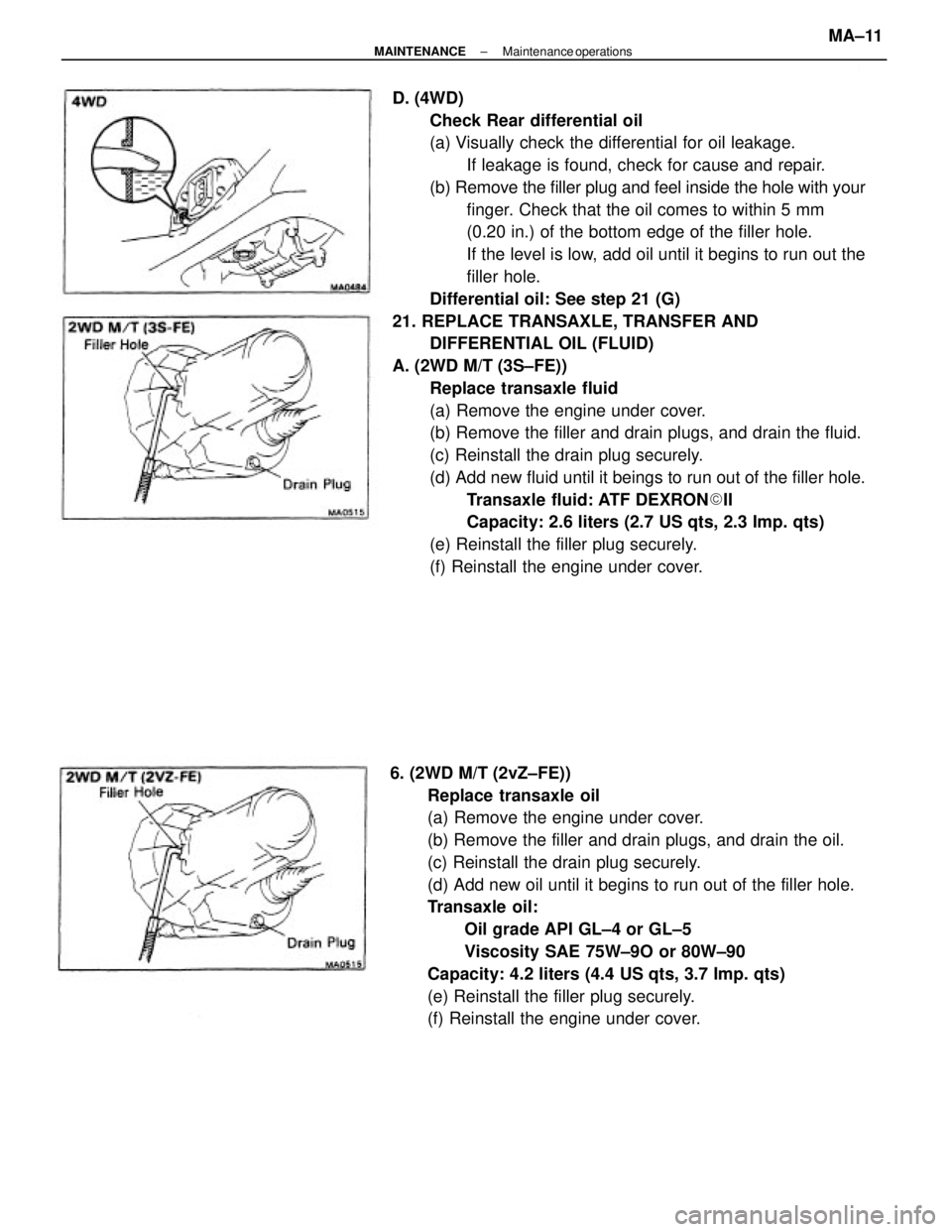

TOYOTA CAMRY V20 1986 Service Information D. (4WD) Check Rear differential oil (a) Visually check the differential for oil leakage. If leakage is found, check for cause and repair. (b) Remove the filler plug and feel inside the hole with your

Page 1924 of 2389

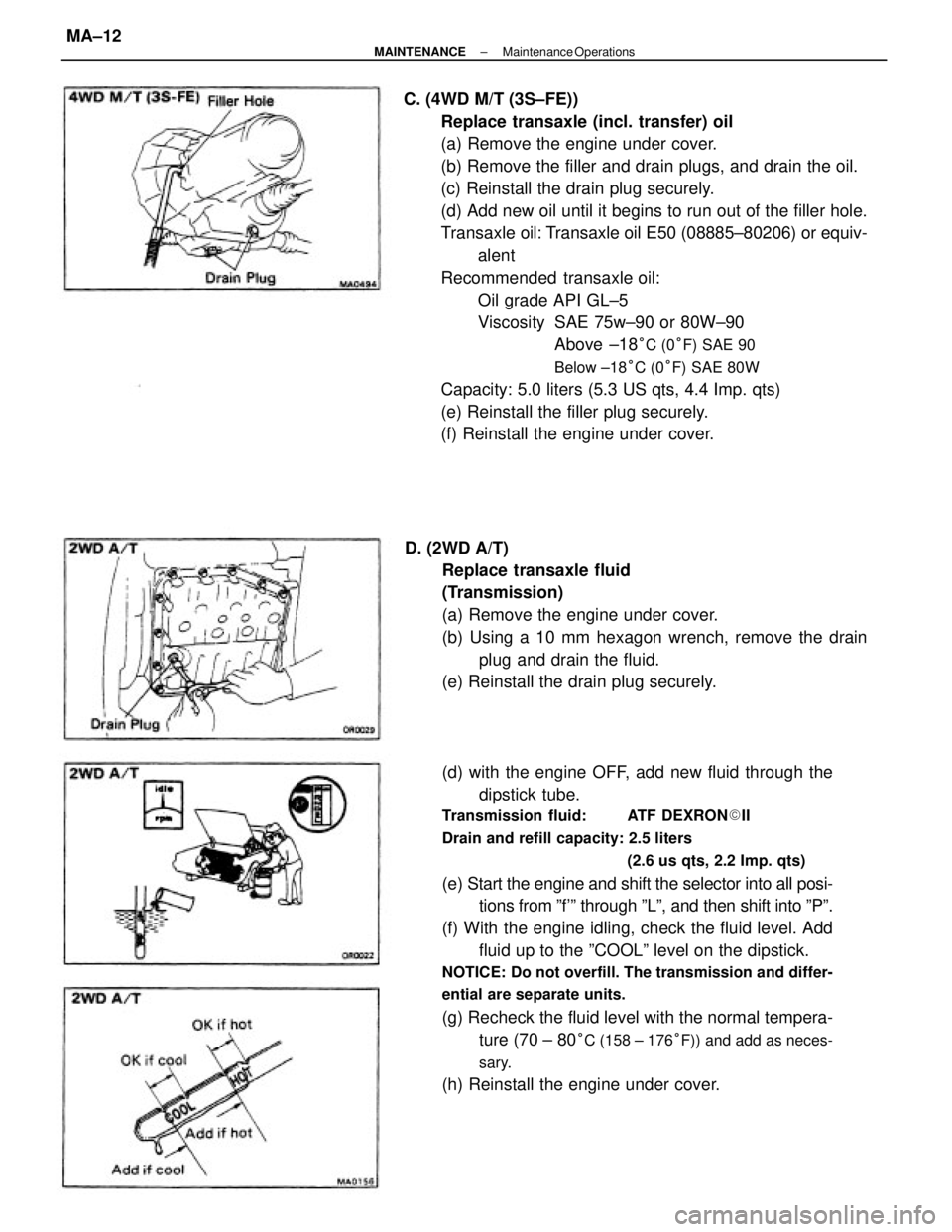

TOYOTA CAMRY V20 1986 Service Information C. (4WD M/T (3S±FE)) Replace transaxle (incl. transfer) oil (a) Remove the engine under cover. (b) Remove the filler and drain plugs, and drain the oil. (c) Reinstall the drain plug securely. (d) Add

Page 1925 of 2389

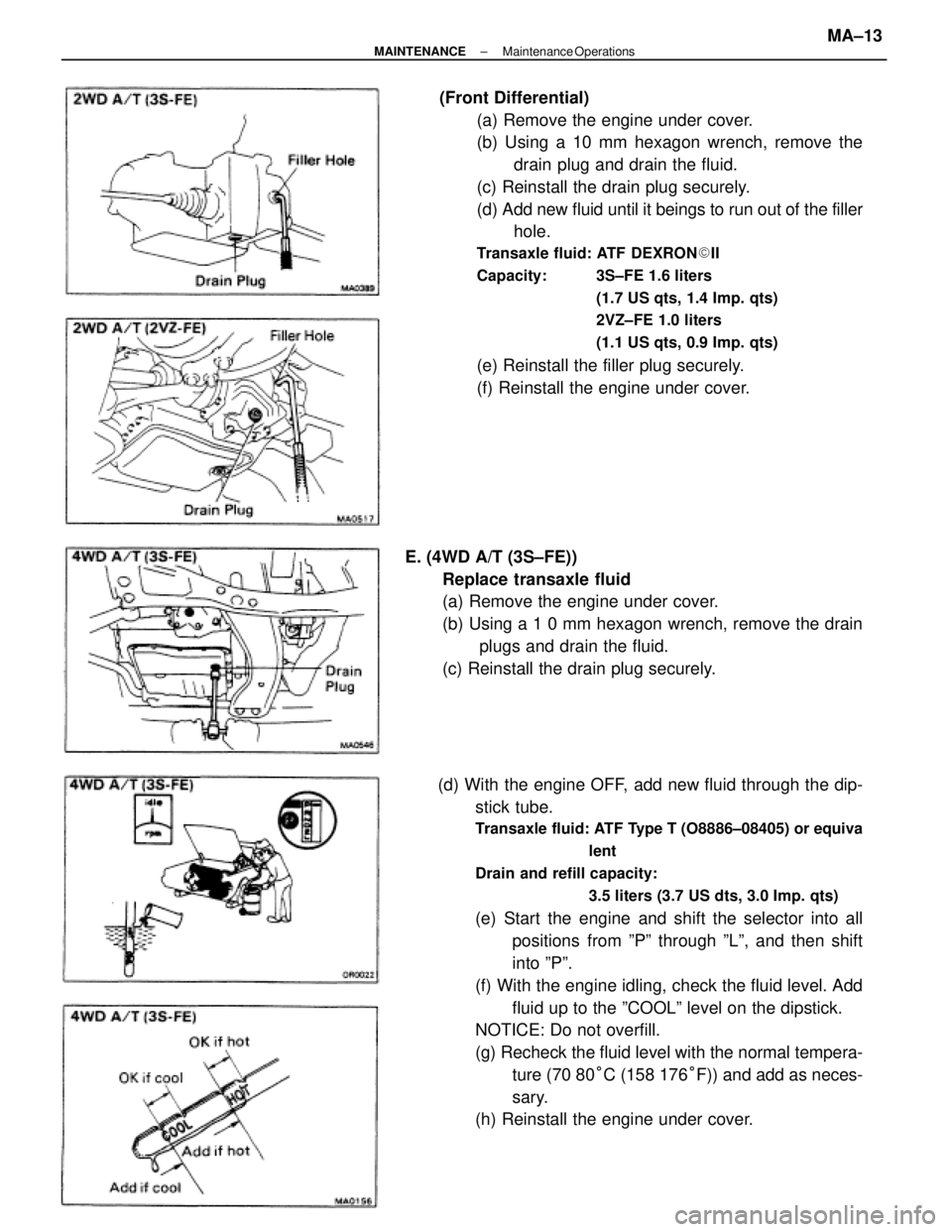

TOYOTA CAMRY V20 1986 Service Information (Front Differential) (a) Remove the engine under cover. (b) Using a 10 mm hexagon wrench, remove the drain plug and drain the fluid. (c) Reinstall the drain plug securely. (d) Add new fluid until it b

Page 1926 of 2389

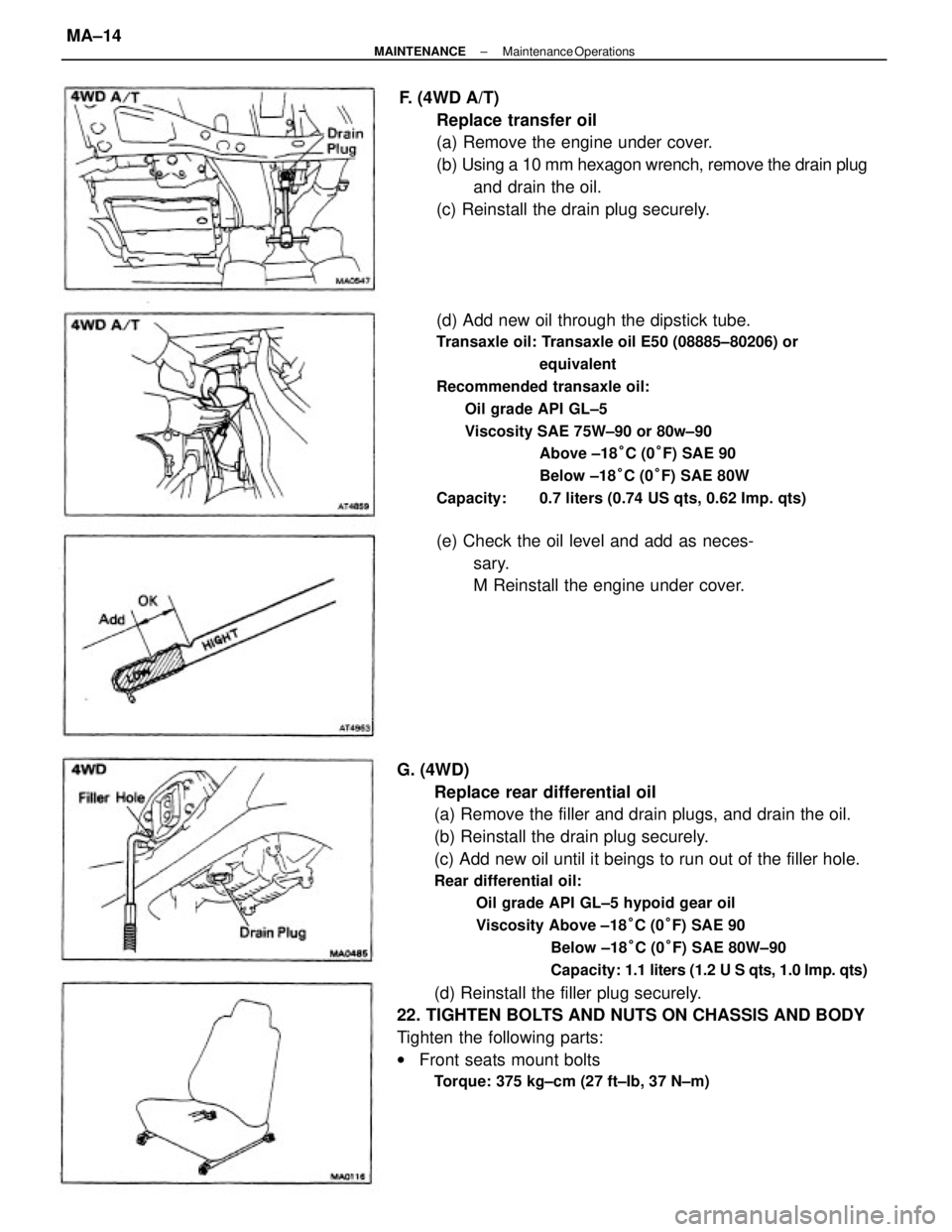

TOYOTA CAMRY V20 1986 Service Information G. (4WD) Replace rear differential oil (a) Remove the filler and drain plugs, and drain the oil. (b) Reinstall the drain plug securely. (c) Add new oil until it beings to run out of the filler hole. R

Page 1927 of 2389

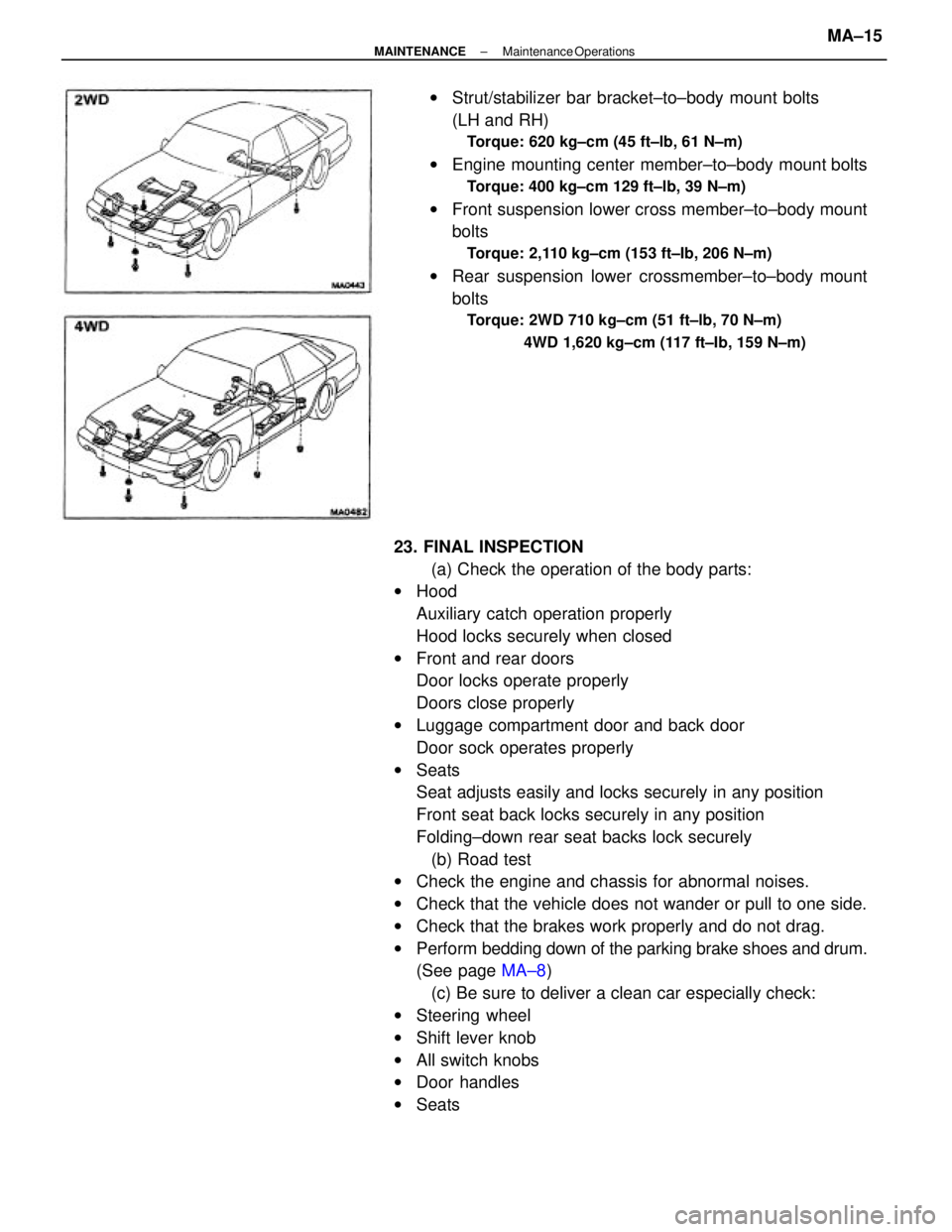

TOYOTA CAMRY V20 1986 Service Information 23. FINAL INSPECTION (a) Check the operation of the body parts: wHood Auxiliary catch operation properly Hood locks securely when closed wFront and rear doors Door locks operate properly Doors close p

Page 1928 of 2389

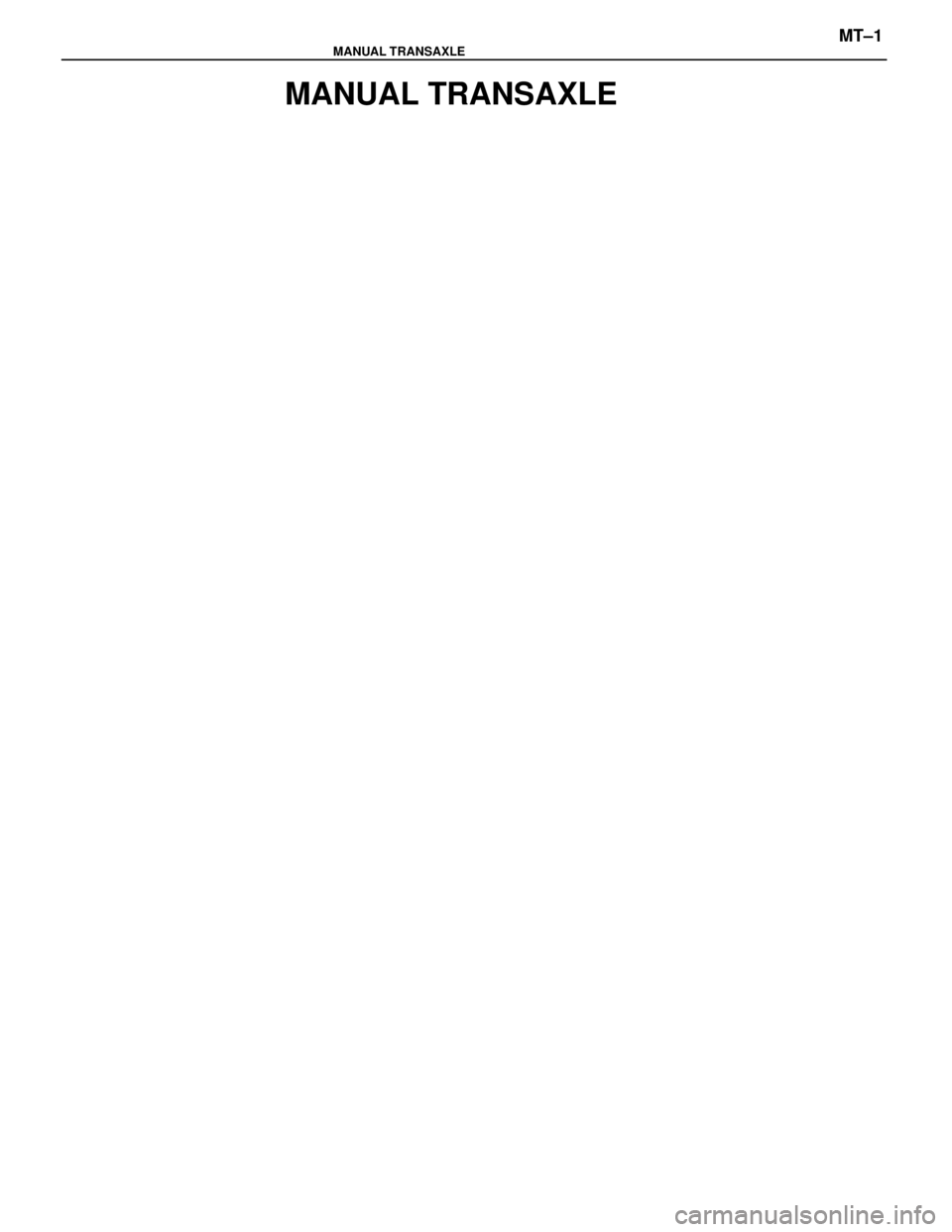

TOYOTA CAMRY V20 1986 Service Information MANUAL TRANSAXLE MANUAL TRANSAXLEMT±1
