Page 1401 of 2389
(f) Before installing the LH oil seal, coat the lip of oil seal with
MP grease.
(9) (M/T)
Using SST, drive in a new oil seal.
SST 09550±22011 (09550±00020, 09550±00031)
Drive in depth: 6.5
+ 0.5 mm (0.26 + 0.02 in.) (c) Before installing the RH oil seal, coat the lip of oil
seal with IMP grease.
(d) (M/T)
Using a blass bar, drive in a new oil seal.
(h) (A/T)
Using SST, drive in a new oil seal.
SST 09608±30022 (09608±05010),
09608±32010
Drive in depth: 0
+ 0.5 mm (0 + 0.02 in.) (e) (A/T)
Using SST, drive in a new oil seal.
SST 09608±30022 (09608±05010), 09608±32010
Oil seal depth: 0

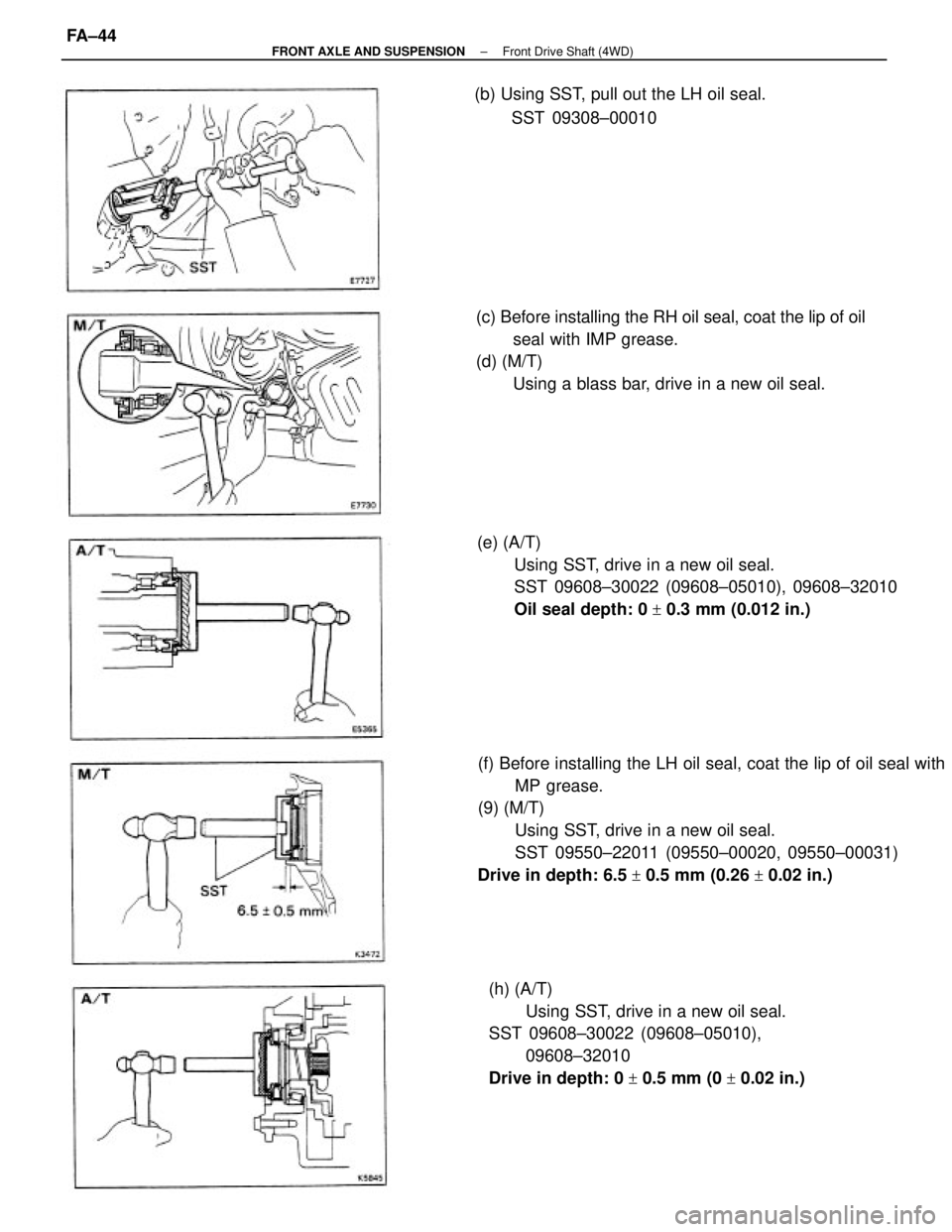

+ 0.3 mm (0.012 in.) (b) Using SST, pull out the LH oil seal.
SST 09308±00010
± FRONT AXLE AND SUSPENSIONFront Drive Shaft (4WD)FA±44
Page 1402 of 2389

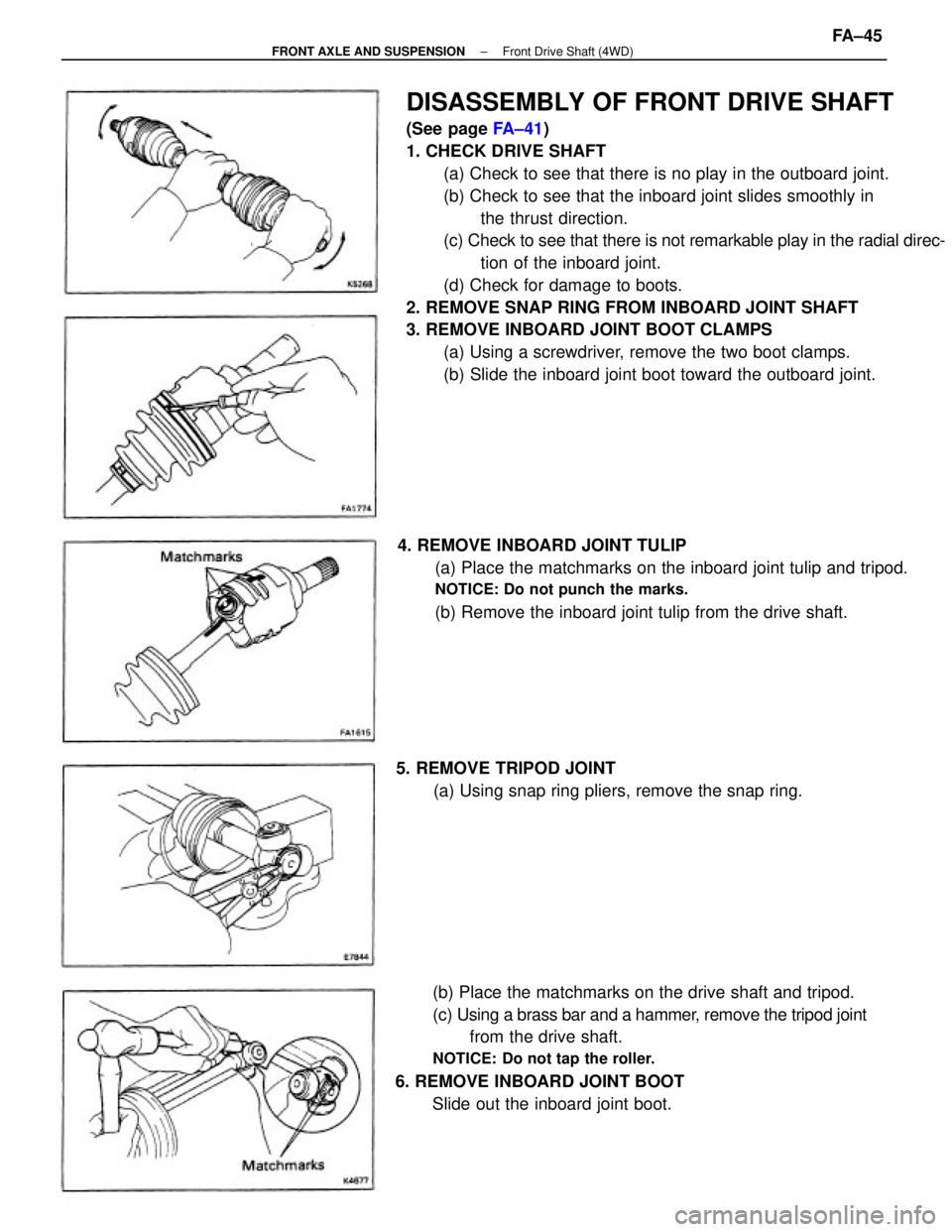

DISASSEMBLY OF FRONT DRIVE SHAFT
(See page FA±41)
1. CHECK DRIVE SHAFT
(a) Check to see that there is no play in the outboard joint.
(b) Check to see that the inboard joint slides smoothly in
the thrust direction.
(c) Check to see that there is not remarkable play in the radial direc-
tion of the inboard joint.
(d) Check for damage to boots.
2. REMOVE SNAP RING FROM INBOARD JOINT SHAFT
3. REMOVE INBOARD JOINT BOOT CLAMPS
(a) Using a screwdriver, remove the two boot clamps.
(b) Slide the inboard joint boot toward the outboard joint.
(b) Place the matchmarks on the drive shaft and tripod.
(c) Using a brass bar and a hammer, remove the tripod joint
from the drive shaft.
NOTICE: Do not tap the roller.
6. REMOVE INBOARD JOINT BOOT
Slide out the inboard joint boot. 4. REMOVE INBOARD JOINT TULIP
(a) Place the matchmarks on the inboard joint tulip and tripod.
NOTICE: Do not punch the marks.
(b) Remove the inboard joint tulip from the drive shaft.
5. REMOVE TRIPOD JOINT
(a) Using snap ring pliers, remove the snap ring.
± FRONT AXLE AND SUSPENSIONFront Drive Shaft (4WD)FA±45
Page 1403 of 2389

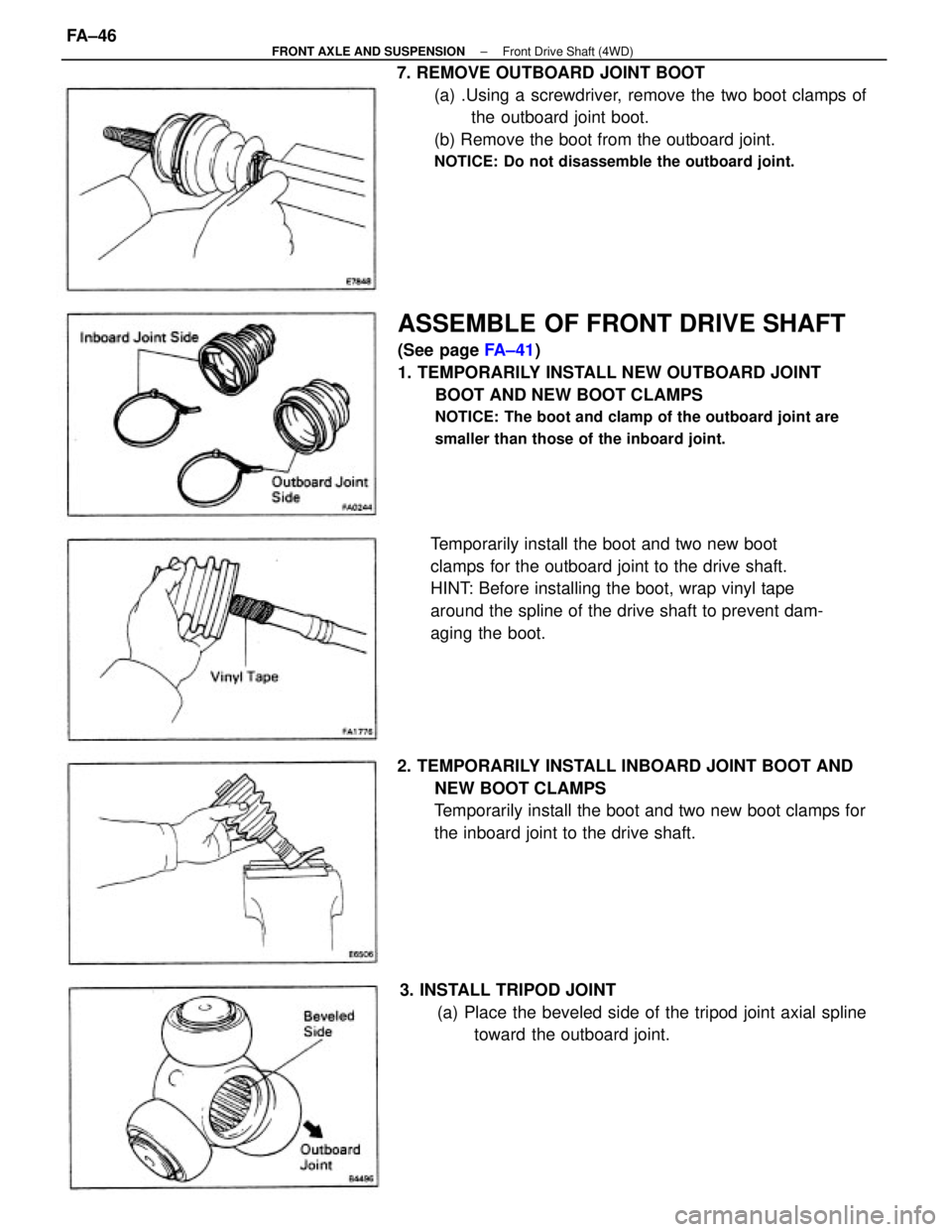

ASSEMBLE OF FRONT DRIVE SHAFT
(See page FA±41)
1. TEMPORARILY INSTALL NEW OUTBOARD JOINT
BOOT AND NEW BOOT CLAMPS
NOTICE: The boot and clamp of the outboard joint are
smaller than those of the inboard joint.
7. REMOVE OUTBOARD JOINT BOOT
(a) .Using a screwdriver, remove the two boot clamps of
the outboard joint boot.
(b) Remove the boot from the outboard joint.
NOTICE: Do not disassemble the outboard joint.
2. TEMPORARILY INSTALL INBOARD JOINT BOOT AND
NEW BOOT CLAMPS
Temporarily install the boot and two new boot clamps for
the inboard joint to the drive shaft.
3. INSTALL TRIPOD JOINT
(a) Place the beveled side of the tripod joint axial spline
toward the outboard joint. Temporarily install the boot and two new boot
clamps for the outboard joint to the drive shaft.
HINT: Before installing the boot, wrap vinyl tape
around the spline of the drive shaft to prevent dam-
aging the boot.
± FRONT AXLE AND SUSPENSIONFront Drive Shaft (4WD)FA±46
Page 1404 of 2389

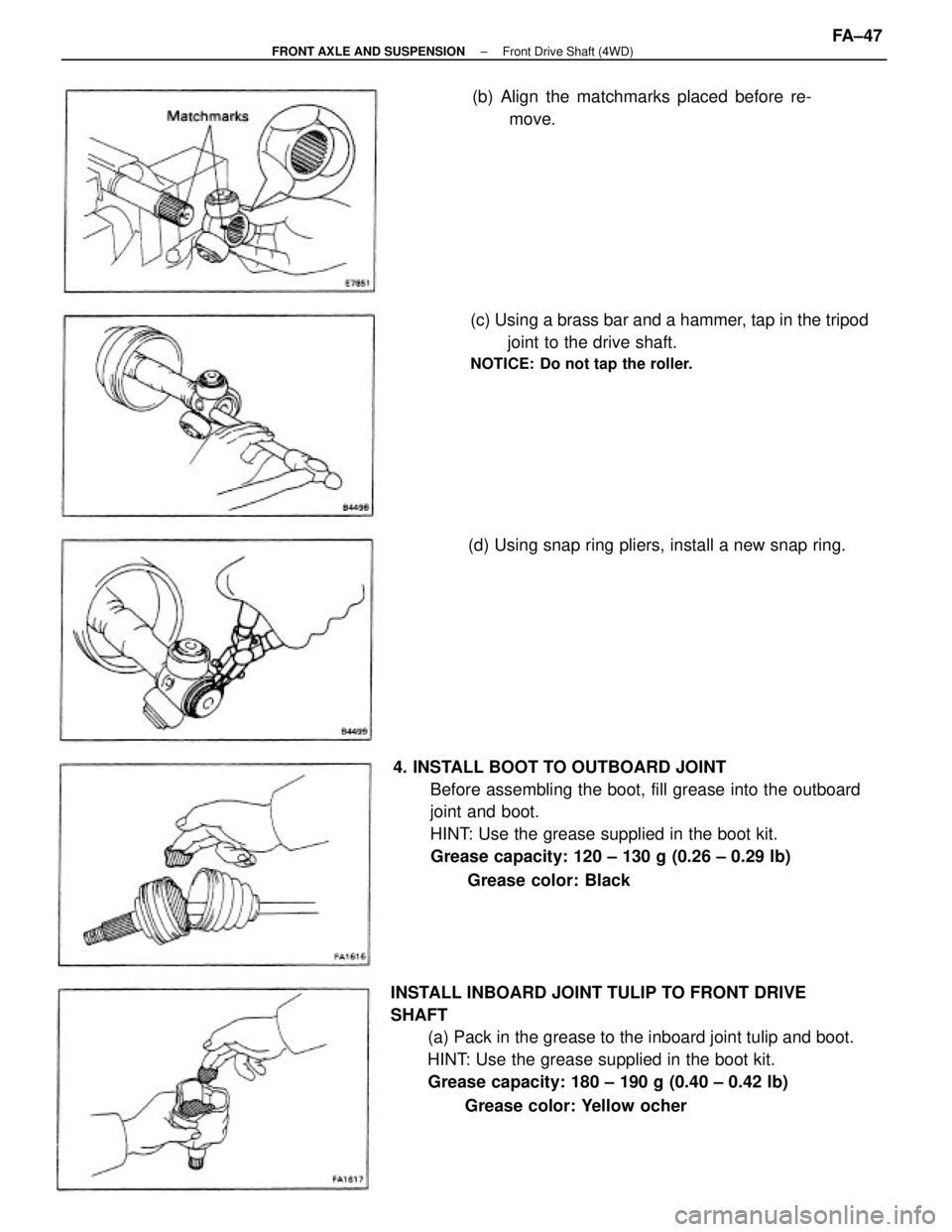

4. INSTALL BOOT TO OUTBOARD JOINT
Before assembling the boot, fill grease into the outboard
joint and boot.
HINT: Use the grease supplied in the boot kit.
Grease capacity: 120 ± 130 g (0.26 ± 0.29 lb)
Grease color: Black
INSTALL INBOARD JOINT TULIP TO FRONT DRIVE
SHAFT
(a) Pack in the grease to the inboard joint tulip and boot.
HINT: Use the grease supplied in the boot kit.
Grease capacity: 180 ± 190 g (0.40 ± 0.42 lb)
Grease color: Yellow ocher(c) Using a brass bar and a hammer, tap in the tripod
joint to the drive shaft.
NOTICE: Do not tap the roller.
(d) Using snap ring pliers, install a new snap ring.(b) Align the matchmarks placed before re-
move.
± FRONT AXLE AND SUSPENSIONFront Drive Shaft (4WD)FA±47
Page 1405 of 2389
(c) Insure that the boot is not stretched or contracted
when the drive shaft is at standard length.
Drive shaft standard length:
(M/T) LH 512.5
+ 5.0 mm (20.177 + 0.197 in.)
R H 512.5
+ 5.0 mm (20.177 + 0.197 in.)
(A/T) LH 512.5
+ 5.0 mm (20.177 + 0.197 in.)
R H 515.7
+ 5.0 mm (20.303 + 0.197 in.)

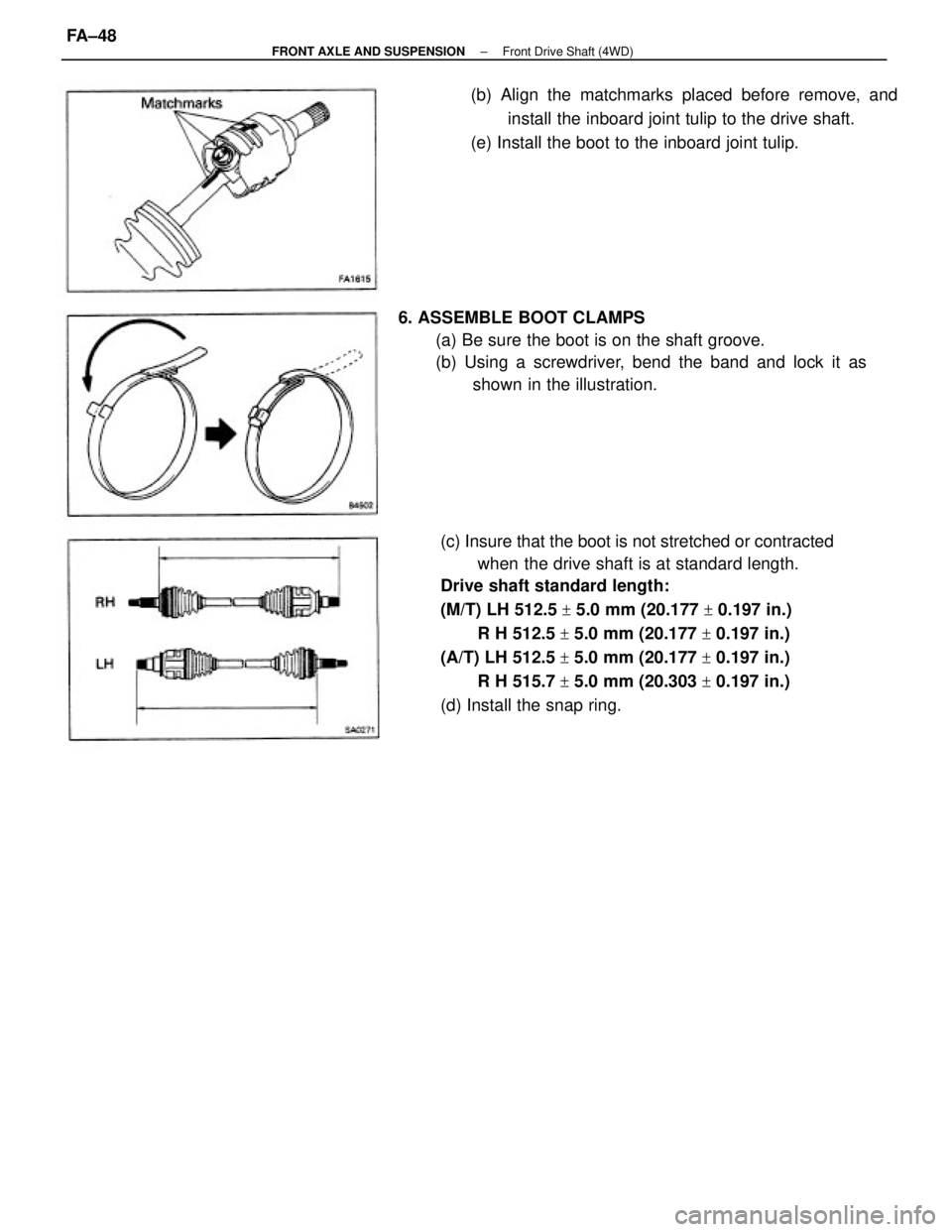

(d) Install the snap ring. 6. ASSEMBLE BOOT CLAMPS
(a) Be sure the boot is on the shaft groove.
(b) Using a screwdriver, bend the band and lock it as
shown in the illustration. (b) Align the matchmarks placed before remove, and
install the inboard joint tulip to the drive shaft.
(e) Install the boot to the inboard joint tulip.
± FRONT AXLE AND SUSPENSIONFront Drive Shaft (4WD)FA±48
Page 1406 of 2389

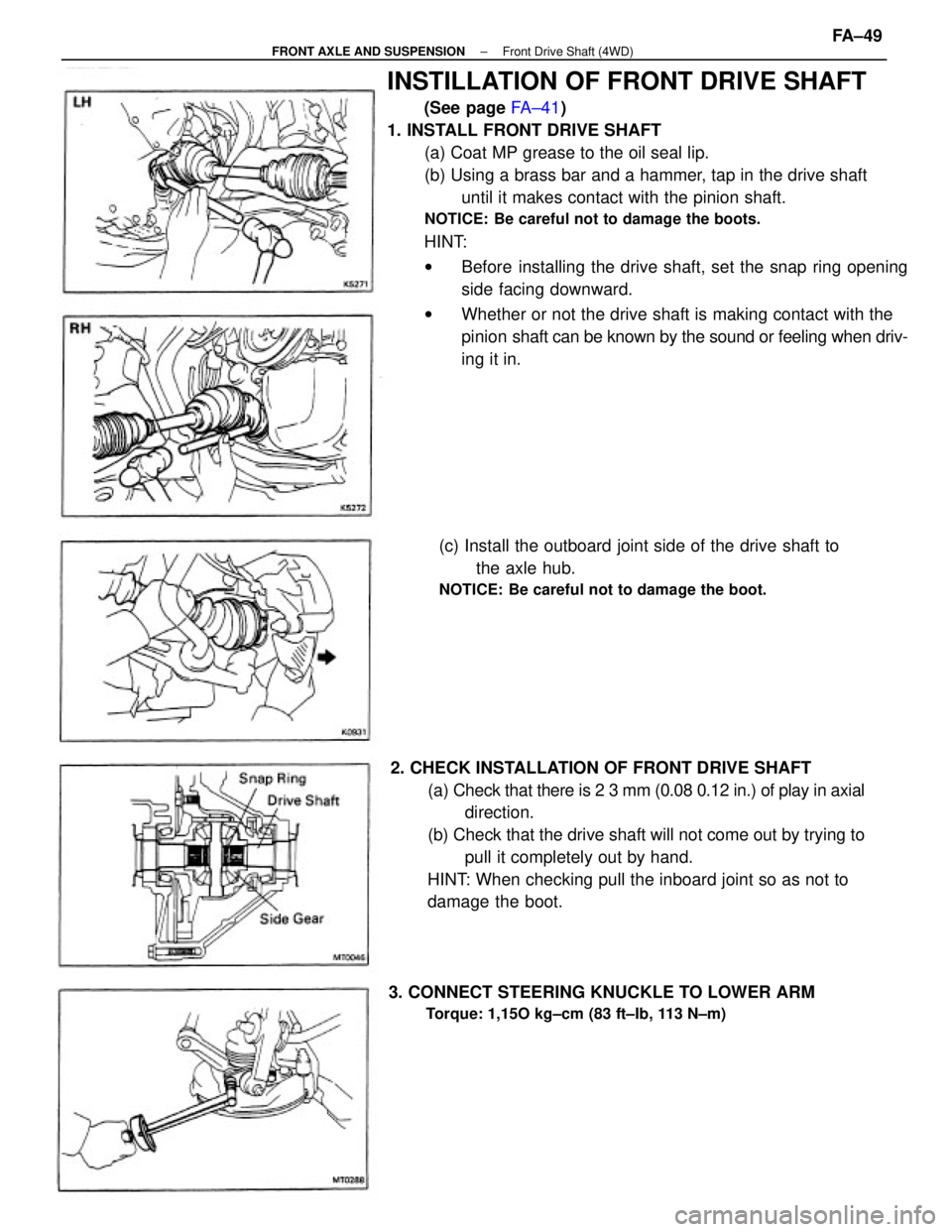

INSTILLATION OF FRONT DRIVE SHAFT
(See page FA±41)
1. INSTALL FRONT DRIVE SHAFT
(a) Coat MP grease to the oil seal lip.
(b) Using a brass bar and a hammer, tap in the drive shaft
until it makes contact with the pinion shaft.
NOTICE: Be careful not to damage the boots.
HINT:
wBefore installing the drive shaft, set the snap ring opening
side facing downward.
wWhether or not the drive shaft is making contact with the
pinion shaft can be known by the sound or feeling when driv-
ing it in.
2. CHECK INSTALLATION OF FRONT DRIVE SHAFT
(a) Check that there is 2 3 mm (0.08 0.12 in.) of play in axial
direction.
(b) Check that the drive shaft will not come out by trying to
pull it completely out by hand.
HINT: When checking pull the inboard joint so as not to
damage the boot.(c) Install the outboard joint side of the drive shaft to
the axle hub.
NOTICE: Be careful not to damage the boot.
3. CONNECT STEERING KNUCKLE TO LOWER ARM
Torque: 1,15O kg±cm (83 ft±Ib, 113 N±m)
± FRONT AXLE AND SUSPENSIONFront Drive Shaft (4WD)FA±49
Page 1407 of 2389

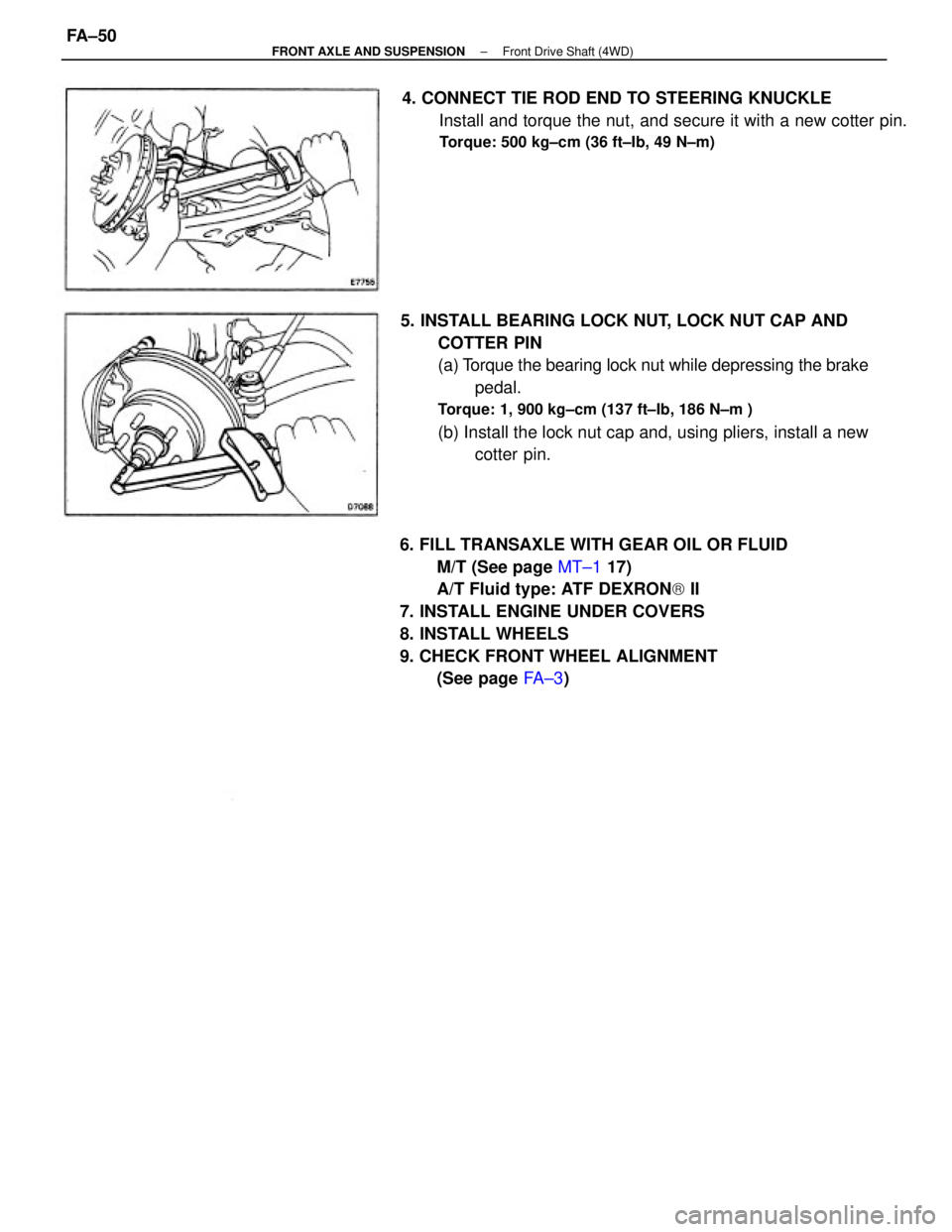

6. FILL TRANSAXLE WITH GEAR OIL OR FLUID
M/T (See page MT±1 17)
A/T Fluid type: ATF DEXRON) II
7. INSTALL ENGINE UNDER COVERS
8. INSTALL WHEELS
9. CHECK FRONT WHEEL ALIGNMENT
(See page FA ± 3) 5. INSTALL BEARING LOCK NUT, LOCK NUT CAP AND
COTTER PIN
(a) Torque the bearing lock nut while depressing the brake
pedal.
Torque: 1, 900 kg±cm (137 ft±Ib, 186 N±m )
(b) Install the lock nut cap and, using pliers, install a new
cotter pin. 4. CONNECT TIE ROD END TO STEERING KNUCKLE
Install and torque the nut, and secure it with a new cotter pin.
Torque: 500 kg±cm (36 ft±Ib, 49 N±m)
± FRONT AXLE AND SUSPENSIONFront Drive Shaft (4WD)FA±50
Page 1408 of 2389

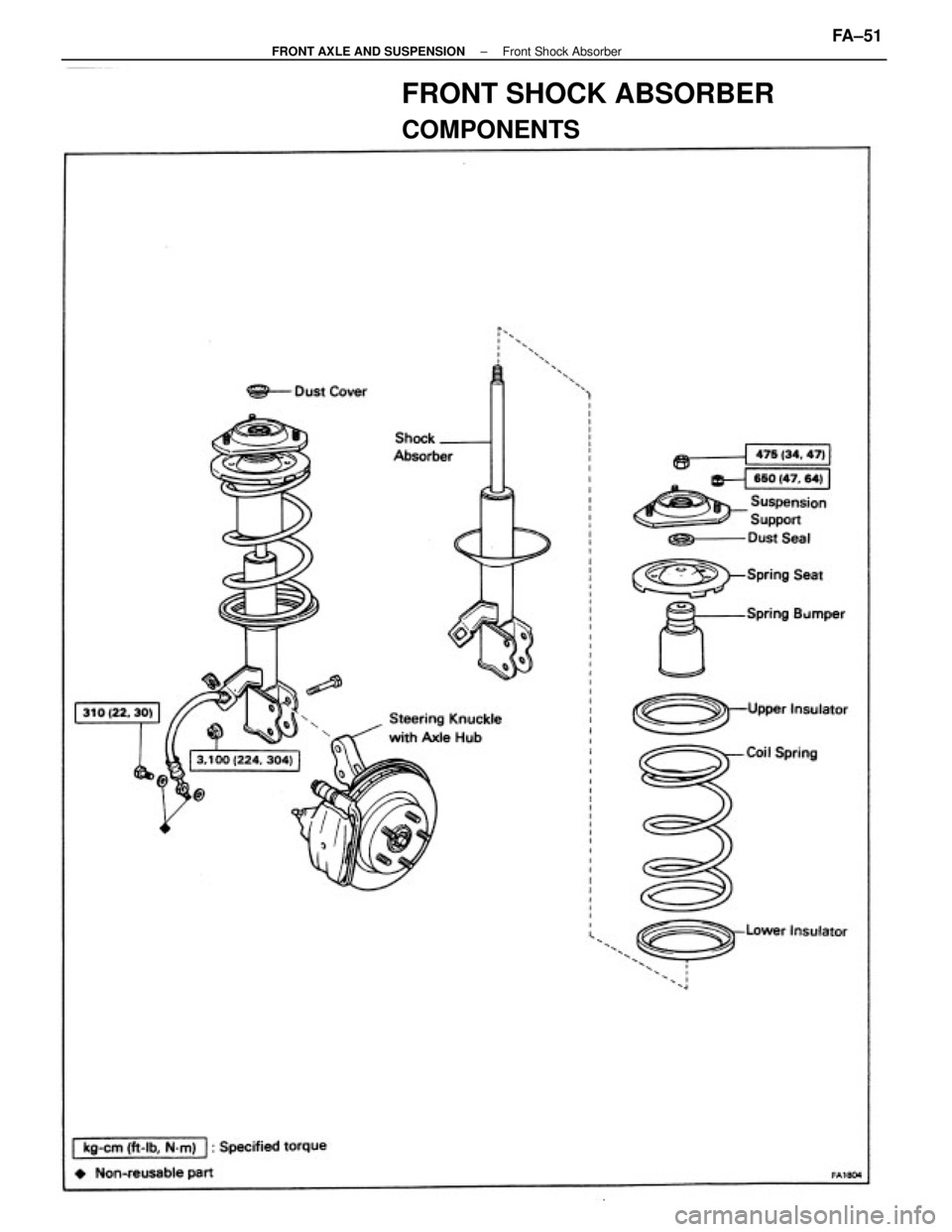

FRONT SHOCK ABSORBER
COMPONENTS
± FRONT AXLE AND SUSPENSIONFront Shock AbsorberFA±51
