Propeller and intermediate shafts runout
Propeller shafts imbalance
Front flange runout
Rear flange runout
Cross groove joint stuck or damaged
Transfer extension housing rear
bushing worn
Sleeve yoke spline stuck

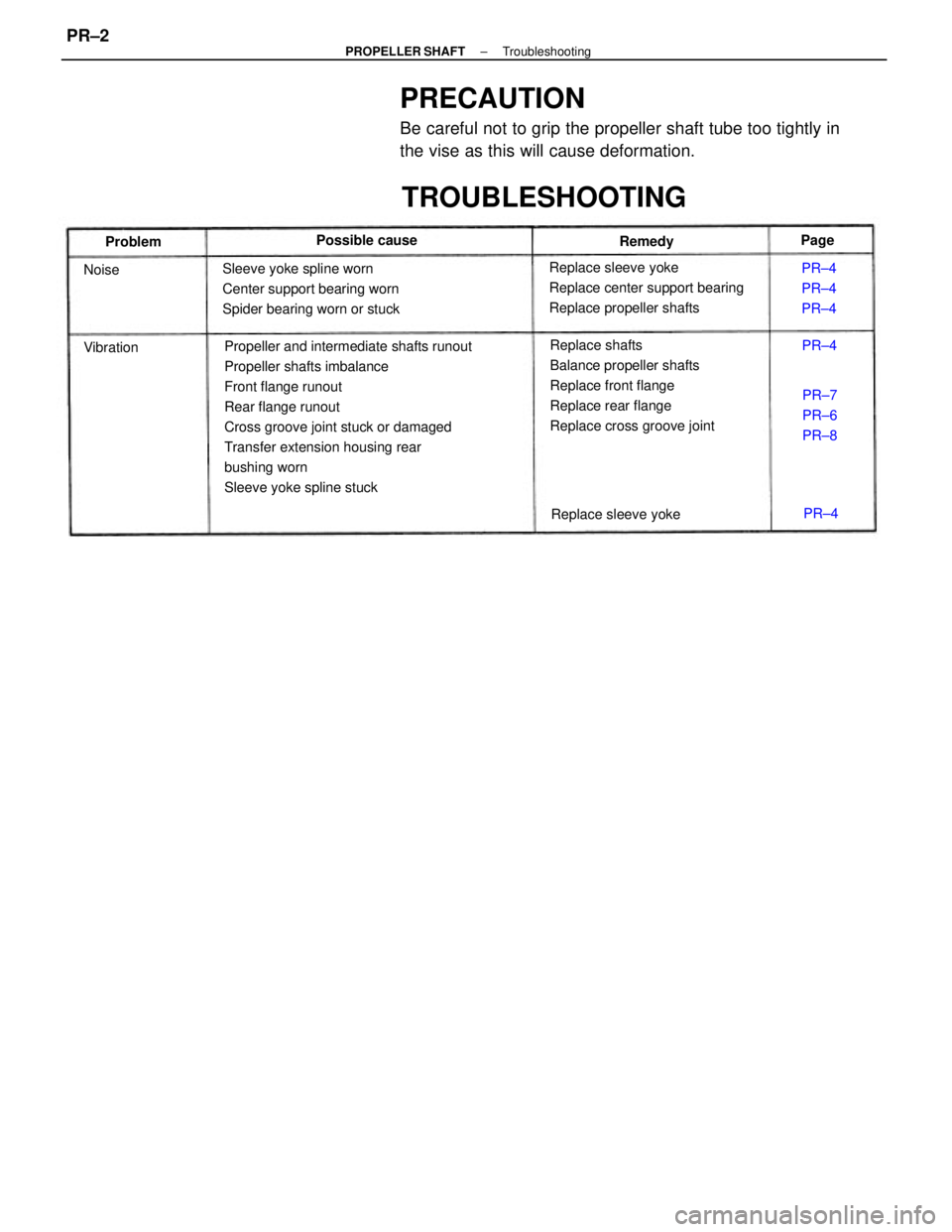

PRECAUTION
Be careful not to grip the propeller shaft tube too tightly in
the vise as this will cause deformation.
Replace shafts
Balance propeller shafts
Replace front flange
Replace rear flange
Replace cross groove joint Replace sleeve yoke
Replace center support bearing
Replace propeller shafts Sleeve yoke spline worn
Center support bearing worn
Spider bearing worn or stuck
TROUBLESHOOTING
Replace sleeve yokePR±4
PR±4
PR±4
PR±7
PR±6
PR±8 Possible cause
VibrationProblemRemedy
NoisePage
PR±4
PR±4
± PROPELLER SHAFTTroubleshootingPR±2
Page 2138 of 2389
PROPELLER SHAFT
COMPONENTS
± PROPELLER SHAFTPropeller ShaftPR±3
Page 2139 of 2389
2. LOOSEN CROSS GROOVE JOINT SET BOLTS
(a) Depress the brake pedal and hold it.
(b) Using a SST, loosen the cross groove joint set bolts
1 /2 turn.
SST 09313±30021
HINT: Put a piece of cloth or an equivalent into the inside of
the universal joint cover.

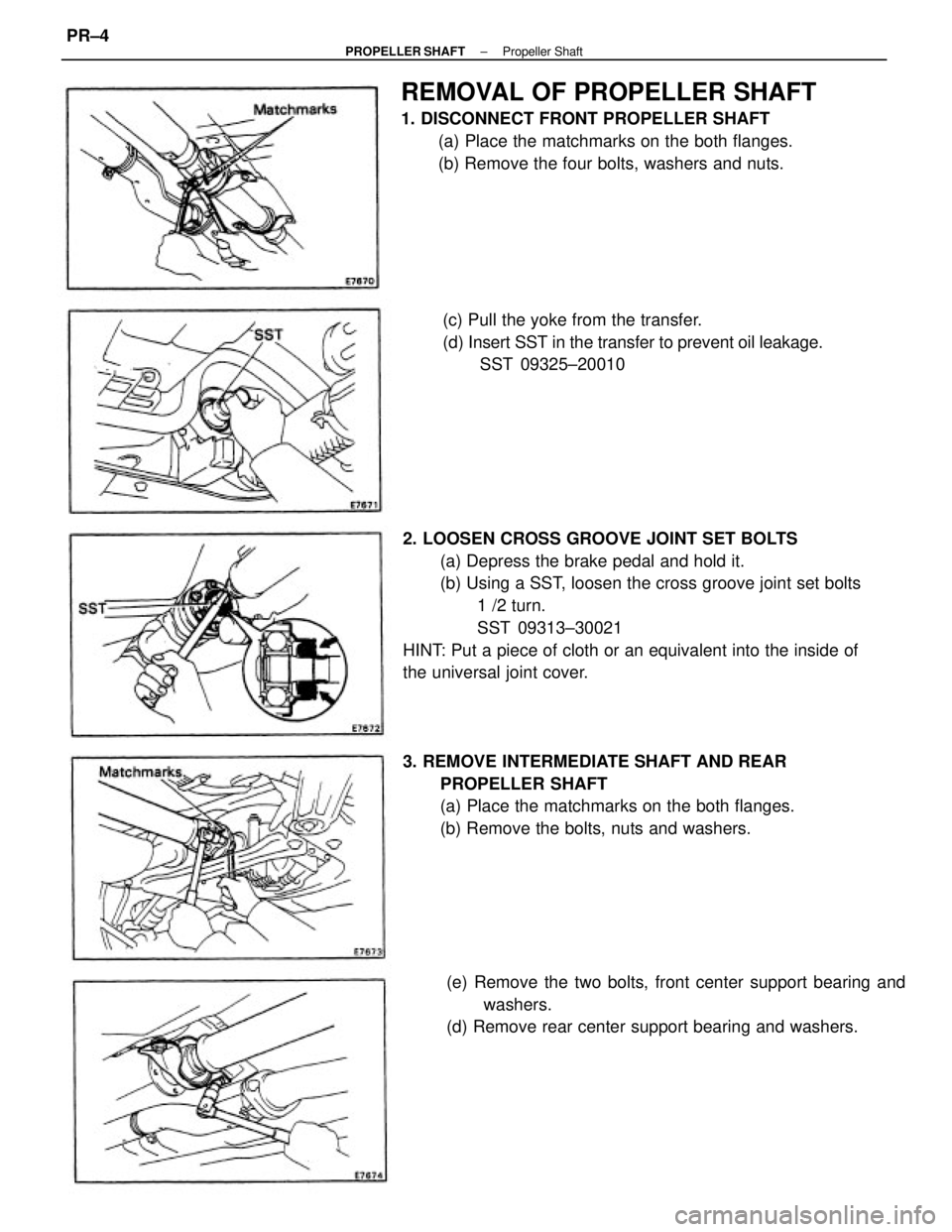

REMOVAL OF PROPELLER SHAFT
1. DISCONNECT FRONT PROPELLER SHAFT
(a) Place the matchmarks on the both flanges.
(b) Remove the four bolts, washers and nuts.
3. REMOVE INTERMEDIATE SHAFT AND REAR
PROPELLER SHAFT
(a) Place the matchmarks on the both flanges.
(b) Remove the bolts, nuts and washers.
(e) Remove the two bolts, front center support bearing and
washers.
(d) Remove rear center support bearing and washers. (c) Pull the yoke from the transfer.
(d) Insert SST in the transfer to prevent oil leakage.
SST 09325±20010
± PROPELLER SHAFTPropeller ShaftPR±4
Page 2140 of 2389
4. SEPARATE INTERMEDIATE SHAFT AND REAR
PROPELLER SHAFT
(a) Place the matchmarks on the joint and flange.
HINT: Do not place the matchmarks with a punch.
(b) Using SST, remove the six bolts and three washers.
Then separate intermediate shaft and rear propeller shaft.
SST 09313±30021

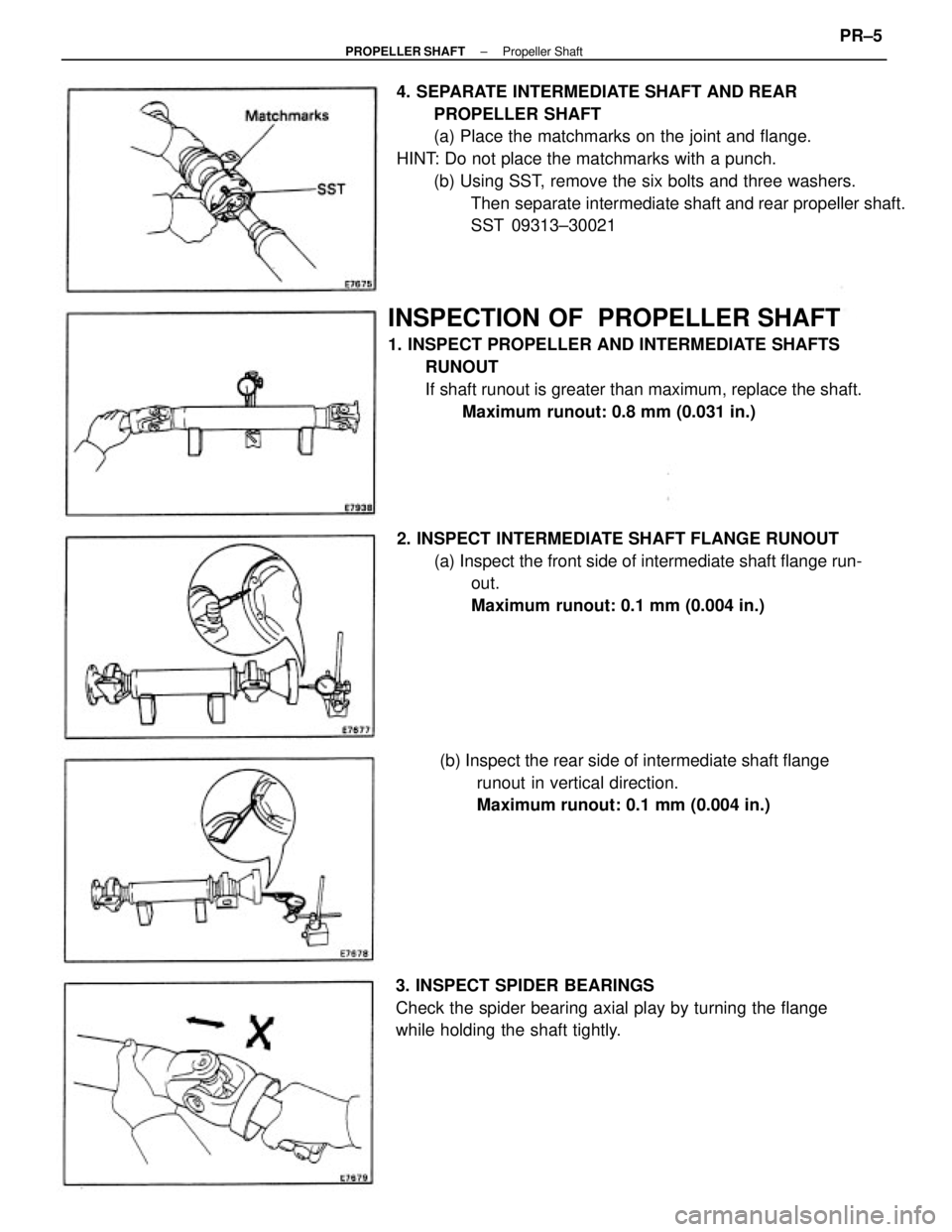

INSPECTION OF PROPELLER SHAFT
1. INSPECT PROPELLER AND INTERMEDIATE SHAFTS
RUNOUT
If shaft runout is greater than maximum, replace the shaft.
Maximum runout: 0.8 mm (0.031 in.)
2. INSPECT INTERMEDIATE SHAFT FLANGE RUNOUT
(a) Inspect the front side of intermediate shaft flange run-
out.
Maximum runout: 0.1 mm (0.004 in.)
(b) Inspect the rear side of intermediate shaft flange
runout in vertical direction.
Maximum runout: 0.1 mm (0.004 in.)
3. INSPECT SPIDER BEARINGS
Check the spider bearing axial play by turning the flange
while holding the shaft tightly.
± PROPELLER SHAFTPropeller ShaftPR±5
Page 2141 of 2389
DISASSEMBLY OF PROPELLER
SHAFT
1. REMOVE REAR CENTER SUPPORT BEARING
(a) Using a hammer and chisel, loosen the staked part of

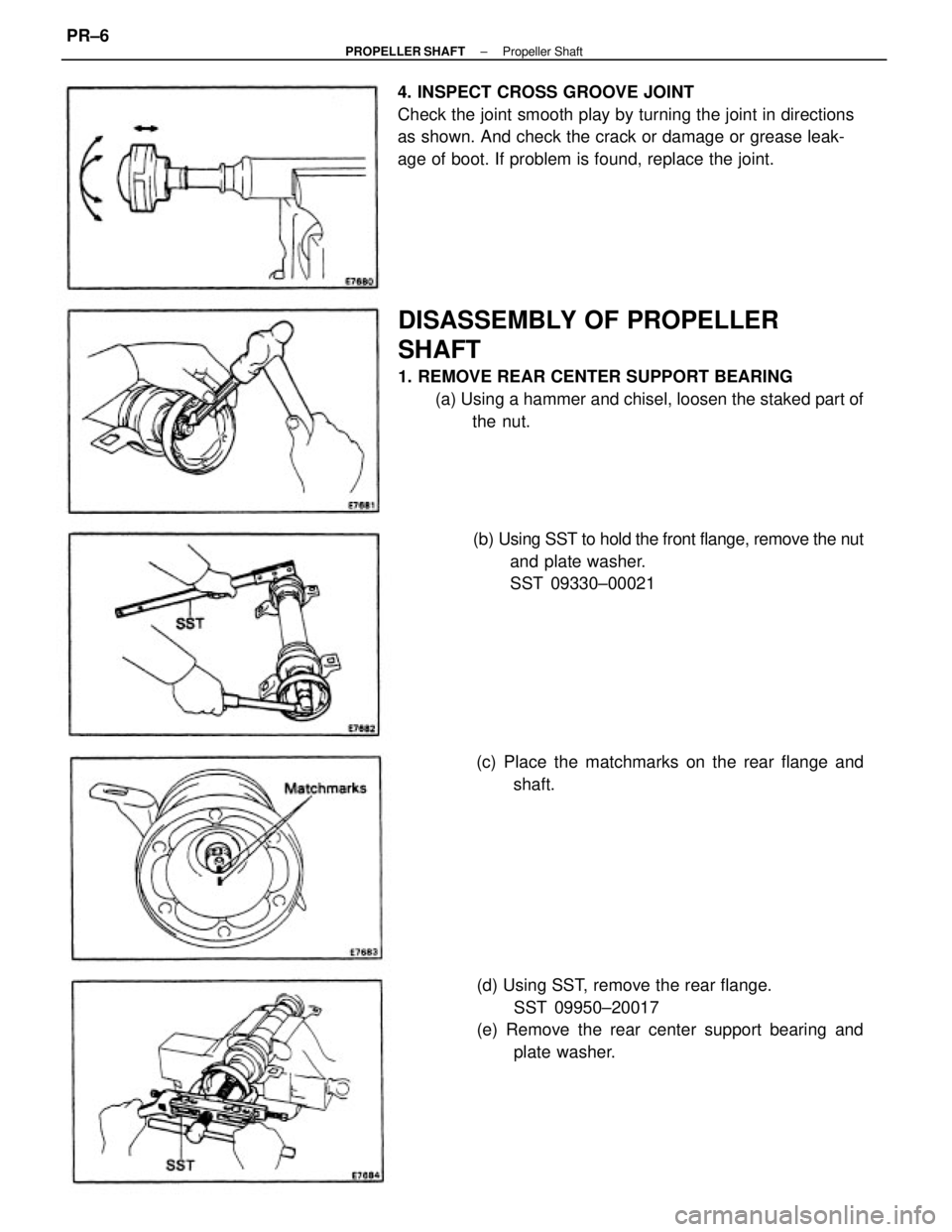

the nut. 4. INSPECT CROSS GROOVE JOINT
Check the joint smooth play by turning the joint in directions
as shown. And check the crack or damage or grease leak-
age of boot. If problem is found, replace the joint.
(d) Using SST, remove the rear flange.
SST 09950±20017
(e) Remove the rear center support bearing and
plate washer. (b) Using SST to hold the front flange, remove the nut
and plate washer.
SST 09330±00021
(c) Place the matchmarks on the rear flange and
shaft.
± PROPELLER SHAFTPropeller ShaftPR±6
Page 2142 of 2389
3. INSPECT CENTER SUPPORT BEARING
(a) Turning the bearing by hand while applying force in the
rotation direction. Check the bearing smooth play.
(b) Check that there are no cracks and no damages about
both seals. (d) Using SST, remove the flange.
SST 09557±22022
(e) Remove the front center support bearing and

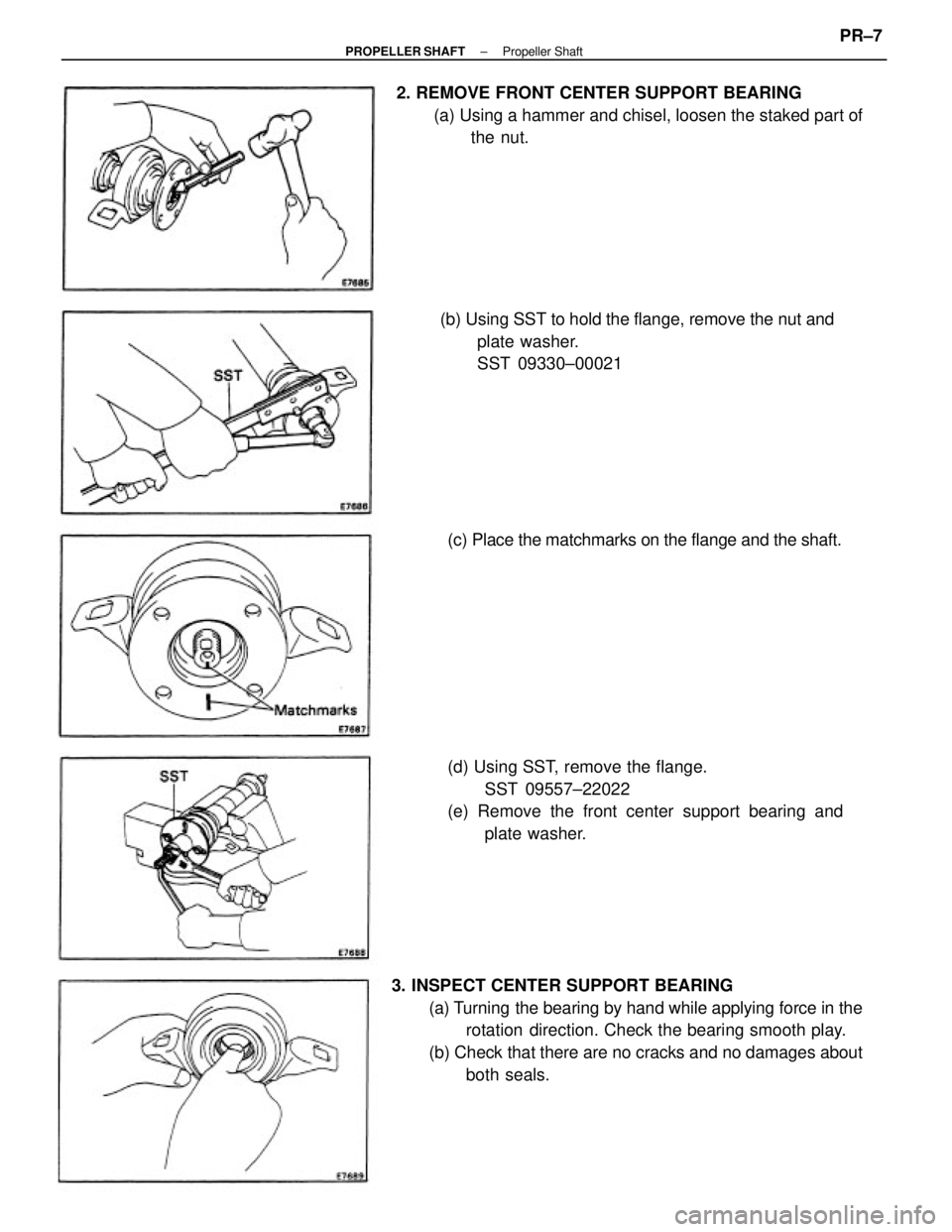

plate washer. 2. REMOVE FRONT CENTER SUPPORT BEARING
(a) Using a hammer and chisel, loosen the staked part of
the nut.
(b) Using SST to hold the flange, remove the nut and
plate washer.
SST 09330±00021
(c) Place the matchmarks on the flange and the shaft.
± PROPELLER SHAFTPropeller ShaftPR±7
Page 2143 of 2389
(d) Using SST to hold the flange, press the bearing
into position by tightening down a new nut and
washer.
SST 09330±0002
Torque: 1,850 kg±cm (134 ft±Ib, 181 N±m)
(e) Loosen the nut.
(f) Torque the nut again.
Torque: 700 kg±cm (51 ft±Ib, 69 N±m)

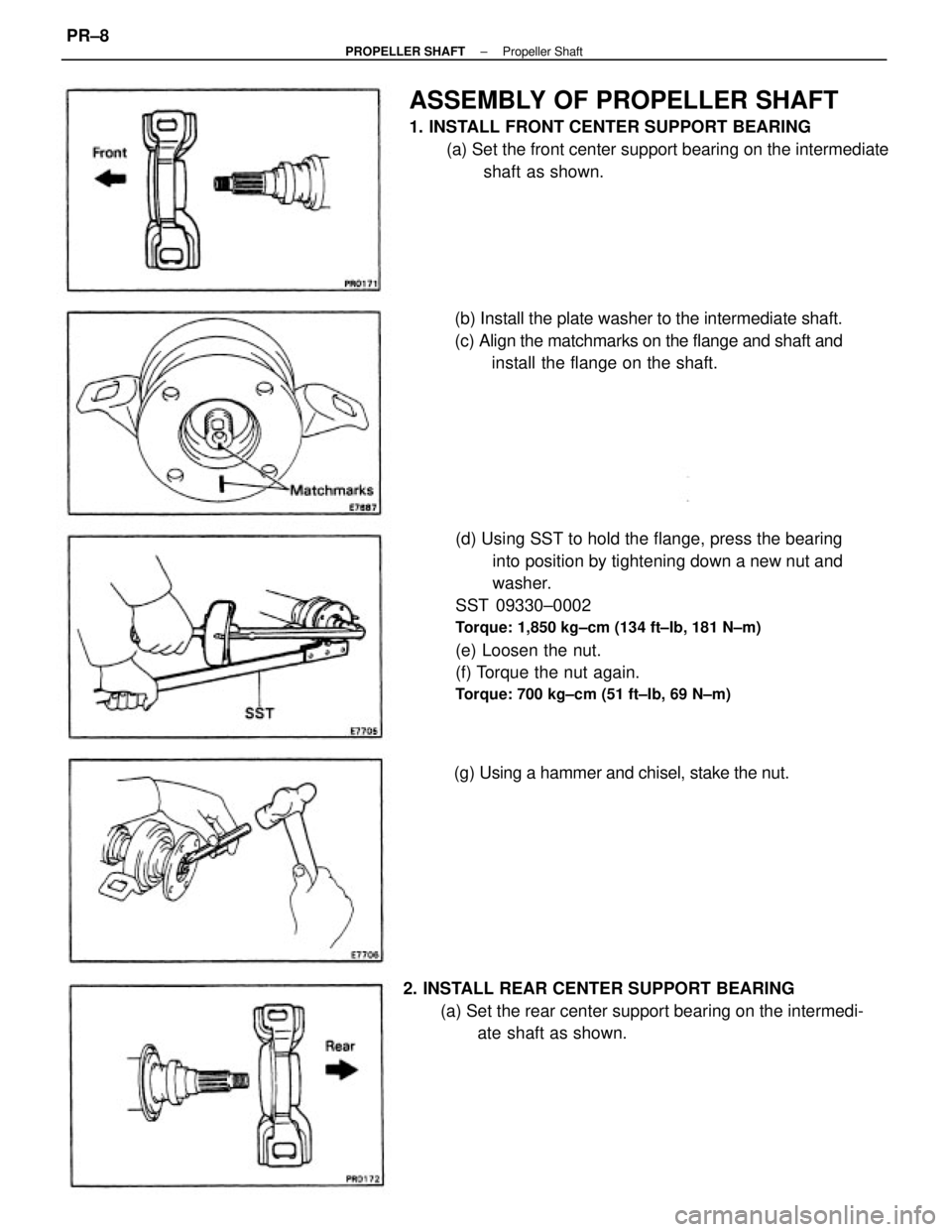

ASSEMBLY OF PROPELLER SHAFT
1. INSTALL FRONT CENTER SUPPORT BEARING
(a) Set the front center support bearing on the intermediate
shaft as shown.
2. INSTALL REAR CENTER SUPPORT BEARING
(a) Set the rear center support bearing on the intermedi-
ate shaft as shown. (b) Install the plate washer to the intermediate shaft.
(c) Align the matchmarks on the flange and shaft and
install the flange on the shaft.
(g) Using a hammer and chisel, stake the nut.
± PROPELLER SHAFTPropeller ShaftPR±8
Page 2144 of 2389
3. INSPECT CROSS GROOVE JOINT
(See step 4 on page PR±6)

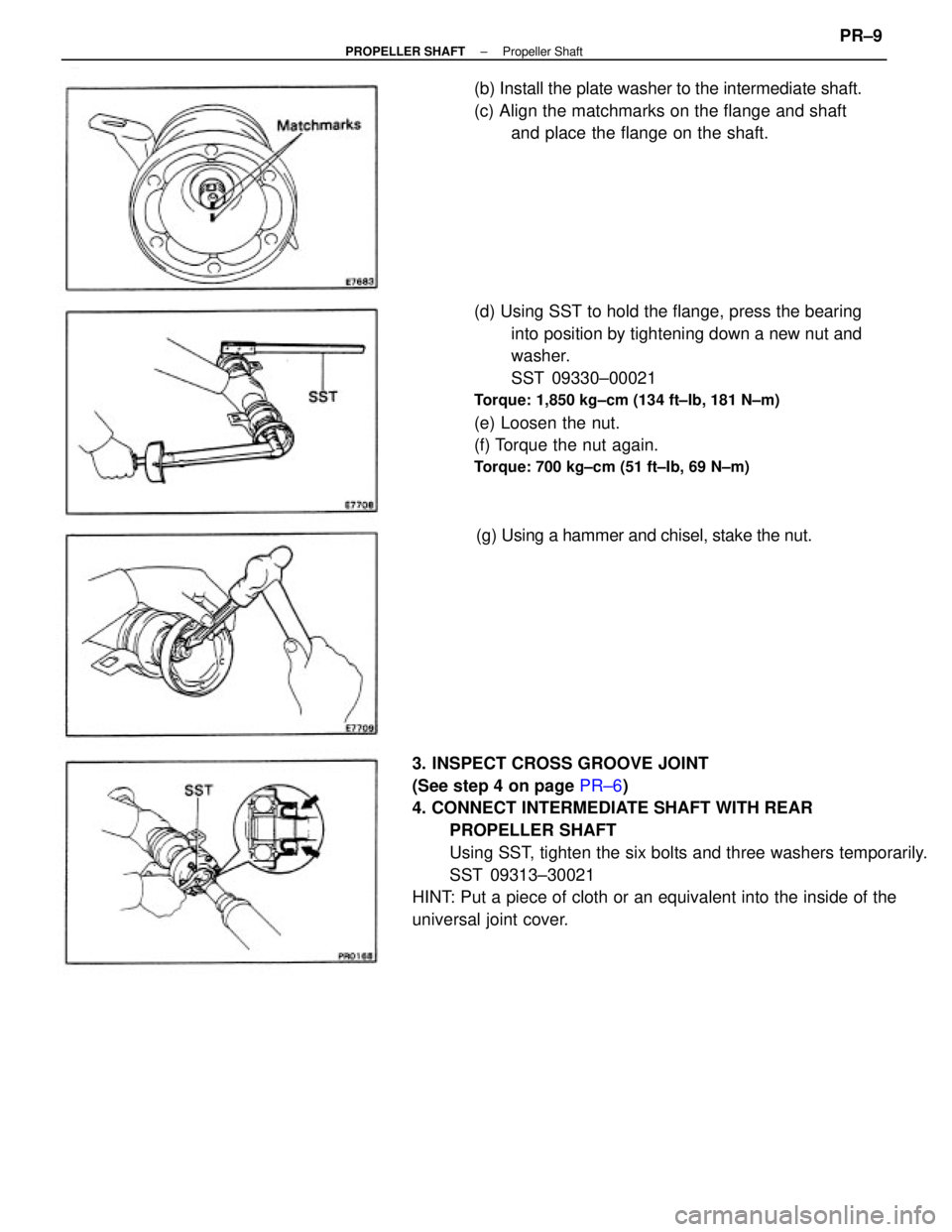

4. CONNECT INTERMEDIATE SHAFT WITH REAR
PROPELLER SHAFT
Using SST, tighten the six bolts and three washers temporarily.
SST 09313±30021
HINT: Put a piece of cloth or an equivalent into the inside of the
universal joint cover.(d) Using SST to hold the flange, press the bearing
into position by tightening down a new nut and
washer.
SST 09330±00021
Torque: 1,850 kg±cm (134 ft±Ib, 181 N±m)
(e) Loosen the nut.
(f) Torque the nut again.
Torque: 700 kg±cm (51 ft±Ib, 69 N±m)
(b) Install the plate washer to the intermediate shaft.
(c) Align the matchmarks on the flange and shaft
and place the flange on the shaft.
(g) Using a hammer and chisel, stake the nut.
± PROPELLER SHAFTPropeller ShaftPR±9
