TOYOTA CAMRY V20 1986 Service Information (b) (2WD) Install the mounting insulator to the mounting bracket and body, and temporarily install the mounting insula- tor bolt, four nuts and mounting stay bolt (A). Torque the mounting insulator bo

Page 1210 of 2389

TOYOTA CAMRY V20 1986 Service Information (4WD) Install the mounting stay and ground strap with the bolt and nut. Torque the bolt and nut. Torque: 740 kg±cm (54 ft±Ib, 73 N±m) 18. INSTALL ALTERNATOR BRACKET Torque: 425 kg±cm (31 ft±Ib, 4

Page 1211 of 2389

TOYOTA CAMRY V20 1986 Service Information REMOVAL OF TIMING BELT 1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY 2. (w/ CRUISE CONTROL SYSTEM) REMOVE CRUISE CONTROL ACTUATOR AND VACUUM PUMP (See step 14 on page EM±140 or 141) 3. REMOVE

Page 1212 of 2389

TOYOTA CAMRY V20 1986 Service Information 9. SLIGHTLY JACK UP ENGINE Raise the engine enough to remove the weight from the en- gine mounting on the right side. 10. REMOVE ENGINE RH MOUNTING INSULATOR (a) (w/ A.B.S..) Remove the clamp bolts of

Page 1213 of 2389

TOYOTA CAMRY V20 1986 Service Information 17. REMOVE TIMING BELT FROM CAMSHAFT TIMING PULLEY HINT (Re±using timing belt): If the installation marks have disappeared, before removing the timing belt, place new instillation marks on the timing

Page 1214 of 2389

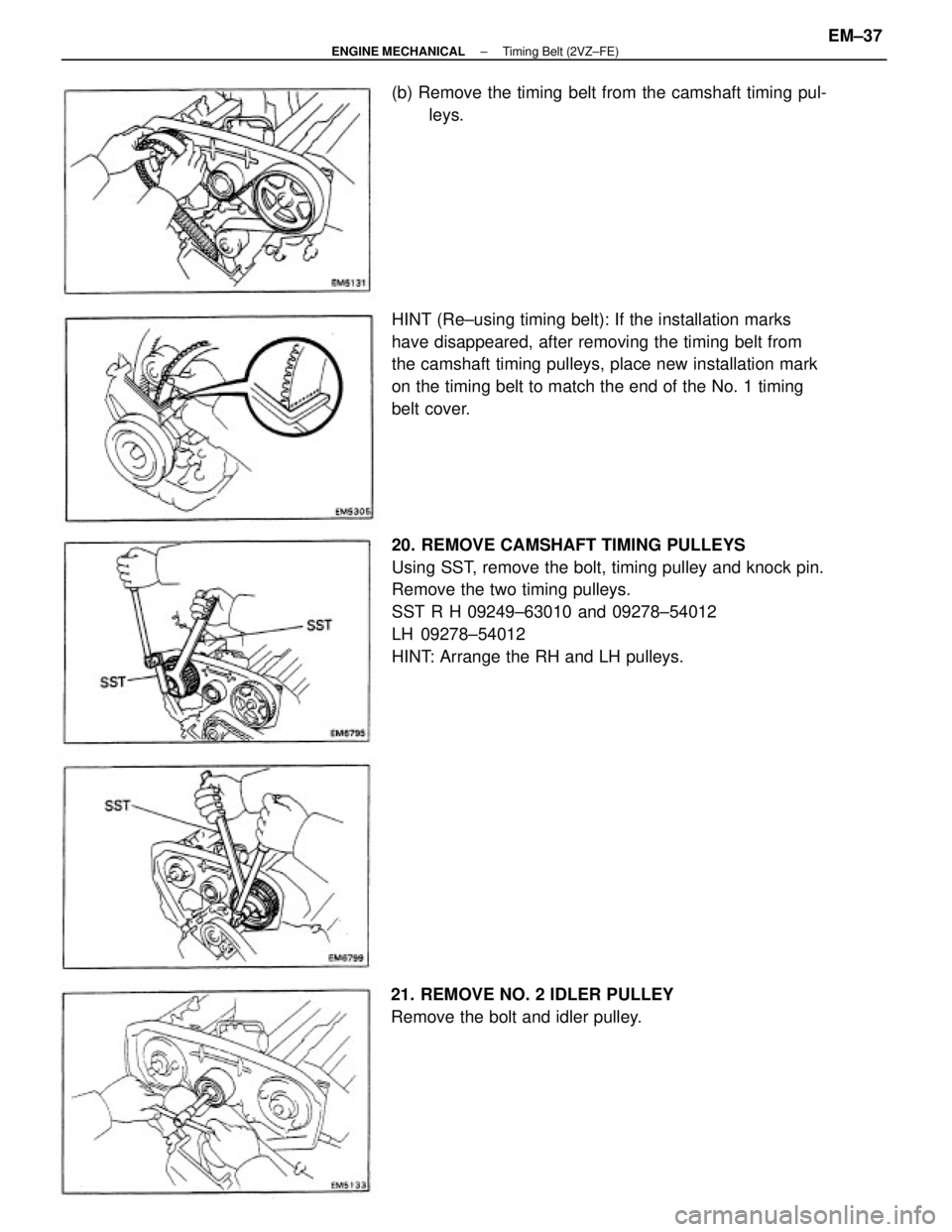

TOYOTA CAMRY V20 1986 Service Information 20. REMOVE CAMSHAFT TIMING PULLEYS Using SST, remove the bolt, timing pulley and knock pin. Remove the two timing pulleys. SST R H 09249±63010 and 09278±54012 LH 09278±54012 HINT: Arrange the RH an

Page 1215 of 2389

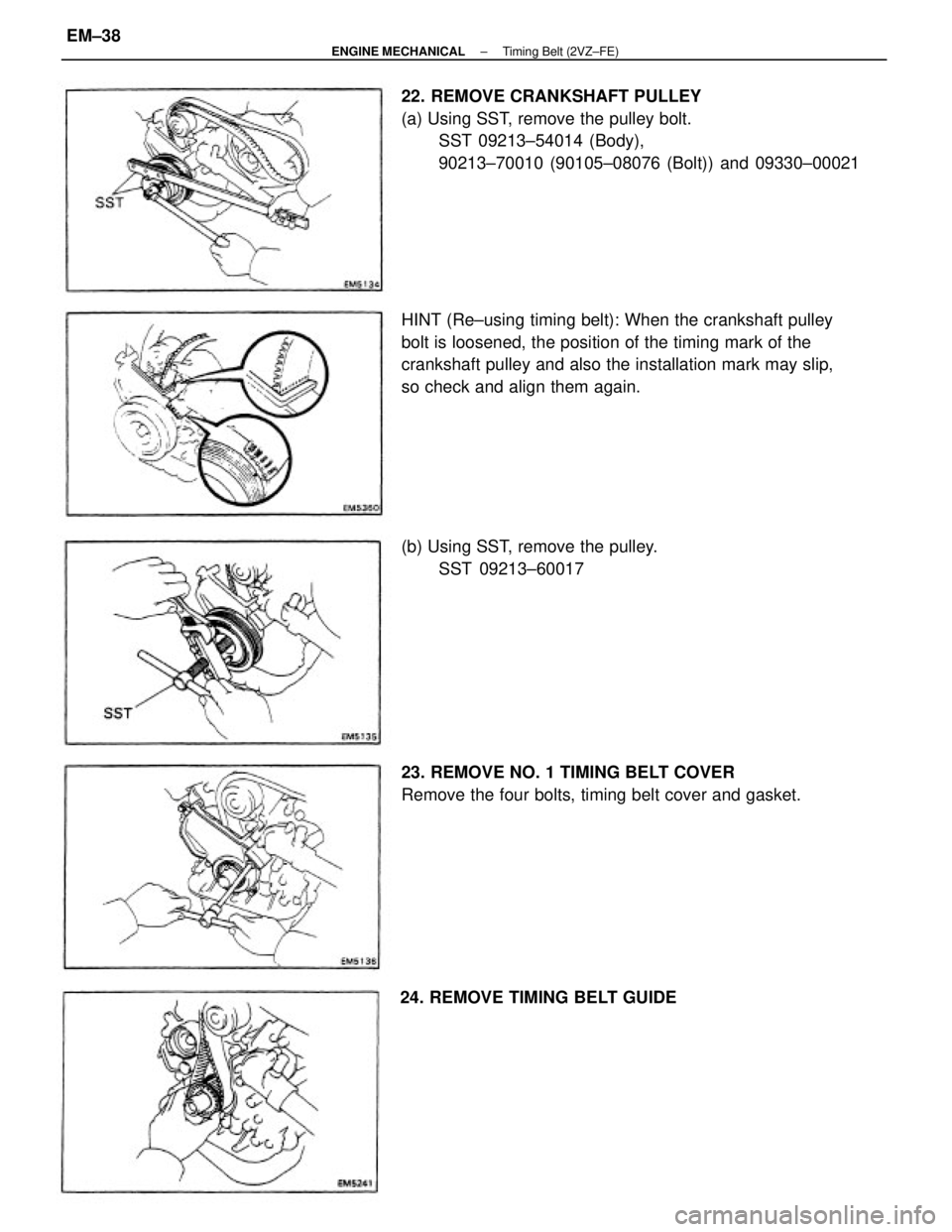

TOYOTA CAMRY V20 1986 Service Information 22. REMOVE CRANKSHAFT PULLEY (a) Using SST, remove the pulley bolt. SST 09213±54014 (Body), 90213±70010 (90105±08076 (Bolt)) and 09330±00021 HINT (Re±using timing belt): When the crankshaft pulle

Page 1216 of 2389

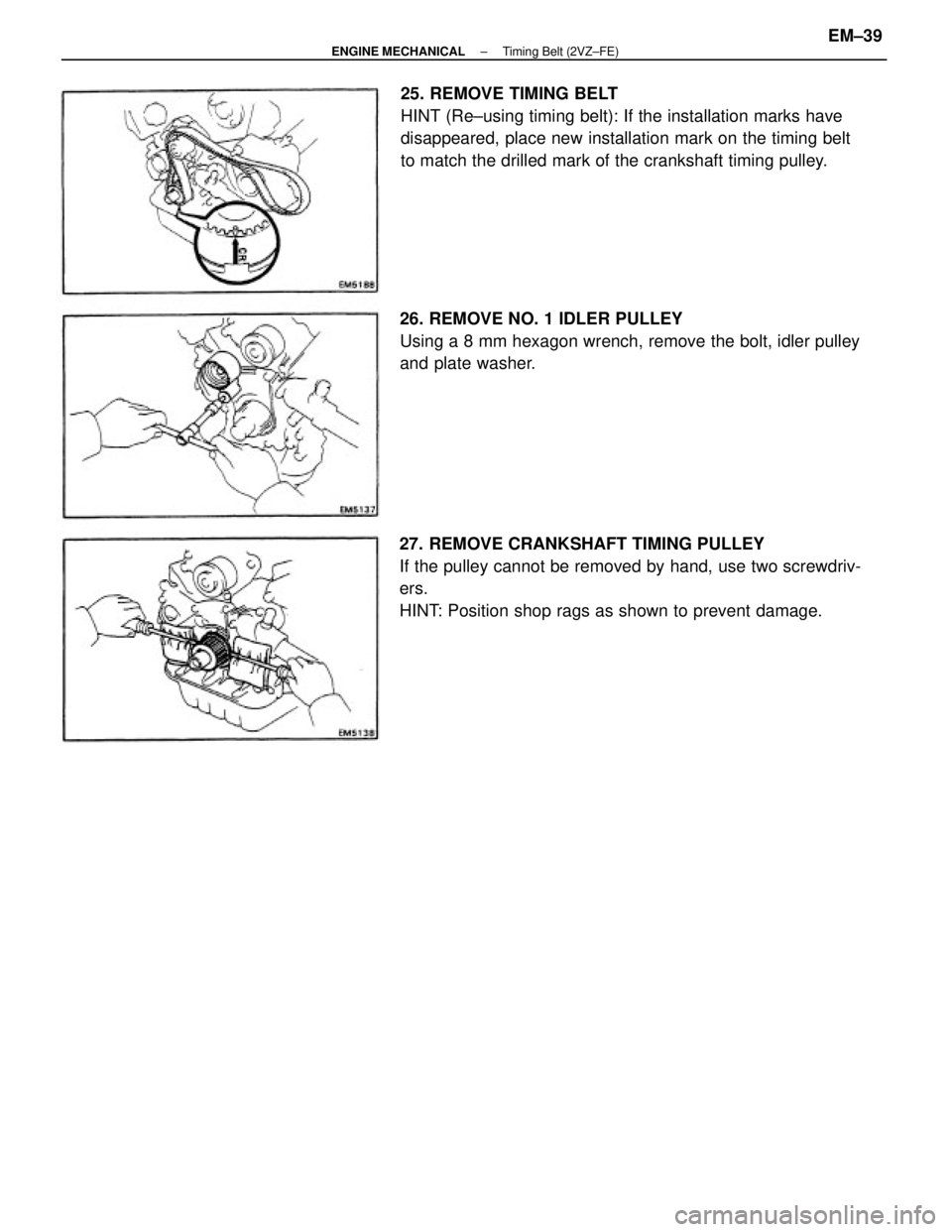

TOYOTA CAMRY V20 1986 Service Information 27. REMOVE CRANKSHAFT TIMING PULLEY If the pulley cannot be removed by hand, use two screwdriv- ers. HINT: Position shop rags as shown to prevent damage.25. REMOVE TIMING BELT HINT (Re±using timing b
