Page 2385 of 2389

TOYOTA CAMRY V20 1986 Service Information 5. AIR TIGHTNESS TEST (a) Install SST to the union of the cylinder housing. SST 09631±12070 (b) Apply 400 mm Hg (15.75 in. Hg, 53.3 kPa) of vacuum for about 30 seconds. (c) Check that there is no

Page 2386 of 2389

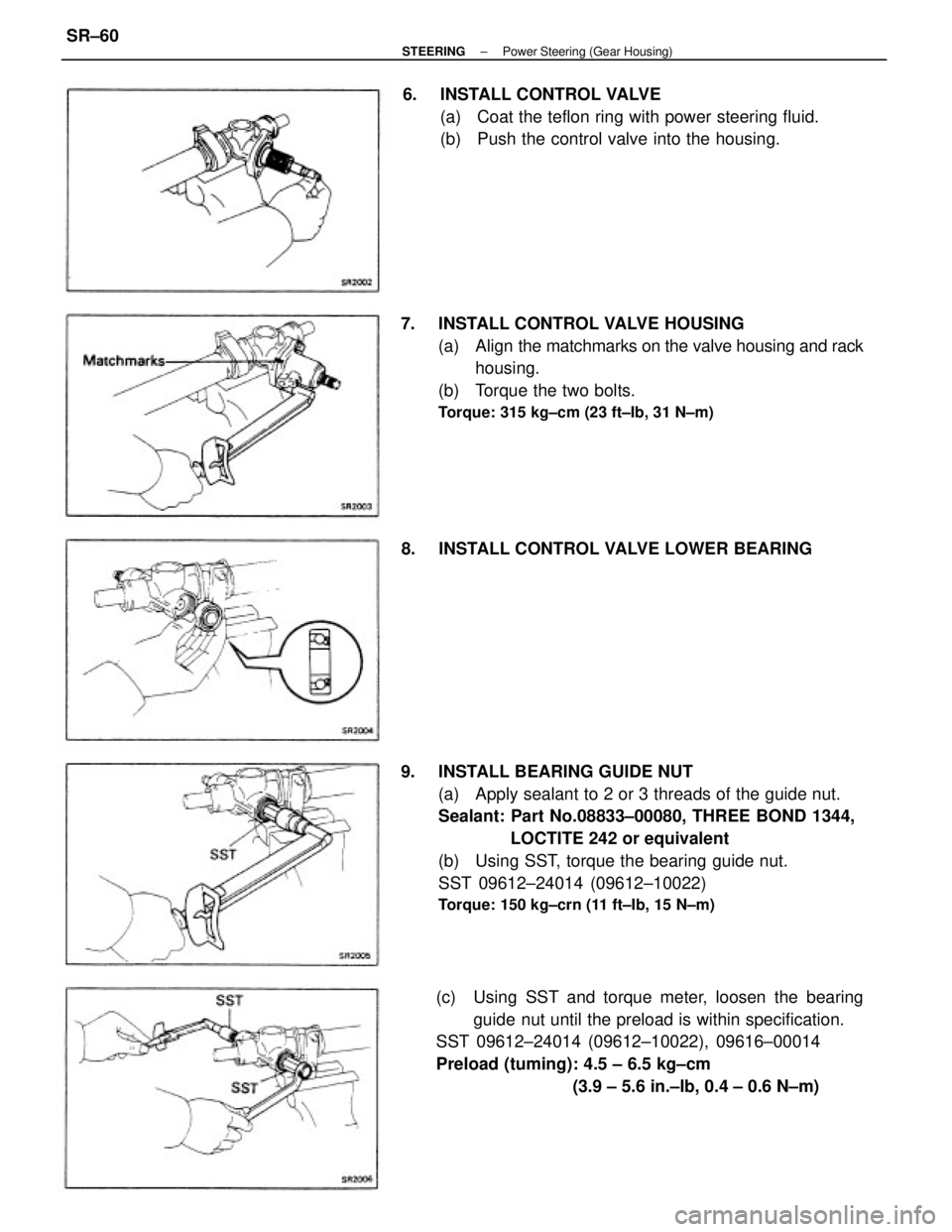

TOYOTA CAMRY V20 1986 Service Information 9. INSTALL BEARING GUIDE NUT (a) Apply sealant to 2 or 3 threads of the guide nut. Sealant: Part No.08833±00080, THREE BOND 1344, LOCTITE 242 or equivalent (b) Using SST, torque the bearing

Page 2387 of 2389

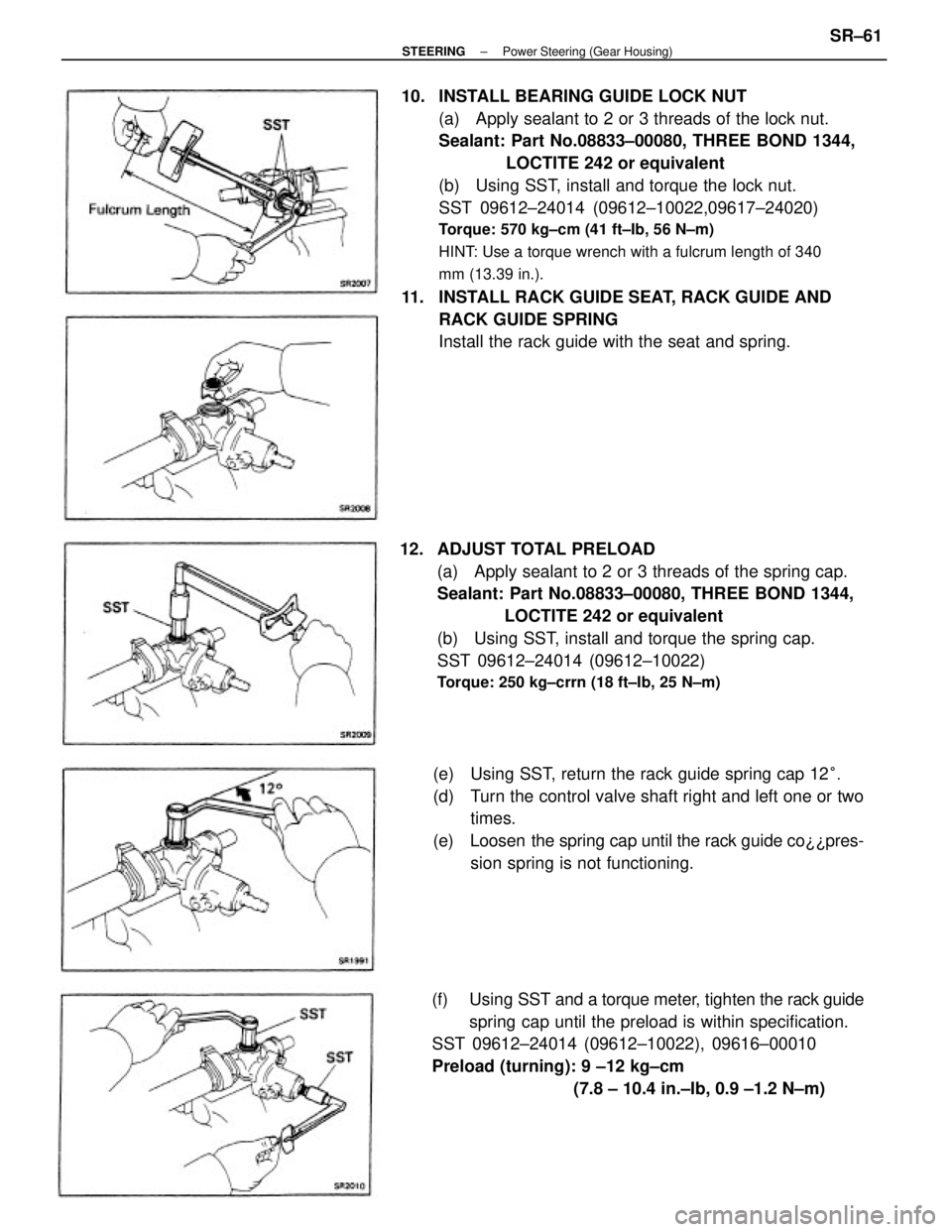

TOYOTA CAMRY V20 1986 Service Information 10. INSTALL BEARING GUIDE LOCK NUT (a) Apply sealant to 2 or 3 threads of the lock nut. Sealant: Part No.08833±00080, THREE BOND 1344, LOCTITE 242 or equivalent (b) Using SST, install and to

Page 2388 of 2389

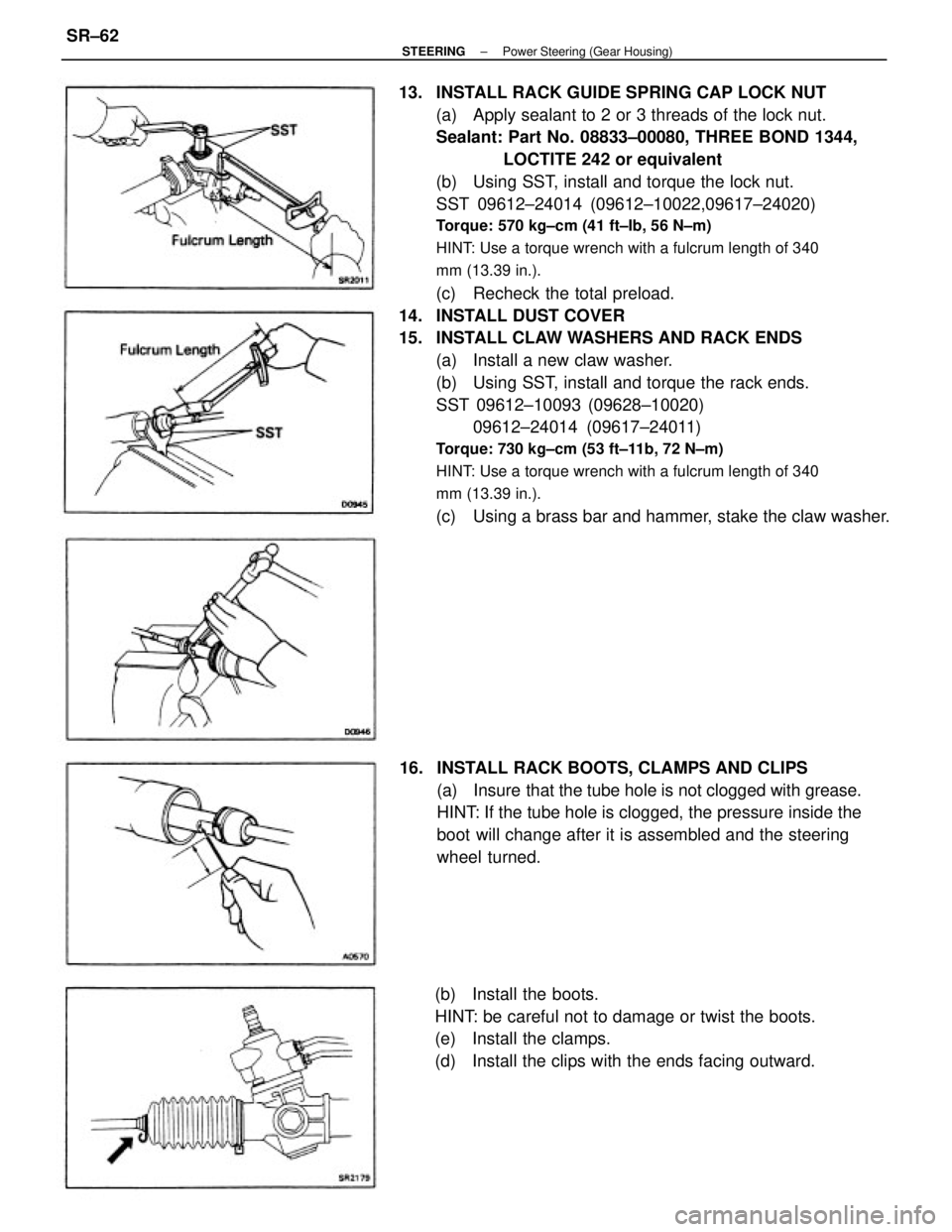

TOYOTA CAMRY V20 1986 Service Information 13. INSTALL RACK GUIDE SPRING CAP LOCK NUT (a) Apply sealant to 2 or 3 threads of the lock nut. Sealant: Part No. 08833±00080, THREE BOND 1344, LOCTITE 242 or equivalent (b) Using SST, insta

Page 2389 of 2389

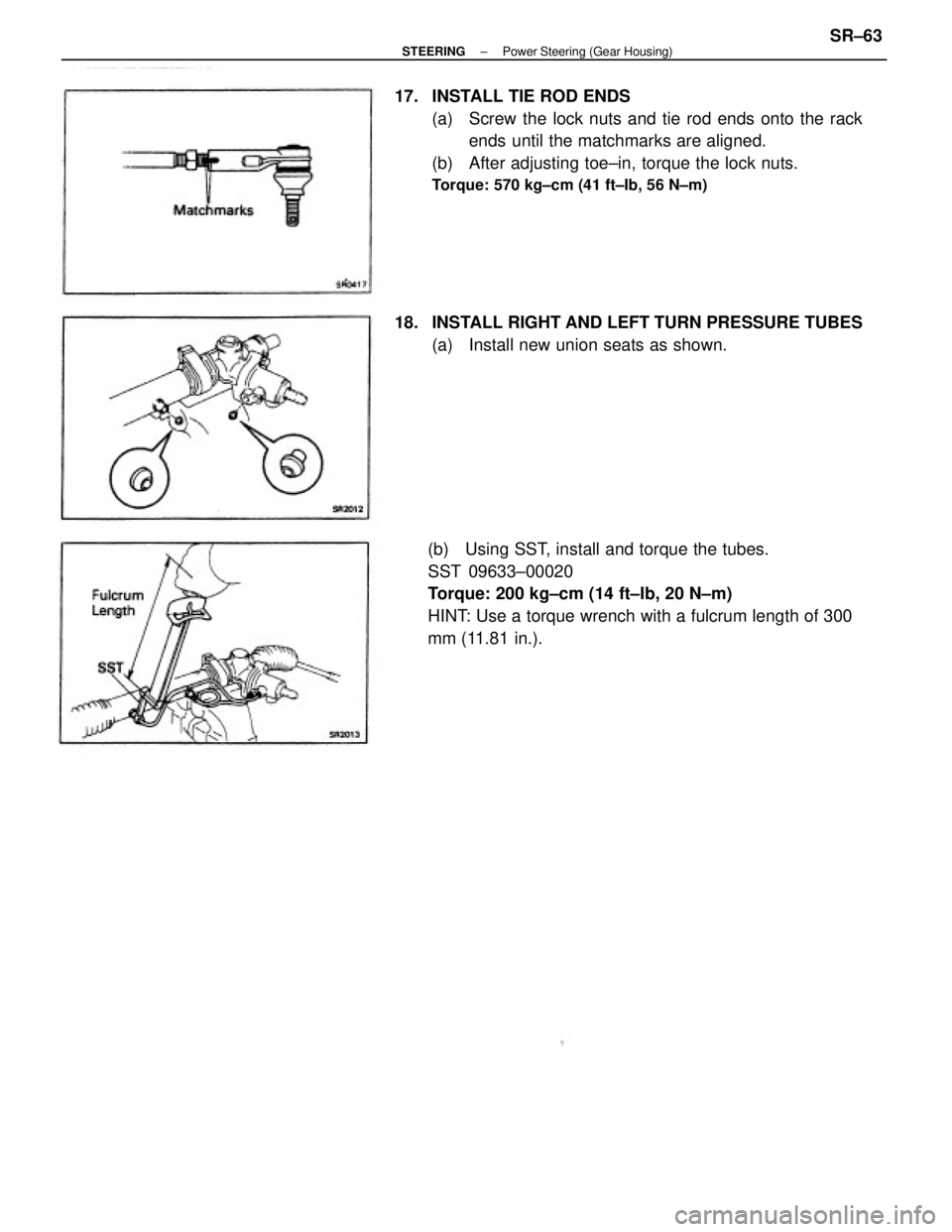

TOYOTA CAMRY V20 1986 Service Information 17. INSTALL TIE ROD ENDS (a) Screw the lock nuts and tie rod ends onto the rack ends until the matchmarks are aligned. (b) After adjusting toe±in, torque the lock nuts. Torque: 570 kg±cm (41 ft±
