Page 705 of 2389

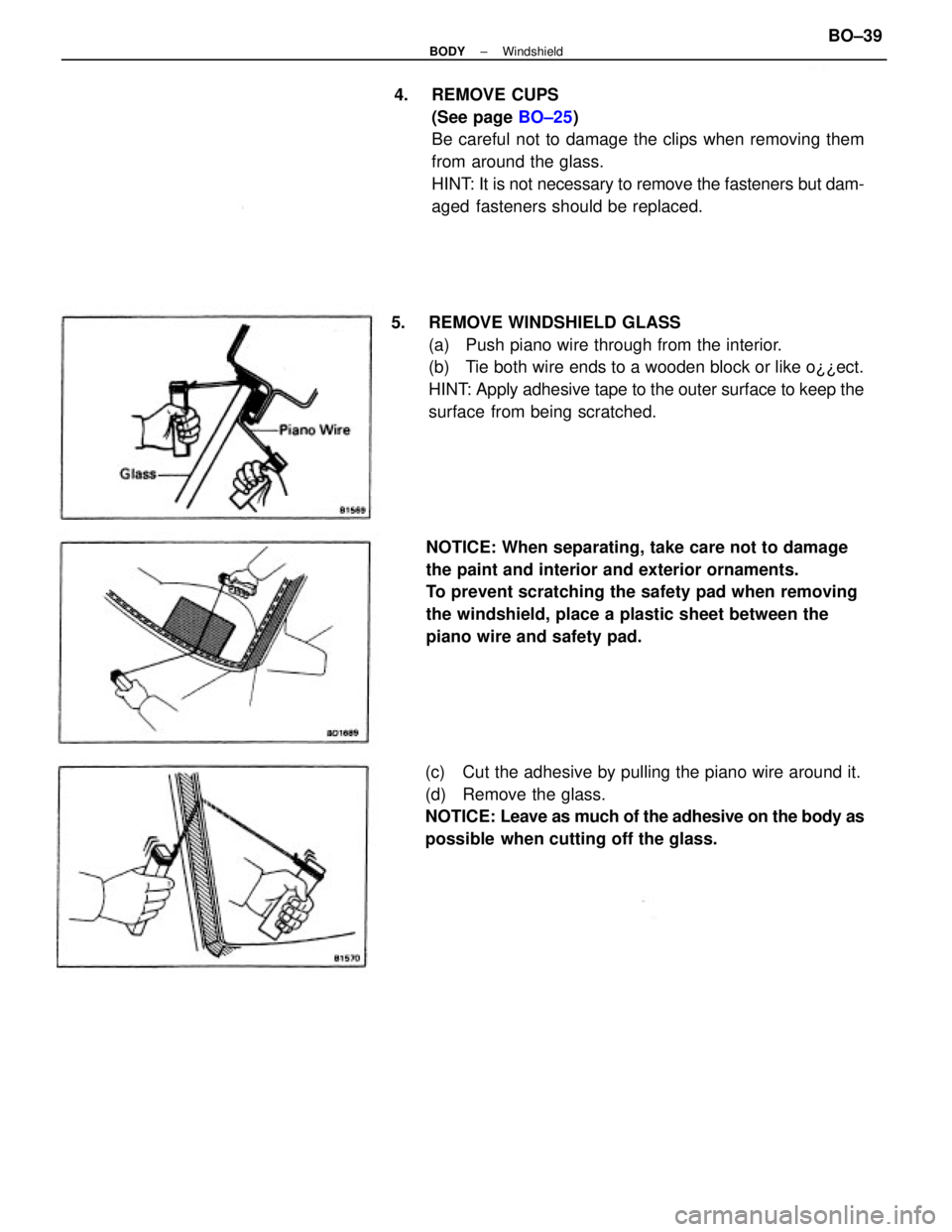

TOYOTA CAMRY V20 1986 Service Information 4. REMOVE CUPS (See page BO±25) Be careful not to damage the clips when removing them from around the glass. HINT: It is not necessary to remove the fasteners but dam- aged fasteners should be replac

Page 706 of 2389

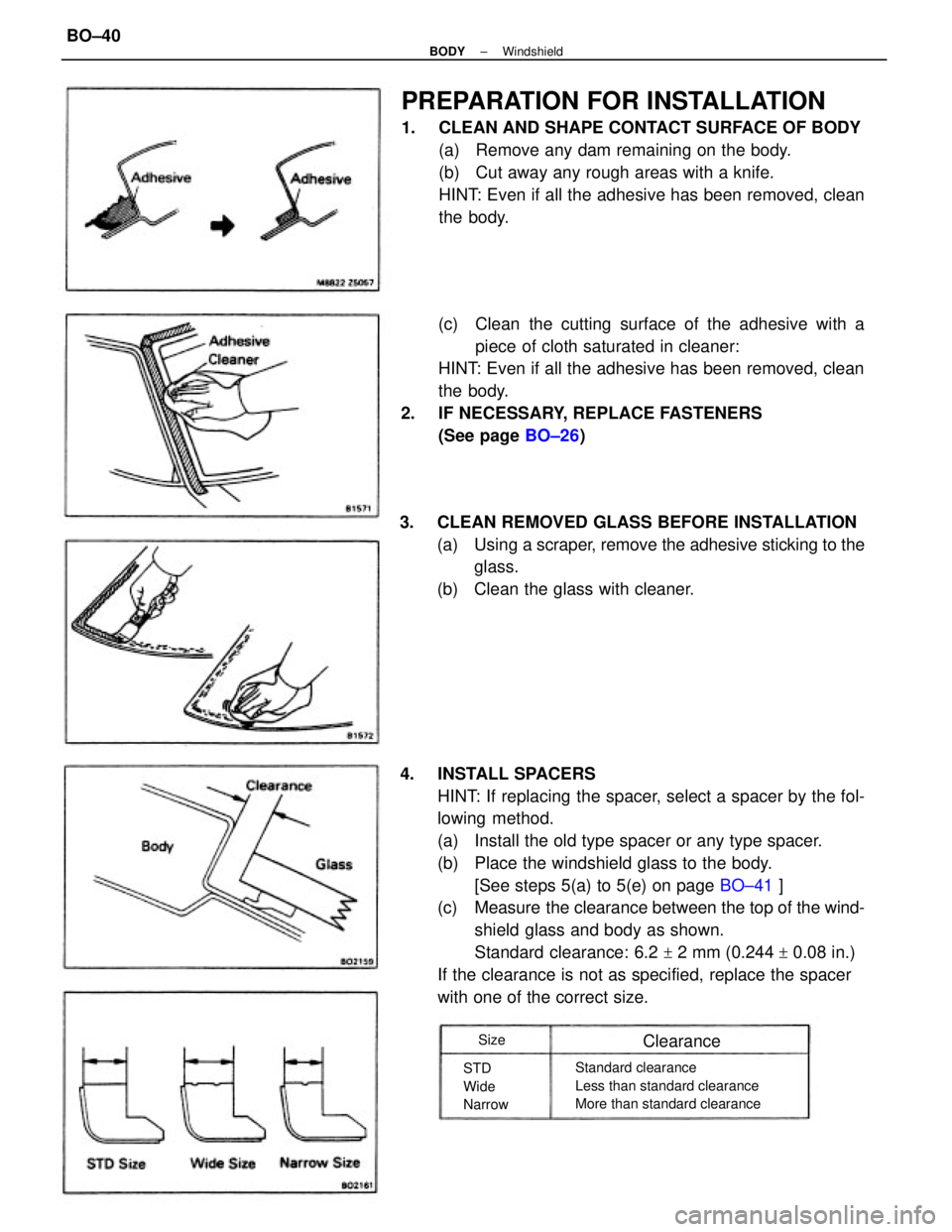

TOYOTA CAMRY V20 1986 Service Information 4. INSTALL SPACERS HINT: If replacing the spacer, select a spacer by the fol- lowing method. (a) Install the old type spacer or any type spacer. (b) Place the windshield glass to the body. [See step

Page 707 of 2389

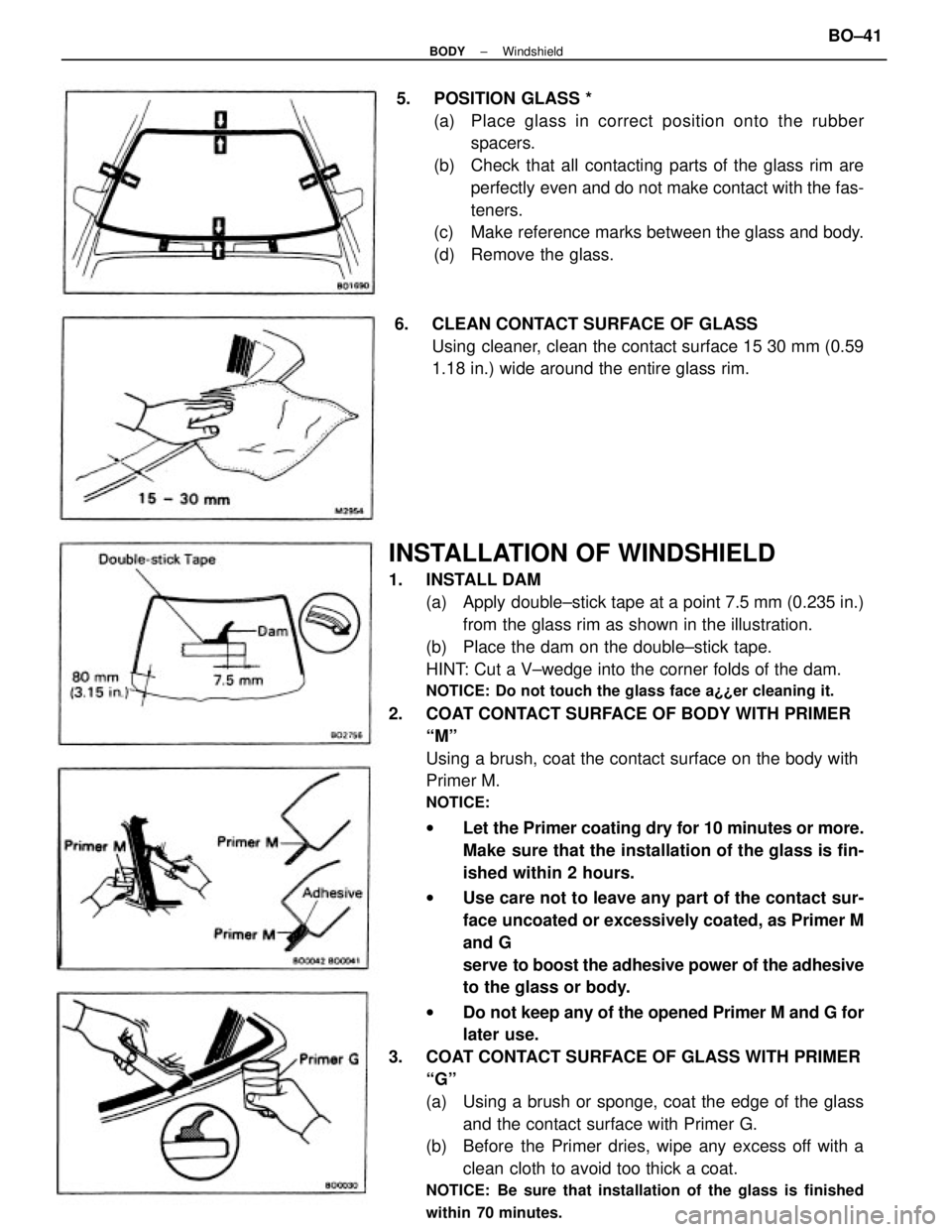

TOYOTA CAMRY V20 1986 Service Information INSTALLATION OF WINDSHIELD 1. INSTALL DAM (a) Apply double±stick tape at a point 7.5 mm (0.235 in.) from the glass rim as shown in the illustration. (b) Place the dam on the double±stick tape. HIN

Page 708 of 2389

TOYOTA CAMRY V20 1986 Service Information 4. MIX ADHESIVE COATING NOTICE: wBe sure that installation of the glass is finished within usable time. (See step 2 on page BO±37) wThe mixture should be made in 5 minutes or less. (a) Thoroughly

Page 709 of 2389

TOYOTA CAMRY V20 1986 Service Information Butyl tape 9 mm dia. x 2,500 mm (0.35 x 98.43 in.) Primer 5 cc (0.17 fl.oz.) Sponge (for applying primer) Piano wire 1 mm dia. x 600 mm (0.04 x 23.62 in.) (for slicing off glass) QUARTER WINDOW GLASS

Page 710 of 2389

TOYOTA CAMRY V20 1986 Service Information REMOVAL OF QUARTER WINDOW GLASS 1. REMOVE REAR SEAT CUSHION (a) Pull the left and right levers forward and pull up the seat cushion. 2. REMOVE REAR SEAT BACK OR SEAT SIDE BACK (a) Remove the lower

Page 711 of 2389

TOYOTA CAMRY V20 1986 Service Information 5. INSTALL FOLLOWING PARTS: (a) Roof side inner garnish (b) Rear seat belt anchor bolt Torque: 440 kg±cm (32 ft±Ib, 43 N¿rn) (c) Roof drip moulding (d) (w/ Fixed Seat Type) Rear seat (e) (w/ S

Page 712 of 2389

TOYOTA CAMRY V20 1986 Service Information REMOVAL OF QUARTER WINDOW GLASS 1. REMOVE REAR ROOF DRIP MOULDING (See page BO±28) 2. REMOVE QUARTER WINDOW UPPER MOULDING Using a scraper, pry the upper moulding. HINT: Apply tape to the scraper b
