Page 2033 of 2389

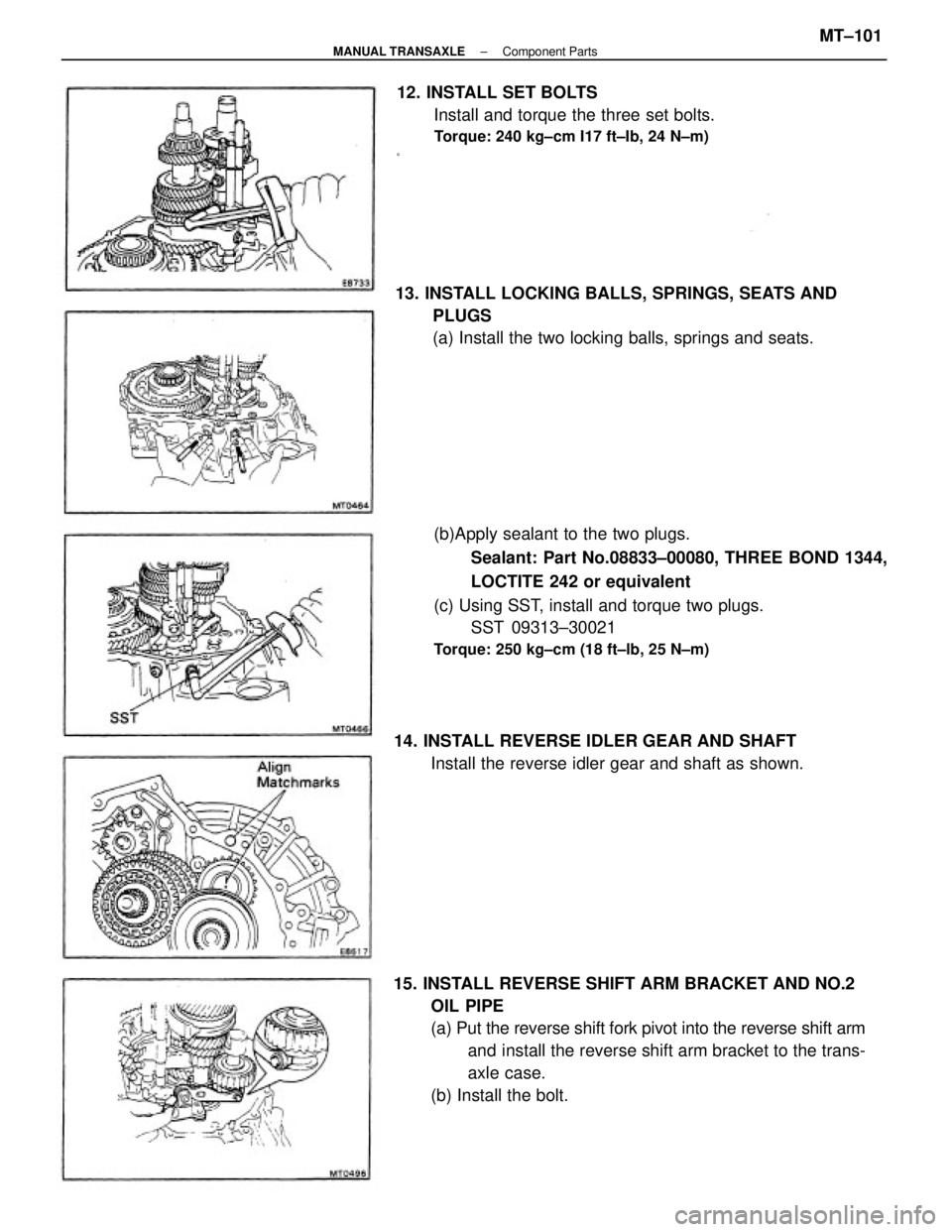

TOYOTA CAMRY V20 1986 Service Information 13. INSTALL LOCKING BALLS, SPRINGS, SEATS AND PLUGS (a) Install the two locking balls, springs and seats. (b)Apply sealant to the two plugs. Sealant: Part No.08833±00080, THREE BOND 1344, LOCTITE 242

Page 2034 of 2389

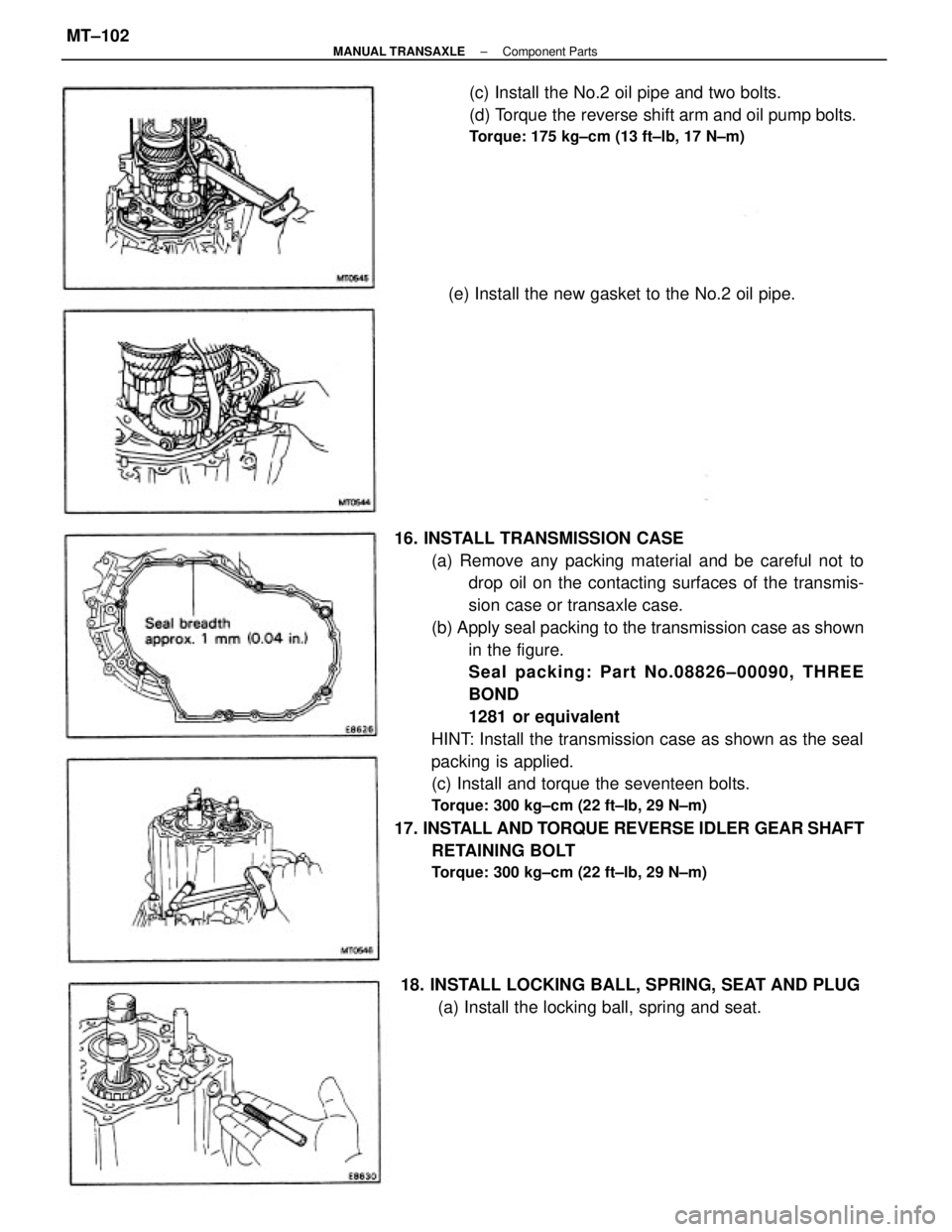

TOYOTA CAMRY V20 1986 Service Information 16. INSTALL TRANSMISSION CASE (a) Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmis- sion case or transaxle case. (b) Apply seal packing to the tran

Page 2035 of 2389

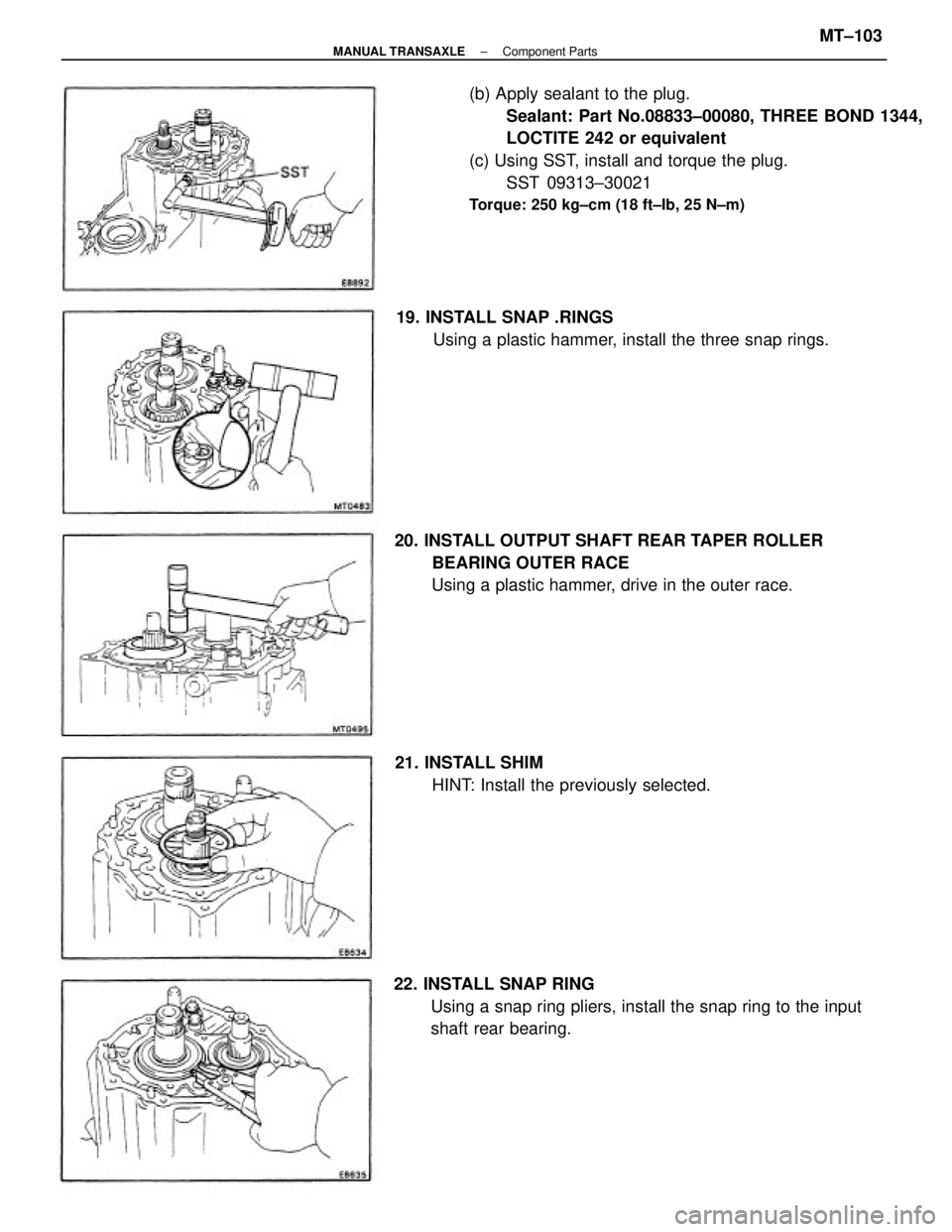

TOYOTA CAMRY V20 1986 Service Information (b) Apply sealant to the plug. Sealant: Part No.08833±00080, THREE BOND 1344, LOCTITE 242 or equivalent (c) Using SST, install and torque the plug. SST 09313±30021 Torque: 250 kg±cm (18 ft±Ib, 25

Page 2036 of 2389

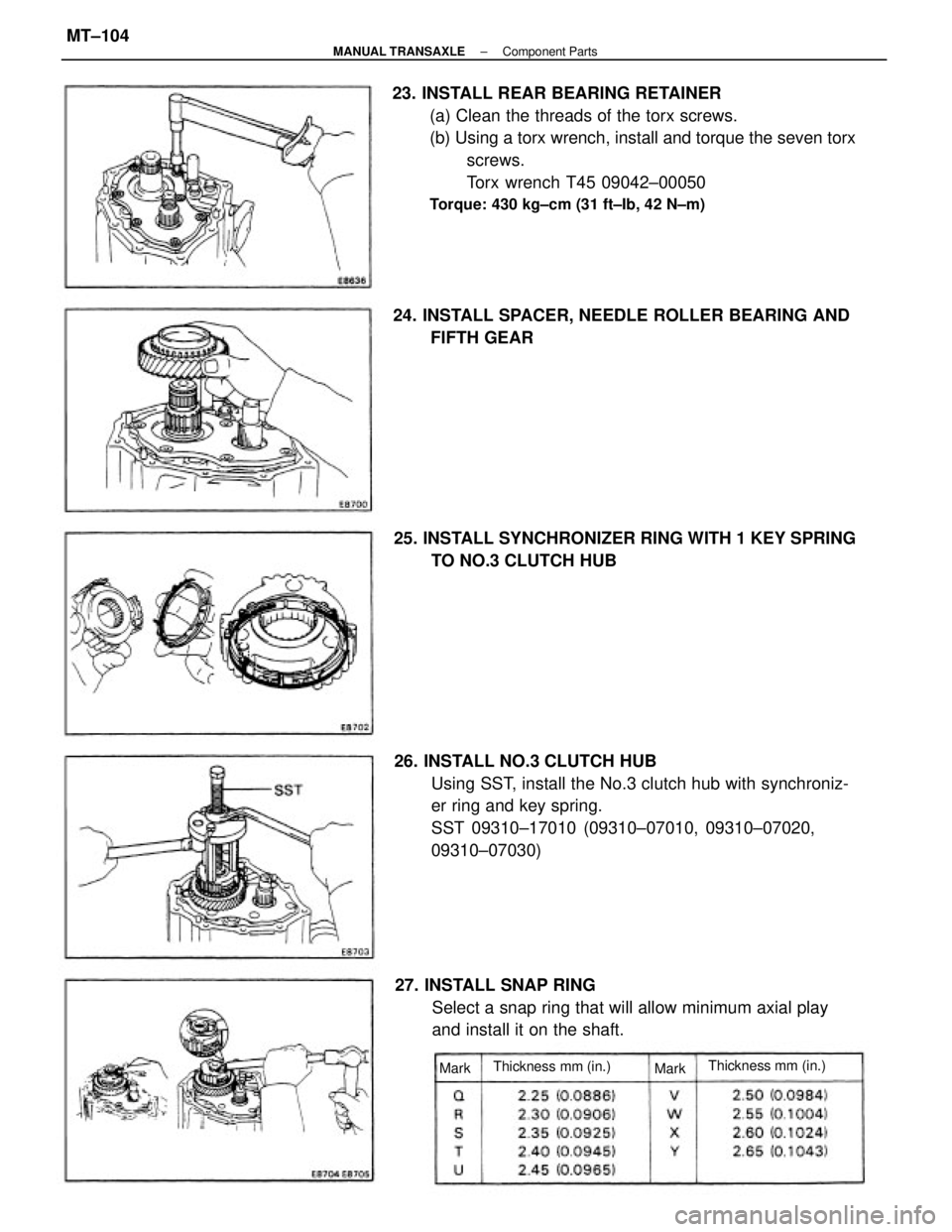

TOYOTA CAMRY V20 1986 Service Information 23. INSTALL REAR BEARING RETAINER (a) Clean the threads of the torx screws. (b) Using a torx wrench, install and torque the seven torx screws. Torx wrench T45 09042±00050 Torque: 430 kg±cm (31 ft±I

Page 2037 of 2389

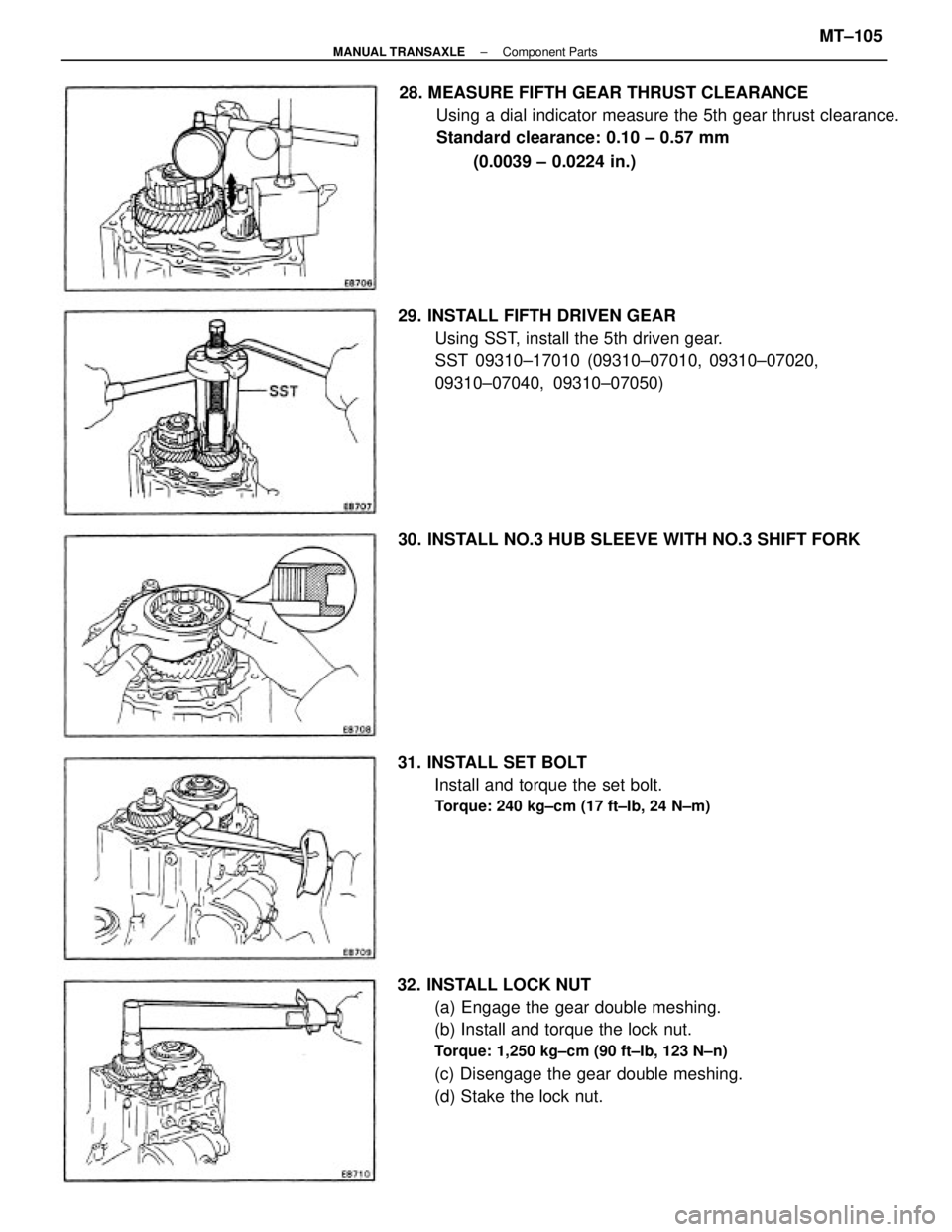

TOYOTA CAMRY V20 1986 Service Information 32. INSTALL LOCK NUT (a) Engage the gear double meshing. (b) Install and torque the lock nut. Torque: 1,250 kg±cm (90 ft±Ib, 123 N±n) (c) Disengage the gear double meshing. (d) Stake the lock nut.

Page 2038 of 2389

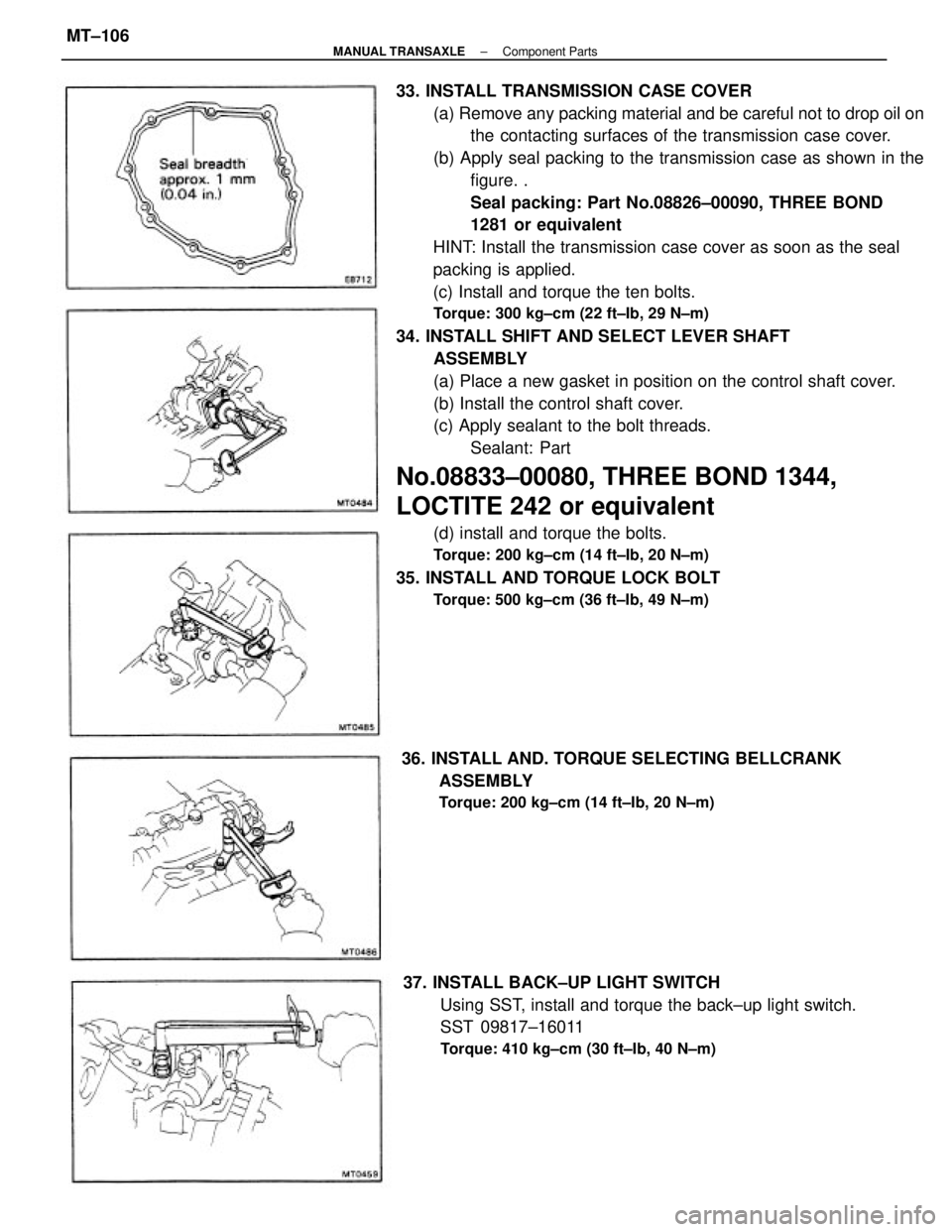

TOYOTA CAMRY V20 1986 Service Information 33. INSTALL TRANSMISSION CASE COVER (a) Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmission case cover. (b) Apply seal packing to the transmission

Page 2039 of 2389

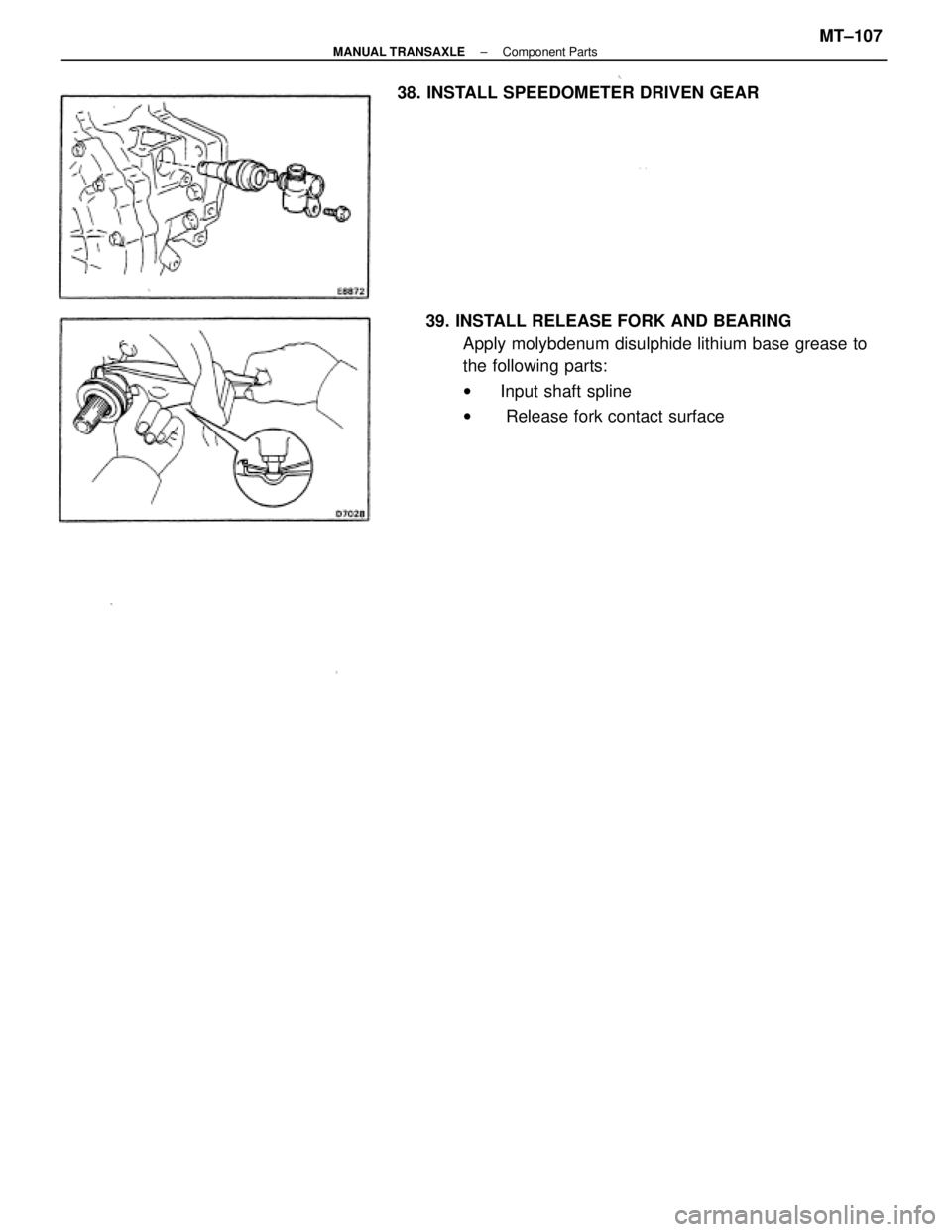

TOYOTA CAMRY V20 1986 Service Information 39. INSTALL RELEASE FORK AND BEARING Apply molybdenum disulphide lithium base grease to the following parts: wInput shaft spline w Release fork contact surface 38. INSTALL SPEEDOMETER DRIVEN GEAR ± M

Page 2040 of 2389

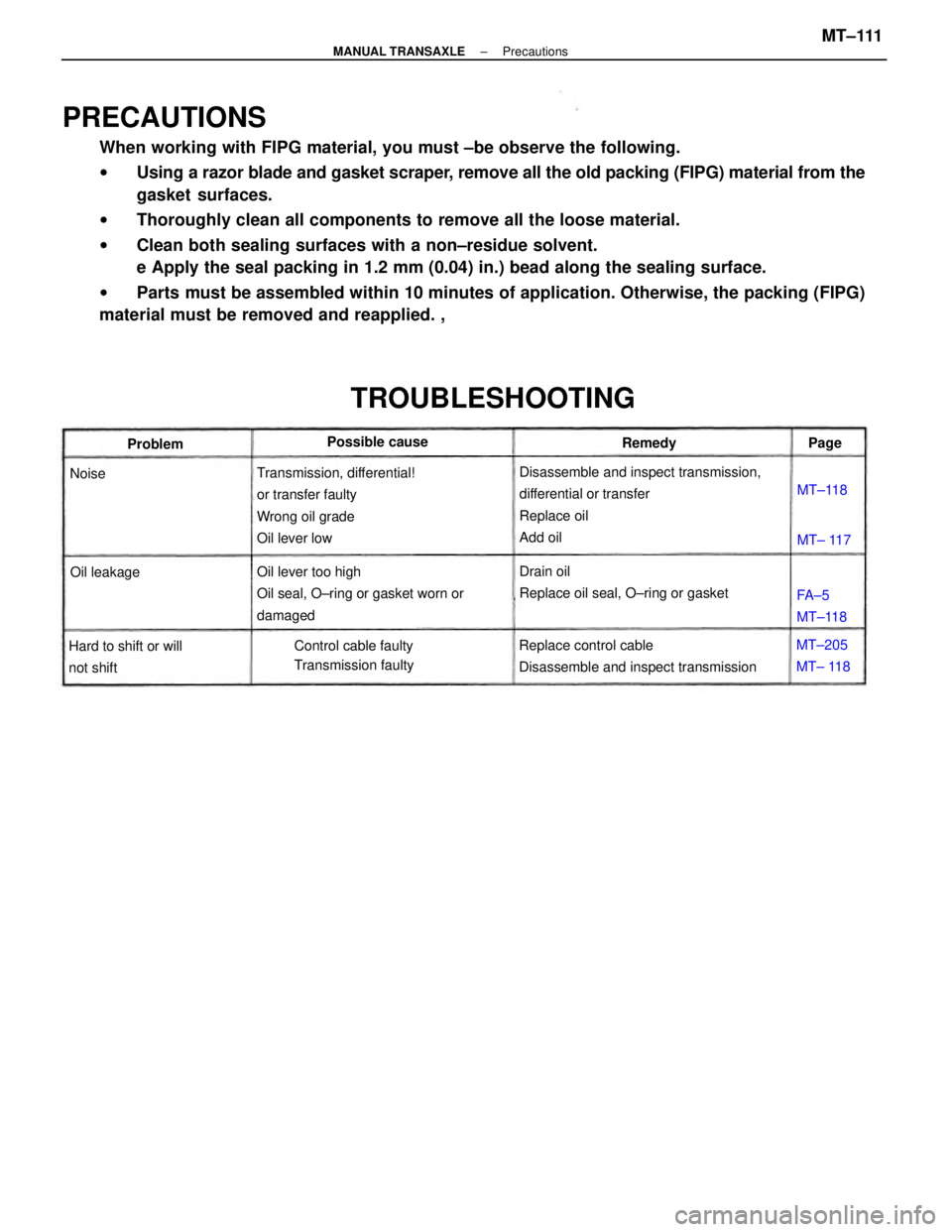

TOYOTA CAMRY V20 1986 Service Information PRECAUTIONS When working with FIPG material, you must ±be observe the following. wUsing a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces. wThoroug
