TOYOTA CAMRY V20 1986 Service Information ASSEMBLY OF REAR DOOR (See page SO±11) 1. BEFORE INSTALLING PARTS, COAT THEM WITH MP GREASE (a) Coat the sliding surface and gears of the window reg- ulator with MP grease. NOTICE: Do not apply MP

Page 682 of 2389

TOYOTA CAMRY V20 1986 Service Information 7. INSTALL WINDOW REGULATOR (a) Place the regulator through the service hole. (b) Install the five mounting bolts. (c) (w/ Power Window) Connect the connector. 6. INSTALL REAR DOOR BELT MOULDING

Page 683 of 2389

TOYOTA CAMRY V20 1986 Service Information 10. INSTALL DIVISION BAR (a) Place the division bar in the door. (b) Install the two screws and bolt. 11. INSTALL DOOR GLASS RUN 12. INSTALL SERVICE HOLE COVER 13. INSTALL DOOR TRIM WITH INNER WE

Page 684 of 2389

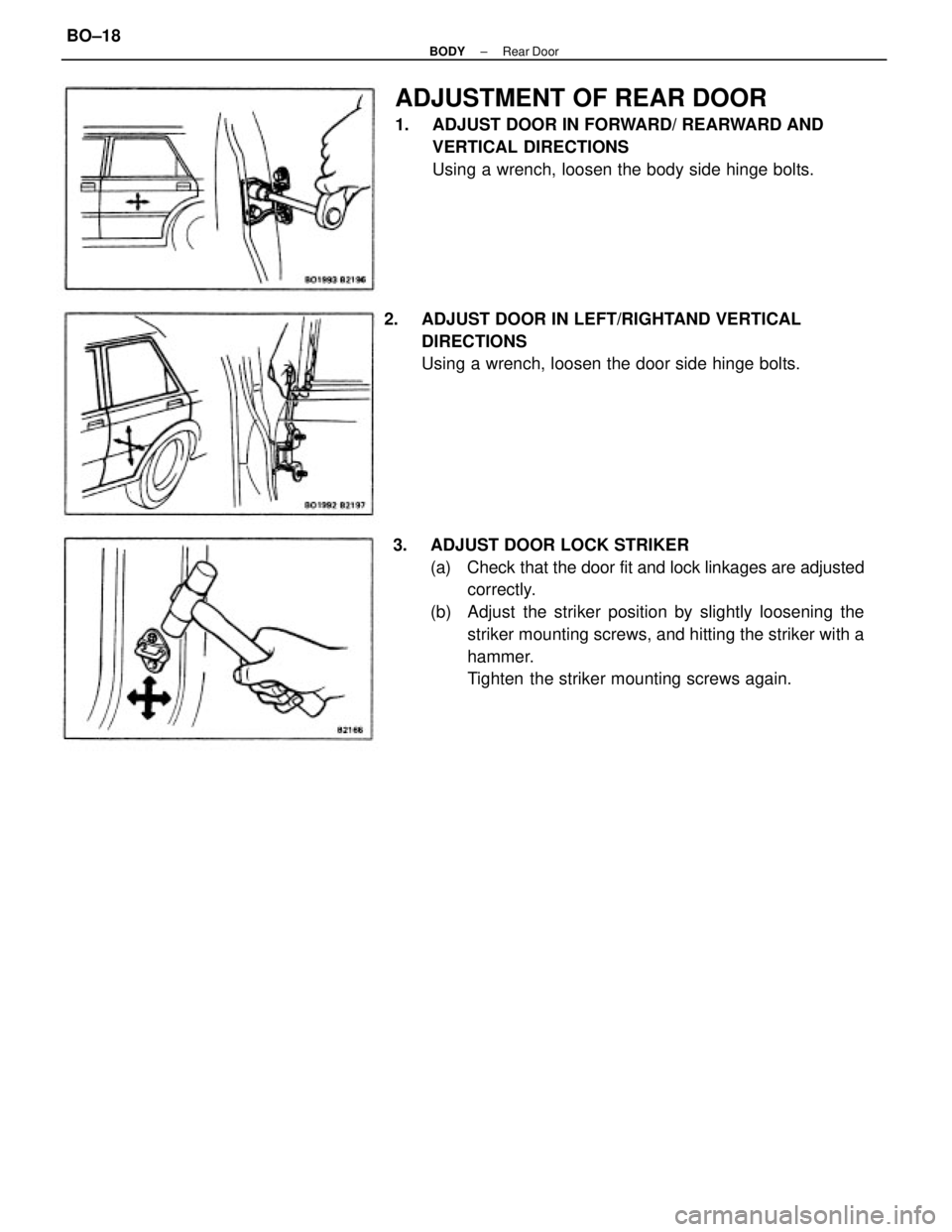

TOYOTA CAMRY V20 1986 Service Information 3. ADJUST DOOR LOCK STRIKER (a) Check that the door fit and lock linkages are adjusted correctly. (b) Adjust the striker position by slightly loosening the striker mounting screws, and hitting the

Page 685 of 2389

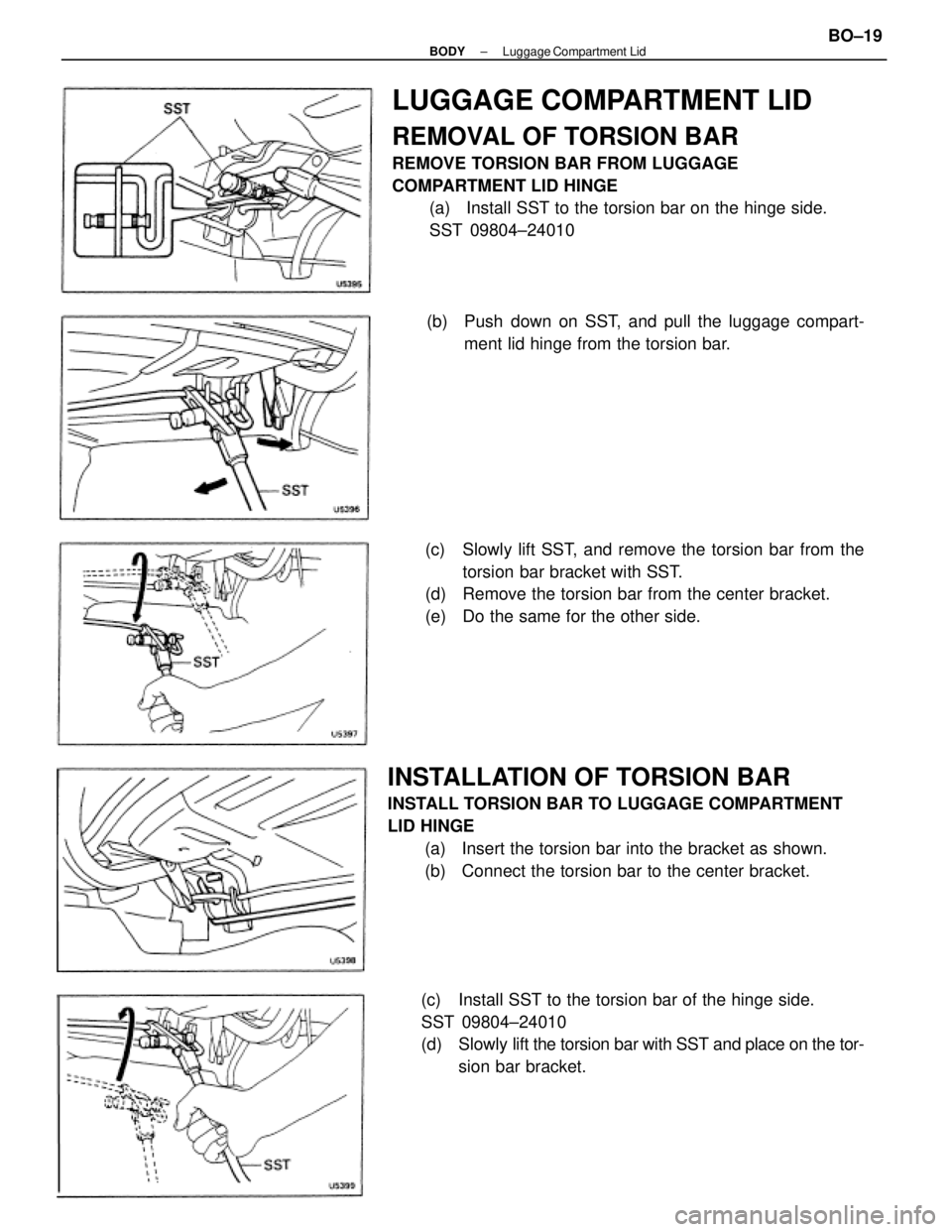

TOYOTA CAMRY V20 1986 Service Information LUGGAGE COMPARTMENT LID REMOVAL OF TORSION BAR REMOVE TORSION BAR FROM LUGGAGE COMPARTMENT LID HINGE (a) Install SST to the torsion bar on the hinge side. SST 09804±24010 INSTALLATION OF TORSION BAR

Page 686 of 2389

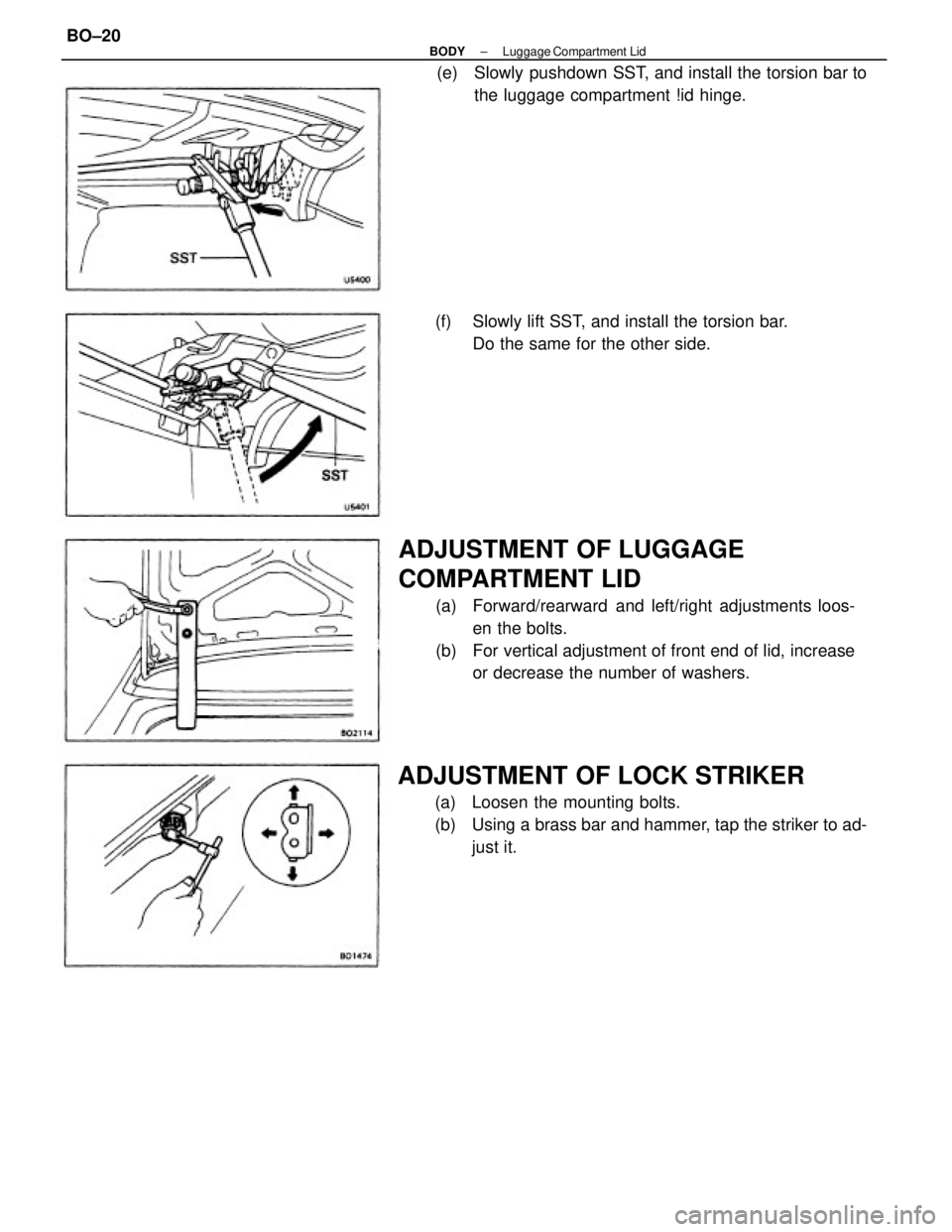

TOYOTA CAMRY V20 1986 Service Information ADJUSTMENT OF LUGGAGE COMPARTMENT LID (a) Forward/rearward and left/right adjustments loos- en the bolts. (b) For vertical adjustment of front end of lid, increase or decrease the number of washers

Page 687 of 2389

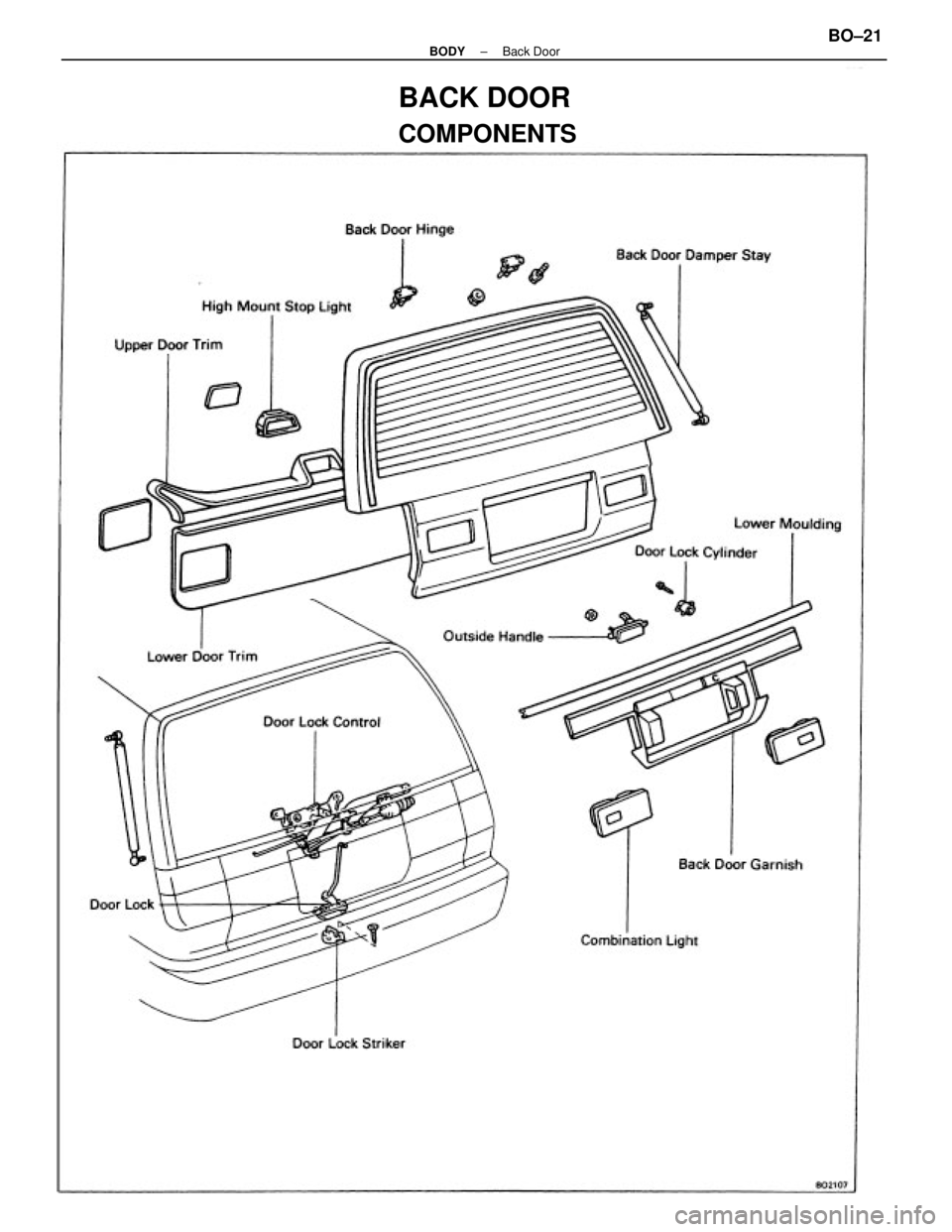

TOYOTA CAMRY V20 1986 Service Information BACK DOOR COMPONENTS ± BODYBack DoorBO±21

Page 688 of 2389

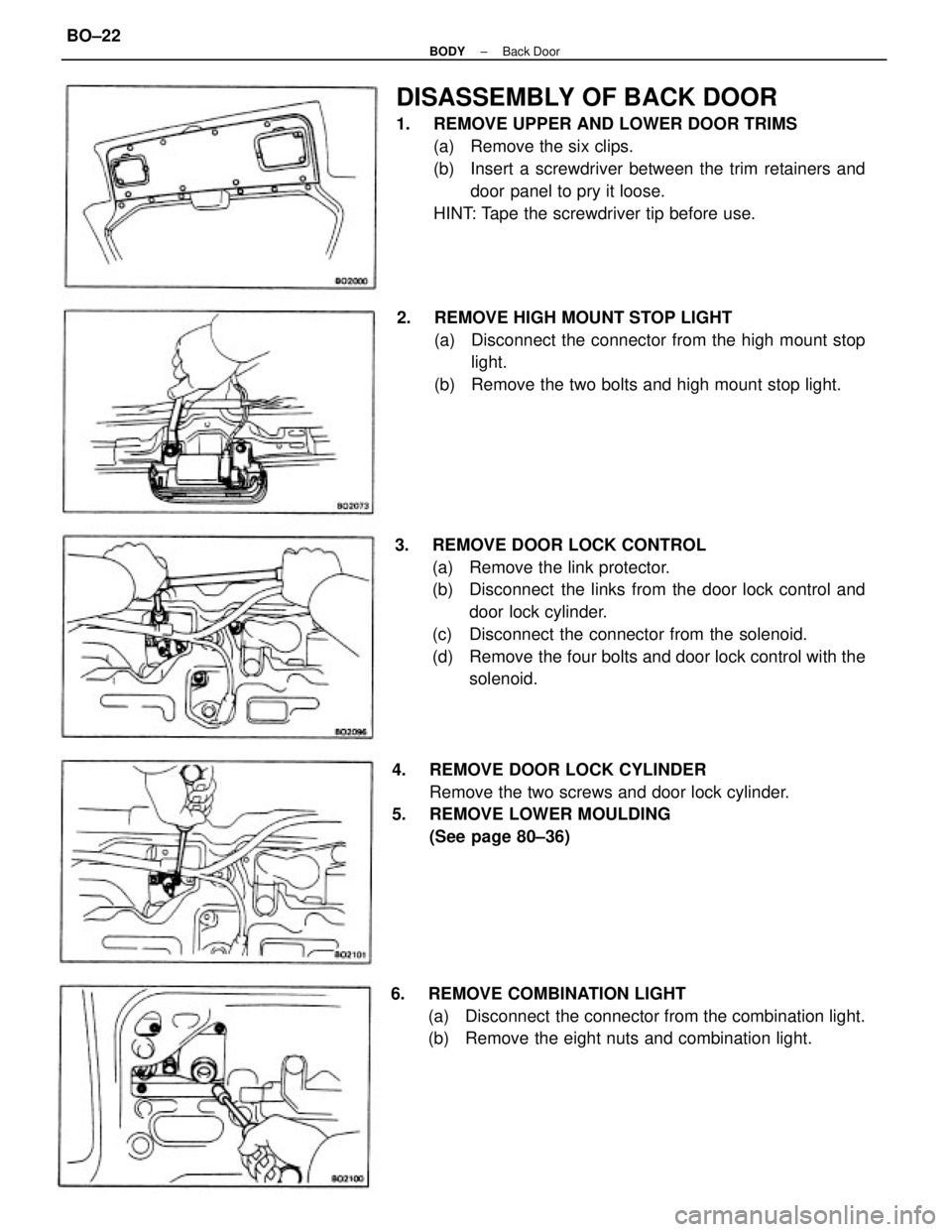

TOYOTA CAMRY V20 1986 Service Information 3. REMOVE DOOR LOCK CONTROL (a) Remove the link protector. (b) Disconnect the links from the door lock control and door lock cylinder. (c) Disconnect the connector from the solenoid. (d) Remove
