TOYOTA CAMRY V20 1986 Service Information (c) Install the clamp with the bolt. 13. INSTALL PS PUMP 14. (4WD) INSTALL DEFLECTOR TO TRANSFER EXTENSION HOUSING 15. (411VD) INSTALL PROPELLER SHAFT 16. INSTALL DRIVE SHAFTS 17. INSTALL SUSPENSION L

Page 1314 of 2389

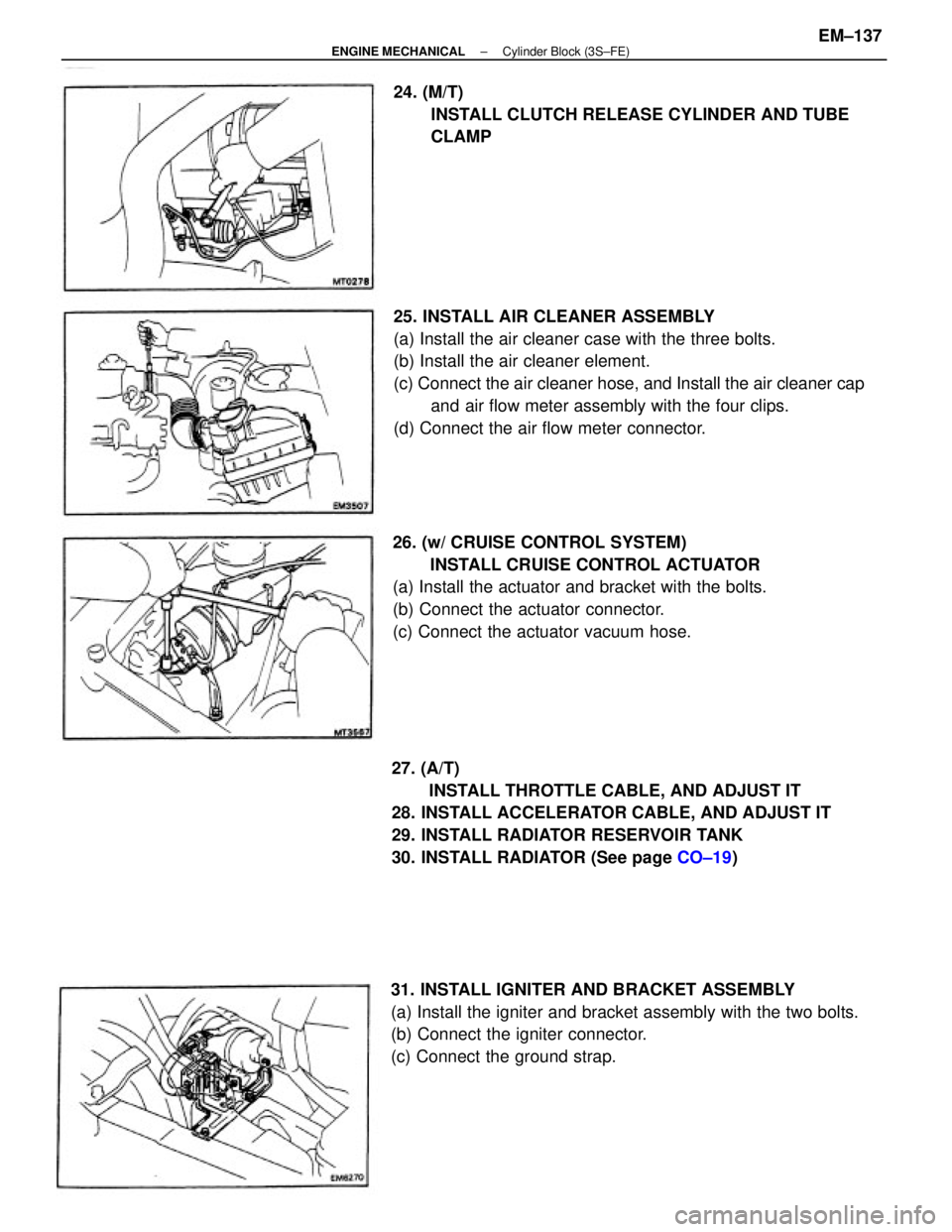

TOYOTA CAMRY V20 1986 Service Information 25. INSTALL AIR CLEANER ASSEMBLY (a) Install the air cleaner case with the three bolts. (b) Install the air cleaner element. (c) Connect the air cleaner hose, and Install the air cleaner cap and air f

Page 1315 of 2389

TOYOTA CAMRY V20 1986 Service Information 32. INSTALL BATTERY 33. FILL WITH ENGINE COOLANT (See page CO±5) Capacity (w/ Heater): M/T 6.4 liters (6.8 US qts, 5.6 Imp. qts) A/T (2WD) 6.3 liters (6.7 US qts, 5.5 Imp. qts) A/T (4WD) 6.8 liters (

Page 1316 of 2389

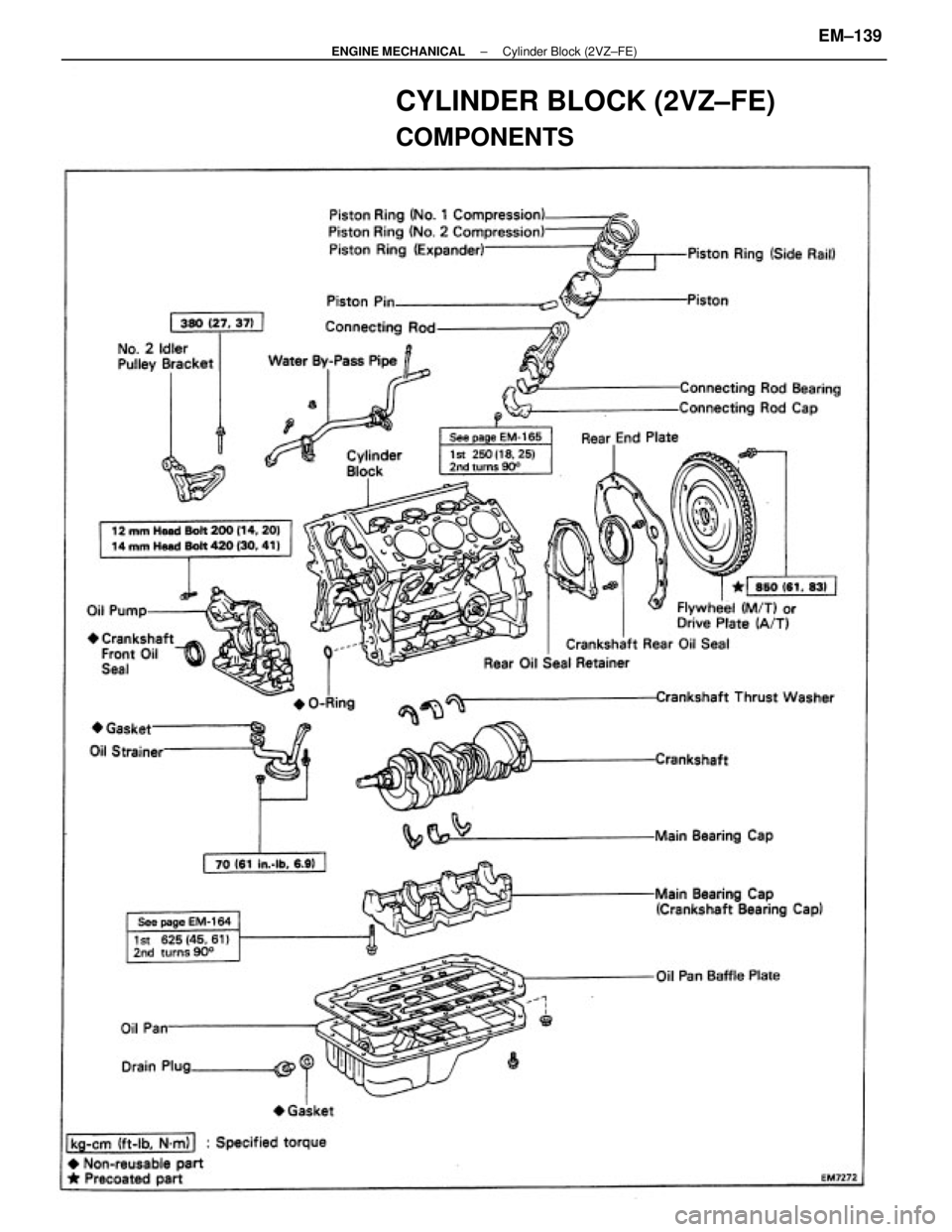

TOYOTA CAMRY V20 1986 Service Information CYLINDER BLOCK (2VZ±FE) COMPONENTS ± ENGINE MECHANICALCylinder Block (2VZ±FE)EM±139

Page 1317 of 2389

TOYOTA CAMRY V20 1986 Service Information REMOVAL OF ENGINE 1. REMOVE BATTERY Disconnect the grand strap. 2. DRAIN ENGINE COOLANT (See page CO±5) 3. REMOVE HOOD 4. REMOVE ENGINE UNDER COVERS 5. DRAIN ENGINE COOLANT (See page CO±5) 6. DRAIN

Page 1318 of 2389

TOYOTA CAMRY V20 1986 Service Information 15. REMOVE AIR CLEANER ASSEMBLY (a) Disconnect the following connector and hoses: (1) Air flow meter connector (2) ISC valve air hose (3) Vacuum pipe air hose (b) Disconnect the four air cleaner cap c

Page 1319 of 2389

TOYOTA CAMRY V20 1986 Service Information 25. DISCONNECT ENGINE WIRE FROM CABIN (a) Remove the under cover. (b) Remove the glove compartment box. (c) Disconnect the following connectors: (1) Three engine & ECT ECU connectors (2) Circuit openi

Page 1320 of 2389

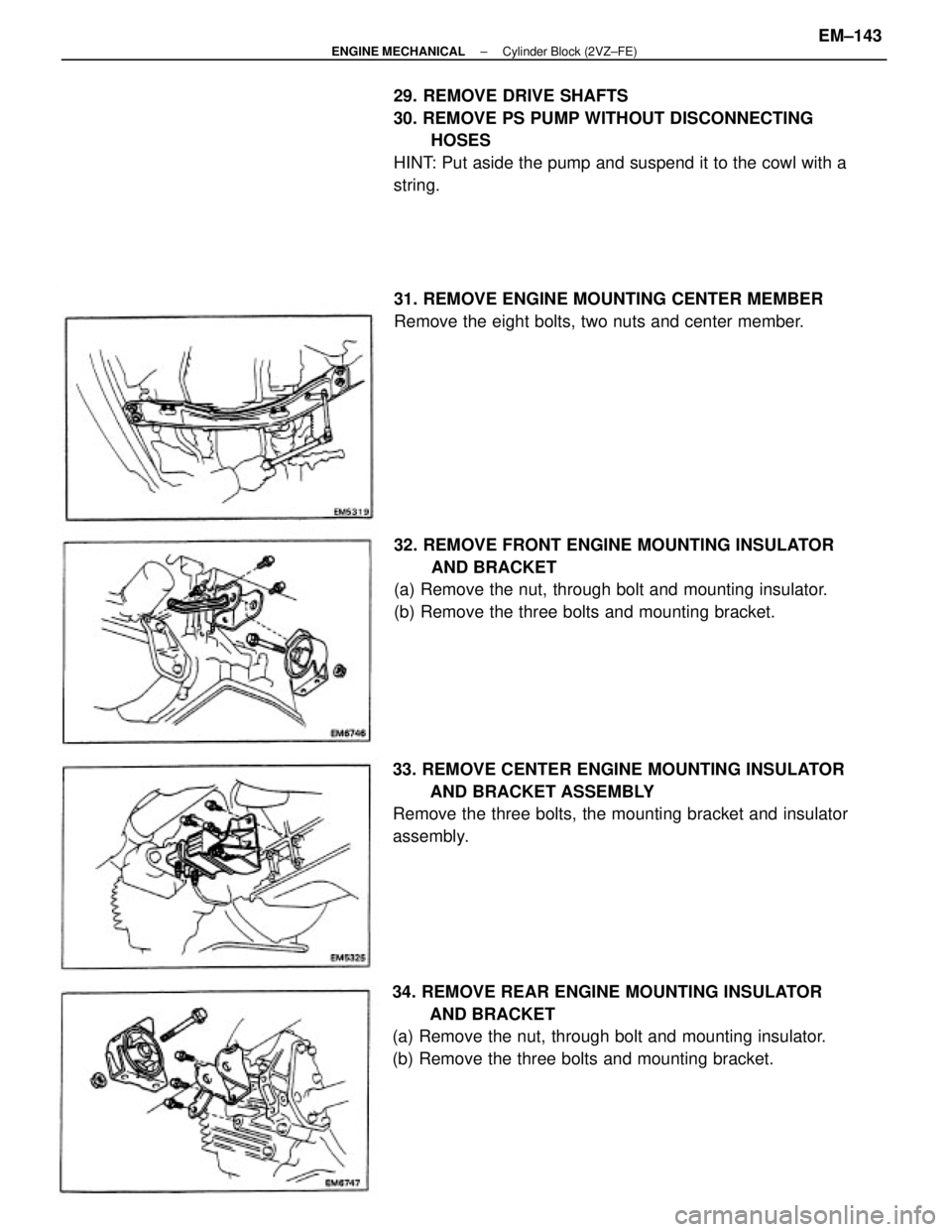

TOYOTA CAMRY V20 1986 Service Information 29. REMOVE DRIVE SHAFTS 30. REMOVE PS PUMP WITHOUT DISCONNECTING HOSES HINT: Put aside the pump and suspend it to the cowl with a string. 34. REMOVE REAR ENGINE MOUNTING INSULATOR AND BRACKET (a) Remo
