7. REMOVE REAR PILLAR UPPER GARNISH
(a) Remove the screw cap and screw.
(b) Pry loose the sixteen clips with a screwdriver and
remove the garnish.
HINT: Tape the screwdriver tip before use.
INSTALLATION OF QUARTER WINDOW
GLASS
(See page BO±46)
1. CLEAN BODY OR GLASS
Wipe off any adhesive left on the body and glass with
cleaner. 9. REMOVE QUARTER WINDOW GLASS WITH FRONT
MOULDING
(a) Remove the eight window glass set nuts.
(b) Using a knife, cut loose the sealer.
HINT: Do not damage the body.
(c) Remove the glass with front moulding. 8. REMOVE QUARTER WINDOW REAR MOULDING
Remove the two nuts and rear moulding.
± BODYQuarter Window GlassBO±47
Page 714 of 2389

6. INSTALL REAR PILLAR UPPER GARNISH
(a) Install the clips to the garnish and tap the garnish onto
the body.
(b) Install the screw and screw cap.
7. INSTALL REAR SEAT BELT ANCHOR BOLT
Torque: 440 kg±cm (32 ft±Ib, 43 N±m)
8. INSTALL QUARTER INSIDE UPPER TRIM
9. INSTALL SEAT SIDE BACK
10. INSTALL QUARTER BELT MOULDING
11. INSTALL QUARTER WINDOW UPPER
MOULDING
12. INSTALL REAR ROOF DRIP MOULDING
(See page BO±28) 4. INSTALL QUARTER WINDOW GLASS WITH FRONT
MOULDING
(a) Install the glass to the body.
(b) Install the eight window glass set nuts.
5. INSTALL QUARTER WINDOW REAR MOULDING
Install the rear moulding with two nuts. 2. COAT CONTACT SURFACE OF GLASS WITH PRIMER
(a) Using a sponge, apply the primer around the entire
ceramic application area.
HINT: Apply primer evenly and to± the ceramic application
area only.
(b) Let the primer coating dry for 10 minutes.
3. APPLY SEAL TO GLASS
Install the seal to the glass.
HINT: Overlap the seal approx. 50 mm (1.97 in.) at the top
of the glass.
± BODYQuarter Window GlassBO±48
Page 715 of 2389
REMOVAL OF REAR WINDOW GLASS
1. DISCONNECT DEFOGGER WIRE CONNECTORS
2. REMOVE REAR SEAT BELT ANCHOR BOLT
3. REMOVE ROOF SIDE INNER GARNISH
(See page BO±44)
4. REMOVE REAR MOULDING AND CLIPS
(See page BO±33)
5. REMOVE HIGH MOUNT STOP LIGHT
(a) Remove the high mount stop light cover.
(b) Disconnect the connector from the high mount stop
light.
(c) Remove the two bolts and high mount stop light.
6. REMOVE CRS TETHER ANCHOR
Remove the bolt with CRS tether anchor.
7. REMOVE PACKAGE TRAY TRIM
REAR WINDOW GLASS
PREPARE ITEMS LISTED
(See page BO±37)
COMPONENTS
± BODYRear Window GlassBO±49
Page 716 of 2389

PREPARATION FOR INSTALLATION
(See pages BO±40 and 41)
INSTALLATION OF REAR WINDOW
GLASS
1. INSTALL DAM
(See page BO±41)
HINT: Install the dam on the surroundings of glass.
2. COAT CONTACT SURFACE OF BODY WITH PRIMER
ªMº
(See page BO±41)
3. COAT CONTACT SURFACE OF GLASS WITH PRIMER
ªGº
(See page BO±41)
4. MIX ADHESIVE COATING
(See page BO±41)
5. APPLY ADHESIVE
(See page BO±41)
6. INSTALL GLASS
(See page BO±42)
7. INSPECT FOR LEAKS AND REPAIR
(See page BO±42)
8. INSTALL REAR MOULDING AND CLIPS
(See page 80±34)
9. INSTALL HIGH MOUNT STOP LIGHT
(a) Install the high mount stop light with the two bolts.
(b) Connect the connector to the high mount stop light.
(c) Install the high mount stop light cover.
10. INSTALL PACKAGE TRAY TRIM
11. INSTALL CRS TETHER ANCHOR
Install the CRS tether anchor with the bolt.
Torque: 210 kg±cm (15 ft±Ib, 21 N±m)
12. INSTALL ROOF SIDE INNER GARNISH
13. INSTALL REAR SEAT BELT ANCHOR BOLT
Torque: 440 kg±cm (32 ft±Ib, 43 N±m)
14. CONNECT DEFOGGER WIRE CONNECTORS8. REMOVE REAR WINDOW GLASS
HINT: Remove the rear window glass in the same manner
as the windshield glass. (See page BO±39)
± BODYRear Window GlassBO±50
Page 717 of 2389
REMOVAL OF BACK DOOR GLASS
1. REMOVE REAR WIPER ARM
2. DISCONNECT DEFOGGER WIRE CONNECTORS
3. REMOVE BACK DOOR UPPER TRIM
4. REMOVE HIGH MOUNT STOP LIGHT
(a) Disconnect the connector from the high mount stop
light.
(b) Remove the two bolts and high mount stop light.

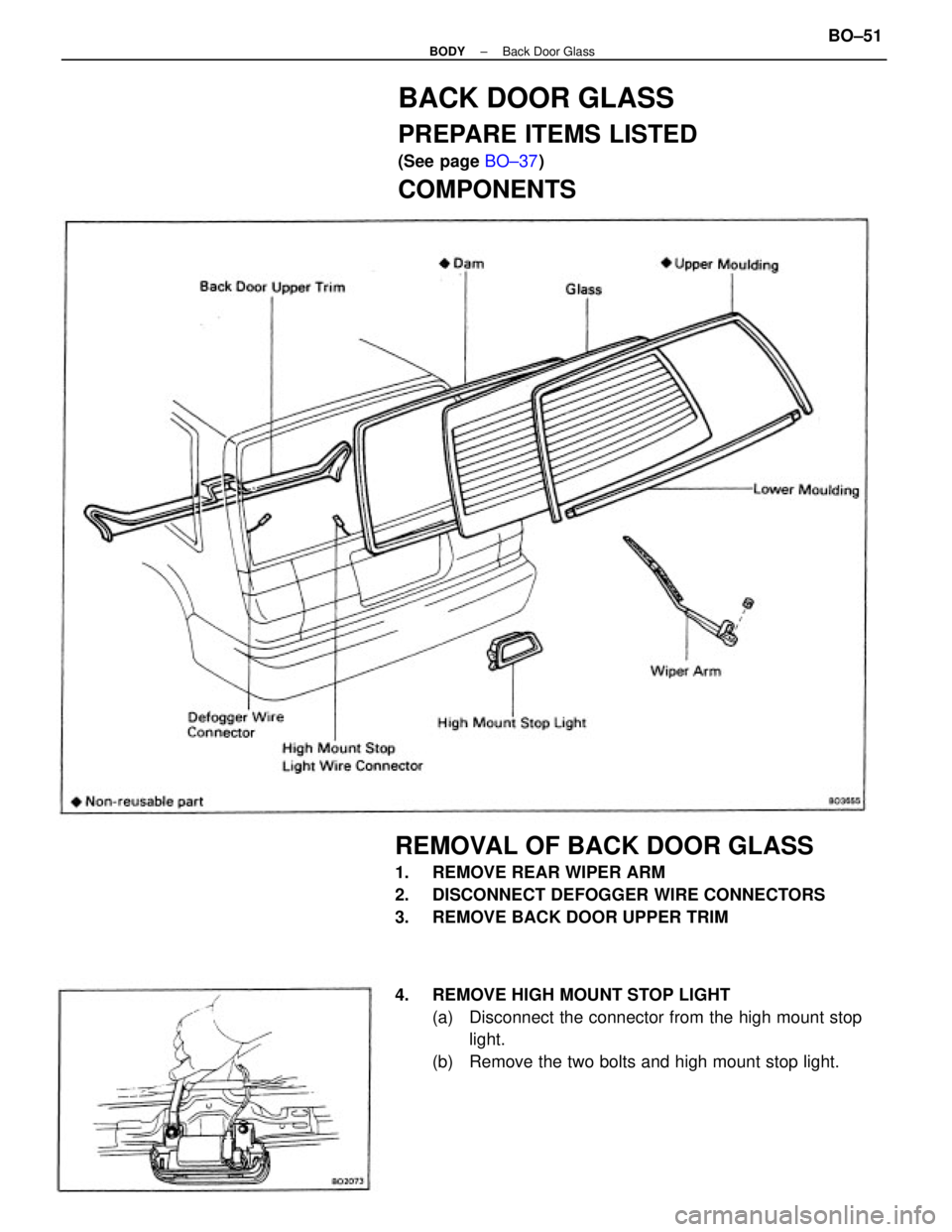

BACK DOOR GLASS
PREPARE ITEMS LISTED
(See page BO±37)
COMPONENTS
± BODYBack Door GlassBO±51
Page 718 of 2389

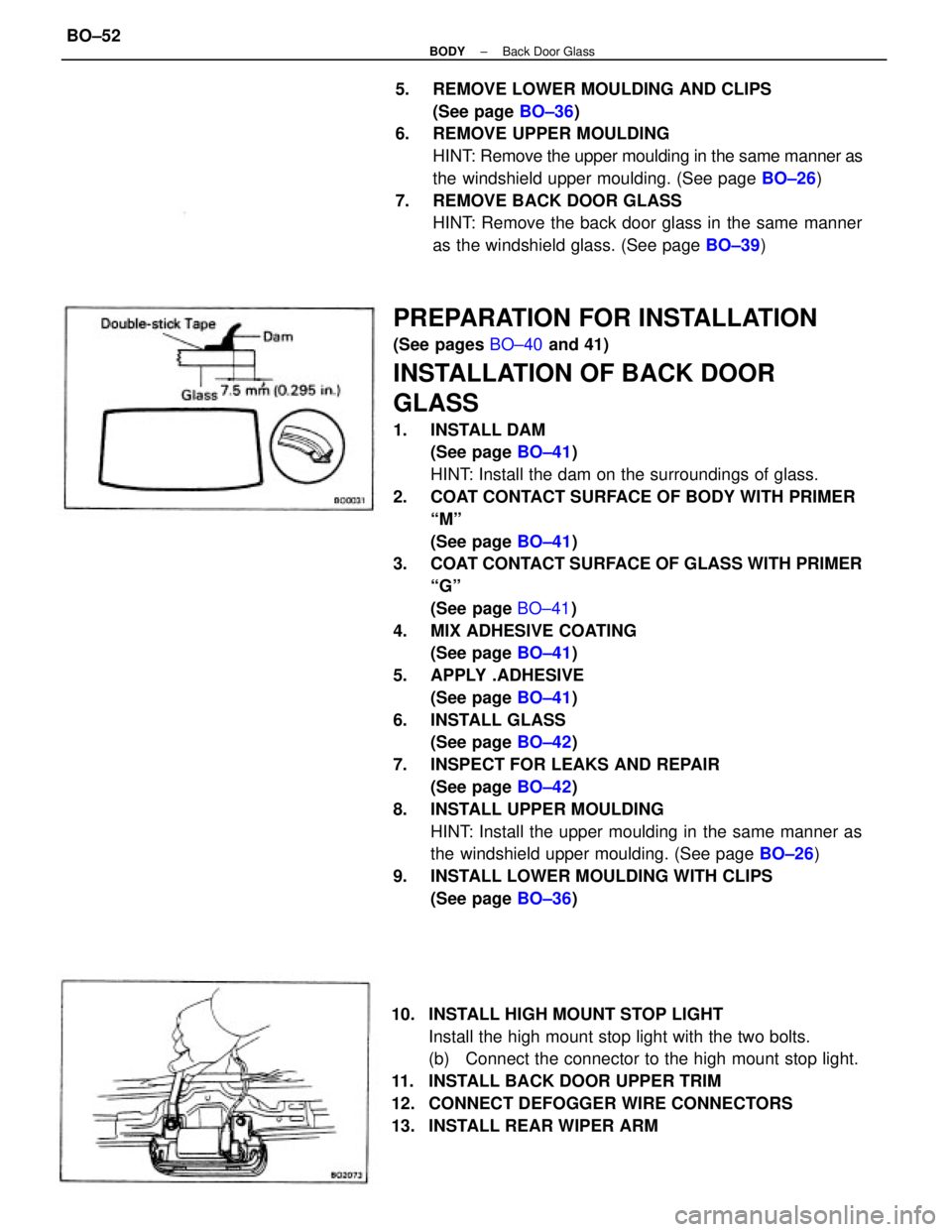

PREPARATION FOR INSTALLATION
(See pages BO±40 and 41)
INSTALLATION OF BACK DOOR
GLASS
1. INSTALL DAM
(See page BO±41)
HINT: Install the dam on the surroundings of glass.
2. COAT CONTACT SURFACE OF BODY WITH PRIMER
ªMº
(See page BO±41)
3. COAT CONTACT SURFACE OF GLASS WITH PRIMER
ªGº
(See page BO±41)
4. MIX ADHESIVE COATING
(See page BO±41)
5. APPLY .ADHESIVE
(See page BO±41)
6. INSTALL GLASS
(See page BO±42)
7. INSPECT FOR LEAKS AND REPAIR
(See page BO±42)
8. INSTALL UPPER MOULDING
HINT: Install the upper moulding in the same manner as
the windshield upper moulding. (See page BO±26)
9. INSTALL LOWER MOULDING WITH CLIPS
(See page BO±36) 5. REMOVE LOWER MOULDING AND CLIPS
(See page BO±36)
6. REMOVE UPPER MOULDING
HINT: Remove the upper moulding in the same manner as
the windshield upper moulding. (See page BO±26)
7. REMOVE BACK DOOR GLASS
HINT: Remove the back door glass in the same manner
as the windshield glass. (See page BO±39)
10. INSTALL HIGH MOUNT STOP LIGHT
Install the high mount stop light with the two bolts.
(b) Connect the connector to the high mount stop light.
11. INSTALL BACK DOOR UPPER TRIM
12. CONNECT DEFOGGER WIRE CONNECTORS
13. INSTALL REAR WIPER ARM
± BODYBack Door GlassBO±52
Page 719 of 2389

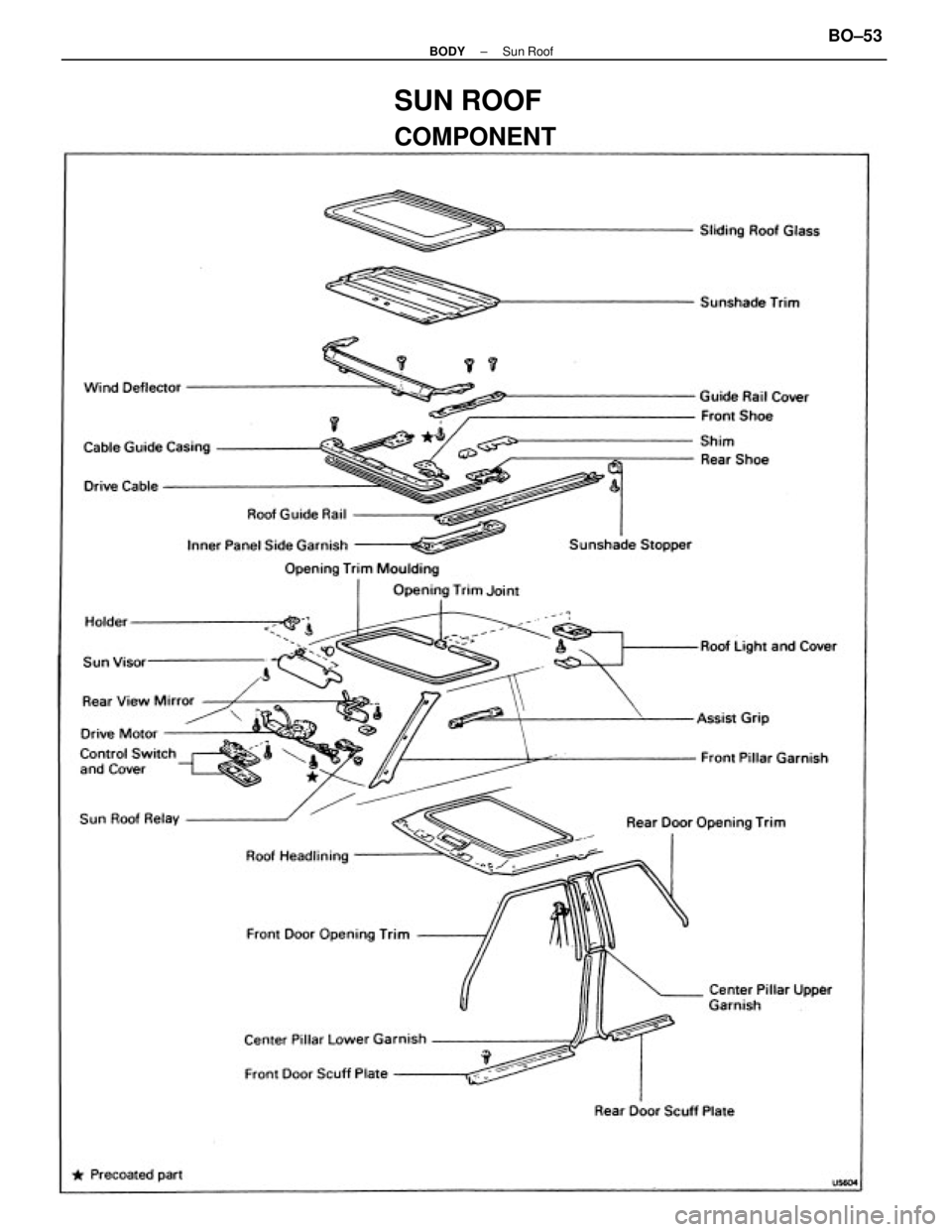

SUN ROOF
COMPONENT
± BODYSun RoofBO±53
Page 720 of 2389

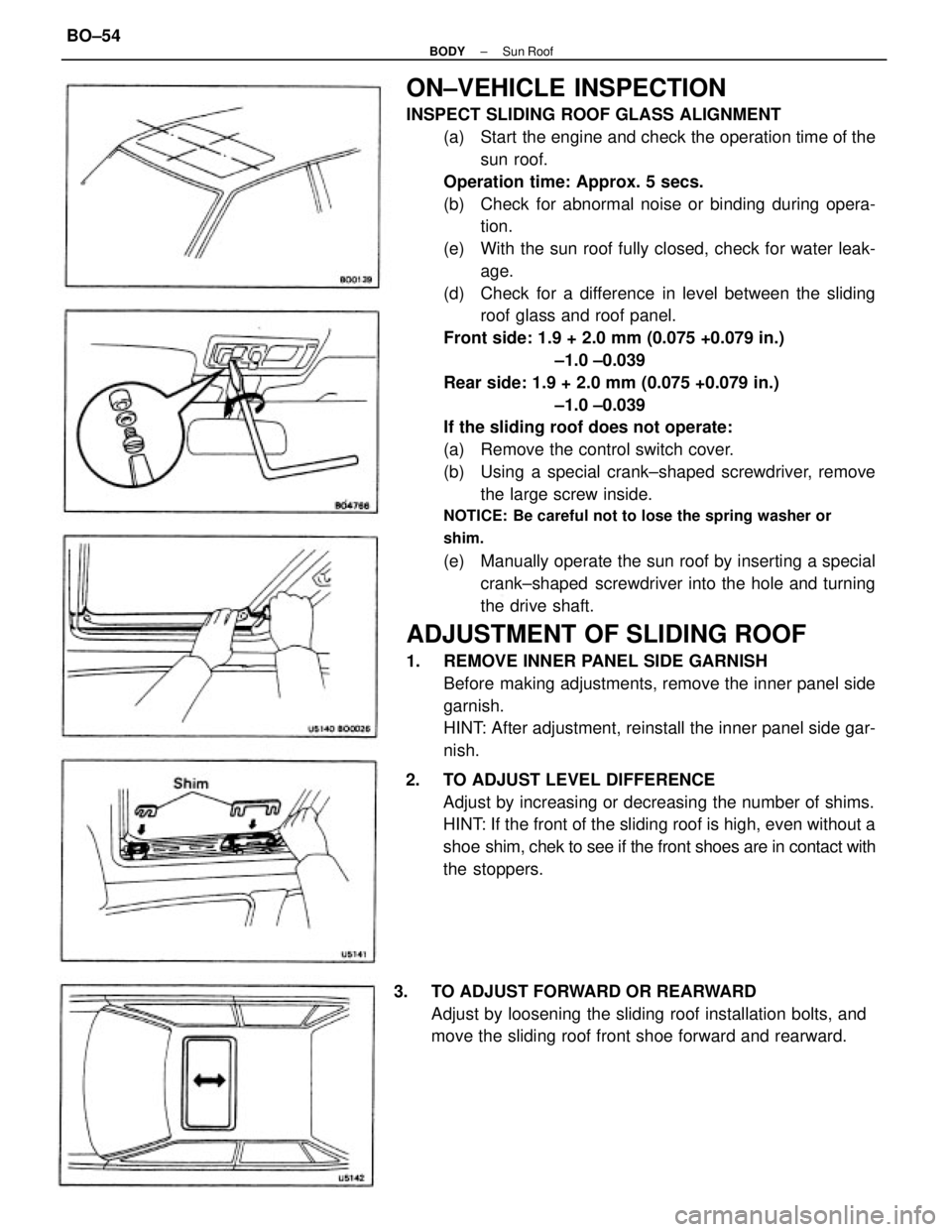

ON±VEHICLE INSPECTION
INSPECT SLIDING ROOF GLASS ALIGNMENT
(a) Start the engine and check the operation time of the
sun roof.
Operation time: Approx. 5 secs.
(b) Check for abnormal noise or binding during opera-
tion.
(e) With the sun roof fully closed, check for water leak-
age.
(d) Check for a difference in level between the sliding
roof glass and roof panel.
Front side: 1.9 + 2.0 mm (0.075 +0.079 in.)
±1.0 ±0.039
Rear side: 1.9 + 2.0 mm (0.075 +0.079 in.)
±1.0 ±0.039
If the sliding roof does not operate:
(a) Remove the control switch cover.
(b) Using a special crank±shaped screwdriver, remove
the large screw inside.
NOTICE: Be careful not to lose the spring washer or
shim.
(e) Manually operate the sun roof by inserting a special
crank±shaped screwdriver into the hole and turning
the drive shaft.
ADJUSTMENT OF SLIDING ROOF
1. REMOVE INNER PANEL SIDE GARNISH
Before making adjustments, remove the inner panel side
garnish.
HINT: After adjustment, reinstall the inner panel side gar-
nish.
2. TO ADJUST LEVEL DIFFERENCE
Adjust by increasing or decreasing the number of shims.
HINT: If the front of the sliding roof is high, even without a
shoe shim, chek to see if the front shoes are in contact with
the stoppers.
3. TO ADJUST FORWARD OR REARWARD
Adjust by loosening the sliding roof installation bolts, and
move the sliding roof front shoe forward and rearward.
± BODYSun RoofBO±54
