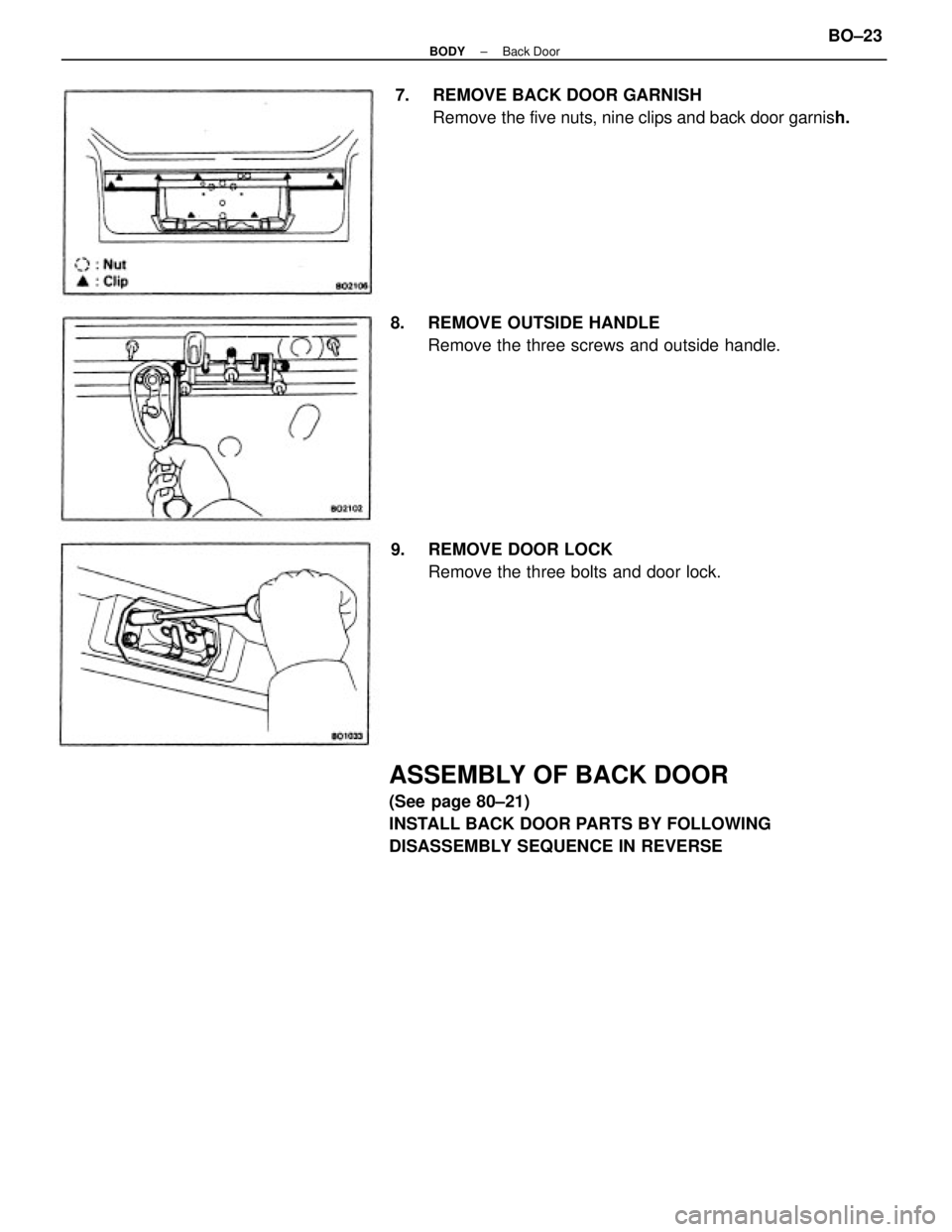

TOYOTA CAMRY V20 1986 Service Information ASSEMBLY OF BACK DOOR (See page 80±21) INSTALL BACK DOOR PARTS BY FOLLOWING DISASSEMBLY SEQUENCE IN REVERSE7. REMOVE BACK DOOR GARNISH Remove the five nuts, nine clips and back door garnish. 8. REM

Page 690 of 2389

TOYOTA CAMRY V20 1986 Service Information Back Door Damper Stay NOTICE: Handling the damper. . (a) Do not disassemble the damper because the cylinder is filled with pressurized gas. (b) If the damper is to be replaced, drill a 2.0 ± 3.0ttm

Page 691 of 2389

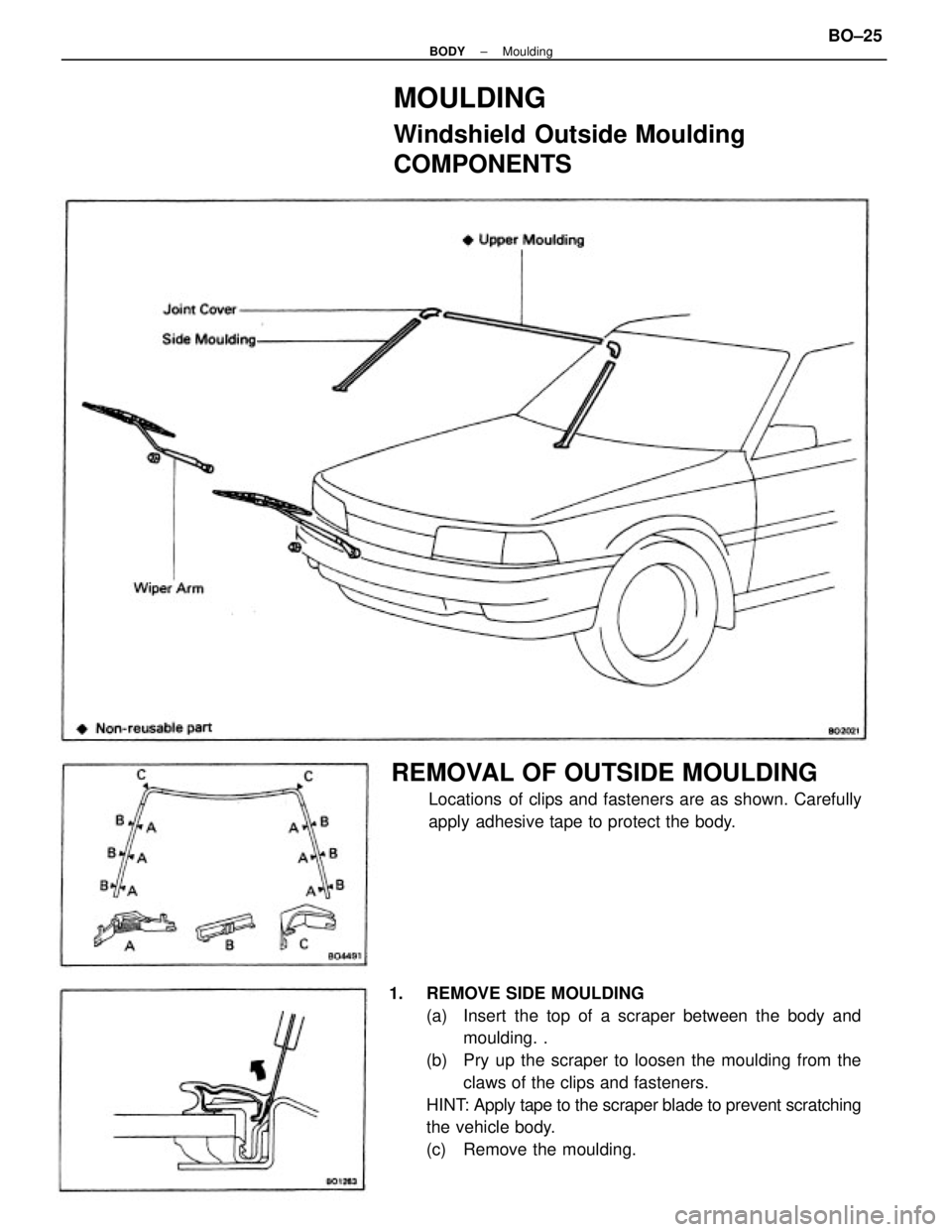

TOYOTA CAMRY V20 1986 Service Information 1. REMOVE SIDE MOULDING (a) Insert the top of a scraper between the body and moulding. . (b) Pry up the scraper to loosen the moulding from the claws of the clips and fasteners. HINT: Apply tape to

Page 692 of 2389

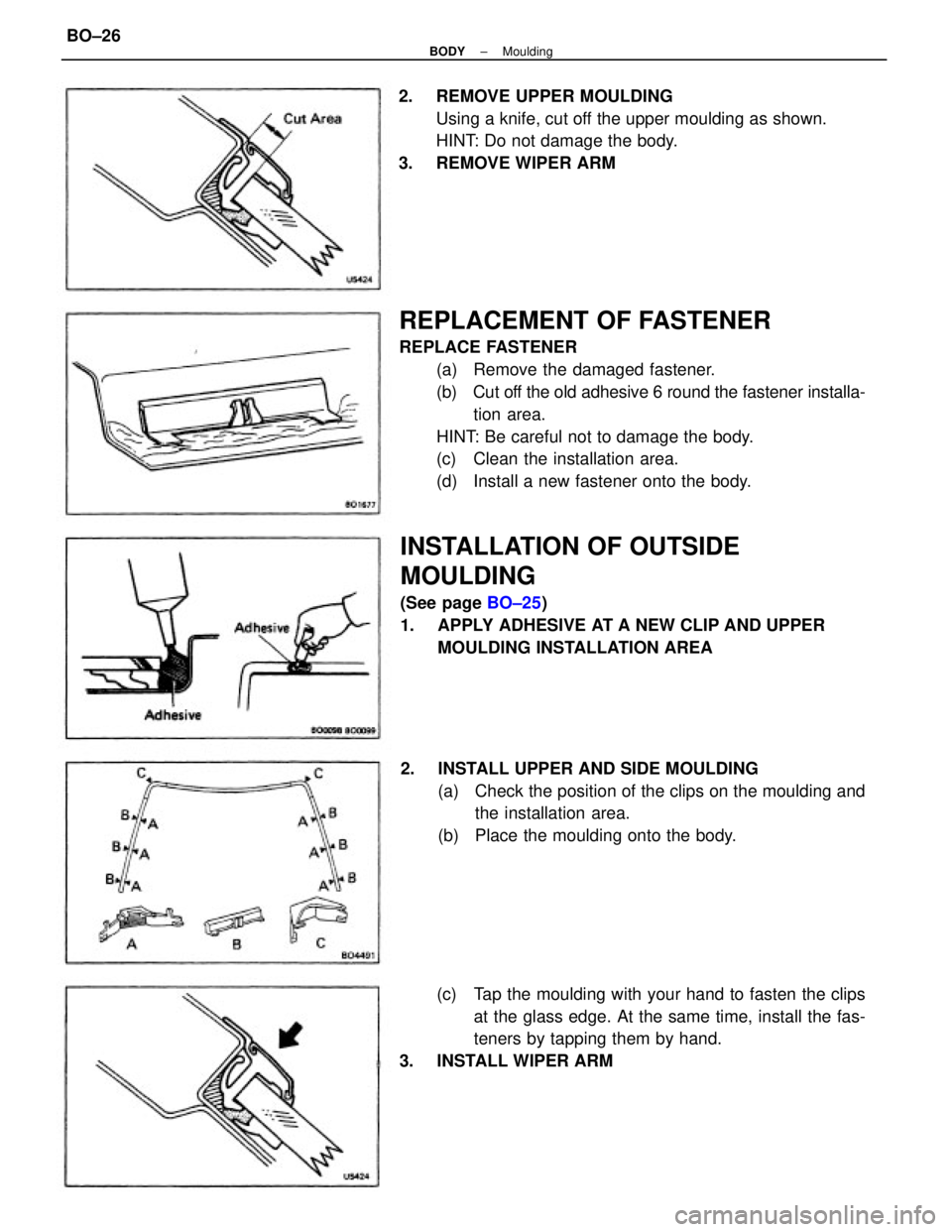

TOYOTA CAMRY V20 1986 Service Information REPLACEMENT OF FASTENER REPLACE FASTENER (a) Remove the damaged fastener. (b) Cut off the old adhesive 6 round the fastener installa- tion area. HINT: Be careful not to damage the body. (c) Clean t

Page 693 of 2389

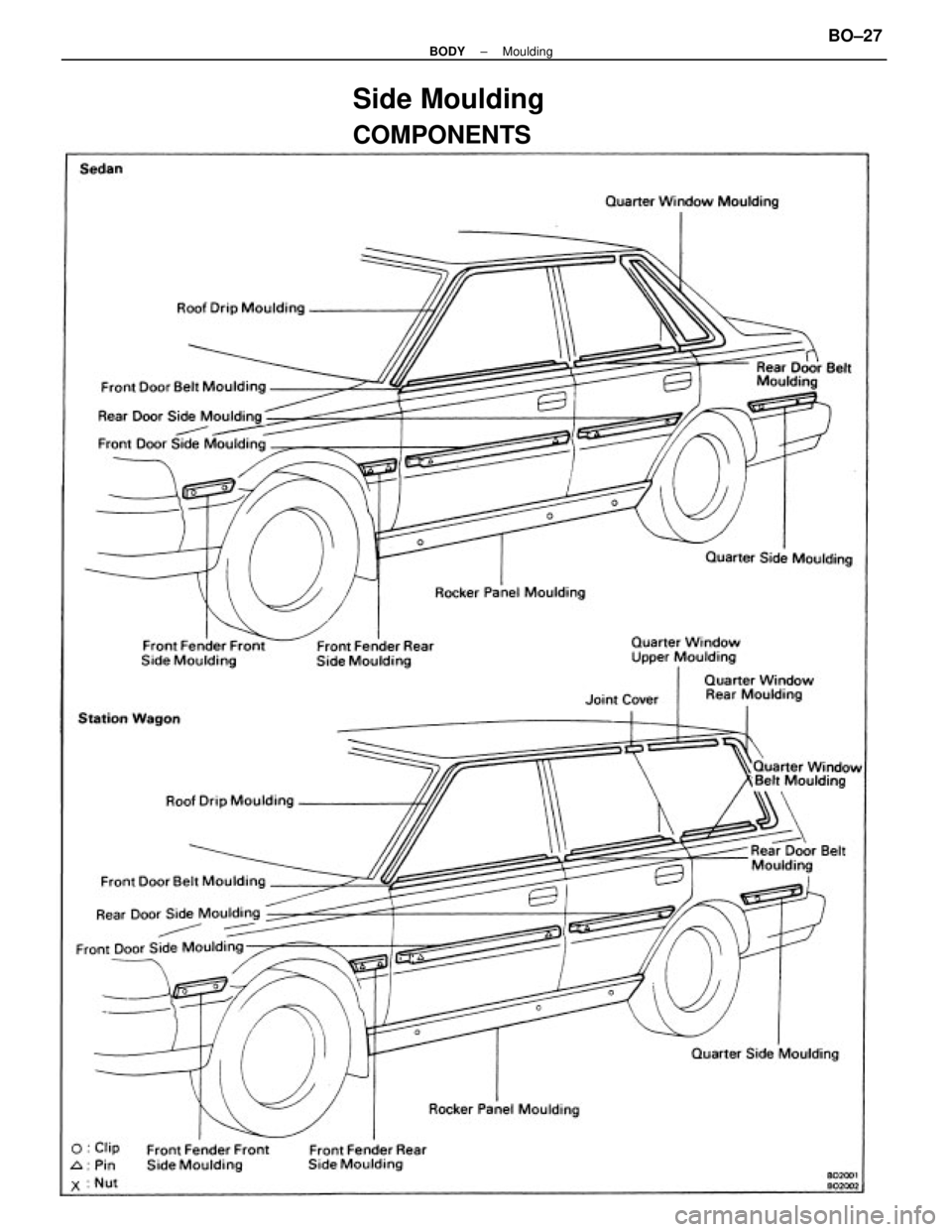

TOYOTA CAMRY V20 1986 Service Information Side Moulding COMPONENTS ± BODYMouldingBO±27

Page 694 of 2389

TOYOTA CAMRY V20 1986 Service Information REMOVAL OF DOOR BELT MOULDING 1. REMOVE DOOR GLASS Front Door (See page BO±6) Rear Door (See page BO±1 3) 2. REMOVE DOOR BELT MOULDING (a) Remove the screw. (Front door) (b) Remove the two screw

Page 695 of 2389

TOYOTA CAMRY V20 1986 Service Information REMOVAL OF ROCKER PANEL MOULDING (See page BO±27) REMOVE ROCKER PANEL MOULDING (a) Remove the two screws. (b) Pry loose the clips with a scraper and remove the moulding. HINT: Apply tape to the scr

Page 696 of 2389

TOYOTA CAMRY V20 1986 Service Information Precautions for storing moulding material: wStore in a cool place, avoiding direct sunlight, high temperatures and dust. wThe moulding is of polyvinyl chloride, so do not allow it to come in contact w
