TOYOTA CAMRY V20 1986 Service Information Connector A Connector B Connector A Lass than 1mmConnector B Bolt Cross±section of the bolt TERMINAL AND CONNECTOR REPAIR±HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS B±52 62 Wire Harness Repair Ma

Page 1482 of 2389

TOYOTA CAMRY V20 1986 Service Information Locking ArmHold back rib to pull connector back ribs B±53 TERMINAL AND CONNECTOR REPAIR±HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS 63 Wire Harness Repair Manual (RM1022E) 1. Cut the connection o

Page 1483 of 2389

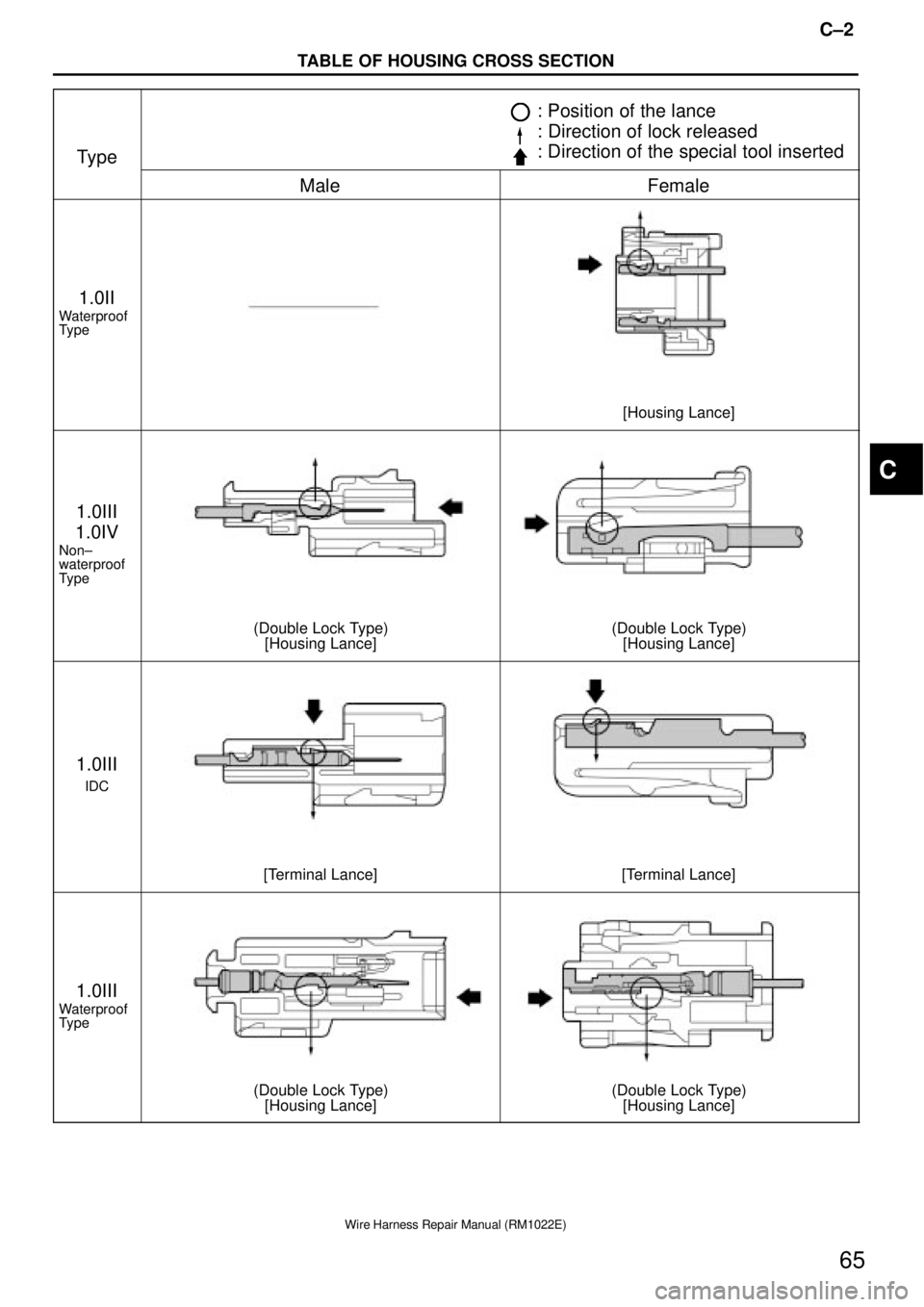

TOYOTA CAMRY V20 1986 Service Information TABLE OF HOUSING CROSS SECTION C±1 64 Wire Harness Repair Manual (RM1022E) Type : Position of the lance : Direction of lock released : Direction of the special tool inserted MaleFemale 0.64 (Double L

Page 1484 of 2389

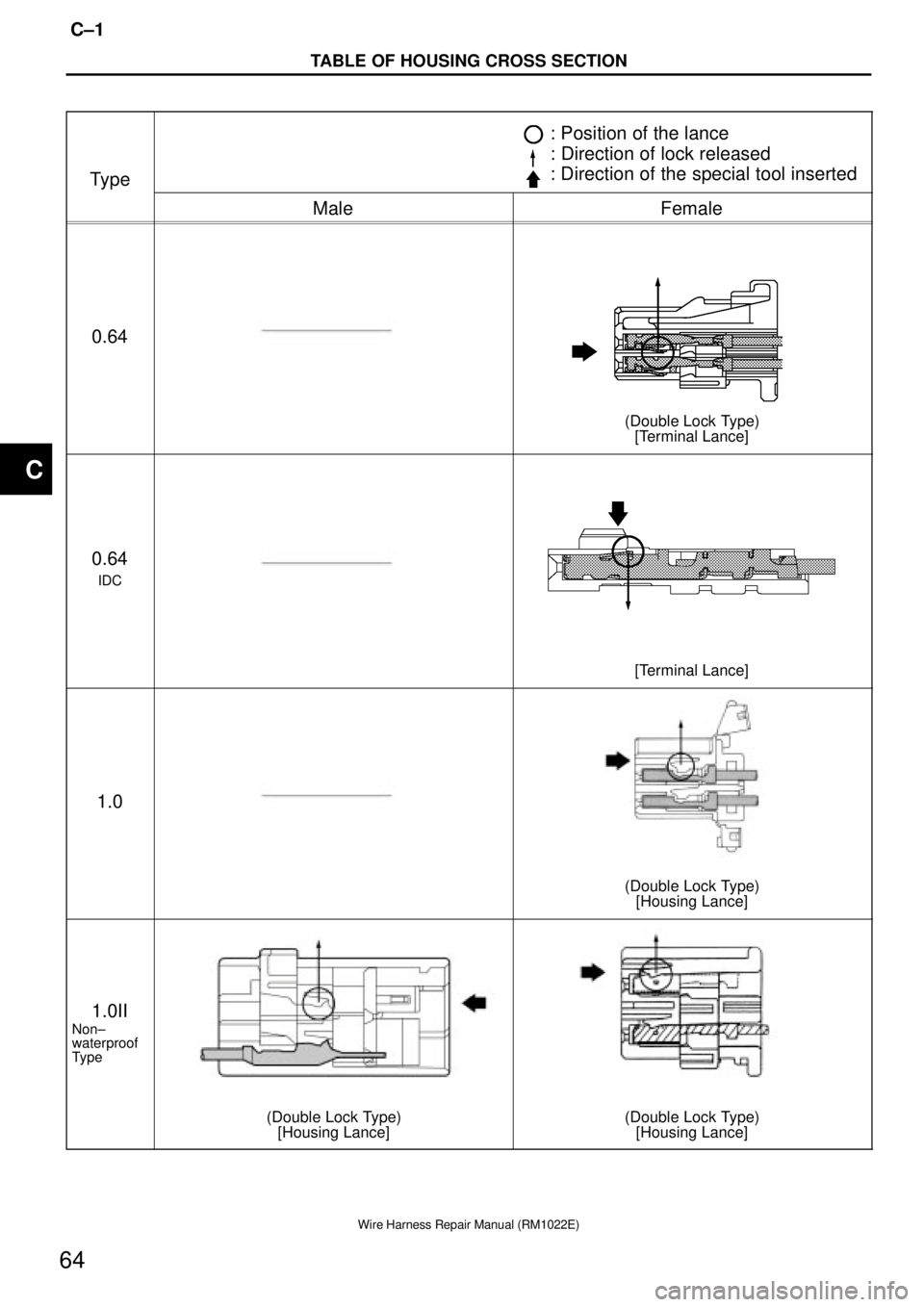

TOYOTA CAMRY V20 1986 Service Information C±2 TABLE OF HOUSING CROSS SECTION Wire Harness Repair Manual (RM1022E) 65 Type : Position of the lance : Direction of lock released : Direction of the special tool inserted MaleFemale 1.0II Waterpro

Page 1485 of 2389

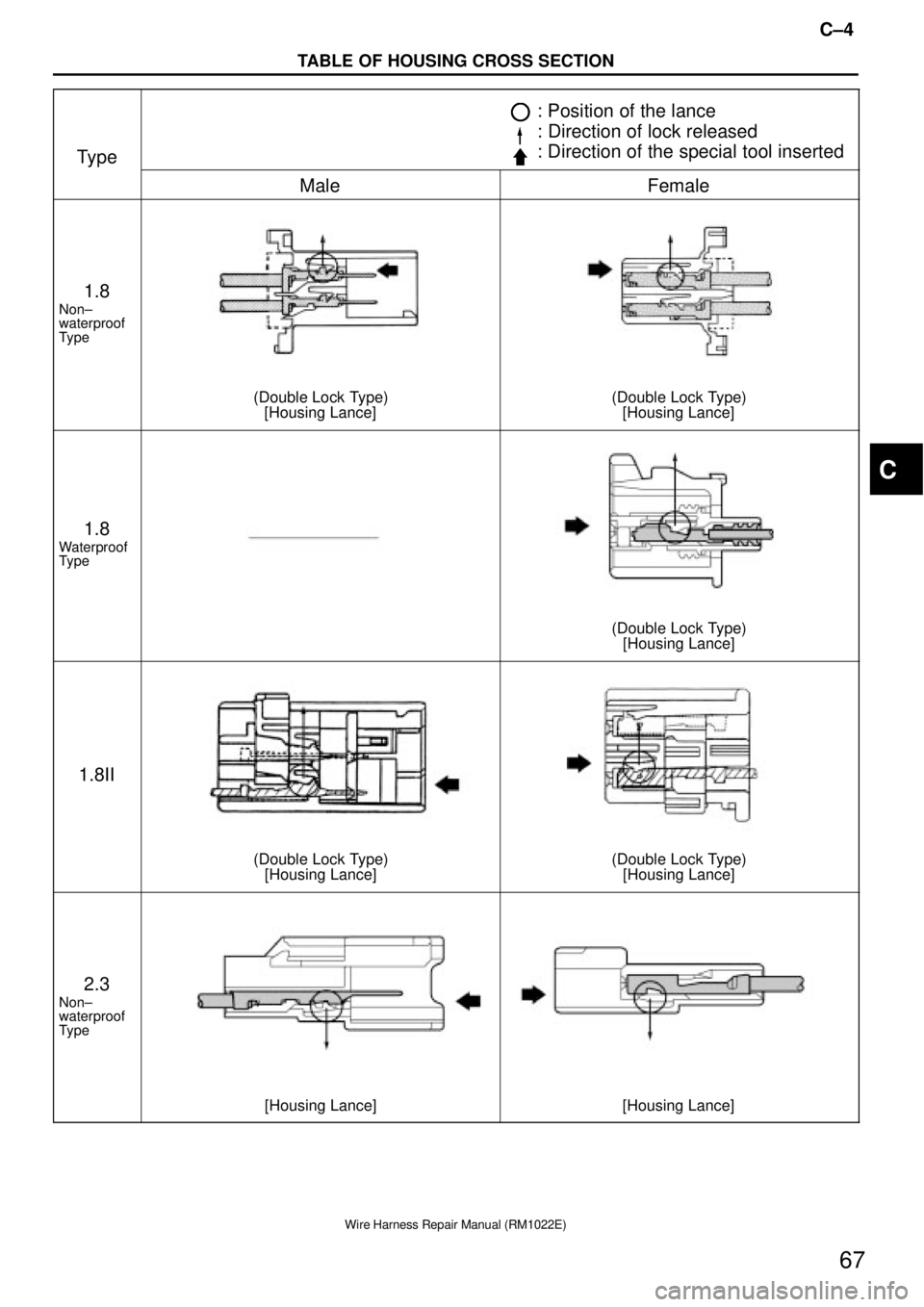

TOYOTA CAMRY V20 1986 Service Information TABLE OF HOUSING CROSS SECTION C±3 66 Wire Harness Repair Manual (RM1022E) Type : Position of the lance : Direction of lock released : Direction of the special tool inserted MaleFemale 1.3 Non± wate

Page 1486 of 2389

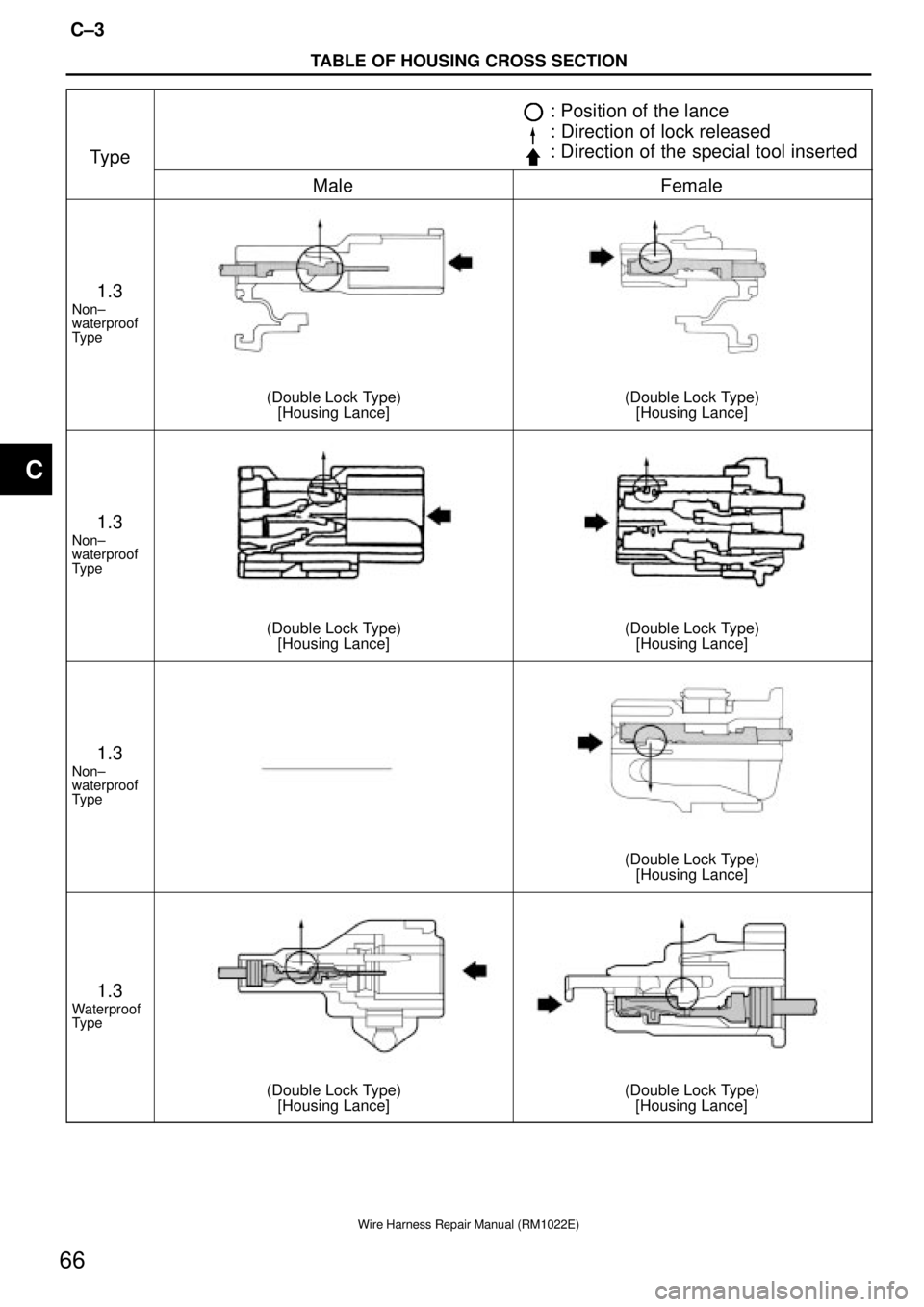

TOYOTA CAMRY V20 1986 Service Information C±4 TABLE OF HOUSING CROSS SECTION Wire Harness Repair Manual (RM1022E) 67 Type : Position of the lance : Direction of lock released : Direction of the special tool inserted MaleFemale 1.8 Non± wate

Page 1487 of 2389

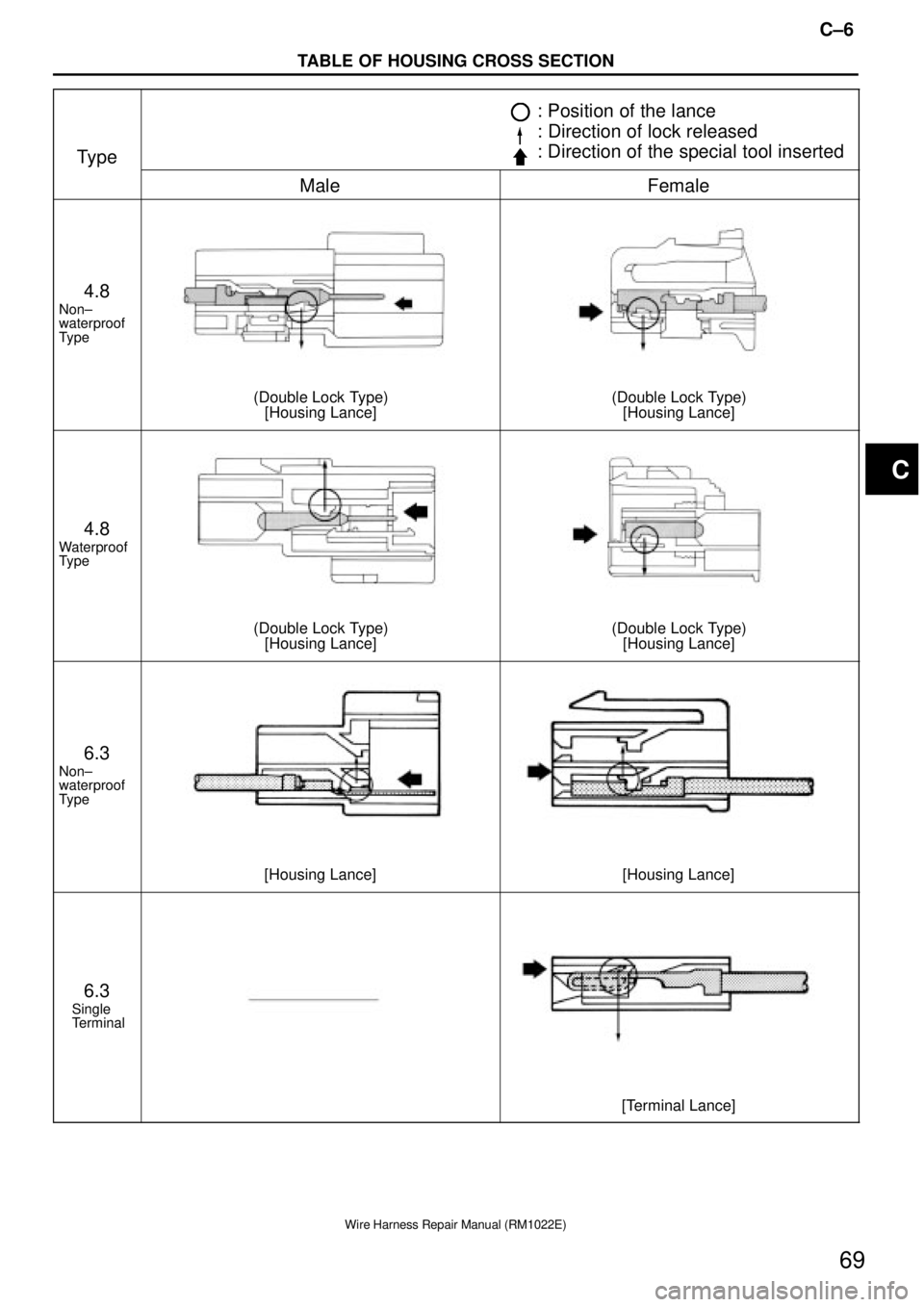

TOYOTA CAMRY V20 1986 Service Information TABLE OF HOUSING CROSS SECTION C±5 68 Wire Harness Repair Manual (RM1022E) Type : Position of the lance : Direction of lock released : Direction of the special tool inserted MaleFemale 2.3 Waterproof

Page 1488 of 2389

TOYOTA CAMRY V20 1986 Service Information C±6 TABLE OF HOUSING CROSS SECTION Wire Harness Repair Manual (RM1022E) 69 Type : Position of the lance : Direction of lock released : Direction of the special tool inserted MaleFemale 4.8 Non± wate
