Page 697 of 2389

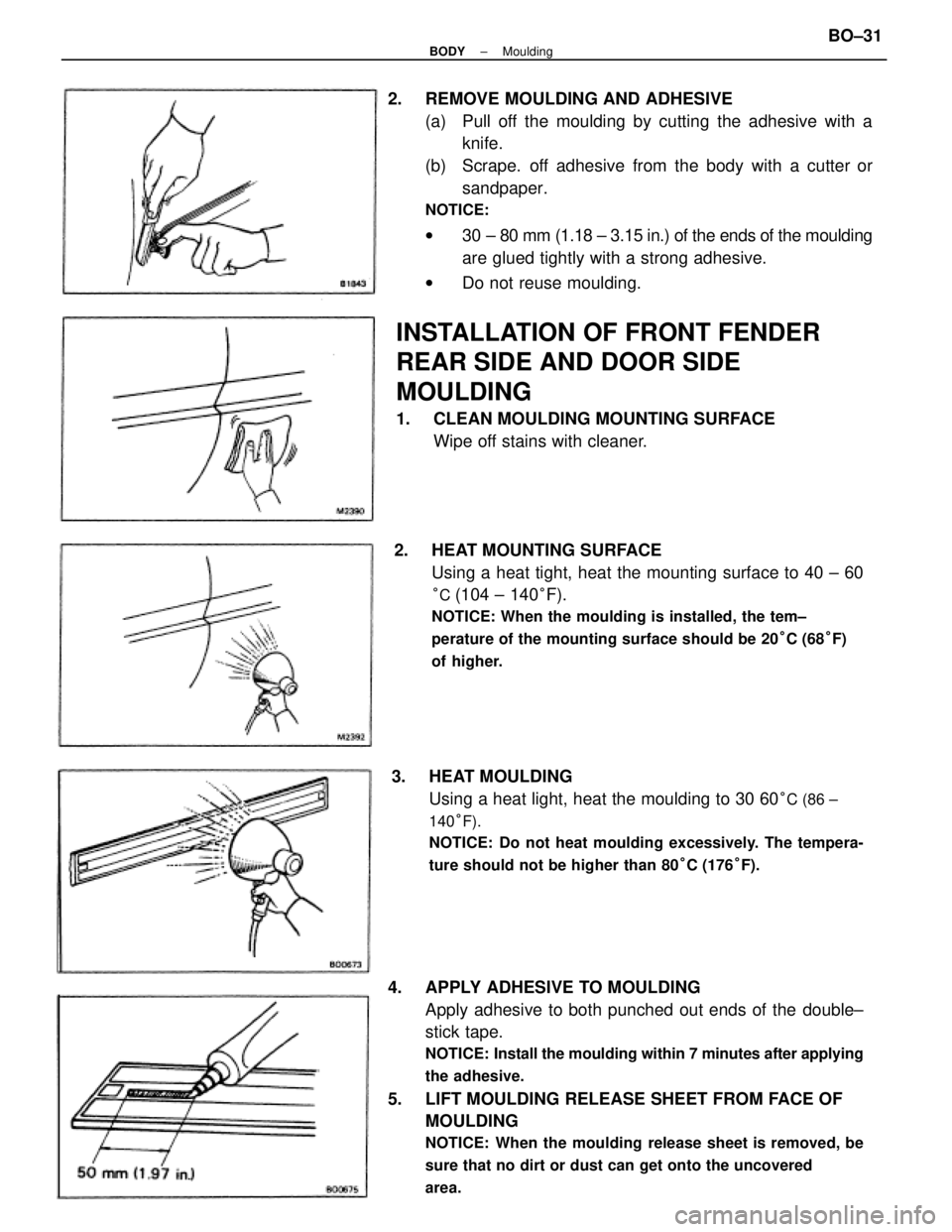

TOYOTA CAMRY V20 1986 Service Information 4. APPLY ADHESIVE TO MOULDING Apply adhesive to both punched out ends of the double± stick tape. NOTICE: Install the moulding within 7 minutes after applying the adhesive. 5. LIFT MOULDING RELEASE

Page 698 of 2389

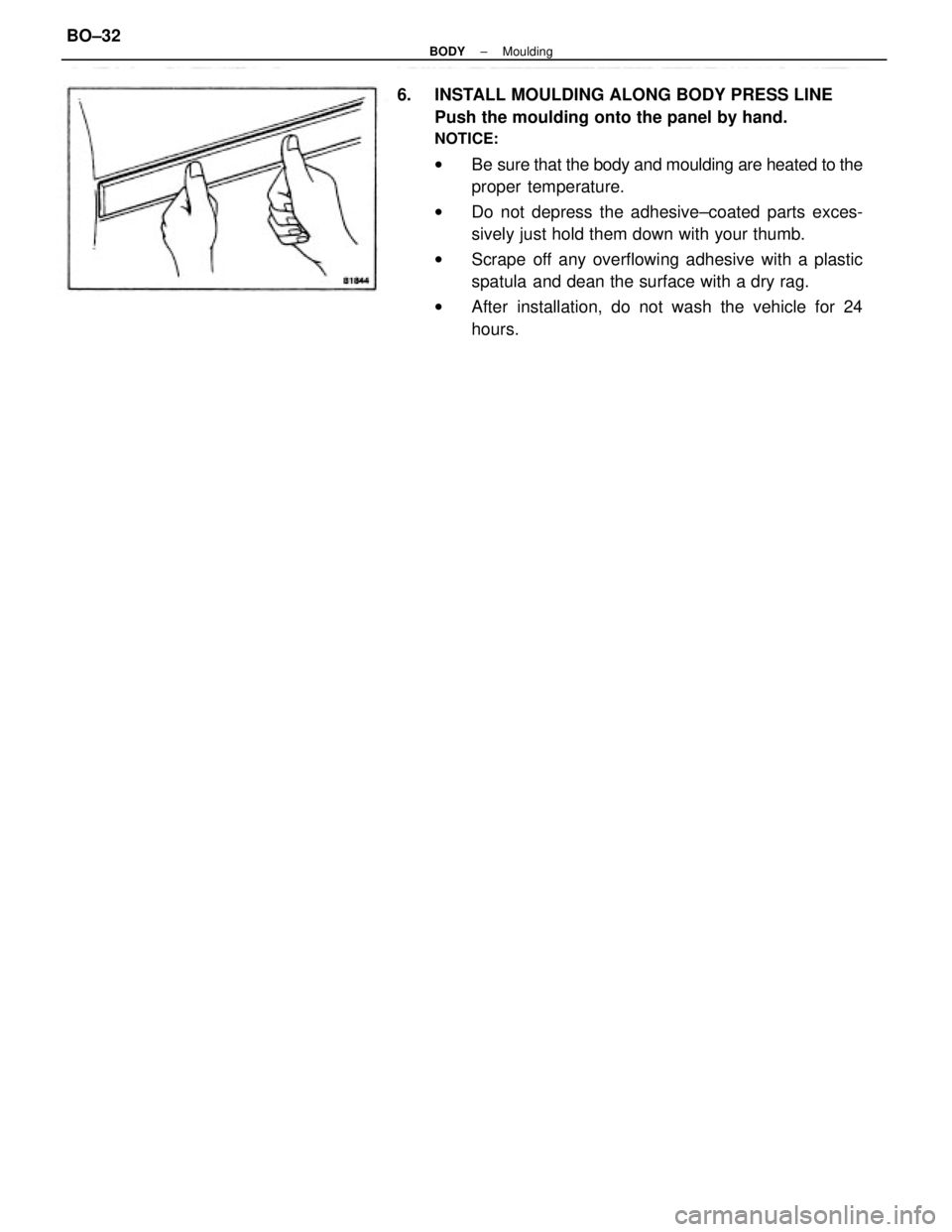

TOYOTA CAMRY V20 1986 Service Information 6. INSTALL MOULDING ALONG BODY PRESS LINE Push the moulding onto the panel by hand. NOTICE: wBe sure that the body and moulding are heated to the proper temperature. wDo not depress the adhesive±coa

Page 699 of 2389

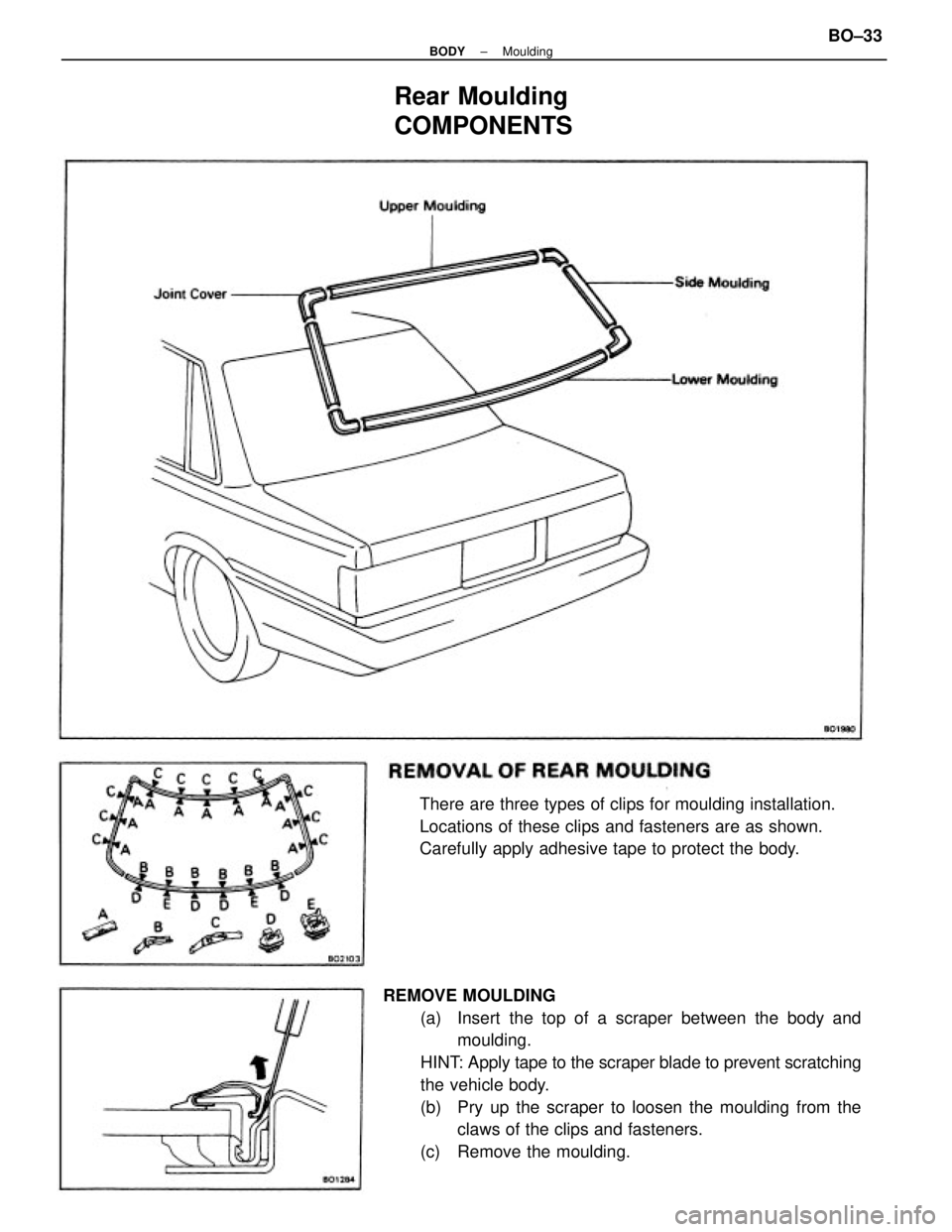

TOYOTA CAMRY V20 1986 Service Information REMOVE MOULDING (a) Insert the top of a scraper between the body and moulding. HINT: Apply tape to the scraper blade to prevent scratching the vehicle body. (b) Pry up the scraper to loosen the moul

Page 700 of 2389

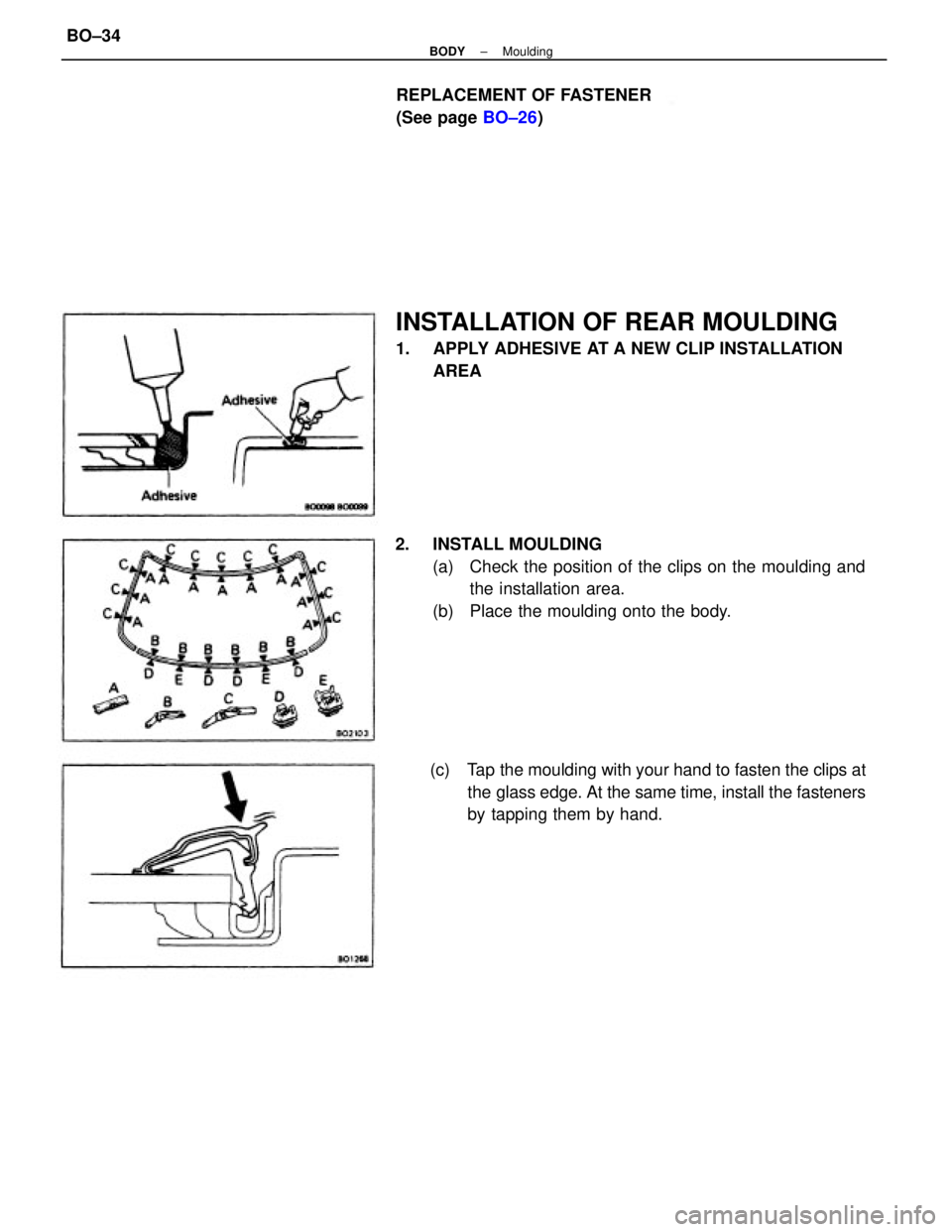

TOYOTA CAMRY V20 1986 Service Information 2. INSTALL MOULDING (a) Check the position of the clips on the moulding and the installation area. (b) Place the moulding onto the body. INSTALLATION OF REAR MOULDING 1. APPLY ADHESIVE AT A NEW CLI

Page 701 of 2389

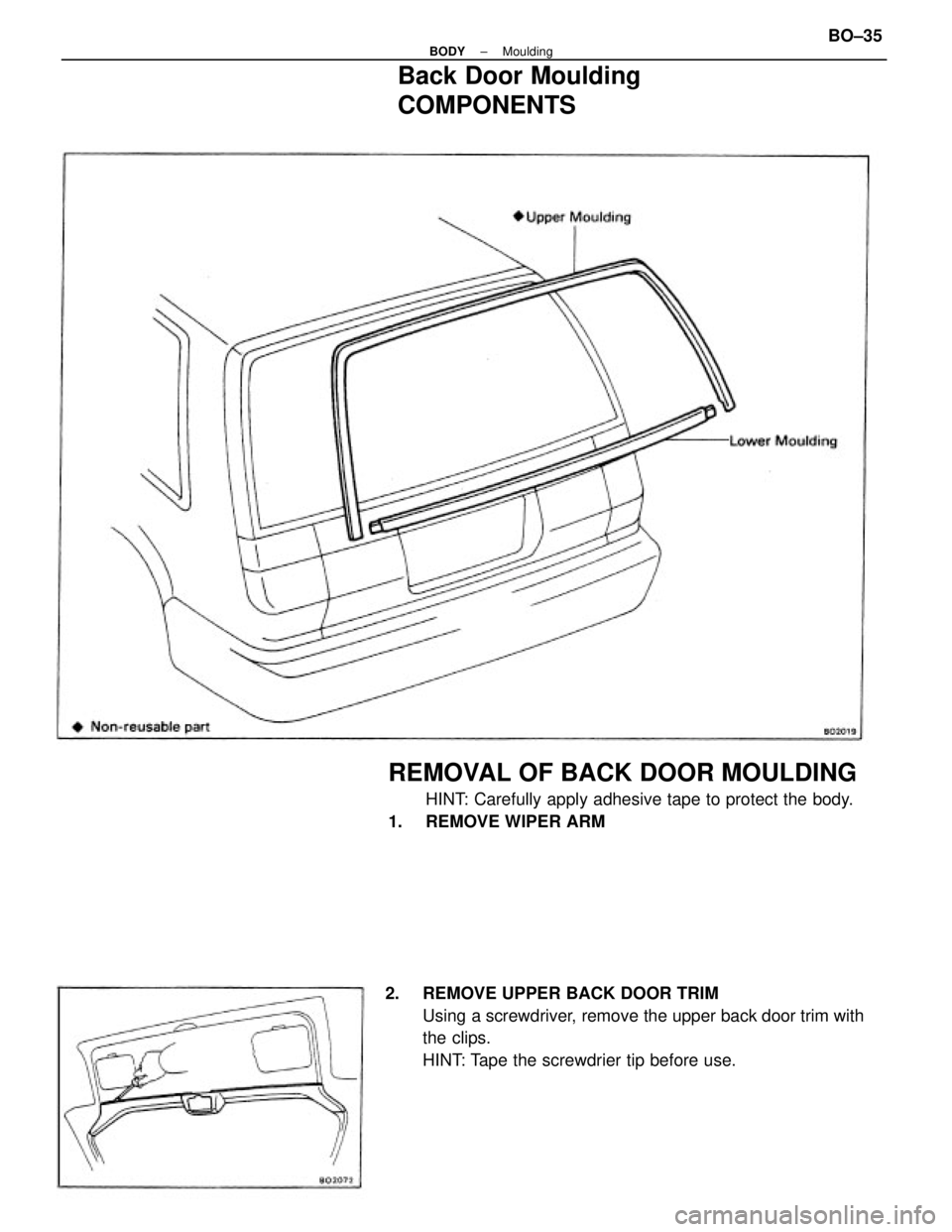

TOYOTA CAMRY V20 1986 Service Information 2. REMOVE UPPER BACK DOOR TRIM Using a screwdriver, remove the upper back door trim with the clips. HINT: Tape the screwdrier tip before use. REMOVAL OF BACK DOOR MOULDING HINT: Carefully apply adhes

Page 702 of 2389

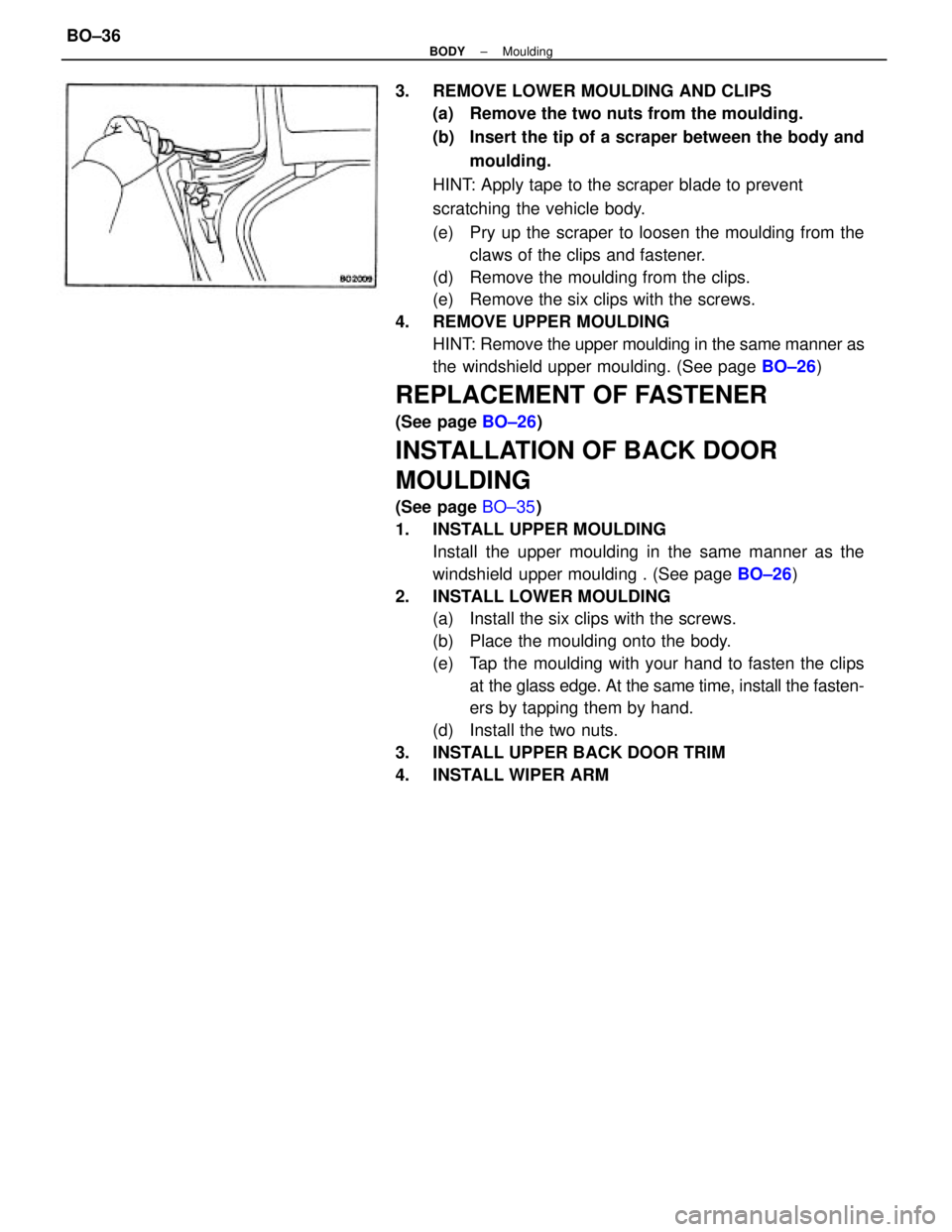

TOYOTA CAMRY V20 1986 Service Information 3. REMOVE LOWER MOULDING AND CLIPS (a) Remove the two nuts from the moulding. (b) Insert the tip of a scraper between the body and moulding. HINT: Apply tape to the scraper blade to prevent scratch

Page 703 of 2389

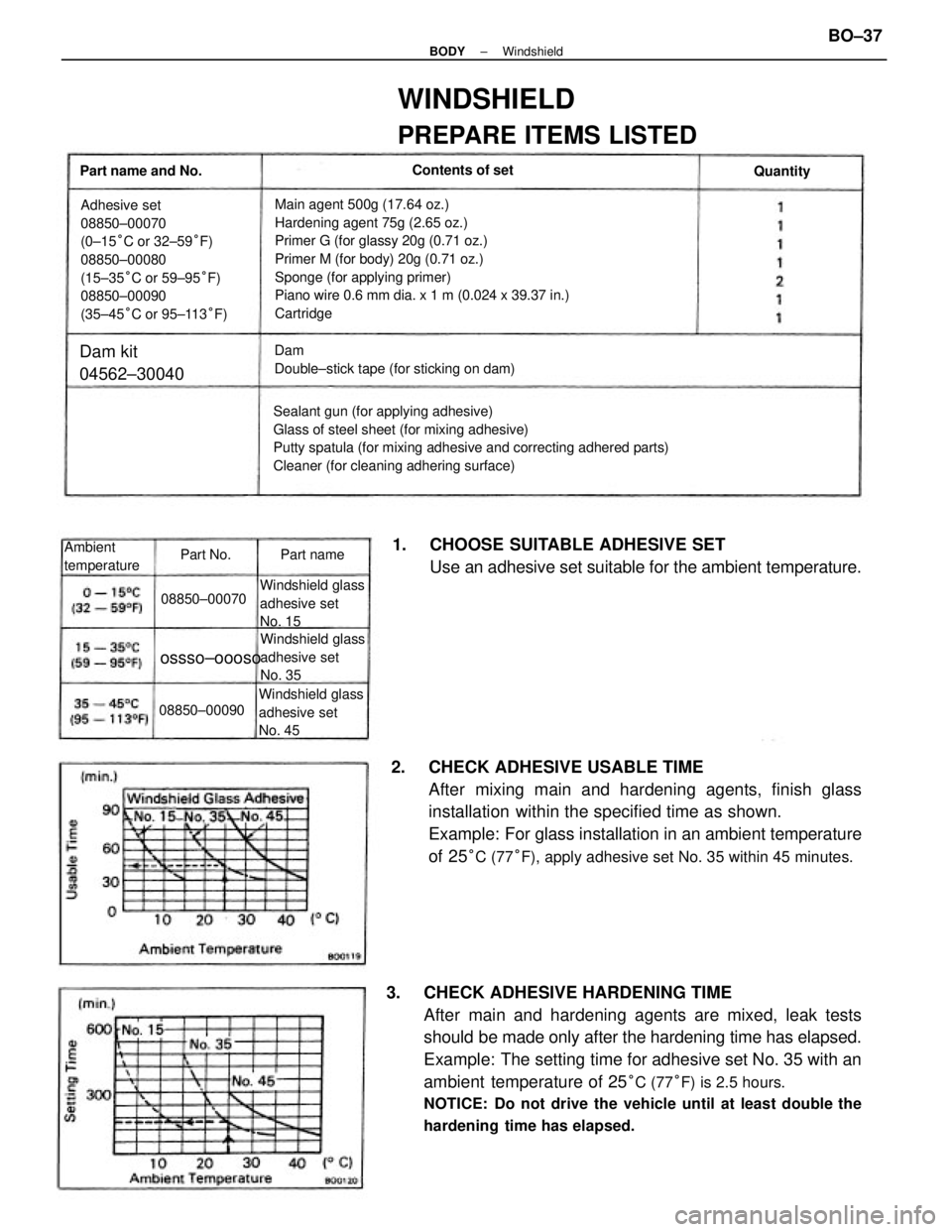

TOYOTA CAMRY V20 1986 Service Information 3. CHECK ADHESIVE HARDENING TIME After main and hardening agents are mixed, leak tests should be made only after the hardening time has elapsed. Example: The setting time for adhesive set No. 35 wit

Page 704 of 2389

TOYOTA CAMRY V20 1986 Service Information 2. REMOVE FOLLOWING PARTS: (a) Inner rear view mirror (b) Sun visors and holders (e) Hood (d) Wiper arms 3. REMOVE WINDSHIELD MOULDING (See pages BO±25 and 26) REMOVAL OF WINDSHIELD 1. REMOVE FR
