Page 1473 of 2389

TOYOTA CAMRY V20 1986 Service Information Cover Fix Band TERMINAL AND CONNECTOR REPAIR±TERMINAL REPLACEMENT B±44 54 Wire Harness Repair Manual (RM1022E) Insulation Displacement Connector w/ Cover : CLOSE COVER NOTICE: Securely lock it HIN

Page 1474 of 2389

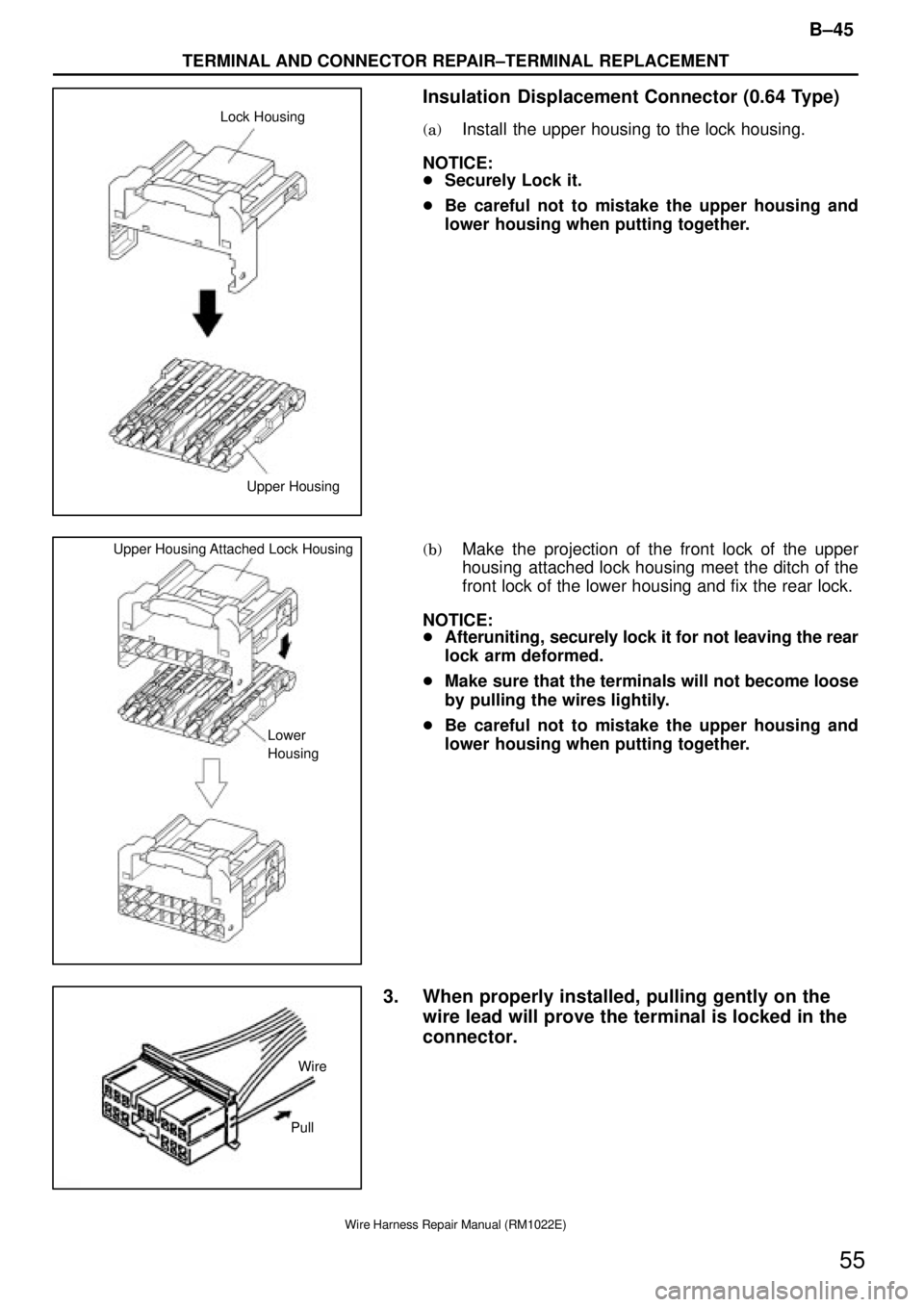

TOYOTA CAMRY V20 1986 Service Information Upper Housing Lock Housing Lower Housing Upper Housing Attached Lock Housing Wire Pull B±45 TERMINAL AND CONNECTOR REPAIR±TERMINAL REPLACEMENT 55 Wire Harness Repair Manual (RM1022E) Insulation Dis

Page 1475 of 2389

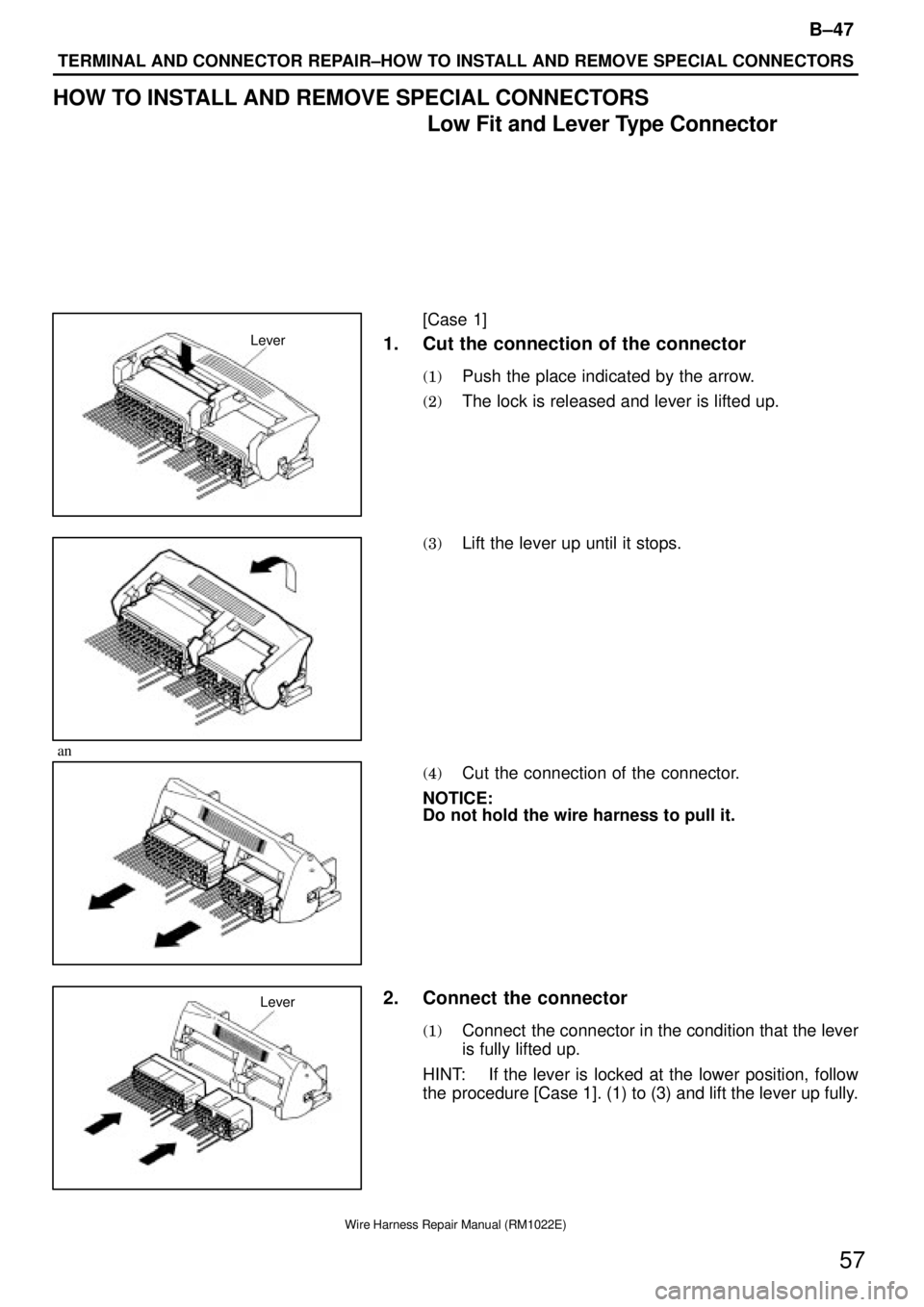

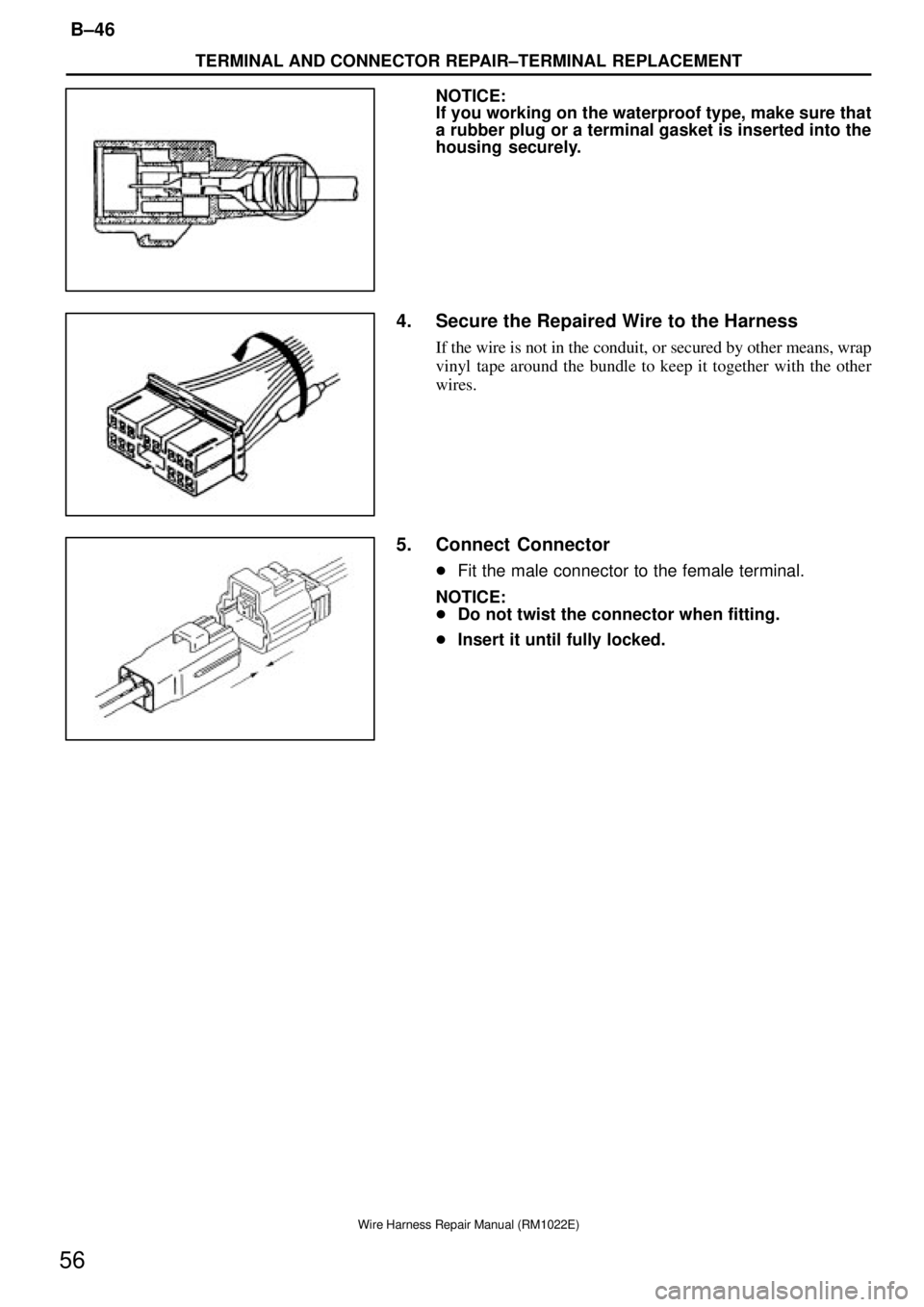

TOYOTA CAMRY V20 1986 Service Information TERMINAL AND CONNECTOR REPAIR±TERMINAL REPLACEMENT B±46 56 Wire Harness Repair Manual (RM1022E) NOTICE: If you working on the waterproof type, make sure that a rubber plug or a terminal gasket is in

Page 1476 of 2389

TOYOTA CAMRY V20 1986 Service Information Lever Lever B±47 TERMINAL AND CONNECTOR REPAIR±HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS 57 Wire Harness Repair Manual (RM1022E) HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS Low Fit and Lever Typ

Page 1477 of 2389

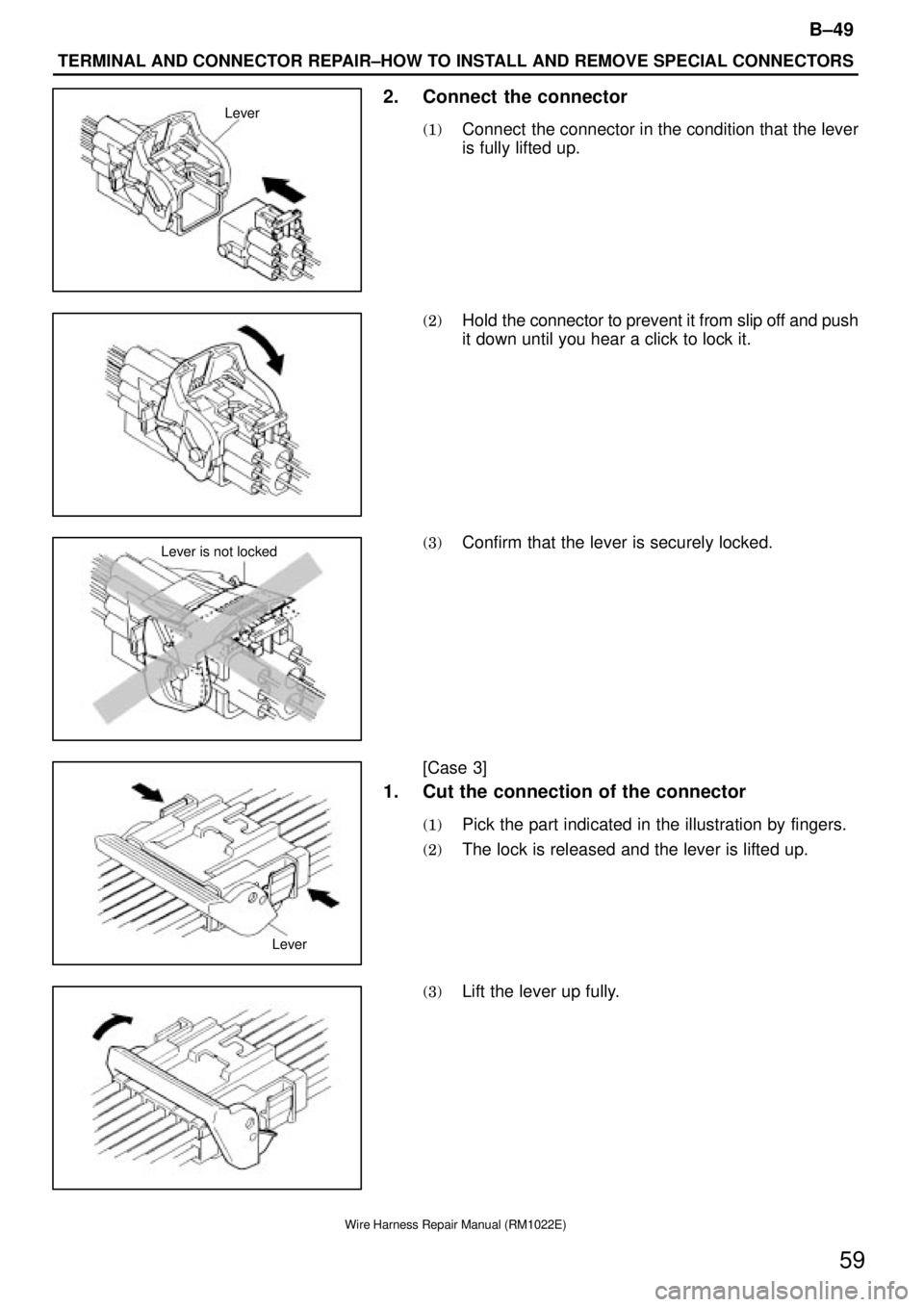

TOYOTA CAMRY V20 1986 Service Information Lever Lever is not locked Lever TERMINAL AND CONNECTOR REPAIR±HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS B±48 58 Wire Harness Repair Manual (RM1022E) (2)Hold the connector to prevent it from slip

Page 1478 of 2389

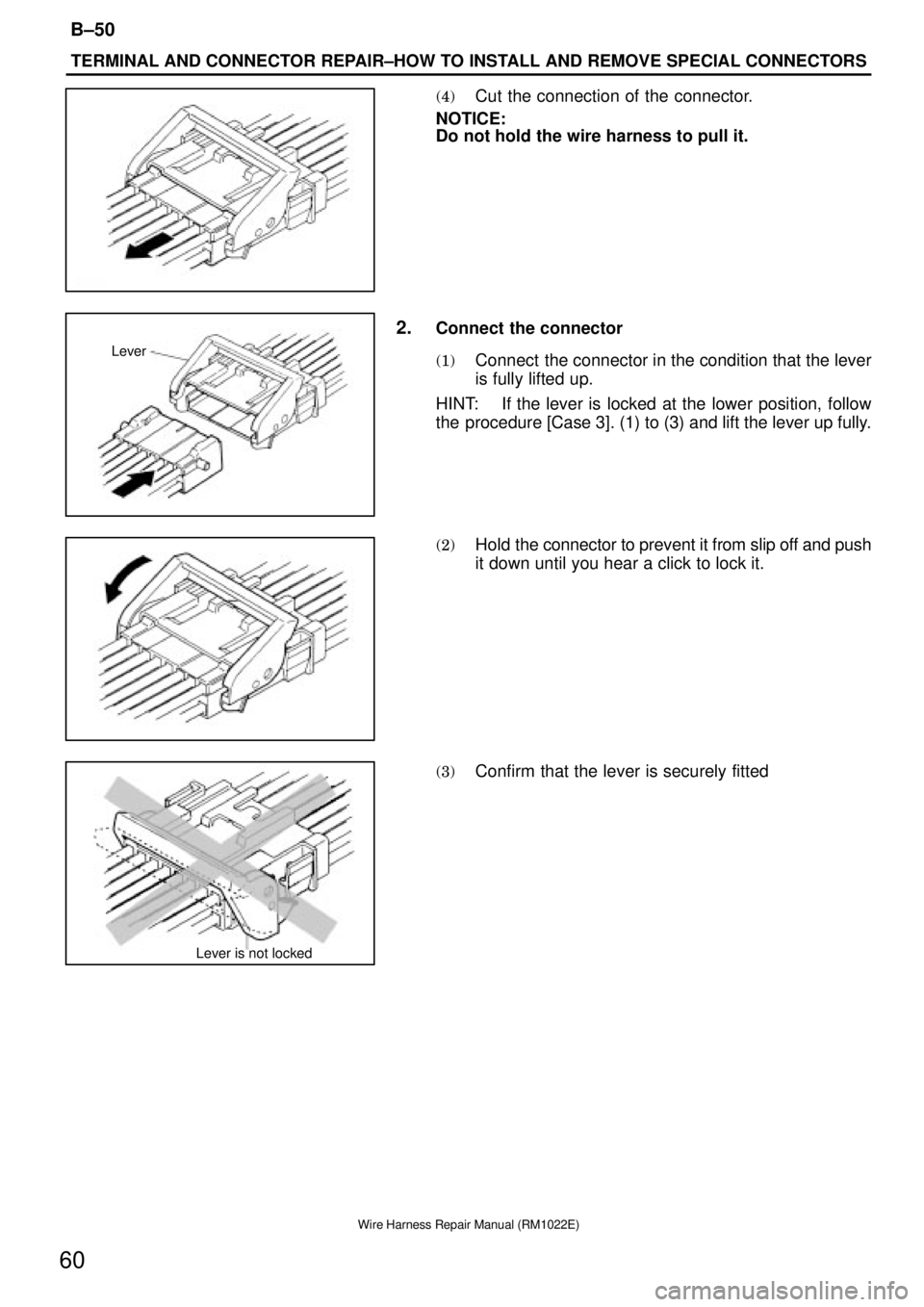

TOYOTA CAMRY V20 1986 Service Information Lever Lever is not locked Lever B±49 TERMINAL AND CONNECTOR REPAIR±HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS 59 Wire Harness Repair Manual (RM1022E) 2. Connect the connector (1)Connect the conne

Page 1479 of 2389

TOYOTA CAMRY V20 1986 Service Information Lever Lever is not locked TERMINAL AND CONNECTOR REPAIR±HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS B±50 60 Wire Harness Repair Manual (RM1022E) (4)Cut the connection of the connector. NOTICE: Do n

Page 1480 of 2389

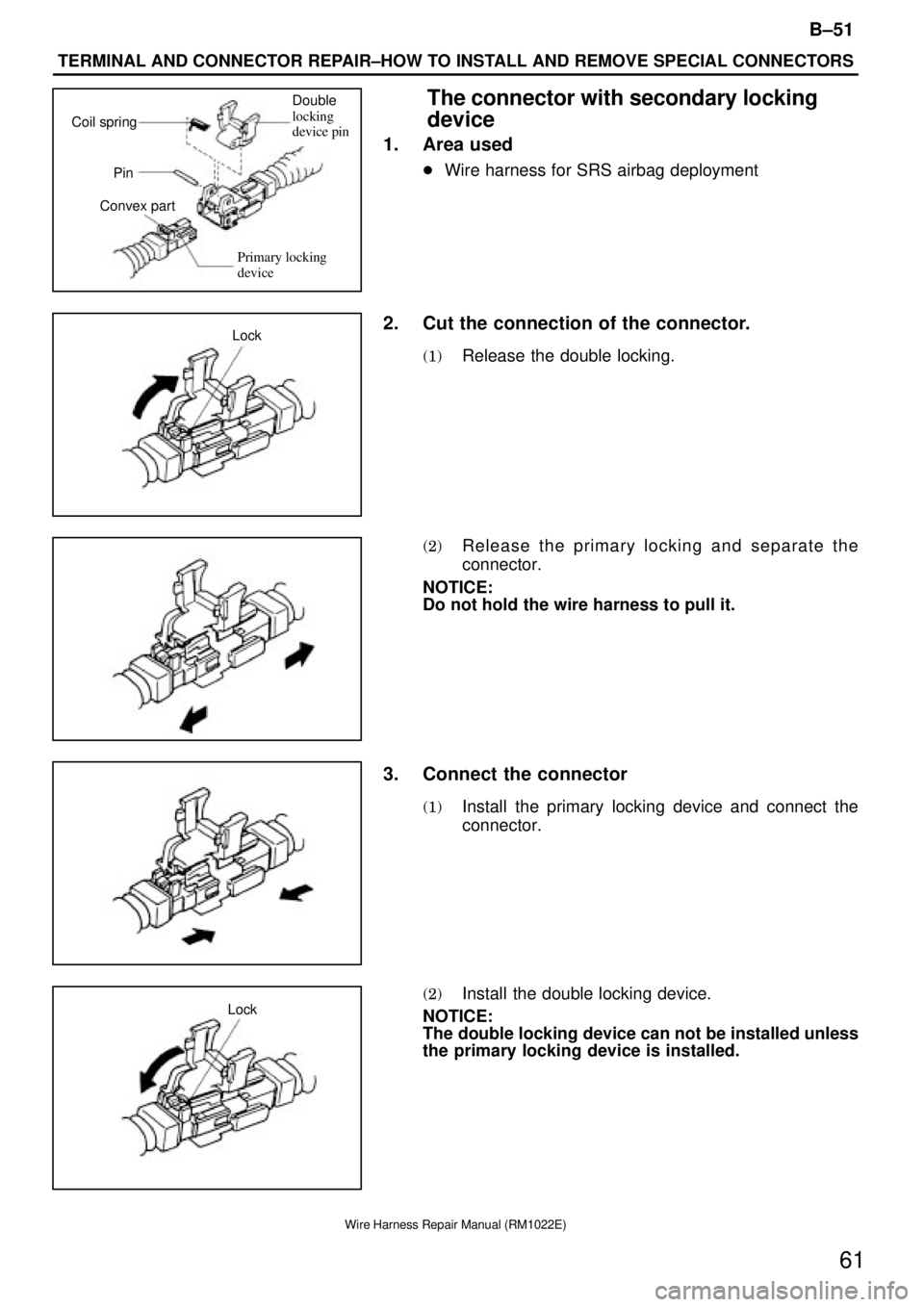

TOYOTA CAMRY V20 1986 Service Information Coil spring Pin Convex partDouble locking device pin Primary locking device Lock Lock B±51 TERMINAL AND CONNECTOR REPAIR±HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS 61 Wire Harness Repair Manual
