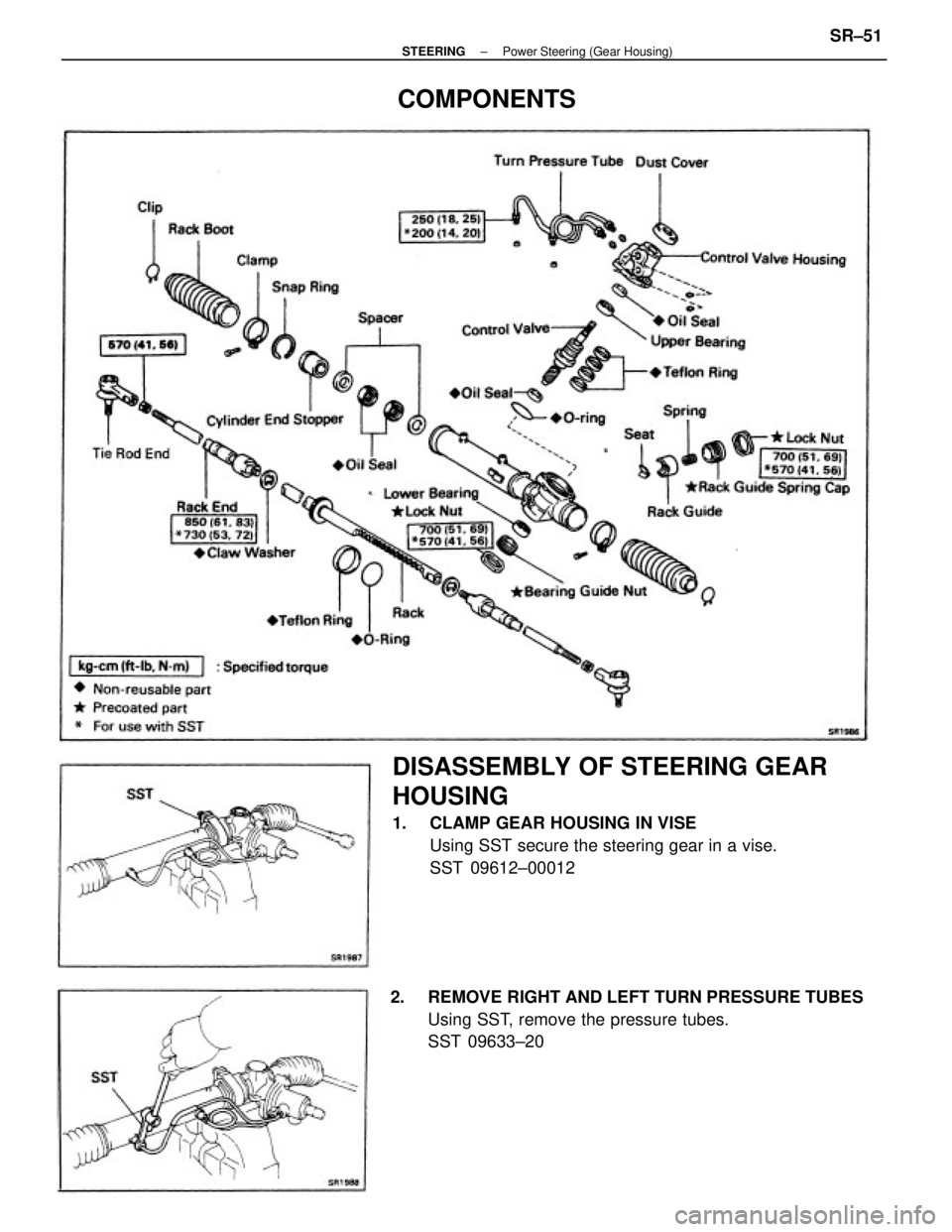

TOYOTA CAMRY V20 1986 Service Information DISASSEMBLY OF STEERING GEAR HOUSING 1. CLAMP GEAR HOUSING IN VISE Using SST secure the steering gear in a vise. SST 09612±00012 2. REMOVE RIGHT AND LEFT TURN PRESSURE TUBES Using SST, remove the p

Page 2378 of 2389

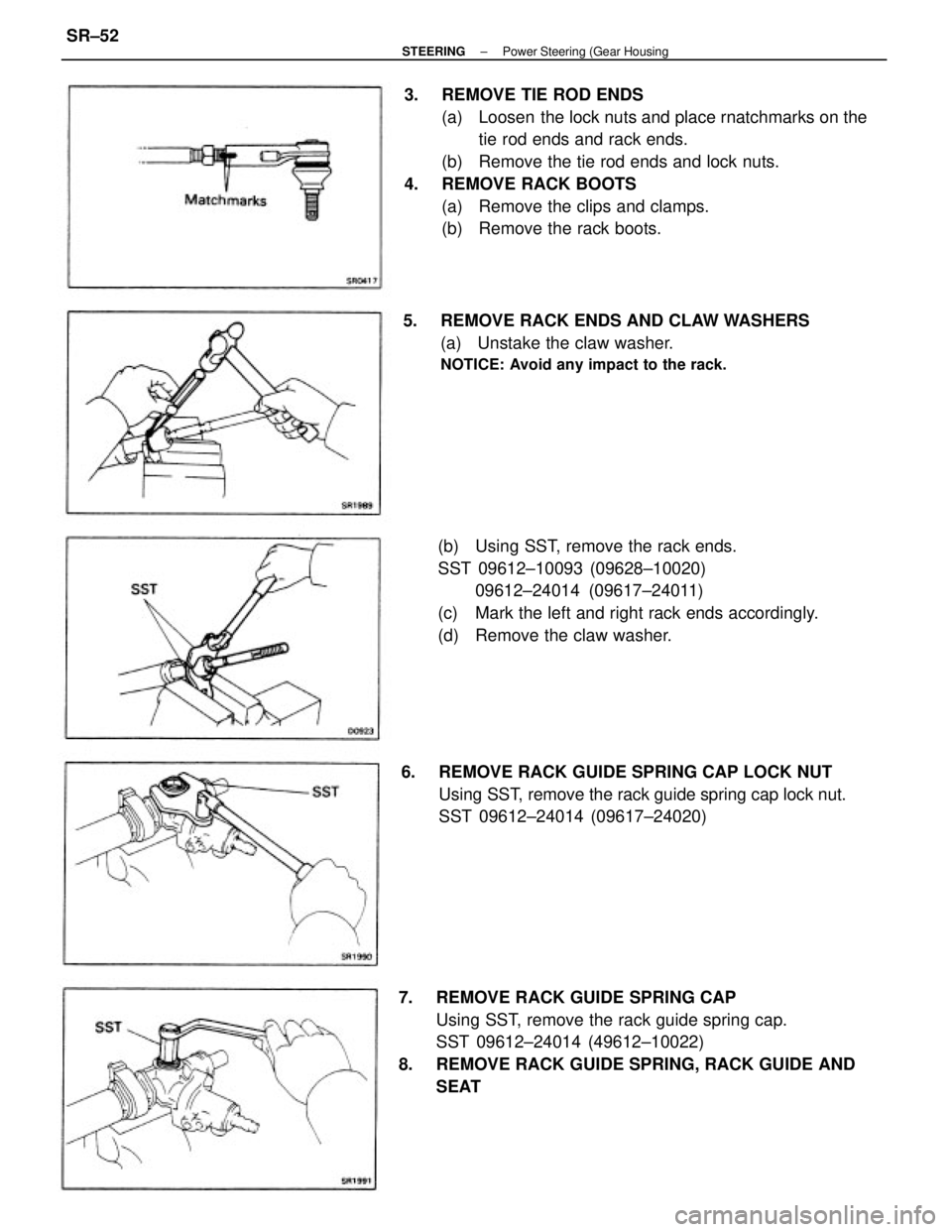

TOYOTA CAMRY V20 1986 Service Information 3. REMOVE TIE ROD ENDS (a) Loosen the lock nuts and place rnatchmarks on the tie rod ends and rack ends. (b) Remove the tie rod ends and lock nuts. 4. REMOVE RACK BOOTS (a) Remove the clips and

Page 2379 of 2389

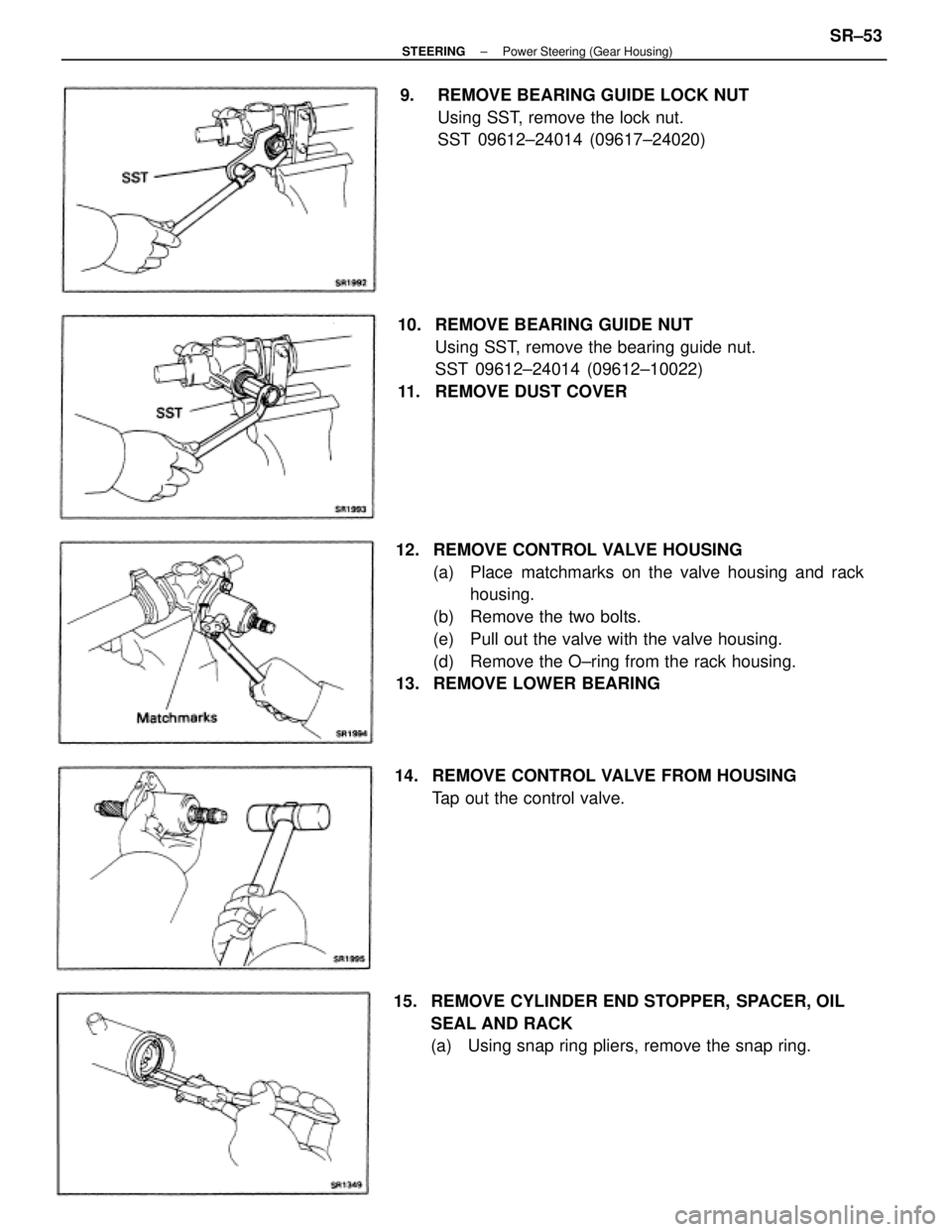

TOYOTA CAMRY V20 1986 Service Information 12. REMOVE CONTROL VALVE HOUSING (a) Place matchmarks on the valve housing and rack housing. (b) Remove the two bolts. (e) Pull out the valve with the valve housing. (d) Remove the O±ring from t

Page 2380 of 2389

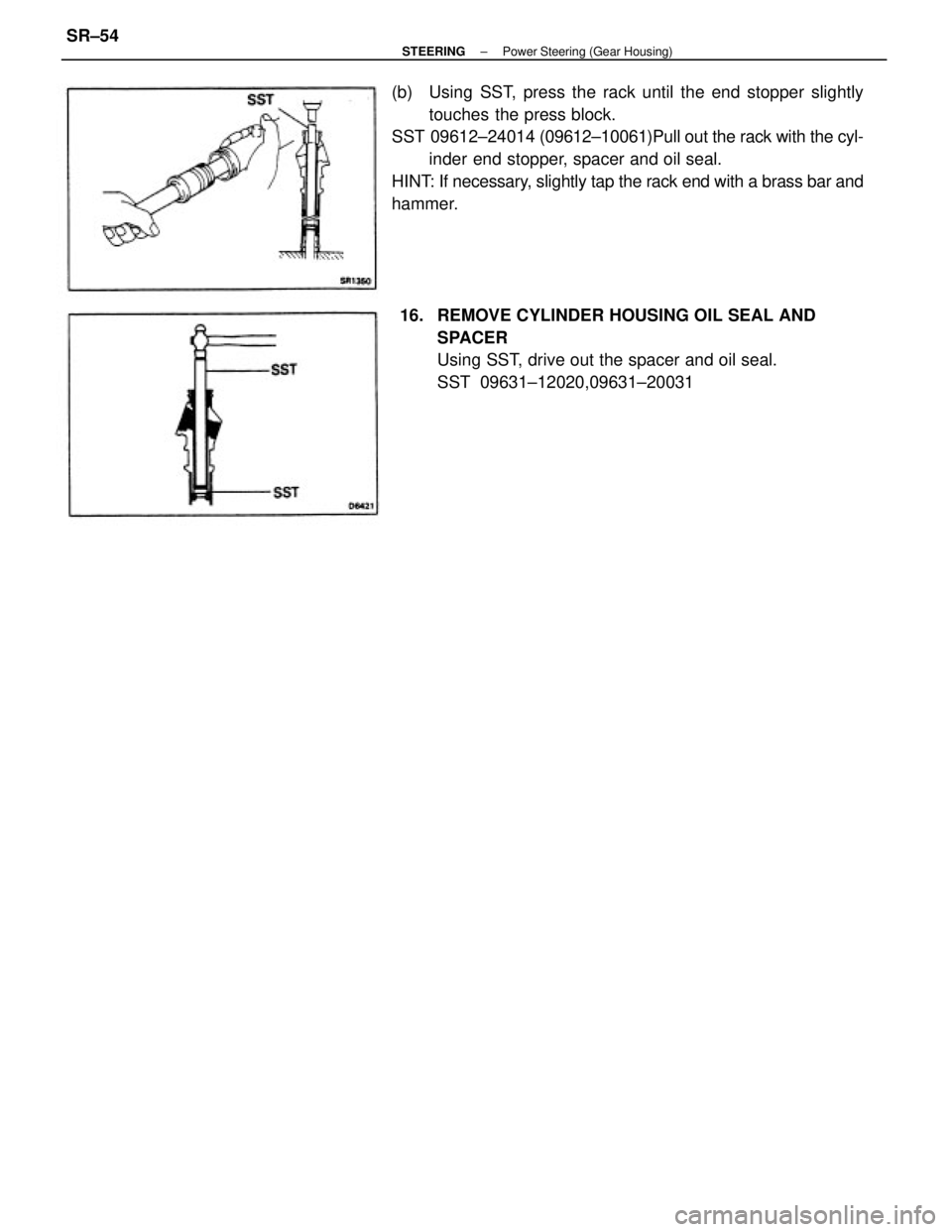

TOYOTA CAMRY V20 1986 Service Information (b) Using SST, press the rack until the end stopper slightly touches the press block. SST 09612±24014 (09612±10061)Pull out the rack with the cyl- inder end stopper, spacer and oil seal. HINT: If

Page 2381 of 2389

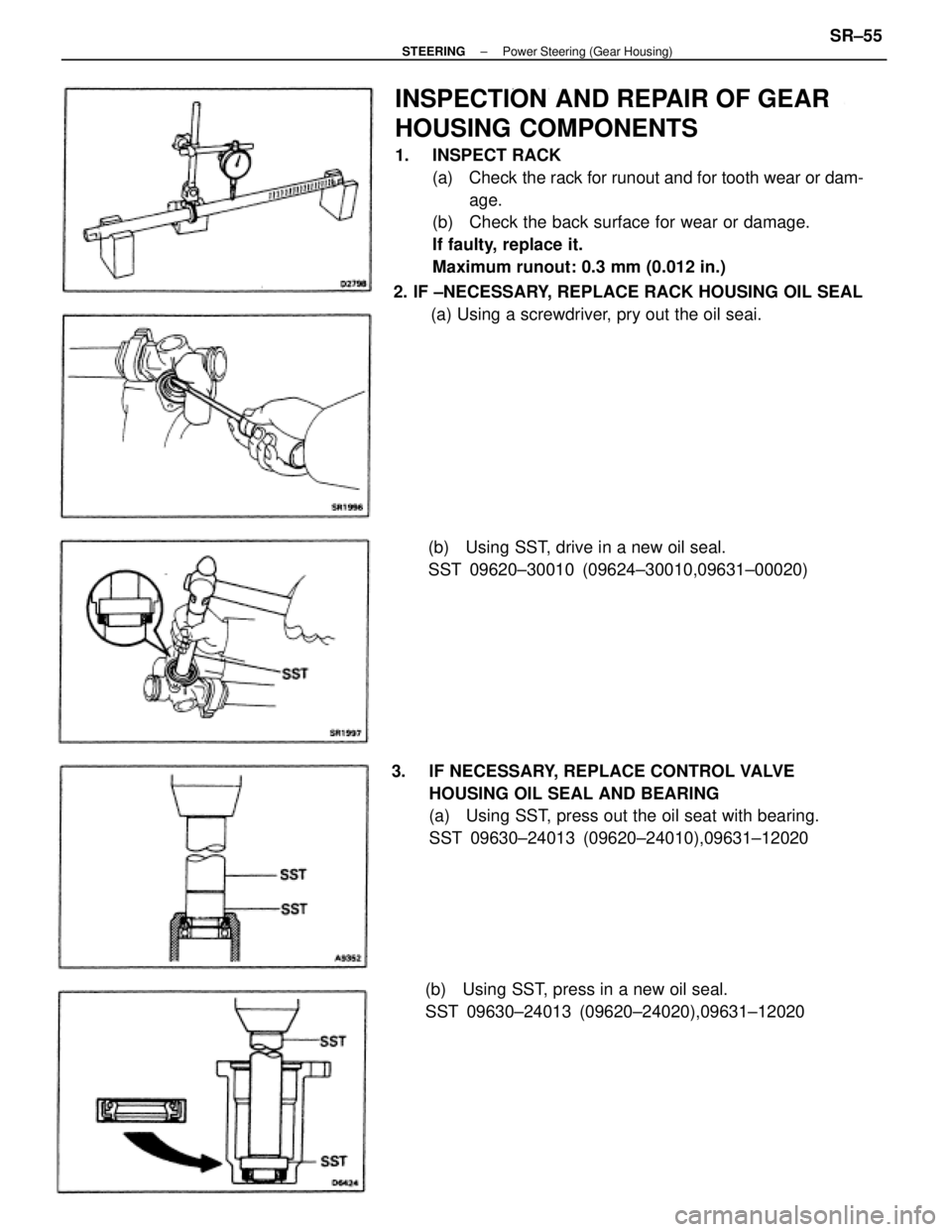

TOYOTA CAMRY V20 1986 Service Information INSPECTION AND REPAIR OF GEAR HOUSING COMPONENTS 1. INSPECT RACK (a) Check the rack for runout and for tooth wear or dam- age. (b) Check the back surface for wear or damage. If faulty, replace it. M

Page 2382 of 2389

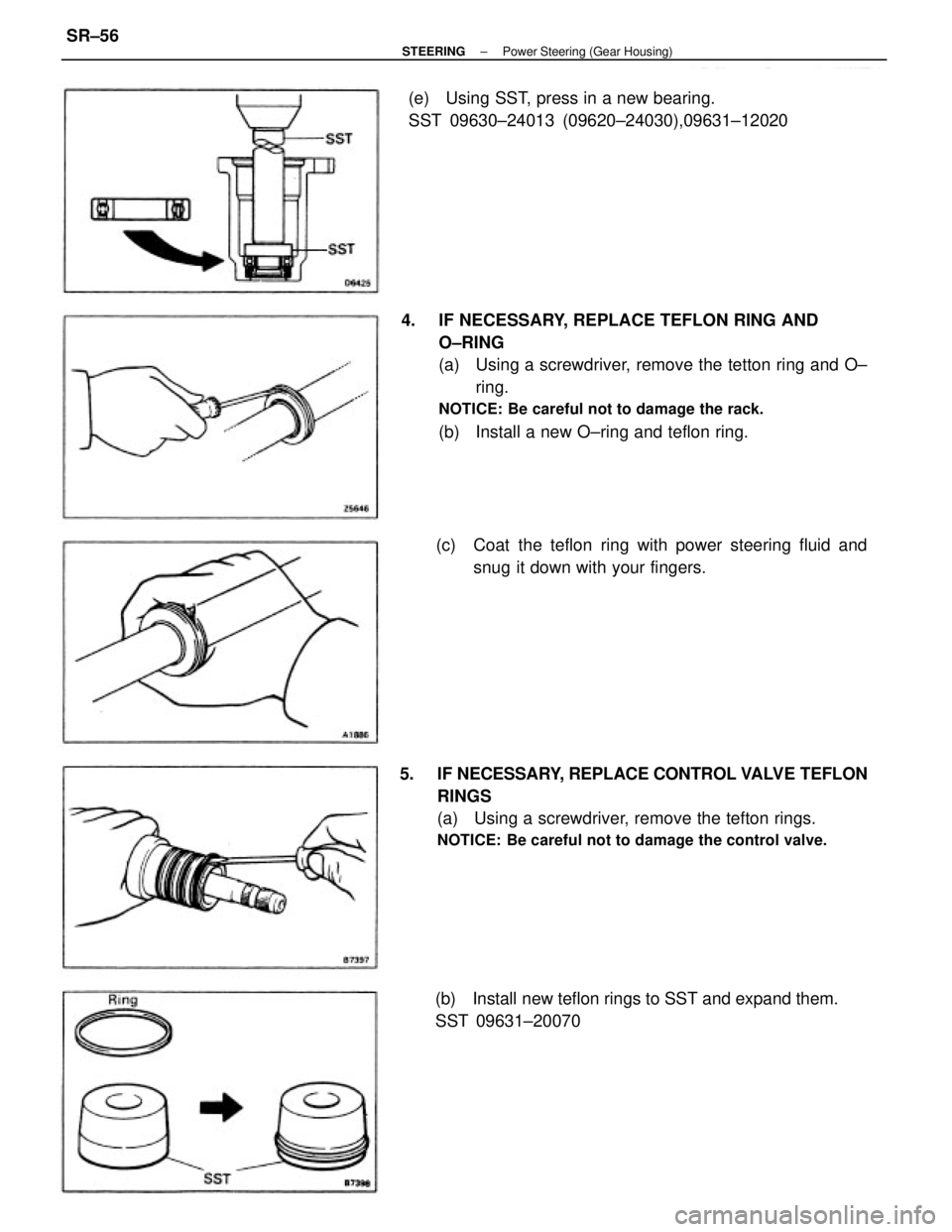

TOYOTA CAMRY V20 1986 Service Information 4. IF NECESSARY, REPLACE TEFLON RING AND O±RING (a) Using a screwdriver, remove the tetton ring and O± ring. NOTICE: Be careful not to damage the rack. (b) Install a new O±ring and teflon ring.

Page 2383 of 2389

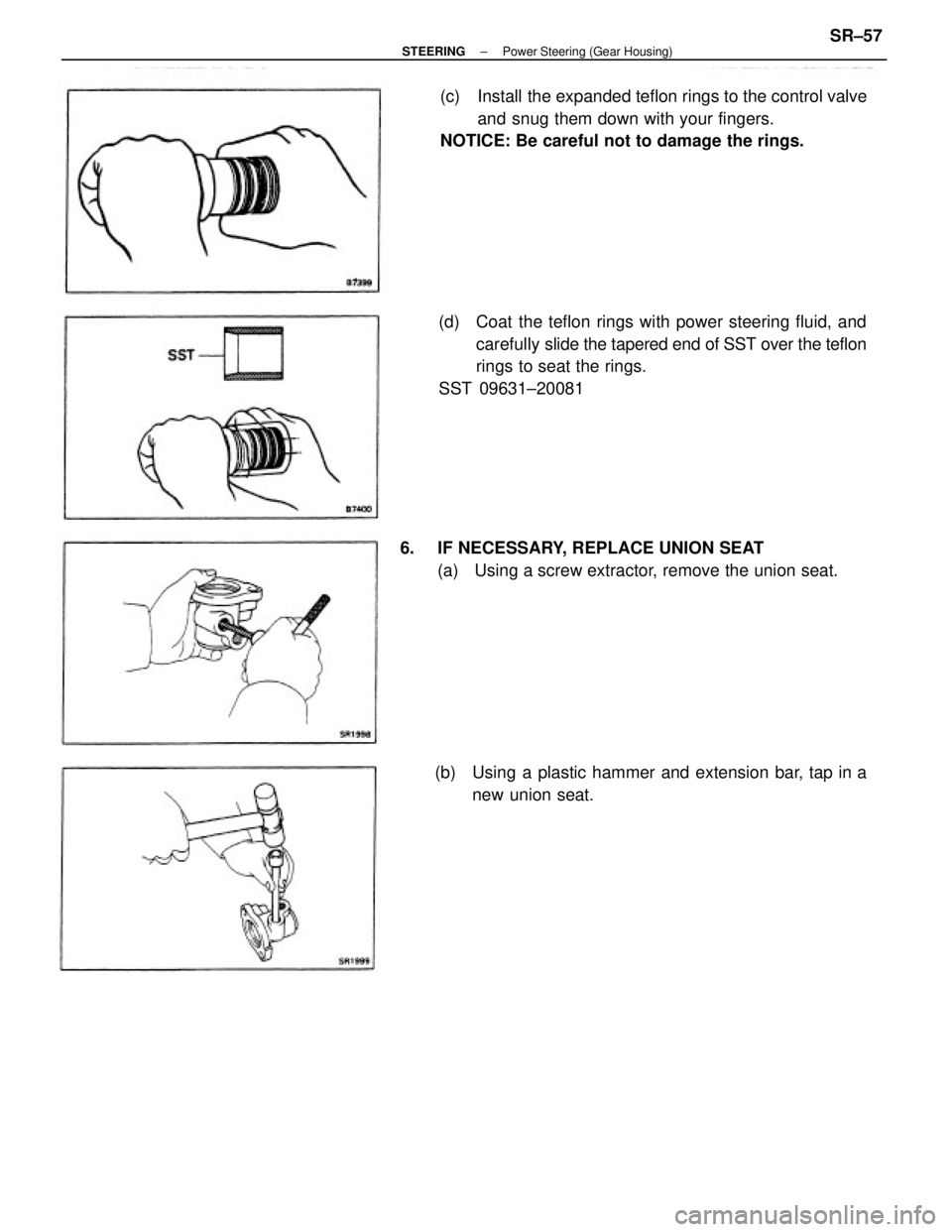

TOYOTA CAMRY V20 1986 Service Information (d) Coat the teflon rings with power steering fluid, and carefully slide the tapered end of SST over the teflon rings to seat the rings. SST 09631±20081(c) Install the expanded teflon rings to the

Page 2384 of 2389

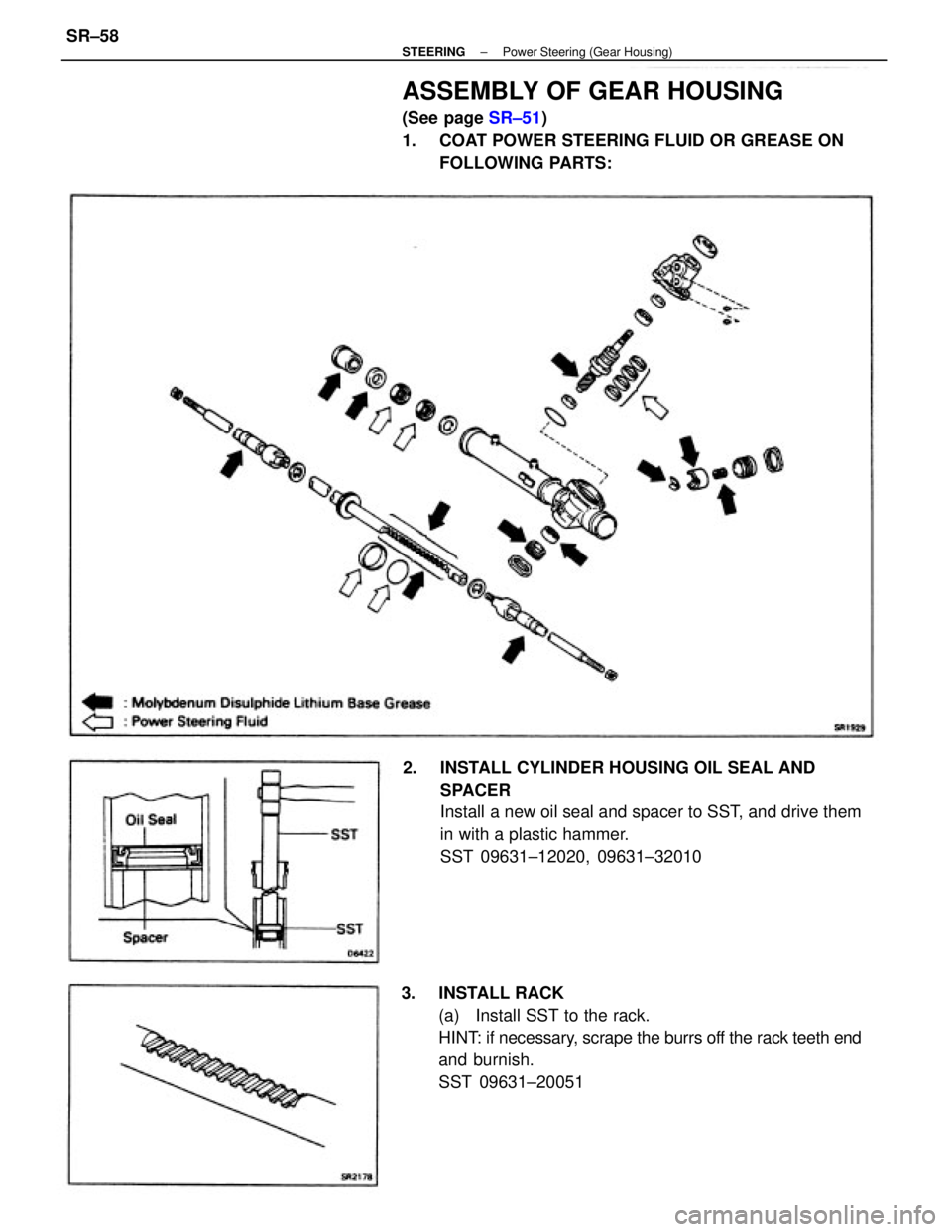

TOYOTA CAMRY V20 1986 Service Information 3. INSTALL RACK (a) Install SST to the rack. HINT: if necessary, scrape the burrs off the rack teeth end and burnish. SST 09631±20051 2. INSTALL CYLINDER HOUSING OIL SEAL AND SPACER Install a new o
