Page 1065 of 2389

TOYOTA CAMRY V20 1986 Service Information Check that there is voltage between ECU terminal +B or +B1 and body ground. (IG SW 4N) Check wiring between ECU terminal E1 and body ground.No voltage between ECU terminals THA and E2. (IG SW ON)Intak

Page 1066 of 2389

TOYOTA CAMRY V20 1986 Service Information Check that there is voltage between ECU terminal +B or +131 and body ground. (IG SW ON) No voltage between ECU terminals THW and E2. (IG SW ON) Check wiring between ECU terminal El and body ground. Ch

Page 1067 of 2389

TOYOTA CAMRY V20 1986 Service Information Check that there is voltage at STA (50) terminal of starter. (IG SW START) STD voltage: 6 ± 14 v Check fusible link, battery, wiring, ignition switch clutch start switch, starter relay and neutral st

Page 1068 of 2389

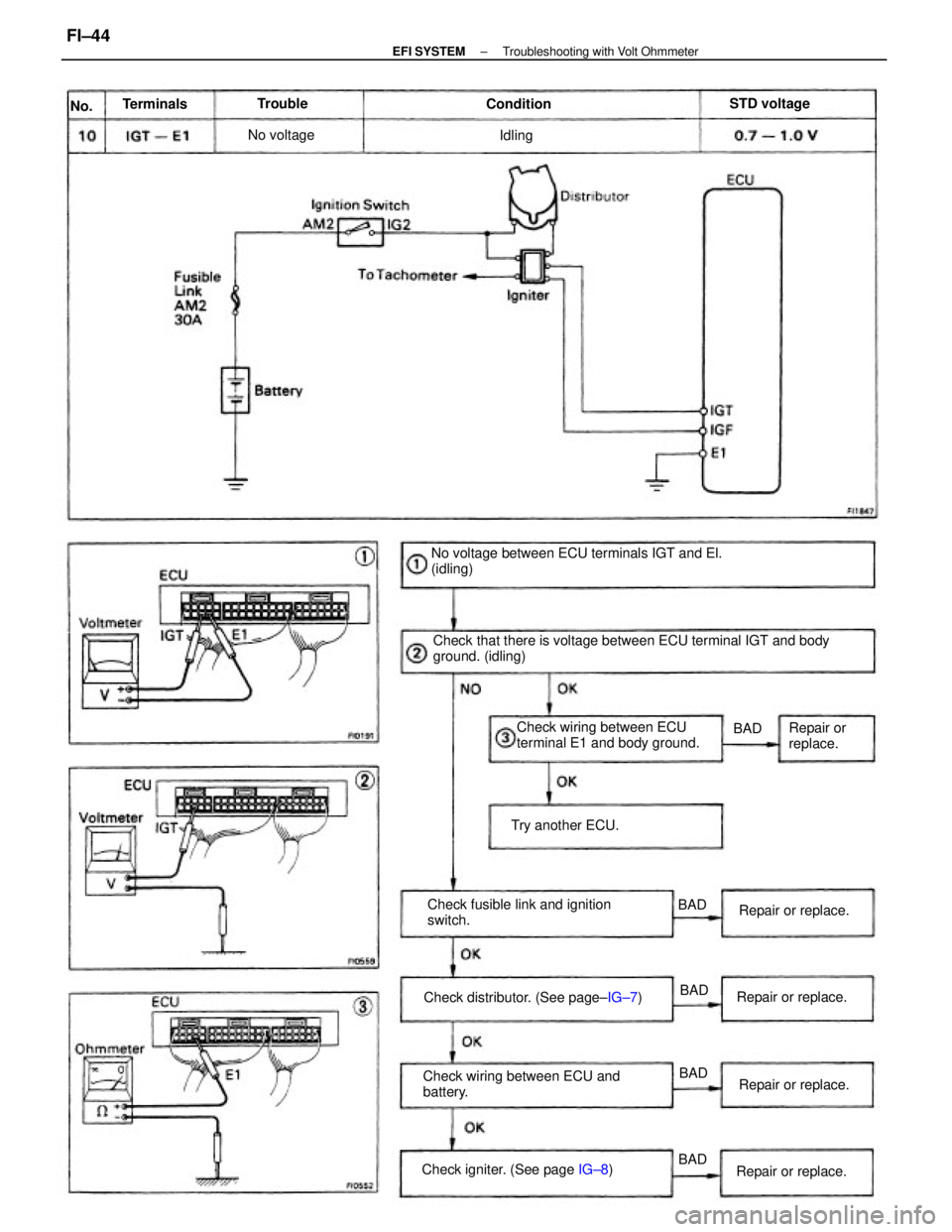

TOYOTA CAMRY V20 1986 Service Information Check that there is voltage between ECU terminal IGT and body ground. (idling) No voltage between ECU terminals IGT and El. (idling) Check wiring between ECU and battery.Check wiring between ECU termi

Page 1069 of 2389

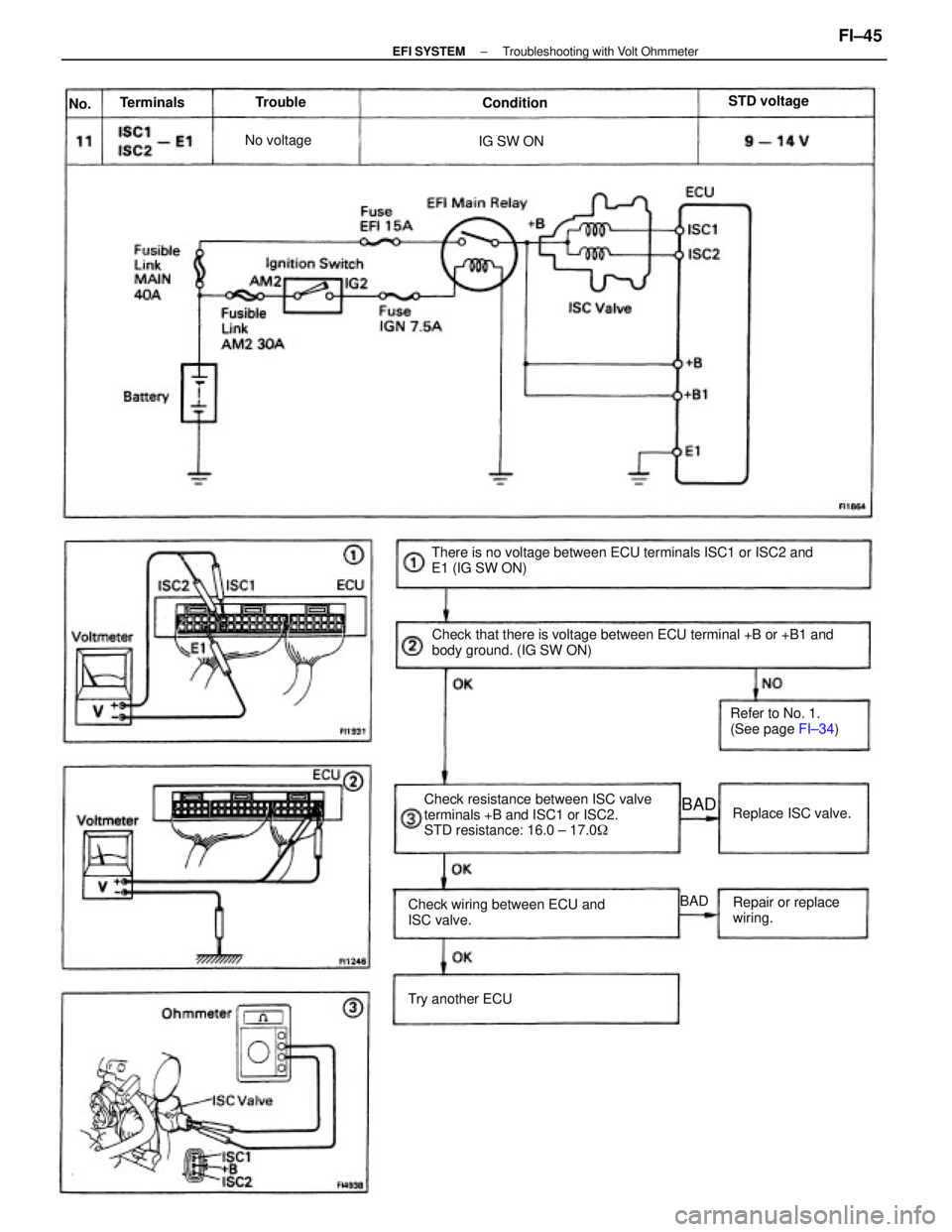

TOYOTA CAMRY V20 1986 Service Information Check that there is voltage between ECU terminal +B or +B1 and body ground. (IG SW ON) There is no voltage between ECU terminals ISC1 or ISC2 and E1 (IG SW ON) Check resistance between ISC valve termi

Page 1070 of 2389

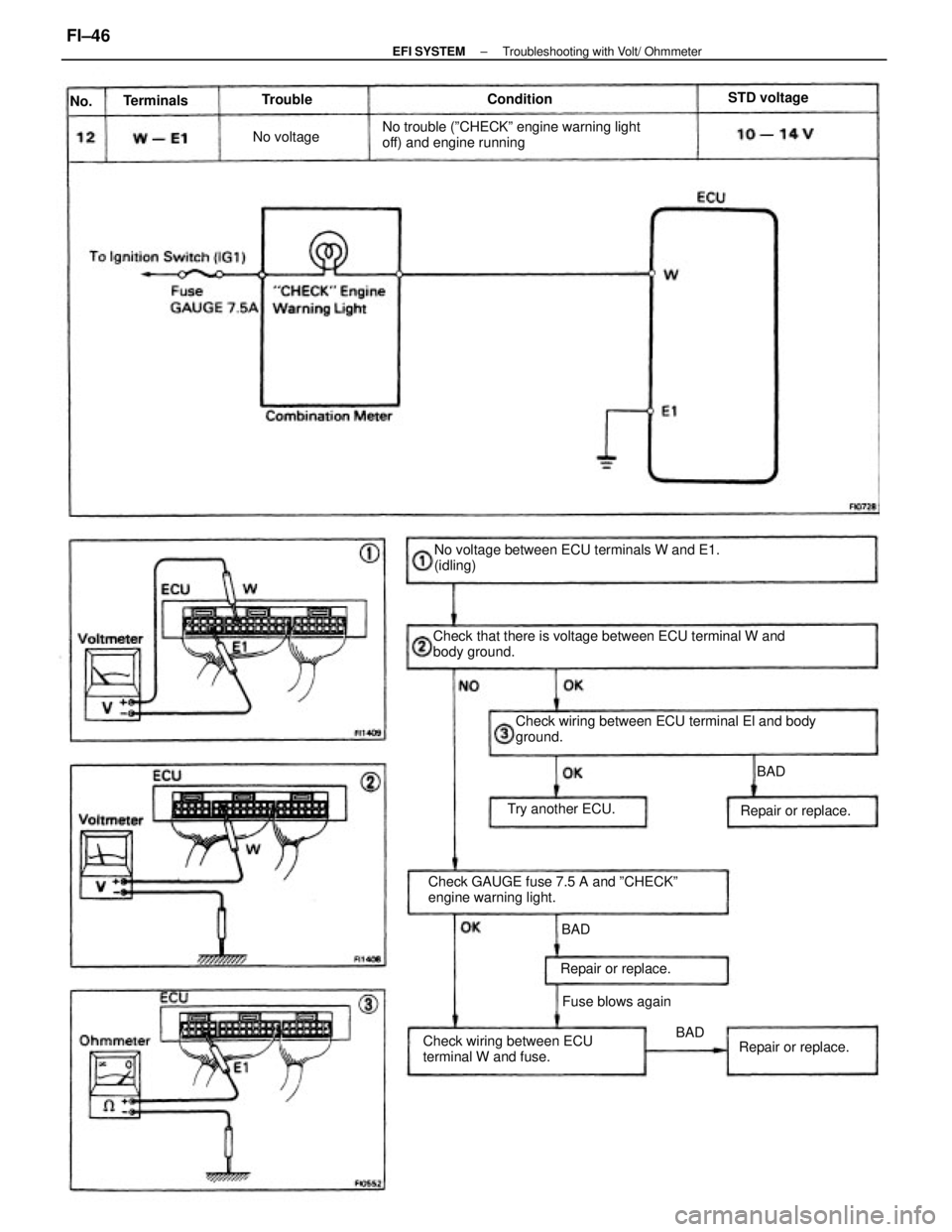

TOYOTA CAMRY V20 1986 Service Information Check that there is voltage between ECU terminal W and body ground. Check wiring between ECU terminal El and body ground. No voltage between ECU terminals W and E1. (idling) No trouble (ºCHECKº engi

Page 1071 of 2389

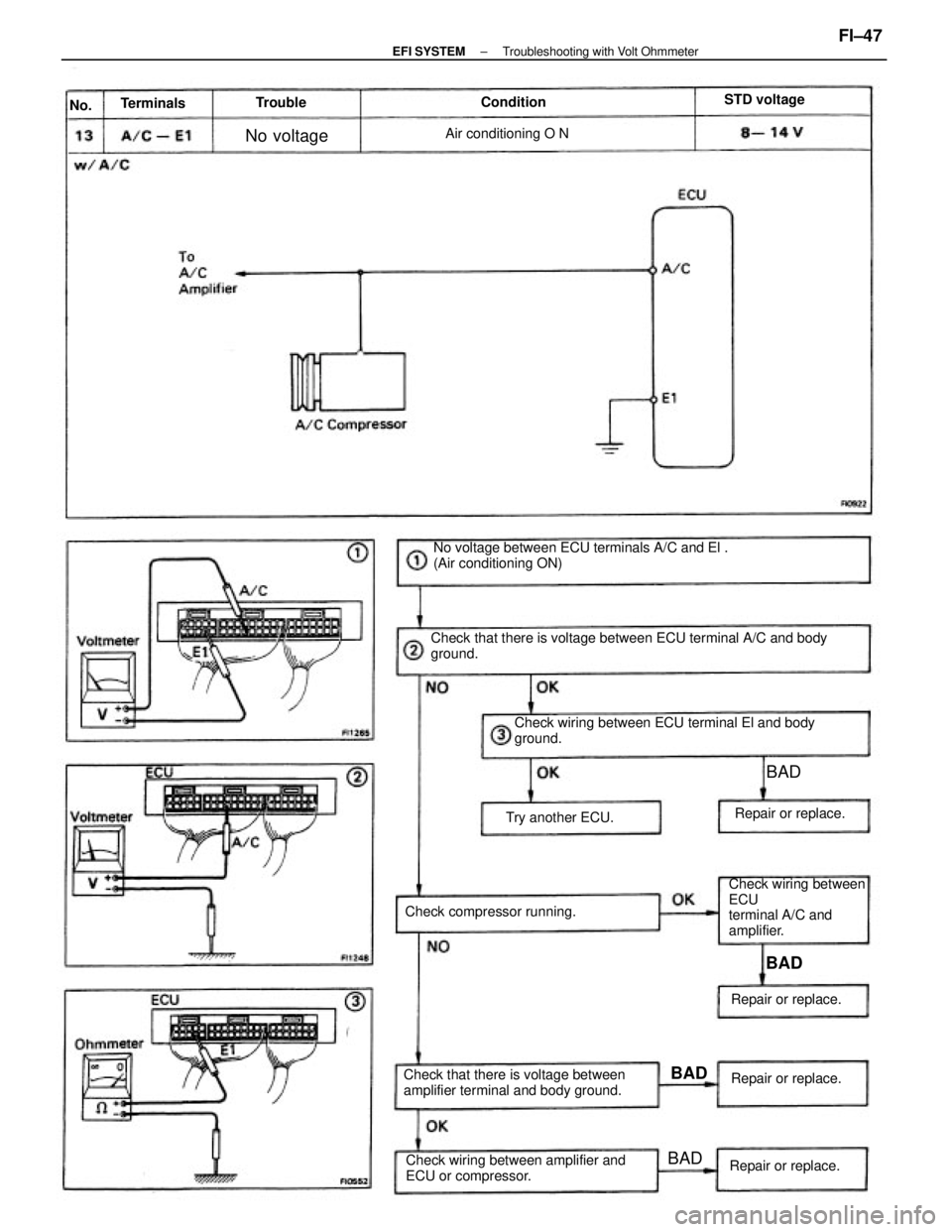

TOYOTA CAMRY V20 1986 Service Information Check that there is voltage between ECU terminal A/C and body ground.No voltage between ECU terminals A/C and El . (Air conditioning ON) Check wiring between ECU terminal El and body ground. Check wir

Page 1072 of 2389

TOYOTA CAMRY V20 1986 Service Information Check that there is specified voltage between ECU terminal VF and body ground. Check for suction of air into exhaust system.Check wiring between ECU terminal E1 and body ground. Check wiring between o
