Page 1881 of 2389

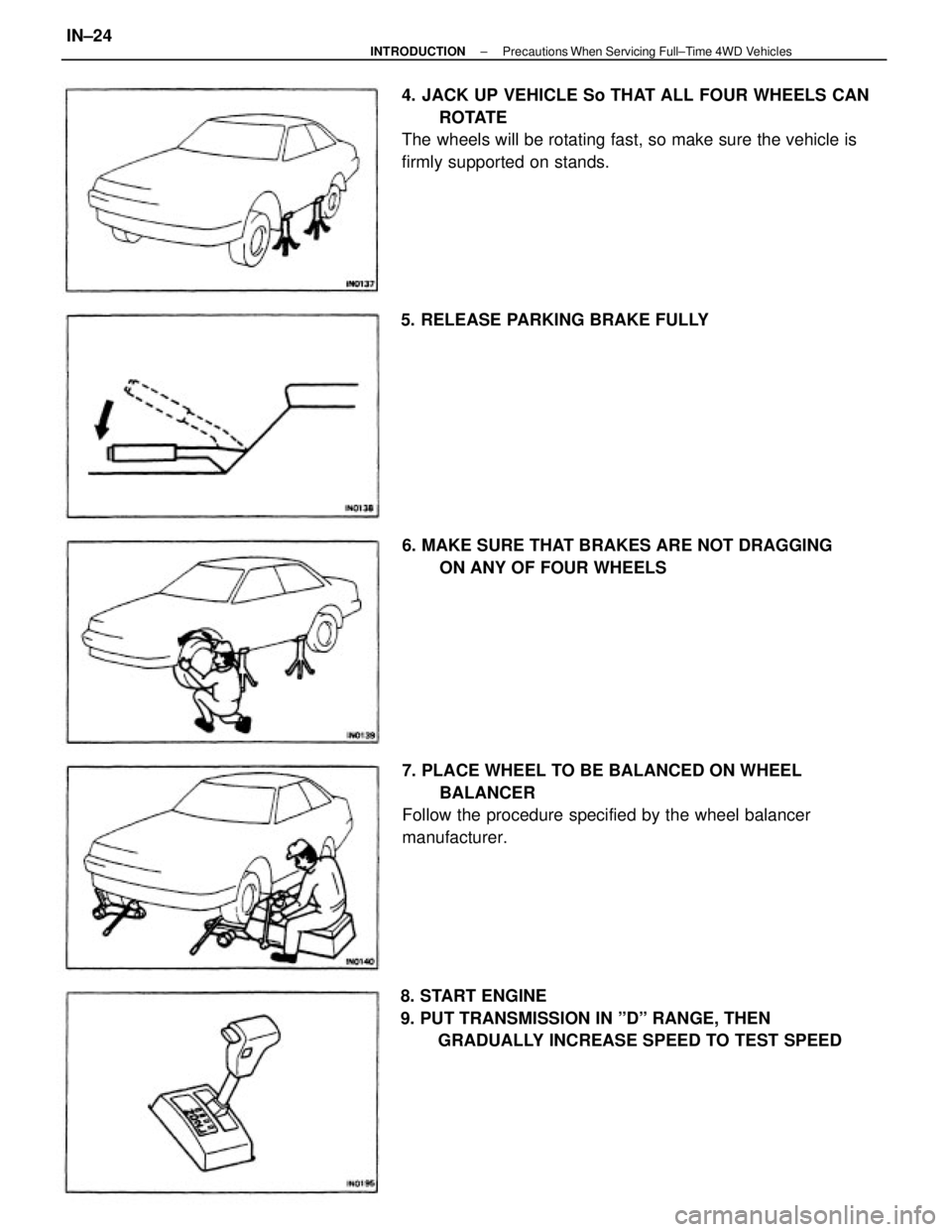

TOYOTA CAMRY V20 1986 Service Information 4. JACK UP VEHICLE So THAT ALL FOUR WHEELS CAN ROTATE The wheels will be rotating fast, so make sure the vehicle is firmly supported on stands. 7. PLACE WHEEL TO BE BALANCED ON WHEEL BALANCER Follow t

Page 1882 of 2389

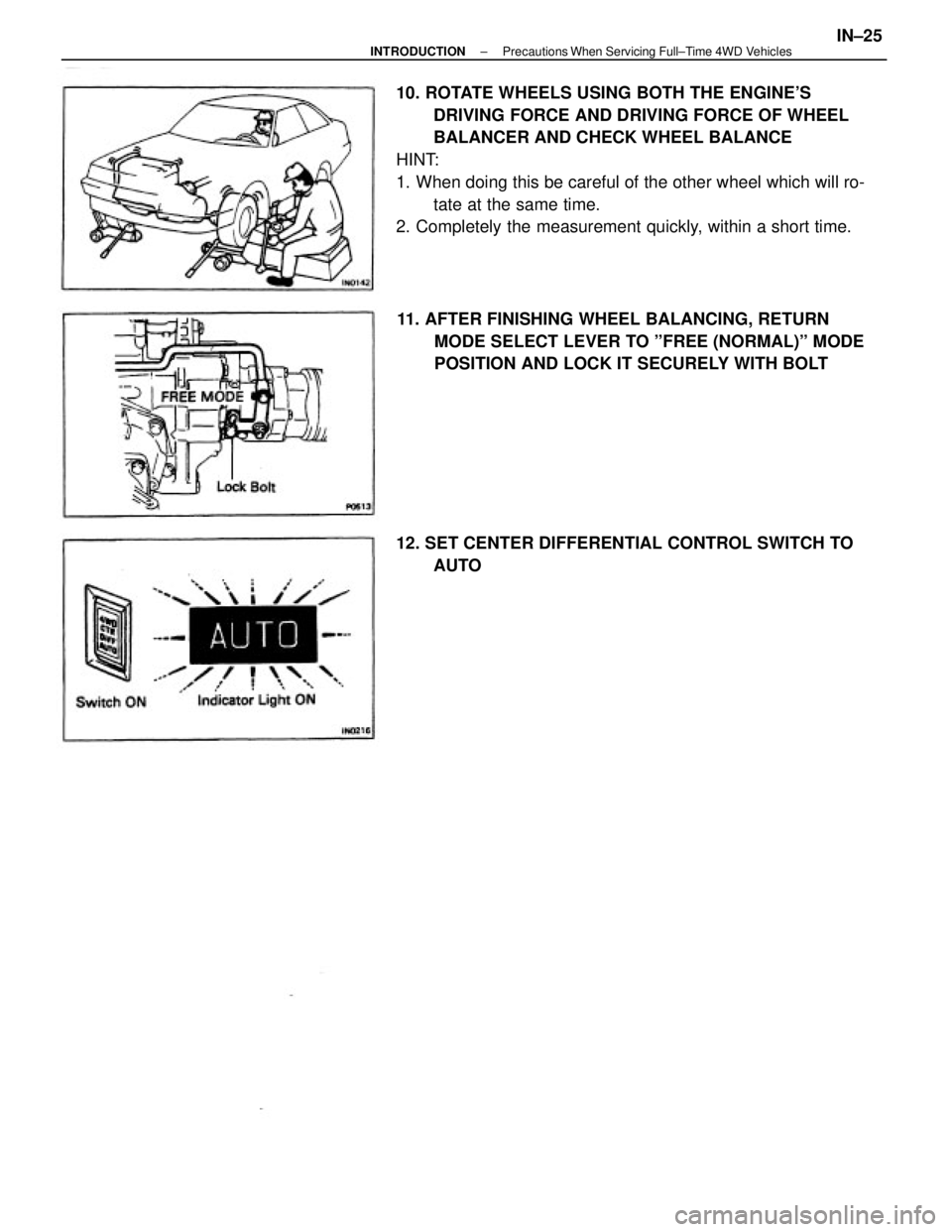

TOYOTA CAMRY V20 1986 Service Information 10. ROTATE WHEELS USING BOTH THE ENGINES DRIVING FORCE AND DRIVING FORCE OF WHEEL BALANCER AND CHECK WHEEL BALANCE HINT: 1. When doing this be careful of the other wheel which will ro- tate at the sa

Page 1883 of 2389

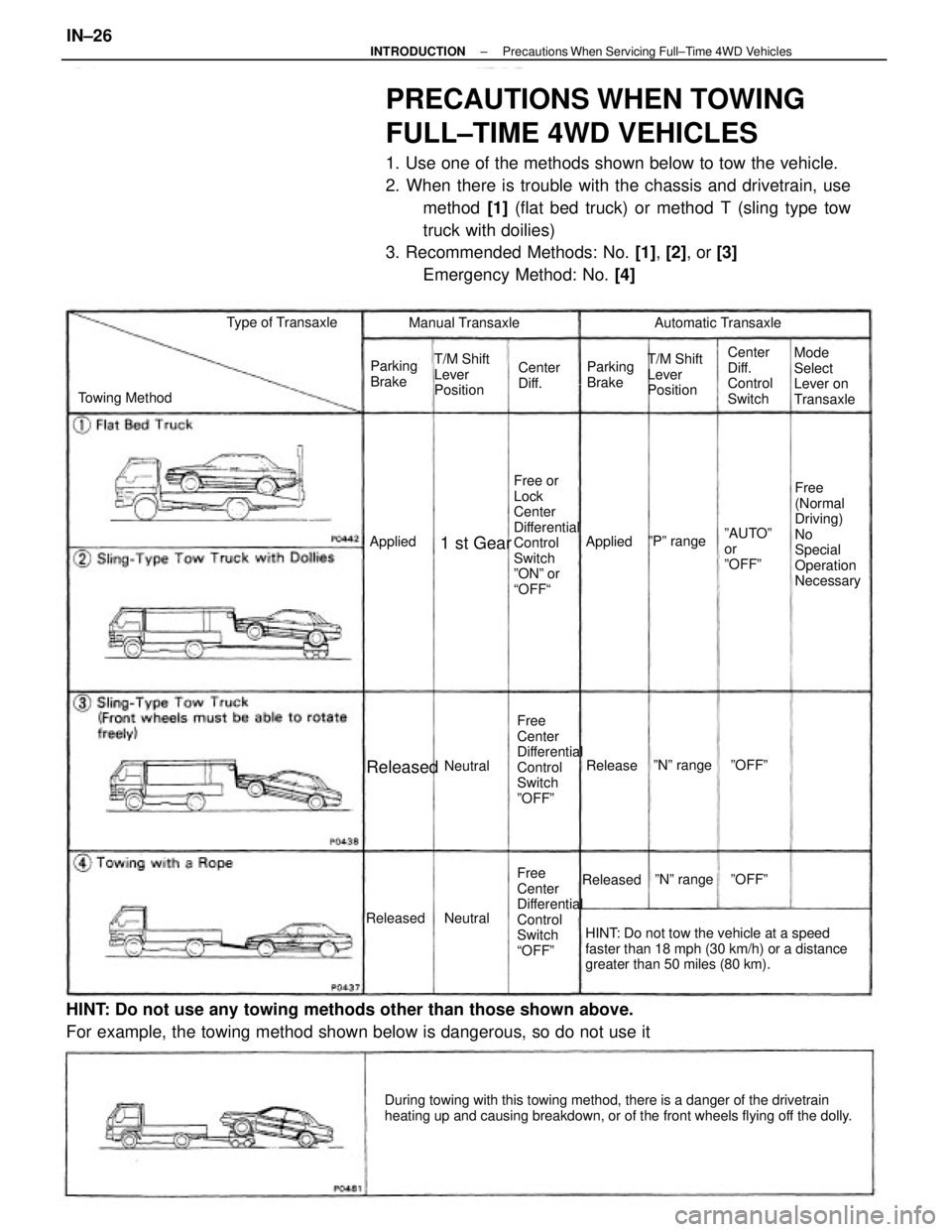

TOYOTA CAMRY V20 1986 Service Information PRECAUTIONS WHEN TOWING FULL±TIME 4WD VEHICLES 1. Use one of the methods shown below to tow the vehicle. 2. When there is trouble with the chassis and drivetrain, use method [1] (flat bed truck) or m

Page 1884 of 2389

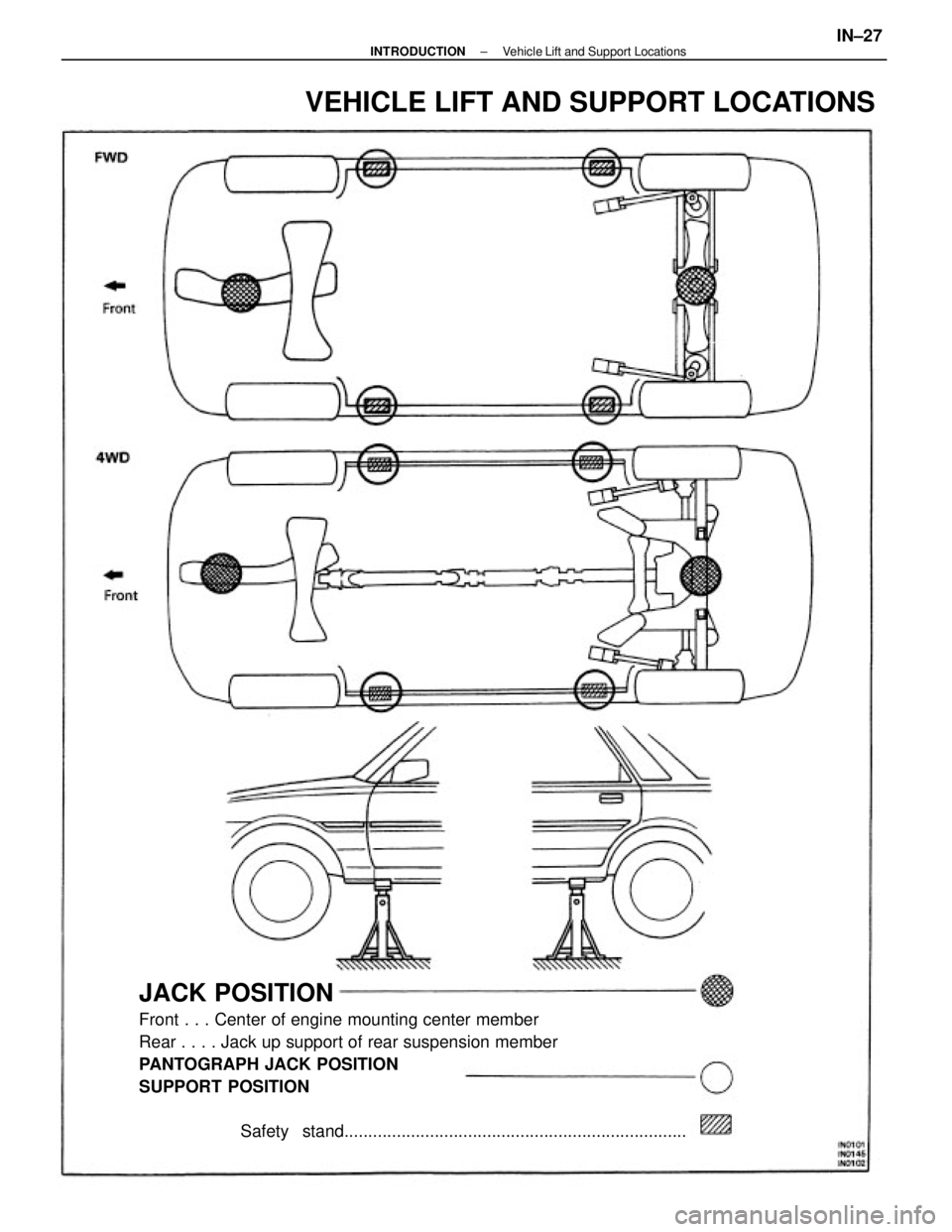

TOYOTA CAMRY V20 1986 Service Information JACK POSITION Front . . . Center of engine mounting center member Rear . . . . Jack up support of rear suspension member PANTOGRAPH JACK POSITION SUPPORT POSITION Safety stand.........................

Page 1885 of 2389

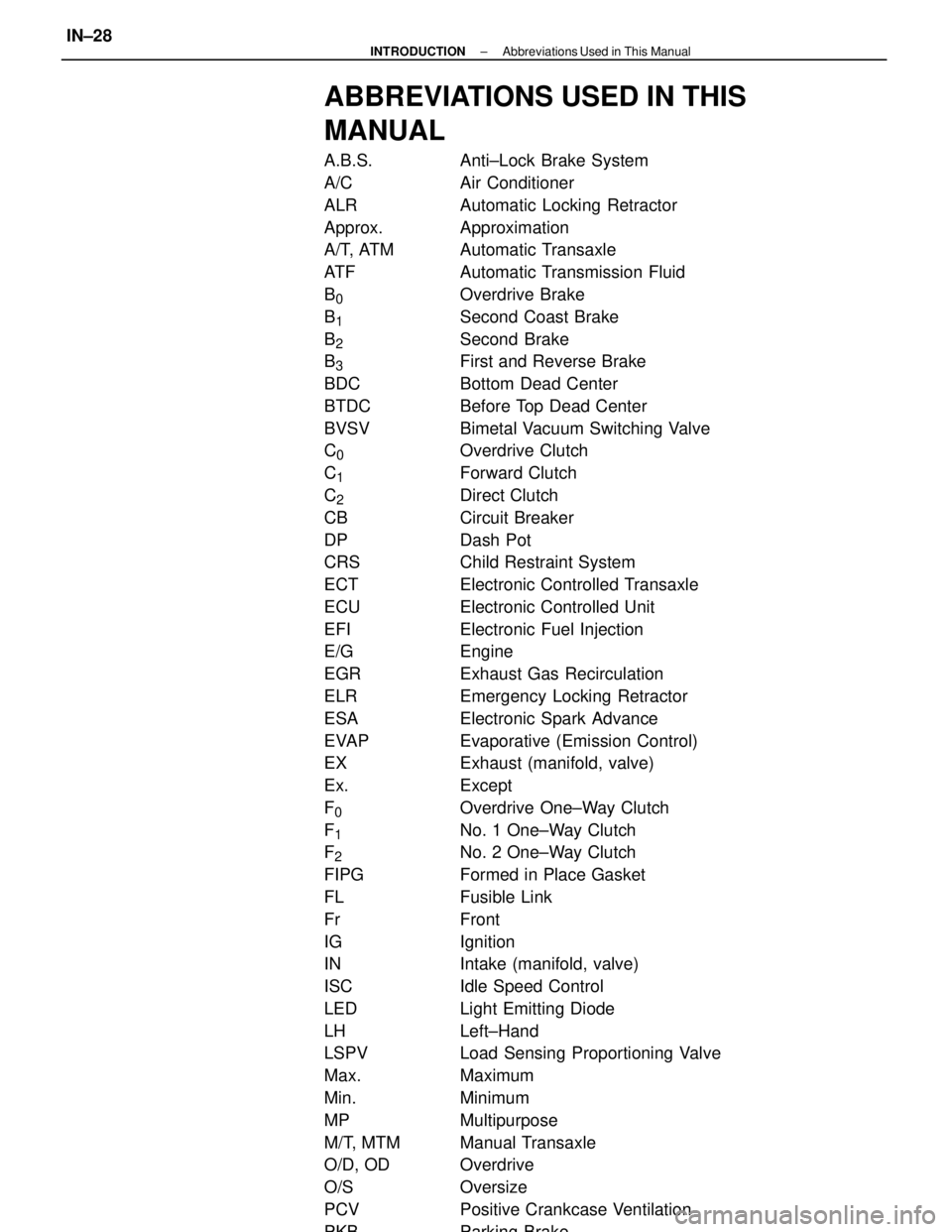

TOYOTA CAMRY V20 1986 Service Information ABBREVIATIONS USED IN THIS MANUAL A.B.S. Anti±Lock Brake System A/C Air Conditioner ALR Automatic Locking Retractor Approx. Approximation A/T, ATM Automatic Transaxle ATF Automatic Transmission Fl

Page 1886 of 2389

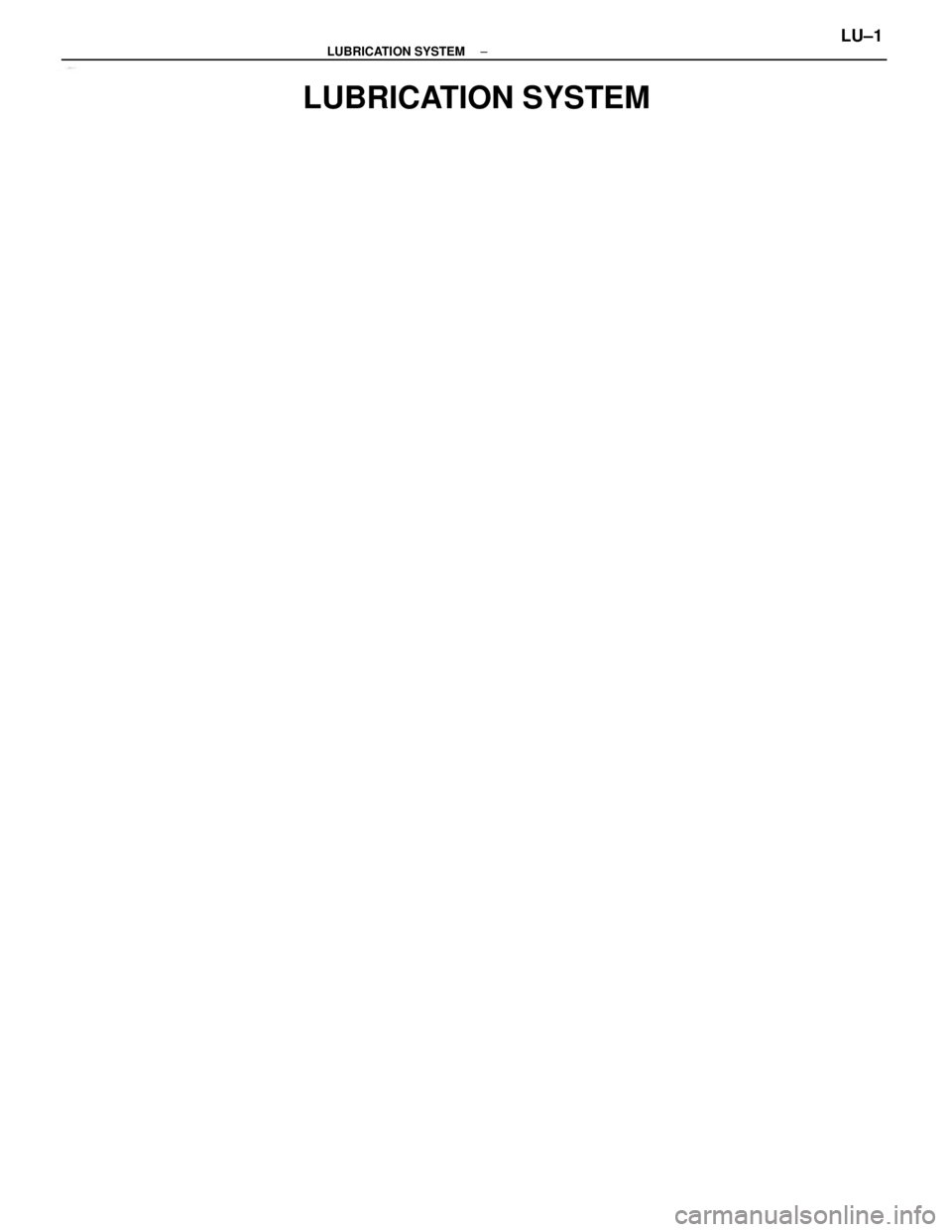

TOYOTA CAMRY V20 1986 Service Information LUBRICATION SYSTEM ± LUBRICATION SYSTEMLU±1

Page 1887 of 2389

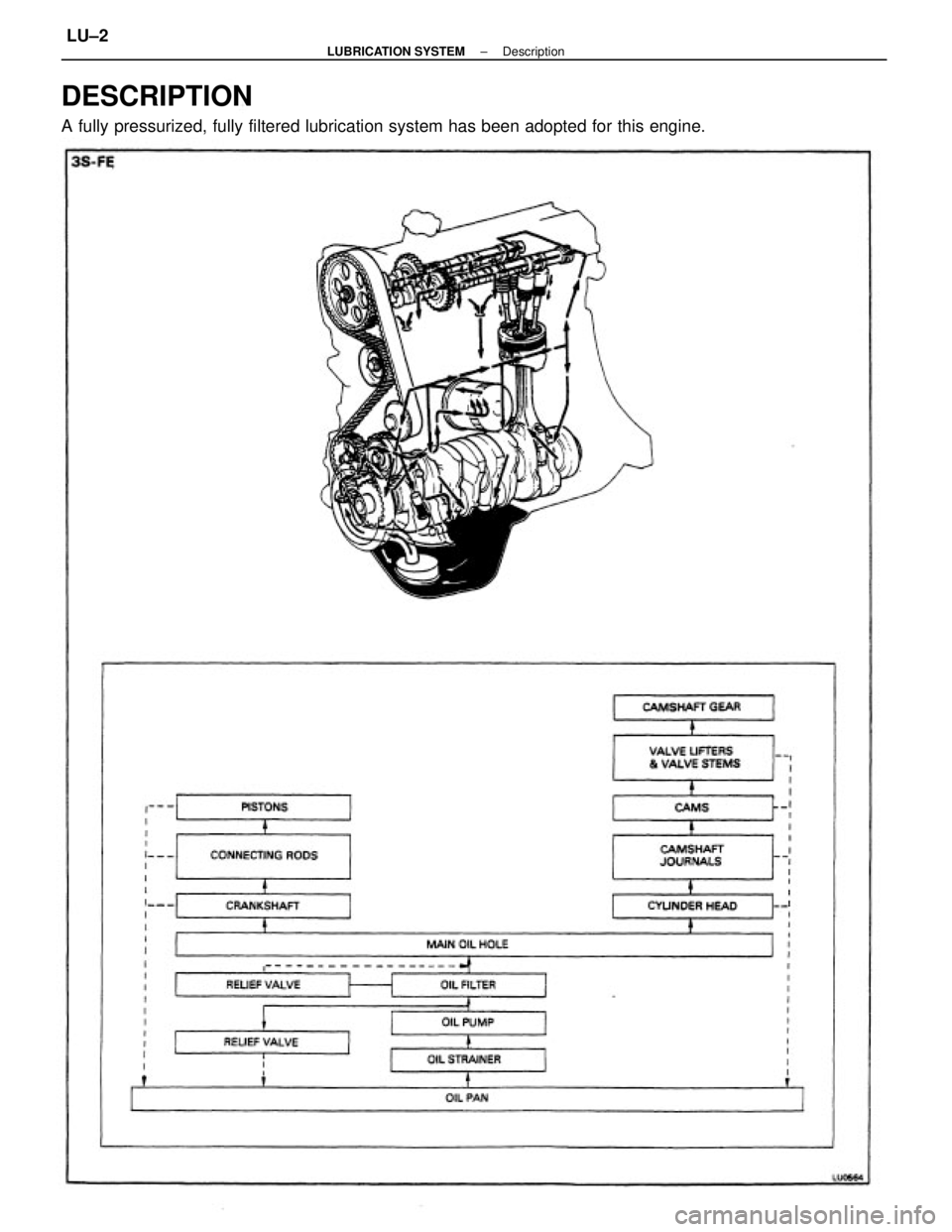

TOYOTA CAMRY V20 1986 Service Information DESCRIPTION A fully pressurized, fully filtered lubrication system has been adopted for this engine. ± LUBRICATION SYSTEMDescriptionLU±2

Page 1888 of 2389

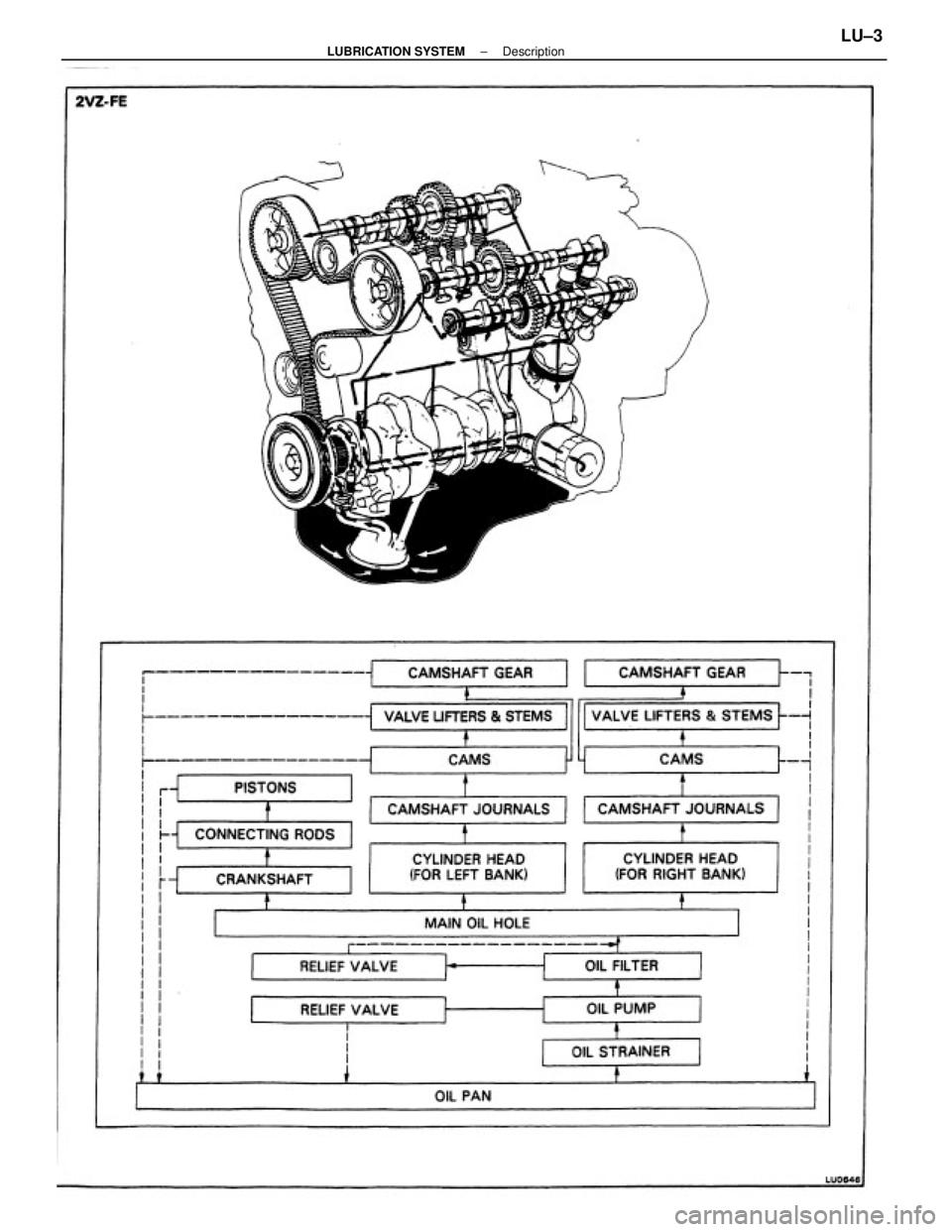

TOYOTA CAMRY V20 1986 Service Information ± LUBRICATION SYSTEMDescriptionLU±3
