TOYOTA CAMRY V20 1986 Service Information TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE F±18 414 Wire Harness Repair Manual (RM1022E) Press Sleeve ColorYELLOWBLUE P/N82999±1203082999±12020 ColorRED P/N82999±12010

Page 1834 of 2389

TOYOTA CAMRY V20 1986 Service Information IGNITION SYSTEM ± IGNITION SYSTEMIG±1

Page 1835 of 2389

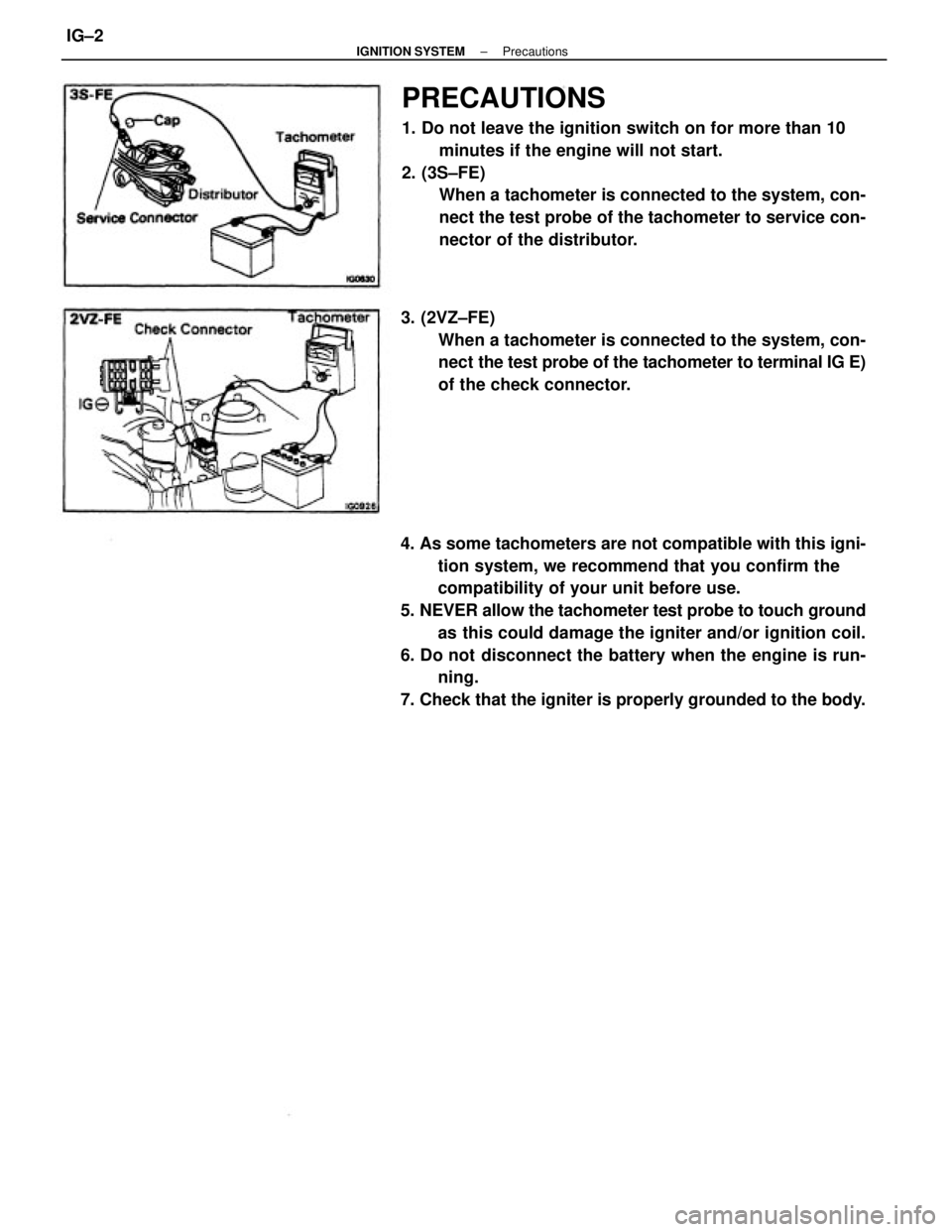

TOYOTA CAMRY V20 1986 Service Information 4. As some tachometers are not compatible with this igni- tion system, we recommend that you confirm the compatibility of your unit before use. 5. NEVER allow the tachometer test probe to touch ground

Page 1836 of 2389

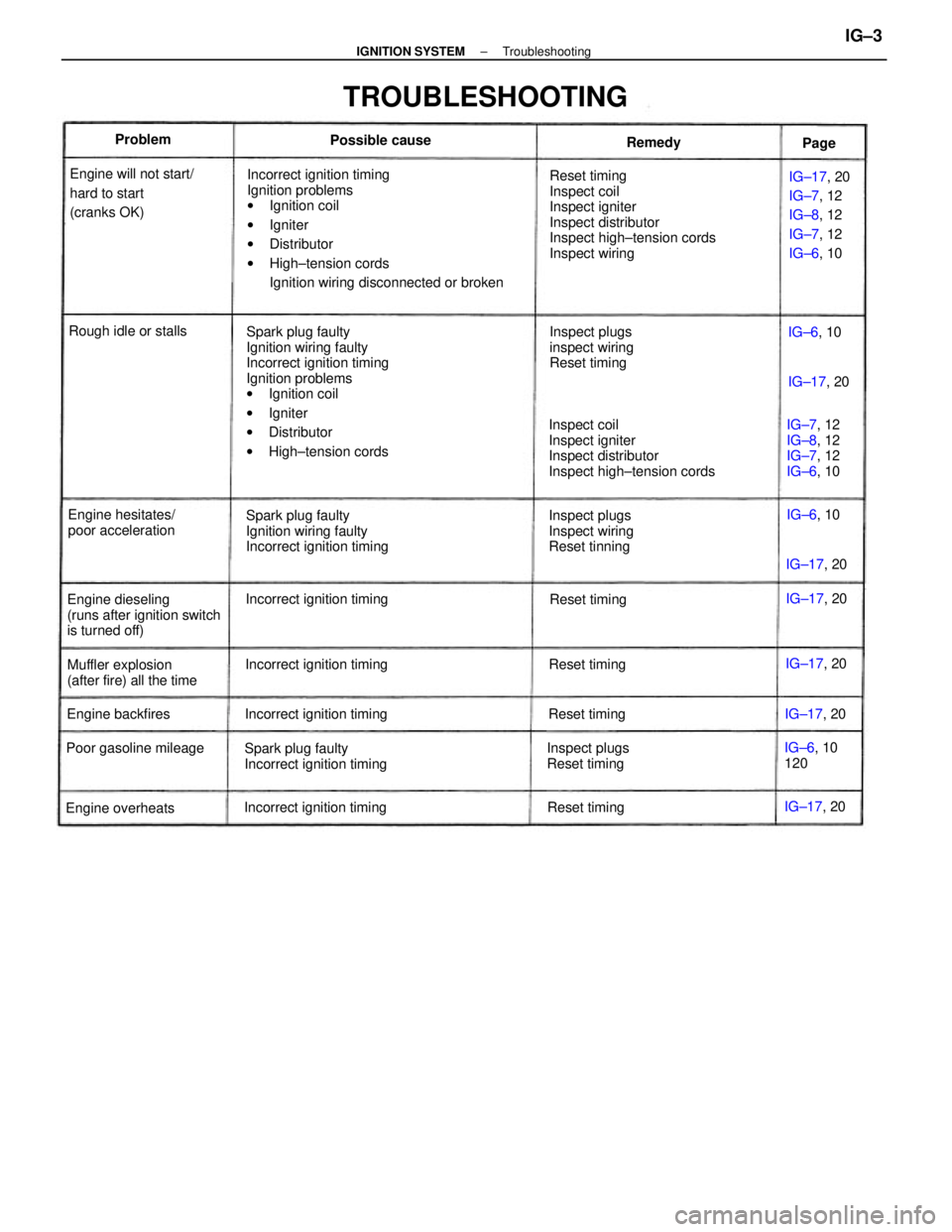

TOYOTA CAMRY V20 1986 Service Information Incorrect ignition timing Ignition problems wIgnition coil wIgniter wDistributor wHigh±tension cords Ignition wiring disconnected or broken Spark plug faulty Ignition wiring faulty Incorrect ignition

Page 1837 of 2389

TOYOTA CAMRY V20 1986 Service Information ELECTRONIC SPARK ADVANCE (ESA) The ECU is programmed with data for optimum ignition timing under any and all operating conditions. Using data provided by sensors which monitor various engine functions

Page 1838 of 2389

TOYOTA CAMRY V20 1986 Service Information ON±VEHICLE INSPECTION (3S±FE) SPARK TEST CHECK THAT SPARK OCCURS (a) Disconnect the high±tension cords from the spark plugs. (b) Remove the spark plugs. (c) Install the spark plugs to each high±te

Page 1839 of 2389

TOYOTA CAMRY V20 1986 Service Information 2. INSPECT HIGH±TENSION CORD RESISTANCE Using an ohmmeter, measure the resistance without discon- necting the distributor cap. Maximum resistance: 25 k  per cord If the resistance is greater than ma

Page 1840 of 2389

TOYOTA CAMRY V20 1986 Service Information INSPECTION OF DISTRIBUTOR 1. INSPECT AIR GAP Using a feeler gauge, measure the gap between the signal rotor and pickup coil projection. Air gap: 0.2 mm (0.008 in.) or more If the air gap is not as spe
