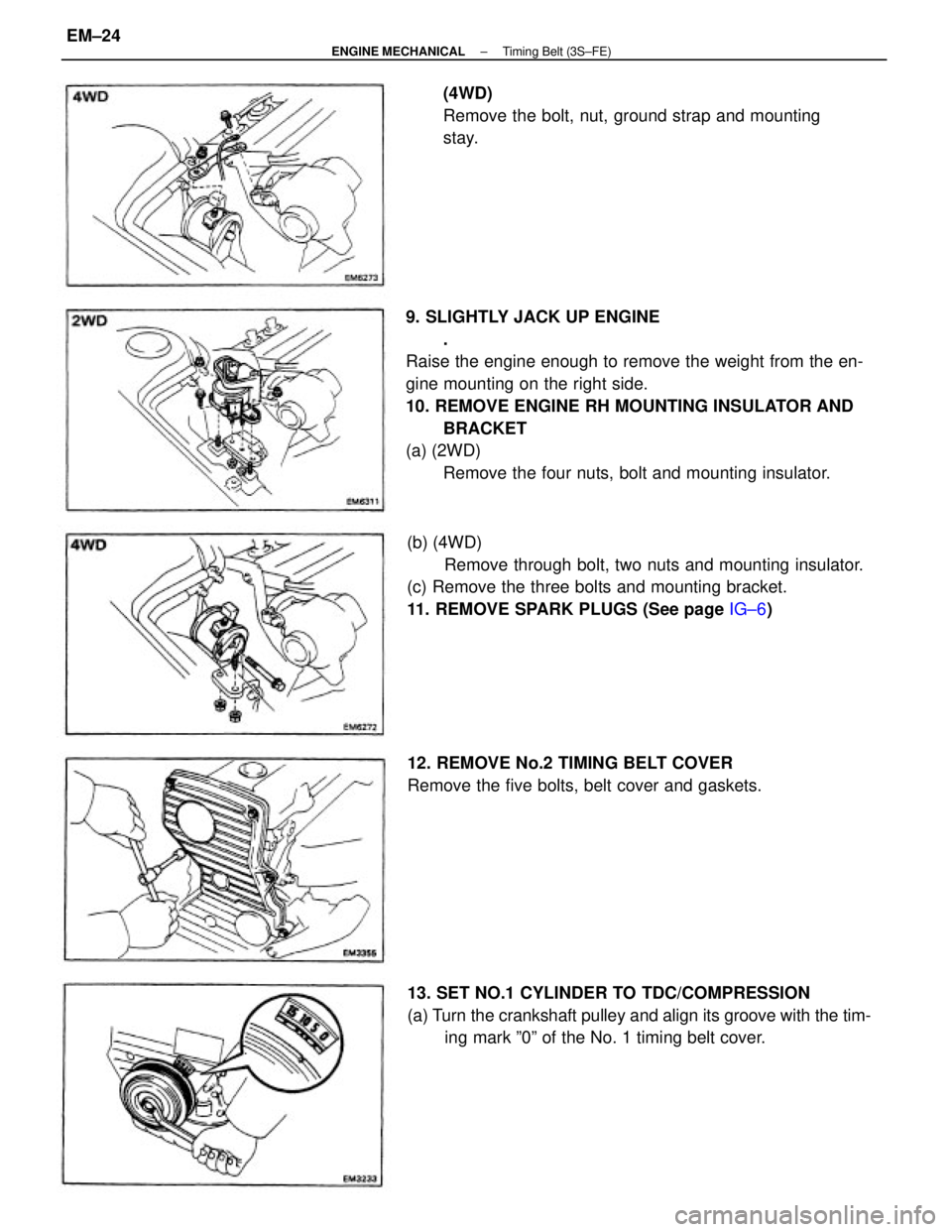

Page 1201 of 2389

TOYOTA CAMRY V20 1986 Service Information 9. SLIGHTLY JACK UP ENGINE . Raise the engine enough to remove the weight from the en- gine mounting on the right side. 10. REMOVE ENGINE RH MOUNTING INSULATOR AND BRACKET (a) (2WD) Remove the four nu

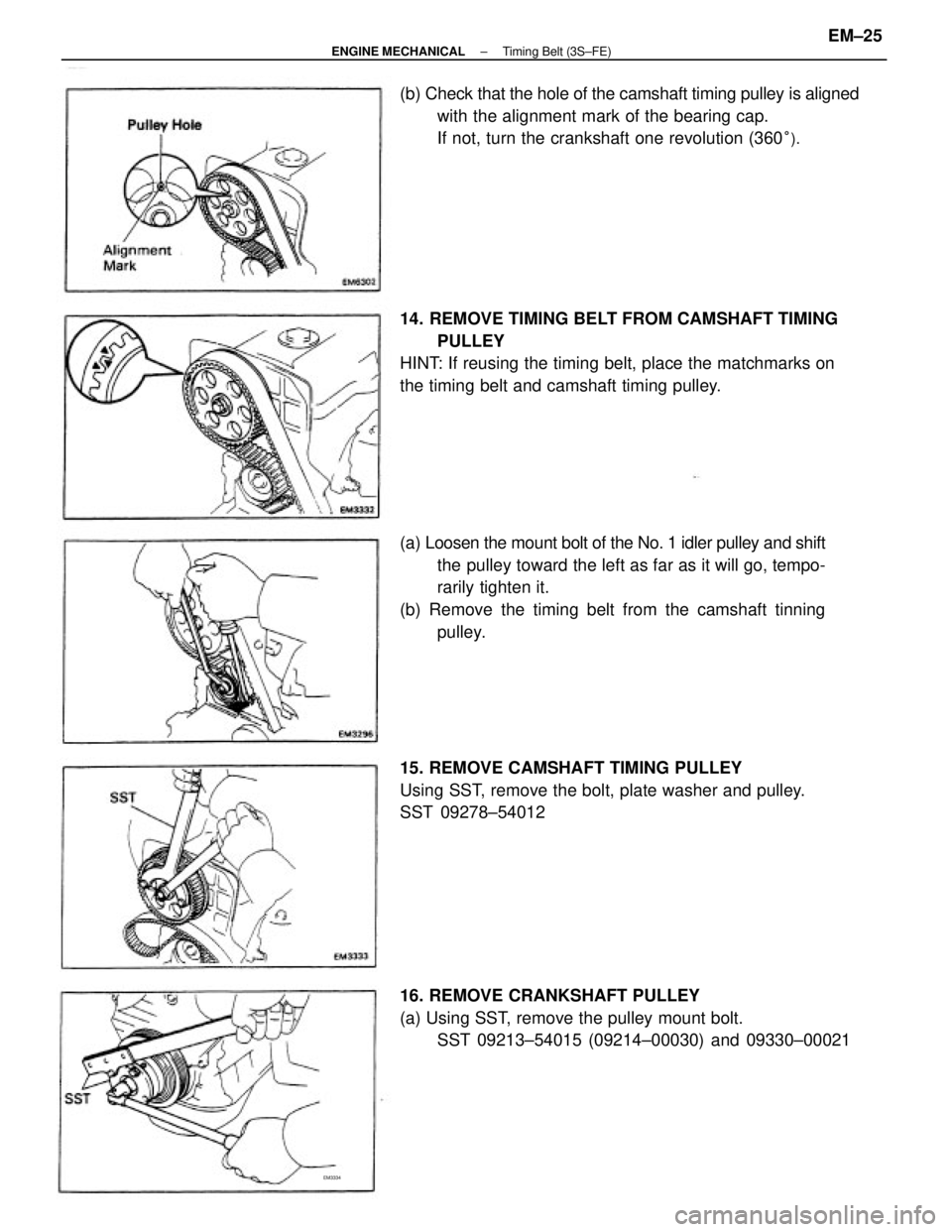

Page 1202 of 2389

TOYOTA CAMRY V20 1986 Service Information (a) Loosen the mount bolt of the No. 1 idler pulley and shift the pulley toward the left as far as it will go, tempo- rarily tighten it. (b) Remove the timing belt from the camshaft tinning pulley. 14

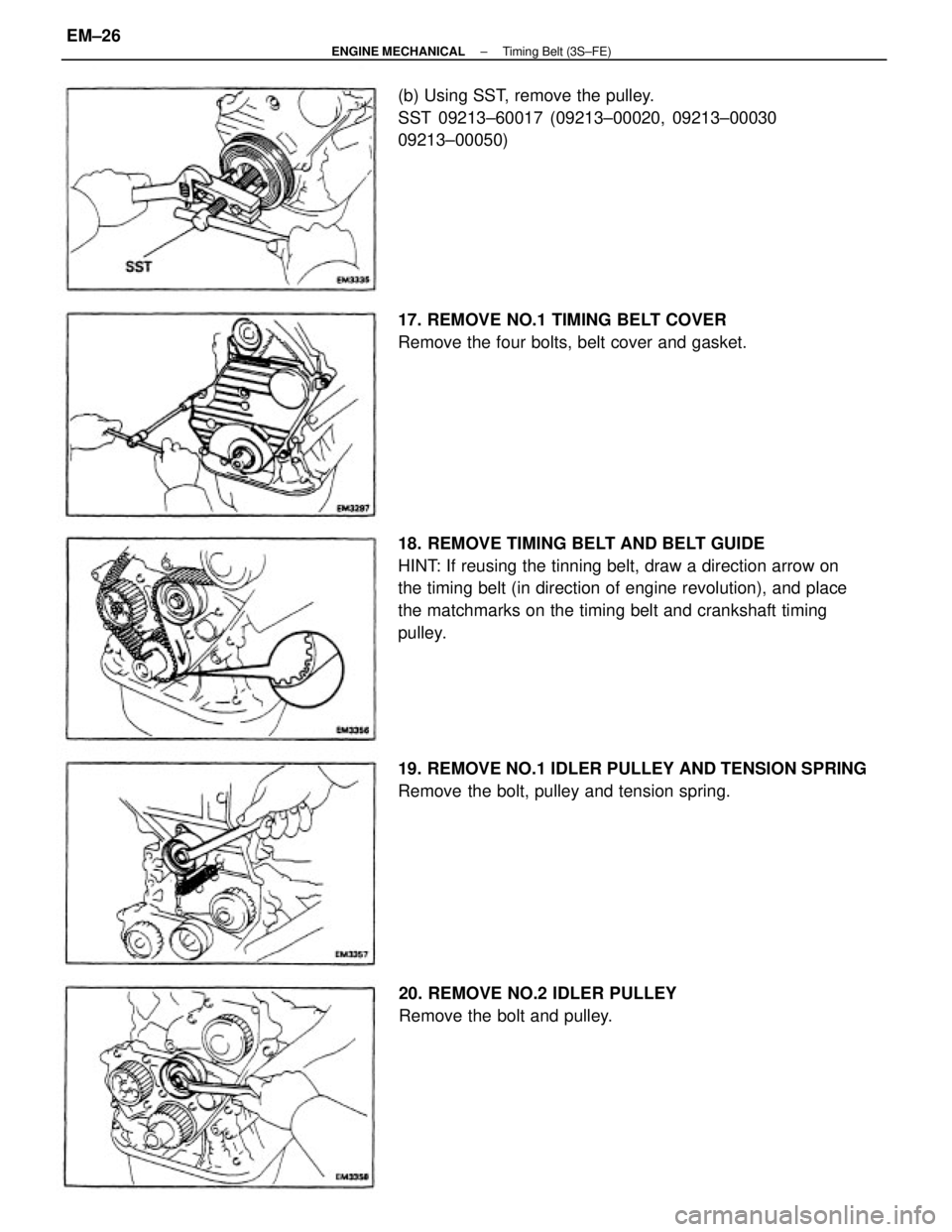

Page 1203 of 2389

TOYOTA CAMRY V20 1986 Service Information 18. REMOVE TIMING BELT AND BELT GUIDE HINT: If reusing the tinning belt, draw a direction arrow on the timing belt (in direction of engine revolution), and place the matchmarks on the timing belt and

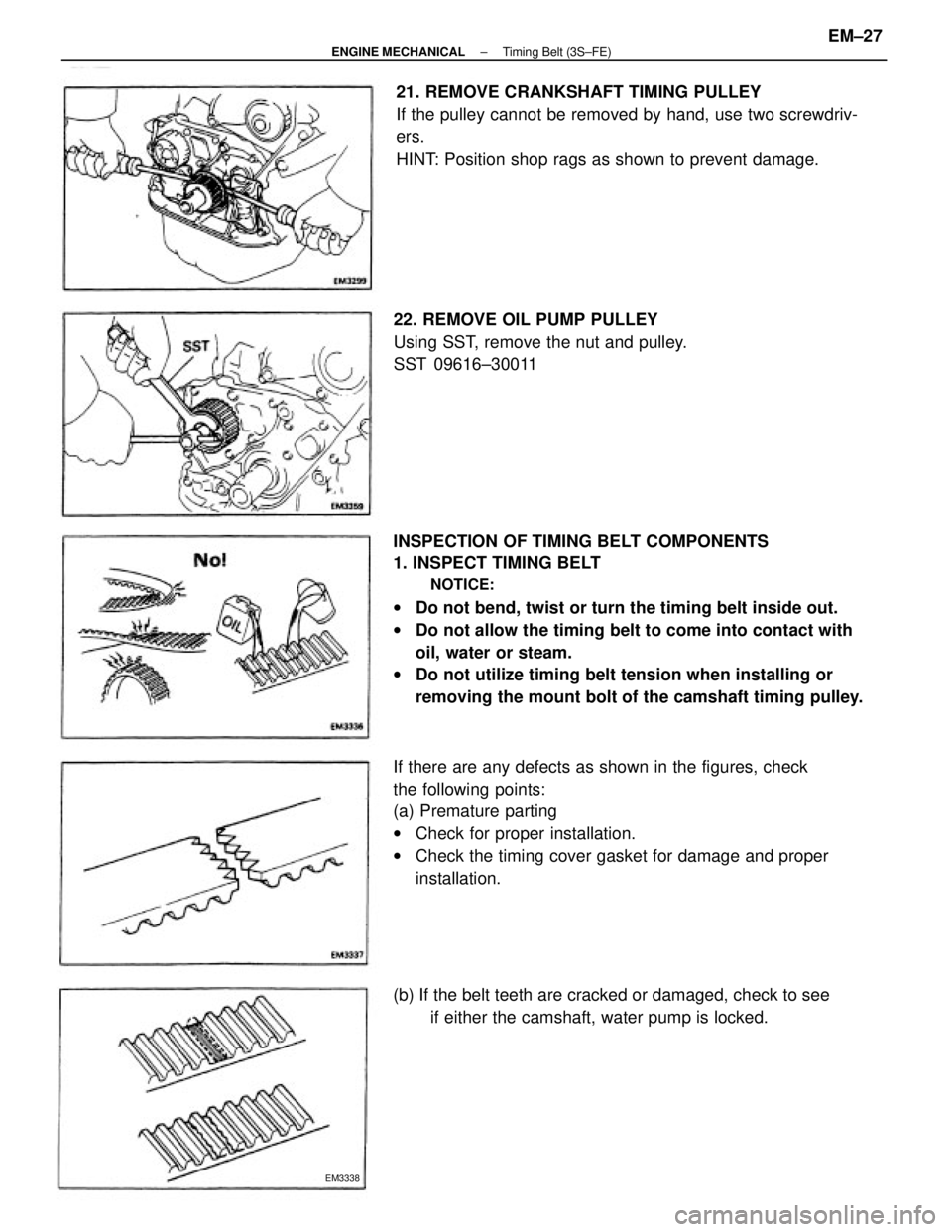

Page 1204 of 2389

TOYOTA CAMRY V20 1986 Service Information INSPECTION OF TIMING BELT COMPONENTS 1. INSPECT TIMING BELT NOTICE: wDo not bend, twist or turn the timing belt inside out. wDo not allow the timing belt to come into contact with oil, water or steam.

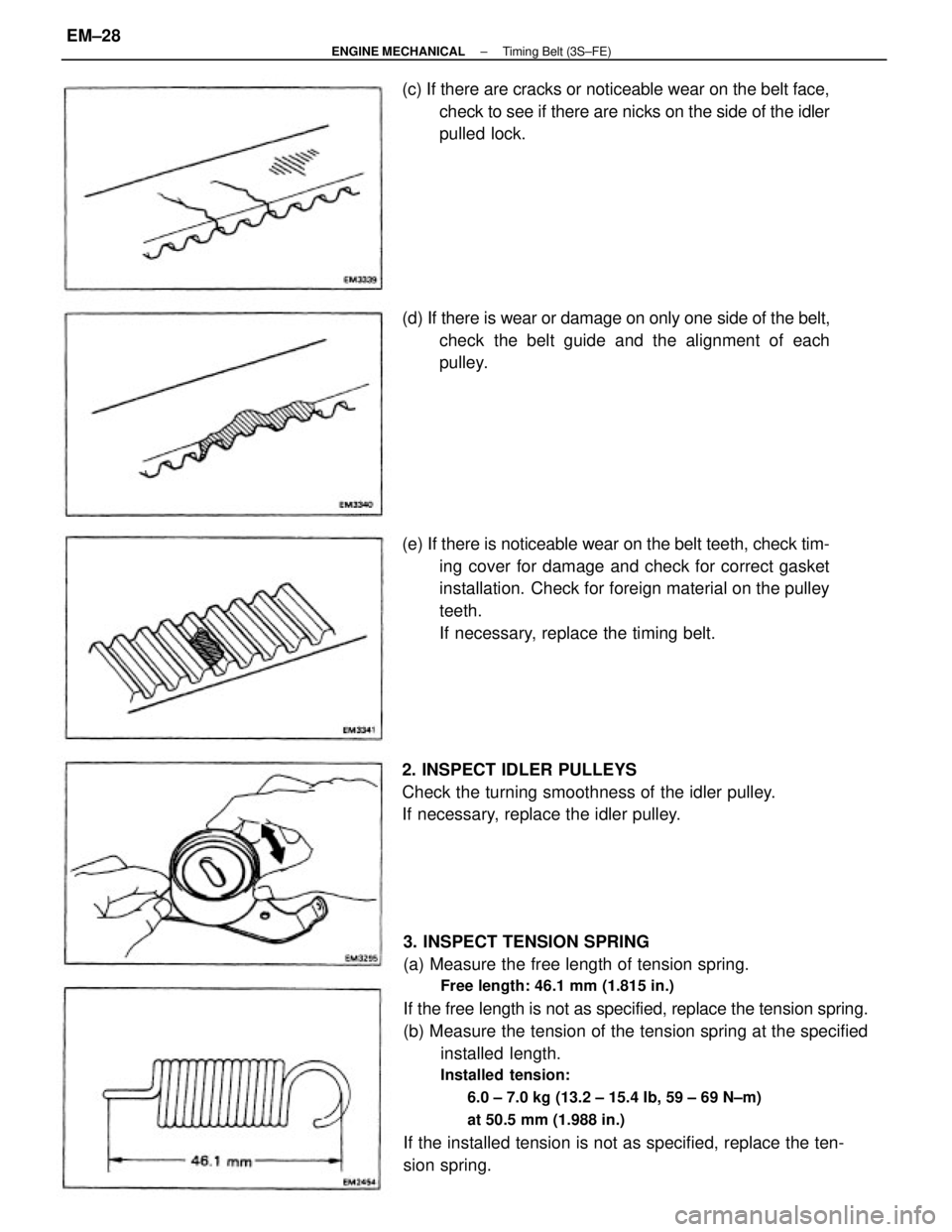

Page 1205 of 2389

TOYOTA CAMRY V20 1986 Service Information 3. INSPECT TENSION SPRING (a) Measure the free length of tension spring. Free length: 46.1 mm (1.815 in.) If the free length is not as specified, replace the tension spring. (b) Measure the tension of

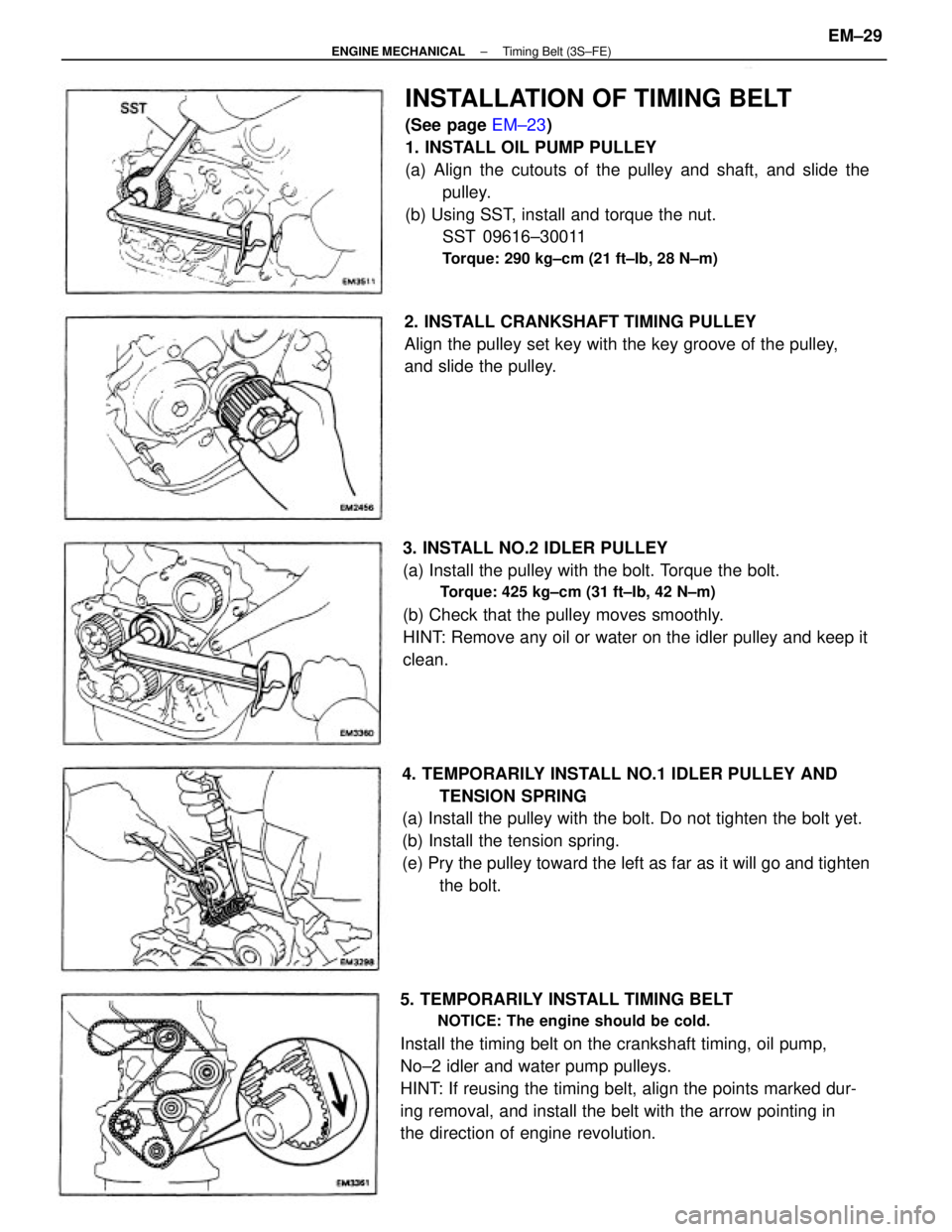

Page 1206 of 2389

TOYOTA CAMRY V20 1986 Service Information INSTALLATION OF TIMING BELT (See page EM±23) 1. INSTALL OIL PUMP PULLEY (a) Align the cutouts of the pulley and shaft, and slide the pulley. (b) Using SST, install and torque the nut. SST 09616±3001

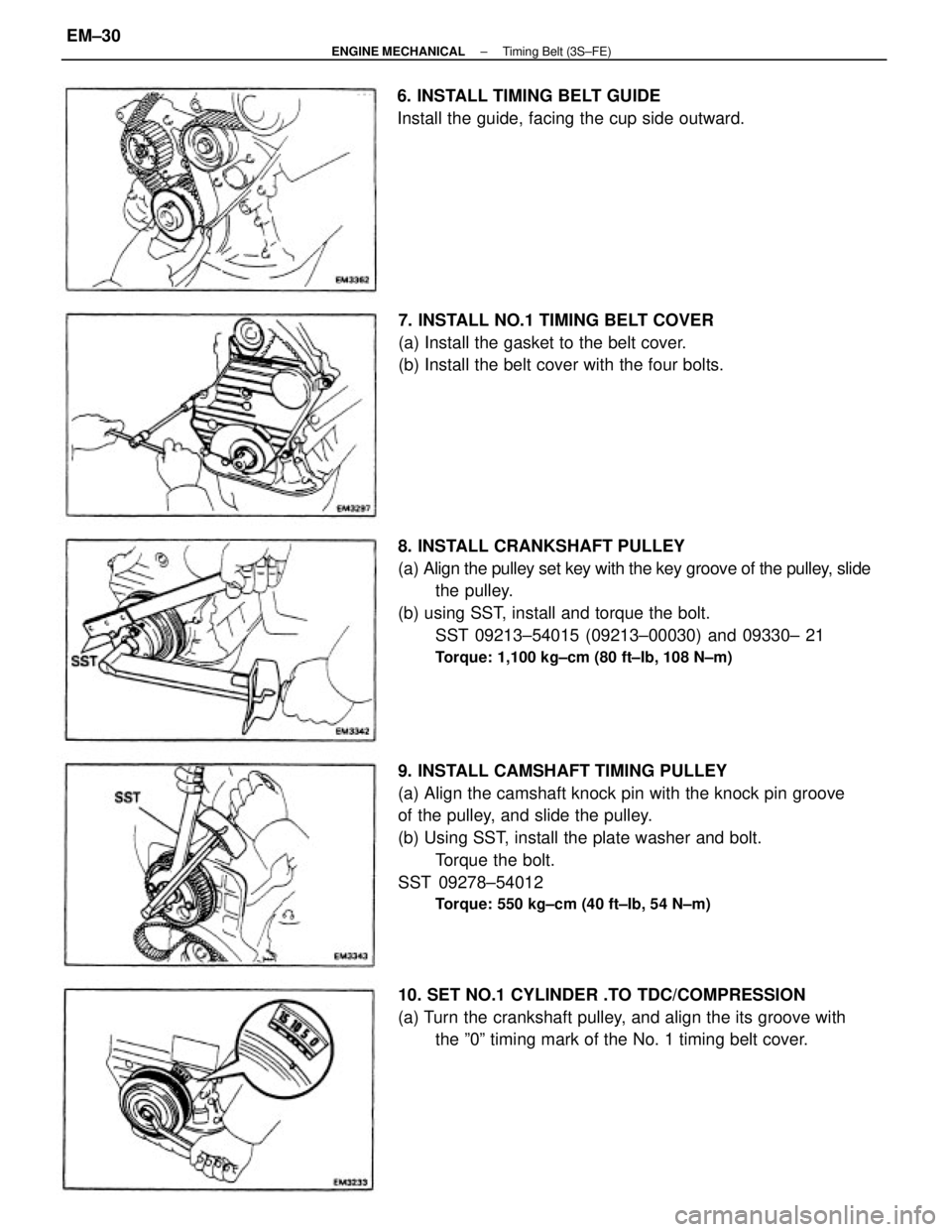

Page 1207 of 2389

TOYOTA CAMRY V20 1986 Service Information 9. INSTALL CAMSHAFT TIMING PULLEY (a) Align the camshaft knock pin with the knock pin groove of the pulley, and slide the pulley. (b) Using SST, install the plate washer and bolt. Torque the bolt. SST

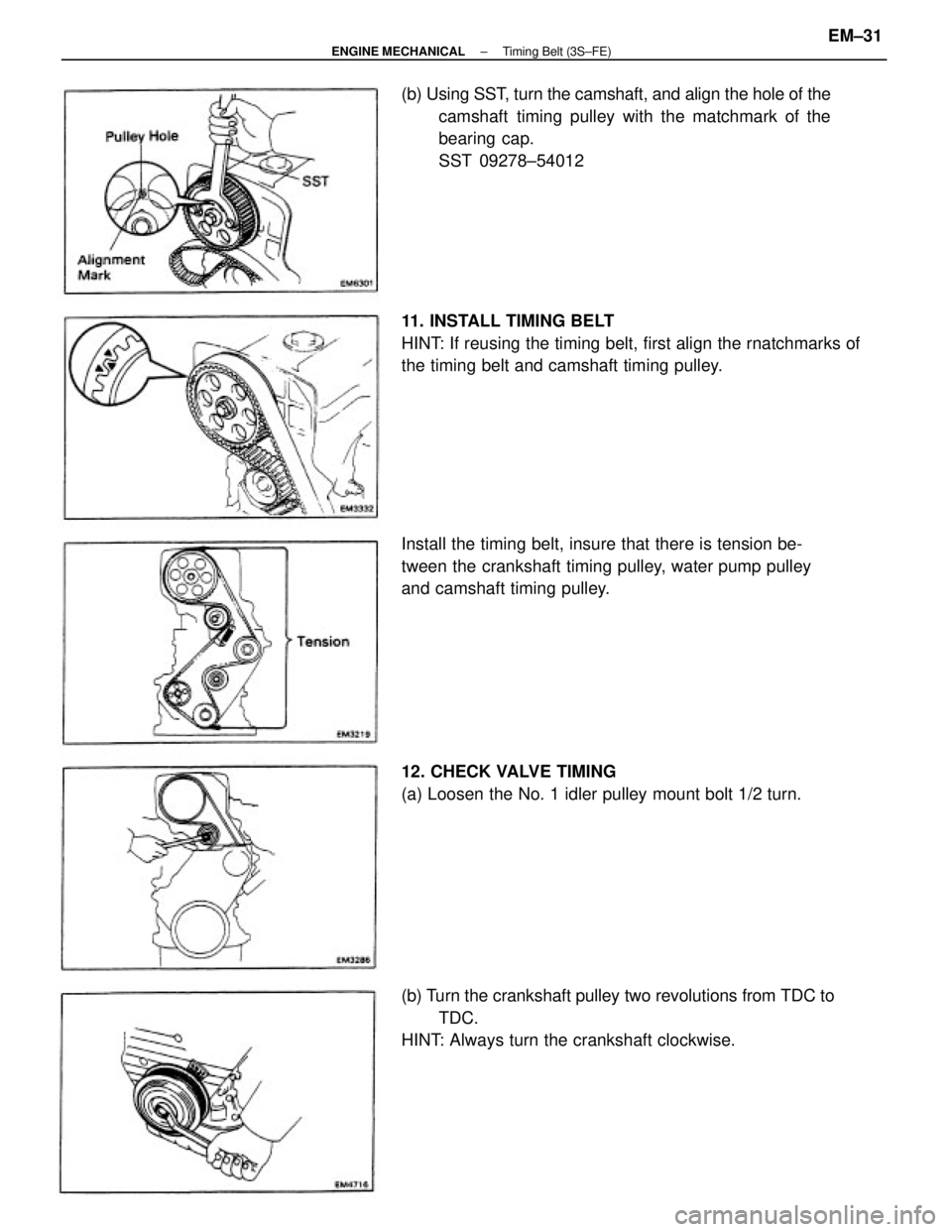

Page 1208 of 2389

TOYOTA CAMRY V20 1986 Service Information (b) Using SST, turn the camshaft, and align the hole of the camshaft timing pulley with the matchmark of the bearing cap. SST 09278±54012 11. INSTALL TIMING BELT HINT: If reusing the timing belt, fir
