Page 2153 of 2389

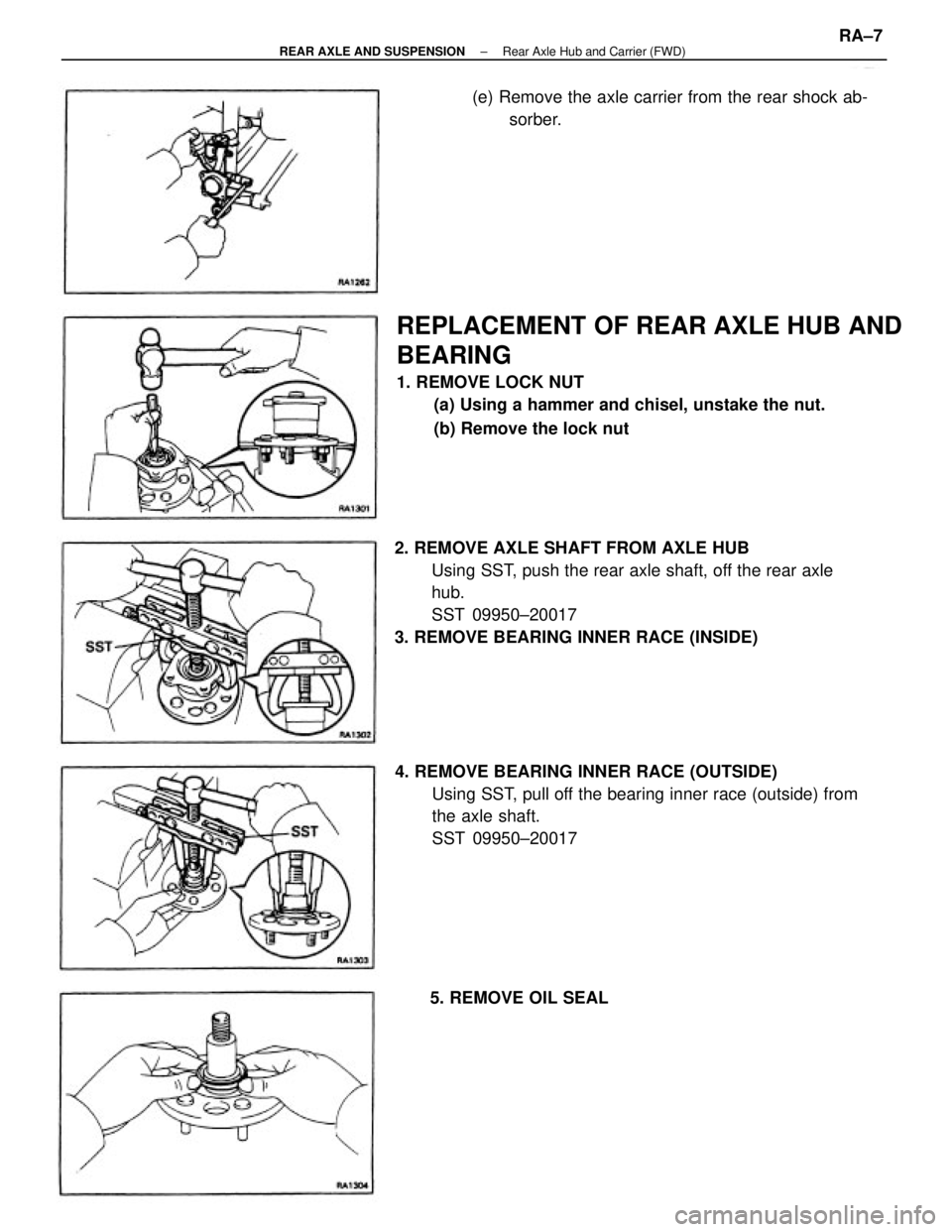

TOYOTA CAMRY V20 1986 Service Information REPLACEMENT OF REAR AXLE HUB AND BEARING 1. REMOVE LOCK NUT (a) Using a hammer and chisel, unstake the nut. (b) Remove the lock nut 2. REMOVE AXLE SHAFT FROM AXLE HUB Using SST, push the rear axle sha

Page 2154 of 2389

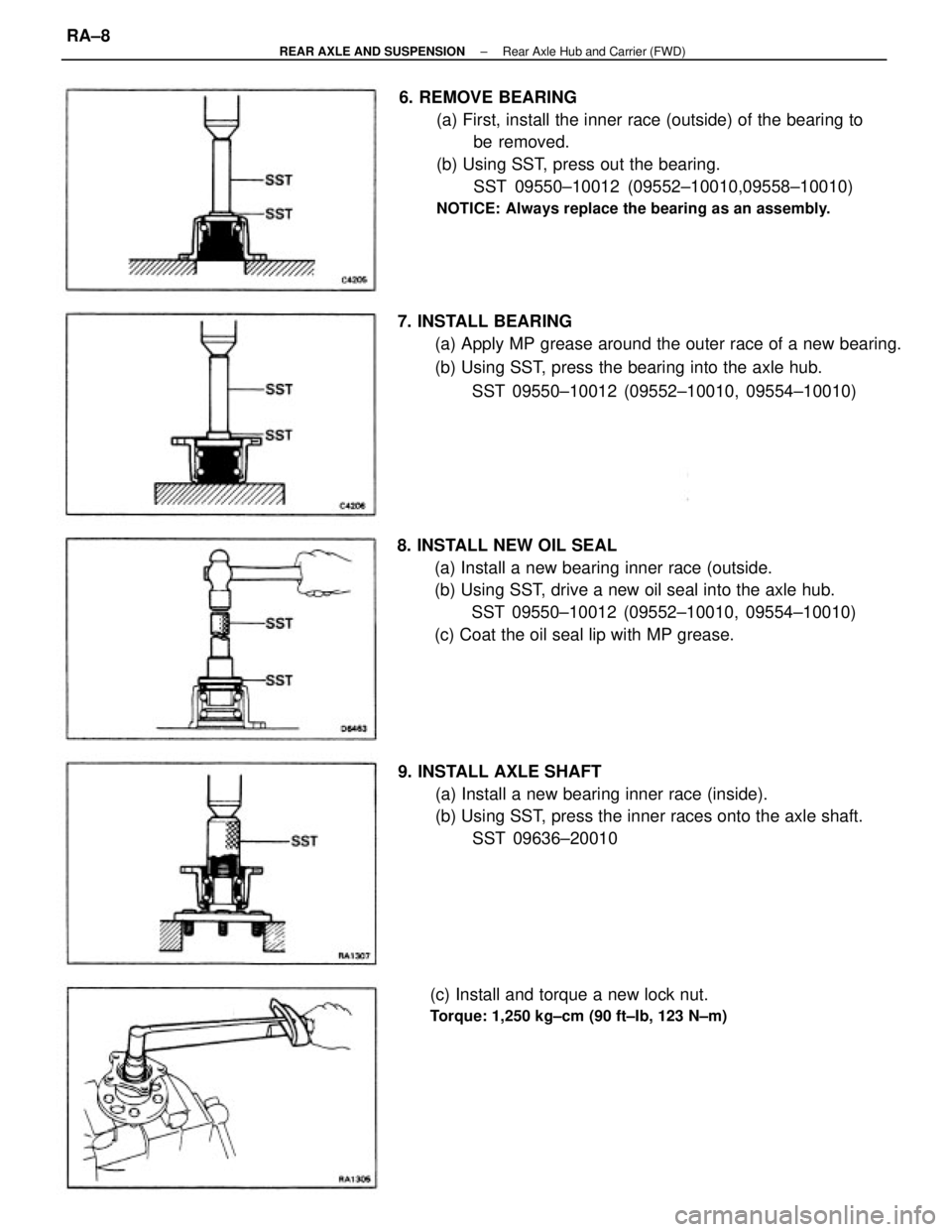

TOYOTA CAMRY V20 1986 Service Information 6. REMOVE BEARING (a) First, install the inner race (outside) of the bearing to be removed. (b) Using SST, press out the bearing. SST 09550±10012 (09552±10010,09558±10010) NOTICE: Always replace th

Page 2155 of 2389

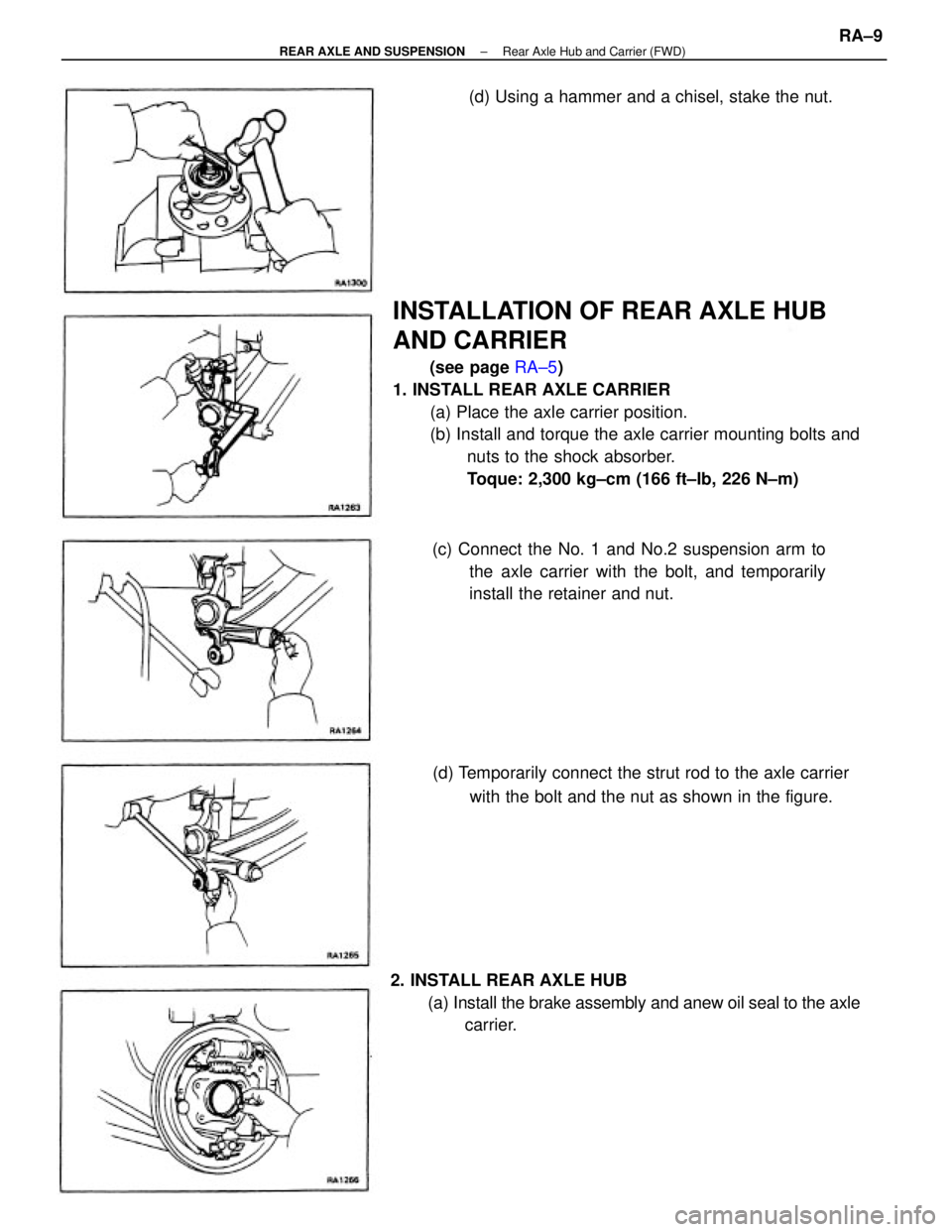

TOYOTA CAMRY V20 1986 Service Information INSTALLATION OF REAR AXLE HUB AND CARRIER (see page RA±5) 1. INSTALL REAR AXLE CARRIER (a) Place the axle carrier position. (b) Install and torque the axle carrier mounting bolts and nuts to the shoc

Page 2156 of 2389

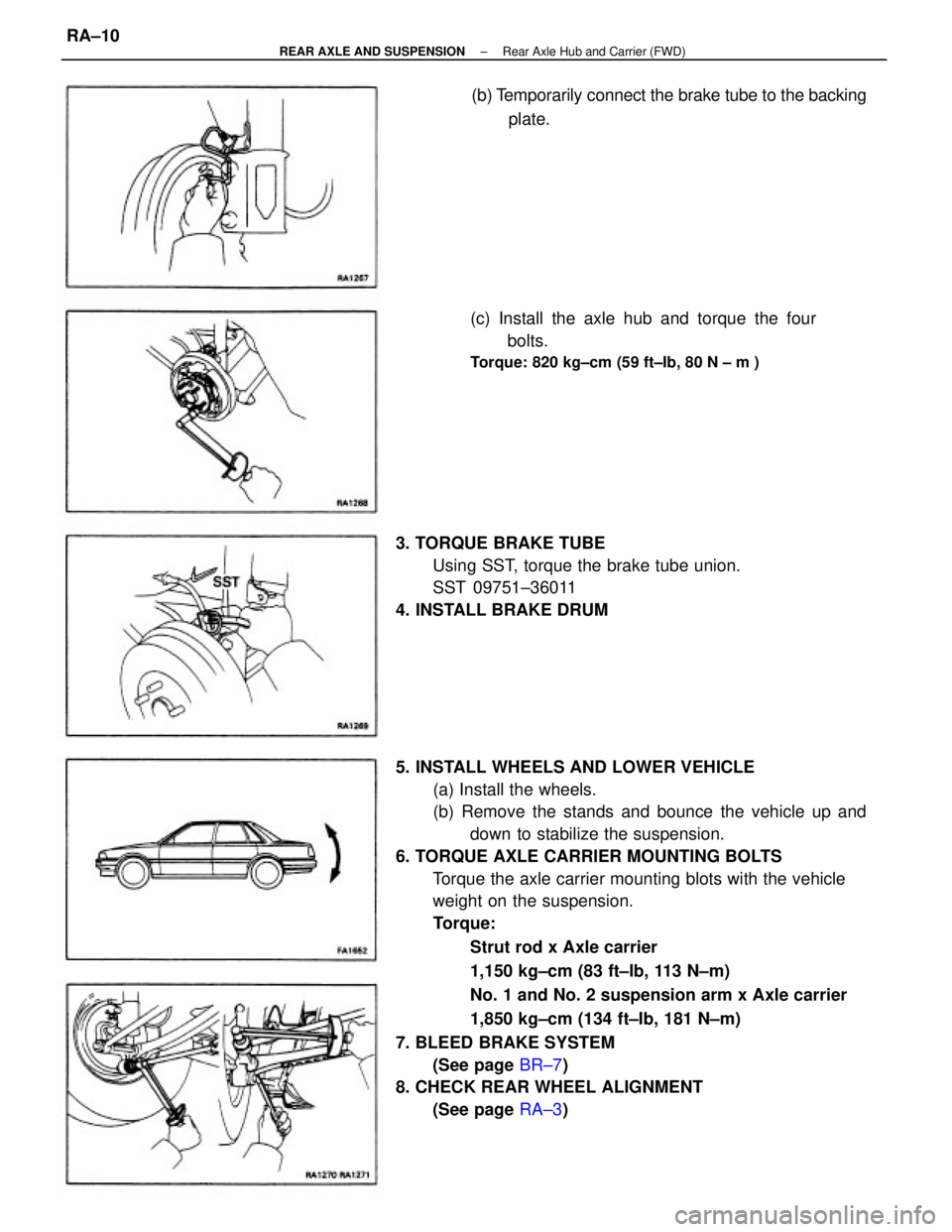

TOYOTA CAMRY V20 1986 Service Information 5. INSTALL WHEELS AND LOWER VEHICLE (a) Install the wheels. (b) Remove the stands and bounce the vehicle up and down to stabilize the suspension. 6. TORQUE AXLE CARRIER MOUNTING BOLTS Torque the axle

Page 2157 of 2389

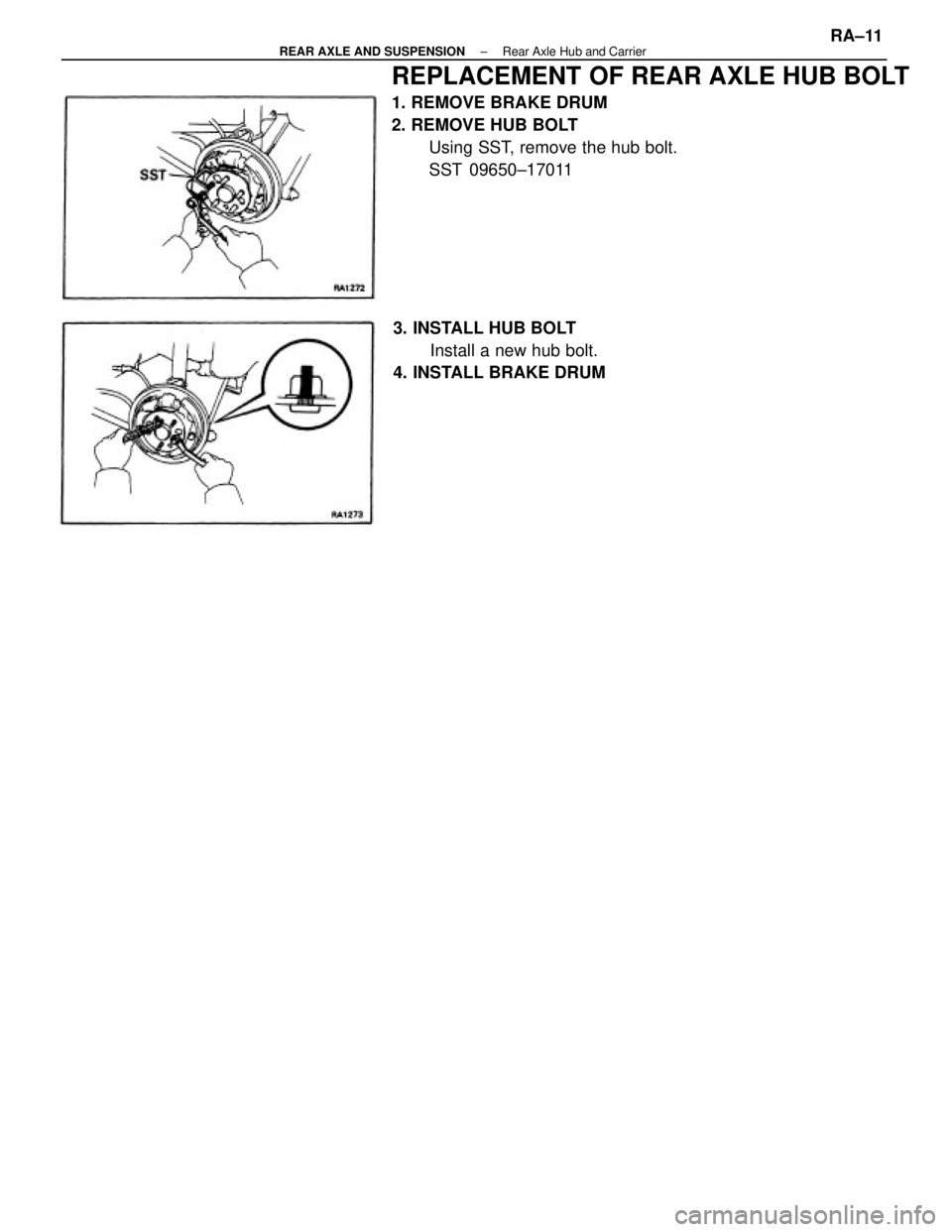

TOYOTA CAMRY V20 1986 Service Information REPLACEMENT OF REAR AXLE HUB BOLT 1. REMOVE BRAKE DRUM 2. REMOVE HUB BOLT Using SST, remove the hub bolt. SST 09650±17011 3. INSTALL HUB BOLT Install a new hub bolt. 4. INSTALL BRAKE DRUM ± REAR AXL

Page 2158 of 2389

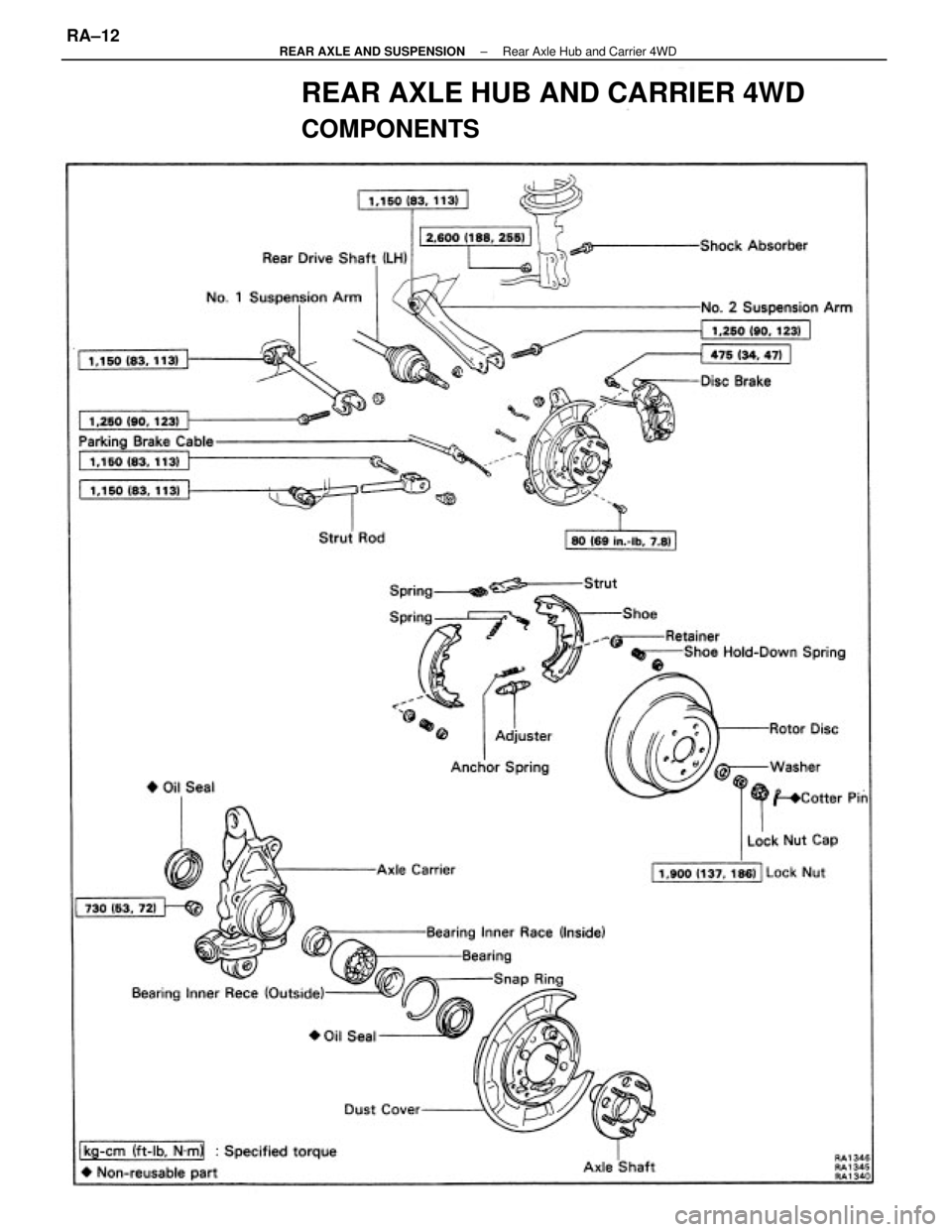

TOYOTA CAMRY V20 1986 Service Information REAR AXLE HUB AND CARRIER 4WD COMPONENTS ± REAR AXLE AND SUSPENSIONRear Axle Hub and Carrier 4WDRA±12

Page 2159 of 2389

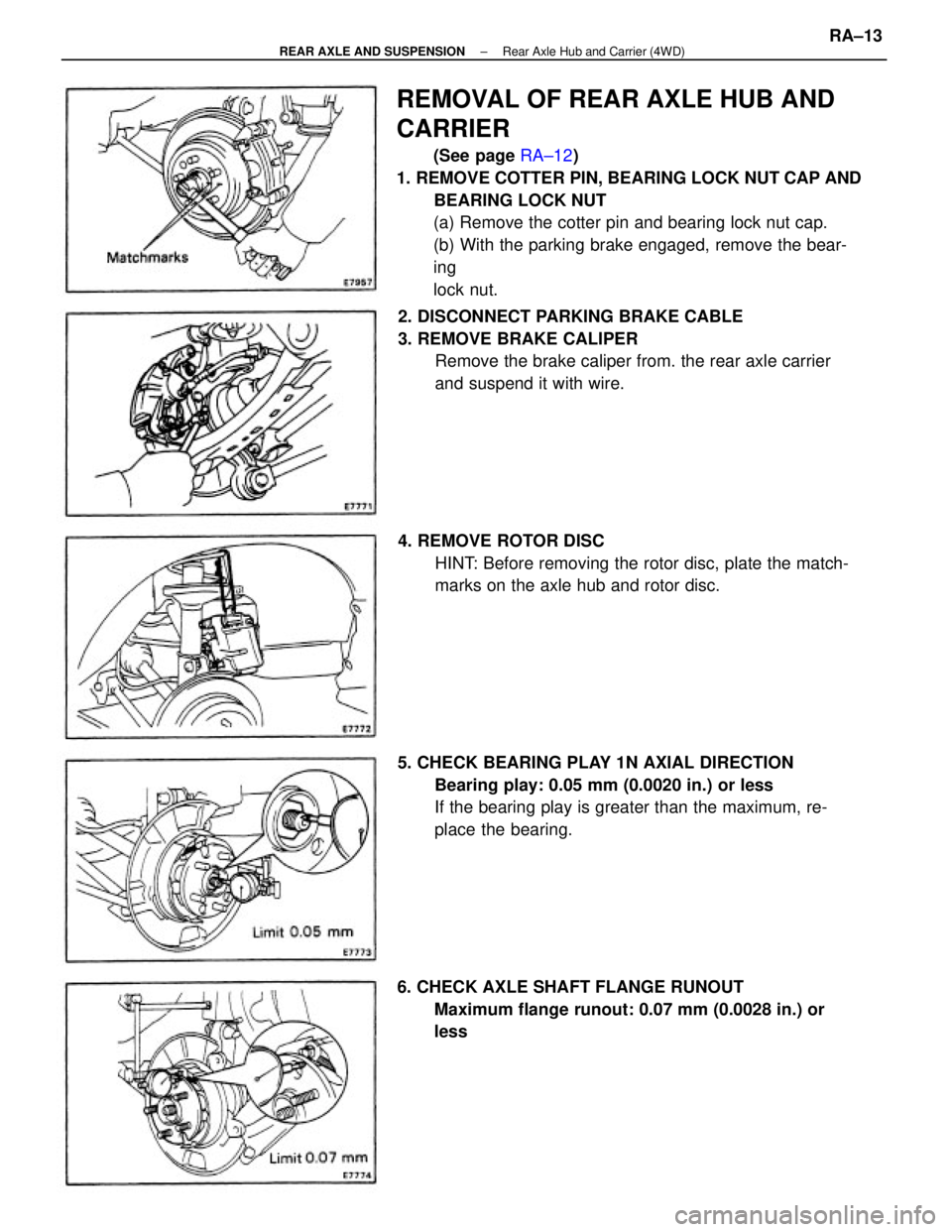

TOYOTA CAMRY V20 1986 Service Information REMOVAL OF REAR AXLE HUB AND CARRIER (See page RA±12) 1. REMOVE COTTER PIN, BEARING LOCK NUT CAP AND BEARING LOCK NUT (a) Remove the cotter pin and bearing lock nut cap. (b) With the parking brake en

Page 2160 of 2389

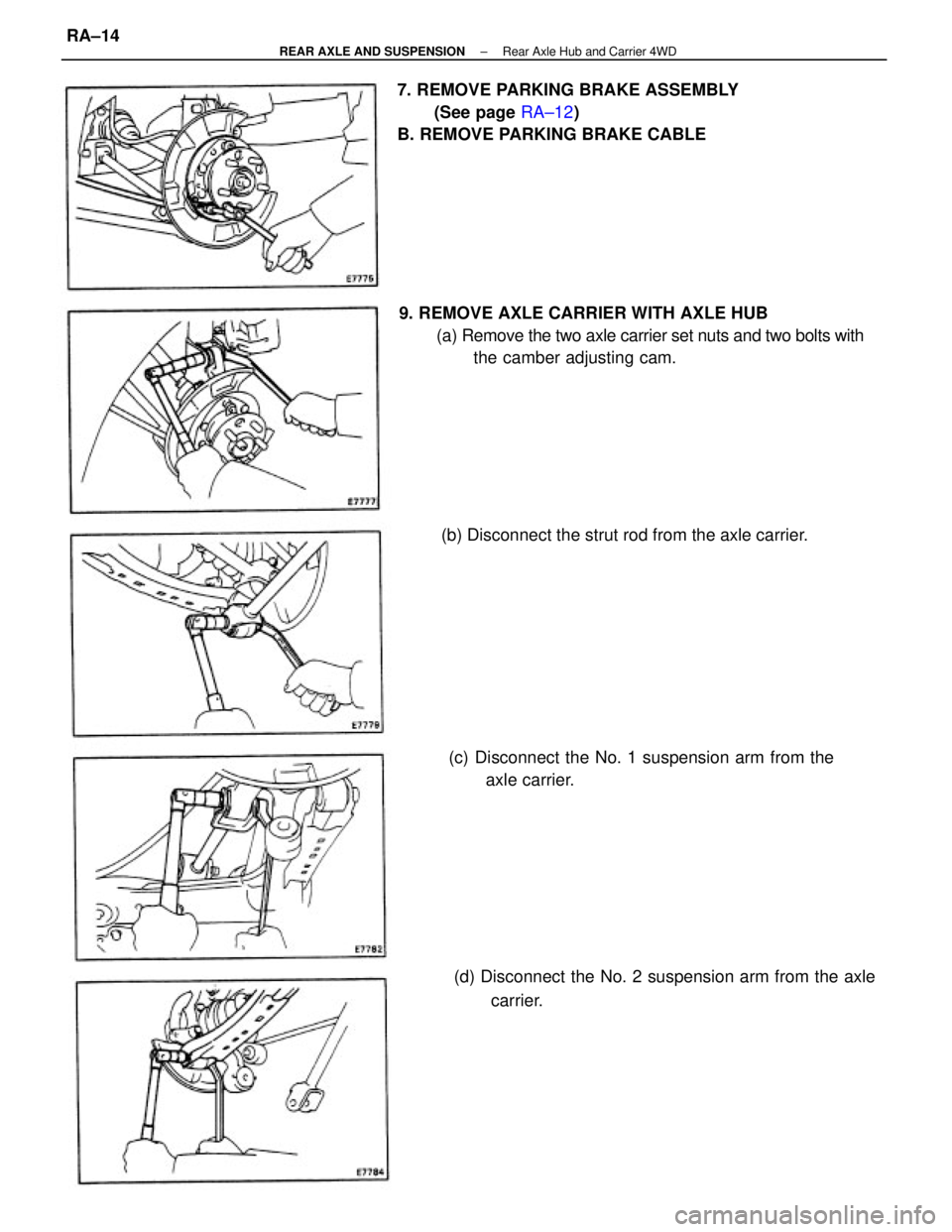

TOYOTA CAMRY V20 1986 Service Information 9. REMOVE AXLE CARRIER WITH AXLE HUB (a) Remove the two axle carrier set nuts and two bolts with the camber adjusting cam. 7. REMOVE PARKING BRAKE ASSEMBLY (See page RA±12) B. REMOVE PARKING BRAKE CA
