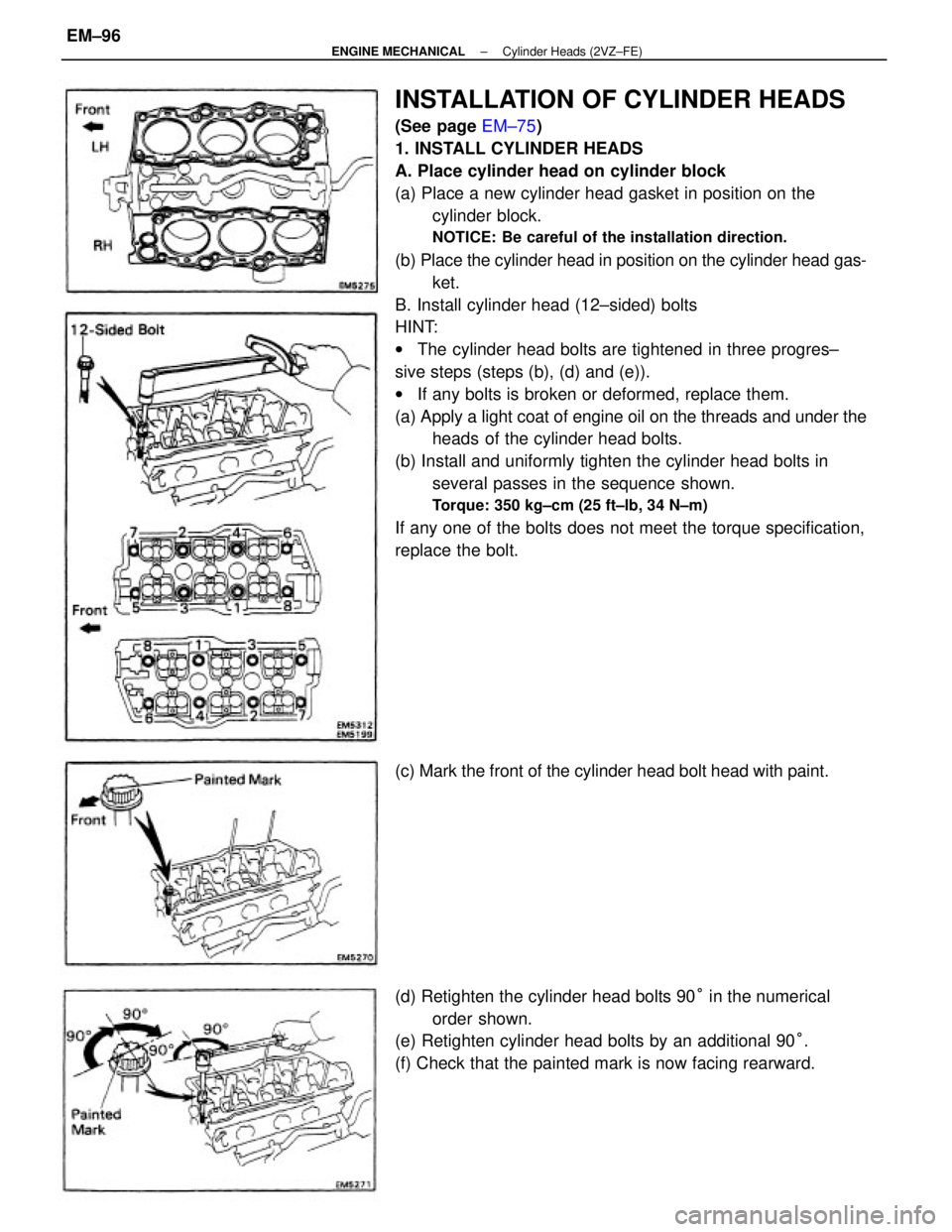

INSTALLATION OF CYLINDER HEADS
(See page EM±75)
1. INSTALL CYLINDER HEADS
A. Place cylinder head on cylinder block
(a) Place a new cylinder head gasket in position on the
cylinder block.
NOTICE: Be careful of the installation direction.
(b) Place the cylinder head in position on the cylinder head gas-
ket.
B. Install cylinder head (12±sided) bolts
HINT:
wThe cylinder head bolts are tightened in three progres±
sive steps (steps (b), (d) and (e)).
wIf any bolts is broken or deformed, replace them.
(a) Apply a light coat of engine oil on the threads and under the
heads of the cylinder head bolts.
(b) Install and uniformly tighten the cylinder head bolts in
several passes in the sequence shown.
Torque: 350 kg±cm (25 ft±lb, 34 N±m)
If any one of the bolts does not meet the torque specification,
replace the bolt.
(d) Retighten the cylinder head bolts 90° in the numerical
order shown.
(e) Retighten cylinder head bolts by an additional 90°.
(f) Check that the painted mark is now facing rearward. (c) Mark the front of the cylinder head bolt head with paint.
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±96
Page 1274 of 2389

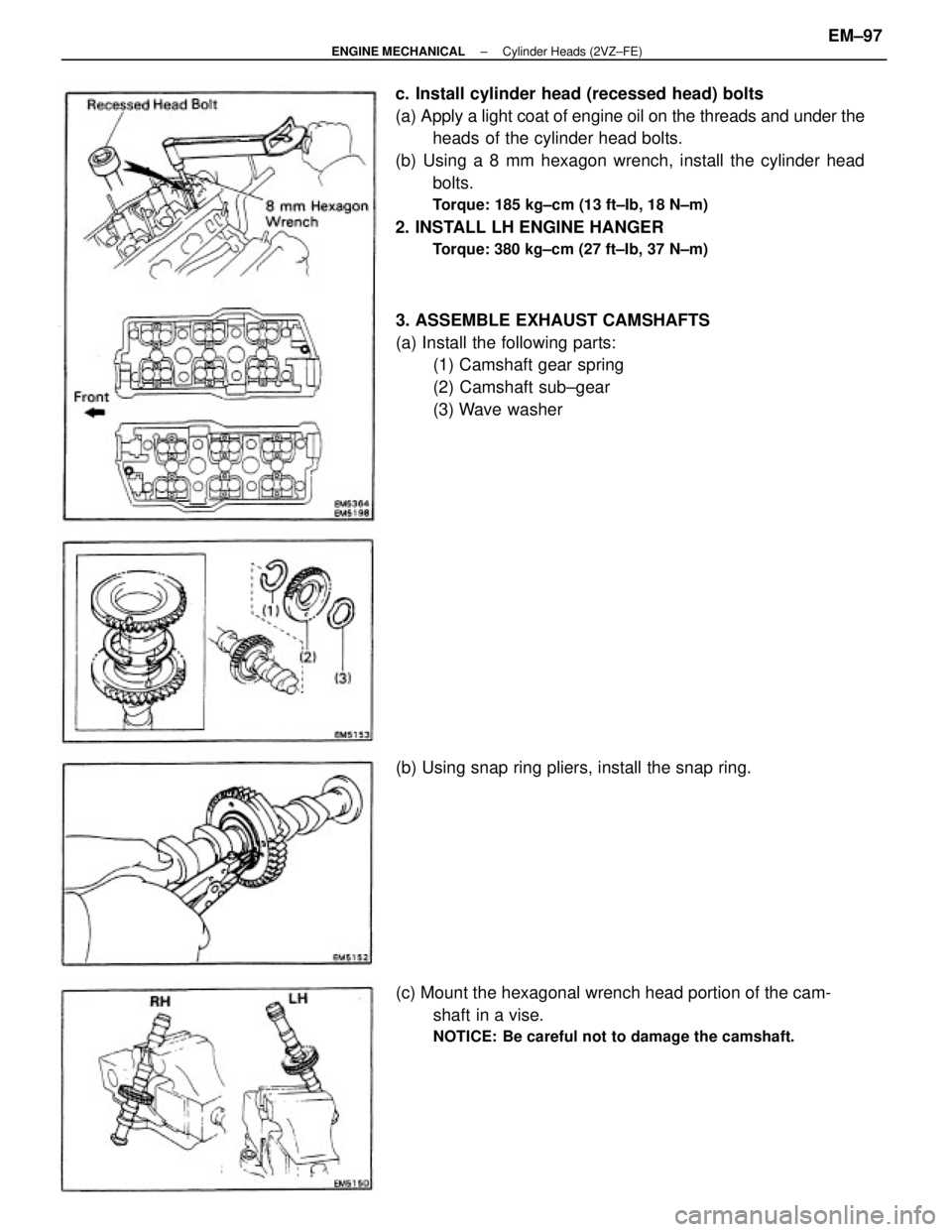

c. Install cylinder head (recessed head) bolts
(a) Apply a light coat of engine oil on the threads and under the
heads of the cylinder head bolts.
(b) Using a 8 mm hexagon wrench, install the cylinder head
bolts.
Torque: 185 kg±cm (13 ft±Ib, 18 N±m)
2. INSTALL LH ENGINE HANGER
Torque: 380 kg±cm (27 ft±Ib, 37 N±m)
3. ASSEMBLE EXHAUST CAMSHAFTS
(a) Install the following parts:
(1) Camshaft gear spring
(2) Camshaft sub±gear
(3) Wave washer
(c) Mount the hexagonal wrench head portion of the cam-
shaft in a vise.
NOTICE: Be careful not to damage the camshaft.
(b) Using snap ring pliers, install the snap ring.
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±97
Page 1275 of 2389

4. INSTALL CAMSHAFTS
NOTICE: Since the thrust clearance of the camshaft is
small, the camshaft must be held level white it is being
installed. If the camshaft is not level, the portion of the cyl-
inder head receiving the shaft thrust may crack or be
damaged, causing the camshaft to seize or break. To

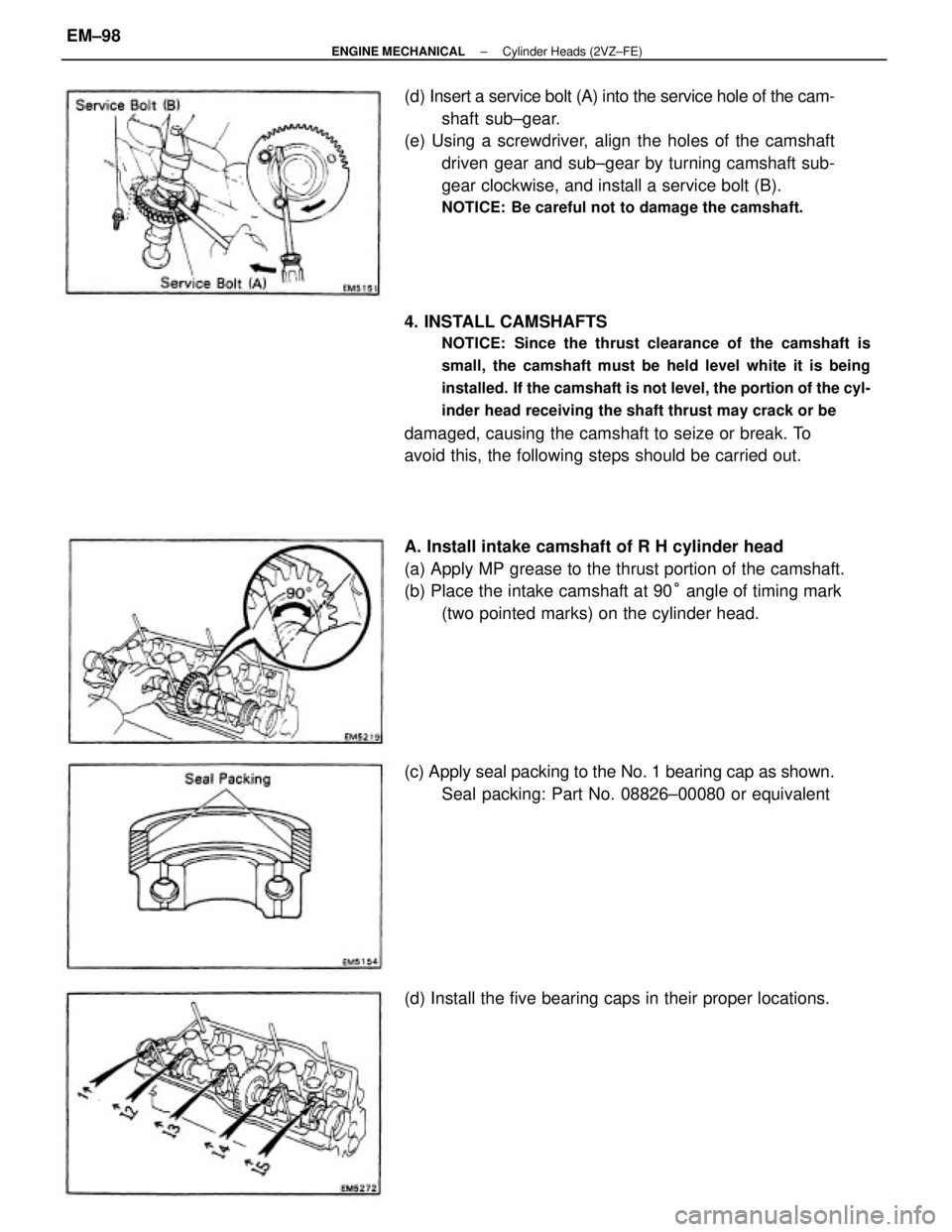

avoid this, the following steps should be carried out. (d) Insert a service bolt (A) into the service hole of the cam-
shaft sub±gear.
(e) Using a screwdriver, align the holes of the camshaft
driven gear and sub±gear by turning camshaft sub-
gear clockwise, and install a service bolt (B).
NOTICE: Be careful not to damage the camshaft.
A. Install intake camshaft of R H cylinder head
(a) Apply MP grease to the thrust portion of the camshaft.
(b) Place the intake camshaft at 90° angle of timing mark
(two pointed marks) on the cylinder head.
(c) Apply seal packing to the No. 1 bearing cap as shown.
Seal packing: Part No. 08826±00080 or equivalent
(d) Install the five bearing caps in their proper locations.
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±98
Page 1276 of 2389

(e) Apply a light coat of engine oil on the threads and under
the heads of the bearing cap bolts.
(f) Install and uniformly tighten the eight bearing cap bolts
in several passes in the sequence shown.
Torque: 16o kg±cm (12 ft±lb, 16 N±m)

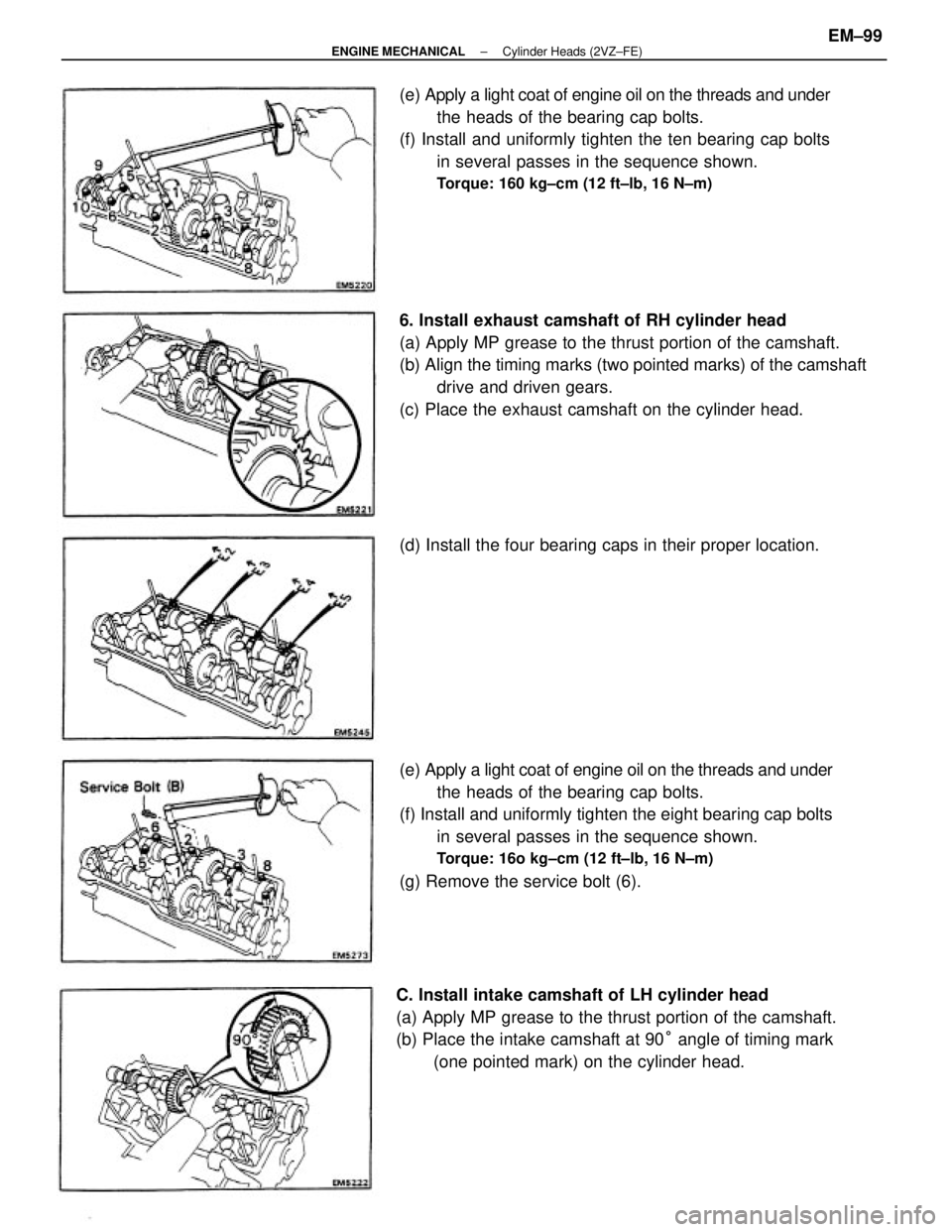

(g) Remove the service bolt (6). 6. Install exhaust camshaft of RH cylinder head
(a) Apply MP grease to the thrust portion of the camshaft.
(b) Align the timing marks (two pointed marks) of the camshaft
drive and driven gears.
(c) Place the exhaust camshaft on the cylinder head. (e) Apply a light coat of engine oil on the threads and under
the heads of the bearing cap bolts.
(f) Install and uniformly tighten the ten bearing cap bolts
in several passes in the sequence shown.
Torque: 160 kg±cm (12 ft±lb, 16 N±m)
C. Install intake camshaft of LH cylinder head
(a) Apply MP grease to the thrust portion of the camshaft.
(b) Place the intake camshaft at 90° angle of timing mark
(one pointed mark) on the cylinder head. (d) Install the four bearing caps in their proper location.
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±99
Page 1277 of 2389
D. Install exhaust camshaft of LH cylinder head
(a) Apply MP grease to the thrust portion of the camshaft.
(b) Align the timing marks (one pointed mark) of the camshaft
drive and driven gears.
(c) Place the intake camshaft on the cylinder head. (e) Apply a light coat of engine oil on the threads and under
the heads of the bearing cap bolts.
M Install and uniformly tighten the ten bearing cap
bolts in several passes in the sequence shown.
Torque: 160 kg±cm (12 ft±Ib, 16 N±m)

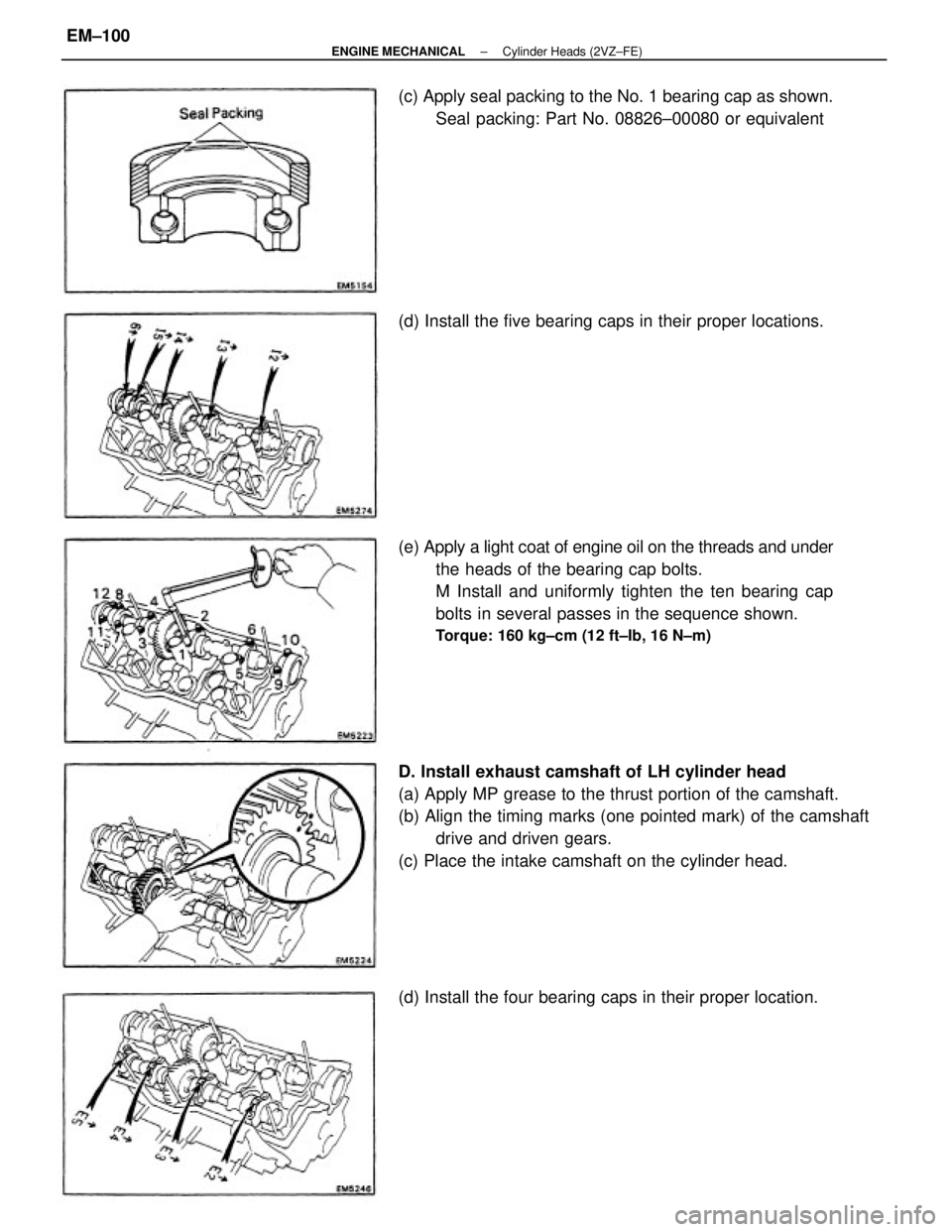

(c) Apply seal packing to the No. 1 bearing cap as shown.
Seal packing: Part No. 08826±00080 or equivalent
(d) Install the four bearing caps in their proper location. (d) Install the five bearing caps in their proper locations.
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±100
Page 1278 of 2389

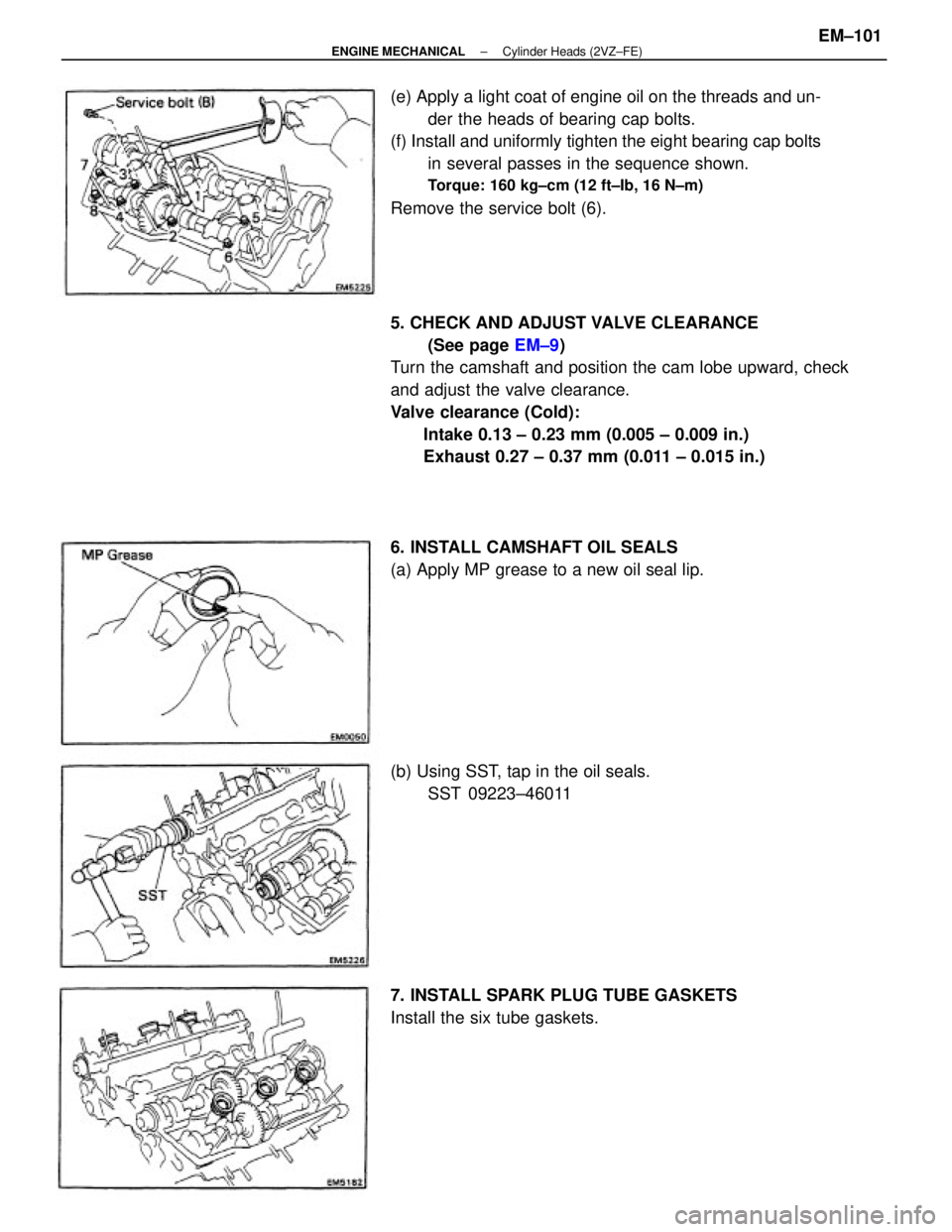

5. CHECK AND ADJUST VALVE CLEARANCE
(See page EM±9)
Turn the camshaft and position the cam lobe upward, check
and adjust the valve clearance.
Valve clearance (Cold):
Intake 0.13 ± 0.23 mm (0.005 ± 0.009 in.)
Exhaust 0.27 ± 0.37 mm (0.011 ± 0.015 in.) (e) Apply a light coat of engine oil on the threads and un-
der the heads of bearing cap bolts.
(f) Install and uniformly tighten the eight bearing cap bolts
in several passes in the sequence shown.
Torque: 160 kg±cm (12 ft±Ib, 16 N±m)
Remove the service bolt (6).
6. INSTALL CAMSHAFT OIL SEALS
(a) Apply MP grease to a new oil seal lip.
7. INSTALL SPARK PLUG TUBE GASKETS
Install the six tube gaskets. (b) Using SST, tap in the oil seals.
SST 09223±46011
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±101
Page 1279 of 2389
9. INSTALL NO.3 TIMING BELT COVER
Install the timing belt cover. with the six bolts.
Torque: 75 kg±cm (65 in.±lb, 7.4 N±m)
10. INSTALL NO.2 IDLER PULLEY, CAMSHAFT TIMING
PULLEYS AND TIMING BELT
(See steps 7 to 26 on pages EM±43 to 47)
11. INSTALL SPARK PLUGS (See page IG±11)
Torque: 180kg±cm (13 ft±Ib, 18 N±m)

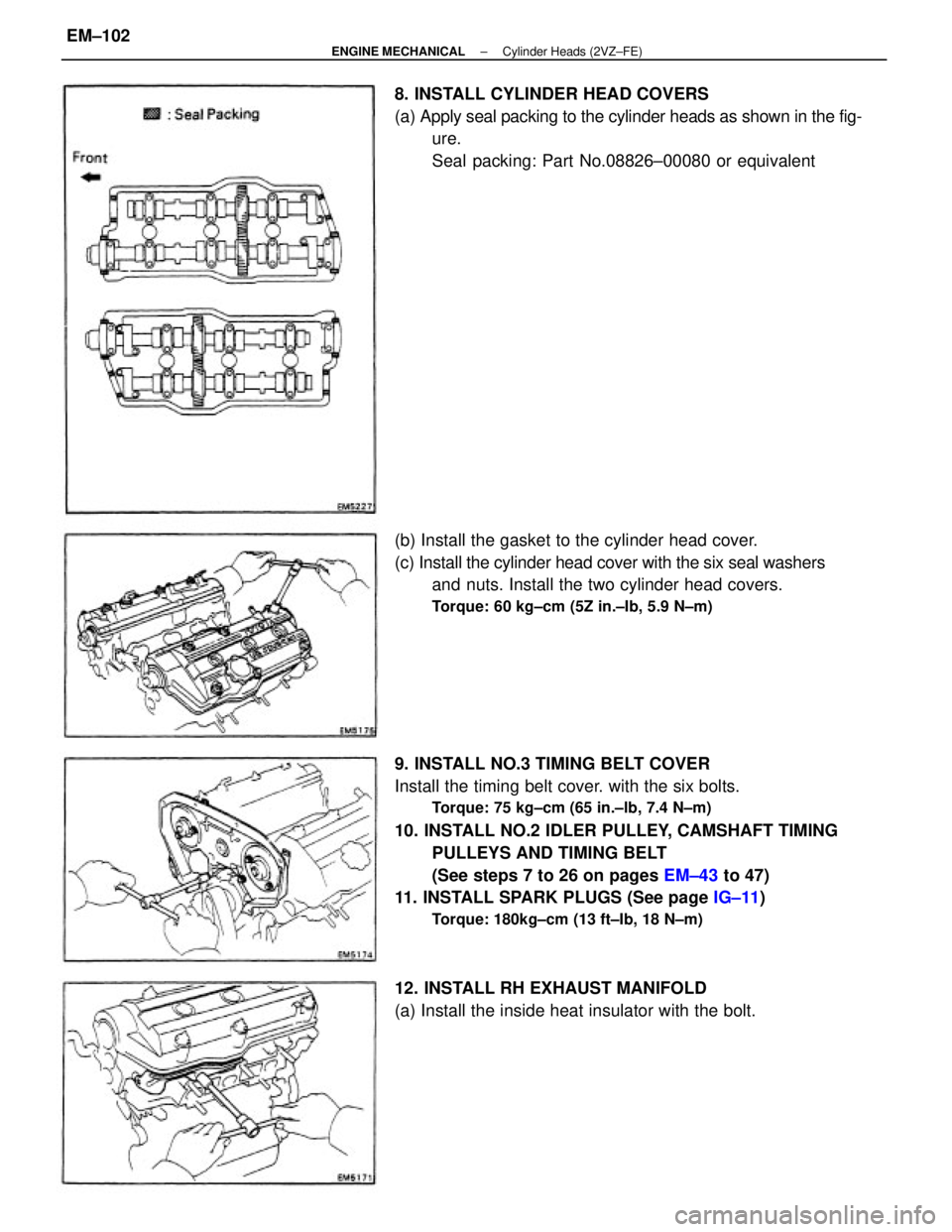

8. INSTALL CYLINDER HEAD COVERS
(a) Apply seal packing to the cylinder heads as shown in the fig-
ure.
Seal packing: Part No.08826±00080 or equivalent
(b) Install the gasket to the cylinder head cover.
(c) Install the cylinder head cover with the six seal washers
and nuts. Install the two cylinder head covers.
Torque: 60 kg±cm (5Z in.±Ib, 5.9 N±m)
12. INSTALL RH EXHAUST MANIFOLD
(a) Install the inside heat insulator with the bolt.
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±102
Page 1280 of 2389
13. INSTALL LH EXHAUST MANIFOLD
(a) Install a new gasket and the exhaust manifold with new six
nuts.
Torque: 400 kg±cm (29 ft±Ib, 39 N±m)
12. INSTALL INTAKE MANIFOLD
(a) Install two new gaskets and the intake manifold with the
eight bolts and four nuts.
Torque: 180 kg±cm (13 ft±Ib, 18 N±m)
(b) Install a new gasket and the exhaust manifold with new
six nuts.
Torque: 400 kg±cm (29 ft±Ib, 39 N±m)
(c) Install the outside heat insulator with the three nuts.
(d) Connect the oxygen sensor connector.
(b) Install the heat insulator with the two nuts.
± ENGINE MECHANICALCylinder Heads (2VZ±FE)EM±103
