Page 2145 of 2389
2. INSTALL REAR PROPELLER SHAFT
(a) Align the matchrmarks on the flanges and connect the
shaft with the four bolts, washers and nuts.
(b)Torque the bolts and nuts.
Torque: 750 kg±cm (54 ft±lb, 74 N±m)
4. TIGHTEN CROSS GROOVE JOINT SET BOLTS
(a) Depress the brake pedal and hold it.
(b) Using SST, tighten the cross groove joint set bolts.
SST 09313±30021
Torque: 275 kg±cm (20 ft±Ib. 27 N±m)

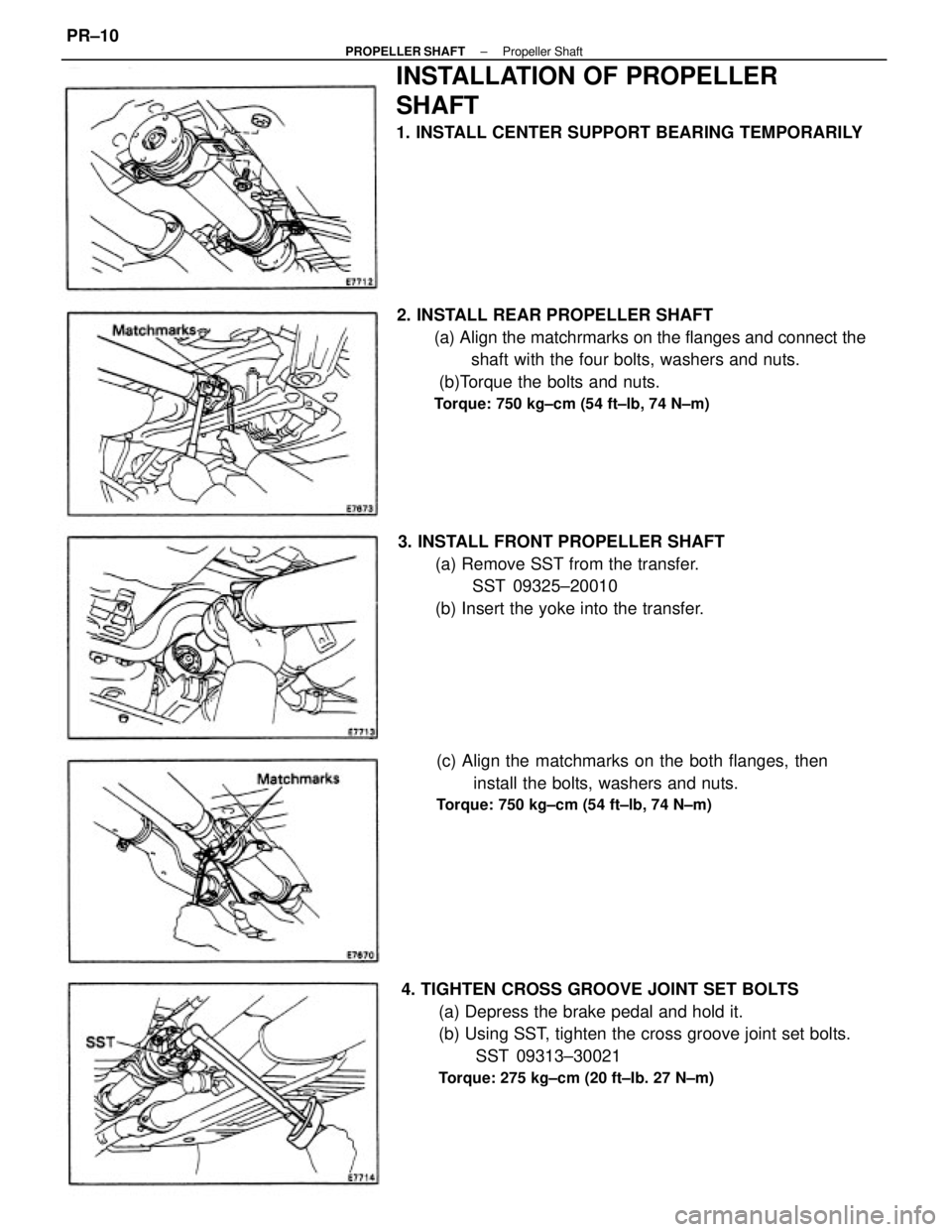

INSTALLATION OF PROPELLER
SHAFT
1. INSTALL CENTER SUPPORT BEARING TEMPORARILY
3. INSTALL FRONT PROPELLER SHAFT
(a) Remove SST from the transfer.
SST 09325±20010
(b) Insert the yoke into the transfer.
(c) Align the matchmarks on the both flanges, then
install the bolts, washers and nuts.
Torque: 750 kg±cm (54 ft±lb, 74 N±m)
± PROPELLER SHAFTPropeller ShaftPR±10
Page 2146 of 2389
(b) With the same condition, adjust the intervals be-
tween the rear side of center bearing housing
and the rear side of cushion at 11.5 ± 13.5 mm
(0.453 in. ± 0.531 in.) as shown in the illustra-
tion below, then torque the bolts.
Torque: 375 kg±cm (27 ft±lb, 37 N±m)

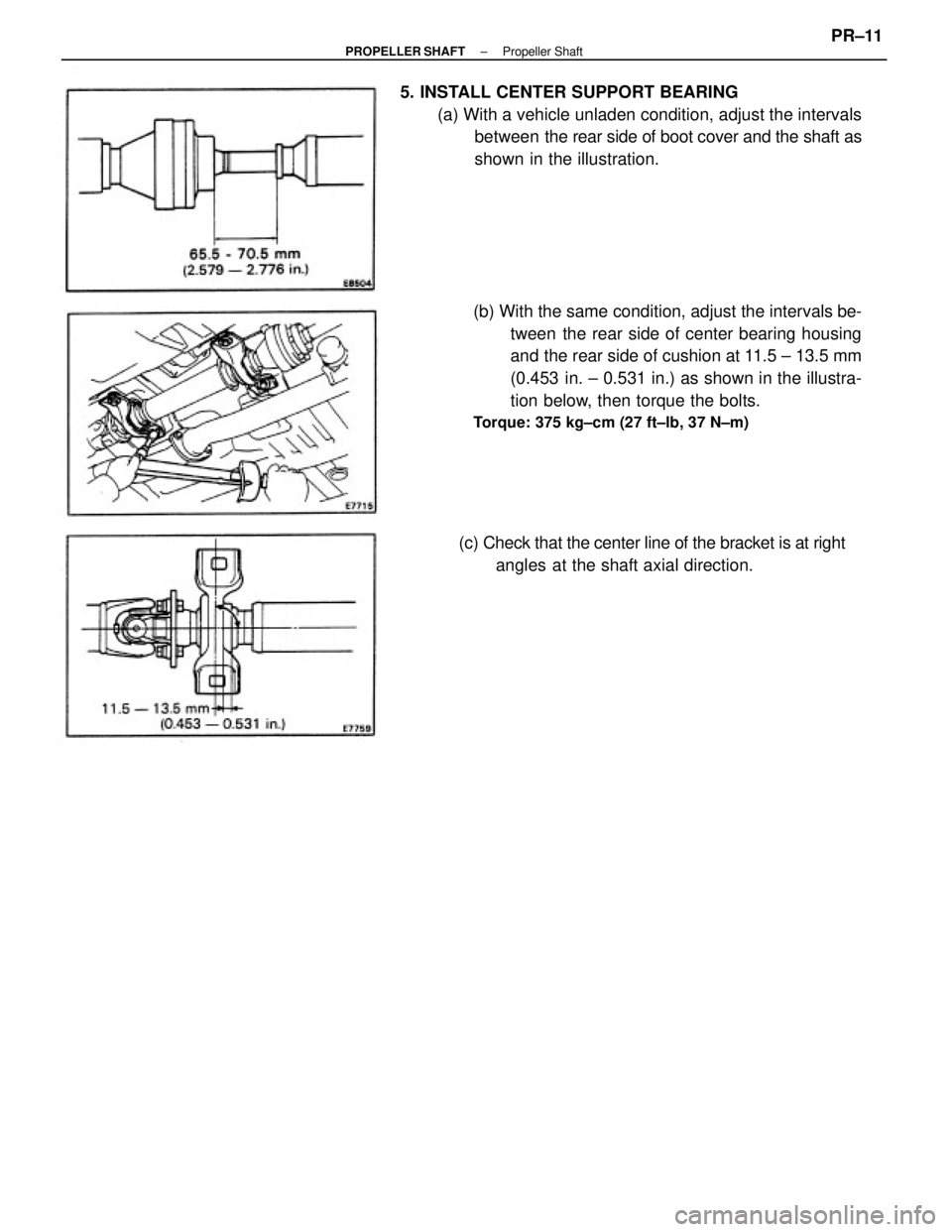

5. INSTALL CENTER SUPPORT BEARING
(a) With a vehicle unladen condition, adjust the intervals
between the rear side of boot cover and the shaft as
shown in the illustration.
(c) Check that the center line of the bracket is at right
angles at the shaft axial direction.
± PROPELLER SHAFTPropeller ShaftPR±11
Page 2147 of 2389

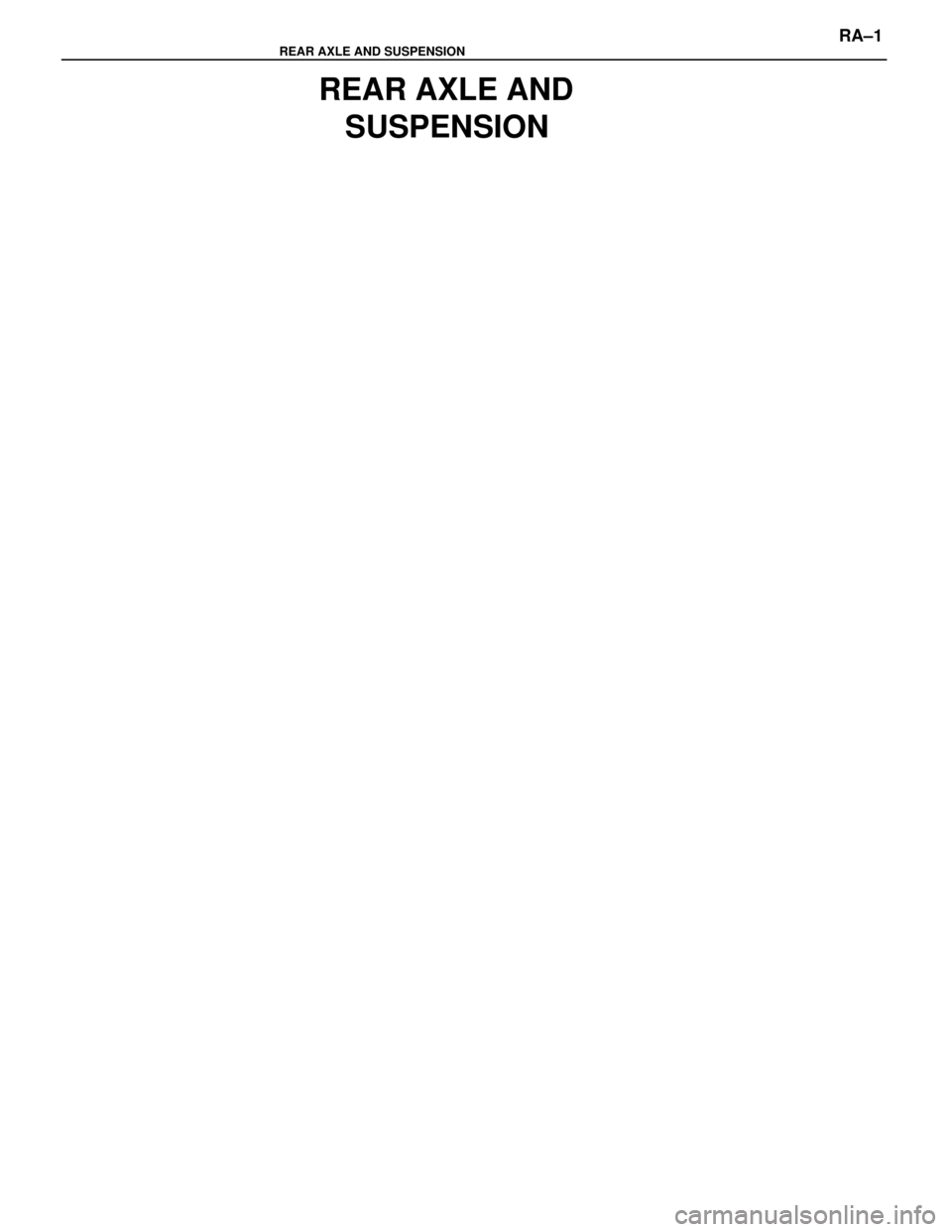

REAR AXLE AND
SUSPENSION
REAR AXLE AND SUSPENSIONRA±1
Page 2148 of 2389
Replace tires or inflate to
proper pressure
Check alignment
Replace hub bearing
Tighten or replace suspension
parts
Inflate tires to proper pressure
Replace shock absorbers
Check camber and toe±in
Replace suspension parts Alignment incorrect
Hub bearing worn
Rear suspension parts loose or broken
Tire improperly inflated
Shock absorber worn out
Alignment incorrect
Suspension parts worn Tires improperly inflated
Stabilizer bar bent or broken
Shock absorber worn outInflate tires to proper pressure
Inspect stabilizer bar
Replace shock absorber

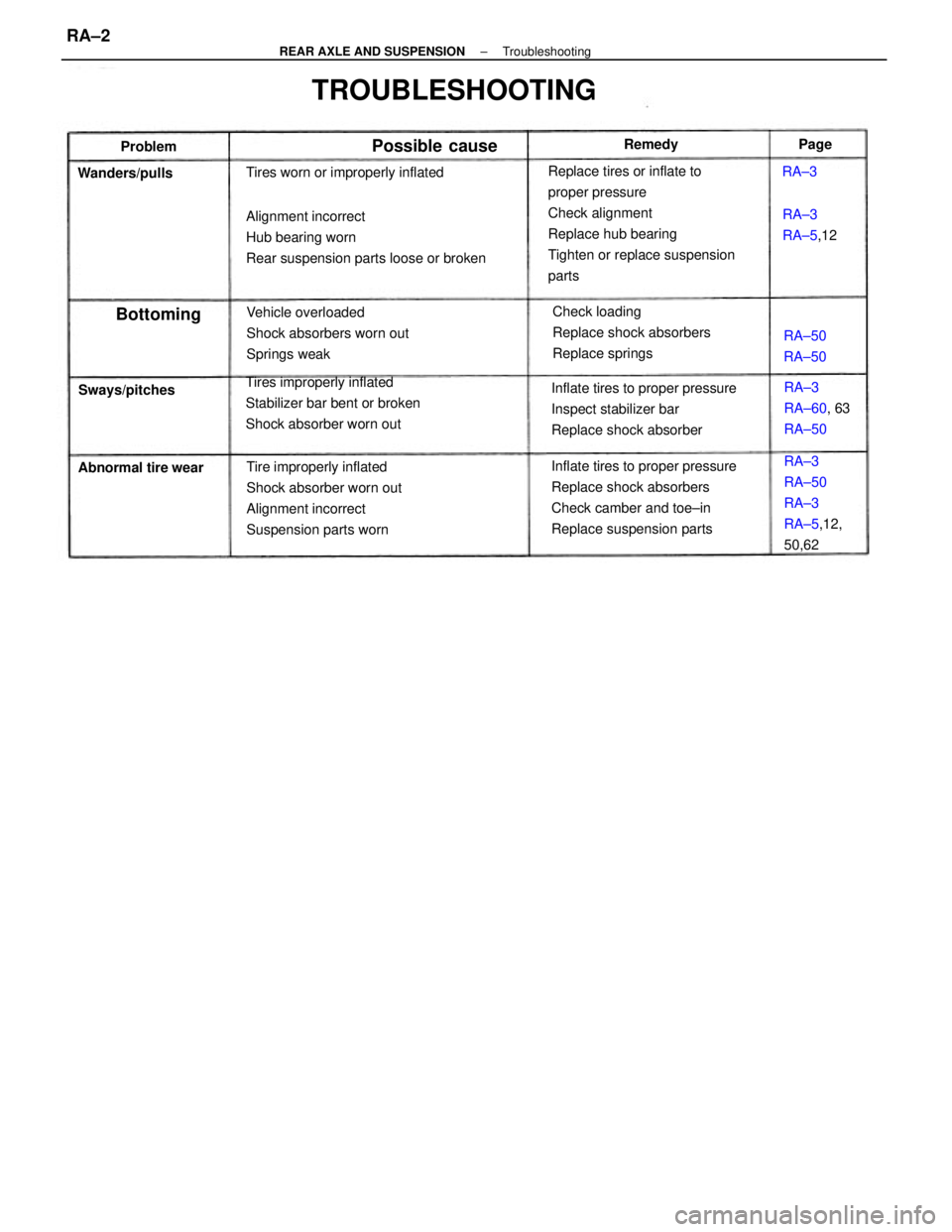

TROUBLESHOOTING
Vehicle overloaded
Shock absorbers worn out
Springs weakCheck loading
Replace shock absorbers
Replace springs
RA±3
RA±50
RA±3
RA±5,12,
50,62 Tires worn or improperly inflated
RA±3
RA±60, 63
RA±50
Abnormal tire wearRA±3
RA±5,12 Wanders/pulls
Sways/pitches
Possible cause
RA±50
RA±50
Bottoming
Remedy
ProblemPage
RA±3
± REAR AXLE AND SUSPENSIONTroubleshootingRA±2
Page 2149 of 2389

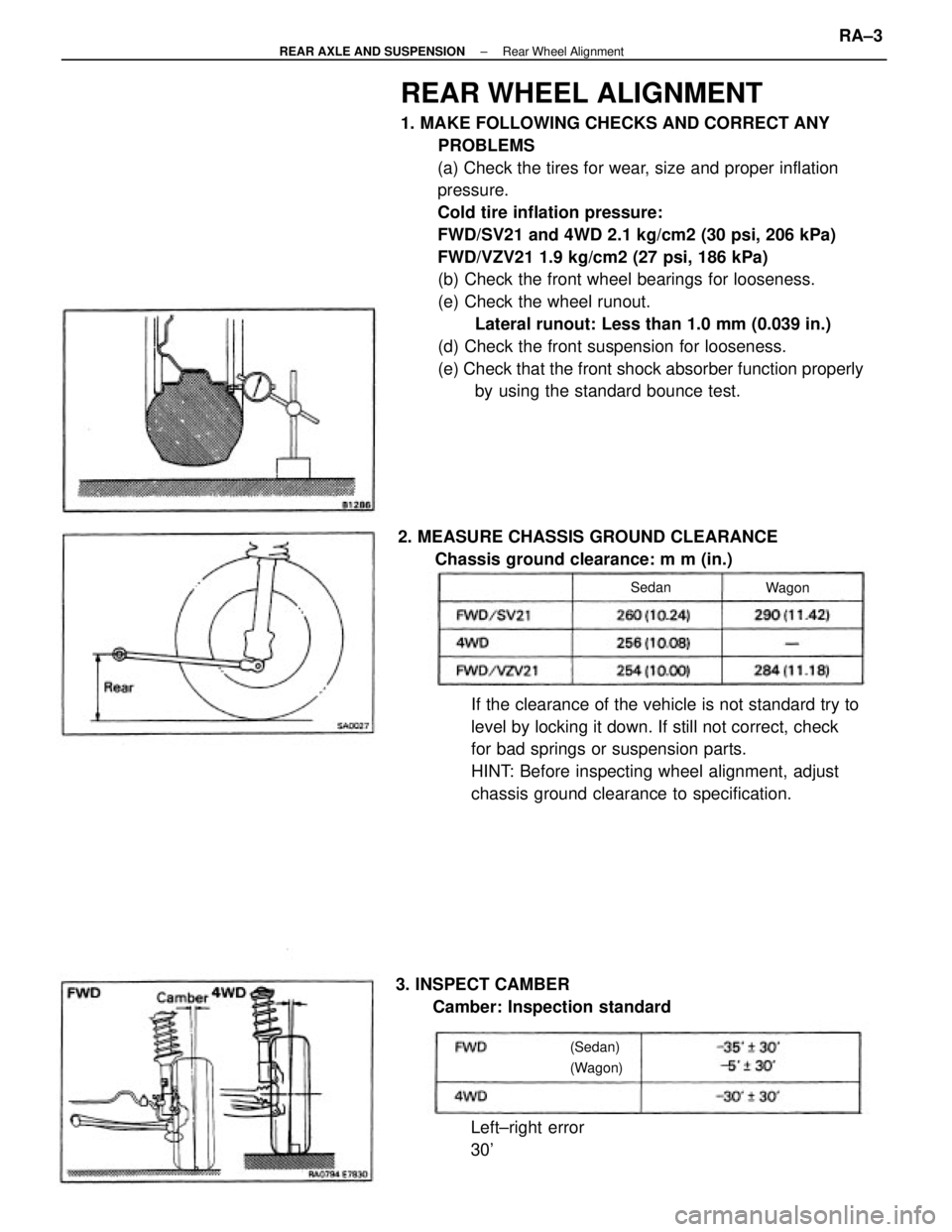

REAR WHEEL ALIGNMENT
1. MAKE FOLLOWING CHECKS AND CORRECT ANY
PROBLEMS
(a) Check the tires for wear, size and proper inflation
pressure.
Cold tire inflation pressure:
FWD/SV21 and 4WD 2.1 kg/cm2 (30 psi, 206 kPa)
FWD/VZV21 1.9 kg/cm2 (27 psi, 186 kPa)
(b) Check the front wheel bearings for looseness.
(e) Check the wheel runout.
Lateral runout: Less than 1.0 mm (0.039 in.)
(d) Check the front suspension for looseness.
(e) Check that the front shock absorber function properly
by using the standard bounce test.
If the clearance of the vehicle is not standard try to
level by locking it down. If still not correct, check
for bad springs or suspension parts.
HINT: Before inspecting wheel alignment, adjust
chassis ground clearance to specification. 2. MEASURE CHASSIS GROUND CLEARANCE
Chassis ground clearance: m m (in.)
3. INSPECT CAMBER
Camber: Inspection standard
Left±right error
30'
(Sedan)
(Wagon)Wagon Sedan
± REAR AXLE AND SUSPENSIONRear Wheel AlignmentRA±3
Page 2150 of 2389

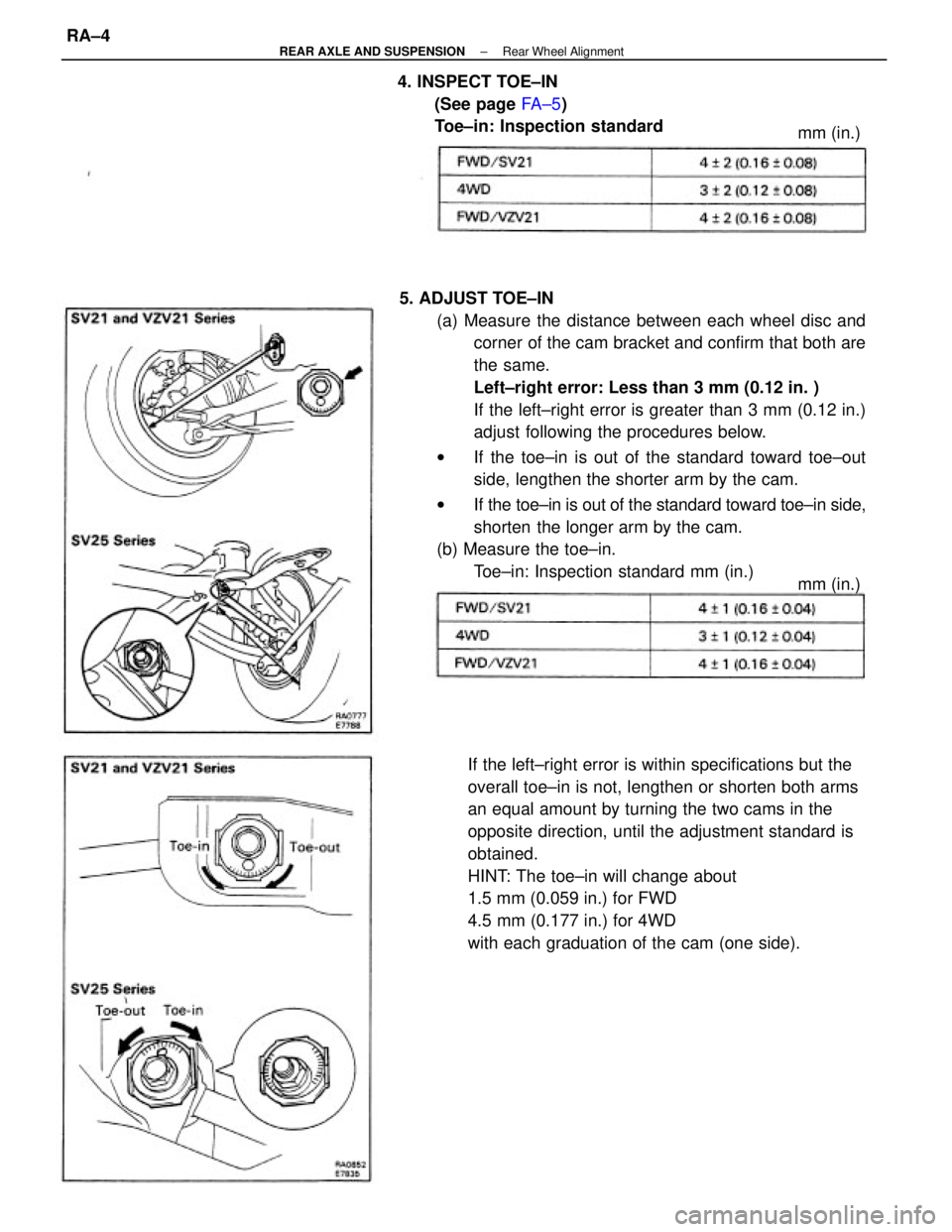

5. ADJUST TOE±IN
(a) Measure the distance between each wheel disc and
corner of the cam bracket and confirm that both are
the same.
Left±right error: Less than 3 mm (0.12 in. )
If the left±right error is greater than 3 mm (0.12 in.)
adjust following the procedures below.
wIf the toe±in is out of the standard toward toe±out
side, lengthen the shorter arm by the cam.
wIf the toe±in is out of the standard toward toe±in side,
shorten the longer arm by the cam.
(b) Measure the toe±in.
Toe±in: Inspection standard mm (in.)
If the left±right error is within specifications but the
overall toe±in is not, lengthen or shorten both arms
an equal amount by turning the two cams in the
opposite direction, until the adjustment standard is
obtained.
HINT: The toe±in will change about
1.5 mm (0.059 in.) for FWD
4.5 mm (0.177 in.) for 4WD
with each graduation of the cam (one side). 4. INSPECT TOE±IN
(See page FA ± 5)
Toe±in: Inspection standard
mm (in.) mm (in.)
± REAR AXLE AND SUSPENSIONRear Wheel AlignmentRA±4
Page 2151 of 2389

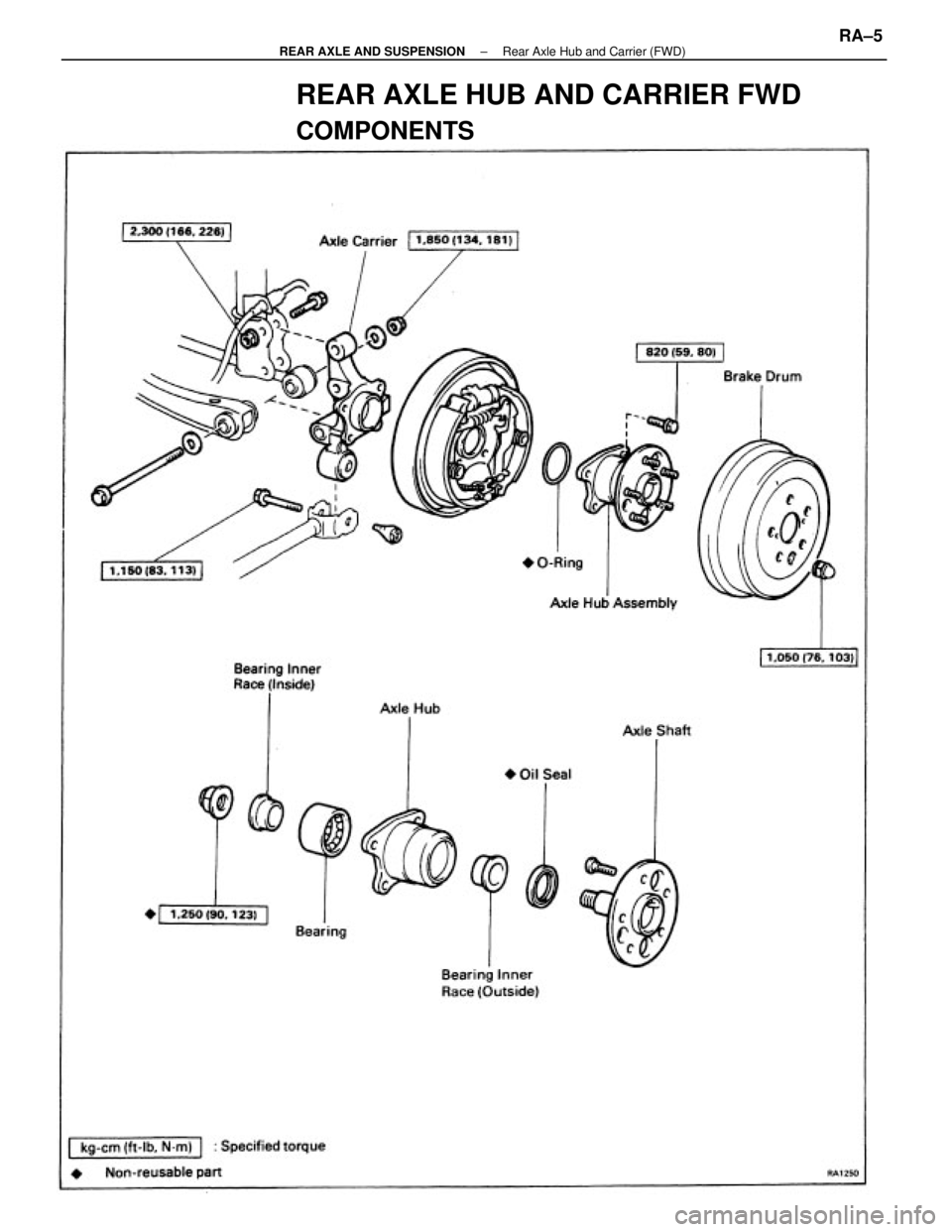

REAR AXLE HUB AND CARRIER FWD
COMPONENTS
± REAR AXLE AND SUSPENSIONRear Axle Hub and Carrier (FWD)RA±5
Page 2152 of 2389

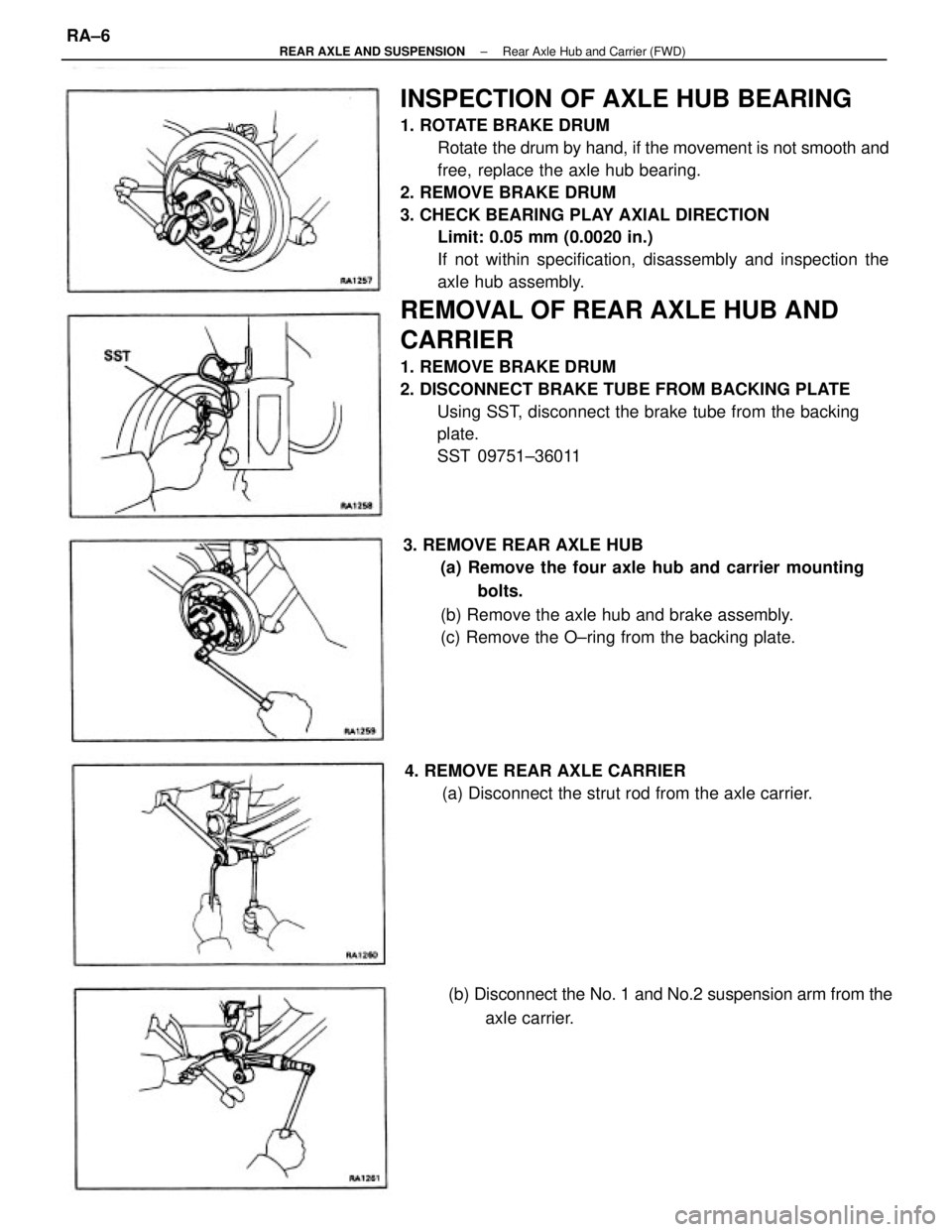

INSPECTION OF AXLE HUB BEARING
1. ROTATE BRAKE DRUM
Rotate the drum by hand, if the movement is not smooth and
free, replace the axle hub bearing.
2. REMOVE BRAKE DRUM
3. CHECK BEARING PLAY AXIAL DIRECTION
Limit: 0.05 mm (0.0020 in.)
If not within specification, disassembly and inspection the
axle hub assembly.
REMOVAL OF REAR AXLE HUB AND
CARRIER
1. REMOVE BRAKE DRUM
2. DISCONNECT BRAKE TUBE FROM BACKING PLATE
Using SST, disconnect the brake tube from the backing
plate.
SST 09751±36011
3. REMOVE REAR AXLE HUB
(a) Remove the four axle hub and carrier mounting
bolts.
(b) Remove the axle hub and brake assembly.
(c) Remove the O±ring from the backing plate.
4. REMOVE REAR AXLE CARRIER
(a) Disconnect the strut rod from the axle carrier.
(b) Disconnect the No. 1 and No.2 suspension arm from the
axle carrier.
± REAR AXLE AND SUSPENSIONRear Axle Hub and Carrier (FWD)RA±6
