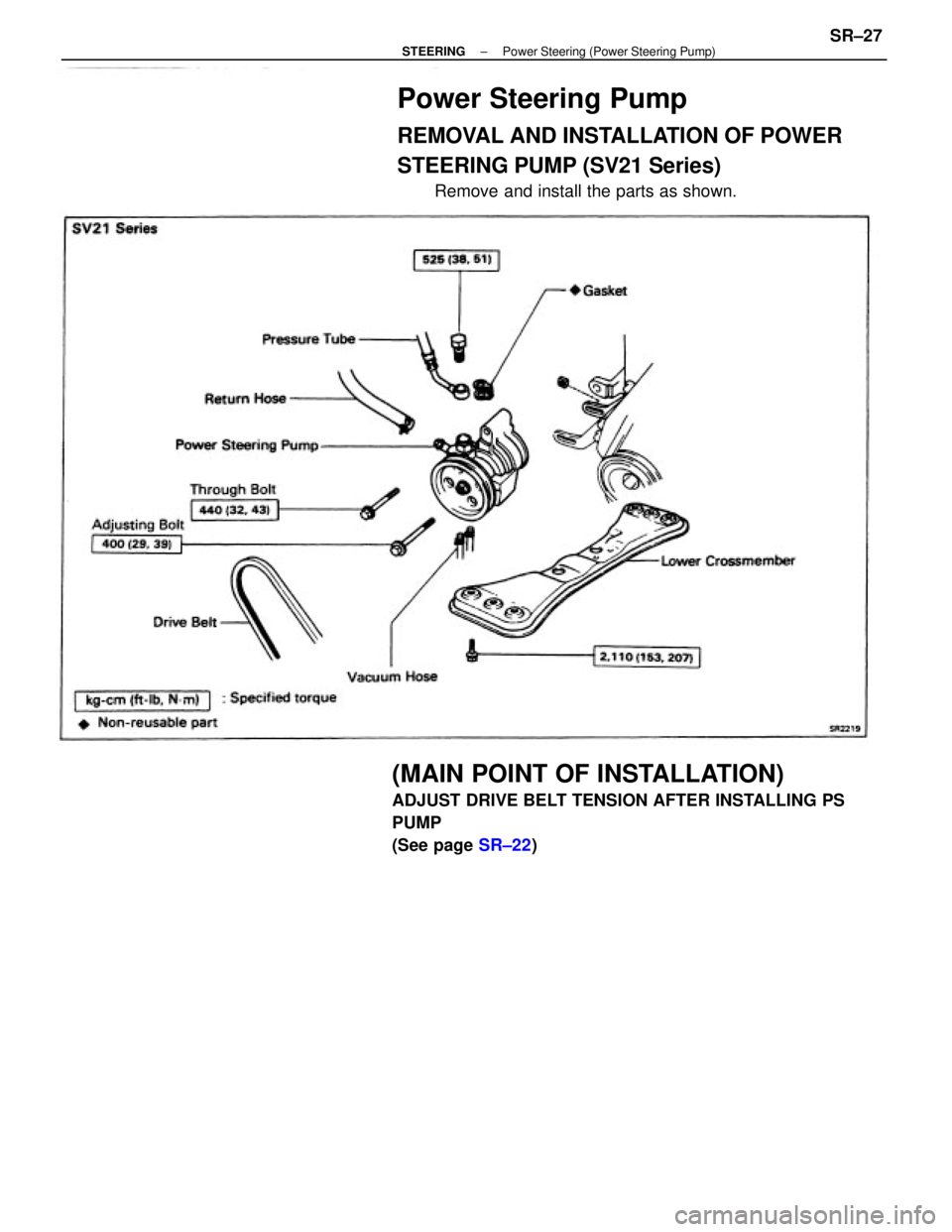

TOYOTA CAMRY V20 1986 Service Information Power Steering Pump REMOVAL AND INSTALLATION OF POWER STEERING PUMP (SV21 Series) Remove and install the parts as shown. (MAIN POINT OF INSTALLATION) ADJUST DRIVE BELT TENSION AFTER INSTALLING PS PUMP

Page 2354 of 2389

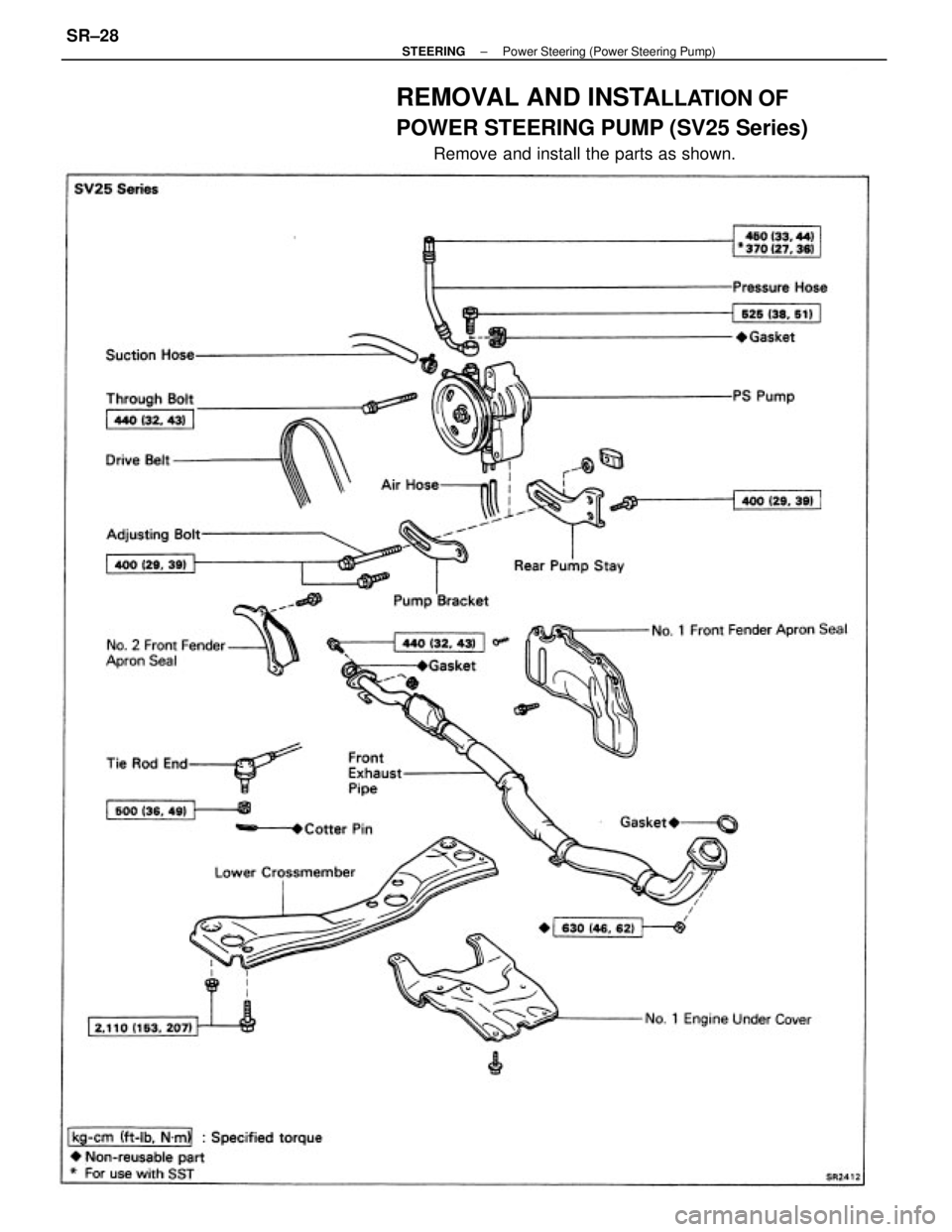

TOYOTA CAMRY V20 1986 Service Information REMOVAL AND INSTALLATION OF POWER STEERING PUMP (SV25 Series) Remove and install the parts as shown. ± STEERINGPower Steering (Power Steering Pump)SR±28

Page 2355 of 2389

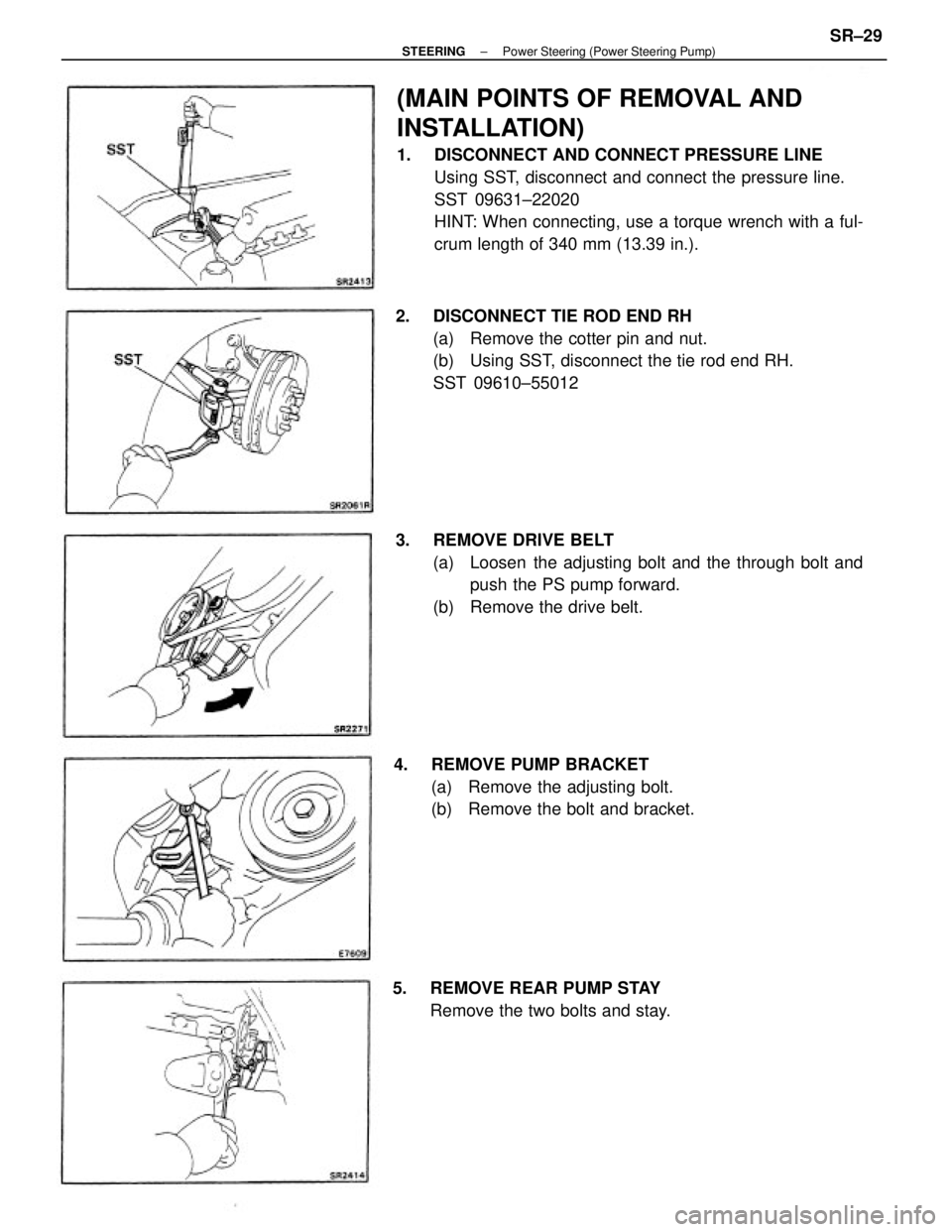

TOYOTA CAMRY V20 1986 Service Information (MAIN POINTS OF REMOVAL AND INSTALLATION) 1. DISCONNECT AND CONNECT PRESSURE LINE Using SST, disconnect and connect the pressure line. SST 09631±22020 HINT: When connecting, use a torque wrench with

Page 2356 of 2389

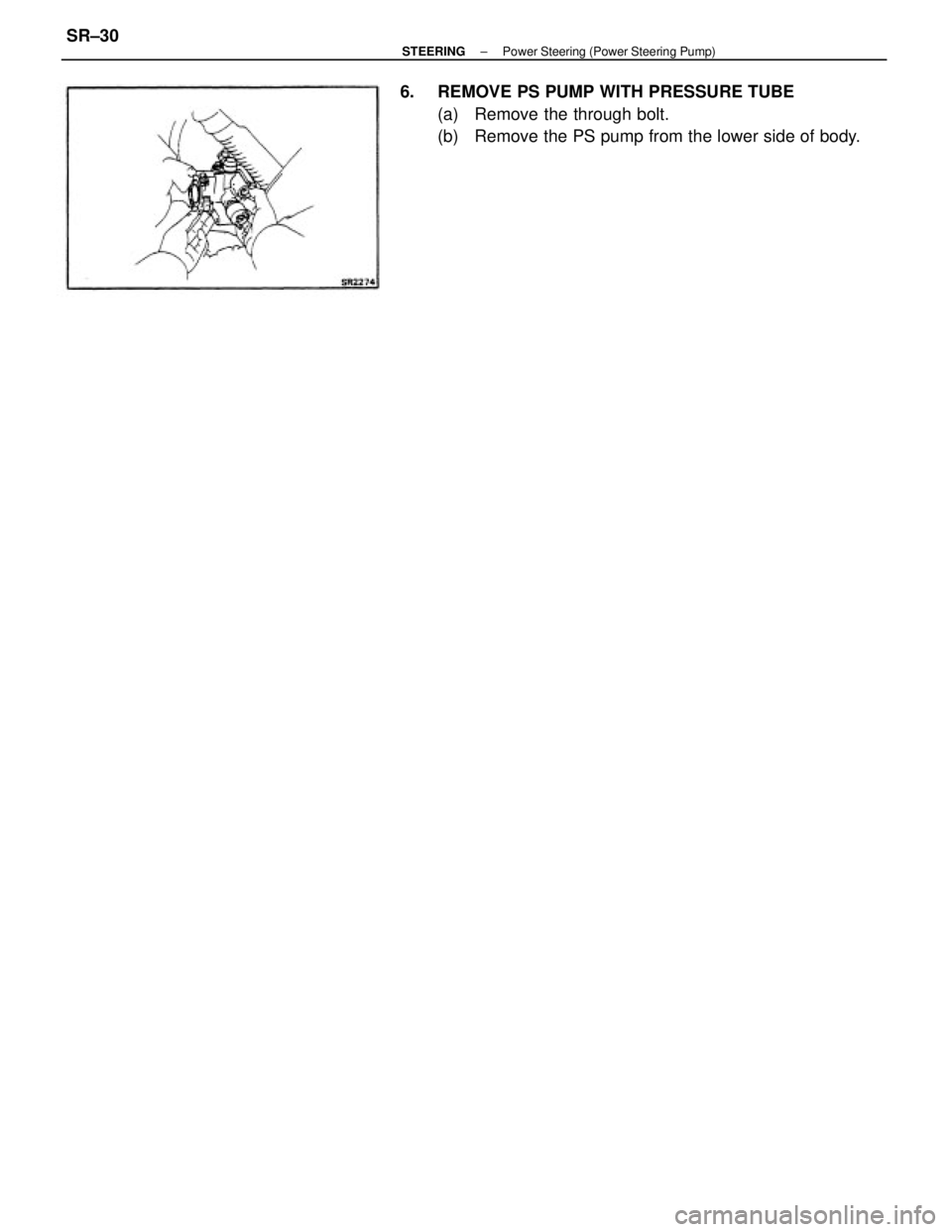

TOYOTA CAMRY V20 1986 Service Information 6. REMOVE PS PUMP WITH PRESSURE TUBE (a) Remove the through bolt. (b) Remove the PS pump from the lower side of body. ± STEERINGPower Steering (Power Steering Pump)SR±30

Page 2357 of 2389

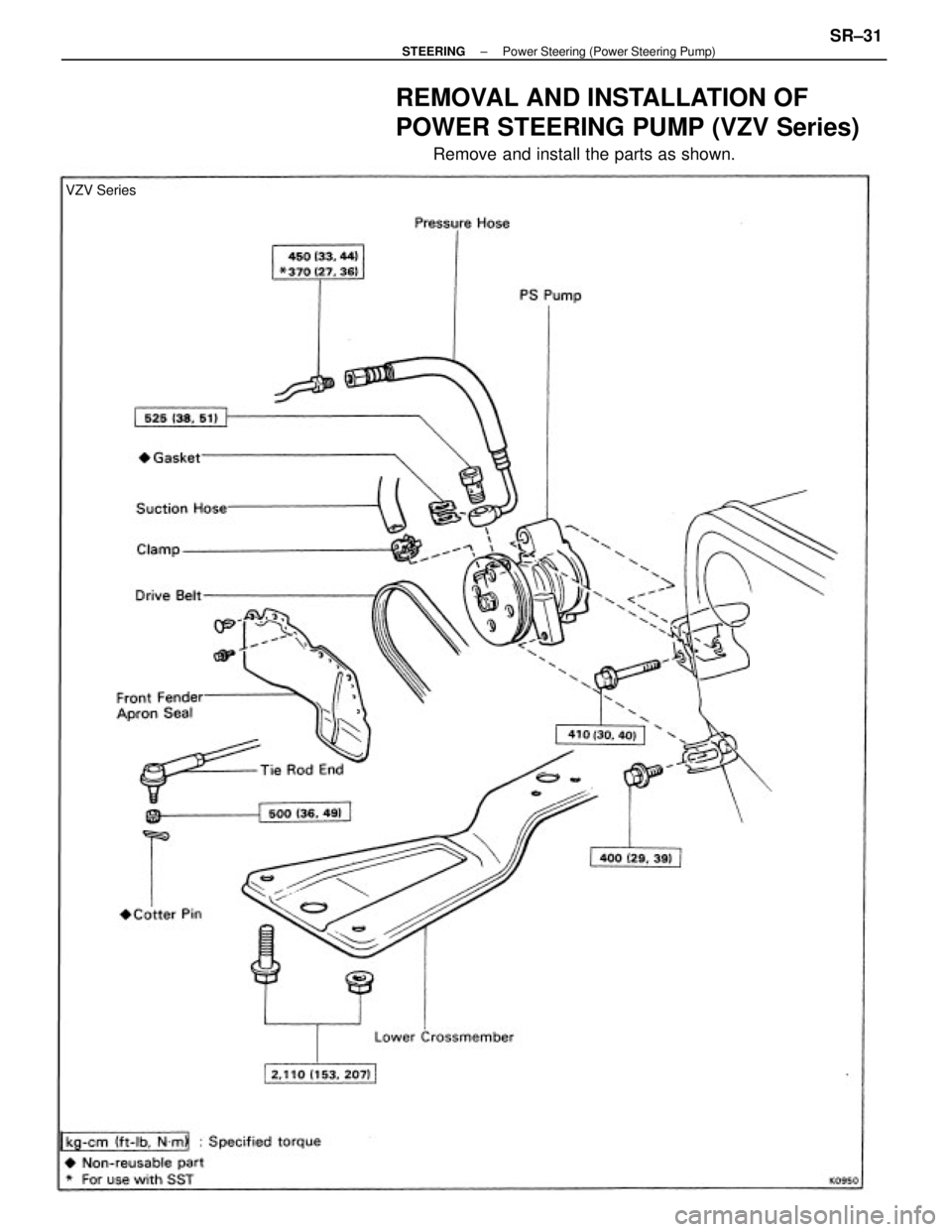

TOYOTA CAMRY V20 1986 Service Information REMOVAL AND INSTALLATION OF POWER STEERING PUMP (VZV Series) Remove and install the parts as shown. VZV Series ± STEERINGPower Steering (Power Steering Pump)SR±31

Page 2358 of 2389

TOYOTA CAMRY V20 1986 Service Information (MAIN POINTS OF REMOVAL AND INSTALLATION) 1. DISCONNECT AND CONNECT PRESSURE LINE Using SST, disconnect and connect the pressure line. SST 09631±22020 HINT: When connecting, use a torque wrench with

Page 2359 of 2389

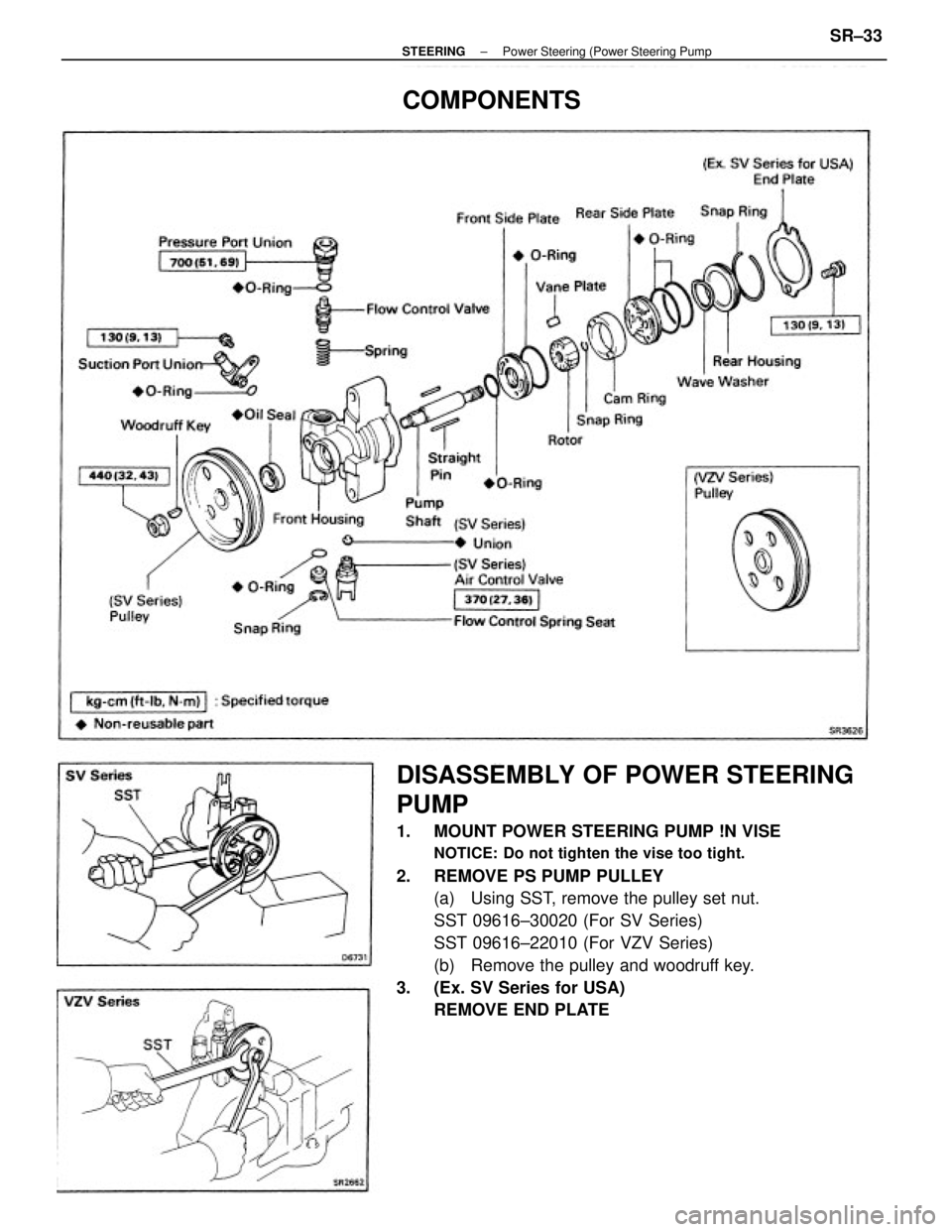

TOYOTA CAMRY V20 1986 Service Information DISASSEMBLY OF POWER STEERING PUMP 1. MOUNT POWER STEERING PUMP !N VISE NOTICE: Do not tighten the vise too tight. 2. REMOVE PS PUMP PULLEY (a) Using SST, remove the pulley set nut. SST 09616±3002

Page 2360 of 2389

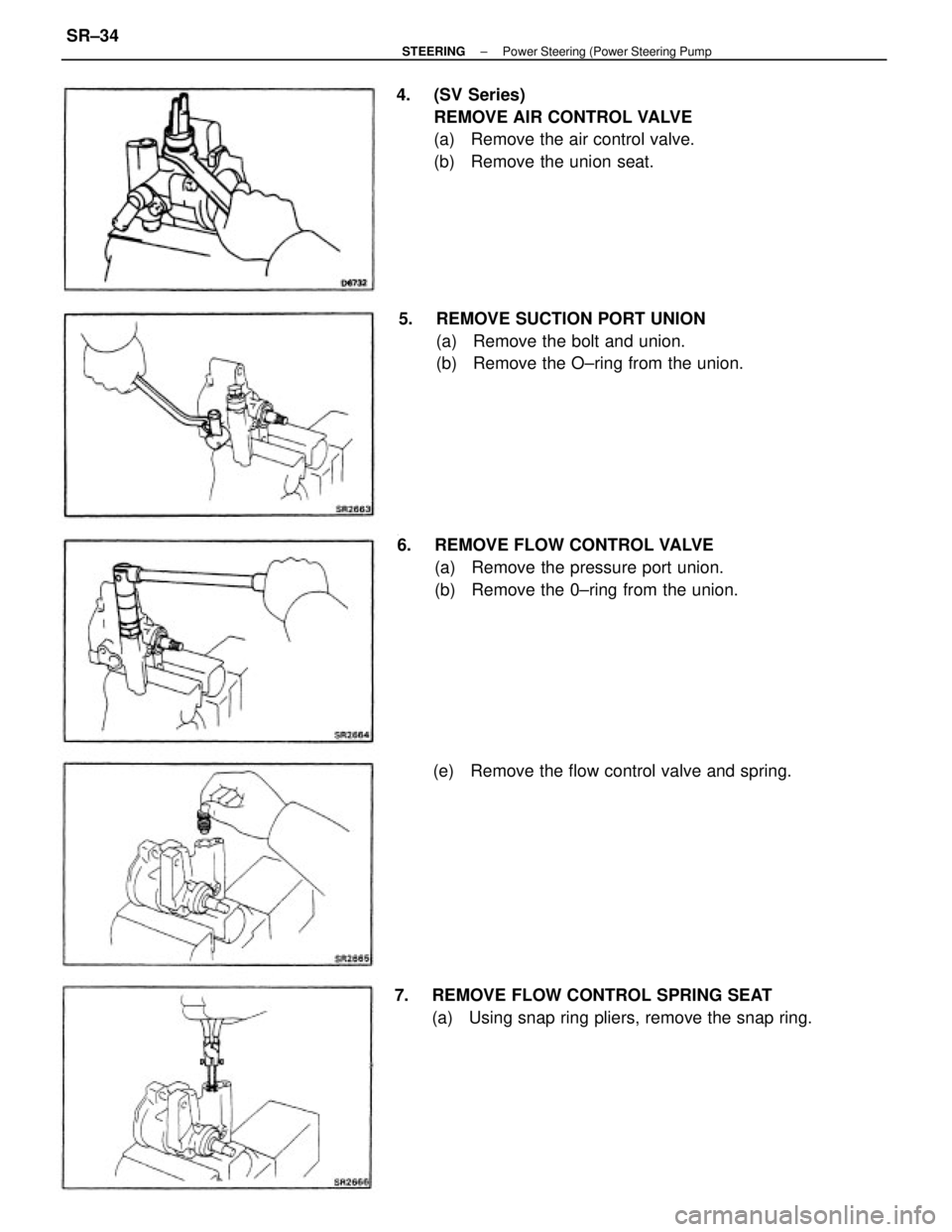

TOYOTA CAMRY V20 1986 Service Information 4. (SV Series) REMOVE AIR CONTROL VALVE (a) Remove the air control valve. (b) Remove the union seat. . 6. REMOVE FLOW CONTROL VALVE (a) Remove the pressure port union. (b) Remove the 0±ring from
