Page 801 of 2389

TOYOTA CAMRY V20 1986 Service Information Power Window Motor INSPECTION OF MOTOR 1. INSPECT CIRCUIT BREAKER OPERATION (a) With the window in the full closed position, hold the power window switch in ºUPº position and check that there is a

Page 802 of 2389

TOYOTA CAMRY V20 1986 Service Information 2. INSPECT MOTOR OPERATION (a) Connect the positive (+) lead from the battery to ter- minal 1 and negative (±) lead to terminal 2, check that the motor turns. (b) Connect the positive (+) lead fr

Page 803 of 2389

TOYOTA CAMRY V20 1986 Service Information DOOR LOCK CONTROL SYSTEM Wiring and Connector Diagrams Door Lock Manual Switch (Drivers: in Master Switch) Door Lock Motor Door Courtesy SwitchDoor Lock Control Relay Door Key Lock and Unlock SwitchK

Page 804 of 2389

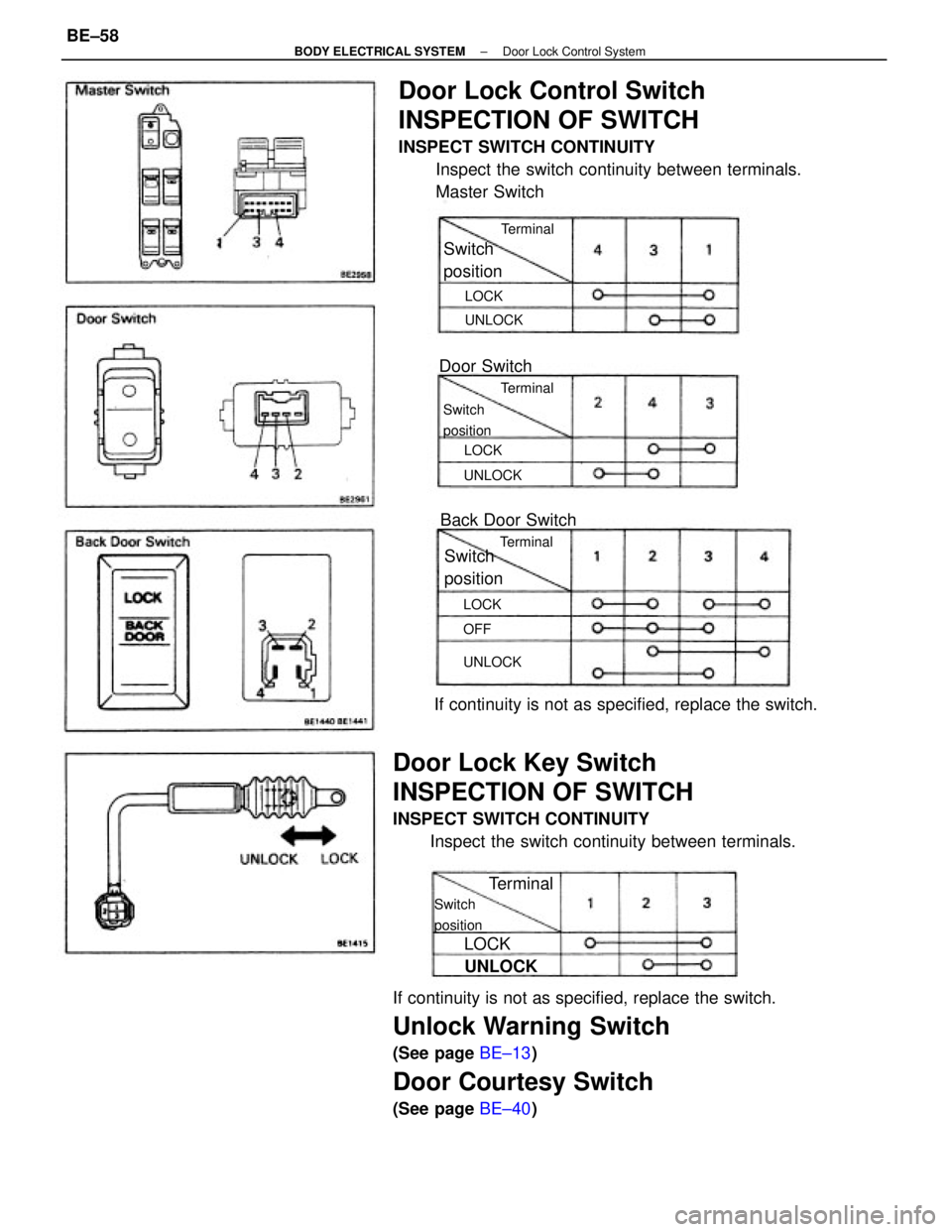

TOYOTA CAMRY V20 1986 Service Information If continuity is not as specified, replace the switch. Unlock Warning Switch (See page BE±13) Door Courtesy Switch (See page BE±40) Door Lock Control Switch INSPECTION OF SWITCH INSPECT SWITCH CONTI

Page 805 of 2389

TOYOTA CAMRY V20 1986 Service Information (Door Lock Signal) HINT: When the relay circuit is as specified, inspect the door lock signal. (a) Connect the connector to the relay. (b) Connect the positive (+) lead from the voltmeter

Page 806 of 2389

TOYOTA CAMRY V20 1986 Service Information Door Lock Solenoid INSPECTION OF DOOR LOCK SOLENOID 1. INSPECT SOLENOID OPERATION (Front and Rear door) (a) Connect the positive (+) lead from the battery to terminal 4 and negative(±) lead to term

Page 807 of 2389

TOYOTA CAMRY V20 1986 Service Information Moon Roof Motor INSPECTION OF MOTOR INSPECT MOTOR OPERATION (a) Connect the positive (+) lead from the battery to term inall andnegative(±)lead toterminal2,check that the motor turns. (b) Connect t

Page 808 of 2389

TOYOTA CAMRY V20 1986 Service Information (b) Connect the positive lead from the battery to termi- nal 1 and±negative (±y lead to terminal 5, check that the motor turns to close. Then, reverse the polarity, check that the motor turns to op
