1986 TOYOTA CAMRY V20 warning

Illustration:
what to do and where
This format provides the experienced technician with a FAST
TRACK to the information needed. The upper case task head-
ing can be read at a glance and only when necessary, the text
below it provides detailed information. Important specifications
and warnings always stand out in bold type.SST 09350-32014 (09351-32190) If replacing the disc, plate or flange, check the piston
stroke:
Set part No.
Piston stroke: 1.41 - 1.82 mm (0.0555 - 0.0717 in.) The procedures are presented in a step-by-step format:

Illustration shows what to do and where to do it.

The task heading tells what to do.

The detailed text tells how to perform the task and
gives other information such as specifications and
warnings.
Example:
Task heading: what to do
7. CHECK PISTON STROKE OF FORWARD CLUTCH
Detail text: how to do it
Using a dial indicator (long type pick or SST), measure
the forward clutch piston stroke applying and releasing
the compressed air (4 - 8 kg/cm
2, 57 - 114 psi or 392
- 785 kPa) as shown.
Component part No.
Specification
REFERENCES
References have been kept to a minimum. However, when
they are required you are given the
page to go to.
SPECIFICATIONS
Specifications are presented in bold type throughout the text in
the applicable step. You never have to leave the procedure to
look up your specs. All specifications are also found in Appen-
dix A, specifications for quick reference.
CAUTIONS, NOTICES, HINTS:

CAUTIONS are presented in bold type, and indicate
there is a possibility of injury to you or other people.

NOTICES are also presented in bold type, and indicate
the possibility of damage to the components being re-
paired.

HINTS are separated from the text but do not appear in
bold. They provide additional information to help you effi-
ciently perform the repair.
- INTRODUCTIONHow to Use This ManualIN-3

Diagnosis System (A140E)
DESCRIPTION
1. A self±diagnosis function is built into the electrical control system.
Warning is indicated by the overdrive OFF indicator.
HINT: Warning and diagnostic codes can be read only when
the overdrive switch is ON. If OFF, the overdrive OFF
indicator is lit continuously and will not blink.
(a) If a malfunction occurs within the speed sensors (No.
1 or 2) or solenoids (No. 1 or 2), the overdrive OFF
light will blink to. warn the driver. .
However, there will be no warning of a malfunction with
lock±up solenoid.
(b) The diagnostic code can be read by the number of blinks of
the overdrive OFF indicator when terminals
Tt and E1 are short±circuited. (See page AT±17)
tc) The throttle position sensor or brake signal are not indi-
cated, but inspection can be made by checking the voltage at
terminal Tt of the check connector (diagnosis).
(d) The signals to each gear can be checked by measuring the
voltage at terminal Tt of the check connector while driving.
2. The diagnostic (malfunction) code is retained in memory by the
CPU and due to back±up voltage, is not canceled out when the
engine is turned off. Consequently, after repair, it is necessary
to turn the ignition switch off and remove the fuse EFI (15A) or
disconnect the ECT computer connector to cancel out the diag-
nostic (malfunction)
code. (See page AT±18)
HINT:
wLow battery voltage will cause faulty operation of the diag-
nosis system. Therefore, always check the battery first.
w Use a voltmeter and ohmmeter that have an impedance
of at least 10 k 11 IV.
CHECK O/D OFF INDICATOR LIGHT
1. Turn the ignition switch ON.
2. The O/D OFF light will come on when the O/D switch is
placed at OFF.
3. When the O/D switch is set to ON, the O/D OFF light
should go out.
If the O/D OFF light flashes when the O/D switch is set
to ON, the electronic control system is faulty.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±16

wIn the event of a malfunction, the fight will blink once every
0.5 seconds. The number of blinks will equal the first num-
ber and, after 1.5 seconds pause, the second number of the
two digit diagnostic code. If there are two or more codes,
there will be a 2.5 seconds pause between each.
HINT: In the event of several trouble codes occurring
simultaneously, indication will begin from the smaller
value and continue to the larger.
4. REMOVE SST
SST 09843±18020
READ DIAGNOSTIC CODE
1. TURN IGNITION SWITCH AND O/D SWITCH TO ON
Do not start the engine.
HINT: Warning and diagnostic codes can be read only
when the overdrive switch is ON. If OFF, the overdrive OFF
light will light continuously and will not blink.
2. SHORT ECT TERMINAL CIRCUIT OF CHECK
CONNECTOR
Using a SST, short terminals Tt and E1 of the check
connector.
SST 09843±18020
(Diagnostic Code Indication)
wIf the system is operating normally, the light will
blink once every 0.25 seconds. 3. READ DIAGNOSTIC CODE
Read the diagnostic code as indicated by the number
of times the O/D OFF indicator flashes.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±17

TROUBLESHOOTING FLOW±CHART
HINT:
wIf diagnostic code Nos. 42, 61, 62 or 63 are output, the overdrive OFF indicator light will begin to
blink immediately to warn the driver. However, an impact or shock may cause the blinking to stop;
but the code will still be retained in the ECT ECU memory until canceled out.
wThere is no warning for diagnostic code No. 64.
wIn the event of a simultaneous malfunction of both No. 1 and No. 2 speed sensors, no diagnostic
code will appear and the fail±safe system will not function. However, when driving in the D range,
the transaxle will not up±shift from first gear, regardless of the vehicle speed.
1. Diagnostic code 42 (No. 1 speed sensor circuitry)
Check continuity between ECT ECU
connector SP, terminal and body ground.
(See page AT±32)
Check continuity between ECT ECU
connector SP2 terminal and body ground.
(See page AT±33)
Check wiring between ECT ECU and No. 2
speed sensor.Check wiring between ECT ECU and
combination meter.
2. Diagnostic code 61 (No. 2 speed sensor circuitry
Repair or replace No. 1 speed
sensor.
Check No. 2 speed sensor.
(See page AT±35)Repair or replace No. 2
speed sensor. Substitute another ECT ECU.
Substitute another ECT ECU.Check No. 1 speed sensor.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±19

Diagnosis System
DESCRIPTION
1. A self±diagnosis function is. built into the electrical control
system. Warning is indicated by the overdrive OFF indicator.
HINT: Warning and diagnostic codes can be read only when
the overdrive switch is ON. If OFF, the overdrive OFF
indicator is lit continuously and will not blink.
(a) If a malfunction occurs within the speed sensors or sole-
noids, the overdrive OFF light will blink to warn the driver.
However, there will be no warning of a malfunction with
lock±up solenoid.
W The diagnostic code can be read by the number of
blinks of the overdrive OFF indicator when terminals
Tt and E1 are short±circuited. (See page AT± 191)
(c) The throttle position sensor or brake signal are not indicated,
but inspection can be made by checking the voltage at ter-
minal Tt of the check connector.
(d) The signals to each gear can be checked by measuring the
voltage at terminal Tt of the check connector while driving.
2. The diagnostic (malfunction) code is retained in memory by the
ECU and due to back±up voltage, is not canceled out when the
engine is turned off. Consequently, after repair, it is necessary
to turn the ignition switch off and remove the fuse EFI (15A)
(A540E) or DOME (20A)
(A540H) or disconnect the Engine and ECT ECU (A540E)
or ECT ECU (A540H) connector to cancel out the diagnostic
(malfunction) code. (See page AT±192)
HINT:
wLow battery voltage will cause faulty operation of the diag-
nosis system. Therefore, always check the battery first.
wUse a voltmeter and ohmmeter that have an impedance of
at least 10 k
/V.
CHECK O/D OFF INDICATOR LIGHT
1. Turn the ignition switch ON.
2. The O/D OFF light will come on when the O/D switch
placed at OFF.
3. When the O/D switch is set to ON, the O/D OFF light should go
out.
If the O/D OFF light flashes when the O/D switch is set to
ON, the electronic control system is faulty.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A540E and A540H)AT±190

wn the event of a malfunction, the light will blink once
every 0.5 seconds. The number of blinks will equal
the first number and, after 1.5 seconds pause, the
second number of the two digit diagnostic code. If
there are two or more codes, there will be a 2.5 sec-
onds pause between each.
HINT: In the event of several trouble codes occurring
simultaneously, indication will begin from the smaller
value and continue to the larger.
4. REMOVE SST
SST 09843±18020

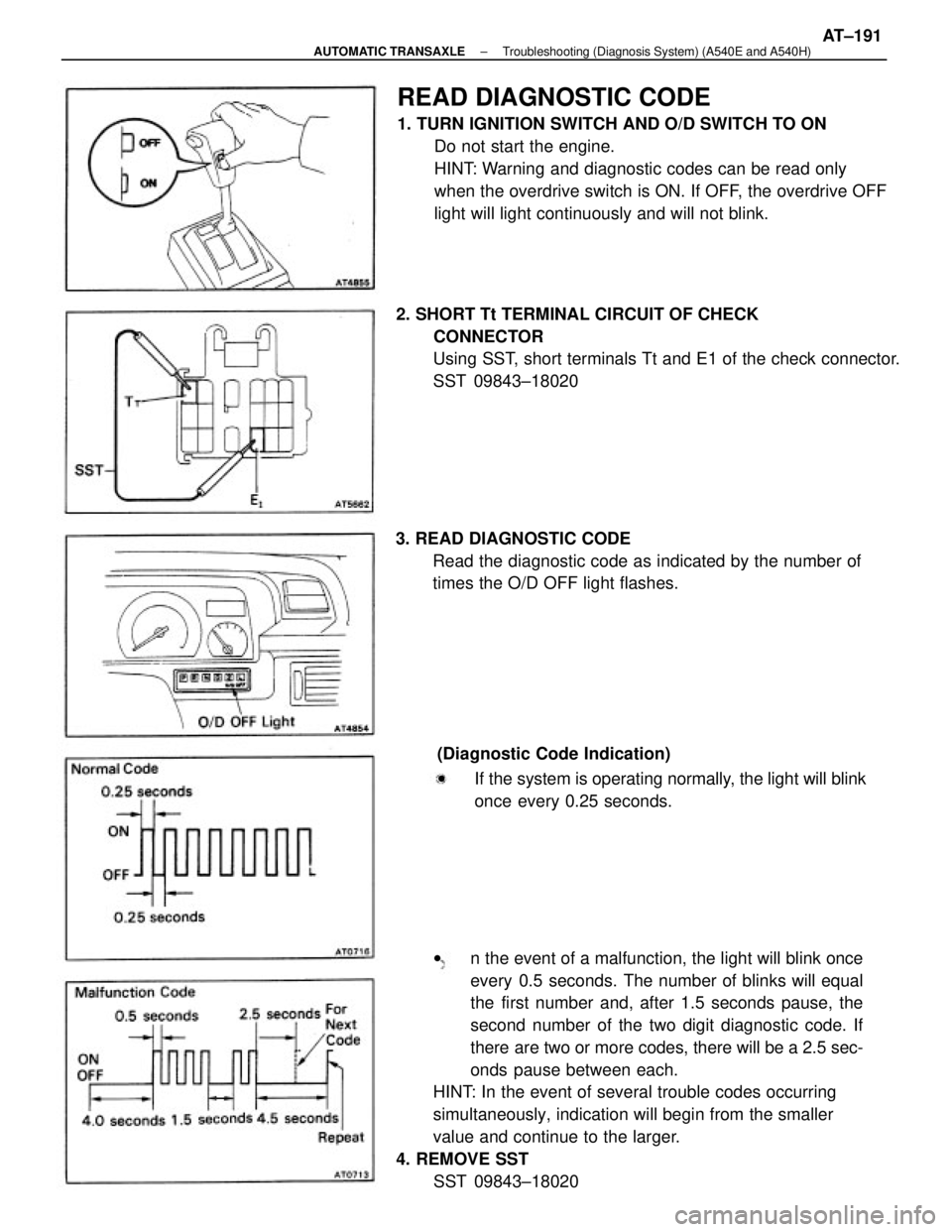

READ DIAGNOSTIC CODE
1. TURN IGNITION SWITCH AND O/D SWITCH TO ON
Do not start the engine.
HINT: Warning and diagnostic codes can be read only
when the overdrive switch is ON. If OFF, the overdrive OFF
light will light continuously and will not blink.
2. SHORT Tt TERMINAL CIRCUIT OF CHECK
CONNECTOR
Using SST, short terminals Tt and E1 of the check connector.
SST 09843±18020
3. READ DIAGNOSTIC CODE
Read the diagnostic code as indicated by the number of
times the O/D OFF light flashes.
(Diagnostic Code Indication)
wIf the system is operating normally, the light will blink
once every 0.25 seconds.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A540E and A540H)AT±191

TROUBLESHOOTING FLOW±CHART (A540E)
HINT:
wIf diagnostic code Nos. 42, 61, 62 or 63 are output, the overdrive OFF indicator light will begin to
blink immediately to warn the driver. However, an impact or shock may cause the blinking to stop;
but the code will still be retained in the Engine and ECT ECU memory until canceled out.
wThere is no warning for diagnostic code No. 64.
wIn the event of a simultaneous malfunction of both No. 1 and No. 2 speed sensors, no diagnostic
code will appear and the fail±safe system will not function. However, when driving in the D range,
the transaxle will not up±shift from first gear, regardless of the vehicle speed.
Check continuity between Engine and ECT
ECU connector SP, terminal and body ground.
(See page AT±216)
Check continuity between Engine and ECT
ECU connector SP2 terminal and body ground.
(See page AT±216)
1. Diagnostic code 42 (No. 1 speed sensor circuitry)
Check wiring between Engine and ECT ECU
and No. 2 speed sensor. Check wiring between Engine and ECT ECU
and combination meter.
2. Diagnostic code 61 (No. 2 speed sensor circuitry)
Check No. 2 speed sensor.
(See page AT±234) Substitute another Engine and ECT ECU.
Substitute another Engine and ECT ECU.Repair or replace No. 1 speed sensor.
Repair or replace No. 2
speed sensor. Check No. 1 speed sensor.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A540E and A540H)AT±194

TROUBLESHOOTING FLOW±CHART (A540H)
HINT:
wIf diagnostic code Nos. 44, 61, 62, 63, 73 or 74 are output, the overdrive OFF indicator light will
begin to blink immediately to warn the driver.
However, an impact or shock may cause the blinking to stop; but the code will still be retained in
the ECT ECU memory until canceled out.
wThere is no warning for diagnostic code No. 64.
wIn the event of a simultaneous malfunction of both vehicle and rear speed sensors, no diagnostic
code will appear and the fail±safe system will not function. However, when driving in the D range,
the transaxle will not up±shift from first gear, regardless of the vehicle speed.
1. Diagnostic code 44 (Rear speed sensor circuitry)
Check continuity between ECT ECU NC
Check continuity between ECT ECU
connector RR+ terminal and RR± terminal.
(See page AT±217)
Check continuity between ECT ECU
connector FR+ terminal and FR± terminal.
(See page AT±217)
Check wiring between ECT ECU and vehicle
speed sensor. Check wiring between ECT ECU and rear
wheel speed sensor.
2. Diagnostic code 61 (Vehicle speed sensor circuitry)Repair or replace rear wheel speed
sensor. Check rear wheel speed sensor.
(See page AT±221)
Check vehicle speed sensor.
(See page AT±221)Repair or replace vehicle
speed sensor. Substitute another ECT ECU. Substitute another ECT ECU.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A540E and A540H)AT±196
