Page 2049 of 2389

TOYOTA CAMRY V20 1986 Service Information 2. CHECK OIL CLEARANCE OF THIRD AND FOURTH GEAR Using dial indicator, measure the oil clearance between the gear and shaft. Standard clearance: 3rd gear 0.009 ± 0.053 mm (0.0004 ± 0.0020 in.) 4th ge

Page 2050 of 2389

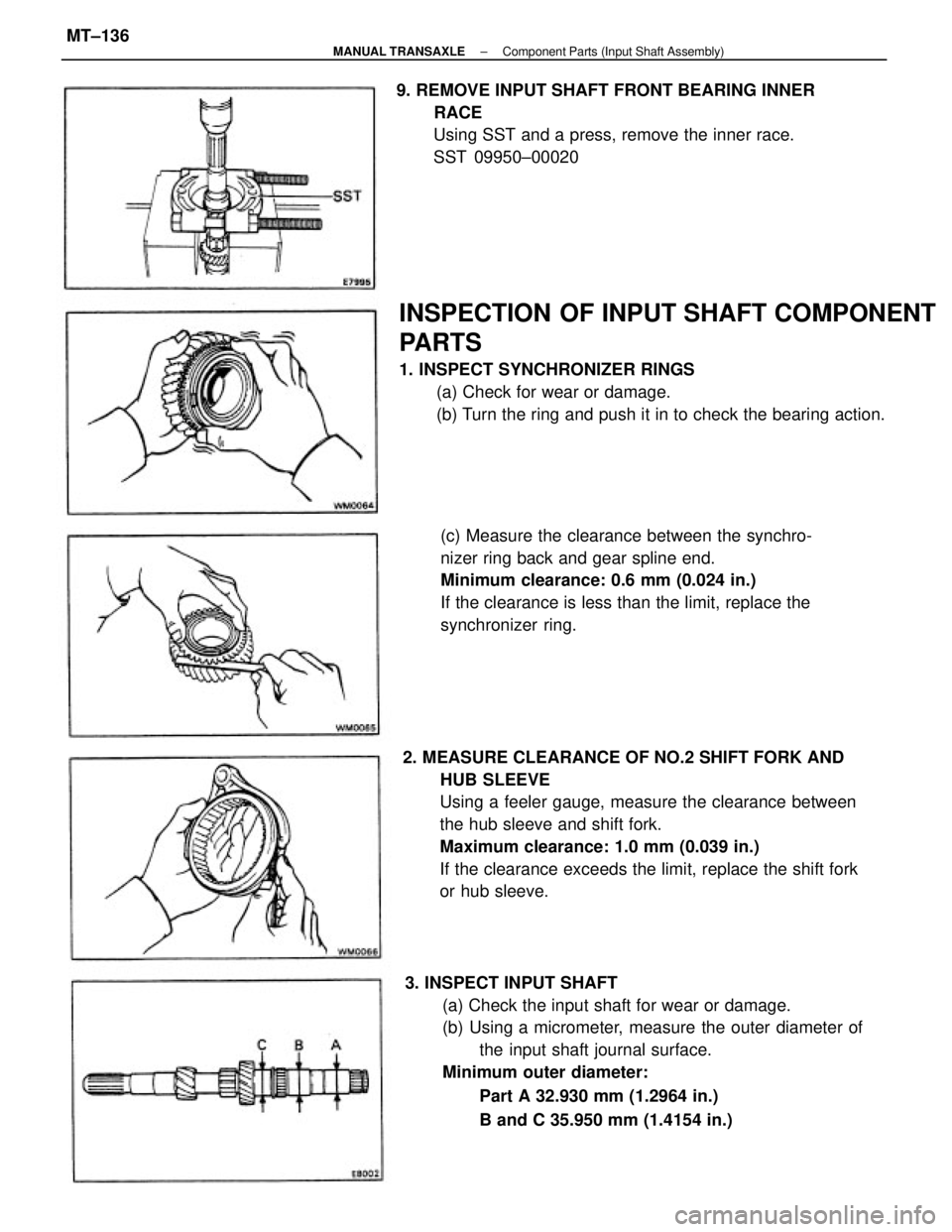

TOYOTA CAMRY V20 1986 Service Information 2. MEASURE CLEARANCE OF NO.2 SHIFT FORK AND HUB SLEEVE Using a feeler gauge, measure the clearance between the hub sleeve and shift fork. Maximum clearance: 1.0 mm (0.039 in.) If the clearance exceeds

Page 2051 of 2389

TOYOTA CAMRY V20 1986 Service Information ASSEMBLY OF INPUT SHAFT ASSEMBLY (See page MT±134) HINT: Coat all the sliding and rotating surface with gear oil b¿¿ore assembly. 1. INSERT NO.2 CLUTCH HUB SLEEVE (a) Install the clutch hub and shi

Page 2052 of 2389

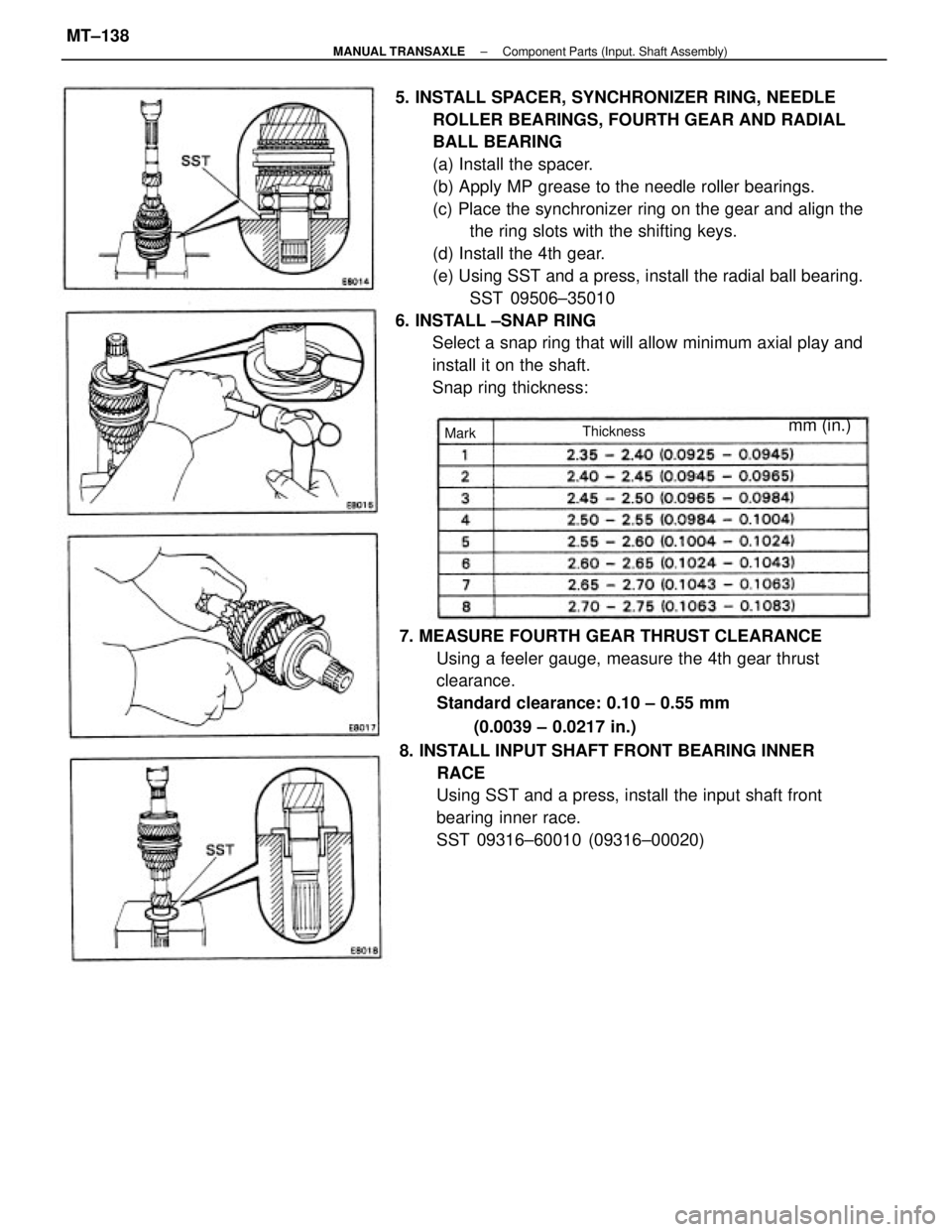

TOYOTA CAMRY V20 1986 Service Information 5. INSTALL SPACER, SYNCHRONIZER RING, NEEDLE ROLLER BEARINGS, FOURTH GEAR AND RADIAL BALL BEARING (a) Install the spacer. (b) Apply MP grease to the needle roller bearings. (c) Place the synchronizer

Page 2053 of 2389

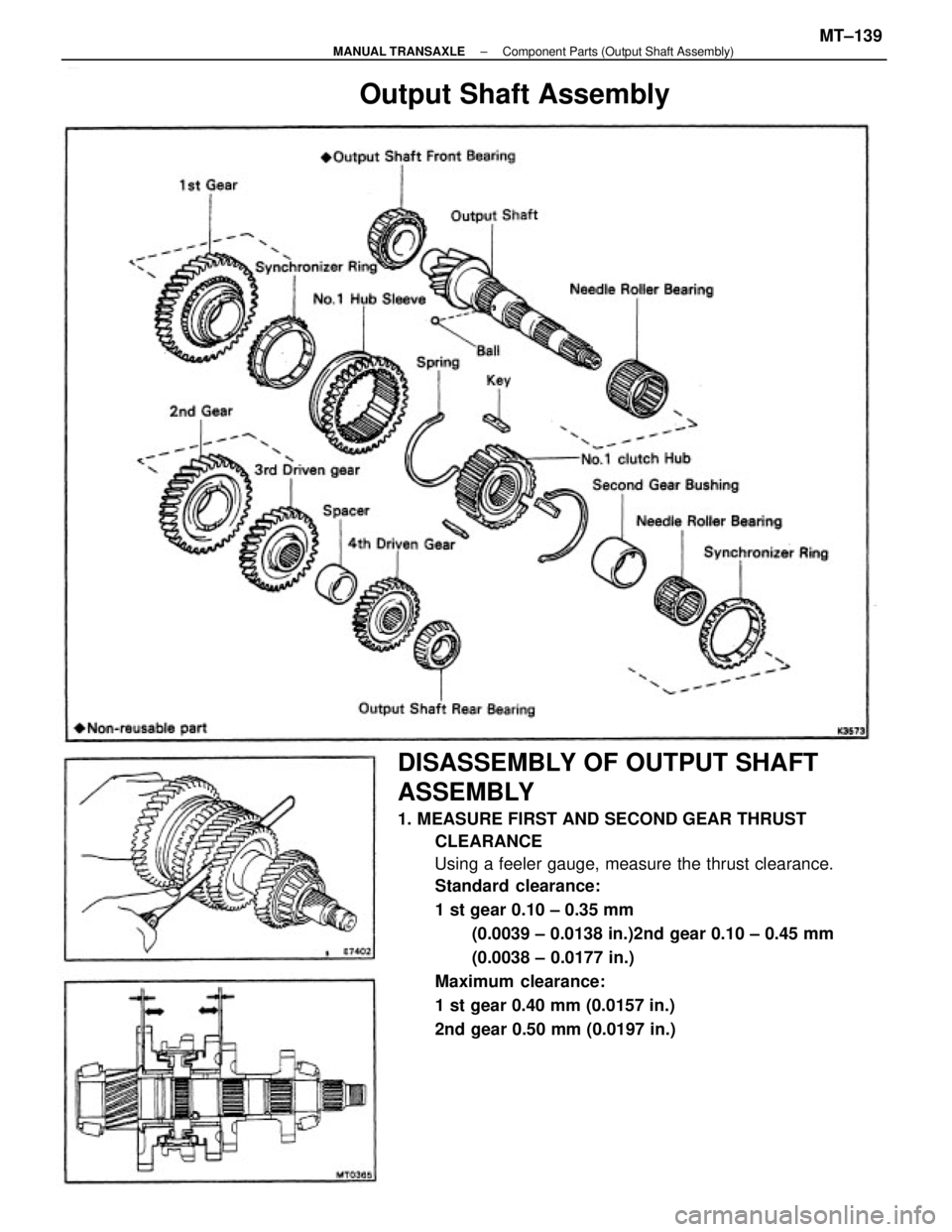

TOYOTA CAMRY V20 1986 Service Information DISASSEMBLY OF OUTPUT SHAFT ASSEMBLY 1. MEASURE FIRST AND SECOND GEAR THRUST CLEARANCE Using a feeler gauge, measure the thrust clearance. Standard clearance: 1 st gear 0.10 ± 0.35 mm (0.0039 ± 0.01

Page 2054 of 2389

TOYOTA CAMRY V20 1986 Service Information 2. CHECK OIL CLEARANCE OF FIRST AND SECOND GEAR Using dial indicator, measure the oil clearance between the gear and shaft. Standard clearance: 1st gear 0.009 ± 0.051 mm (0.0004 ± 0.0020 in.) 2nd ge

Page 2055 of 2389

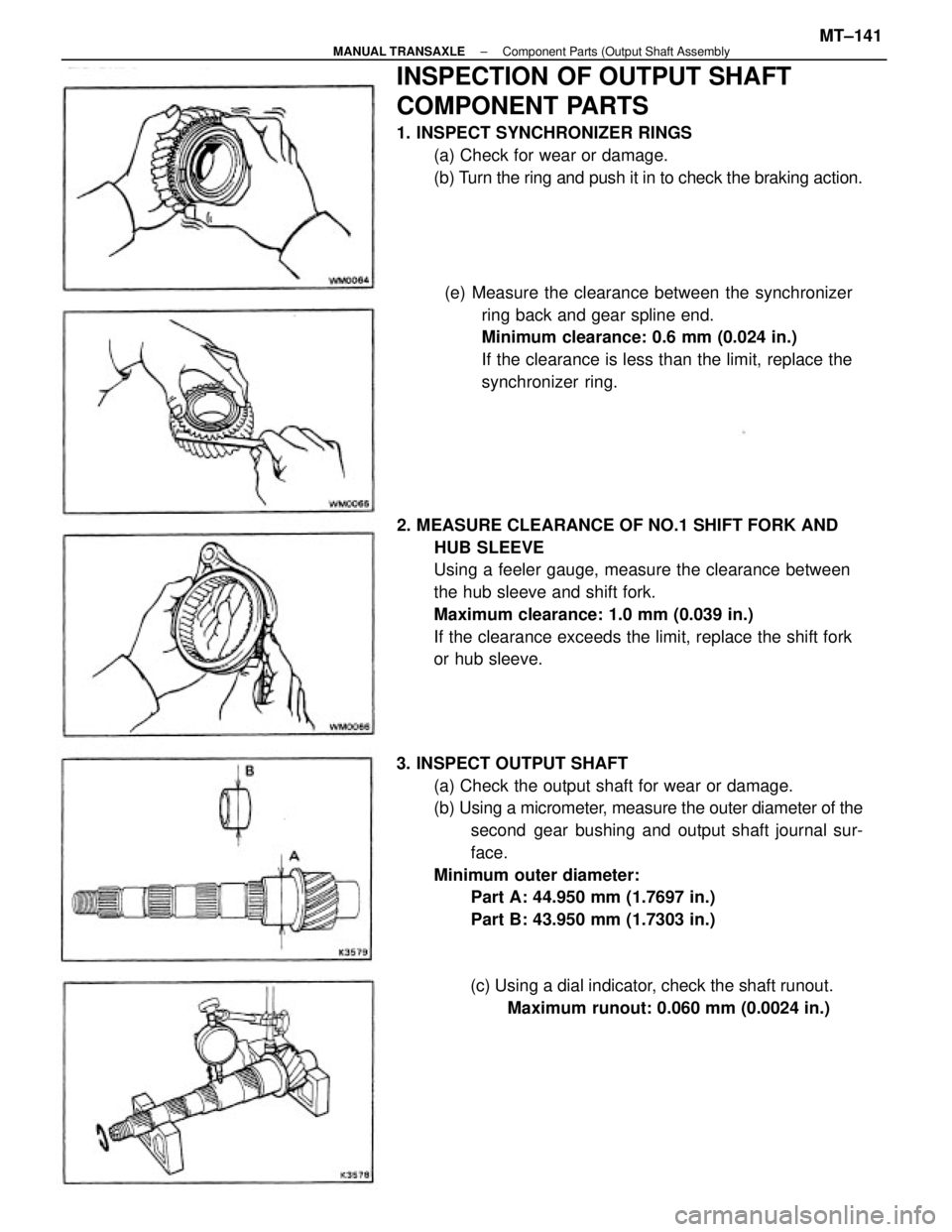

TOYOTA CAMRY V20 1986 Service Information 3. INSPECT OUTPUT SHAFT (a) Check the output shaft for wear or damage. (b) Using a micrometer, measure the outer diameter of the second gear bushing and output shaft journal sur- face. Minimum outer d

Page 2056 of 2389

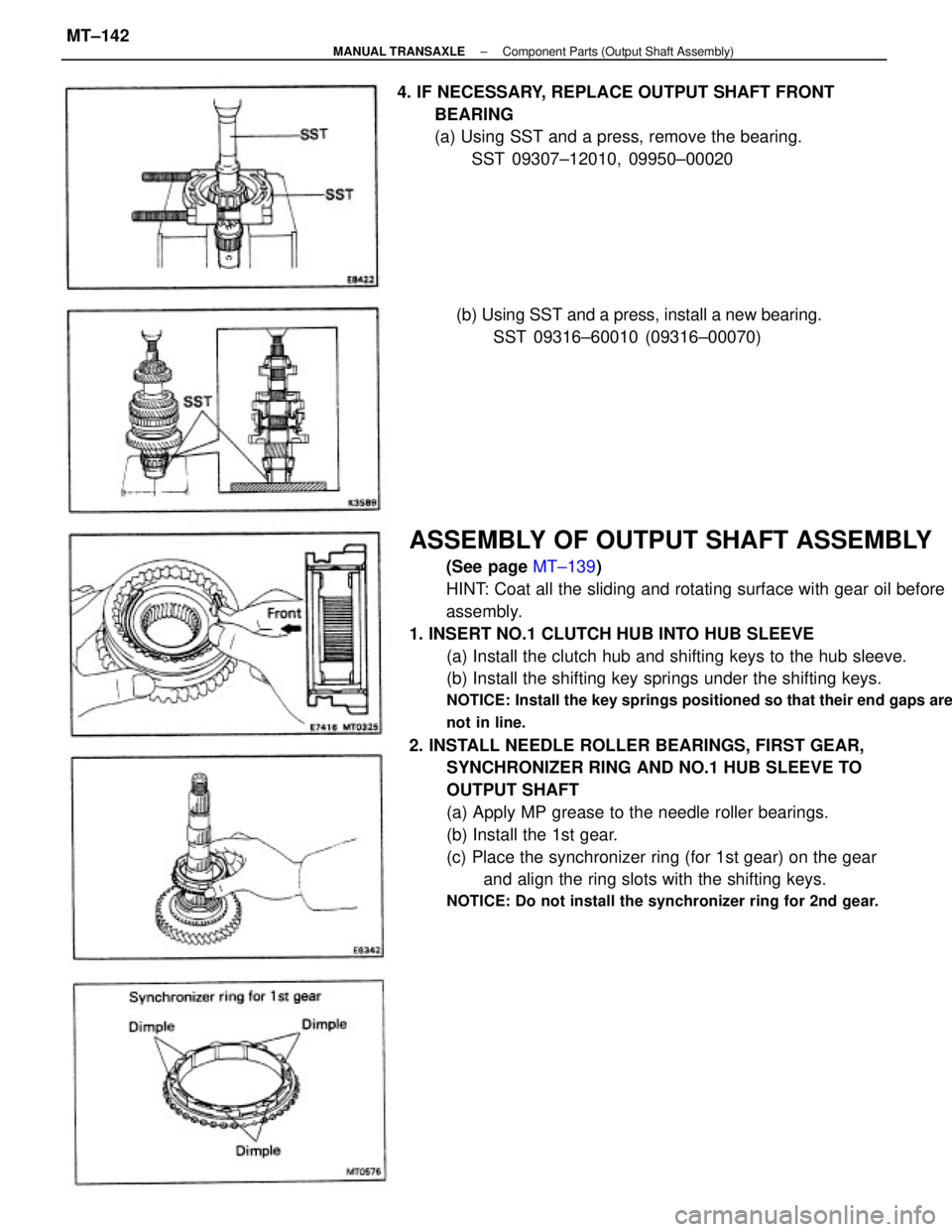

TOYOTA CAMRY V20 1986 Service Information ASSEMBLY OF OUTPUT SHAFT ASSEMBLY (See page MT±139) HINT: Coat all the sliding and rotating surface with gear oil before assembly. 1. INSERT NO.1 CLUTCH HUB INTO HUB SLEEVE (a) Install the clutch hub
