Page 2297 of 2389

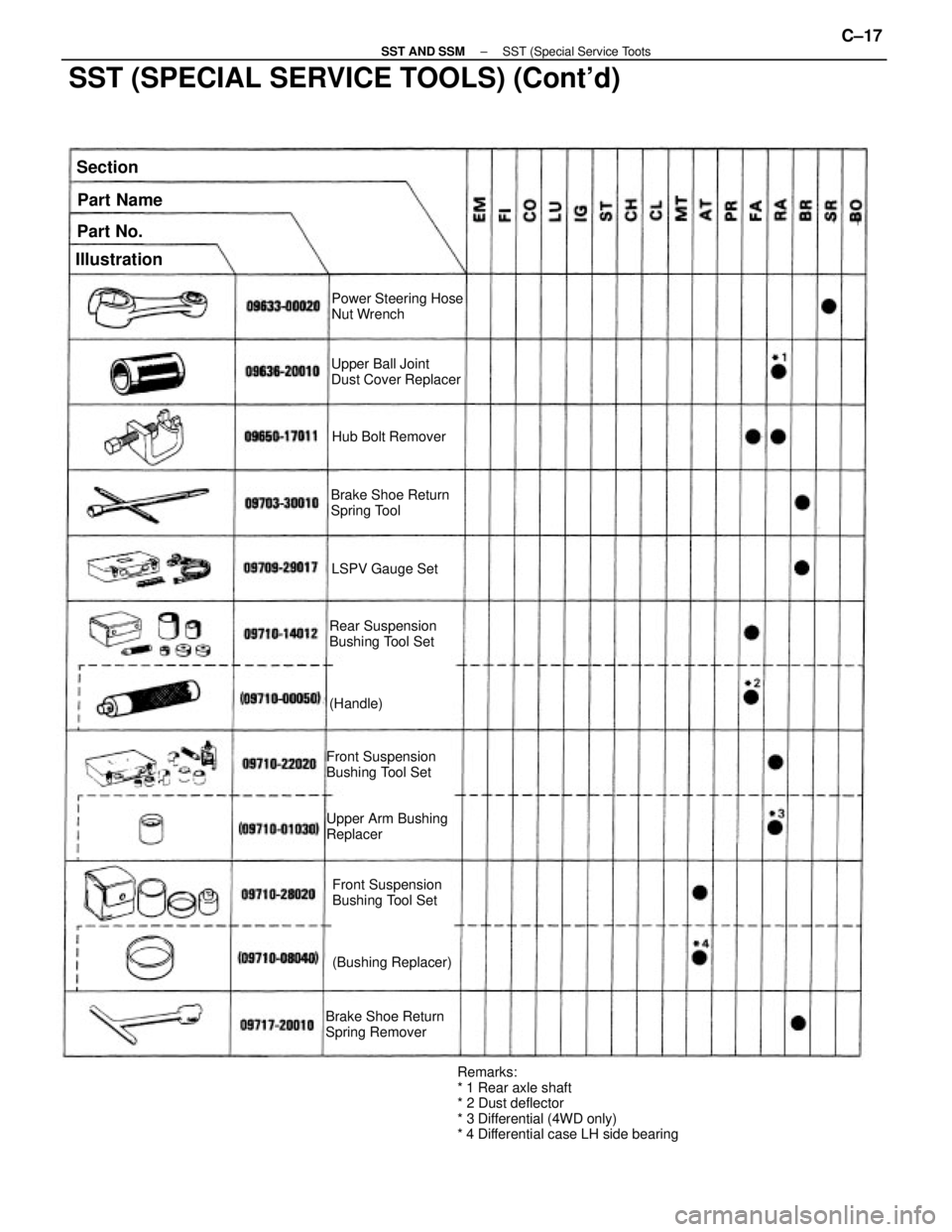

TOYOTA CAMRY V20 1986 Service Information SST (SPECIAL SERVICE TOOLS) (Contd) Remarks: * 1 Rear axle shaft * 2 Dust deflector * 3 Differential (4WD only) * 4 Differential case LH side bearing Front Suspension Bushing Tool Set Upper Arm Bushi

Page 2298 of 2389

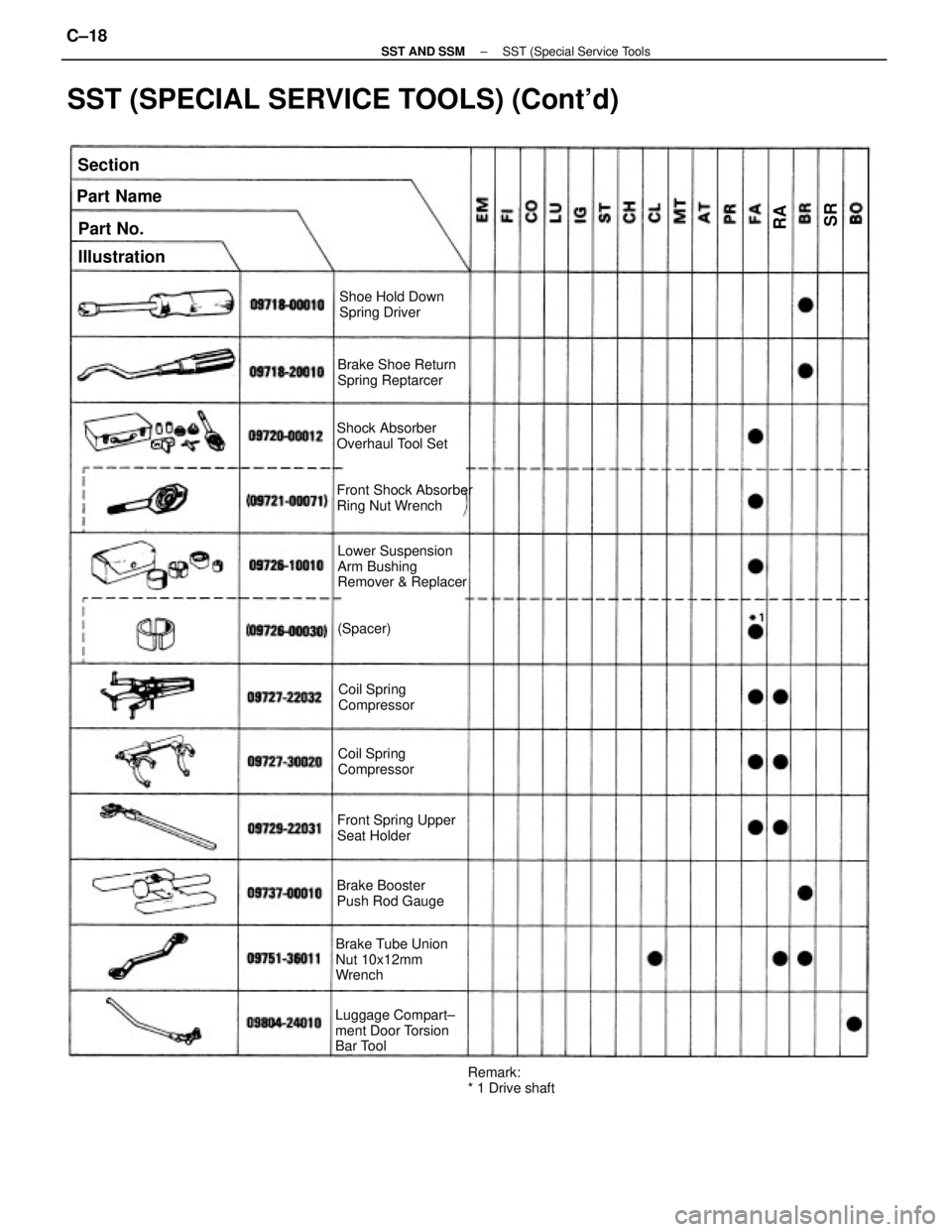

TOYOTA CAMRY V20 1986 Service Information SST (SPECIAL SERVICE TOOLS) (Contd) Shock Absorber Overhaul Tool Set Front Shock Absorber Ring Nut Wrench Lower Suspension Arm Bushing Remover & Replacer (Spacer) Brake Tube Union Nut 10x12mm Wrench

Page 2299 of 2389

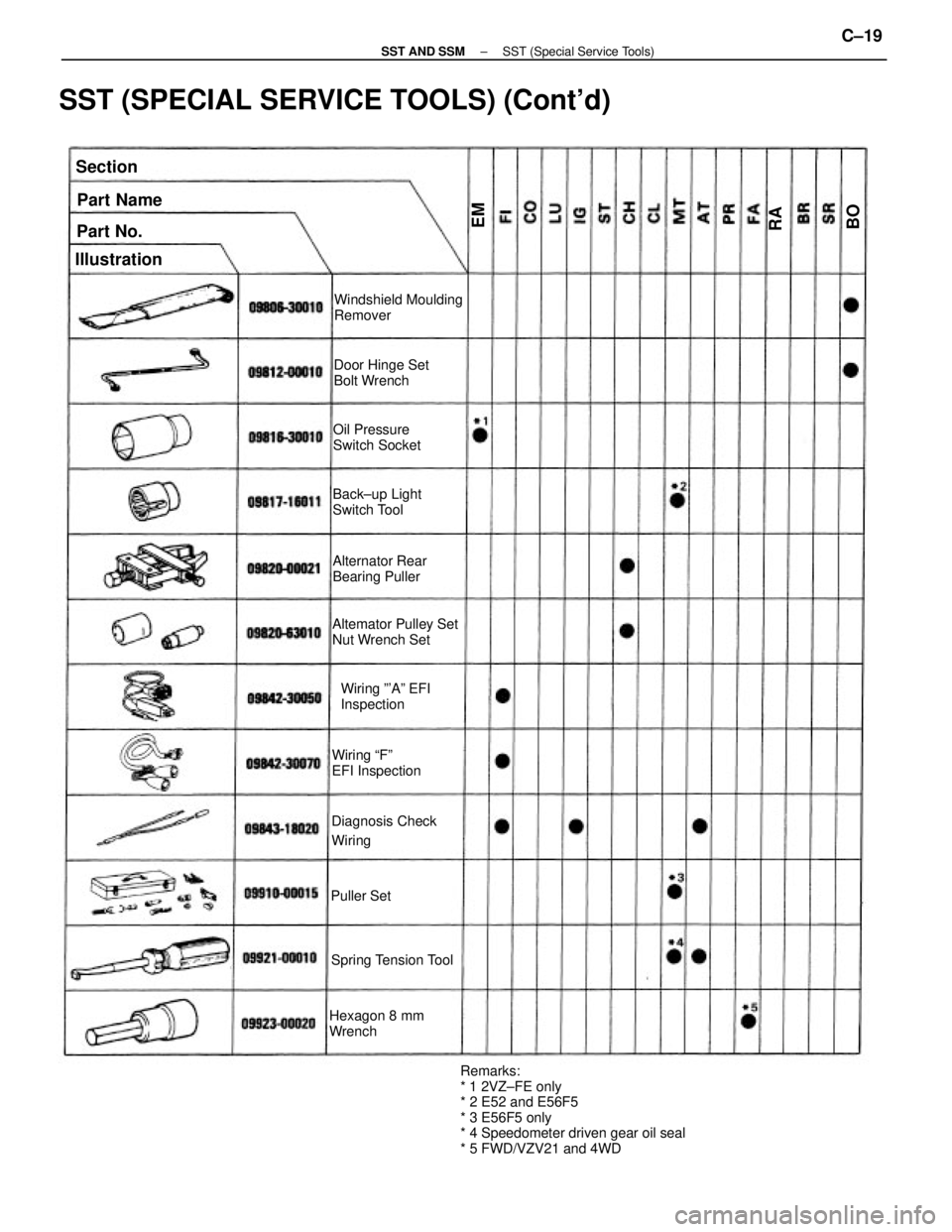

TOYOTA CAMRY V20 1986 Service Information SST (SPECIAL SERVICE TOOLS) (Contd) Remarks: * 1 2VZ±FE only * 2 E52 and E56F5 * 3 E56F5 only * 4 Speedometer driven gear oil seal * 5 FWD/VZV21 and 4WD Windshield Moulding Remover Altemator Pulley

Page 2300 of 2389

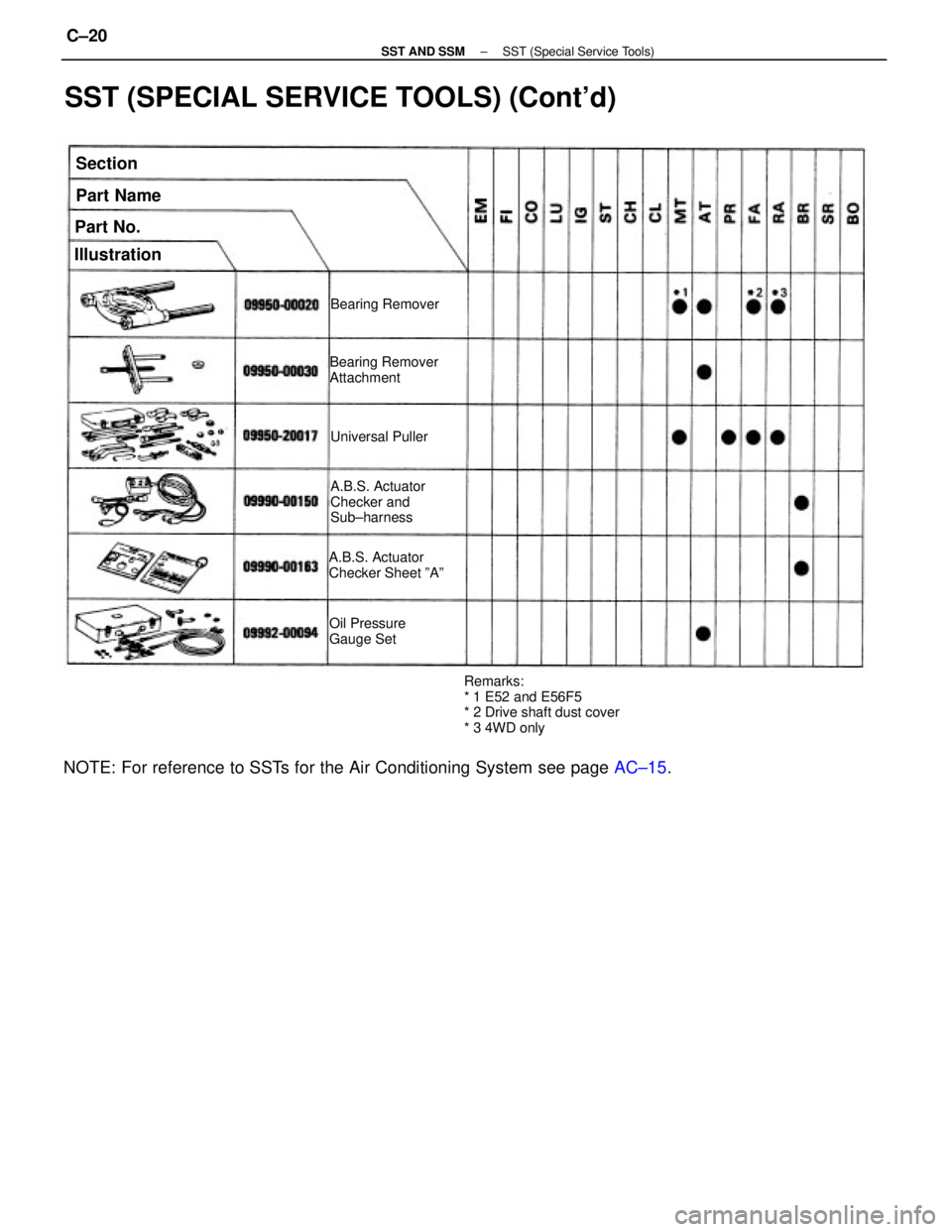

TOYOTA CAMRY V20 1986 Service Information SST (SPECIAL SERVICE TOOLS) (Contd) NOTE: For reference to SSTs for the Air Conditioning System see page AC±15. Remarks: * 1 E52 and E56F5 * 2 Drive shaft dust cover * 3 4WD only A.B.S. Actuator Che

Page 2301 of 2389

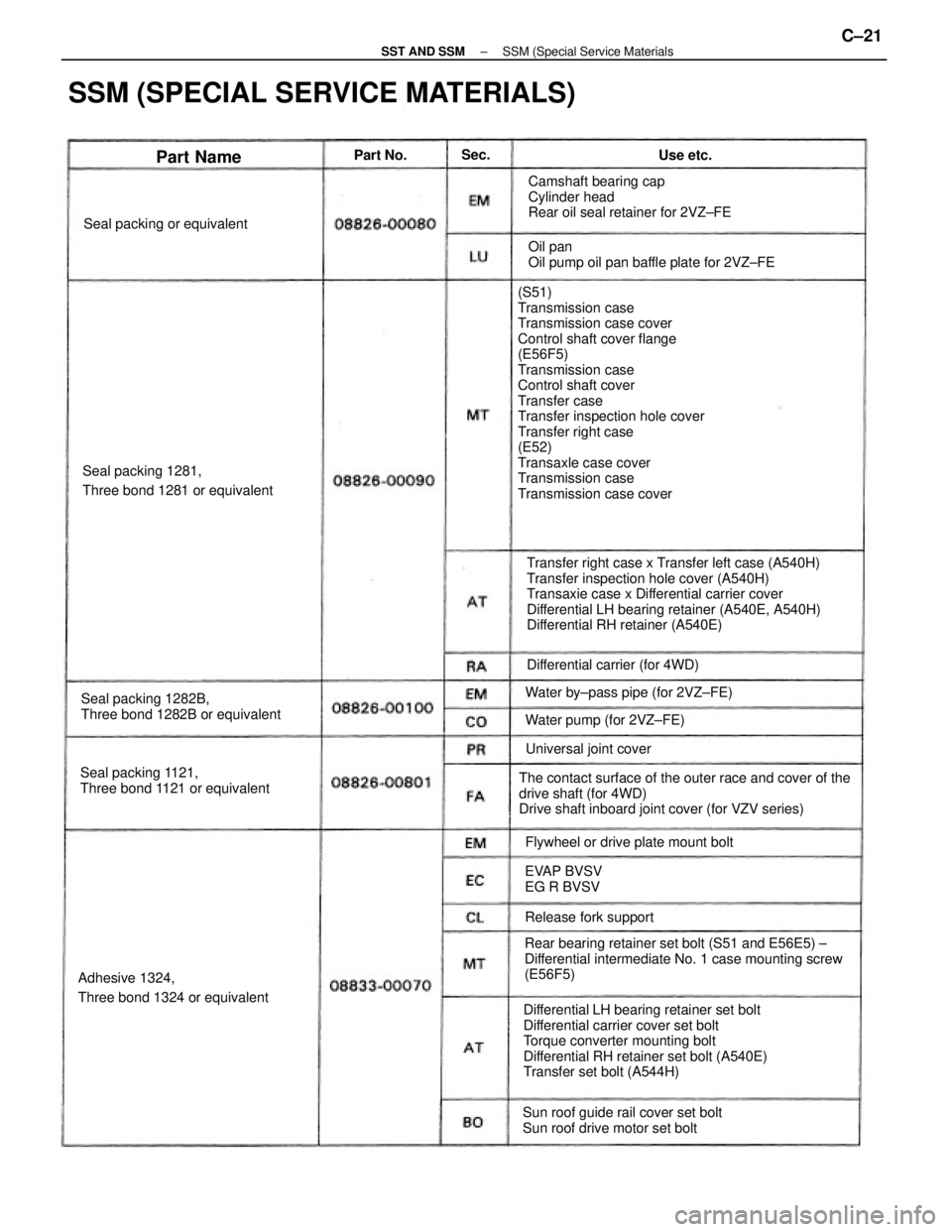

TOYOTA CAMRY V20 1986 Service Information (S51) Transmission case Transmission case cover Control shaft cover flange (E56F5) Transmission case Control shaft cover Transfer case Transfer inspection hole cover Transfer right case (E52) Transaxl

Page 2302 of 2389

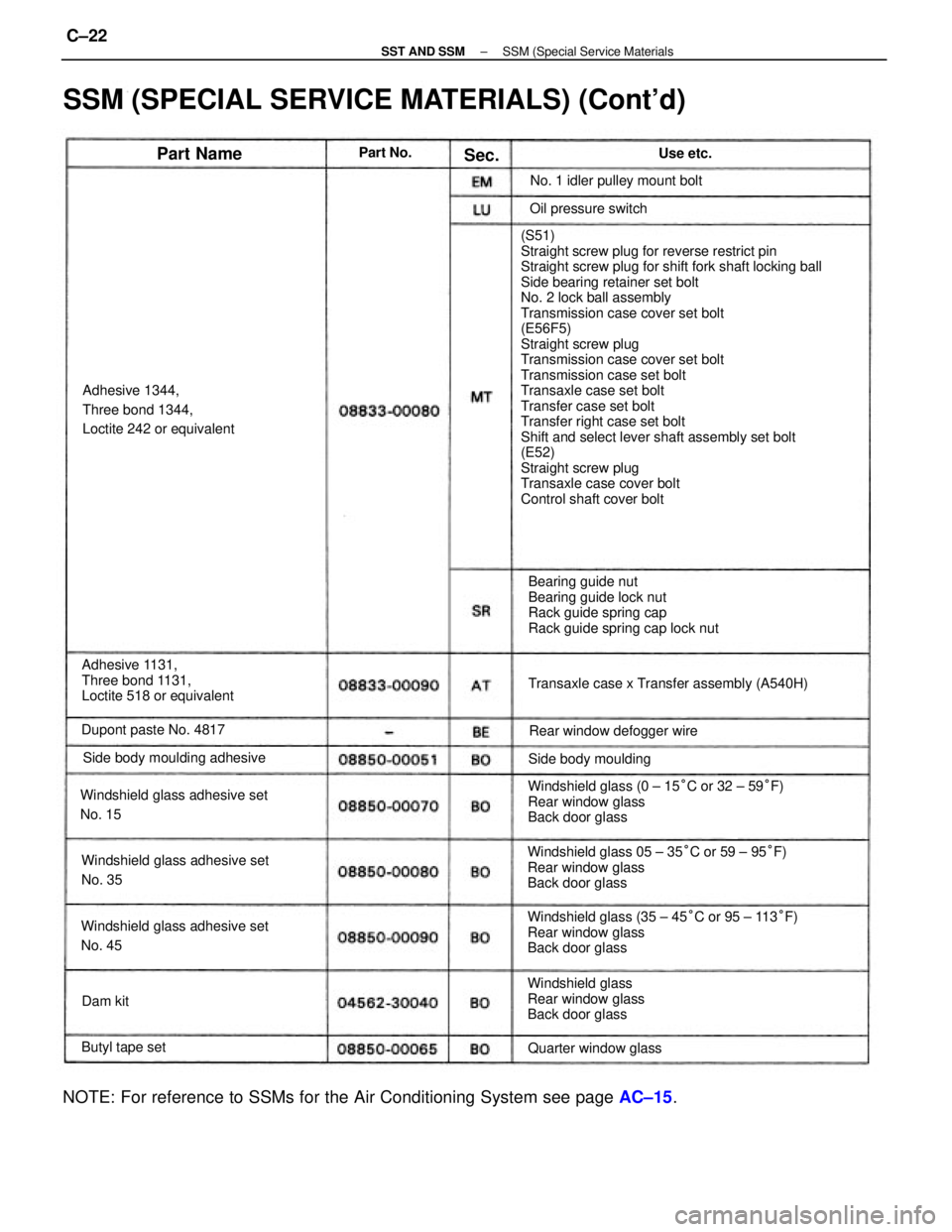

TOYOTA CAMRY V20 1986 Service Information (S51) Straight screw plug for reverse restrict pin Straight screw plug for shift fork shaft locking ball Side bearing retainer set bolt No. 2 lock ball assembly Transmission case cover set bolt (E56F5

Page 2303 of 2389

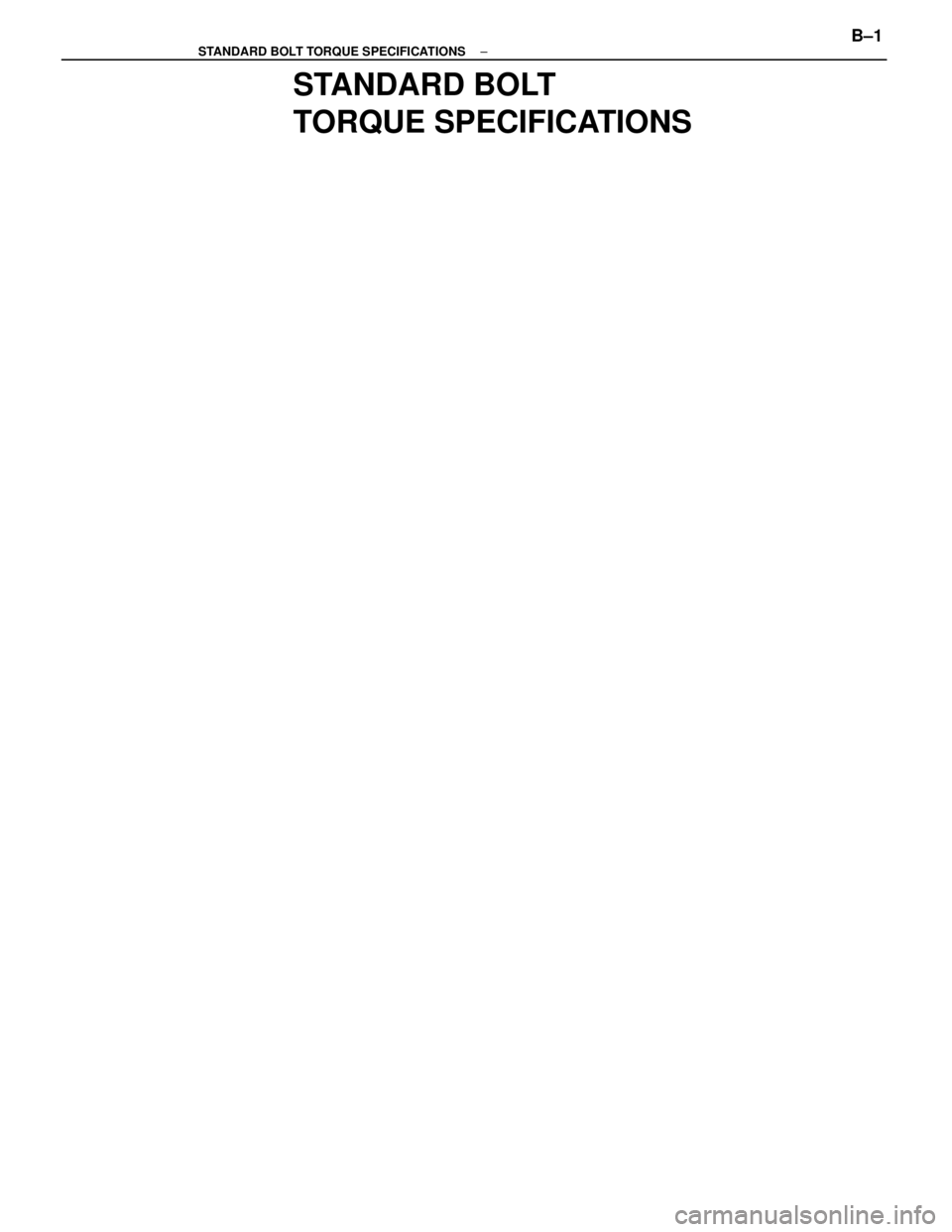

TOYOTA CAMRY V20 1986 Service Information STANDARD BOLT TORQUE SPECIFICATIONS ± STANDARD BOLT TORQUE SPECIFICATIONSB±1

Page 2304 of 2389

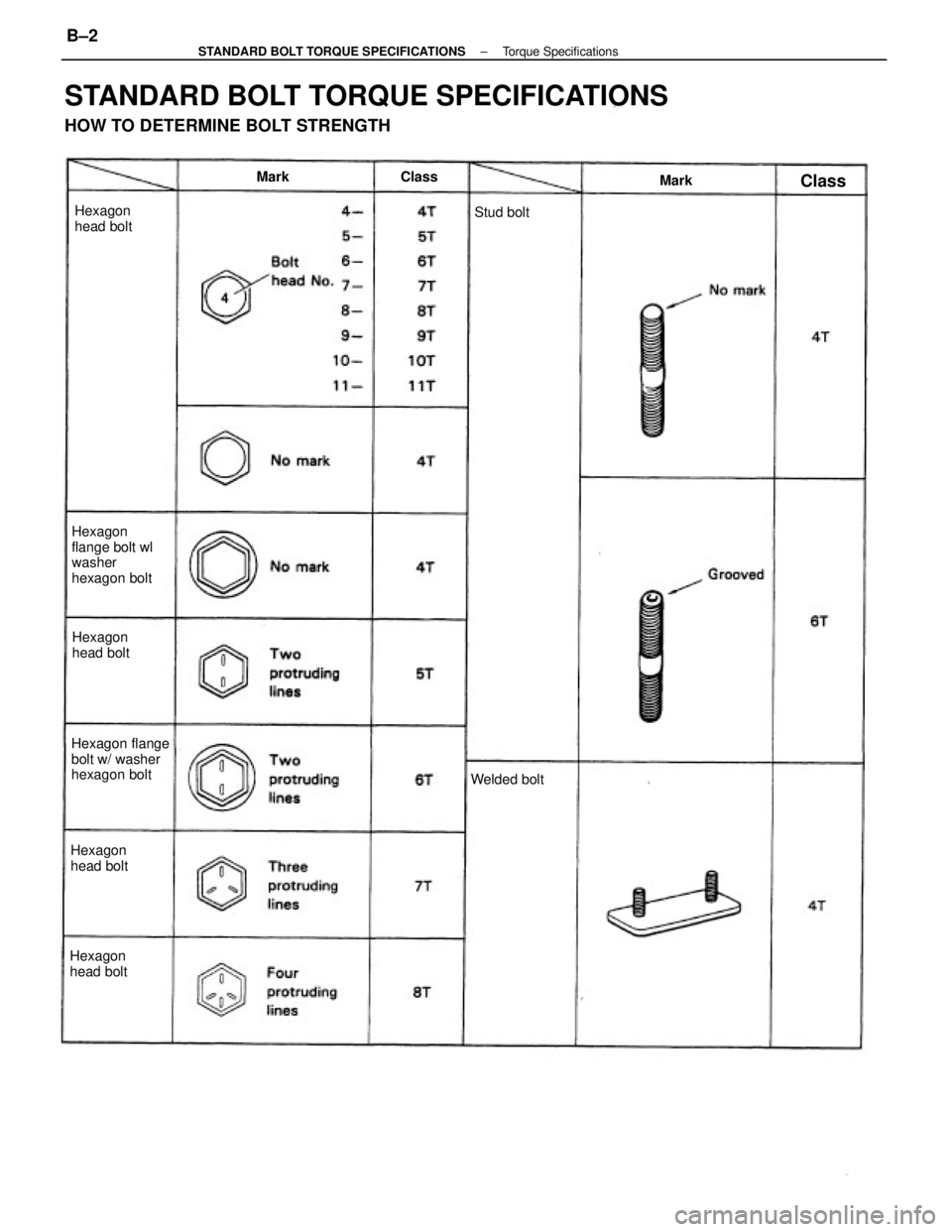

TOYOTA CAMRY V20 1986 Service Information STANDARD BOLT TORQUE SPECIFICATIONS HOW TO DETERMINE BOLT STRENGTH Hexagon flange bolt w/ washer hexagon boltHexagon flange bolt wl washer hexagon bolt Hexagon head boltHexagon head bolt Hexagon head
