Page 321 of 2389

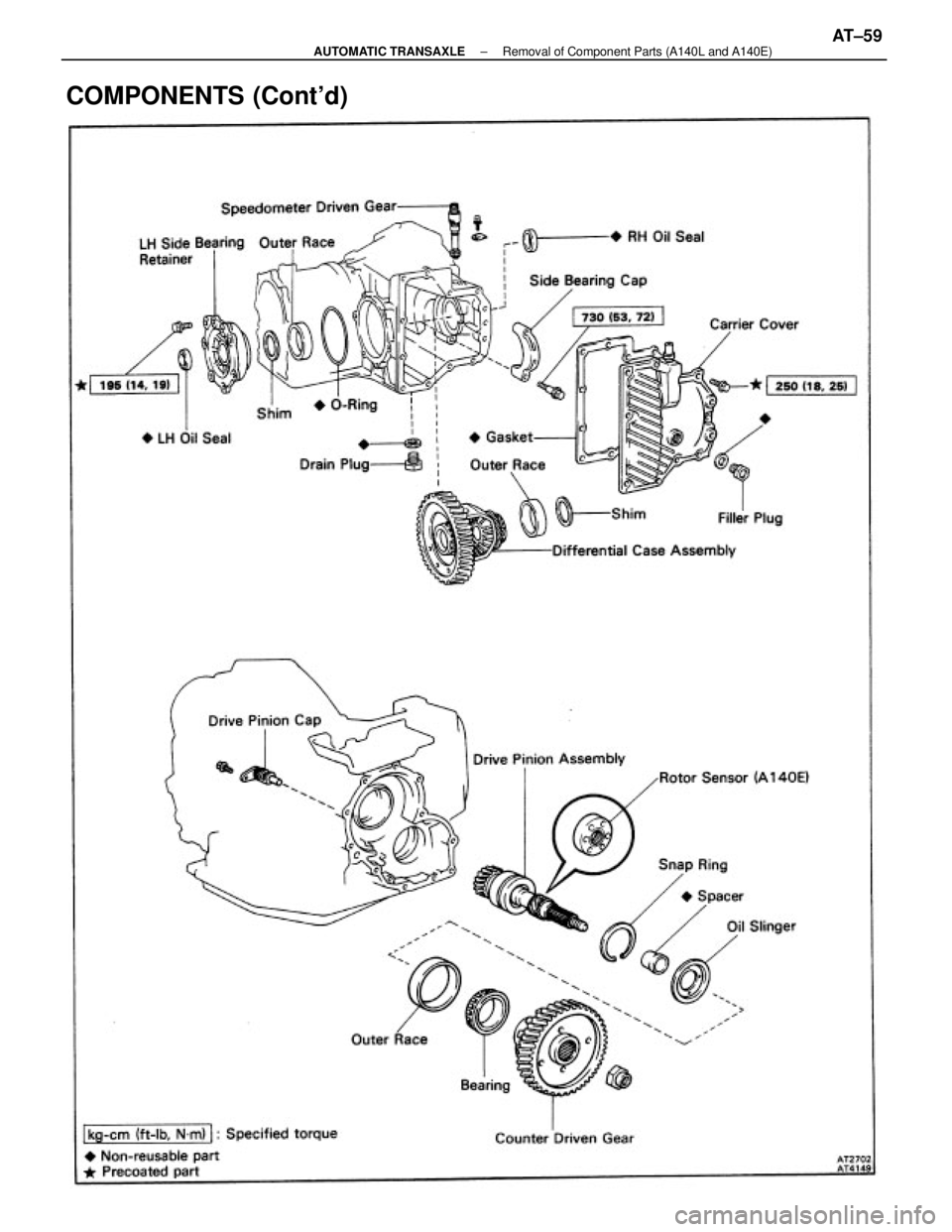

TOYOTA CAMRY V20 1986 Service Information COMPONENTS (Contd) ± AUTOMATIC TRANSAXLERemoval of Component Parts (A140L and A140E)AT±58

Page 322 of 2389

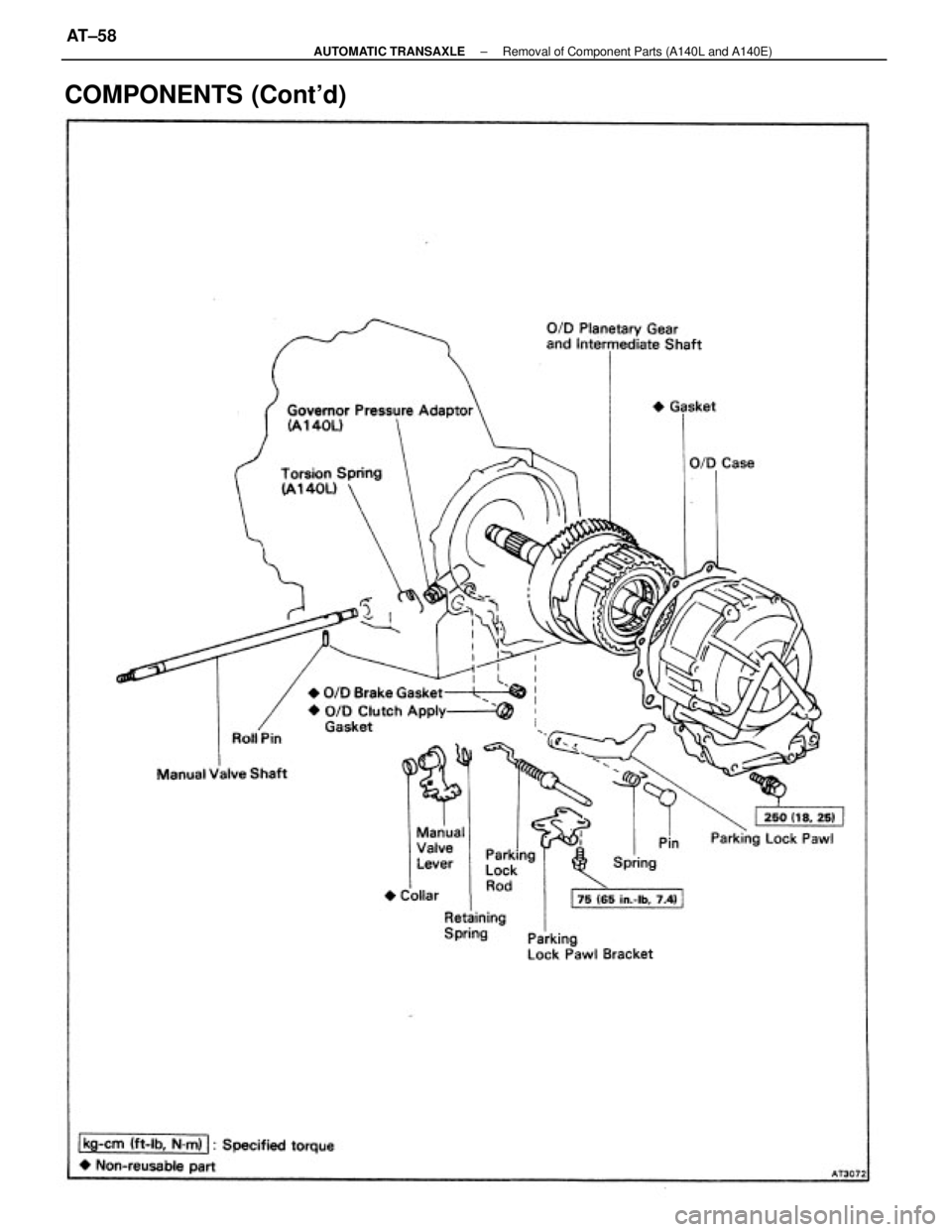

TOYOTA CAMRY V20 1986 Service Information COMPONENTS (Contd) ± AUTOMATIC TRANSAXLERemoval of Component Parts (A140L and A140E)AT±59

Page 323 of 2389

TOYOTA CAMRY V20 1986 Service Information 2. REMOVE NEUTRAL START SWITCH (a) Remove the manual shift lever. (b) Pry off the lock washer and remove the manual valve shaft nut. (c) Remove the two bolts and pull out the neutral start switch. SEP

Page 324 of 2389

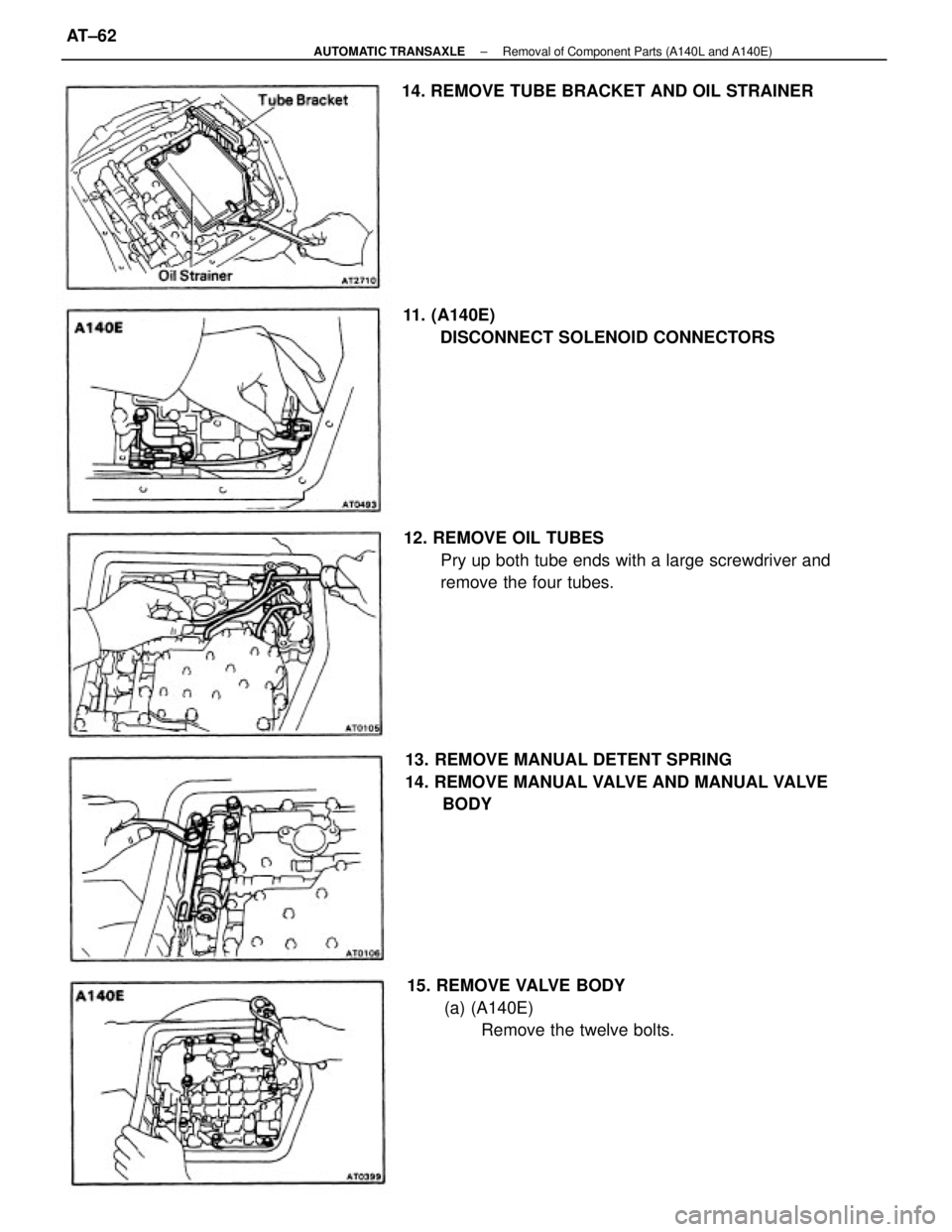

TOYOTA CAMRY V20 1986 Service Information 8. REMOVE OIL PAN AND GASKET (a) Remove the fifteen bolts. (b) Remove the oil pan by lifting transmission case. NOTICE: Do not turn the transmission over as this will con- taminate the valve body with

Page 325 of 2389

TOYOTA CAMRY V20 1986 Service Information 13. REMOVE MANUAL DETENT SPRING 14. REMOVE MANUAL VALVE AND MANUAL VALVE BODY 12. REMOVE OIL TUBES Pry up both tube ends with a large screwdriver and remove the four tubes. 11. (A140E) DISCONNECT SOLE

Page 326 of 2389

TOYOTA CAMRY V20 1986 Service Information 18. REMOVE ACCUMULATOR PISTON AND SPRINGS (a) Loosen the five bolts one turn at a time until the spring tension is released. (b) Remove the cover and gasket. 17. REMOVE SECOND BRAKE APPLY GASKET AND G

Page 327 of 2389

TOYOTA CAMRY V20 1986 Service Information (b) Using SST, measure the piston stroke applying and re- leasing the compressed air (4 ± 8 kg/cm2, 57 ± 114 psi or 392 ± 785 kPa) as shown. SST 09240±00020 Piston stroke: 1.5 ± 3.0 mm (0.059 ±

Page 328 of 2389

TOYOTA CAMRY V20 1986 Service Information 22. REMOVE OIL PUMP AND DIRECT CLUTCH While holding the input shaft, grasp the pump stator shaft and pull the oil pump and direct clutch together out the transmission case. NOTICE: Push the 2nd coast
